TM60

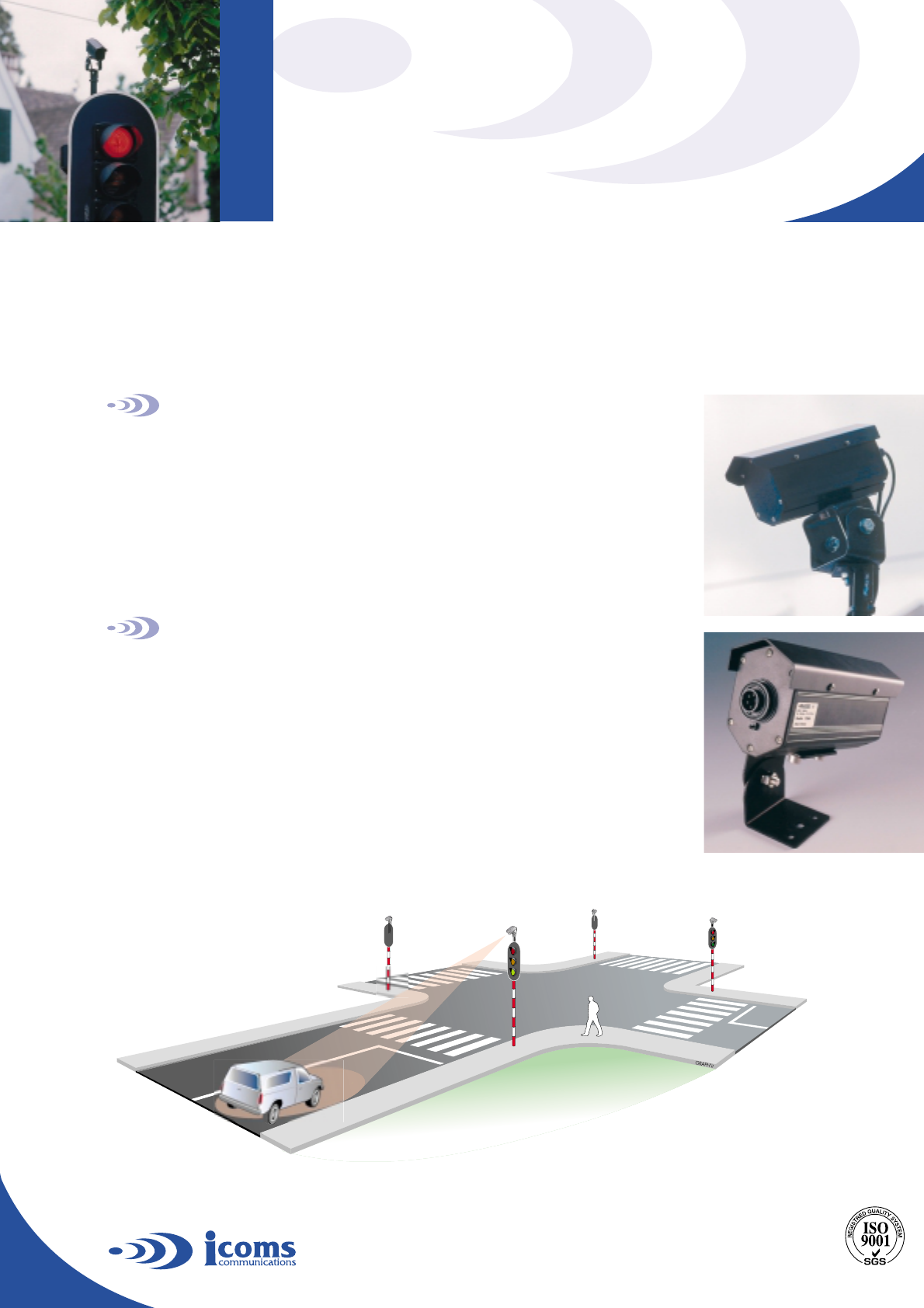

The TM60 microwave radar is designed to detect moving vehicles, for call or
extension of a signal phase. Compact and light, it is easy to install and doesn’t
require civil works nor disruption to traffic.
Comfort
>Environmental insensitivity : dust, heat, intense
cold, humidity, … have no influence on the
radar’s performances
>Cable connector at the rear
>No maintenance
>Delivered ready to install, i.e. including cable,
fixing support, screws and bolts
Safety
>Settings adjustable without dismantling
>Aluminium IP68 housing
>Operating temperature from - 40°C to + 75°C
TM60
Settings
>Sensitivity (size of detection zone)
>Minimum speed threshold for detection (from 1 to
16 km/h)
>Movement direction
Options
>Low voltage : TM60LV (12-24 VAC/VDC, 48 VDC or 110 VAC 50/60 Hz)
>Two directions detection
Specifications
>ISO9001/2000
>CE (electromagnetic compatibility and electrical safety)
>IBPT (Belgium) : agreement NoRTT/LR/X0163
>Ministerie van Verkeer en Rijkswaterstaat, Rijksdienst voor Radiocom-
municatie (Netherlands) : authorisation NoNL99100471
>Cetecom (Germany) :
>Deutsche Baumusterprüfbescheinigung, Registriernummer D801368L
>Konformitätszertifikat Nummer K801369L
>Highways Agency (Great Britain) : Statutory type approval
>BAKOM (Switzerland) : homologation No98.0324.YP
Technical data
TM60
Specifications subject to change without prior notice.
TML – UK 150402

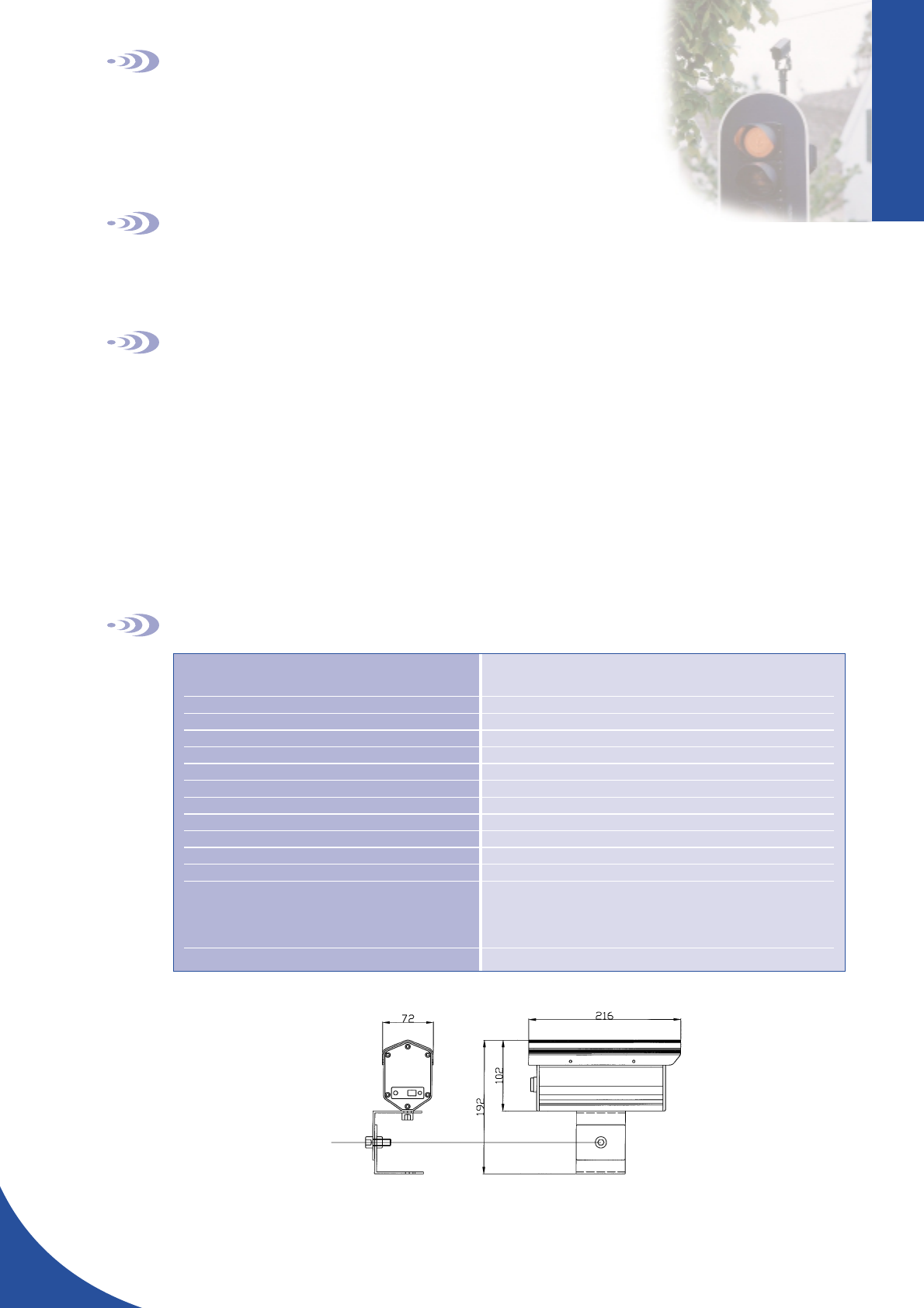

Detection range 60 m for a personal car (installation height of 4.5 m,
angle of 5°, sensitivity set on 3/4)
Range of detected speed From minimum detected speed to 160 km/h
Minimum detected speed Adjustable from 1 to 16 km/h
Frequency K-band : 24.1250 GHz
Transmission power 5 mW
Weight 950 g, excl. cable and mounting support
Dimensions 70 x 100 x 216 mm
Operating temperature From - 40°C to + 75°C
Degree of protection IP68, EN 50102 (IK)
Power supply 220 VAC +/- 10 % - 50/60 Hz
Power consumption < 1 VA
Hold time of relay 0.5 sec
User output Inverter relay contact
Resistive load : 110 V AC 0.5 A – 24 V DC 1A
Inductive load : 110 V AC 0.2 A – 24 V DC 0.3 A
LED visible on front face
Reaction time < 50 ms
