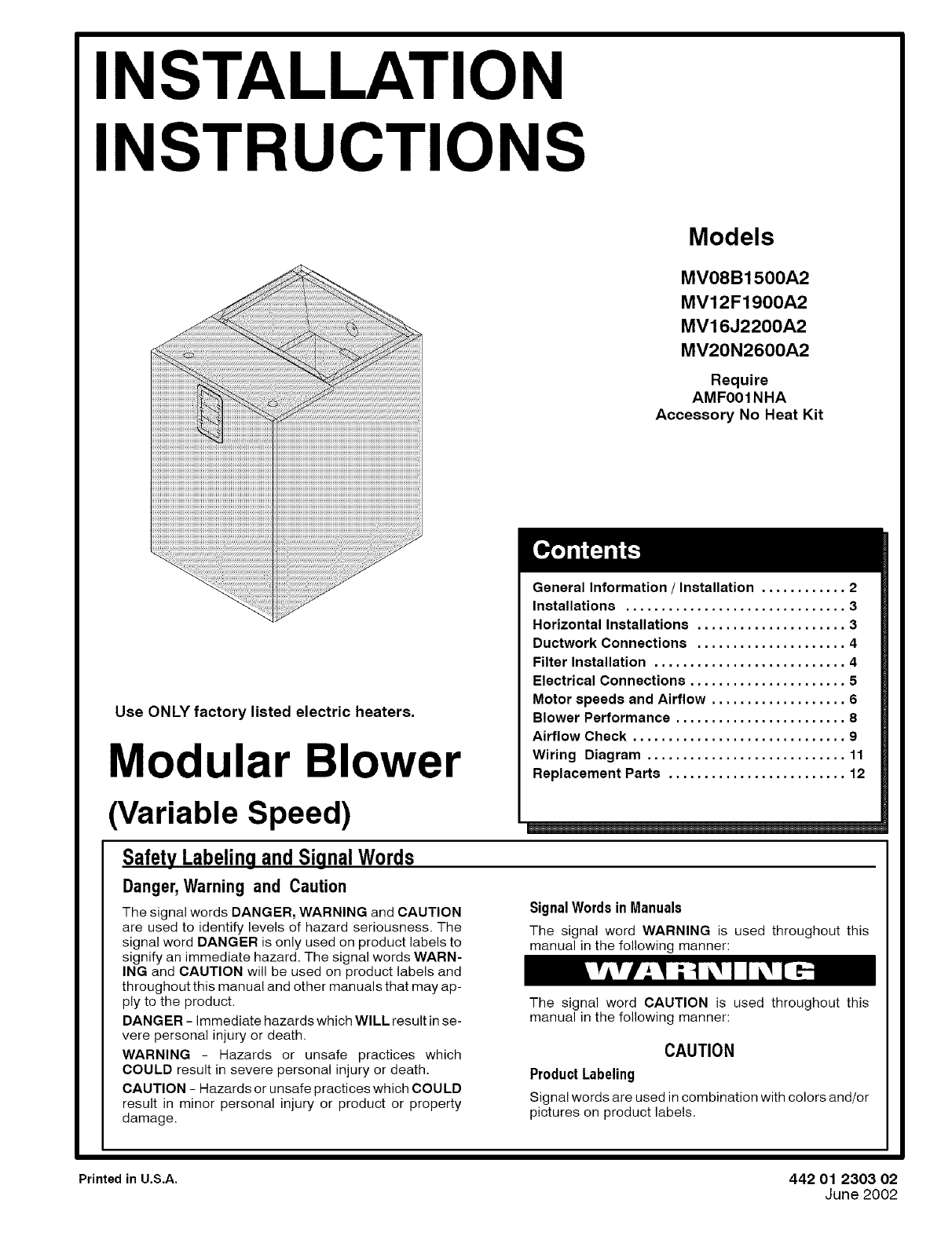

INSTALLATION
INSTRUCTIONS
Models
MV08B1500A2
MV12F1900A2
MV16J2200A2
MV20N2600A2
Require
AMF001NHA
Accessory No Heat Kit
Use ONLY factory listed electric heaters.
Modular Blower
(Variable Speed)
General Information /Installation ............ 2
Installations ............................... 3
Horizontal Installations ..................... 3
Ductwork Connections ..................... 4
Filter Installation ........................... 4
Electrical Connections ...................... 5

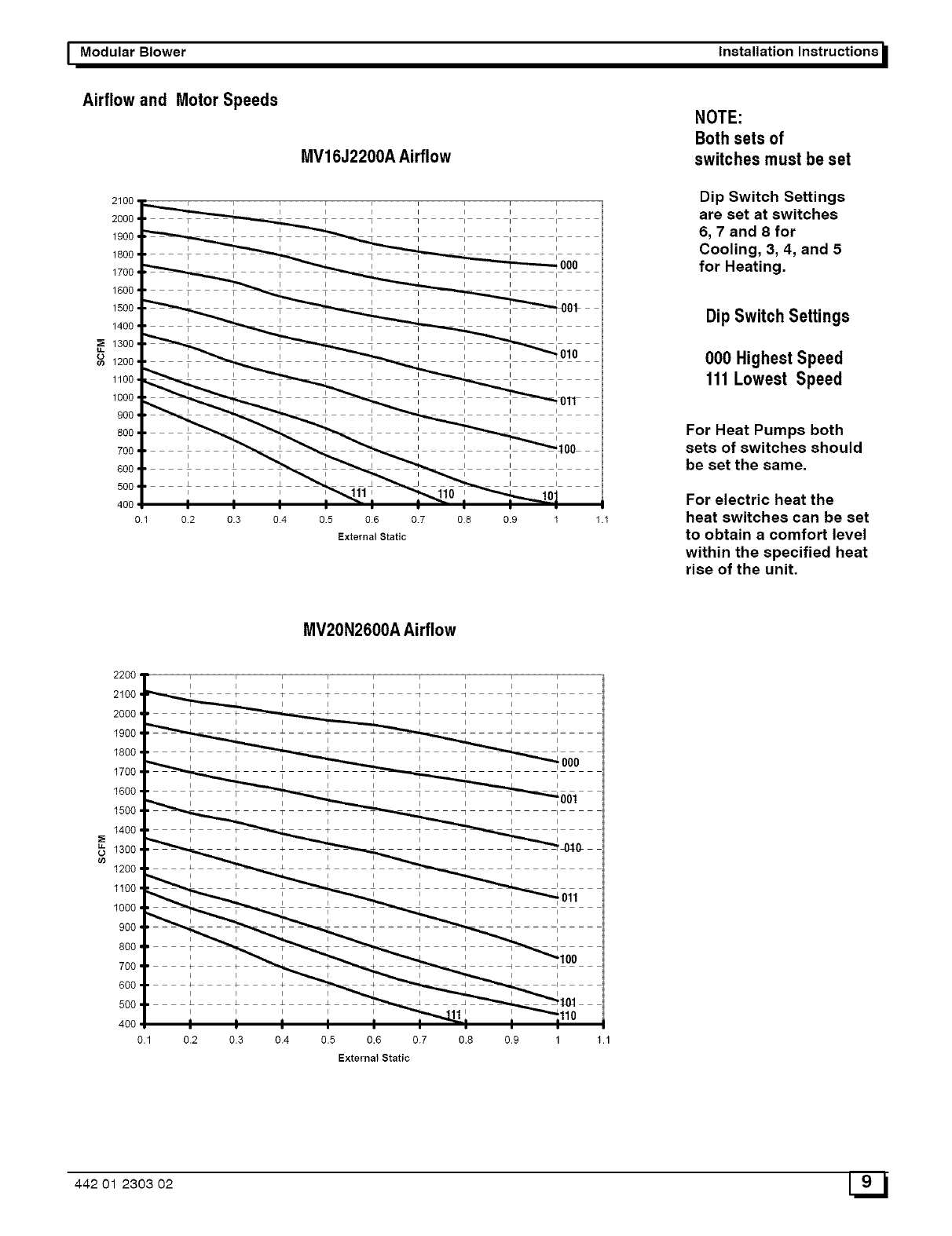

Motor speeds and Airflow ................... 6
Blower Performance ........................ 8
Airflow Check .............................. 9
Wiring Diagram ............................ 11
Replacement Parts ......................... 12
Safety Labelingand Signal Words
Danger,Warning and Caution
The signal words DANGER, WARNING and CAUTION
are used to identify levels of hazard seriousness. The
signal word DANGER is only used on product labels to
signify an immediate hazard. The signal words WARN-
ING and CAUTION will be used on product labels and
throughout this manual and other manuals that may ap-
ply to the product.
DANGER - immediate hazards which WILL result in se-
vere personal injury or death.
WARNING - Hazards or unsafe practices which
COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which COULD
result in minor personal injury or product or property
damage.
Signal Words in Manuals
The signal word WARNING is used throughout this
manual in the following manner:
The signal word CAUTION is used throughout this
manual in the following manner:
CAUTION
Product Labeling
Signal words are used in combination with colors and/or
pictures on product labels.
Printed in U.S.A. 442 01 2303 02
June 2002
_Installation Instructions
Figuie Nominal Installation Dimensions and Clearances
Modular Blower I
38-20-17
LowVoltage
Entrance
14-1/2" (11/2- 3Ton) MV08
17-3/4" (11/2- 3Ton) MV12
21-3/8 '' (2 -4 Ton) MV16
25" ;Ton) MV20
24"
CLEARANCES
NO HEATERS
All Sides .................................. 0"
From Supply Duct .......................... 0"
Recommended Service From Front .......... 20"
(Service for blower, filter if installed)
WITH HEATERS
All Sides .................................. 0"
From First Three
Feet of Supply Duct to Combustibles ........ 1"
From Duct after Three Feet ................. 0"
Recommended Service From Front .......... 20"
(Service for blower, heaters if installed)
/
15-1/2'' (11/2-3 Ton) MV08
19-1/8'' (11/2- 3Ton) MV12
22-3/4'' (2- 4 Ton MV16
26-3/8'' (31/2 -5 Ton) MV20
Bottom Return Air Opening
14-3/8" X 20" MV08
18" x 20" MV12
21-5/e'x20" MV16
25-1/4 '' x 20 MV20
Fire Hazard
When heaters are installed maintain clear-
ances from combustible materials as speci-
fied on unit rating plate. Do not use plastic
lined or combustible flexible ducting within 36
inches of the supply end of the air handler.
Failure to do so can result in fire, property
damage, personal injury and/or death.
GeneralInformation
Installation or repairs made by unqualified persons can
result in hazards to you and others. Installation MUST
conform with local building codes and with the
National Electrical Code NFPA70 current edition.
The information contained in this manual is intended
for use by a qualified service technician familiar with
safety procedures and equipped with the proper tools
and test instruments.
Failure to carefully read and follow all instructions in
this manual can result in equipment malfunction,
property damage, personal injury and/or death.
The blower cabinet may be used for cooling or heat pump
operation with or without electric heat. Installations without
electric heat, require a No Heat Kit. The cabinet can be installed in
an upflow, downflow or horizontal position (Figure 3, 4).
Location
Select the best position which suits the installation site conditions.
The location should provide adequate structural support, space in
the front of the unit for service access, clearance for return air and
supply duct connections, space for refrigerant piping connections
and condensate drain line connections. If heaters are being
installed make sure adequate clearance is maintained from
supply ductwork, See Clearances and Warning in Figure 1.
Ifthe unit is located in an area of high humidity, nuisance sweating
of casing may occur. On these installations a wrap of 2" fiberglass
insulation with a vapor barrier should be used.
_J 442 01 2303 02
IModular Blower

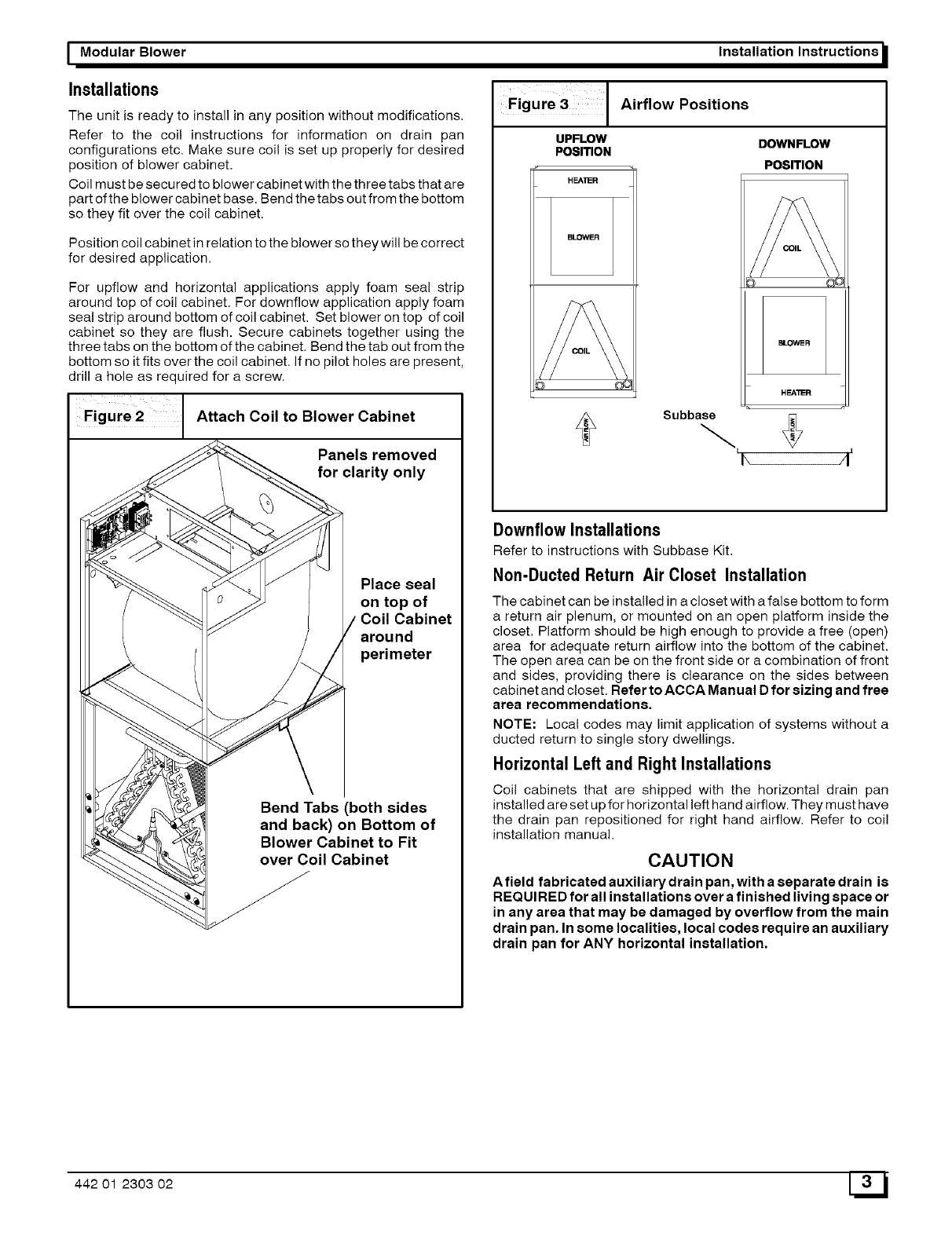

Installations
The unit is ready to install in any position without modifications.
Refer to the coil instructions for information on drain pan
configurations etc. Make sure coil is set up properly for desired
position of blower cabinet.
Coil must be secured to blower cabinet with the three tabs that are
part of the blower cabinet base. Bend the tabs out from the bottom
so they fit over the coil cabinet.
Position coil cabinet in relation to the blower so they will be correct
for desired application.
For upflow and horizontal applications apply foam seal strip
around top of coil cabinet. For downflow application apply foam
seal strip around bottom of coil cabinet. Set blower on top of coil
cabinet so they are flush. Secure cabinets together using the
three tabs on the bottom of the cabinet. Bend the tab out from the
bottom so it fits over the coil cabinet. If no pilot holes are present,
drill a hole as required for a screw.
Figule 2 1Attach Coil to Blower Cabinet
Panels removed
for clarity only
Place seal
on top of
Cabinet
around
perimeter
Bend Tabs (both sides
and back) on Bottom of
Blower Cabinet to Fit
over Coil Cabinet
Figure 3 J
UPFLOW
POSITION
HEAleR
Installation Instructions
Airflow Positions
DOWNFLOW
POSITION
HEA'_R
Subbase
i
4
Downflow Installations
Refer to instructions with Subbase Kit.
Non-DuctedReturn Air Closet Installation
The cabinet can be installed in a closet with a false bottom to form
a return air plenum, or mounted on an open platform inside the
closet. Platform should be high enough to provide a free (open)
area for adequate return airflow into the bottom of the cabinet.
The open area can be on the front side or a combination of front
and sides, providing there is clearance on the sides between
cabinet and closet. Refer to ACCA Manual D for sizing and free
area recommendations.
NOTE: Local codes may limit application of systems without a
ducted return to single story dwellings.
Horizontal Left and Right Installations
Coil cabinets that are shipped with the horizontal drain pan
installed are set up for horizontal left hand airflow. They must have
the drain pan repositioned for right hand airflow. Refer to coi!
installation manual.
CAUTION
Afield fabricated auxiliary drain pan, with a separate drain is
REQUIRED for all installations over a finished living space or
in any area that may be damaged by overflow from the main
drain pan. In some localities, local codes require an auxiliary
drain pan for ANY horizontal installation.
442 01 2303 02 3L_
_Installation Instructions

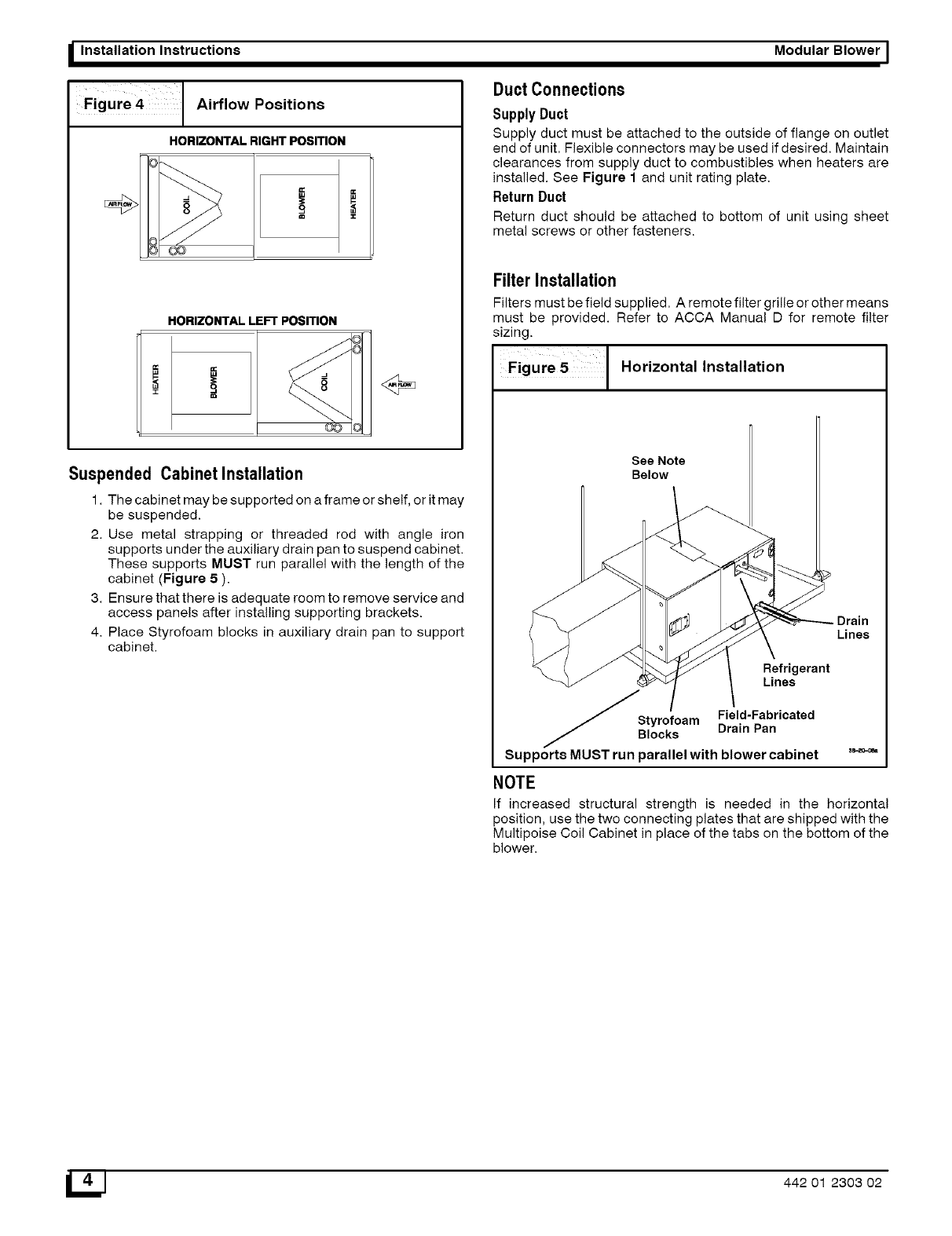

1Airflow Positions
HORIZONTAL RIGHT POSITION
HORIZONTAL LEFT POSITION
o'0
Suspended Cabinet Installation
1. The cabinet may be supported on a frame or shelf, or it may
be suspended.
2. Use metal strapping or threaded rod with angle iron
supports under the auxiliary drain pan to suspend cabinet.
These supports MUST run parallel with the length of the
cabinet (Figure 5).
3. Ensure that there is adequate room to remove service and
access panels after installing supporting brackets.
4. Place Styrofoam blocks in auxiliary drain pan to support
cabinet.
Modular Blower I
Duct Connections
Supply Duct
Supply duct must be attached to the outside of flange on outlet
end of unit, Flexible connectors may be used if desired. Maintain
clearances from supply duct to combustibles when heaters are
installed. See Figure 1 and unit rating plate.
Return Duct
Return duct should be attached to bottom of unit using sheet
metal screws or other fasteners.
FilterInstallation
Filters must be field supplied. A remote filter grille or other means
must be provided. Refer to ACCA Manual D for remote filter
sizing.
.o ,zon,a,
See Note
Below
Lines
Refrigerant
Lines
_Styrofoam Field-Fabricated
locks Drain Pan
Supports MUST run parallel with blower cabinet
NOTE
If increased structural strength is needed in the horizontal
position, use the two connecting plates that are shipped with the
Multipoise Coil Cabinet in place of the tabs on the bottom of the
blower.
_J 442 01 2303 02
I Modular Blower

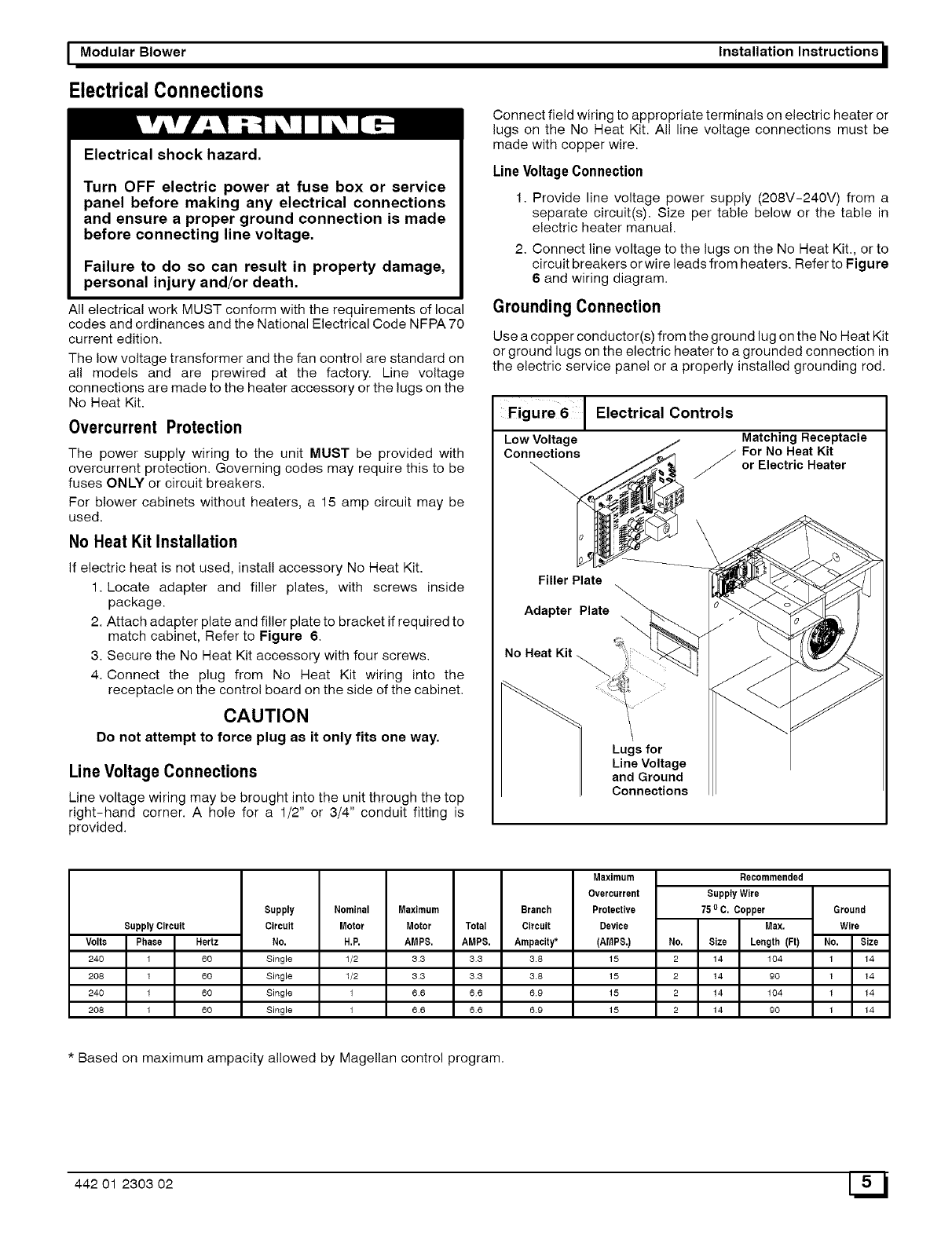

ElectricalConnections
Electrical shock hazard.
Turn OFF electric power at fuse box or service
panel before making any electrical connections
and ensure a proper ground connection is made
before connecting line voltage.
Failure to do so can result in property damage,
personal injury and/or death.
All electrical work MUST conform with the requirements of local
codes and ordinances and the National Electrical Code NFPA 70
current edition.
The low voltage transformer and the fan control are standard on
all models and are prewired at the factory. Line voltage
connections are made to the heater accessory or the lugs on the
No Heat Kit.
Overcurrent Protection
The power supply wiring to the unit MUST be provided with
overcurrent protection. Governing codes may require this to be
fuses ONLY or circuit breakers.
For blower cabinets without heaters, a 15 amp circuit may be
used.
No Heat Kit Installation
If electric heat is not used, install accessory No Heat Kit.
1. Locate adapter and filler plates, with screws inside
package.
2. Attach adapter plate and filler plate to bracket if required to
match cabinet, Refer to Figure 6.
3. Secure the No Heat Kit accessory with four screws.
4. Connect the plug from No Heat Kit wiring into the
receptacle on the control board on the side of the cabinet.
CAUTION
Do not attempt to force plug as it only fits one way.
LineVoltage Connections
Line voltage wiring may be brought into the unit through the top
right-hand corner. A hole for a 1/2" or 3/4" conduit fitting is
provided.
Installation Instructions
Connect field wiring to appropriate terminals on electric heater or
lugs on the No Heat Kit. All line voltage connections must be
made with copper wire.
LineVoltageConnection
1. Provide line voltage power supply (208V-240V) from a
separate circuit(s). Size per table below or the table in
electric heater manual.
2. Connect line voltage to the lugs on the No Heat Kit., or to
circuit breakers or wire leads from heaters. Refer to Figure
6 and wiring diagram.
Grounding Connection
Use a copper conductor(s) from the ground lug on the No Heat Kit
or ground lugs on the electric heater to a grounded connection in
the electric service panel or a properly installed grounding rod.
Figure 6 I Electrical Controls
LowVoltage Matching Receptacle
Connections _For No Heat Kit
or Electric Heater
Filler Plate
Adapter Plate \
No Heat Kit
Lugs for
Line Voltage
and Ground
Connections
Supply Circuit
Volts Phase Hertz
240 1 60
208 1 60
240 1 60
208 1 60
Supply
Circuit
No,
Single
Single
Single
Single
Nominal
Motor
H,P.
1/2
1/2
1
1
Maximum Branch
Motor Total Circuit
AMP$. AMP$. Ampacity*
33 33 3.8
33 33 3.8
66 66 6.9
66 66 6.9
Maximum
Overcurrent
Protective
Device
(AMP$.)
15
15
15
15
Recommended
Supply Wire
75ec. Copper
Max.
No. Size Length (Ft)
2 14 104
2 14 90
2 14 104
2 14 90
Ground
Wire
No. Size
1 14
1 14
1 14
1 14
* Based on maximum ampacity allowed by Magellan control program.
442 01 2303 02 5L_
_Installation Instructions Modular Blower I
LowVoltage Control Connections
The 24 volt power supply is provided by an internally wired low
voltage transformer which is standard on all models. If power
supply is 208 volt, the low voltage transformer must be rewired to
the 208 volt tap. See the unit wiring label.
Field supplied low voltage wiring enters the unit on the top left
hand corner.
Install the strain relief bushing (supplied with unit) in the hole.
Connect the field wiring at the screw terminals of the control
board. Refer to Figure 6.
Keep the low voltage wiring as short as possible inside the control
box.
Complete connections between indoor blower, outdoor section,
indoor thermostat and electronic outdoor thermostat (accessory)
according to instruction provided with the Condenser Installation
Instructions or those provided with the accessory and refer to
Figures 7 and 8.
Figure 7 [Typical Low Voltage Schematic
Cooling Only
Thermostat
R
G--
Y
W
O0
W2 W 1GY0H
Indoor Blower
J
0 0 () () /
J
C R
Outdoor Unit
Y
Y
Air Conditioner -Adding Control for 80% Airflow
lo oololoo
W2 W 1G Y 0H C R
IndoorBlower
Humidistat or Outdoor Thermostat
AdjustingThermostatAnticipator
Set the heat anticipator of the thermostat to the proper value. See
instructions provided with the thermostat before making this
adjustment.
Adding Humidistator Outdoor Thermostat
Adding a humidistat or outdoor thermostat allows the airflow to be
reduced to 80% of normal allowing greater humidity control.
Humidistats are preferred but an outdoor thermostat can be used
but can only be set based on temperature. Suggested starting
point is 85 °F, but this will vary depending on several factors.
The control must be wired differently on air conditioners and heat
pumps. On air conditioners connect to Y and H (Dehum)
terminals, ref Figure 7.
HEAT PUMPS ONLY: Heat pumps must use only the outdoor
thermostat, because it is powered instead of just performing a
switching function. This allows it to be out of the circuit when
continuous circulation is desired, which is required for the system
to operate on Fan Only for circulation, which is 60% airflow. On
heat pumps connect to Y and H (Dehum) terminals, and C and O
to power the outdoor thermostat, ref Figure 8.
ElectricHeaterStaging
The heater elements are turned on in increments. Refer to Heater
Staging Table in the Heater installation Manual. In addition on
heaters larger than 5KW, the heat can be staged (1 st & 2nd) either
through an indoor thermostat or by using an outdoor thermostat.
This satisfies staging requirements imposed by some electric
utilities on heaters larger than 6 kilowatts.
A control signal (24V) from Wl on the Indoor T'stat to Wl on the
control board energizes the 1st stage of heat. A control signal
(24V) to W2 on the control board energizes the second stage of
electric heat. To turn ON both stages atthe same time, using one
control signal, W1 and W2 are jumpered together.
If the indoor thermostat does not have staging capabilities,
accessory electronic outdoor thermostats are available that will
control two stages of electric heat.
MotorSpeedsandAirflow
See Figure g and Pages 8 & g,
The motor speed can be set on one of eight speeds and the air
flow will adjust between 60%, 80% and 100% depending on
settings. Time ON /OFF settings can also be adjusted.
Determine coil static pressure drop, consult coil manual and
measure duct system static pressure, then determine required
speed setting from blower charts.
For Cooling - Set switches 6, 7, and 8 on the motor end bell to
position 0 (off) or 1 (on) as specified on blower charts.
For Heating - Set switches 3, 4, and 5 on the motor end bell to
position 0 (off) or 1 (on) as specified on blower charts.
Set switches 1 and 2 to position 0 (off) or 1 (on) as specified in
Figure 9 to control Fan delay ON - OFR
NOTE: Power must be completely OFF to unit any time
switch settings are changed or settings will not take effect.
_J 442 01 2303 02
I Modular Blower Installation Instructions
Figure 8 I Typical Low Voltage Control Schematic
L
Cooling with Electric Heat
Thermostat
R
G--
tCR
rw
Y
Y
Outdoor Unit
Air Conditioner -Adding Control for 80% Airflow
_ermostat
R
ot
W 2
o,ndJ[ rB,Oower C
Staging Heat Pump with Electric Heat
Outdoor Unit
Heat Pump -Adding Control for 80% Airflow
o ooooW2W 1 G Y 0 H C R
Indoor Blower
Humidistat or Outdoor Thermostat
W2W 1 G Y 0 H C R
Indoor Blower
R
BL
W
-- y
Outdoor Thermostat
Figure 9[ Motor Speeds
Motor Controller mounted to blower housing
See next page for switch positions and CFM range
Heat Cool
Time CFM CFM
Delay Select Select Select
=1 = II =
1 2 3 4 5 6 7
Available Selections:
Time Delays:
00 0 sec. on/60 sec. off (default)
01 0 sec. on/90 sec. off
10 0 sec. on/30 sec. off
11 0 sec. on/0 sec. off
I
1 Positions (on)
80 Switch (off)
442 01 2303 02 7L_ J
_Installation Instructions
Airflow and Motor Speeds
14OO
1200
1000
,, 800
0
6OO
4OO
2OO
0.1
Modular Blower I
MVO8B1500A
/ i / i / i
0.2 0.3 0.4 0.5 0.6 0.7
External Static
NOTE:
Both sets of
switches must be set
Dip Switch Settings
are set at switches
6, 7 and 8 for
Cooling, 3, 4, and 5
for Heating.
Dip Switch Settings
000 Highest Speed
111Lowest Speed
0.8
For Heat Pumps both
sets of switches should
be set the same.
For electric heat the
heat switches can be set
to obtain a comfort level
within the specified heat
rise of the unit.
MV12F1900AAirflow
1600
1500
1400
1300
1200
1100
1000
900
800
700
6OO
5OO
4OO
0.1
IIIIIIIII
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
External Static
1.1
442 01 2303 02
IModular Blower
Airflow and Motor Speeds
2100,
2000,
1900,
1800,
1700,
1600,
1500,
1400,
,,_ 1300,
1200,
1100,
1000,
900,
800,
700,
Installation Instructions
MV16J2200A Airflow
600,
500,
4OO
0.1 0.2 0.3 0.4 0.5 0.6 0.7
External Static
08 0.9 1.1
NOTE:
Both sets of
switches must be set
Dip Switch Settings
are set at switches
6, 7 and 8 for
Cooling, 3, 4, and 5
for Heating.
Dip Switch Settings
000 Highest Speed
111Lowest Speed
For Heat Pumps both
sets of switches should
be set the same.
For electric heat the
heat switches can be set
to obtain a comfort level
within the specified heat
rise of the unit.
O3
2200'
2100'
2000'
1900'
1800,
1700,
1600,
1500,
1400,
1300,
1200'
t100'
1000,
900'
800'
700,
MV20N2600AAirflow
600,
500,
400
0.1
7T
0.2 0.3 0.4 0.5 0.6 0.7
External Static
0.8 0.9 1.1
442 01 2303 02 9L_
_Installation Instructions Modular Blower I
Air Flow Check
For proper system operation, the air flow through the indoor coil
should be between 350 and 450 cfm per ton of cooling capacity.
The air flow through the unit can be determined by measuring the
external static pressure to the unit and selecting the motor speed
tap that will most closely provide the required air flow.
1. Set up to measure external static pressure at the supply
and return duct connections (Figure 10).
2. Drill holes in the ducts for pressure taps, pitot tubes, or
other accurate pressure sensing devices.
Figuie ! 0 J
s p,,r
Indoor
Section
Static Pressure Check
_?
3. Connect these taps to a level inclined manometer or draft
gauge.
4. Ensure the coil and filter are clean, and all the registers are
open.
5. Determine the external static pressure with the blower
operating.
6. Refer to the Air Flow Data tables, page 8 to find the Dip
Switch Speed setting that will most closely provide the
required air flow for the system.
7. Refer to Motor Speeds and Airflow in these instructions if
the speed is to be changed.
8. Recheck the external static pressure with the new setting,
and confirm speed switch selection.
TemperatureRiseCheck
Temperature rise is the difference between the supply and return
air temperatures.
NOTE: The temperature rise can be adjusted by changing the
heating speed tap at the unit's blower terminal block.
A temperature rise greater than 60 OF (33.3 °C) is not
recommended.
1. To check the temperature rise through the unit, place
thermometers in the supply and return air ducts as close to
the unit as possible.
2. Open ALL registers and duct dampers.
3. Set thermostat Heat-Cool selector to HEAT.
4. Set the thermostat temperature setting as high as it wil! go.
5. Turn electric power ON.
6. Operate unit AT LEAST 5 minutes, then check
temperature rise.
NOTE: The maximum outlet air temperature for all models
is 200 OF (93.3 °C).
7. Set thermostat to normal temperature setting.
8. Turn electric power OFE
9. Be sure to seal all holes in ducts if any were created during
this process.
Maintenance
Filters
Filters must be cleaned when they become dirty. Inspect at least
once per month. The frequency of cleaning depends upon the
hours of operation and the local atmospheric conditions. Clean
filters keep unit efficiency high.
Lubrication
The bearings of the blower motor are permanently lubricated.
Condensate Drains
During the cooling season check the condensate drain lines to be
sure that condensate is flowing from the primary drain but not
from the secondary drain. If condensate ever flows from the
secondary drain the unit should be promptly shut off and the
condensate pan and drains cleaned to insure a free flowing
primary drain.
1_ 442 01 2303 02
I Modular Blower Installation Instructionsl
BASE LIMIT OPTIONAL NO-HEAT KIT AMFOO1NH INSTALLED
*SEE INSTALLATION MANUAL FOR PROPER HEATING AND COOLING
FACTORY PRF-RFT RPFFI3 CONNFCTIONR FOR YOI JR I JNIT
_ '----"_L,M,TIV
B I_ o_,Io --
II _ Ln
"
II B___
BKT"_ Y
AMFK05AH ELECTRIC HEATER
--1 A
B_'d.L_ ,_,_
',ILL r'_ --I
L,J,.v L,J_I
__ __il_ BK. a___GZI
R
BK__ , ,
5 Kw
_-r_
GRD
B_HI
BK
7.5& 10 Kw
'_ AMFK07AH /AM FK10AH ELECTRIC HEATER
-- _' LIMIT
15 Kw
AMFK14AH ELECTRIC HEATER
*AMFK15AH ELECTRIC HEATER t2 LIMITS)
AMFK2OAH ELECTRIC HEATER
, B_ ''-t.._.r'+_---'nl
I_ !p3oip_op3_
,, Lo ,_Tv
,y gl"
BK'
AMFK30AH ELECTRIC HEATER 1087574
442 01 2303 02
_Installation Instructions
ReplacementParts
Q O Q
KEY PART ___
NO. DESCRIPTION NUMBER ___
9 Control, Fan Timer 1085914 I 1 I 1
10 Transformer 1082611 I 1 I 1
11 Motor, Blower I012478 I 1
1I 1012479 I 1
12 Mount, Blower Motor 1086700 I 1
12 1057955 I 1
13 Wheel, Blower 600586 I
13 600587 1
13 96839 I 1
14 Control, Motor 1012476 I 1
14 1012477 I 1
FI Panel, Side (Right) 1085854 I 1 I 1
F2 Panel, Rear 1085861 I
F2 1085862 1
F2 1085863 I
F2 1085864 1
F3 Panel, Side (Left) 1085855 I 1 I 1
G Brace, Bottom 1069603 I
G 1069604 1
G 1069605 I
G 1069606 1
O Panel, Rear Blower Deck I082604 I
O 1082844 1
O 1082845 I
O 1082846 1
Fan Coils I
¢_ ¢.4 04 ¢_1
KEY PART ___
NO. DESCRIPTION NUMBER _n ,,'7 _z
CO _1 LO O
P Panel, Front Blower Deck 1086694 I
P 1085372 1
P 1085373 I
P 1085374 I
Q Panel,Side Blower Deck 1082622 2
Q 1082847 2
Q 1082848 2
Q 1082849 2
R Bracket, Control Fan 1085371 I 1 I I
V Panel, Top 1085857 I
V 1085865 1
V 1085866 I
V 1085867 I
W Housing, Blower 1087195 I
W 1087193 1
W 1087194 I I
X Panel, Blower Cutoff 1082607 I
X 1082616 1
X 1082949 I I
ZI Rai!, Blower R.H. 1085504 I 1 I I
Z2 Rai!, Blower L.H. 1085521 I 1 I I
BB Door, BIowerAccess 1085856 I
BB 1085858 1
BB 1085859 I
BB 1085860 I
DD Plate, Heater Adapter 1084606 1 1 I
EE Plate, Heater Filler 1084608 I I
)( Harness, Wire 1087049 I 1 I I
)( Harness, Wire 1087519 I 1 I I
)( Harness, Wire 1087518 I 1 I I
)( Manual, Installation 44201230300 I 1 I I
BB
V
o
R 9 10
F3 _Jl/ 1
G
--Q
F2
13
38-11-26
442 01 2303 01

Navigation menu
