IDEMIA Identity and Security France MPHAC002A Control Access Terminal User Manual

SAFRAN Identity & Security Control Access Terminal

User manual.pdf

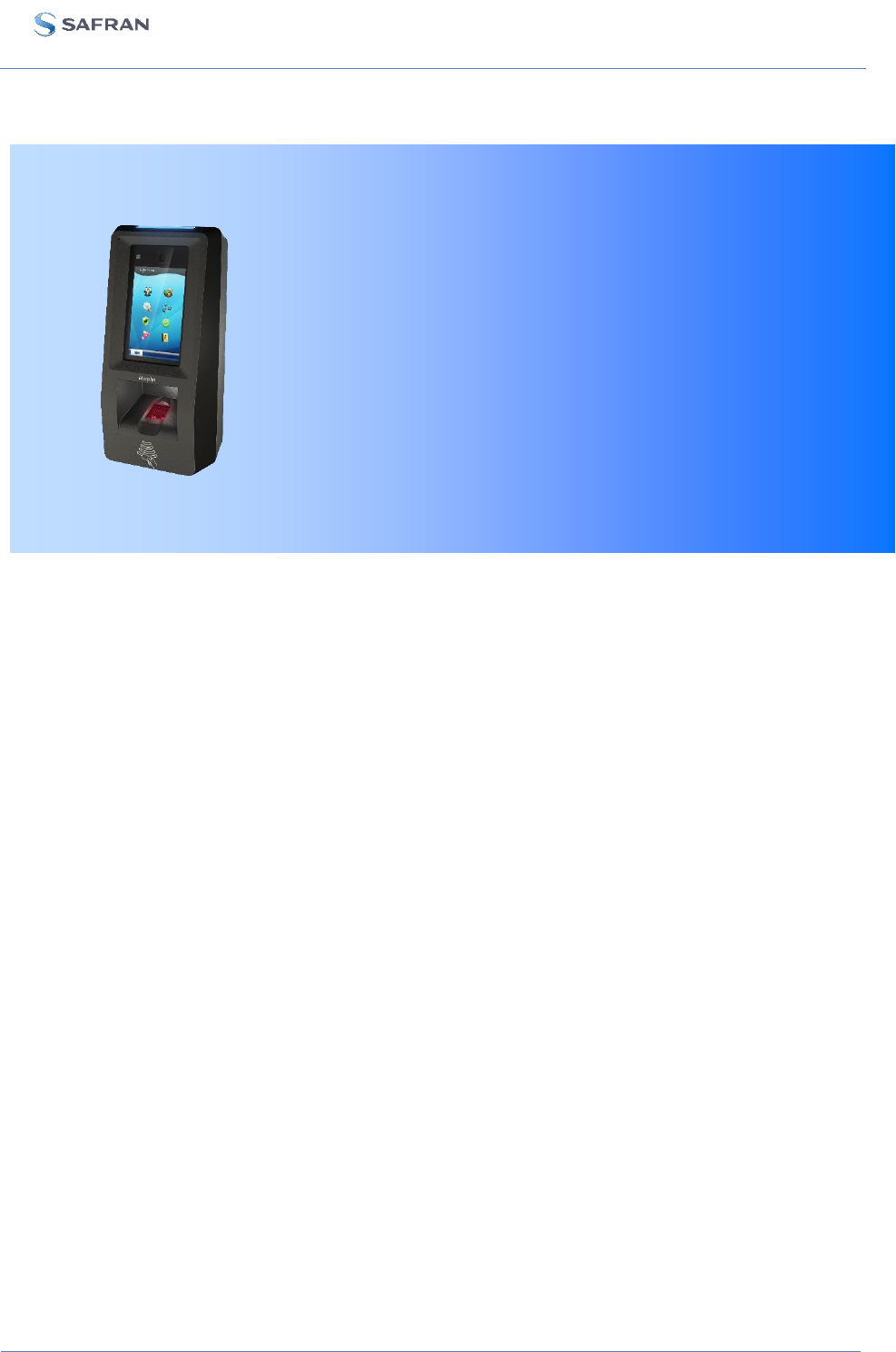

MorphoAccess® SIGMA Extreme Series
Installation Guide
COPYRIGHT © 2017 Safran Identity & Security
Osny, France
2017_2000024418 - Draft V0 January 2017
Identity & Security
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Warning
2
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Warning
COPYRIGHT © 2017 Safran Identity & Security. All rights reserved.
Reproduction in whole or in part in any form or medium without the express written
permission of Safran Identity & Security is prohibited.
The trademarks identified herein are the trademarks of registered trademarks of
Safran Identity & Security, or other third party
This legend is applicable to all pages of this document.
Information in this document is subject to change without notice and do not
represent a commitment on the part of Safran Identity & Security.
This manual makes reference to names and products that are trademarks of their
respective owners.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Revision History
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
3
Revision History
The table below contains the history of changes made to the present document.
Version
Date
Reference
Description
01
January 2017
2017_2000024418 –
Draft V0
Document creation - Draft
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Table of Content
4
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Table of Content
Warning ........................................................................................................................................ 2
Revision History ............................................................................................................................ 3
Section 1 : Introduction ................................................................................................................ 9
MorphoAccess® SIGMA Extreme Series Terminal ................................................................... 10
Scope of the document ............................................................................................................ 11
Safety Instructions ................................................................................................................... 12

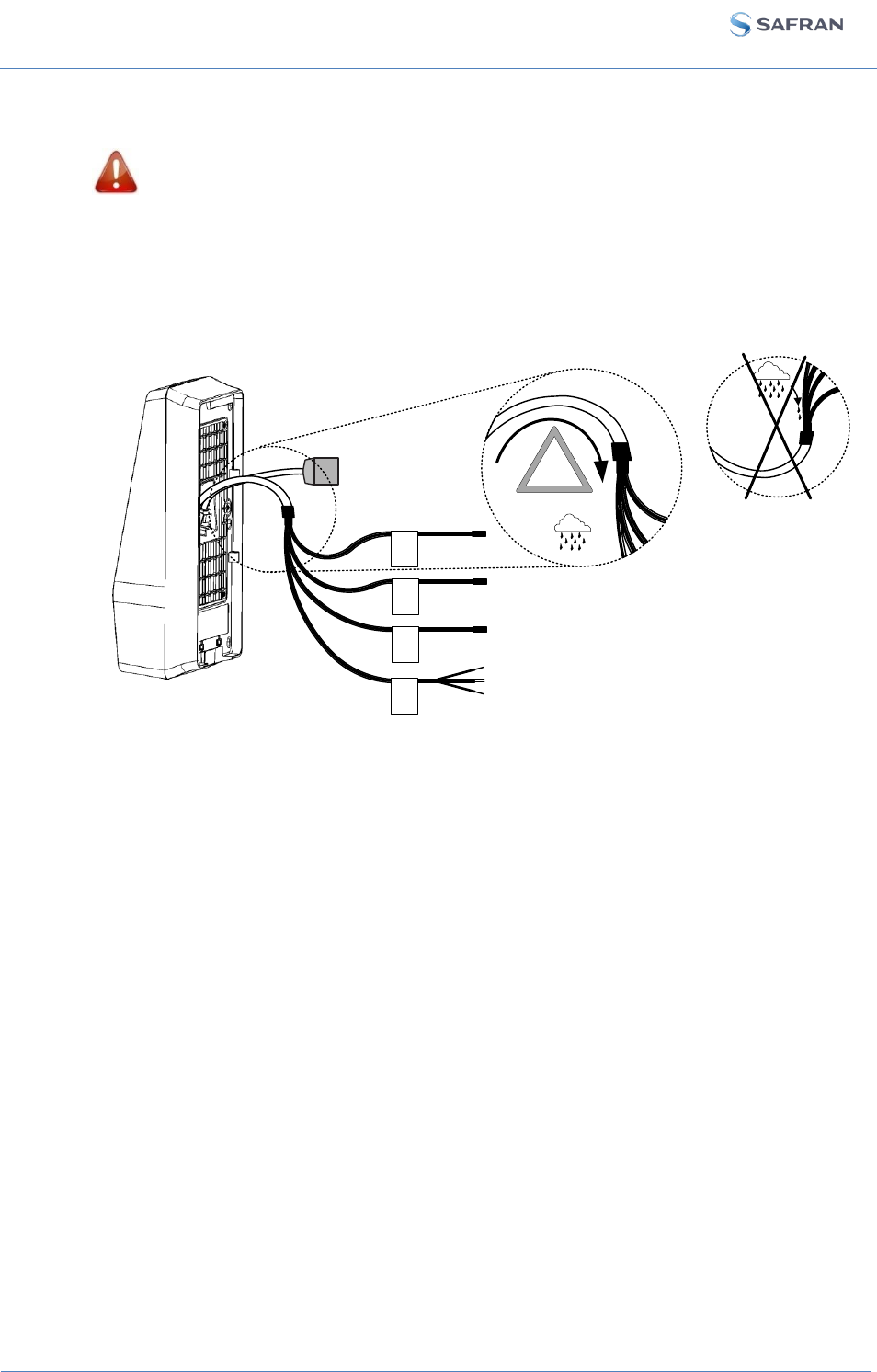

Wiring Recommendations ................................................................................................... 13
Regulatory, safety and Environmental notices ....................................................................... 14
European Union (CE) regulatory notices ............................................................................. 14
USA (FCC) regulatory notices ............................................................................................... 15
Canada (IC) regulatory notices ............................................................................................ 16
Others recommendations .................................................................................................... 16
Recommendations for terminal implementation .................................................................... 17
Section 2 : General Description .................................................................................................. 20
Box opening ............................................................................................................................. 21
Components of the initial package ......................................................................................... 22
Terminal's front view description ............................................................................................ 23
Terminal's rear view description ............................................................................................. 24
MorphoAccess® SIGMA Extreme Series Technical Characteristics ......................................... 25
Section 3 : Installation Procedure ............................................................................................... 27
Before proceeding to the installation ..................................................................................... 28
Installation .............................................................................................................................. 29
Required tools (not supplied)............................................................................................... 29
Equipment from the initial package to use ......................................................................... 29

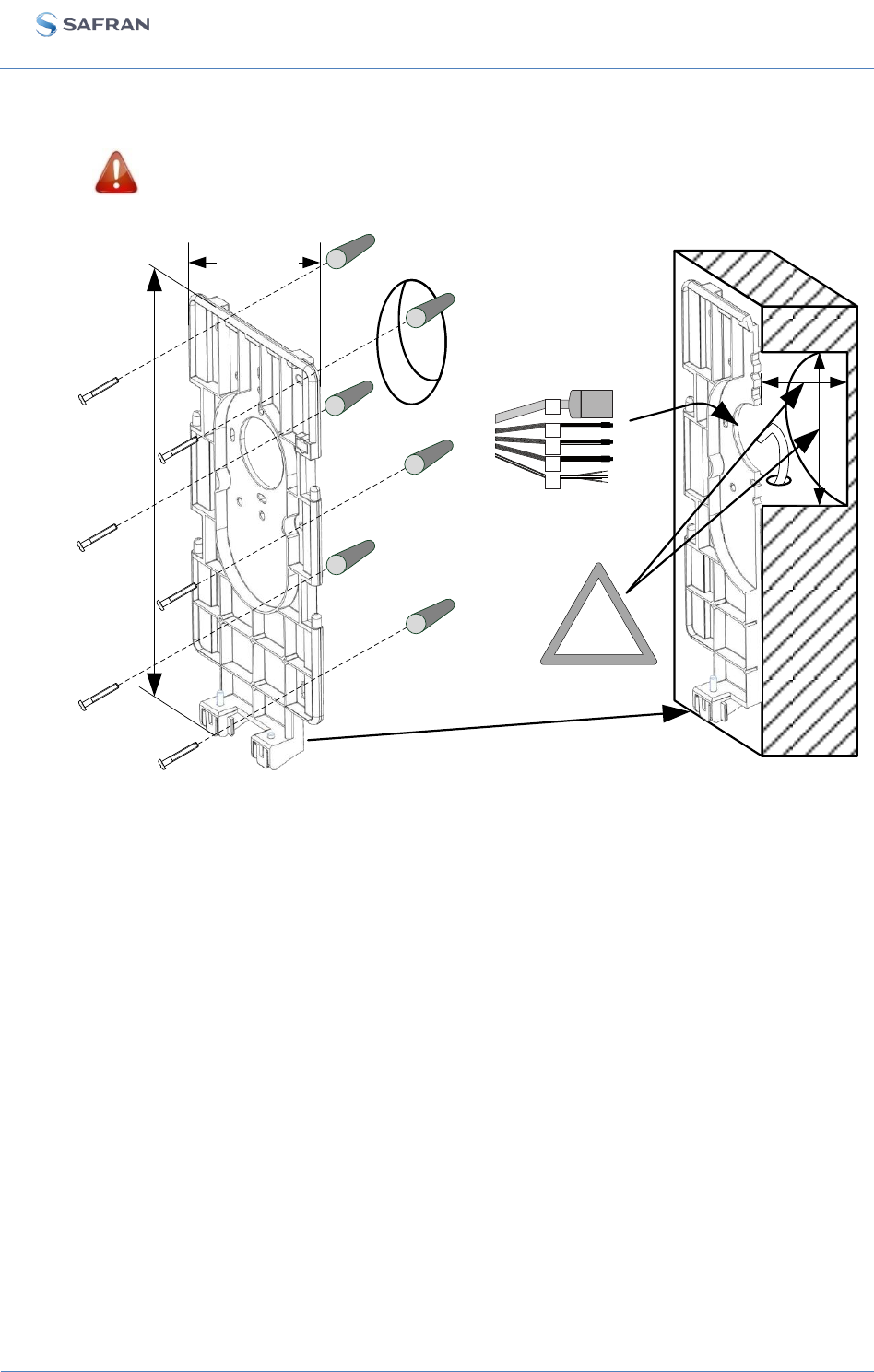

Step by step procedure ........................................................................................................ 30
Section 4 : Electrical Interface .................................................................................................... 34

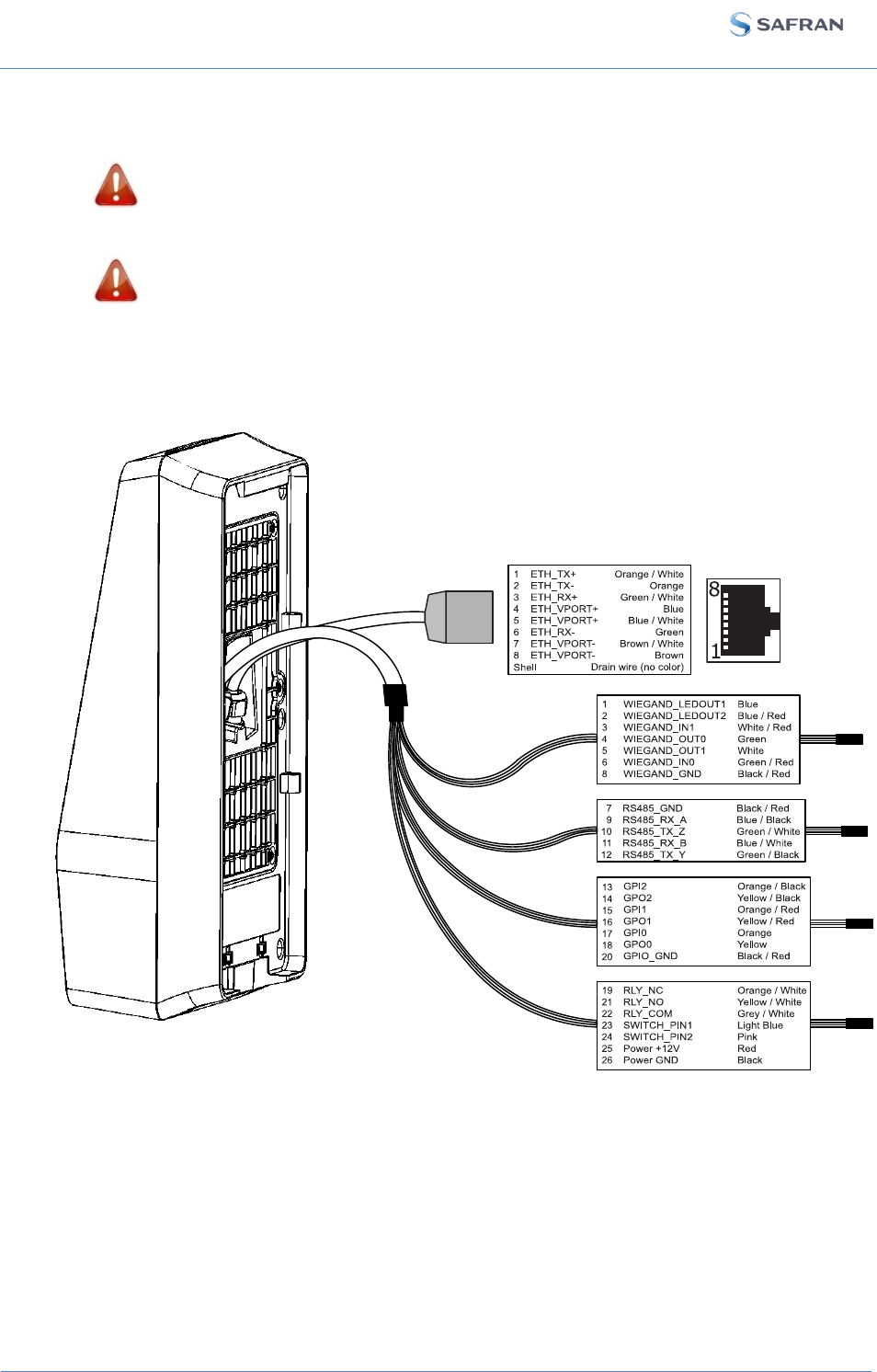

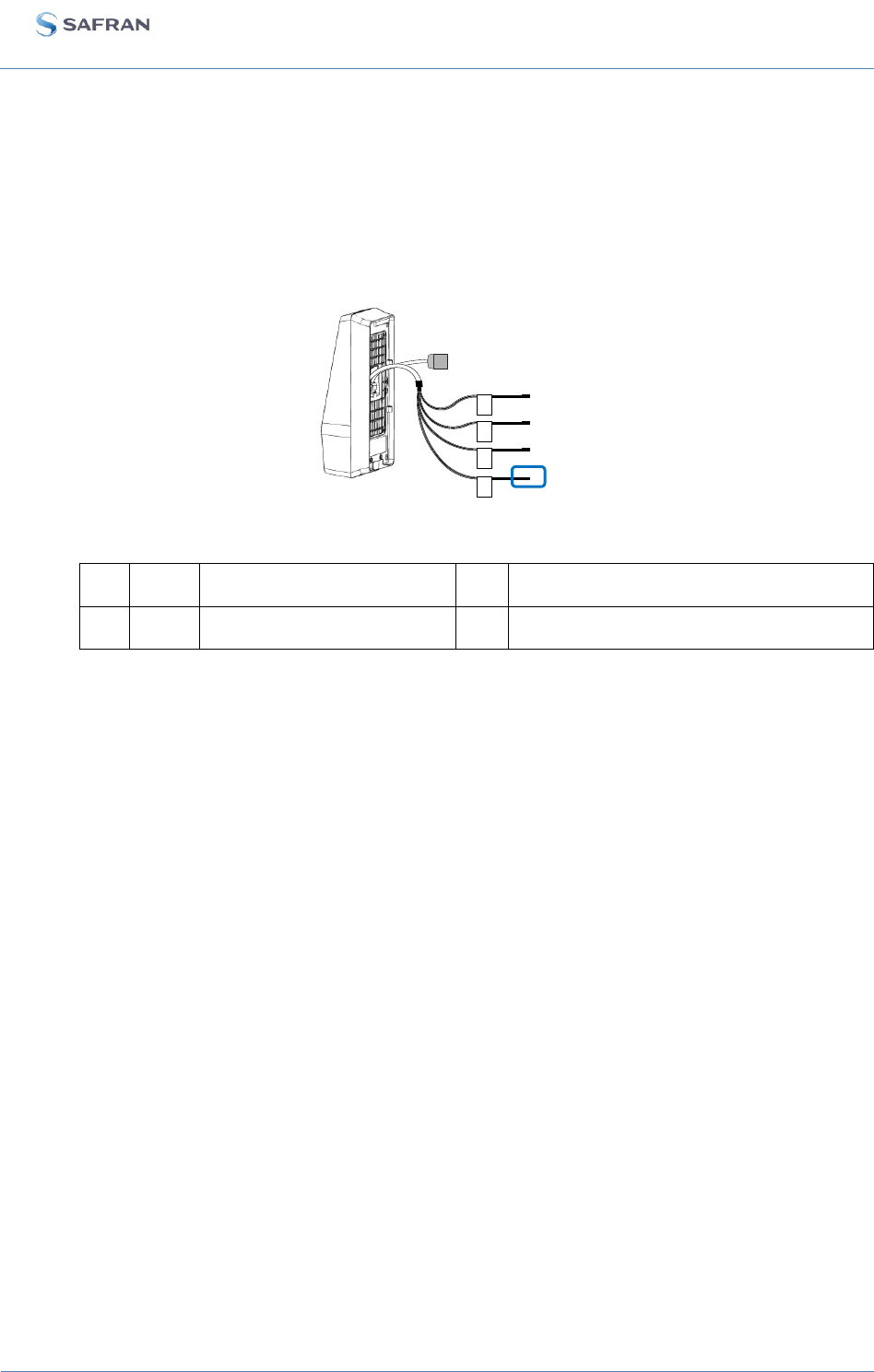

Wiring overview ...................................................................................................................... 35
Power Supply ........................................................................................................................... 36
External Power supply ......................................................................................................... 36
POE (Power Over Ethernet) ................................................................................................. 36
Output Relay ........................................................................................................................... 37
Nominal characteristics of relay .......................................................................................... 37
MorphoAccess® SIGMA Extreme Series - Installation Guide
Table of Content
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
5

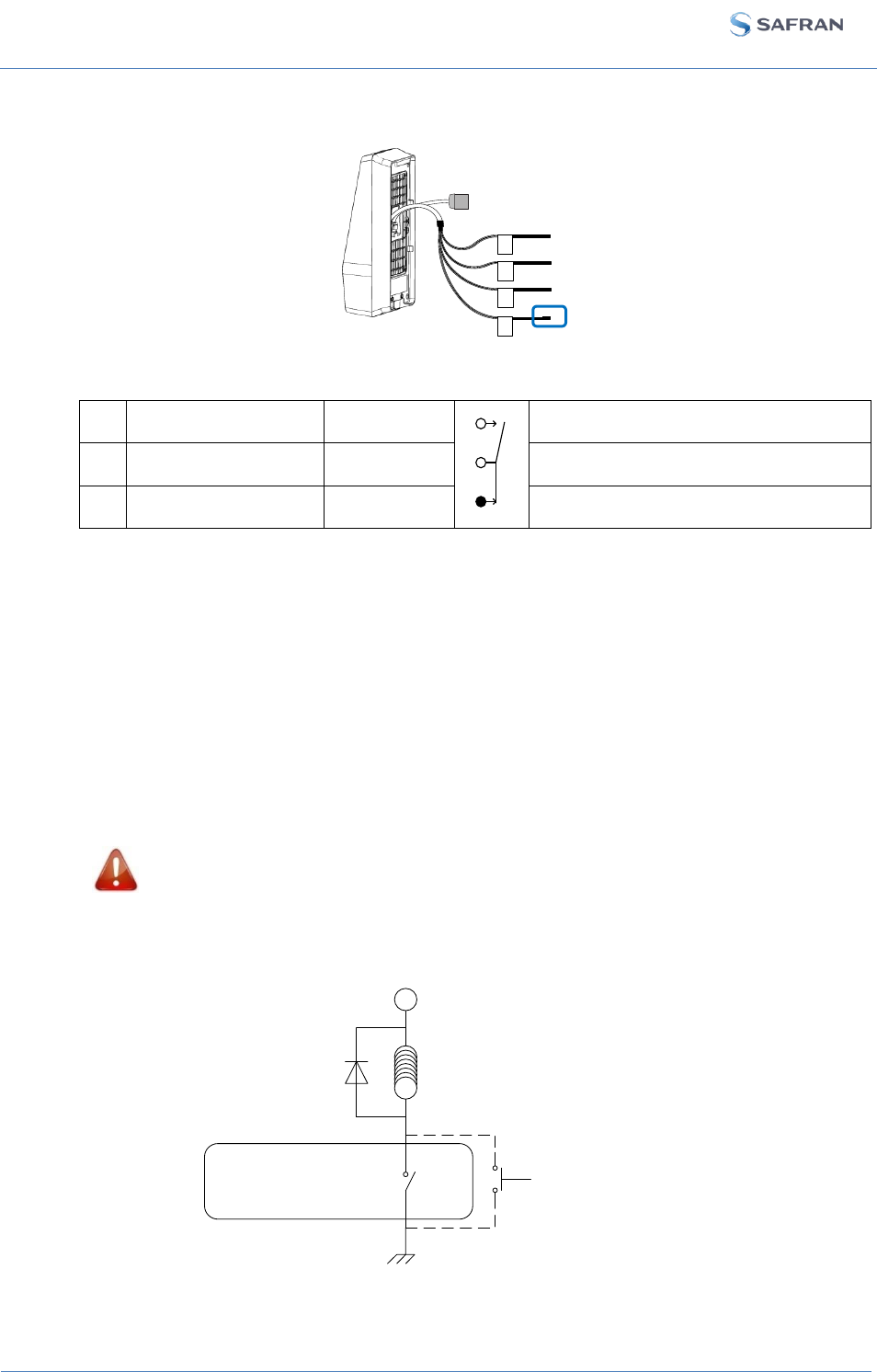

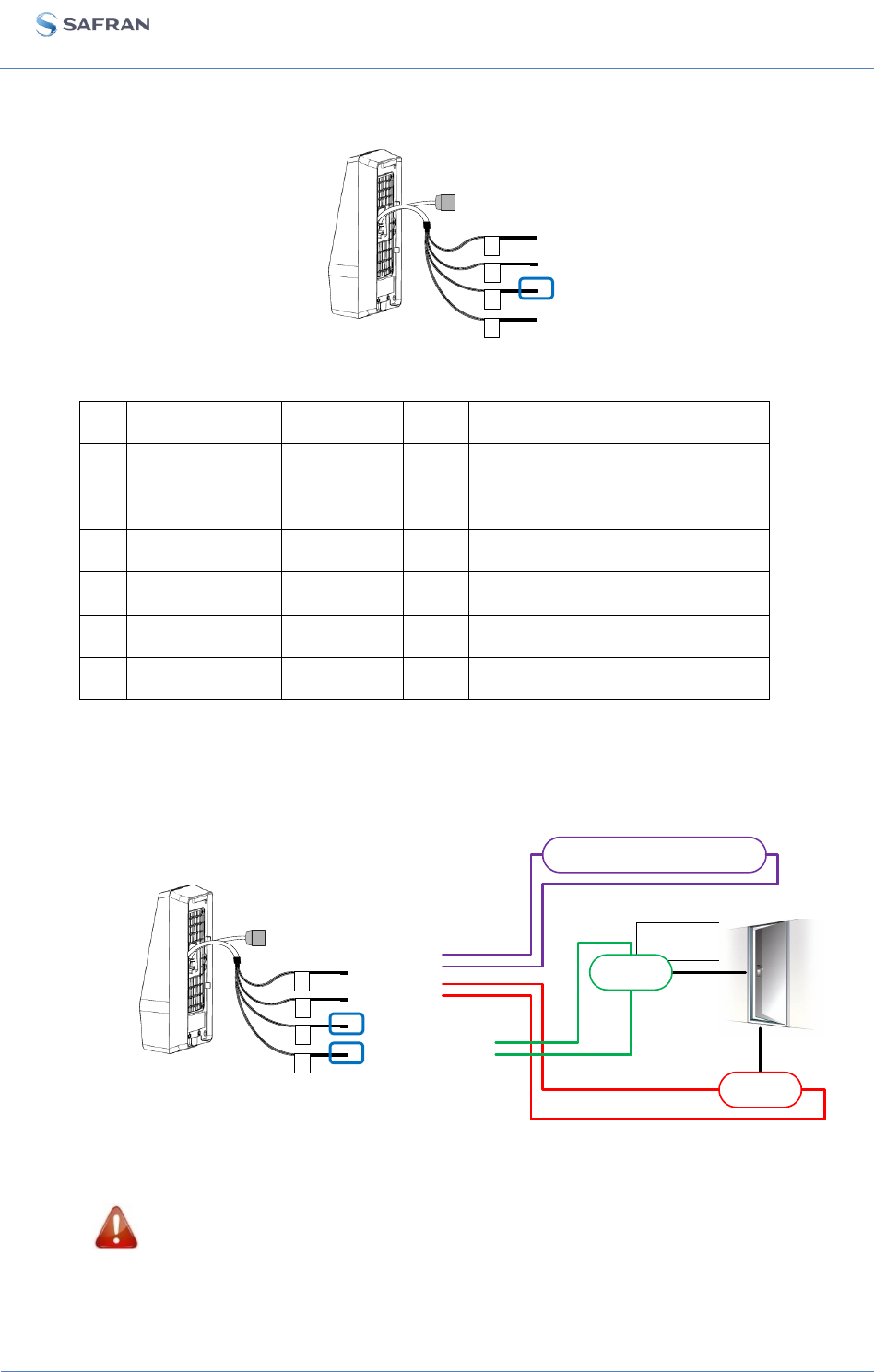

Example of connection for electrical door locks .................................................................. 37
Tamper Switch ......................................................................................................................... 38
Operating principle for the switch ....................................................................................... 38
Nominal characteristics of switch block .............................................................................. 38
Wiegand wiring ....................................................................................................................... 39
Wiegand input ..................................................................................................................... 39
Wiegand output ................................................................................................................... 40
The controller supports neither LED1 nor LED2 signals ....................................................... 40
The controller supports only LED1 signal ............................................................................ 40
The controller supports LED1 and LED2 signals .................................................................. 41
Serial port wiring ..................................................................................................................... 42
DataClock Input ................................................................................................................... 42
DataClock Output ................................................................................................................ 42
RS485 ................................................................................................................................... 43
RS422 ................................................................................................................................... 43
GPIO wiring ............................................................................................................................. 44

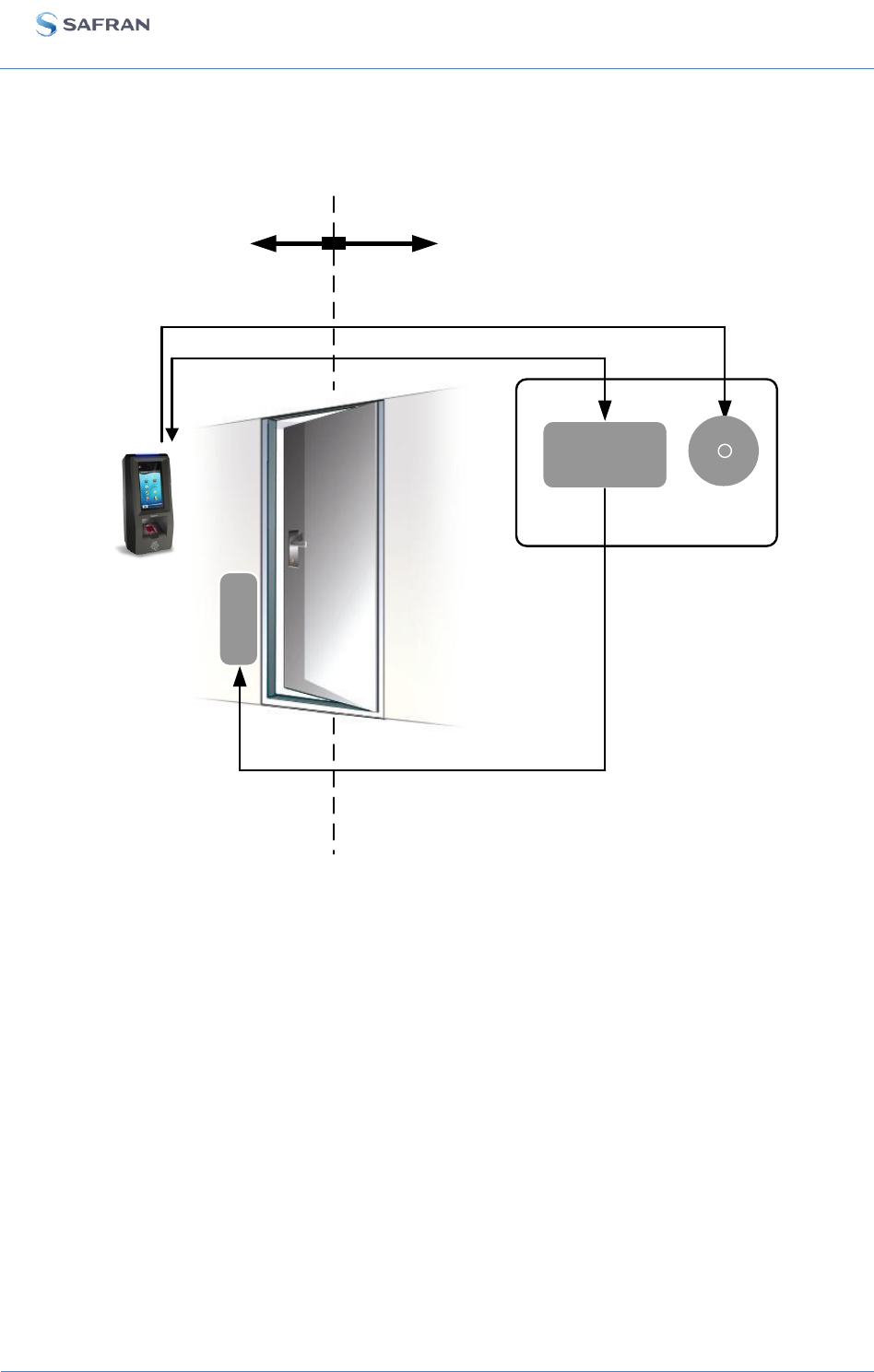

Single Door Access Control (SDAC) implementation ........................................................... 44
Ethernet connection ................................................................................................................ 45
Default Ethernet configuration ........................................................................................... 45

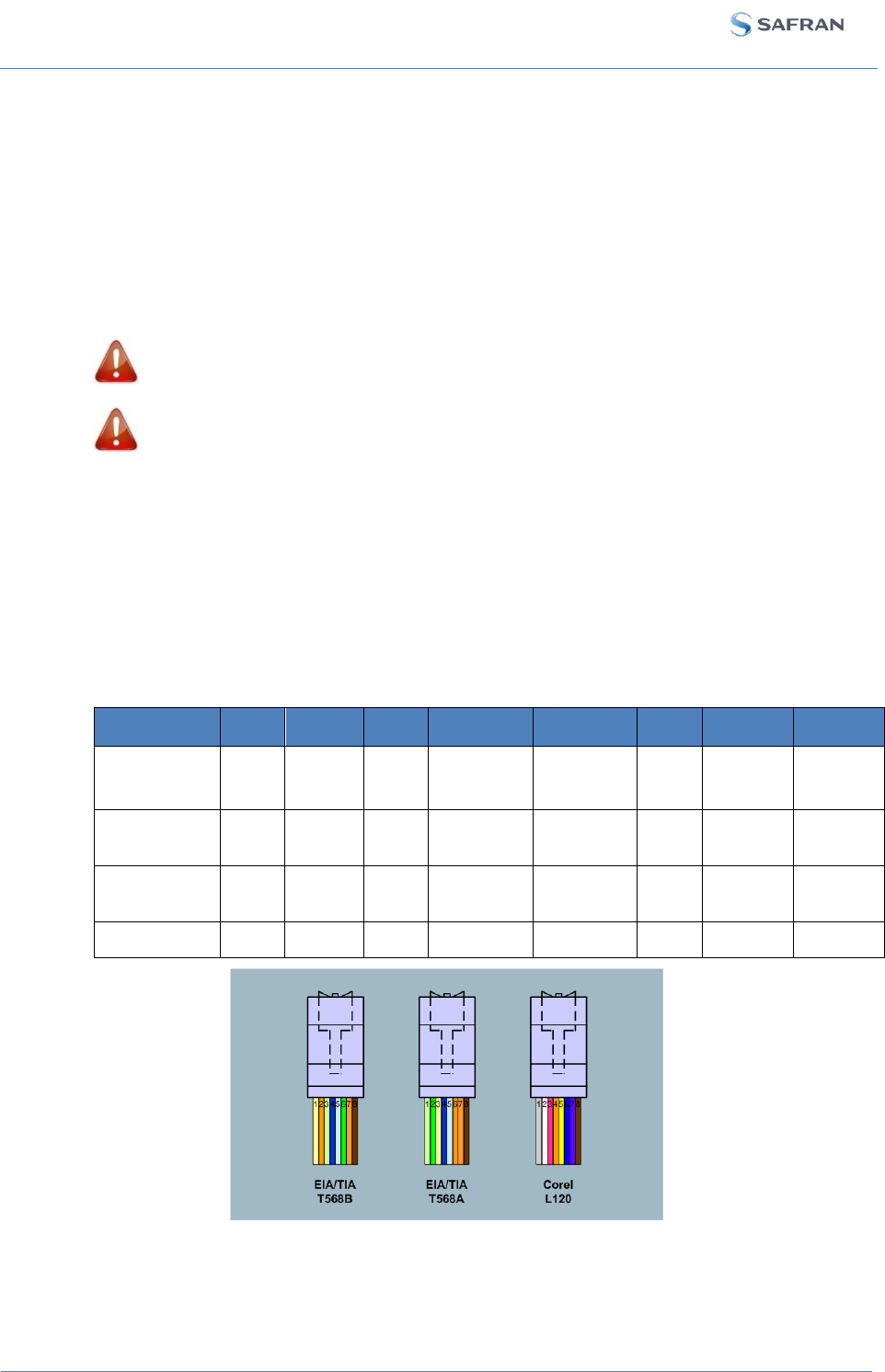

Recommendations for RJ45 wiring ...................................................................................... 45
External USB connection ......................................................................................................... 46
Wi-Fi™ dongle installation ...................................................................................................... 47
Micro SD connection ............................................................................................................... 48
Section 5 : User Interface ........................................................................................................... 49
Modes for controlling access rights ........................................................................................ 50
Introduction ......................................................................................................................... 50
Identification mode ............................................................................................................. 50
Authentication (verification) mode ..................................................................................... 50
Multi-factor mode ............................................................................................................... 51
Proxy mode .......................................................................................................................... 51
External database mode (also called polling mode) ........................................................... 51
Configuring the terminal ......................................................................................................... 53
MorphoAccess® 500 or J Series legacy mode ...................................................................... 53
MorphoAccess® SIGMA Extreme Series native mode .......................................................... 54
Anti-tamper / anti-pulling switches ........................................................................................ 55
Section 6 : Accessories, Software Licenses and PC Applications ................................................ 56
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Table of Content
6
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Compatible Accessories, Licenses and Software ..................................................................... 57
Compatible PC applications .................................................................................................... 58
Section 7 : Recommendations .................................................................................................... 59
Global warning .................................................................................................................... 60
General precautions ............................................................................................................ 60
Areas containing combustibles ............................................................................................ 60
Specific precautions for terminals equipped with a contactless smartcard reader ............ 60
Ethernet connection ............................................................................................................ 60
Date / Time synchronization ............................................................................................... 60
Cleaning precautions ........................................................................................................... 61
Legacy mode ........................................................................................................................ 61
Micro SD card ...................................................................................................................... 63
Lighting conditions for face detection ................................................................................. 63
Main principles ........................................................................................................................ 65

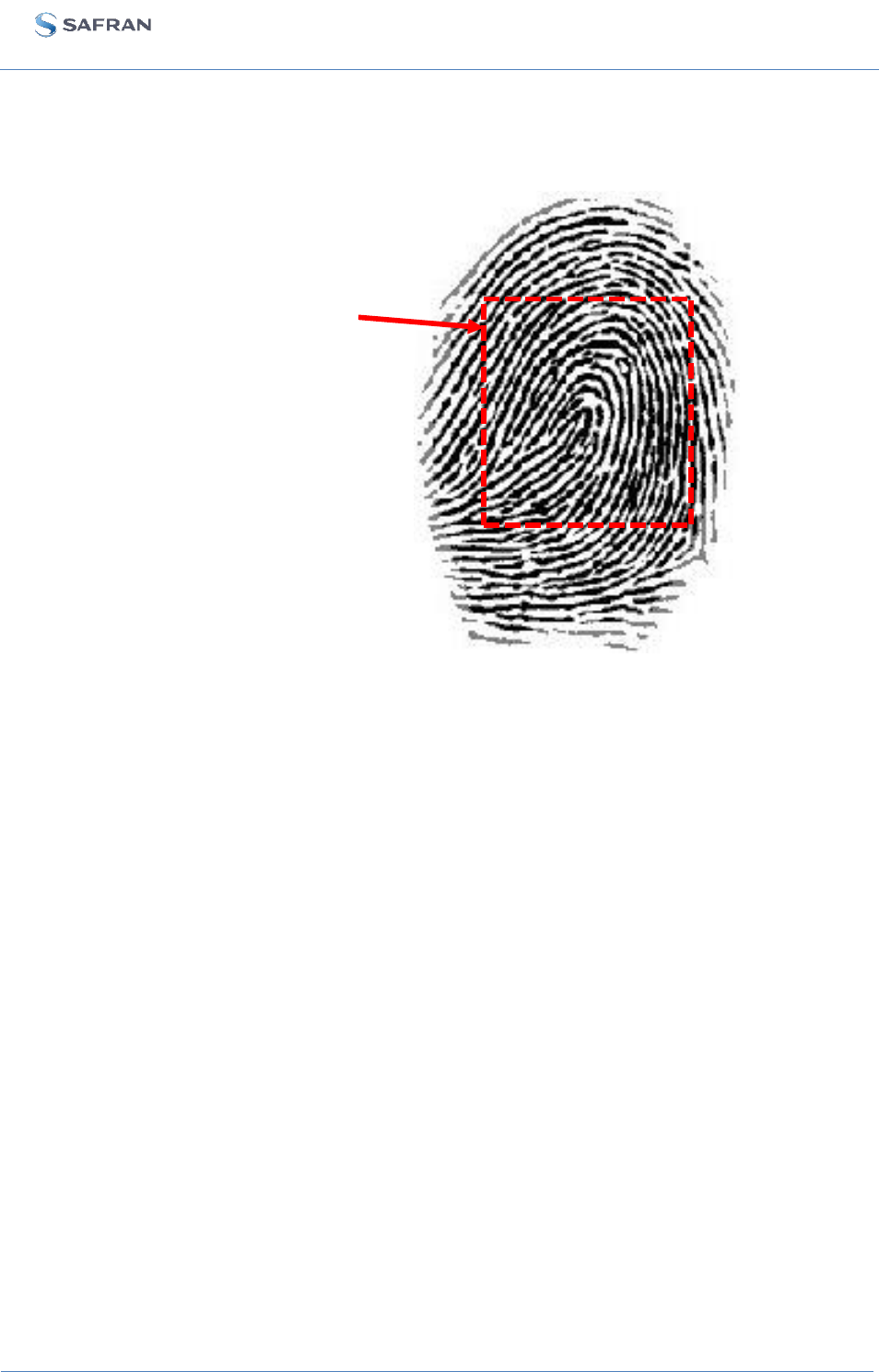

Most useful areas for biometric data...................................................................................... 66

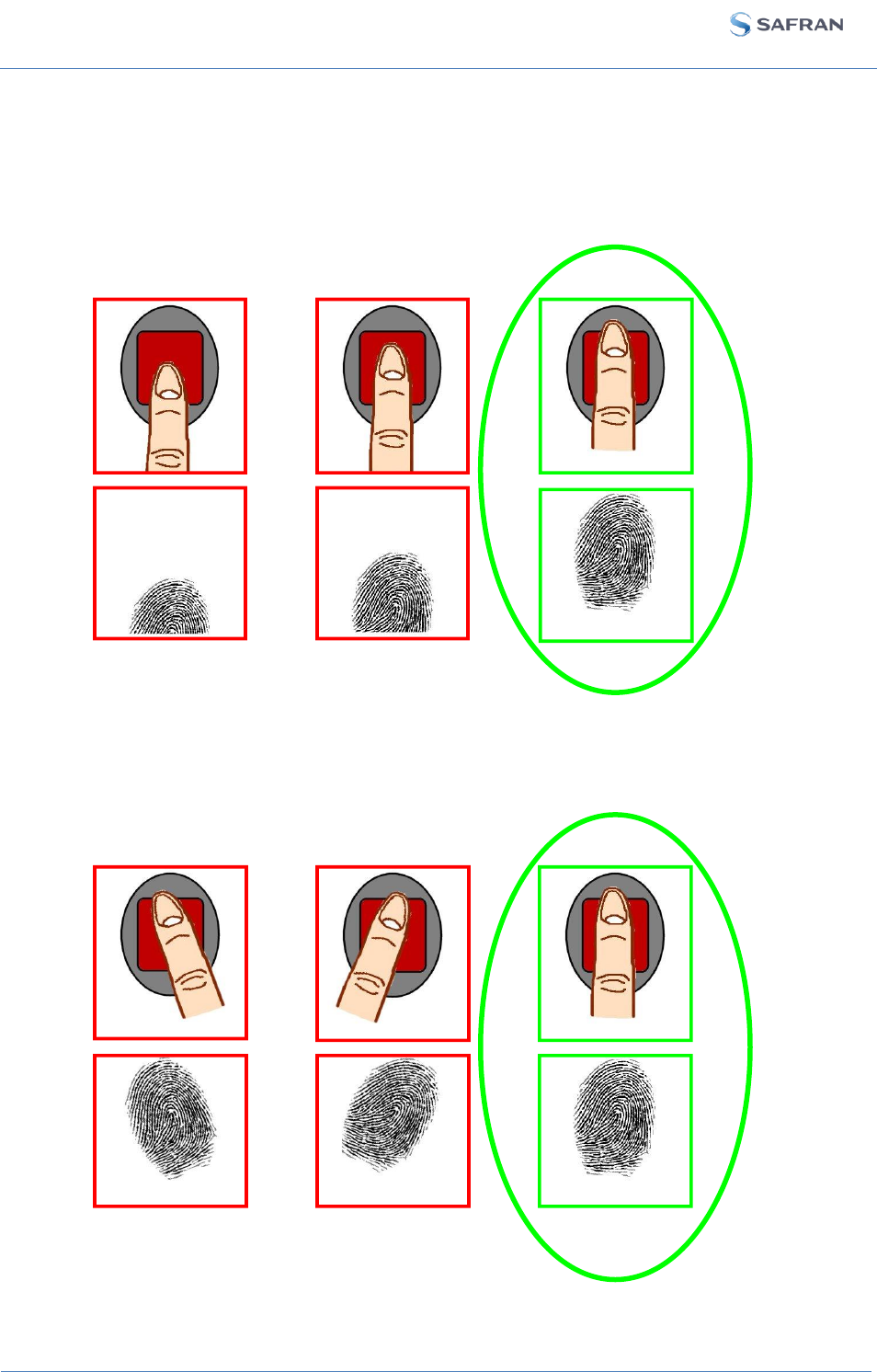

Position of finger ..................................................................................................................... 67
Finger height ........................................................................................................................ 67
Finger angle ......................................................................................................................... 67
Finger inclination ................................................................................................................. 68
Finger rotation ..................................................................................................................... 68
Troubleshooting ...................................................................................................................... 69
How to get the latest versions of documents ......................................................................... 71
Documents concerning the MorphoAccess® terminal ............................................................ 72
Documents about installing the terminal ............................................................................ 72
Documents about administrating / using the terminal ....................................................... 72
Documents for the developer .............................................................................................. 72
Release note ........................................................................................................................ 73
Troubleshooting ...................................................................................................................... 75
The terminal IP address is unknown or it is not possible to connect to the terminal.......... 75
The sensor is switched off .................................................................................................... 75
The terminal returns erratic responses to Ping commands ................................................ 75
Technical Support and Hotline ................................................................................................ 76
North America ..................................................................................................................... 76
South America ..................................................................................................................... 76
South Africa ......................................................................................................................... 76
India: .................................................................................................................................... 76
MorphoAccess® SIGMA Extreme Series - Installation Guide
Table of Content
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
7
Europe and rest of the world: .............................................................................................. 76
Web site ............................................................................................................................... 76
Annex 1 : Finger Placement Recommendations ...................................................................... 64
Annex 2 : Bibliography ............................................................................................................. 70
Annex 3 : Support .................................................................................................................... 74
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Table of Figures
8
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Table of Figures
Figure 1: Implementation Recommendations ............................................................................. 18
Figure 2: Box Opening .................................................................................................................. 21
Figure 3: Box Content .................................................................................................................. 22

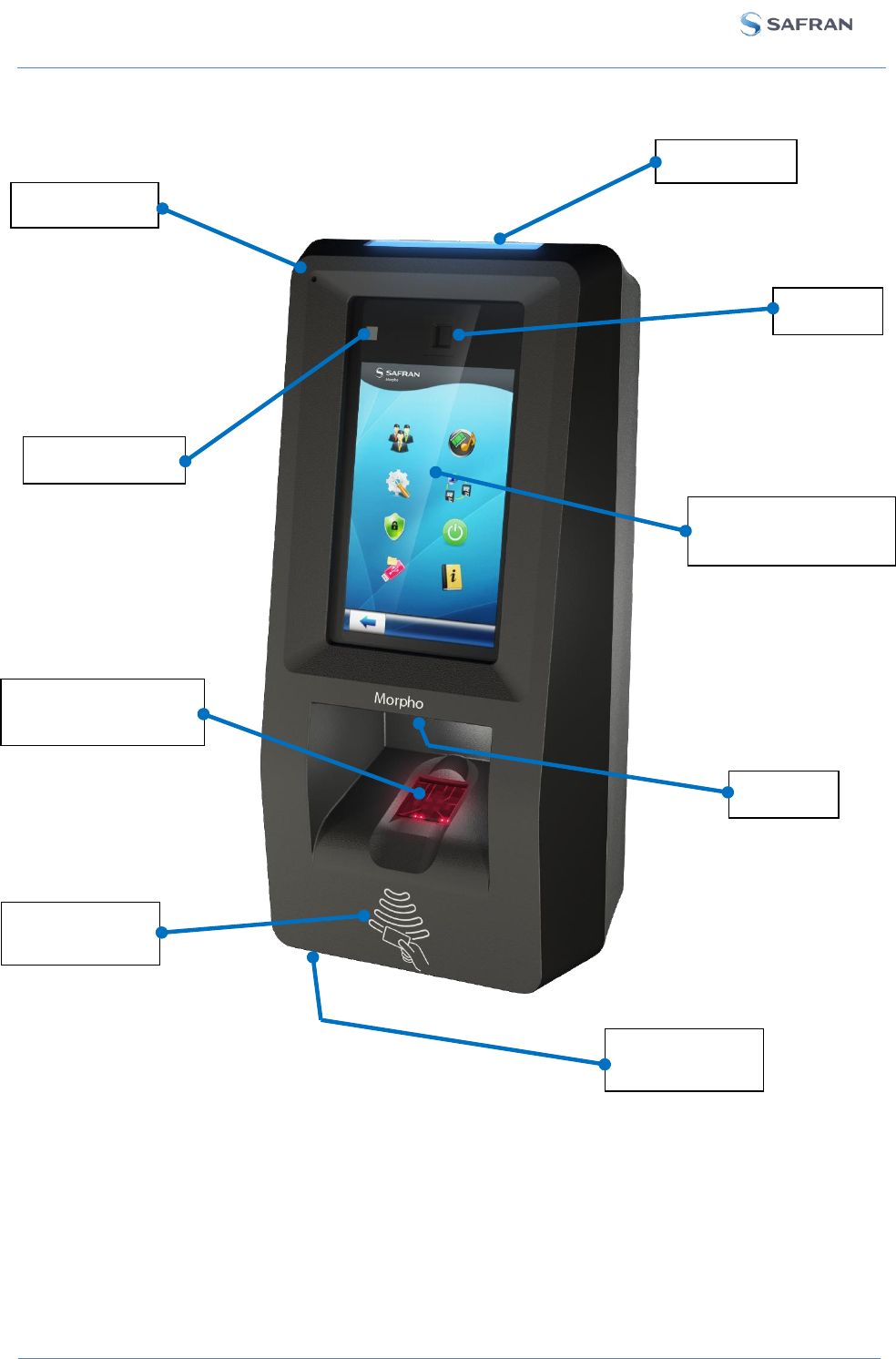

Figure 4: MorphoAccess® SIGMA Extreme Series terminal front view ....................................... 23

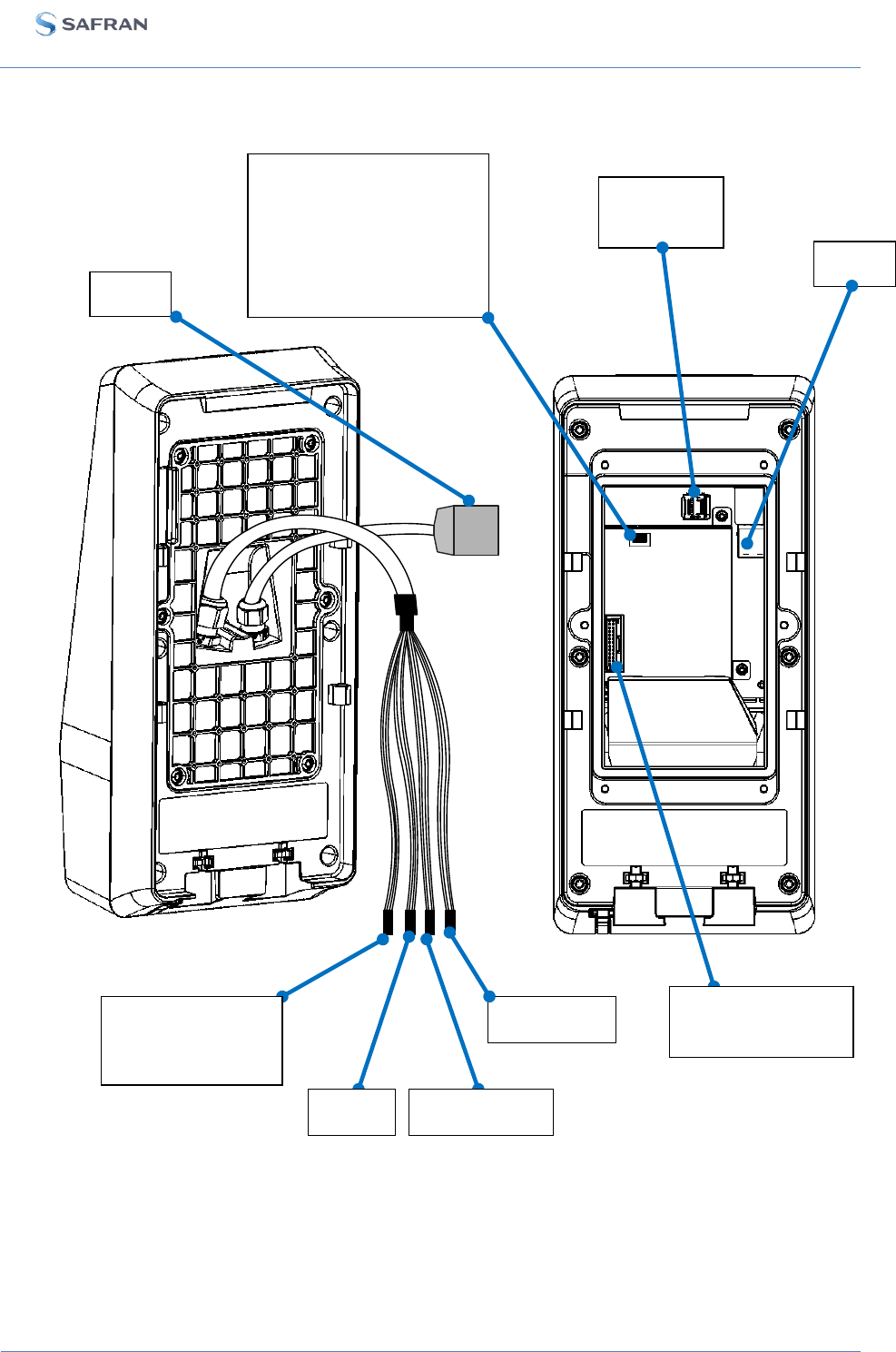

Figure 5: MorphoAccess® SIGMA Extreme Series terminal rear view ........................................ 24

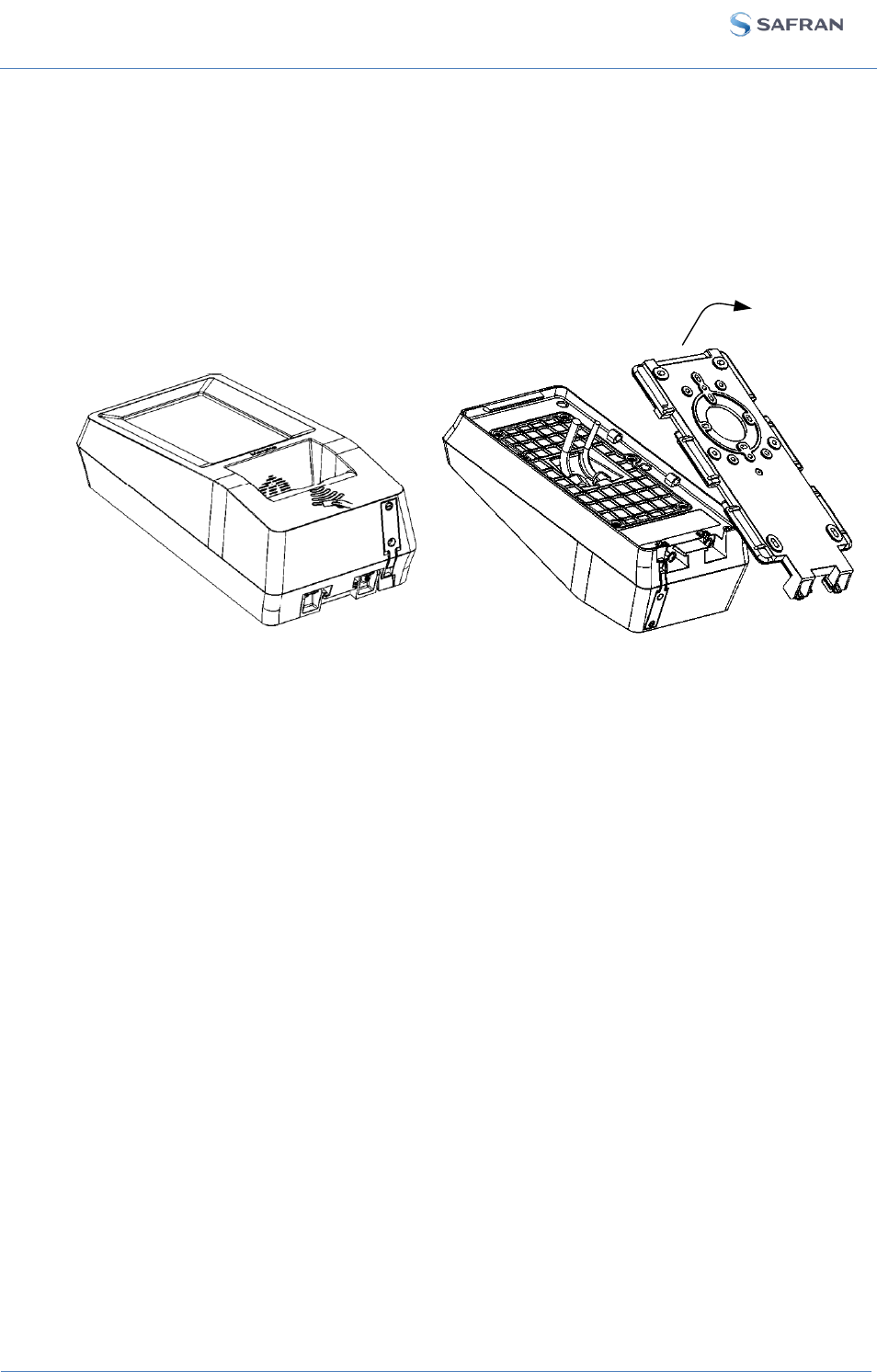

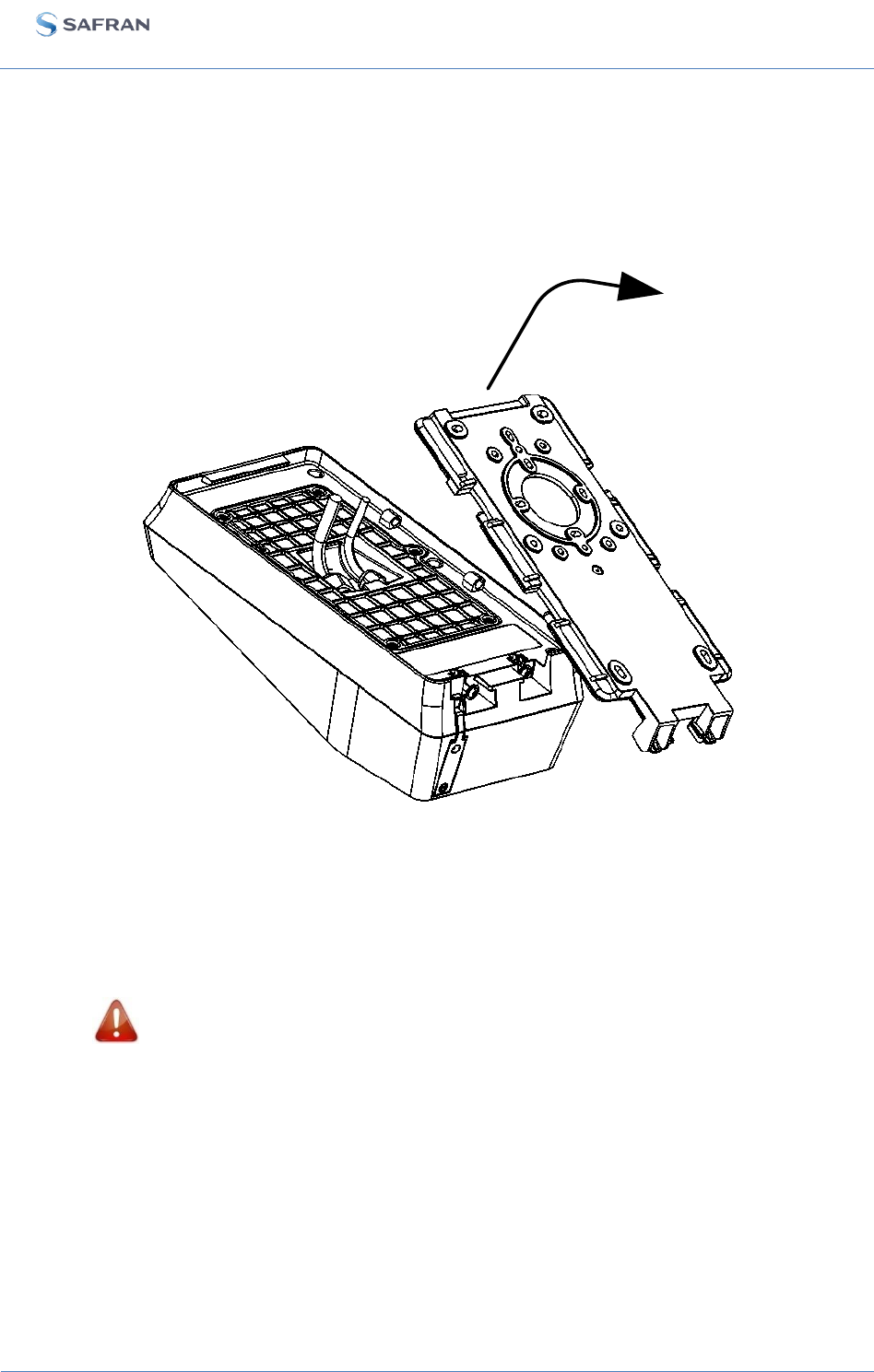

Figure 6: Removing wall frame .................................................................................................... 28

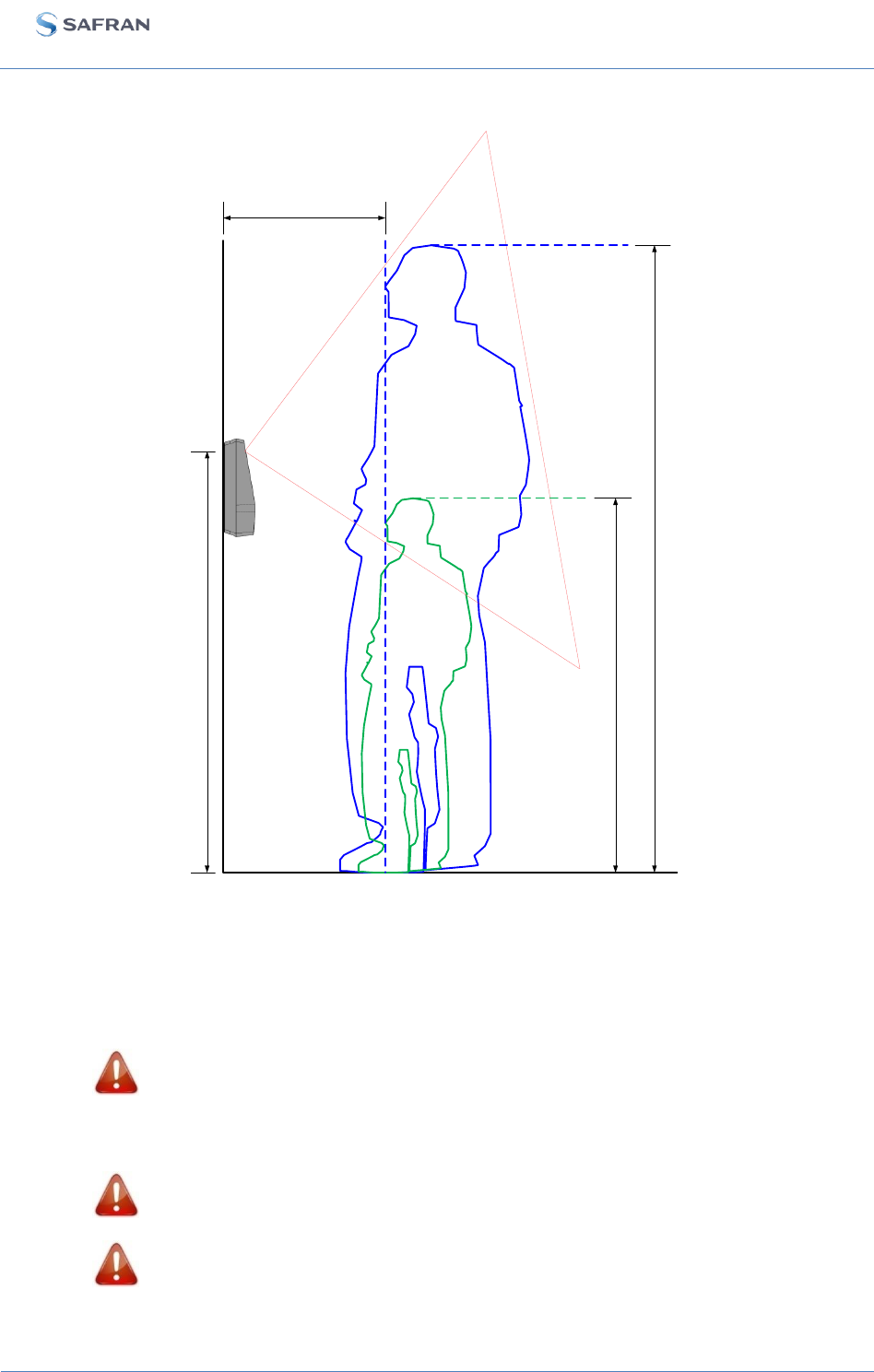

Figure 7: Face camera viewing angle ........................................................................................... 30

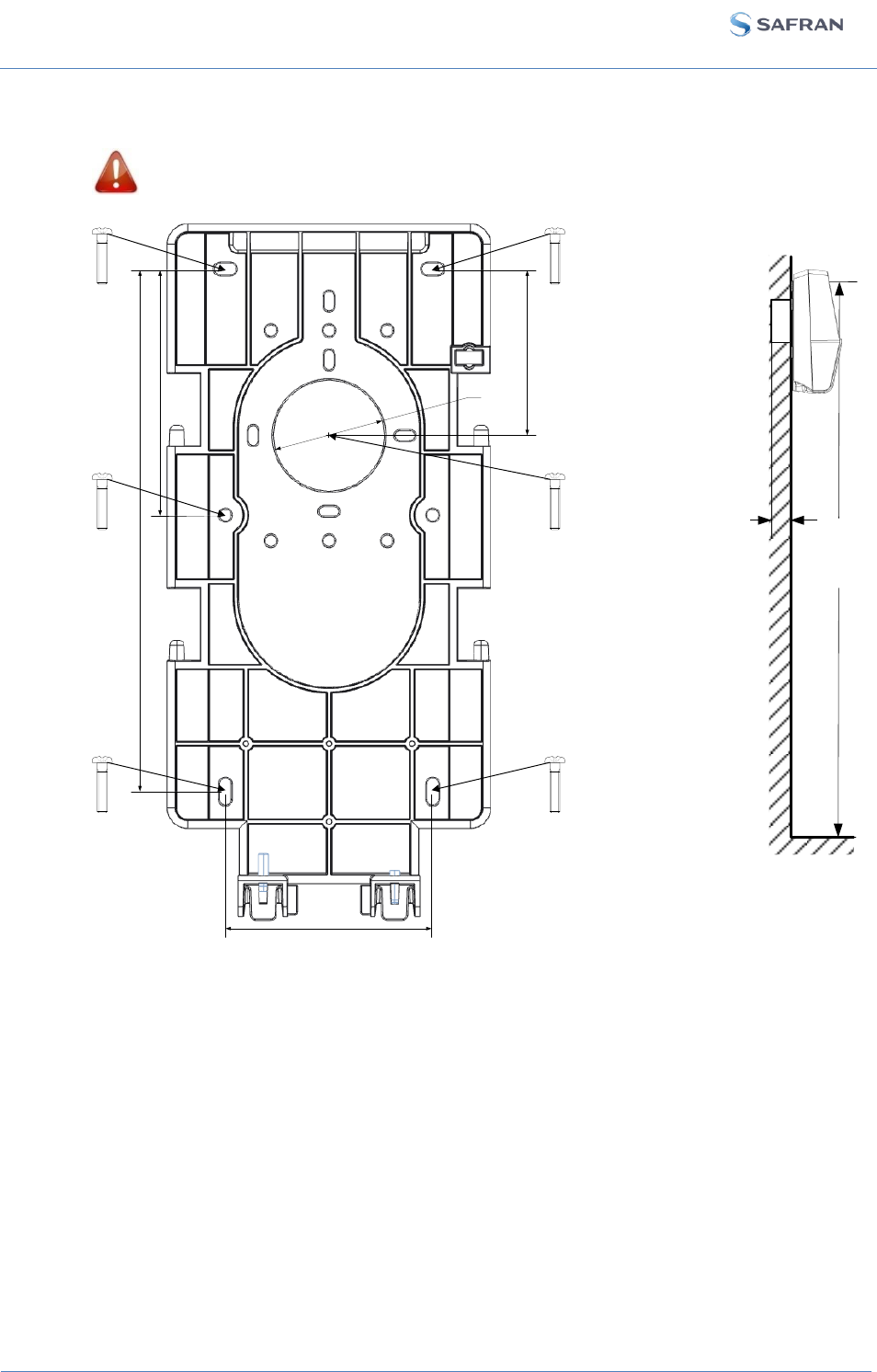

Figure 8: Drilling template ........................................................................................................... 31

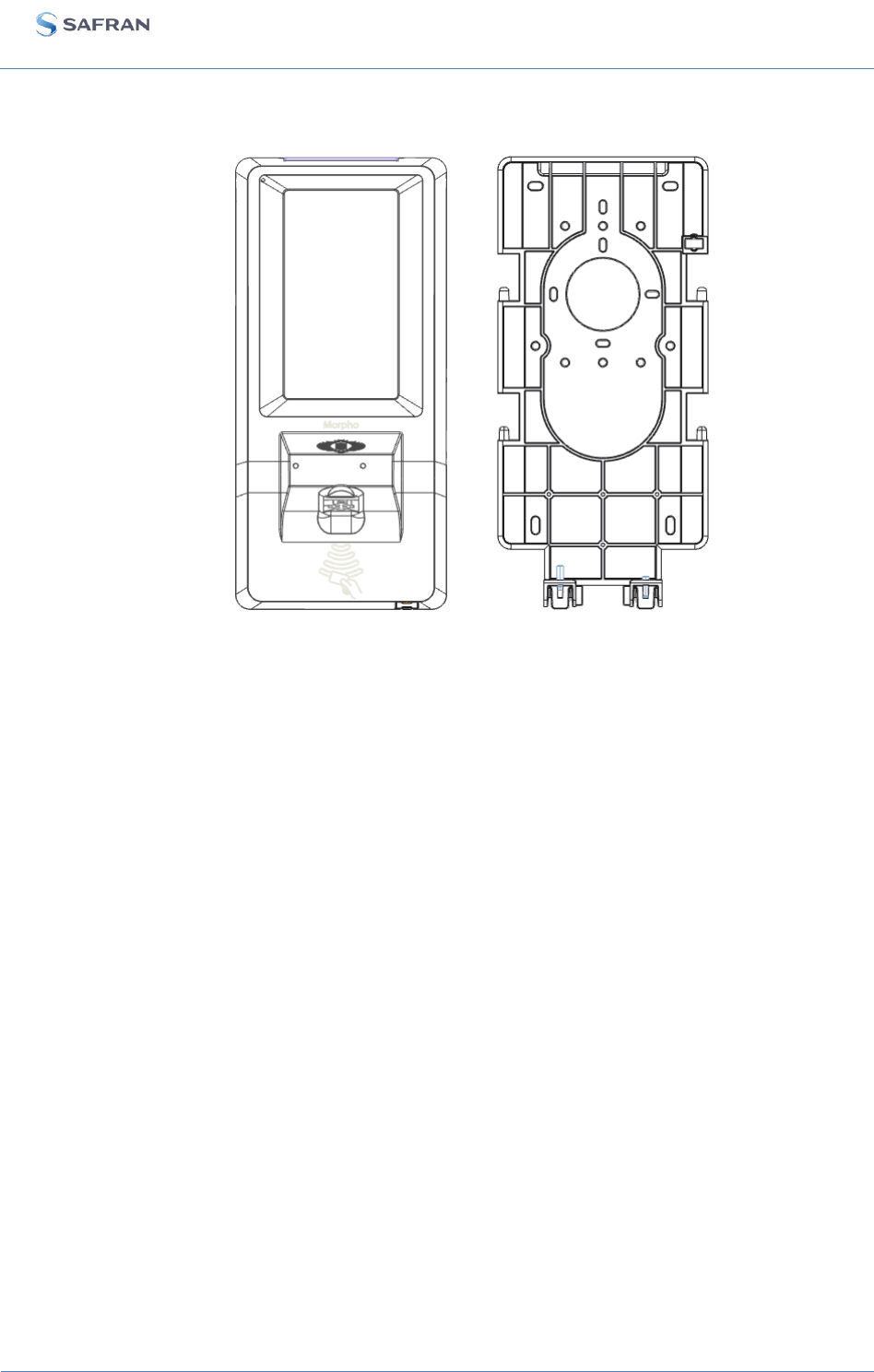

Figure 9: Wall plate fixing ............................................................................................................ 32
Figure 10: Cabling layout ............................................................................................................. 35

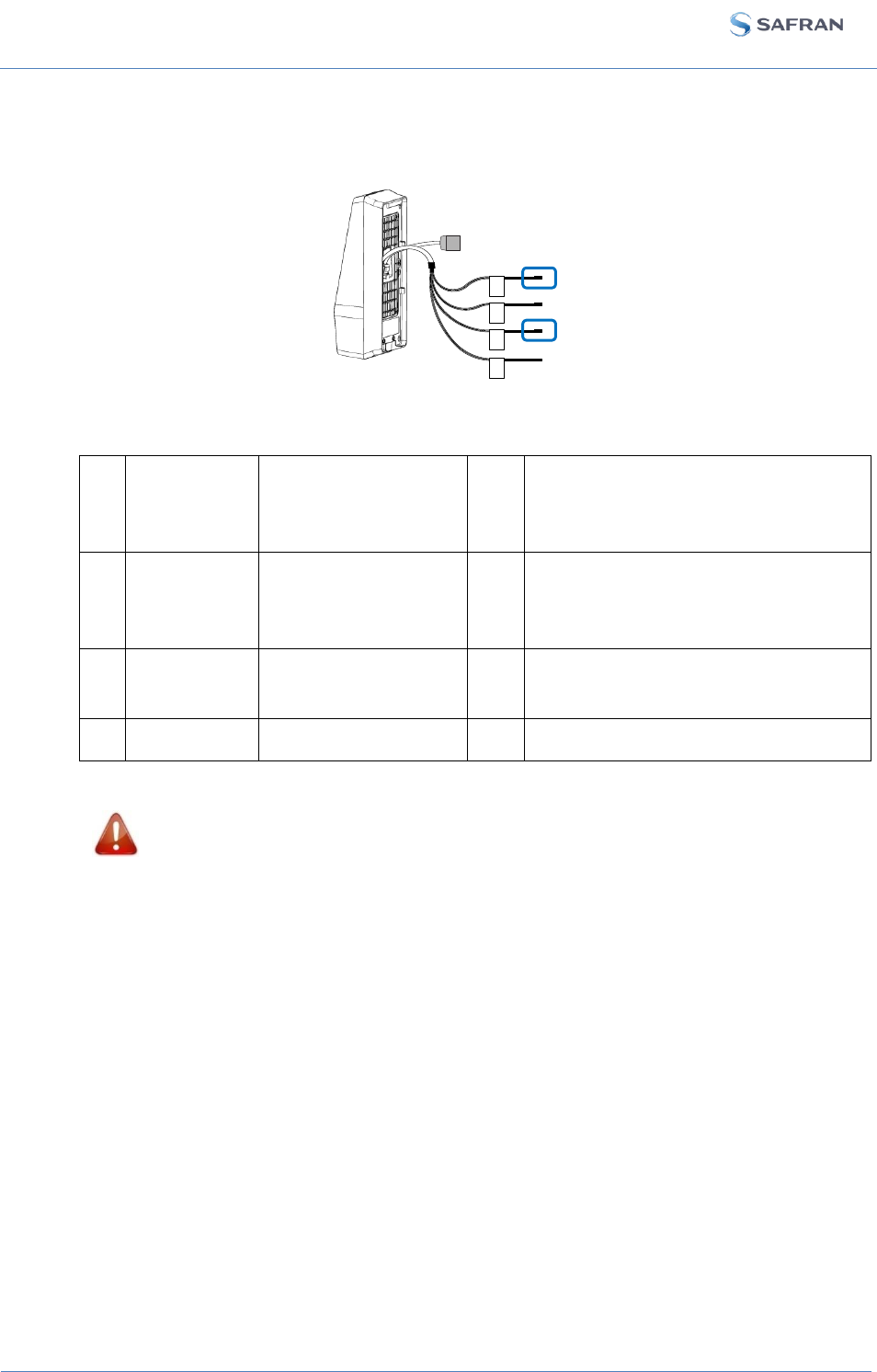

Figure 11: Power supply wiring ................................................................................................... 36
Figure 12: Output relay wiring ..................................................................................................... 37
Figure 13: Example of electric latch connection ......................................................................... 37
Figure 14: Tamper switch wiring ................................................................................................. 38
Figure 15: Wiegand input wiring ................................................................................................. 39
Figure 16: Wiegand output wiring ............................................................................................... 40
Figure 17: Serial port wiring – DataClock Input ........................................................................... 42
Figure 18: Serial port wiring – DataClock Output ........................................................................ 42
Figure 19: Serial port wiring – RS485 ........................................................................................... 43
Figure 20: Serial port wiring – RS422 ........................................................................................... 43
Figure 21: GPIO wiring ................................................................................................................. 44
Figure 22: SDAC wiring................................................................................................................. 44
Figure 23: RJ45 wiring .................................................................................................................. 45
Figure 24: External USB connection ............................................................................................ 46

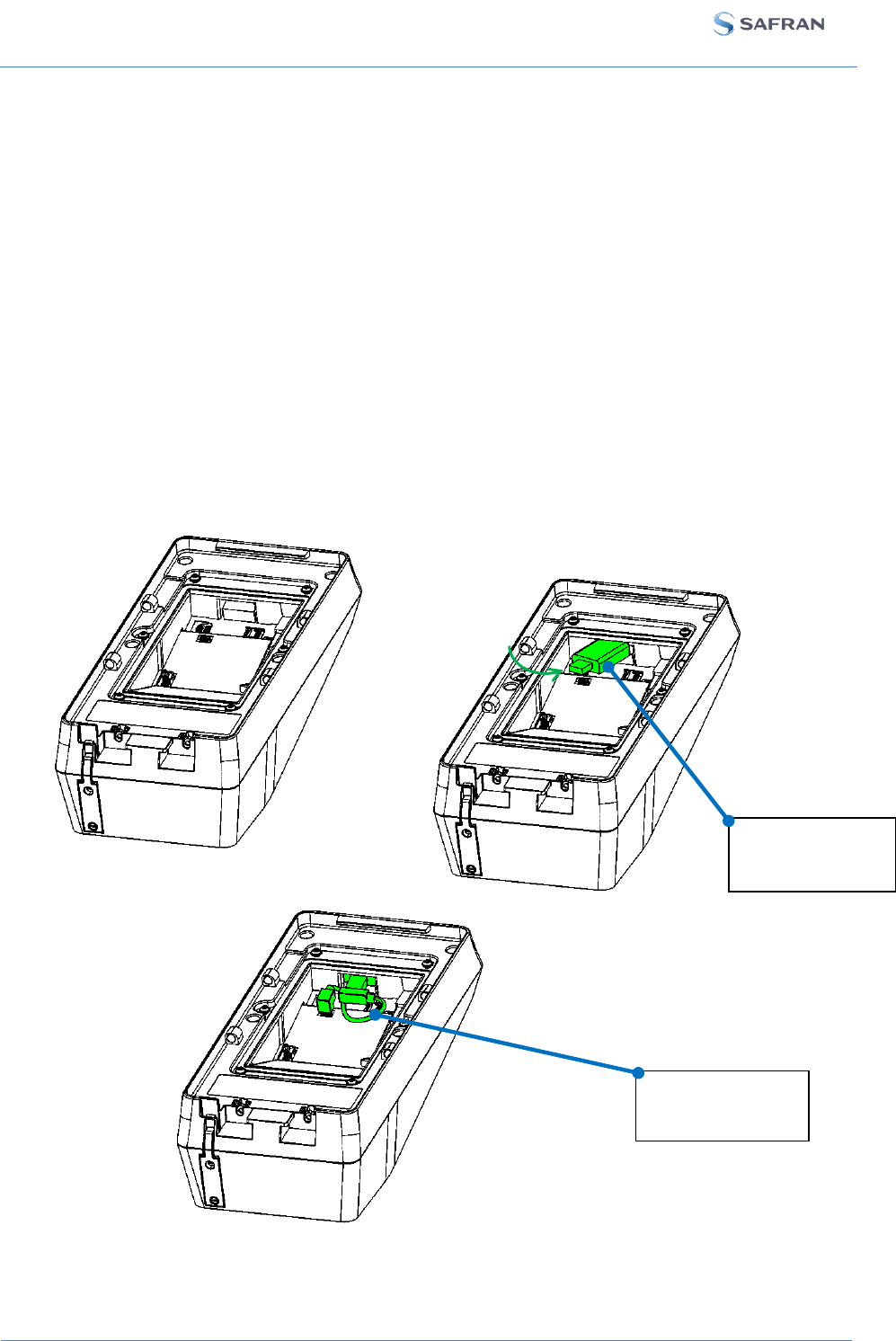

Figure 25: Wi-Fi™ dongle installation .......................................................................................... 47
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 1 : Introduction
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
9
Section 1 : Introduction
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 1 :Introduction
10
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017

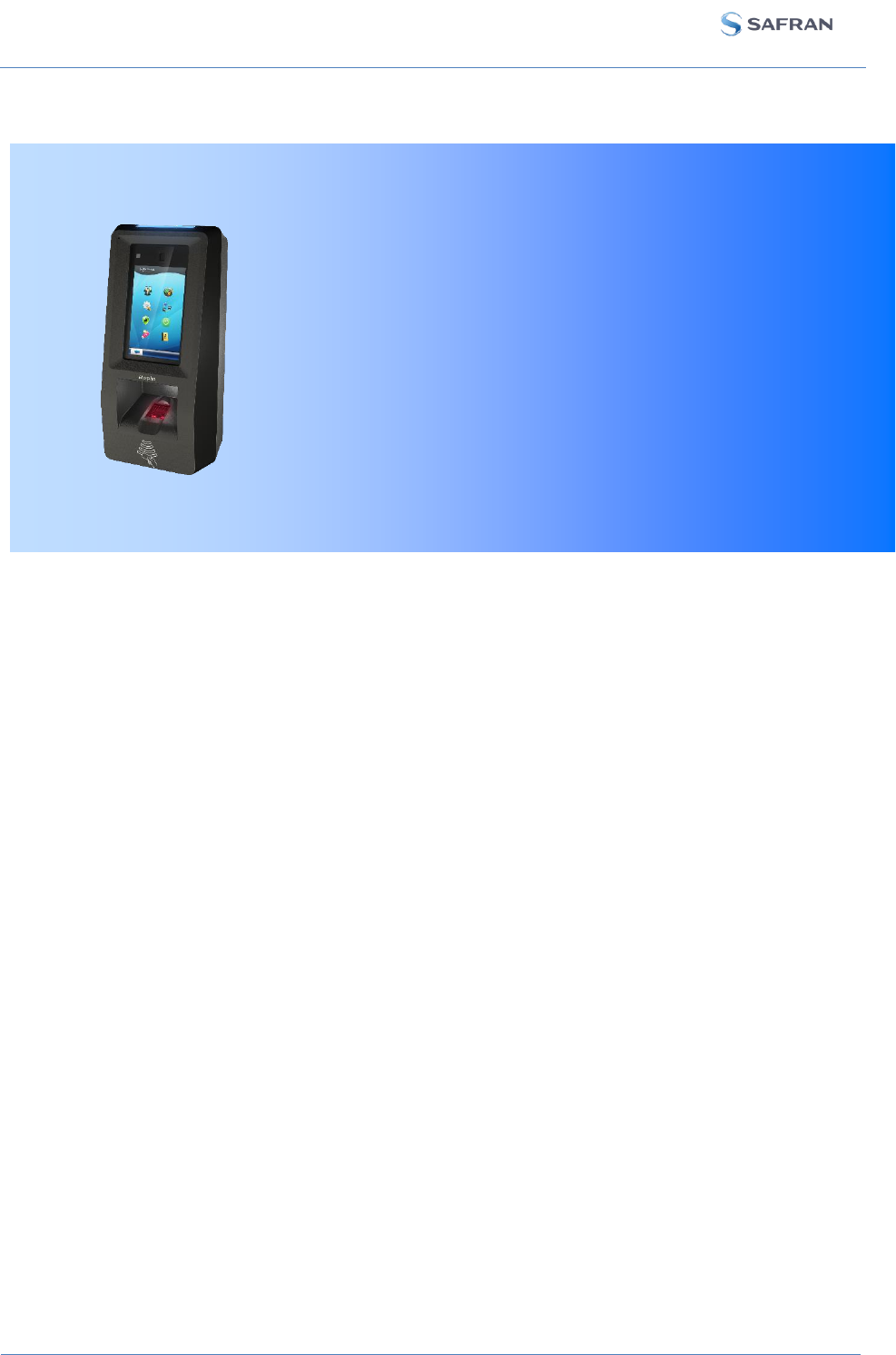

MorphoAccess® SIGMA Extreme Series Terminal
Congratulations for choosing a MorphoAccess® SIGMA Extreme Series Automatic
Fingerprint Recognition Terminal.
MorphoAccess® SIGMA Extreme Series provides an innovative and effective solution
for access control applications using Fingerprint Verification or/and Identification.
Among a range of alternative biometric technologies, the use of finger imaging has
significant advantages: each finger constitutes an unalterable physical signature,
developed before birth and preserved until death. Unlike DNA, a finger image is
unique to each individual - even identical twins.
MorphoAccess® SIGMA Extreme Series integrates Safran Identity & Security image
processing and feature matching algorithms. This technology is based on lessons
learned during 25 years of experience in the field of biometric identification and the
creation of literally millions of individual fingerprint identification records.
We believe you will find the MorphoAccess® SIGMA Extreme Series fast, accurate,
easy to use and suitable for physical access control.
The MorphoAccess® SIGMA Extreme Series offers the following advantages:
high quality optical sensor (IQS quality sensor) with false finger detection option,
supports multiple input/output interfaces used in the physical access control
industry,
Local Area Network interface for easy interaction with other host systems ; LAN
and WLAN possibilities (Wi-Fi™ as an option),
intuitive man machine interface with touch panel and display, that is easy to use in
both setup and operational modes,
sturdy wall mounting with easy holding of product during cabling or maintenance,
ruggedezied design for harsh environment (IK09 and IP65).
To ensure the most effective use of your MorphoAccess® SIGMA Extreme Series
terminal, we recommend that you read this Installation Guide completely.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 1 : Introduction
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
11
Scope of the document
This guide deals with the installation of MorphoAccess® SIGMA Extreme Series, which
is made up of following list of products:
MA SIGMA Extreme Series
Marketing Name
Biometrics
Fake
Finger
Detection
Contactless smartcard
reader
Water
Resistant
Regulatory
Model
Number (*)
iCLASS®
MIFARE®
DESFire®
NFC
Prox®
MA SIGMA Extreme iClass
MPH-AC002B
MA SIGMA Extreme Multi
MPH-AC002B
MA SIGMA Extreme Prox
MPH-AC002A
MA SIGMA Extreme FFD iClass
MPH-AC002B
MA SIGMA Extreme FFD Multi
MPH-AC002B
MA SIGMA Extreme FFD Prox
MPH-AC002A
(*) The Regulatory Model Number is the main product identifier in the regulatory
documentation and test reports associated to the product
NOTA : MA means MorphoAccess®
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 1 :Introduction
12
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Safety Instructions

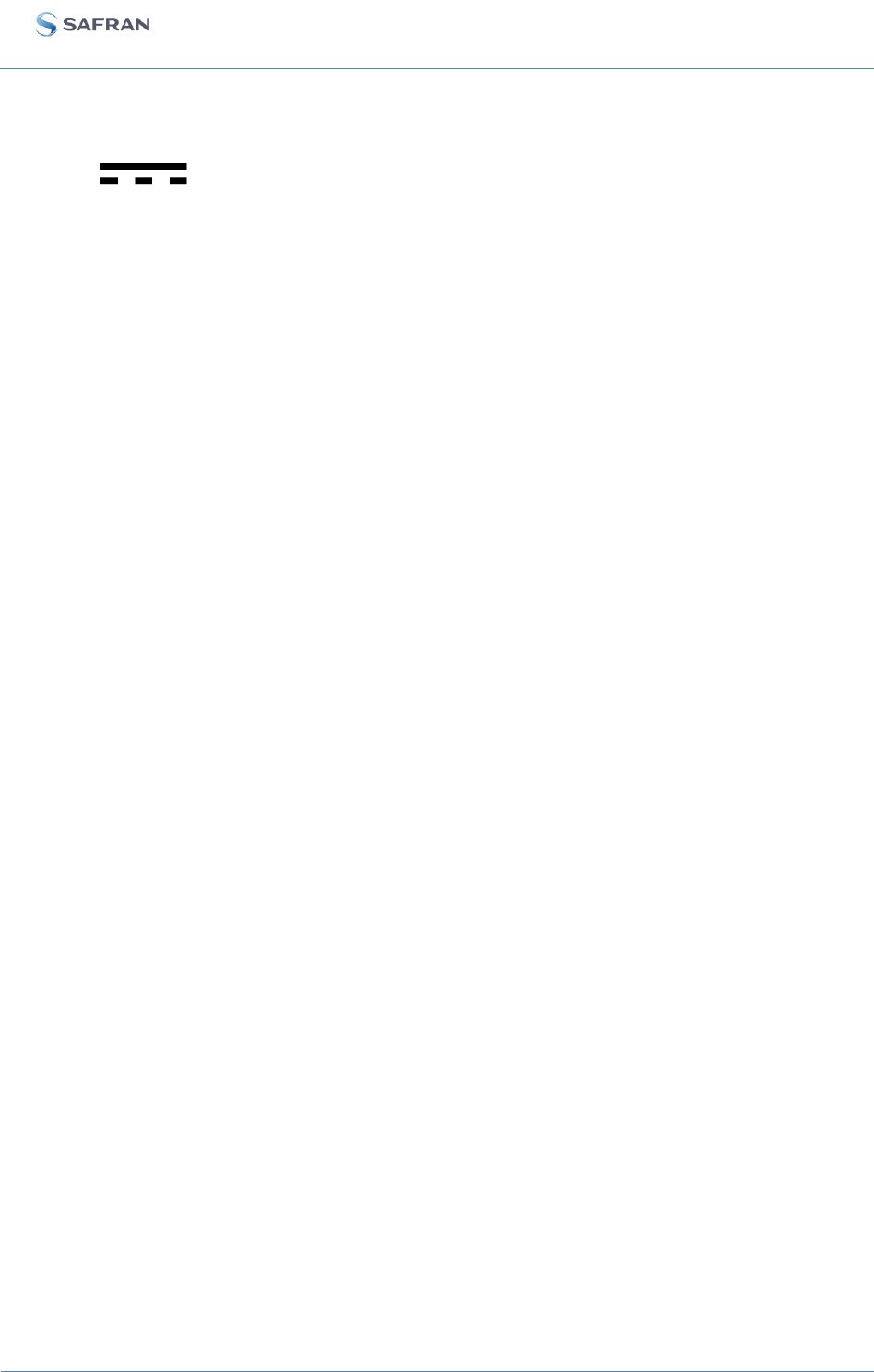

means Direct Current (DC)
The installation of this product should be made by a qualified service Person and
should comply with all local regulations.
It is strongly recommended to use a class II power supply at 12V-24V and 1A. min (at
12V) in conformity with Safety Electrical Low Voltage (SELV). The power supply cable
length should not exceed 10 meters.
This system must be installed in accordance with the National Electrical Code (NFPA
70), and the local authority having jurisdiction.
This product is intended to be installed with a power supply complying with
IEC60950-1, in accordance with the NEC Class 2 requirements; or supplied by a listed
IEC60950-1 external Power Unit marked Class 2, Limited Power source, or LPS and
rated 12VDC, 1A minimum or 24VDC, 0.5A minimum.
In case of building-to-building connection it is recommended to connect 0V to
ground. Ground cable must be connected with the terminal block Power Ground.
Note that all connections of the MorphoAccess® SIGMA Extreme Series terminal
described hereafter are of SELV (Safety Electrical Low Voltage) type.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 1 : Introduction
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
13
V1
V2
L

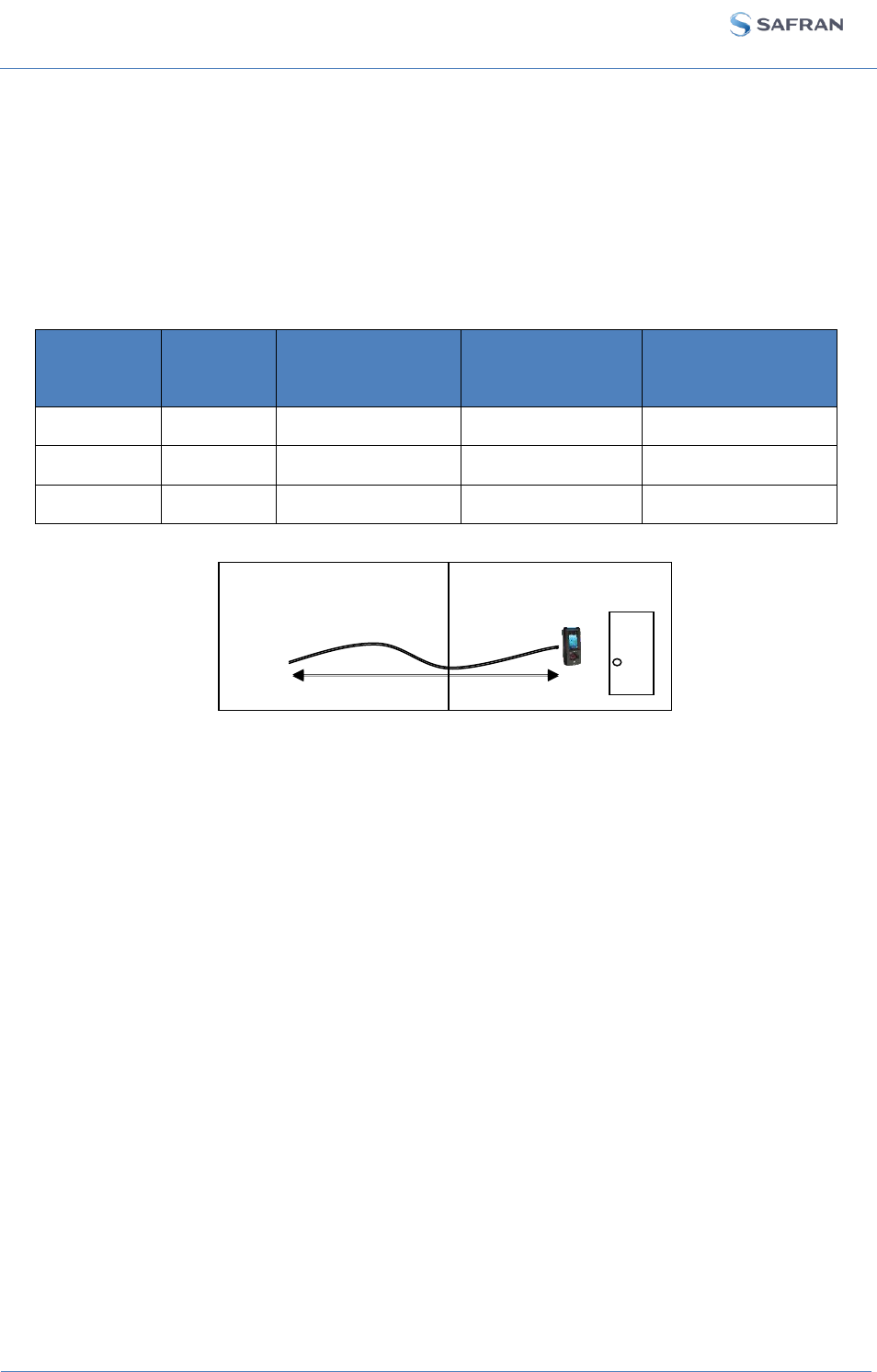

Wiring Recommendations
Safran Identity & Security recommends using a gauge AWG20 for 12V power supply when
POE supply is not used.
The voltage specified is the one measured on the product block connector: 12V-24V (-
15% / +10%)
For information, this table shows the maximum drop voltage observed on the
terminal MorphoAccess® SIGMA Extreme Series:
Gauge
AWG
Diameter
(mm)
Maximum drop
voltage @ 1m
(V)
Maximum drop
voltage @ 5m
(V)
Maximum drop
voltage @ 10m
(V)
20
0.81
0.03
0.17
0.33
22
0.64
0.05
0.26
0.53
24
0.51
0.08
0.42
0.84
Drop voltage = loss of power due to wire resistance and its length: V2 = V1 – Drop
voltage
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 1 :Introduction
14
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Regulatory, safety and Environmental notices
European Union (CE) regulatory notices
Declaration of Conformity
Products bearing the CE marking comply with one or more of the following EU
Directives as may be applicable:
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
R&TTE Directive 1999/5/EC
Ecodesign Directive 2009/125/EC
RoHS Directive 2011/65/EU.
Compliance with these directives is assessed using applicable European Harmonised
Standards.
MorphoAccess® SIGMA Extreme Series terminals are intended to be used for
professional application only (buildings, airport...).
This is an EMC Class A product according to EMC directive 2004/108/EC. This product
may cause interference if used in residential areas. Such use must be avoided unless
the user takes special measures to reduce magnetic emissions to prevent
interference to the reception of radio and television broadcast.
The full Declaration of Conformity is available on demand to your reseller. Please,
provide him the product model name or its Regulatory Model Number (Model on the
label).
Products with wireless features (EMF)
This product meets the provisions of the EU's Council recommendation 1999/519/EC
on the limitation of the exposure of the general public to electromagnetic fields (0 Hz
to 300 GHz).
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 1 : Introduction
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
15
USA (FCC) regulatory notices
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Responsible Party:
Safran Identity & Security
11, boulevard Gallieni
92130 Issy-les-Moulineaux – France
NOTA : This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded cables must be used with this unit to ensure compliance with category B FCC
restrictions.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 1 :Introduction
16
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Canada (IC) regulatory notices
WARNING TO USERS IN THE CANADA / ATTENTION POUR LES UTILISATEURS AU
CANADA
This device complies with Industry Canada license-exempt RSS standard(s), and with
ICES 003 standard for version(s) without RFID reader. Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada.
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communication.
Note : UL LLC has not verified this product for compliance in respect to Canadian
standards.
Others recommendations
Potential safety conditions notice
If you notice any of the following conditions (or if you have other safety concerns), do
not use the product: crackling, hissing, or popping sound, or a strong odor or smoke
coming from the product. It is normal for these conditions to appear when an internal
electronic component fails in a safe and controlled manner. However, these
conditions may also indicate a potential safety issue. Do not assume it is a safe failure.
Turn off the product, disconnect it from its power source, and contact technical
support for assistance.
Disposal of waste equipment by users
This symbol means do not dispose of your product with your other household waste.
Instead, you should protect human health and the environment by handing over your
waste equipment to a designated collection point for the recycling of waste electrical
and electronic equipment.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 1 : Introduction
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
17
Recommendations for terminal implementation
Every installation is unique. Sometimes the issues are well defined and can be
handled in a standard fashion; sometimes the issues are very specific and may not be
immediately recognizable.
Safran Identity & Security recommends following these steps for a successful installation:
Plan the installation - Choose the type of hardware required, decide if a network is
required, and decide on the location and number of required terminals.
Unpack all items - Unpack all items and check against the packing list.
Install network hardware components - Install the cabling and components
needed to run the system.
Install software - Install the software needed to set up the terminals.
Pre-configure device - Connect the terminals to the Ethernet, supply power to the
terminals, and pre-configure the terminals.
Mount devices - Mount the terminals in their final locations
Power distribution and device hook up - Connect the terminals wiring via the back
panel.
Power-up procedure - Check the power connections, and then start the system
safely. First Boot Assistant screen is displayed, where you can perform
fundamental configuration.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 1 :Introduction
18
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
To secure properly an access, Safran Identity & Security recommends installing the
MorphoAccess® SIGMA Extreme Series terminal as a part of the typical Access Control
environment, described in the figure below.
Figure 1: Implementation Recommendations
This environment comprises:
The MorphoAccess® SIGMA Extreme Series terminal itself
Its role is to perform one-to-many biometric identification or one-to-one biometric
verification, i.e. to identify the individual who is presenting his finger on the terminal
sensor by comparing his biometric data with the references previously stored in the
terminal database (in the form of biometric templates) or to verify his identity using
the reference stored in a contactless card presented to the terminal.
An Access Controller (3rd party product)
The Controller is the element which controls the access rights of the individuals to the
secured area. For that reason, it must be located in the secured area.
ACCESS CONTROL
SYSTEM
(*) OR EQUIVALENT
NON SECURED
AREA
ACCESS
CONTROLLER
TCP/IP, Wiegand, Dataclock, RS485 or RS422
ELECTRIC
LATCH (*)
SECURED
AREA
Dry Contact
MorphoAccess®
SIGMA Extreme
Terminal
Dry Contact
ALARM
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 1 : Introduction
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
19
The individuals who are authorized to access the secured area have their User ID
listed in a so-called "Authorized User List" (in contrast with a banned card list).
The MorphoAccess® SIGMA Extreme Series terminal and the Controller are
communicating according to one of the TCP/IP, Wiegand, Dataclock or RS485
protocols:
The MorphoAccess® SIGMA Extreme Series terminal sends User ID to the
Controller
The Controller sends its decision to the MorphoAccess® SIGMA Extreme Series
terminal (which displays access granted or access denied depending on the
answer)
The MorphoAccess® SIGMA Extreme Series terminal sends an alarm signal to the
Controller as soon as a malicious operation is detected (terminal pulled out from
the wall or opened for maintenance operations); refer the paragraph dealing with
anti-pulling and anti-tamper switches for more explanations.
The Controller is part of the global Access Control System of the secured area, which
can provide useful features such as manage:
authorized user lists (i.e. for VIP),
banned card lists (i.e. for lost user cards),
an access request log (who and when, access granted or denied,..),
an event log (i.e. tamper detection, access control for evacuation of the
building,...).
The MorphoAccess® terminal is able to work alone, without Controller, but the
protection level of the secured area is lower.
An Alarm (3rd party product)
This element is connected to the MorphoAccess® SIGMA Extreme Series terminal
through a dry contact.
The MorphoAccess® SIGMA Extreme Series terminal sends the command to activate
the Alarm as soon as a malicious operation (terminal pulled out from the wall or
having its bottom cover opened out of maintenance operations) is detected; refer the
paragraph dealing with anti-pulling and anti-tamper switches for more explanations.
A Door Electric Latch or equivalent (3rd party product)
This element once activated opens the access. The Controller is the one which sends
the command to activate the latch if access is granted (i.e. if the individual's User ID is
listed in the Controller Authorized User List). Connection between these two
elements is done through a dry contact.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 2 :General Description
20
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Section 2 : General
Description
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 2 : General Description
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
21
Box opening
At the box opening, components shall be extracted from the protection casing as
depicted in the pictures below.
Extract the wall plate (which is not screwed to the terminal) and keep it separate until
the installation of the terminal is completed. The screwing of the product to the wall
plate is the last stage of the installation.
Figure 2: Box Opening
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 2 :General Description
22
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Components of the initial package
Figure 3: Box Content
1. One (1) Terminal’s body
2. One (1) Wall frame
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 2 : General Description
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
23
Terminal's front view description
Figure 4: MorphoAccess® SIGMA Extreme Series terminal front view
Microphone
Status LED
Camera
Light sensor
USB host
port
5" WVGA
touchscreen LCD
Optical biometric
sensor
Contactless
card area
Speaker
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 2 :General Description
24
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Terminal's rear view description
Figure 5: MorphoAccess® SIGMA Extreme Series terminal rear view
Micro SD
card slot
RJ45
USB port (for
configuration and
settings with a USB
mass storage key, or
for installation of a
Wi-Fi™ USB dongle)
Terminal signal
connector
RJ45
Wiegand
RS485/422
GPIO
Power supply
Relay
Tamper switch
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 2 : General Description
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
25
MorphoAccess® SIGMA Extreme Series Technical
Characteristics
Item
Description
Access control modes
Identification (search for fingerprint in a local database)
Authentication with contactless smartcard, with or without
fingerprint check (only if terminal is equipped with a contactless
smartcard reader)
Multi-factor: identification or authentication (only if terminal is
equipped with a contactless smartcard reader)
Proxy: the access control check is fully driven by a remote system
Man Machine Interface
5” WVGA color capacitive Touchscreen
VGA camera for face image capture and videophone
Powerful Loudspeaker & Microphone
tBiometrics
MorphoSmart Optic Biometric Module inside:
23*23mm
500dpi, 256 gray levels optical sensor
FBI PIV IQS quality sensor
False Acceptance Rate (FAR) adjustable from 1% down to 10-7%
Database capacity: 5,000 users (standard) and up to 100 000 users
(with specific license)
Log capacity
1 000 000
100 000 if face picture logged
LAN/WLAN connection
For terminal configuration and data transfer:
Ethernet 10/100 Base T (MDI, MDI-X)
Or Wi-Fi™ Wireless LAN (option), WEP, WPA (PSK) and WPA2 (PSK)
encryption available
Either TCP, SSL or TLS protocol
RFID cards (depending on
product version)
MIFARE Classic 1KB & 4KB (4b and 7b UID)
MIFARE Plus SL1 cards
DESFire 3DES legacy 2K, 4K and 8K (EV0 & EV1)
DESFire AES 2k, 4k, 8k (EV1)
All HID iClass cards (incl. iClass legacy, iClass SR and iClass SE), except
2K2
HID Prox 125 kHz whatever the format (26, 37 ....)
Serial port
The serial port supports WIEGAND, DATACLOCK (ISO2), RS422 and
RS485 protocols
GPIO
3 GPI, 3 GPO
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 2 :General Description
26
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Output relay switches
Access granted: 1 switch two outputs (normally “open” and normally
“closed”)
30V – 1A max (Resistive loads)
USB host port
External port for terminal configuration through a USB mass storage
key
Internal port to connect an external Wi-Fi™ USB dongle using an
adapter cable
Input signals
LED1/LED2 to activate the access granted relay
Power supply
12 to 24 V DC power supply (1A min @12V)
Or by Power Over Ethernet through RJ-45 connector
Note for UL 294 Compliance power supply shall be UL 294 and UL
294B with power limited output
Security of the terminal
Anti-tamper-pulling switches
Tamper-pulling detection: one switch closed when product wall
mounted, open when pulled out
Size and weight
W x H x D: 130mm x 300mm x 95mm
(5,12” x 11,82” x 3,74”)
Weight : ~1,5kg
Environmental conditions
Operating temperature -20 °C to + 60 °C (-4°F to 140°F)
Operating humidity 10 % < RH < 95 % (non condensing)
Storage temperature -25 °C to + 70 °C (-13°F to 158°F)
Storage humidity 5% < RH < 95 %
IP65 rated
For UL 294 compliance, the products are rated for indoor use. IP65
was not verified by UL
The terminal should be installed in controlled lighting conditions
Avoid direct exposure to sunlight or to UV lights
Certification planned
CE, IEC 60950-1, FCC Part 15, RSS210 - Issue 8 : 2010, RSS-102 - Issue
5 : 2015, RSS-Gen – Issue : 2014, RoHS, REACh, WEEE
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 3 : Installation Procedure
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
27
Section 3 : Installation
Procedure
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 3 :Installation Procedure
28
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017

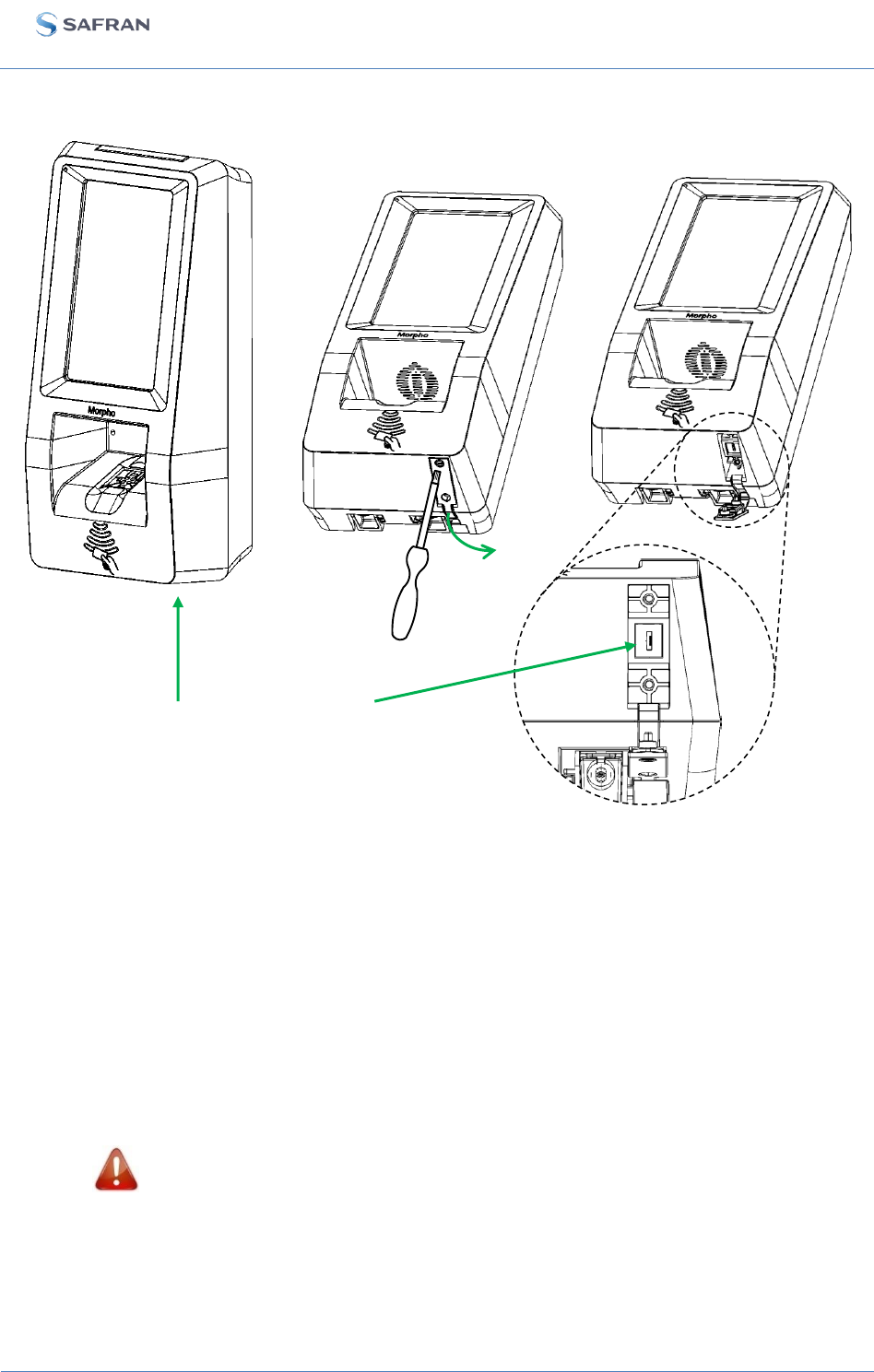

Before proceeding to the installation
Make sure that you have all the components described in “Components of the
initial package” section at your disposal.
Remove the wall plate. Keep this element at hand.
Figure 6: Removing wall frame
It is then possible to fix the terminal on the wall.
The recommended height for fixing of the terminal is 1.30m (camera height).
For an optimal use the terminal must be installed in an area where the
lighting conditions are controlled. Avoid direct exposure of the sensor to
the sun light and ensure good ambient lighting for face detection if used.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 3 : Installation Procedure
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
29
Installation
Required tools (not supplied)
Six (6) raw plugs + six (6) screws ø4mm max and length adapted to the wall
material.
One (1) screwdriver adapted to screws above.
One (1) Drill (with a drill bit diameter adapted to raw plugs above).
One (1) hole saw (depending on installation case).
A (1) Torx T20 screwdriver
Deadbolt/door strike
Snubber diode required to protect regulated DC power supply from inductive
kickback (1N4007 diode or equivalent recommended)
Separate power supply for the deadbolt/door strike based on supplier's
recommendations.
External relay (if required)
Networking cable
For UL-294 compliance, an earthed screen in the wire or around all wires to/from
product is only required when the wires share space/compartment/tube with high
voltage cables.
Equipment from the initial package to use
One (1) Terminal’s body.
One (1) wall plate.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 3 :Installation Procedure
30
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Step by step procedure
Figure 7: Face camera viewing angle
The recommended height for fixing of the terminal is 1.30m (camera height).
For an optimal use the terminal must be installed in an area where the
lighting conditions are controlled. Avoid direct exposure of the sensor to
the sun light and ensure good ambient lighting for face detection if used.
For face detection, the user has to face the product.
Power supply from electrical source shall be switched off before starting
the installation.
The strength of the attachment depends on the solidity of the wall on
which the terminal is mounted.
130cm
50,00
194cm
116cm
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 3 : Installation Procedure
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
31
Drilling the mounting holes
Be sure that the wall behind the wall plate has a good flatness.
Figure 8: Drilling template
If not present, drill in the wall a hole with a diameter adapted to the width of the
terminal and the cable to be hosted in (see Figure 8: Drilling template. This template
can be found in the Quick Installation Guide).
Confirm the presence inside the hole of all the cables needed for the electrical
installation (see Electrical Interface)
Drill in the wall 6 holes with a diameter adapted to screws and fit them with the raw
plugs (see Figure 8: Drilling template).
1300mm
40mm min
Φ = 4mm
2
Φ = 4mm
1
Φ = 4mm
4
Φ = 4mm
3
Φ = 4mm
6
Φ = 4mm
5
207,00mm
97,50mm
82,00mm
Ø44,00mm
65,50mm
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 3 :Installation Procedure
32
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Fixing
Be sure that a sufficient space is reserved in the wall for the passage of
cables, in particular for Ethernet.
Figure 9: Wall plate fixing
Place the wall plate against the wall, opposite the six holes pierced in the wall (see
Figure 9: Wall plate fixing).
!
127,8mm
275,8mm
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 3 : Installation Procedure
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
33
Cabling
To ensure water tightness, be sure to bend the cable downward.
Cable for wiring shall be AWG 20 to 24, length shall be adapted to the size of the hole
in the wall, to terminal connections, and to the distant between the electric source
and the terminal itself.
Closing
Power has to be set up just after closing it. If product has to be stored for a long time
(more than 48 hours), don’t forget to restore its configuration before use.
Finally, lock the product with the screws at the bottom of the terminal.
IP65
!
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 4 :Electrical Interface
34
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Section 4 : Electrical
Interface
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 4 : Electrical Interface
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
35
Wiring overview
Before proceeding, make sure that the person in charge of installation and
connections is properly connected to earth, in order to prevent
Electrostatic Discharges (ESD).
Power supply ground shall not be used for peripheral ground. All other
grounds can be used indifferently.
Note that all connections of the MorphoAccess® SIGMA Extreme Series terminal
described hereafter are of SELV (Safety Electrical Low Voltage) type.
Figure 10: Cabling layout
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 4 :Electrical Interface
36
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Power Supply
POE and external power supply are not used at the same time: if both power supplies
are used, priority is given to external power supply. If external power supply is shut
down, switch to POE without reboot is not guarantee.

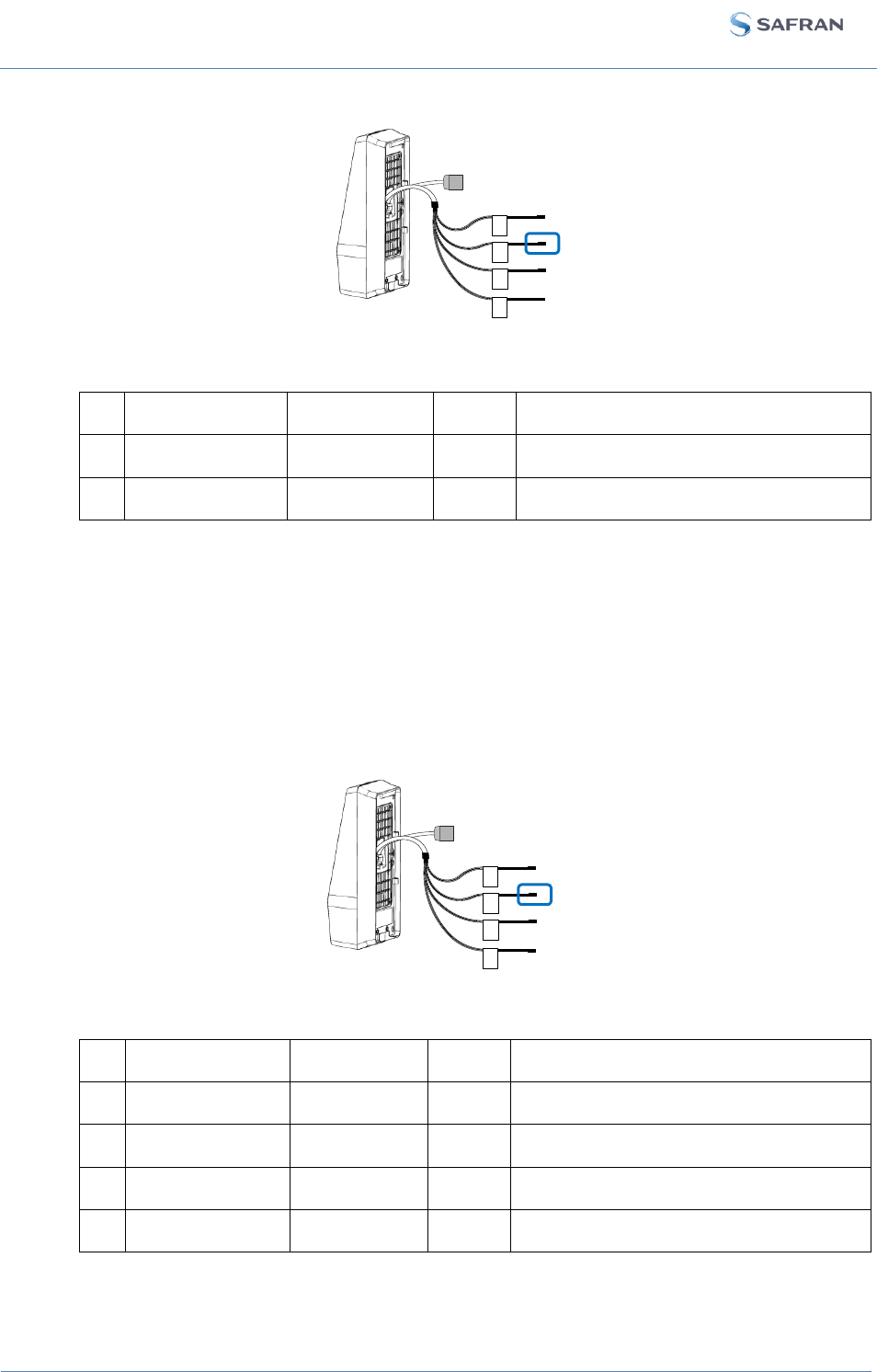

External Power supply
Figure 11: Power supply wiring
25
Red
Power Supply 12-24V DC
In
Positive 12-24 Volts, power supply
26
Black
Power ground
In
Ground power supply
External power supply
Must comply with IEC 60950-1 standard.
12V to 24V Dc (regulated and filtered) 1 Amp min at 12V.
Could be provided by a 12 Volts Wiegand power supply, which complies with the
Security Industry Association's Wiegand standard March 1995.
If sharing power between devices, each unit must receive 1A (e.g. two units would
require a 12vDC, 2A supply).
POE (Power Over Ethernet)
MorphoAccess® SIGMA Extreme Series terminal's power supply can also be provided
by the Ethernet using RJ45 connection (Power Over Ethernet mode - IEEE802.3af or
IEEE802.3at type 1 compliant).
The terminal maybe alternatively be powered via a UL 294B PSE PoE Limited power
source with a range of 48VDC (-10% /+15%). UL 294 compliance was verified with POE
(PSE-Power Sourcing Equipment model Phihong part number PSA16u-480).
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 4 : Electrical Interface
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
37

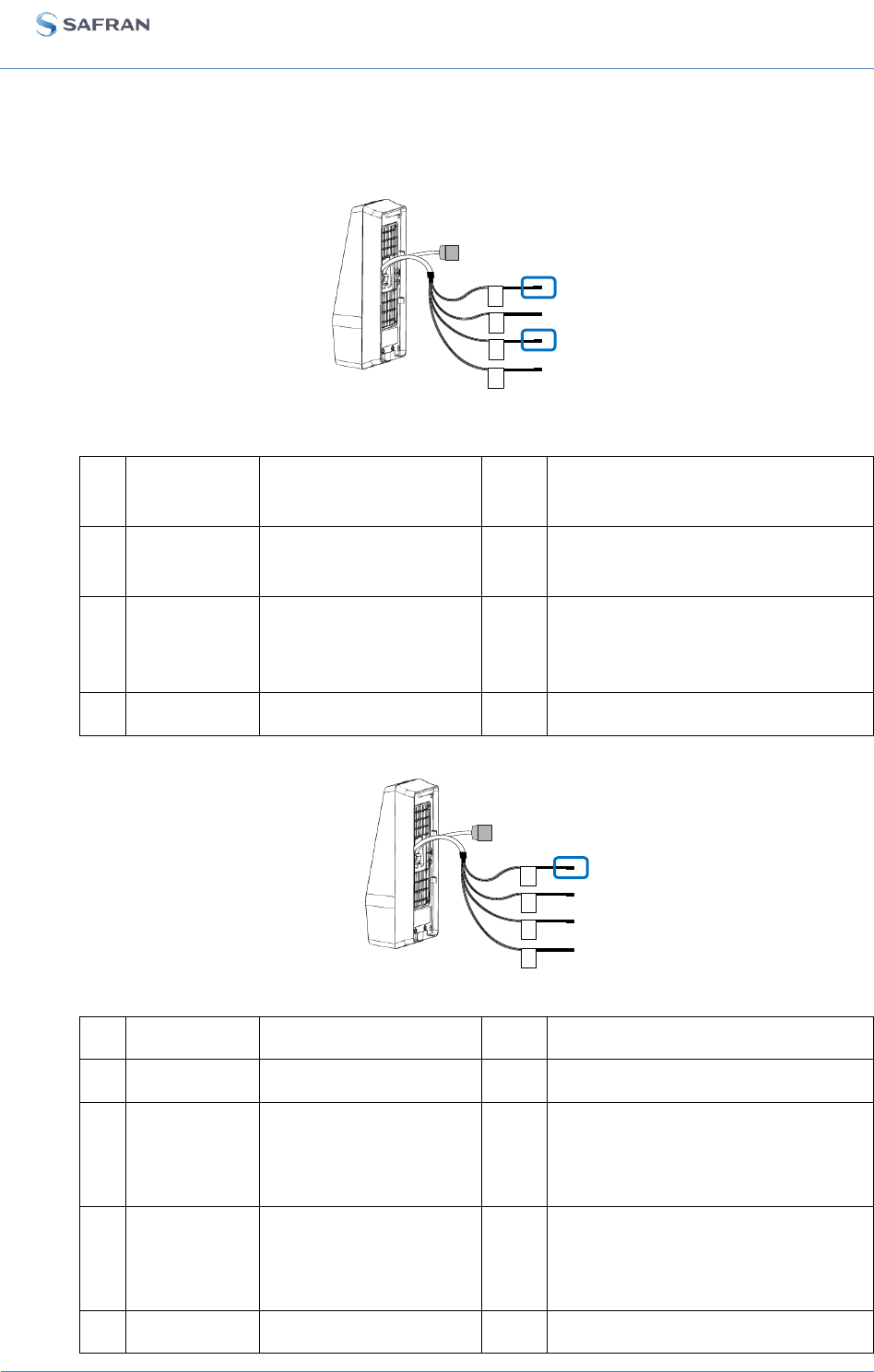

Output Relay
Figure 12: Output relay wiring
21
Yellow / White
Relay NO
Contact relay (normally open)
22
Grey / White
Relay COM
Contact relay common
19
Orange / White
Relay NC
Contact relay (normally closed)
Nominal characteristics of relay
Load characteristics:
1 A max @ 30 VDC (according to the safety extra low voltage requirements
independently of the power supply),
Resistive load or inductive load; see warning information hereafter for inductive
load,
The internal relay is designed for at least 100 000 cycles (resistive load).
Inductive load management requires a parallel diode for a better contact
lifetime.
Example of connection for electrical door locks
Figure 13: Example of electric latch connection
+VCC <30V
Imax < 1A
Electric
door lock
Protection
diode
MorphoAccess®
SIGMA Extreme
Terminal
Button on other
side of the door
Relay
Pin 1
Relay
Pin 2
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 4 :Electrical Interface
38
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017

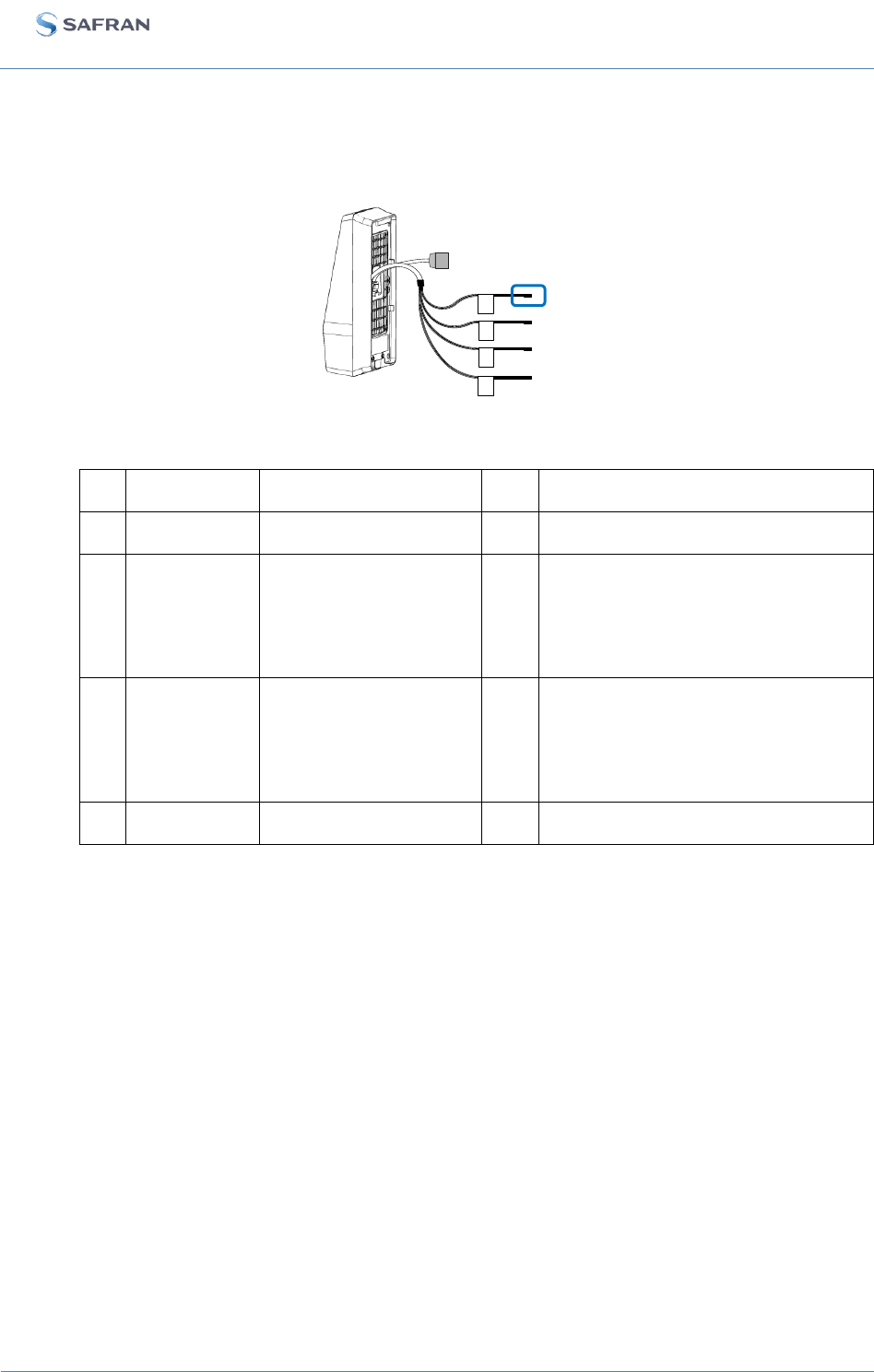

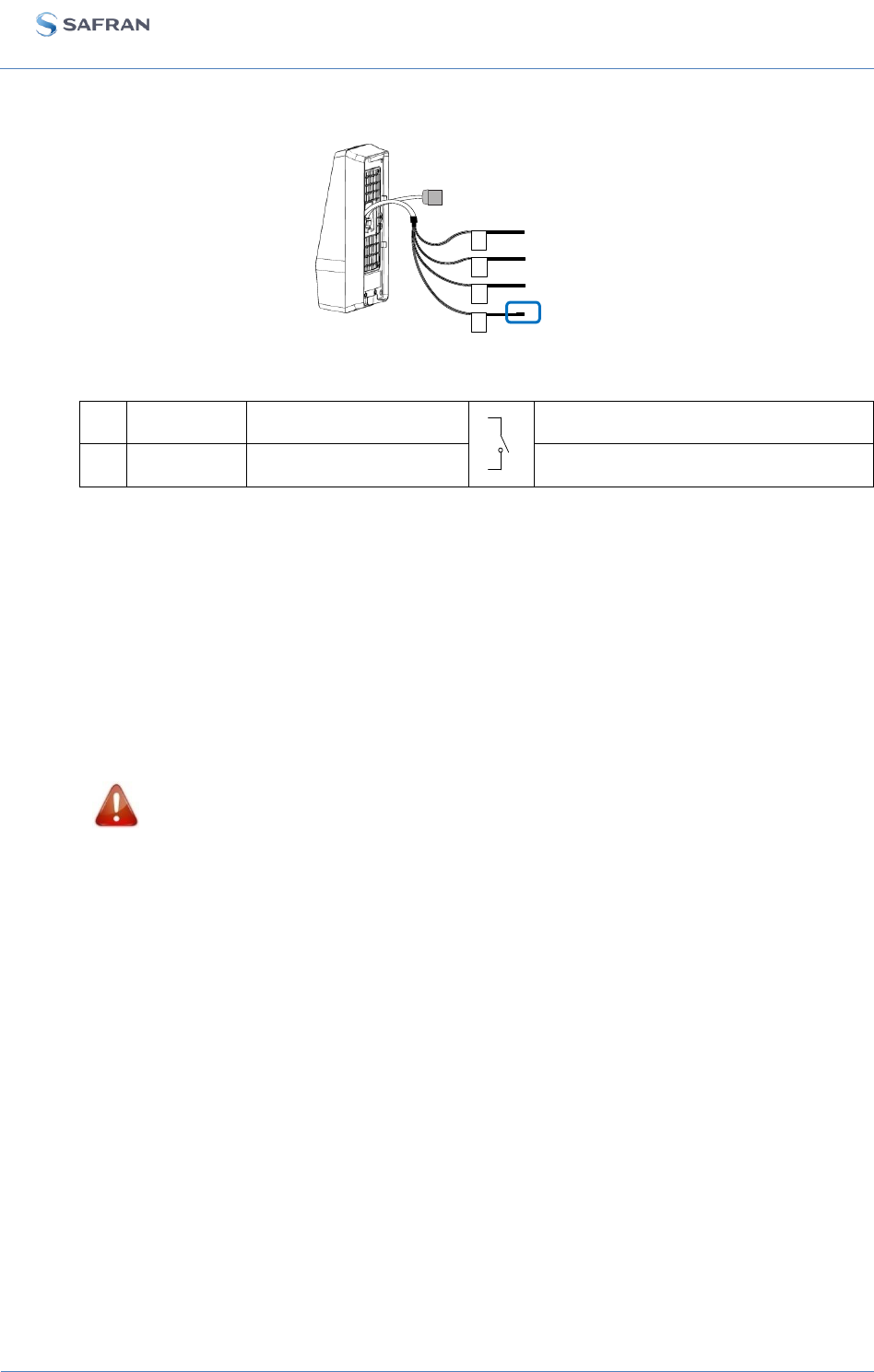

Tamper Switch
Figure 14: Tamper switch wiring
23
Light Blue
Switch 1
Tamper switch contact
24
Pink
Switch 2
Strip on tamper switch
Operating principle for the switch
Product installed on the wall plate: switch enabled (contact closed).
Product opened (rear connectors accessible): switch disabled (contact open).
Nominal characteristics of switch block
100 mA at 30 VDC max (Resistive load) according to the safety extra low voltage
standard.
This MorphoAccess® SIGMA Extreme Series terminal is part of security
system; it is customer’s responsibility to connect the tamper switch
(contact) to physical access controller, in order to prevent the access to the
connector blocks.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 4 : Electrical Interface
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
39
Wiegand wiring
Wiegand input
Figure 15: Wiegand input wiring
6
Green / Red
WIEGAND_IN0
In
Wiegand IN D0
(Output type required: Open drain
or 5V+/-5%)
3
White / Red
WIEGAND_IN1
In
Wiegand IN D1
(Output type required: Open drain
or 5V+/-5%)
18
Yellow
GPO0
(WIEGAND_LEDIN)
Out
Wiegand LEDIN (typical = 5VDC)
(option)
8
Black / Red
WIEGAND_GND
Ground for Wiegand
If pull-up’s to 12V have been added on Wiegand IN D0 and Wiegand IN D1
inputs on a previous installation with a MorphoAccess® 500 Series
terminal, these resistors must be removed to avoid any damage to the
MorphoAccess® SIGMA Extreme Series terminal.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 4 :Electrical Interface
40
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Wiegand output
The following figure shows how to cable the wires of the serial port of the terminal
for the Wiegand protocol
Figure 16: Wiegand output wiring
4
Green
WIEGAND _OUT0
Out
Wiegand OUT D0 (5V TTL)
5
White
WIEGAND _OUT1
Out
Wiegand OUT D1 (5V TTL)
1
Blue
WIEGAND_LEDOUT1
In
Wiegand LED IN 1 (option): panel
feedback
(Output type required: Open drain
or 5V+/-5%)
2
Blue / Red
WIEGAND_LEDOUT2
In
Wiegand LED IN 2 (option): panel
feedback
(Output type required: Open drain
or 5V+/-5%)
8
Black / Red
WIEGAND_GND
Ground for Wiegand
The use of LED1 and LED2 wires is described in the paragraphs below.
The controller supports neither LED1 nor LED2 signals
When the access controller has no relay contact to provide an answer to the
MorphoAccess® terminal, then the decision to emit either the “access granted” signal
or the “access denied” signal is taken by another way. It is either the MorphoAccess®
terminal itself that decide, or it waits for the access controller answer through the
local area network (TCP), or on the serial port in (RS485 or RS422).
It is strongly recommended to disable the LED IN feature, to avoid any interference
on MorphoAccess terminal behavior.
The controller supports only LED1 signal
When the access controller has only one relay contact which is dedicated to the
“access granted” answer, this one must be connected between the LED1 and GND
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 4 : Electrical Interface
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
41
wires. The LED1 wire is set to the low level by closing the contact between the LED1
and the GND wires, and it means “access granted”.
The MorphoAccess® terminal uses the timeout of the wait for a low level on the on
LED1 wire or LED2 wire as “access denied” answer.
To minimize at most the waiting time of the user, the MorphoAccess® SIGMA
Extreme Series terminal timeout value, must be adjusted to a value a little bit higher
than the maximal value of the controller response time.
Warning: if the LED2 wire is connected, it must be constantly maintained in the high
state.
The controller supports LED1 and LED2 signals
When the controller supports one relay contact for each of the possible answers
then:
The « access granted » contact must be connected between the LED1 and the GND
wires of the terminal
The « access denied » contact must be connected between the LED2 and the GND
wires of the terminal.
The MorphoAccess® terminal considers that:
The answer of the controller is "access granted", when the controller puts the
LED1 wire to the low state (by closing a contact between the LED1 and the GND
wires), and leaves the LED2 wire to the high state.
The answer of the controller is "access denied", when the controller puts the LED2
wire to the low state (by closing a contact between the LED2 and the GND wires),
whatever is the state of the LED1 wire.
The MorphoAccess® terminal also considers that the answer of the controller is
"access denied" in case of time-out while expecting for a closure between LED1 and
GND wires, or between LED2 and GND wires.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 4 :Electrical Interface
42
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Serial port wiring
DataClock Input
Figure 17: Serial port wiring – DataClock Input
6
Green / Red
WIEGAND_IN0
In
Data (Output type required:
Open drain only)
3
White / Red
WIEGAND_IN1
In
Clock (Output type required:
Open drain only)
18
Yellow
GPO0
(WIEGAND_LEDIN)
Out
Card present signal (if configured,
only one selectable for Morpho
Legacy)
8
Black / Red
WIEGAND_GND
Ground for Wiegand
DataClock Output
Figure 18: Serial port wiring – DataClock Output
4
Green
WIEGAND _OUT0
Out
Data ( 5V TTL )
5
White
WIEGAND _OUT1
Out
Clock ( 5V TTL )
1
Blue
WIEGAND_LEDOUT1
In
LED IN 1 (option): panel feedback
(Output type required: Open
drain or 5V+/-5%)
2
Blue / Red
WIEGAND_LEDOUT2
In
LED IN 2 (option): panel feedback
(Output type required: Open
drain or 5V+/-5%)
8
Black / Red
WIEGAND_GND
Ground for Wiegand
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 4 : Electrical Interface
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
43
RS485
Figure 19: Serial port wiring – RS485
9
Blue / Black
RS485_RXTX+
In/Out
RS485 Rx/Tx non inverting signal
11
Blue / White
RS485_RXTX-
In/Out
RS485 Rx/Tx inverting signal
7
Black / Red
RS485_GND
Ground
RS485 implementation is limited to half-duplex communication. So only Tx+, Tx- and
ground reference signals are necessary.
Depending on the RS485 network, an impedance adaptation may be required.
For farthest terminal, a 120-Ohms resistor termination may be added outside the
terminal between TX+ and TX-.
RS422
Figure 20: Serial port wiring – RS422
9
Blue / Black
RS422_RX+
In
RS422 non inverting Receive
11
Blue / White
RS422_RX-
In
RS422 inverting Receive
12
Green / Black
RS422_TX+
Out
RS422 non inverting Transmit
10
Green / White
RS422_TX-
Out
RS422 inverting Transmit
7
Black / Red
RS485_GND
Ground
RS422 interface is a full duplex communication.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 4 :Electrical Interface
44
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
GPIO wiring
Figure 21: GPIO wiring
13
Orange / Black
GPI_2
In
Digital Input (1,8V to 5V)
14
Yellow / Black
GPO_2
Out
Digital Output (5V – 5mA max)
15
Orange / Red
GPI_1
In
Digital Input (1,8V to 5V)
16
Yellow / Red
GPO_1
Out
Digital Output (5V – 5mA max)
17
Orange
GPI_0
In
Digital Input (1,8V to 5V)
18
Yellow
GPO_0
Out
Digital Output (5V – 5mA max)
20
Black / Red
GPIO_GND
Ground
Single Door Access Control (SDAC) implementation
Figure 22: SDAC wiring
If door contact is not used, GPI1 and GPO1 shall be connected together
External Power
supply
GPI_1
GPO_0
Push button /
Motion sensor
GPI_0
GPO_1
RELAY_COM
RELAY_NO/NC
Door
contact
Door
strike
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 4 : Electrical Interface
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
45
Ethernet connection
Ethernet interface can be used to power the MorphoAccess® SIGMA Extreme Series
terminal through POE (Power Over Ethernet - IEEE802.3af or IEEE802.3at type 1
mode). According to the POE standard two modes are available: power on data pins
and power on dedicated pins.
Use either one of these modes depending on POE implementation on your local
Ethernet network.
Wi-Fi™ dongle must not be used with POE power supply. The POE doesn’t
provide enough power for both the terminal and the Wi-Fi USB dongle.
Ethernet cable shall be shielded
Default Ethernet configuration
By default, MorphoAccess® SIGMA Extreme Series terminal is configured in STATIC
mode with the following configuration : IP Adress : 192.168.1.10; Gateway Adress :
192.168.1.254; Subnet Mask : 255.255.254.0
Recommendations for RJ45 wiring
Pin
1
2
3
4
5
6
7
8
Signals
Data
pair 1
Data
pair 1
Data
pair 2
NC/POE pin
dedicated (+)
NC/POE pin
dedicated (+)
Data
pair 2
Ground/ pin
dedicated (-)
NC/POE pin
dedicated (-)
EIA / TIA T568B
Colors
White
orange
Orange
White
green
Blue
White blue
Green
White brown
Brown
EIA / TIA T568A
Colors
White
green
White
green
White
green
White green
White green
White
green
White green
White green
Corel L120 Colors
Grey
White
Pink
Orange
Yellow
Blue
Purple
Brown
Figure 23: RJ45 wiring
RJ45 plug pinout is compliant with 10/100 base T, IEEE802.3 Specification. Product is
compliant also with MDI or MDI-X.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 4 :Electrical Interface
46
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
External USB connection
Figure 24: External USB connection
The external Micro USB can be used for administration only to connect a mass
storage USB key (with a standard Micro USB-type A / USB-type A female adapter).
This cable can be found in Safran Identity & Security catalogue with ref 293658551.
Please refer to MorphoAccess® SIGMA Extreme Series Administration Guide for more
information.
USB connection is limited to USB key connection (power consumption shall
not exceed 200mA)
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 4 : Electrical Interface
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
47
Wi-Fi™ dongle installation
Wi-Fi™ dongle shall be installed inside the product and connected to the internal USB
Mini B (at the rear of the terminal) using Safran Identity & Security cable provided in
the kit.
Product integrating Wi-Fi™ dongle shall not be exposed to temperature exceeding
35°C and shall not be exposed to direct sun.
Wi-Fi™ feature requires the product to be powered from an external DC 12V to 24V
power supply (the POE doesn’t provides enough power for both the terminal and the
Wi-Fi™ dongle).
Only Wi-Fi™ USB dongle delivered by Safran Identity & Security (kit reference
293686787) may be installed with the terminal for WLAN (Wireless Local Area
Network) operation.
Cable has to be plugged on the upward USB connector of the rear panel, as on the
following image:
Figure 25: Wi-Fi™ dongle installation
USB extension
cord
Wi-Fi™ USB
dongle
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 4 :Electrical Interface
48
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Micro SD connection
Micro SD card shall be used for the following features:
Database extension (license is necessary)
Logs extension (license is necessary)
Picture logs (photo taking or face detection)
Dynamic messages
Micro SD card class shall be 10, lower class may reduce performances.
Micro SD card size shall be from 8GB to 32GB.
Micro SD card shall never be used on a Windows PC (it may damage the
content of the card and make it inoperative). The product will format it
with the right format.
Use Brand Name Micro SD card. No name card may reduce performances
or have shorter life time.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 5 : User Interface
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
49
Section 5 : User Interface
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 5 :User Interface
50
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Modes for controlling access rights
Introduction
The MorphoAccess® SIGMA Extreme Series terminal offers several methods for
controlling access rights: it needs to be configured in one of the following four modes:
Identification mode,
Authentication mode (requires a contactless smartcard reader in the terminal),
Multi-factor mode (requires a contactless smartcard reader in the terminal),
Proxy mode
Refer to MorphoAccess® SIGMA Extreme Series Administration Guide for more
information on Access Control.
Identification mode
The Identification process of the MorphoAccess® SIGMA Extreme Series terminal
proceeds by comparison of the biometric data of the finger placed on the biometric
sensor, with all the biometric data stored in the database.
It means that the biometric data of the allowed users must be stored in the internal
database before they can request the access on the terminal. This biometric data is
acquired either directly on the terminal (using the embedded), or on an enrolment
system using the same type of biometric sensor.
The access control by identification process is started when a finger is detected on
the biometric sensor
When the user requests the access, his identity is unknown, and it is the terminal that
searches for his identity. The terminal grants the access if a match is found (the user
is identified); otherwise the access is denied (the user remains unknown).
For further information, please see the "Identification mode" section in the
MorphoAccess® SIGMA Extreme Series Administration Guide.
Authentication (verification) mode
Unlike the "identification" mode, the user identity must be known in order to execute
the authentication process.
Indeed, authentication is an identity verification process: the user provides his
identity and the terminal checks it with the relevant process.
This mode doesn’t compare the user’s data to the data of several users: it compares
the data provided by the user with the reference data provided by the same user
during enrollment phase. The data can be on a card presented to the terminal or in a
database and ID is provided by the user.
Access is authorized if the terminal finds a correspondence.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 5 : User Interface
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
51
For further information, please see the "Authentication mode" section in the
MorphoAccess® SIGMA Extreme Series Administration Guide.
Multi-factor mode
In this mode, the "identification" and "authentication" modes are available
simultaneously; the user decides which control method will be used:
by placing his finger on the sensor, thereby triggering the identification process,
by placing his contactless card on the reader, thereby triggering the authentication
process,
This is the default mode for terminals fitted with a contactless smartcard reader.
For further information, please see the "Multi-factors method" section in the
MorphoAccess® SIGMA Extreme Series Administration Guide.
Proxy mode
The Proxy mode is an operating mode where the access control main application is
located in a distant system. This is not a standalone mode like Identification and
Authentication modes.
It means that the terminal becomes a slave of the host system application. The access
control application is running on the host system and uses MorphoAccess® SIGMA
Extreme Series terminal high level functions:
• Identification function
• Authentication function
• Read data on a contactless card
• Access control result signal command
The MorphoAccess® SIGMA Extreme Series terminal is driven through an Ethernet (or
Wi-Fi™) link using TCP, SSL or TLS protocol.
The MorphoAccess® SIGMA Extreme Series terminal acts as a server: it is either
waiting for a command or executing a command.
The commands allowed by the MorphoAccess® SIGMA Extreme Series terminal are
described in the MorphoAccess® SIGMA Extreme Series Host System Interface
Specification document.
For further details about SSL or TLS on the MorphoAccess® SIGMA Extreme Series
terminal, please refer to the MorphoAccess® SIGMA Extreme Series Administration
Guide.
External database mode (also called polling mode)
When external database mode is activated, the MorphoAccess® SIGMA Extreme
Series terminal does not verify user template in its local database. This mode is useful
when the user templates are stored in external database.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 5 :User Interface
52
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
When authentication is initiated on the terminal, the terminal will poll the user ID to
external controller. On polling out the ID, the corresponding template (if exists) is
fetched from the external database and is authenticated against user’s biometric on
the terminal. Once the template request is posted to the external database, the
terminal shall wait for the finger template from the external database to start
authentication. Further process shall be same as authentication.
Polling Process using buffer:
The user’s input ID will be queued in the terminal’s queue, which is polled by
external application.
External application waits for the User ID by polling the buffer. After getting an ID,
it will search the template in database and send template to terminal for further
authentication.
The user is authenticated by the external device and granted access accordingly.
MorphoAccess® SIGMA Extreme Series terminal also has distant commands to
retrieve polling buffer status and polling buffer data. Refer to the MorphoAccess®
SIGMA Extreme Series Host System Interface Specification document.
How to Activate?
External database mode can be activated through Webserver > Complete
Configuration, by setting “ucc.enable_external_database” parameter to 1. Only an
admin user can activate polling mode. You can refer to the MorphoAccess® SIGMA
Extreme Series Host System Interface Specification document to know how to set this
parameter.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 5 : User Interface
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
53
Configuring the terminal
MorphoAccess® SIGMA Extreme Series terminals are standalone biometric systems
which offers advance features for access control. MorphoAccess® SIGMA Extreme
Series terminals are equipped with a facility to support the MorphoAccess® and
Bioscrypt legacy systems.
When MorphoAccess® SIGMA Extreme Series terminal is set in any of the legacy
modes, it supports the database structures and configurations of the selected legacy
system. When the terminal is booted for the first time, user can select any of the
following modes:
MorphoAccess® 500 or J Series legacy mode
MorphoAccess® SIGMA Extreme Series terminal can be operated in MorphoAccess®
500 or J series mode (also referred as Legacy Morpho). In this mode, the terminal will
support configurations and operations of MorphoAccess® 500 series terminals.
Terminal can authenticate users enrolled in the MorphoAccess® 500 series terminal,
using biometric check as well as contactless card. New users can also be enrolled in
MorphoAccess® 500 series mode.
Once the product is configured in Legacy Morpho mode, the following methods can
be used to configure the terminal:
through the Ethernet interface (remote management)
through a Wi-Fi™ connection (license and dongle required)
Configuration procedures are described inside the MorphoAccess® SIGMA Extreme
Series Administration Guide as follows:
Section 4: Terminal Configuration And Administration
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 5 :User Interface
54
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
MorphoAccess® SIGMA Extreme Series native mode
MorphoAccess® SIGMA Extreme Series terminal is by default in native mode, that is
named MA5G. It will support the new features and configurations only in the native
mode. The terminal can be configured using an internet browser connected to the
embedded Webserver application.
NOTA : When terminal mode is switched from MA5G to Morpho legacy mode, the entire
configuration (excepted communication links) and all databases are erased
NOTA : The terminal is rebooted on mode change and factory settings are applicable.
Once the product is configured in native mode, the following methods can be used to
configure the terminal:
through the Ethernet interface (remote management)
through a Wi-Fi™ connection (license and dongle required)
Configuration procedures are described inside the MorphoAccess® SIGMA Extreme
Series Administration Guide as follows:
Section 4: Terminal Configuration And Administration
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 5 : User Interface
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
55
Anti-tamper / anti-pulling switches
Please refer also to “Tamper Switch” section.
These switches are activated as soon as there is enough pressure applied on the
terminal against the wall. They are deactivated as soon as this pressure is not big
enough, e.g. when the terminal is pulled out of the wall.
When the switches are deactivated, the MorphoAccess® SIGMA Extreme Series
terminal acts as required by the related configuration key (see MorphoAccess®
SIGMA Extreme Series Administrator / User Guide for key configuration description):
Ignore the event (default): useful during normal maintenance operations.
Send an alarm message to the Central Access Controller, through the usual channel
of the access control result messages (Wiegand, DataClock, RS485, Ethernet or
Wi-Fi™). An alarm switch (relay contact) is directly available on block terminal
«tamper switch pins». Please refer to “Wiring overview” and to “Tamper Switch”
sections.
Generate an audible alarm signal with the speaker and an alert message on the
screen.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 6 :Accessories, Software Licenses and PC Applications
56
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Section 6 : Accessories,
Software Licenses and PC
Applications
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 6 : Accessories, Software Licenses and PC Applications
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
57
Compatible Accessories, Licenses and Software
The following items can be ordered directly to Safran Identity & Security or to an official
distributor, so as to enjoy all the features of your MorphoAccess® SIGMA Extreme
Series terminal:
Power supply units,
Contactless smartcards: MIFARE® 1k, 4k; DESFire® 2k, 4k, 8k,
MA WI-FI PACK: containing a Wi-Fi™ USB dongle and a Wi-Fi™ license to activate
Wi-Fi™ capability on your terminal,
User database size licenses (MA_10K_USERS, MA_50K_USERS,
MA_100K_USERS): enabling database size upgrade from 3,000 to 10,000, 50,000
or 100,000 users capacity (max 3 fingers per record) at creation of the database.
Requires Micro SD card in the terminal.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 6 :Accessories, Software Licenses and PC Applications
58
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Compatible PC applications
MorphoAccess® SIGMA Extreme Series terminals are fully compatible with:
MorphoManager (version 10.3.4 or higher)
Morpho Integrator’s Kit (MIK) software development kit (version 6 or higher).
MorphoBioToolBox (version 3.4.3 or higher)
Using Legacy Morpho mode, MorphoAccess® SIGMA Extreme Series is also
compatible with:
MEMS (version 7.3.1 or higher),
MIK (version 5.4 or higher),
The limitations in Morpho Legacy mode are described in the following document:
MorphoAccess® SIGMA Extreme Series Release Note - Legacy Morpho limitations
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 7 : Recommendations
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
59
Section 7 :
Recommendations
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 7 :Recommendations
60
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Global warning
The manufacturer cannot be held responsible in case of non-compliance with the
following recommendations or incorrect use of the terminal.
General precautions
Do not attempt to repair your terminal yourself. The manufacturer cannot be held
responsible for any damage/accident that may result from attempts to repair
components. Any work carried out by non-authorized personnel will invalidate
your warranty.
Do not expose your terminal to extreme temperatures.
Use your terminal with original accessories. Attempts to integrate unapproved
accessories to the terminal will void your warranty.
Due to electrostatic discharge, and depending on the environment, synthetic
carpet should be avoided in areas where the terminal has been installed.
Areas containing combustibles
It is strongly recommended that you do not install your terminal in the vicinity of gas
stations, petroleum processing facilities or any other facility containing flammable or
combustible gasses or materials.
Specific precautions for terminals equipped with a contactless
smartcard reader
It is recommended to install terminals equipped with a contactless smartcard reader
at a certain distance (> 30cm) from metallic elements such as iron fixations or lift
gates or radio product (such as contactless smartcard reader). Performances in terms
of contactless badge reading distance will decrease when metallic elements are
closer.
Ethernet connection
It is recommended to use a category 5 shielding cable (120 Ohms). It is also strongly
recommended to insert a repeater unit every 90m.
Extreme care must be taken while connecting Ethernet wire to the terminal block
board since low quality connection may strongly impact Ethernet signal sensibility.
It is recommended to connect Rx+ and Rx- with the same twisted-pair wire (and to do
the same with Tx+/Tx- and the other twisted-pair wire).
Date / Time synchronization
The terminal clock has a +/-10 ppm typical time deviation at +25°C (roughly around
+/- 6 sec per 48 hours). At lower and higher temperature (but within normal
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 7 : Recommendations
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
61
operating temperatures), deviation may be more important (worst case: - 14 seconds
per 48 hours).
If the terminal is used in an application requiring high time precision, we recommend
synchronizing regularly your terminal time with an external clock (using NTP). Every
24 hours is usually enough for most applications.
Please note that the date/time of the terminal is protected from power failure during
at least 24 hours. If the duration of the power failure or power down is longer, the
date/time of the terminal will be lost.
Cleaning precautions
The use of a dry cloth is recommended to clean the terminal, especially the biometric
sensor. Acid liquids, alcohol or abrasive materials are prohibited.
Legacy mode
When terminal mode is switched from MA5G to Morpho legacy mode, the entire
configuration (except communication links) and all databases are erased.
The terminal is rebooted on mode change and factory settings are applicable.
Firmware legacy limitations are described in the MorphoAccess® SIGMA Extreme
Series Release Note.
Hardware legacy differences are described below:
Power supply
OMA500 family
MA SIGMA Extreme family
DC power
supply
12V
(-15% / +30%)
12V – 24V
(-15% / +10%)
DC power
supply
connection
Wires
Wires
Power
supply by
POE
Terminal are compatible
with Power Supply
Equipment compliants
with IEEE802.3af
IEEE802.3at type 1
compliant
POE power
supply
connection
Block connector and
RJ45 connector
Only RJ45 connector
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Section 7 :Recommendations
62
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Ethernet communication
OMA500 family
MA SIGMA Extreme family
Block connector and RJ45
connector
Only RJ45 connector
Serial communications
OMA500 family
MA SIGMA Extreme family
Wiegand
Data In - 2
Data Out - 2
LED In - 1
LED Out - 2
Data In - 2
Data Out - 2
LED OUT port
LED IN by GPO
Dataclock
Yes
Yes
RS485
Half duplex
Half duplex
RS422
Full duplex
(slave and master mode)
Full duplex
(slave and master mode)
GPI/GPO
OMA500 family
MA SIGMA Extreme family
GPI
No
3 GPI
GPO
No
3 GPO
(≈ 3 TTLOUT_H only)
GPO current
limitation
-
5mA@5V
RELAY
OMA500 family
MA SIGMA Extreme family
Relay pins
available
NO / NC / COM
NO / COM only
Driver
capabiity
2 A @30V DC
(Resistive load)
2 A @30V DC
(Resistive load)
*: NO: Normally open
NC: Normally closed
COM: Common
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 7 : Recommendations
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
63
Anti-theft/ Tamper switches
OMA500 family
MA SIGMA Extreme family
Anti-theft
switch
Yes
Yes
Tamper
switch
Yes
Yes
Warning to
a host if the
product
isn’t
supplied
Yes
Yes
Micro SD card
If Micro SD card is necessary for the features enabled, the following
recommendations shall be applied.
Micro SD card class shall be 10, lower class may reduce performances.
Micro SD card size shall be from 8GB to 32GB.
Micro SD card shall never be used on a Windows PC (it may damage the content of
the card and make it inoperative). The product will format it with the right format.
Use Brand Name Micro SD card. No name card may reduce performances or have
shorter life time.
Lighting conditions for face detection
In order to get good performance of the face detection, the following
recommendations shall be respected:
The user shall not be against the light.
The light in front of the user shall be at least 500 Lux.
The background of the user shall be as neutral as possible (avoid images which
could be mixed up with face).
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Annex 1 : Finger Placement Recommendations
64
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Annex 1 : Finger
Placement
Recommendations
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 7 : Recommendations
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
65
Main principles
Acquisition needs to be done with extreme care, in order to:
get the best image quality
increase recognition performance
reduce recognition time
Then, it is highly recommended to:
Maximize the contact between the fingerprint and the sensor
Exert firm, but not excessive, finger pressure on the surface of the sensor
Do not press too hard
Do not slide nor roll the finger across the sensor
Do not move the finger during acquisition
Wait for the extinction of sensor backlight before removing the finger
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Annex 1 : Finger Placement Recommendations
66
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Most useful areas for biometric data
Fingerprint central area must be aligned with sensor center
Area containing
the maximum
information
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 7 : Recommendations
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
67
Position of finger
Finger height
Align center of 1st phalanx with sensor center
Finger angle
The finger must be parallel to sensor sides
IDEAL
POSITION
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Annex 1 : Finger Placement Recommendations
68
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Finger inclination
Finger must be parallel to the sensor surface
Finger rotation
Finger must be parallel to the sensor surface
IDEAL
POSITION
IDEAL
POSITION
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 7 : Recommendations
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
69
Troubleshooting
When finger biometric data acquisition is difficult, please follow the
recommendations listed below:
The finger is cold
o Solution : warm up the finger
The finger is wet
o Solution : wipe the finger
The finger is dry
o Solution : warm up the finger and/or add a little bit of humidity
The finger is dirty
o Solution: wash hands
Remove bandages or adhesive tapes from the fingerprint area, and from the 2nd
phalanx of the finger
Do not press or tense finger to avoid blood vessels constriction
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Annex 2 : Bibliography
70
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Annex 2 : Bibliography
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 7 : Recommendations
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
71
How to get the latest versions of documents
The last version of the documents can be downloaded from our web site at the
address below:
www.biometric-terminals.com
(Login and password required).
To request a login, please send us an email to the address below:
hotline.biometrics@safrangroup.com
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Annex 2 : Bibliography
72
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Documents concerning the MorphoAccess® terminal
Documents about installing the terminal
MorphoAccess® SIGMA Extreme Series Installation Guide,
Ref. 2017_2000024418
This document describes terminal physical mounting procedure, electrical interfaces
and connection procedures. This document is in English.
Documents about administrating / using the terminal
MorphoAccess® SIGMA Extreme Series Quick User Guide,
Ref. 2017_2000024419
This document gives a quick overview of the product and the basics of configuration
and use. This document is in English.
MorphoAccess® SIGMA Extreme Series Administrator Guide,
Ref. 2017_000000XXXX (Not yet available)
This document describes the different functions available on the terminal and
procedures for configuring the terminal. It also contains the full description of all the
configuration parameters for the terminal. This document is in English.
MorphoAccess® SIGMA Extreme Series Parameters Guide,
Ref. 2016_2000022621
This document contains the full description of all the terminal configuration
parameters. This document is in English.
Documents for the developer
MorphoAccess® SIGMA Extreme Series Host System Interface Specification,
Ref. 2016_2000022602
This document describes the commands supported by the MorphoAccess® terminal.
This document is in English.
MorphoAccess® SIGMA Extreme Series Remote Message Specification,
Ref. 2016_2000022373
This document describes the format of messages sent by the terminal to a distant
system. This document is in English.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 7 : Recommendations
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
73
Release note
For each firmware version, a release note is published describing the new features,
the supported products, the potential known issues, the upgrade / downgrade
limitations, the recommendations, the potential restrictions…
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Annex 3 : Support
74
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Annex 3 : Support
MorphoAccess® SIGMA Extreme Series - Installation Guide
Section 7 : Recommendations
2017_2000024418 - Draft
V0
January 2017
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
75
Troubleshooting
The terminal IP address is unknown or it is not possible to connect
to the terminal
Use terminal interface to configure a valid set of network parameters in your
terminal.
The sensor is switched off
Check that the database contains at least one record.
Check that the identification mode is enabled.
The terminal returns erratic responses to Ping commands
Check the subnet mask.
Ask the network administrator for the correct value.
Check that each device connected to the network has a different IP address.
MorphoAccess® SIGMA Extreme Series - Installation Guide
Identity & Security
Annex 3 : Support
76
This document and the information therein are the property of Safran Identity & Security.
They must not be copied or communicated to a third party without the prior written authorization of Safran
2017_2000024418 - Draft
V0
January 2017
Technical Support and Hotline
North America
Mail: cscenter@safrangroup.com
Tel: +1 888 940 7477
South America
Mail: cscenter@safrangroup.com
Tel: +1 714 575 2973
South Africa
Mail: sec.san.bio.support@morpho.com
Tel: + 27 11 286 5855
India:
Mail: support.morphoindia@safrangroup.com
Tel: 0120-4699900
Europe and rest of the world:
Mail: hotline-biometrics@safrangroup.com
Tel: +33 1 30 20 30 40
(9H00am to 5H30pm French Time, Monday to Friday)
Web site
For the latest firmware, software, document releases, and news, please check our
websites :
North and South America : e-mailing cscenter@safrangroup.com with your name,
phone number, MA SIGMA serial number and “Send Links For MA SIGMA Extreme
Documents” in the subject line
Other countries : please visit our web site www.biometric-terminals.com (To get
your log in and password please contact your sales representative).
COPYRIGHT © 2017 Safran Identity & Security
Head office:
Safran Identity & Security
11, boulevard Gallieni
92130 Issy-les-Moulineaux – France
www.safran-identity-security.com
