Cummins INLINE™ 7
Data Link Adapter
Installation and
Setup Manual
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual. The Cummins INLINE™ 7 was designed
and manufactured by IDSC Holdings LLC for Cummins Inc.
IDSC Holdings LLC retains all ownership rights to INLINE 7 Data Link Adapter design and its documentation. The INLINE
7 Data Link source code is a confidential trade secret of IDSC Holdings LLC. You may not decipher or de-compile the
INLINE 7 Data Link Adapter, develop source code for the INLINE 7 Data Link Adapter, or knowingly allow others to do so.
The INLINE 7 Data Link Adapter and its documentation may not be sublicensed or transferred without the prior written
consent of IDSC Holdings LLC.
This manual, as well as the software it describes, is furnished under license and may only be used or copied in accordance
with the terms of such license. The content of this manual is furnished for informational use only, is subject to change without
notice, and should not be construed as a commitment by IDSC Holdings LLC. IDSC Holdings LLC assumes no responsibility
or liability for any errors or inaccuracies that may appear in this book.
Except as permitted by such license, no part of this publication may be reproduced, or transmitted, in any form or by any
means, electronic, mechanical, or otherwise, without the prior written permission of IDSC Holdings LLC.
The Cummins logo and INLINE 7 are trademarks of Cummins, Inc. The Bluetooth word mark and logos are
registered trademarks owned by Bluetooth SIG. Other trademarks and trade names are those of their respective
owners.
©2015 IDSC Holdings LLC. All rights reserved. All other marks are trademarks or registered trademarks of the
respective holders. Pictures for illustration purposes only. Specifications are subject to change without notice.
The transmitter modules contained in this product comply with regulatory standards EN 300 328 and EN 301 489-1/
-17. Human exposure of these modules is below the SAR limits specified in EU recommendation 1995/519/EC.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. A distance of 20cm minimum should be maintained between the
product and all persons during operation. This device contains FCC-IDs : 2AJFJ-USBL2-IL7, QOQWT41.
Part No. 965062 Revised 09/15/2016
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual iii
Chapter 1:
Using this Manual ..................................................1
Manual Overview ...........................................................................2
Conventions ...................................................................................3
Chapter 2:
Introducing the Cummins INLINE™ 7
Data Link Adapter .................................................5
Component Checklist ....................................................................6
Product Specifications ...................................................................7
System Requirements ...................................................................8
Device Features ............................................................................9
Communication Options: Wired vs Wireless ...............................13
Wired USB Connection .......................................................................13
Wireless Bluetooth Connection ..........................................................14
Wireless Wi-Fi Connection .................................................................15
Mini Access Point Mode (Peer-to-Peer) ..........................................16
Infrastructure Mode (Connecting to your Company’s Network) ......17
Chapter 3:
Installing the Drivers and Setting Up the Device .....19
Installation Process Outline .........................................................20
Step 1: Install the Drivers ............................................................21
Step 2: Connect the INLINE™ 7 to a Vehicle ..............................30
Making a Wired USB Connection .......................................................31

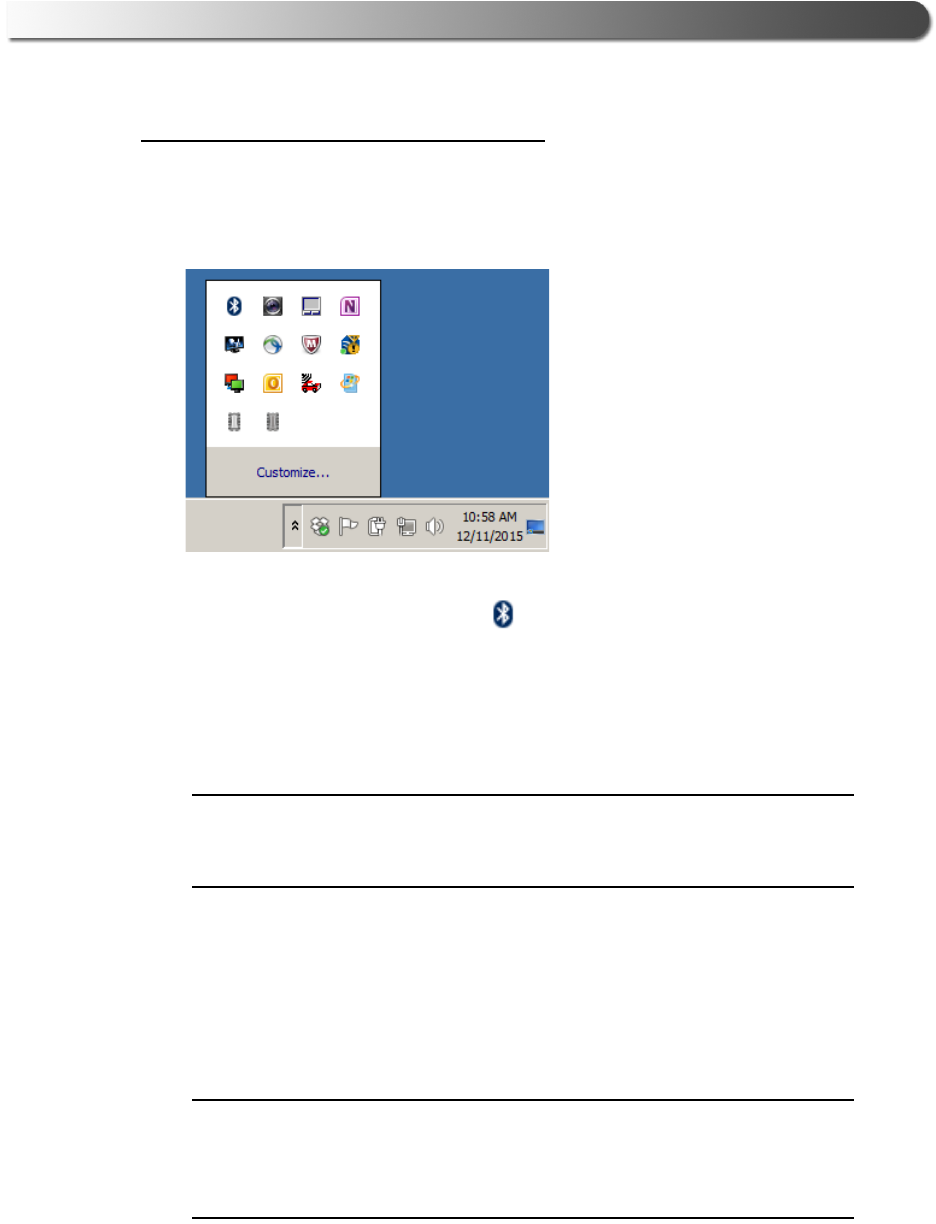

Making a Wireless Bluetooth Connection ...........................................32
Connecting via a Class 1, External Bluetooth Adapter ...................32

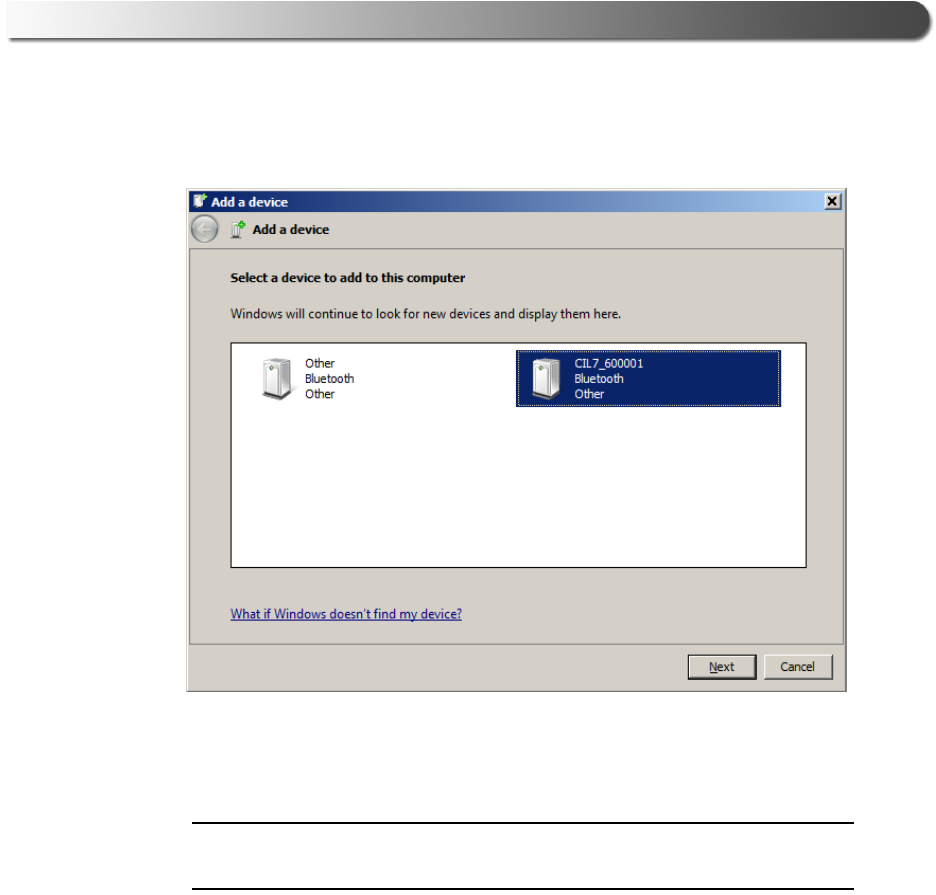

Pair the Device ................................................................................34
Making a Wireless Wi-Fi Connection ..................................................39
Mini Access Point Mode ..................................................................39
Infrastructure Mode .........................................................................43
iv Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Step 3: Test the Connection ........................................................44

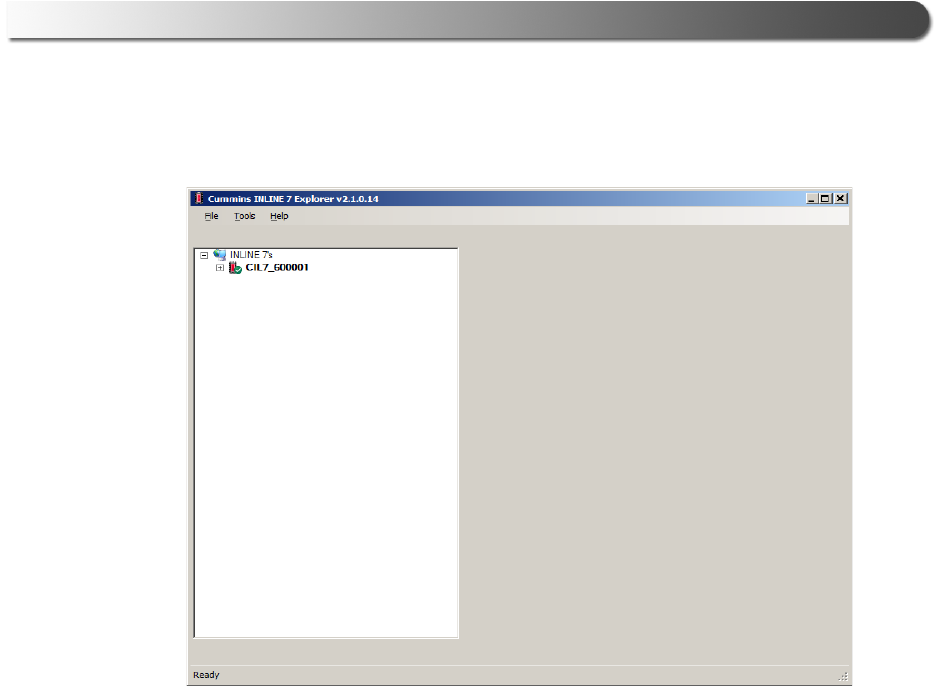

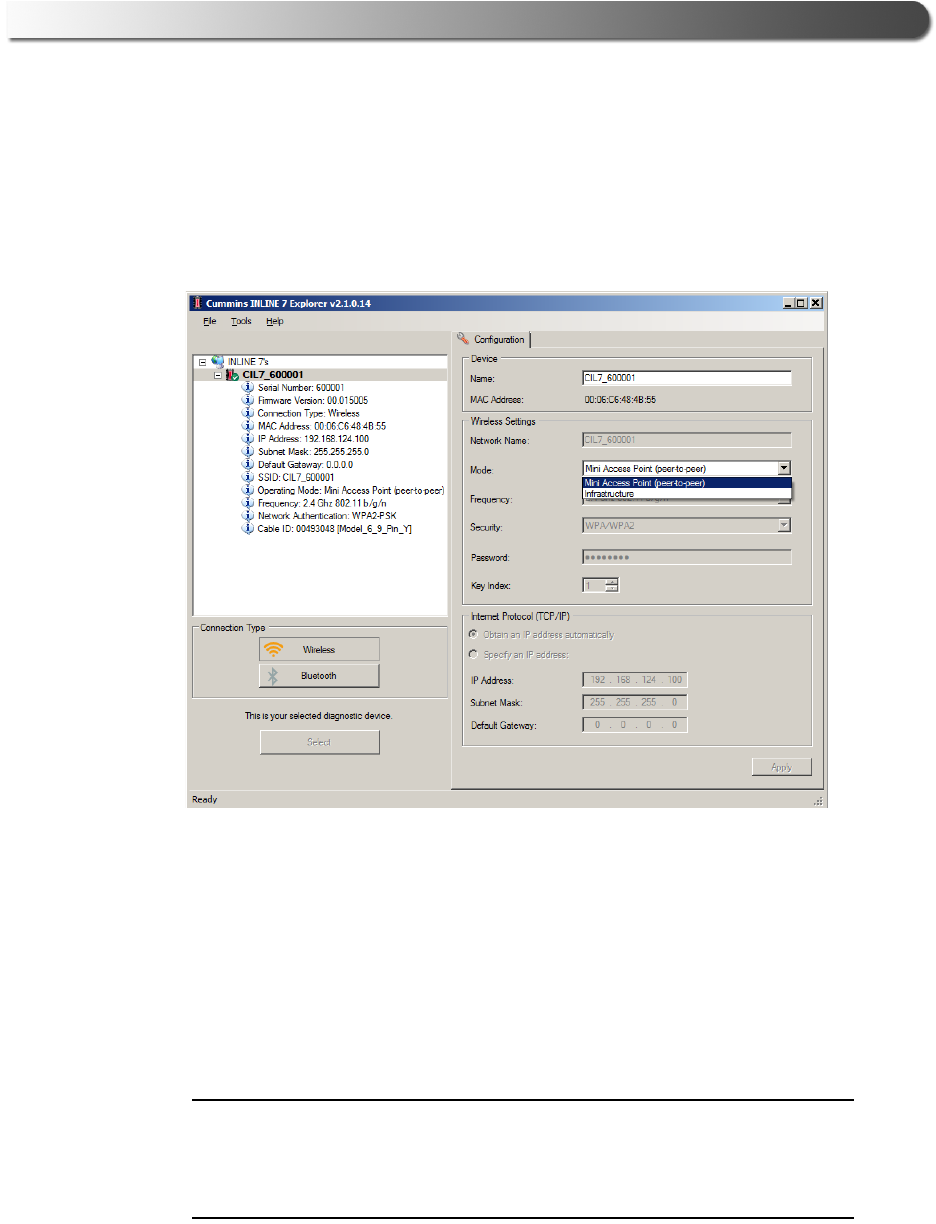

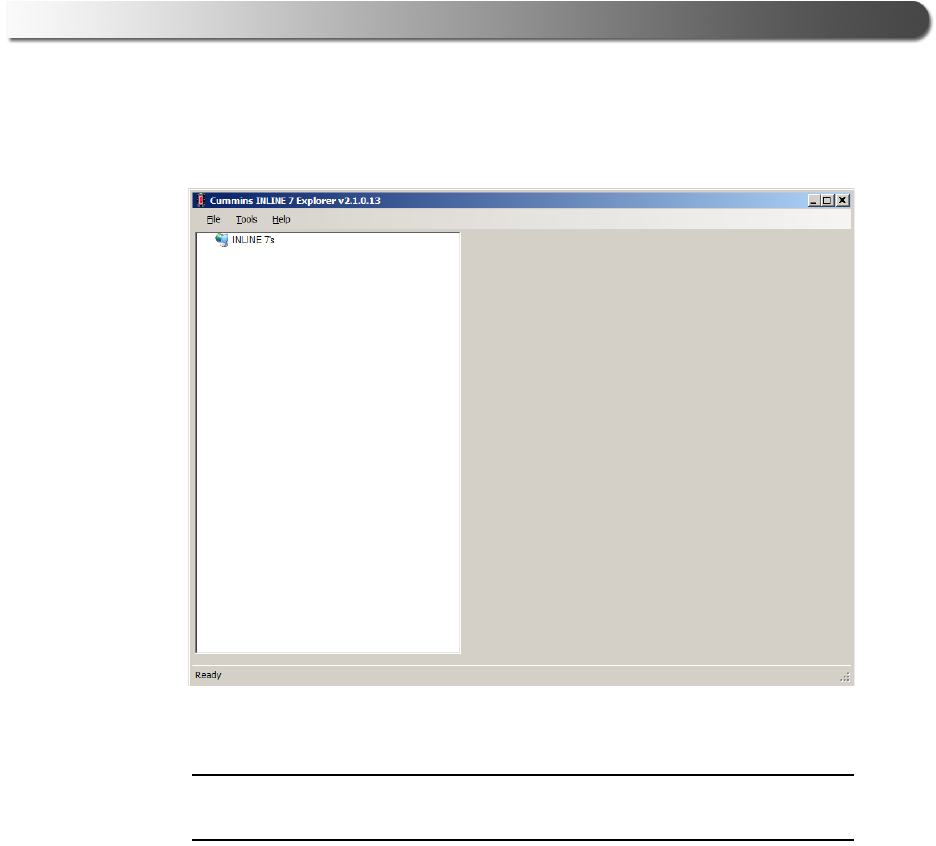

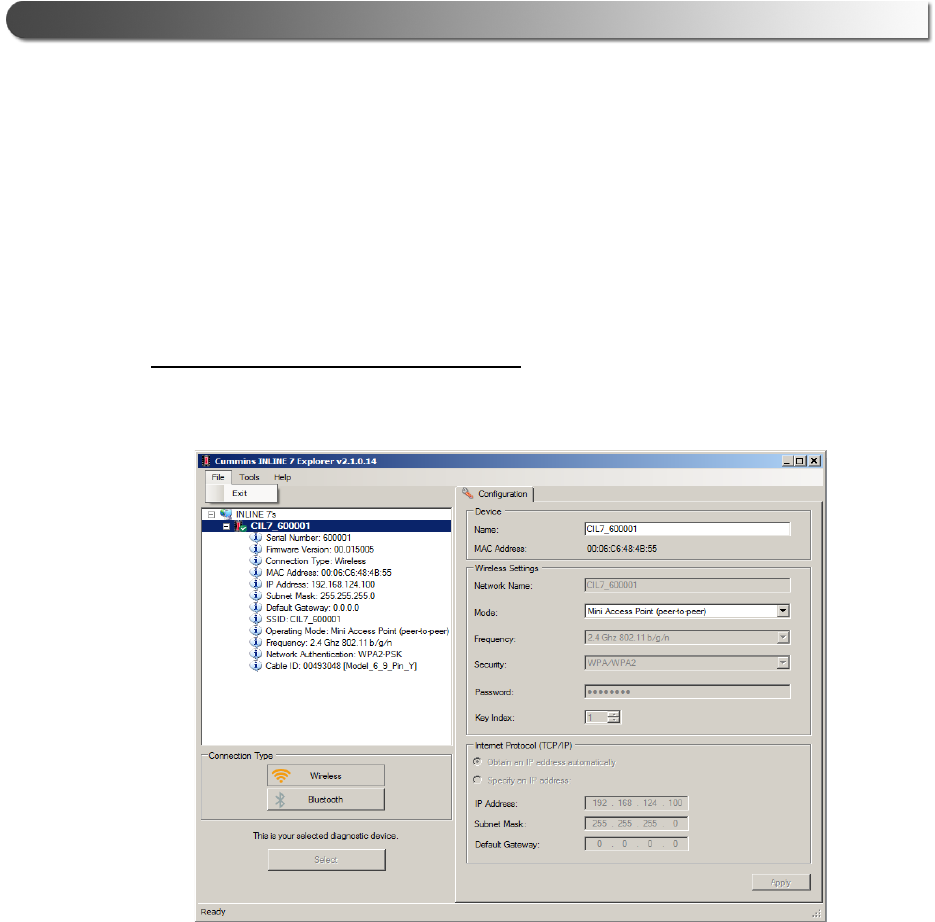

Using the Cummins INLINE™ 7 Explorer Utility ..........................48

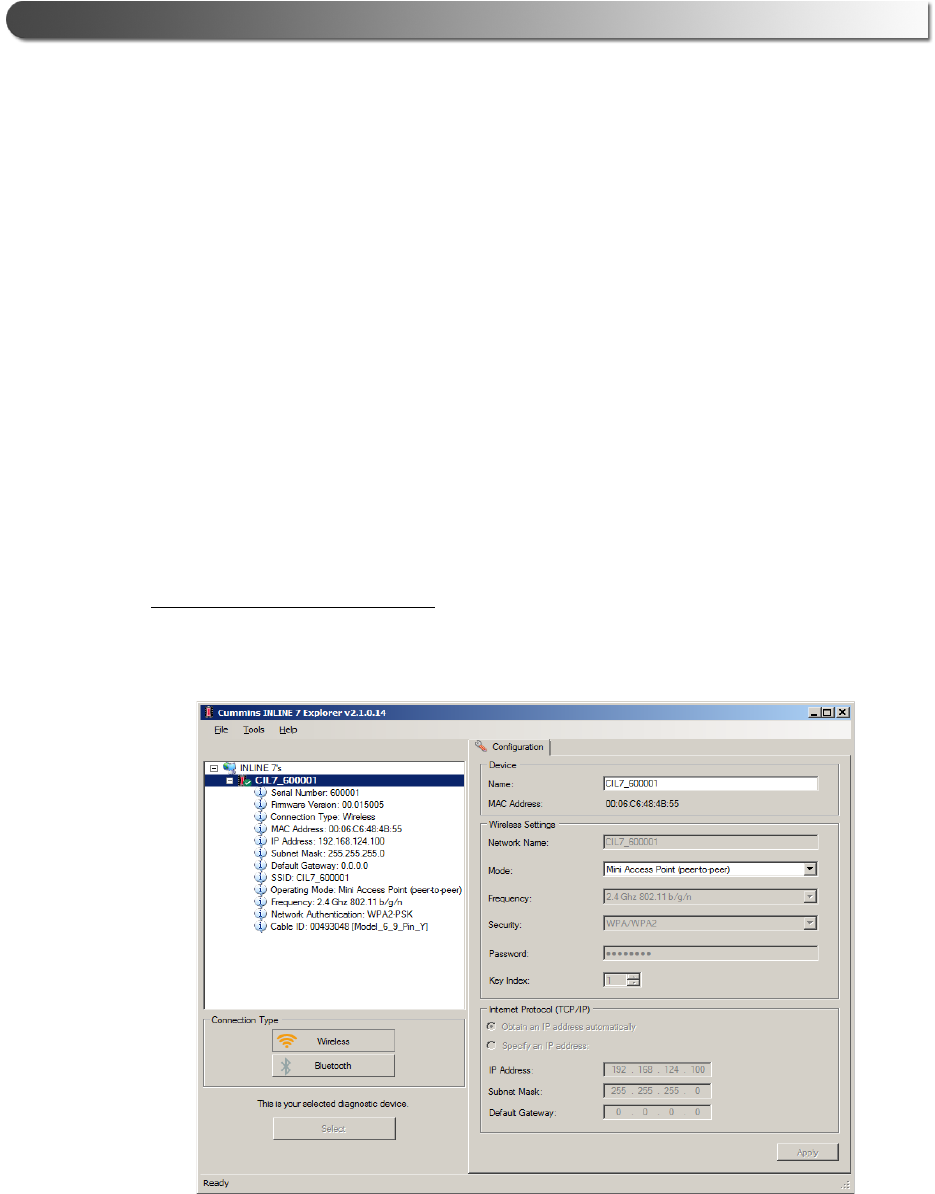

The Configuration Tab ........................................................................50
Switching Modes: Mini Access Point and Infrastructure .................51
The File Menu ....................................................................................52
The Tools Menu .................................................................................53

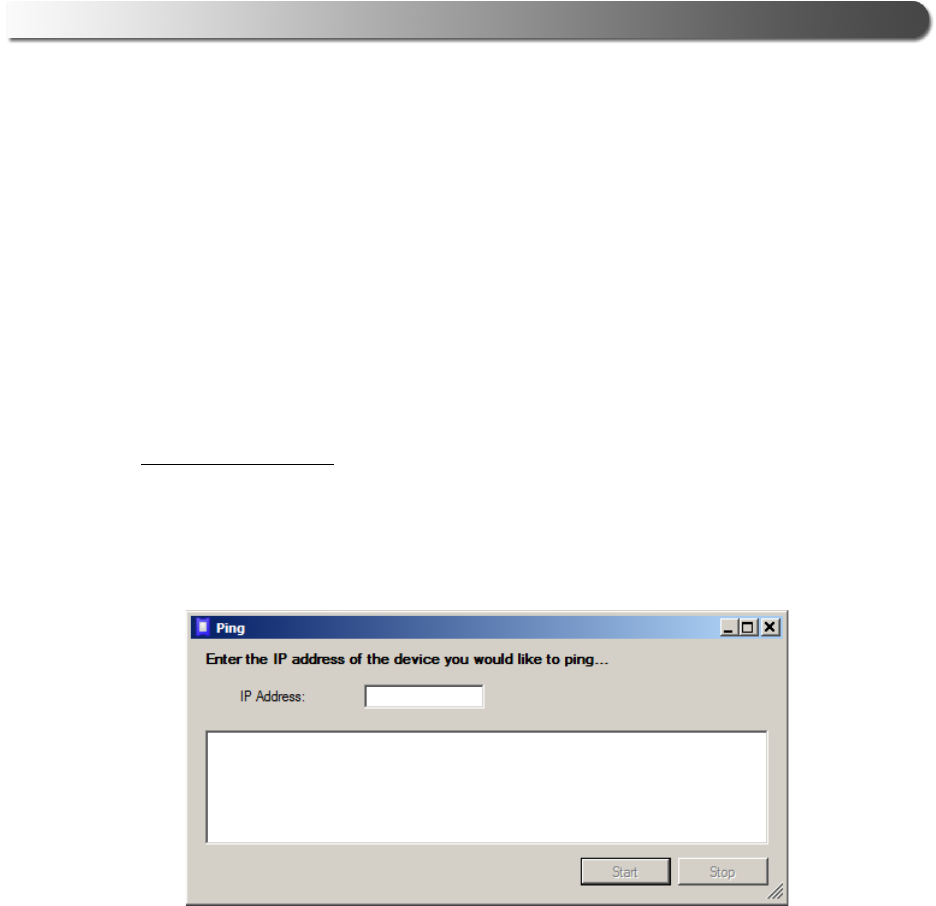

Ping .................................................................................................53

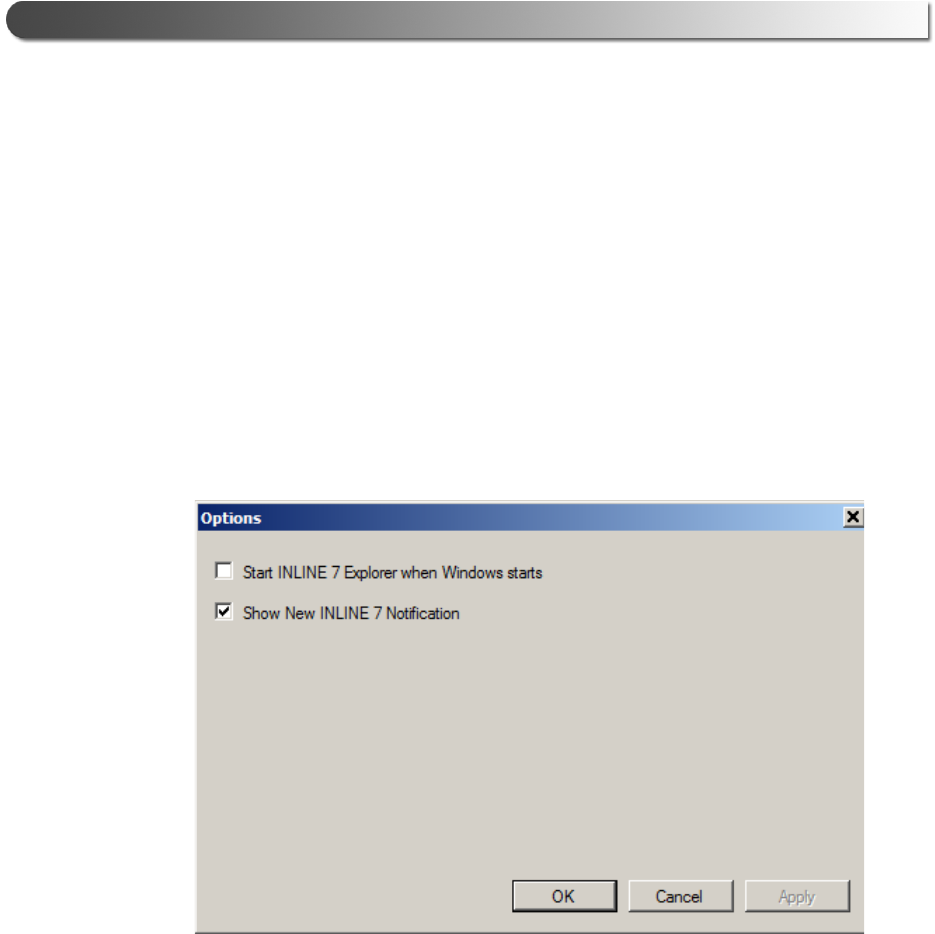

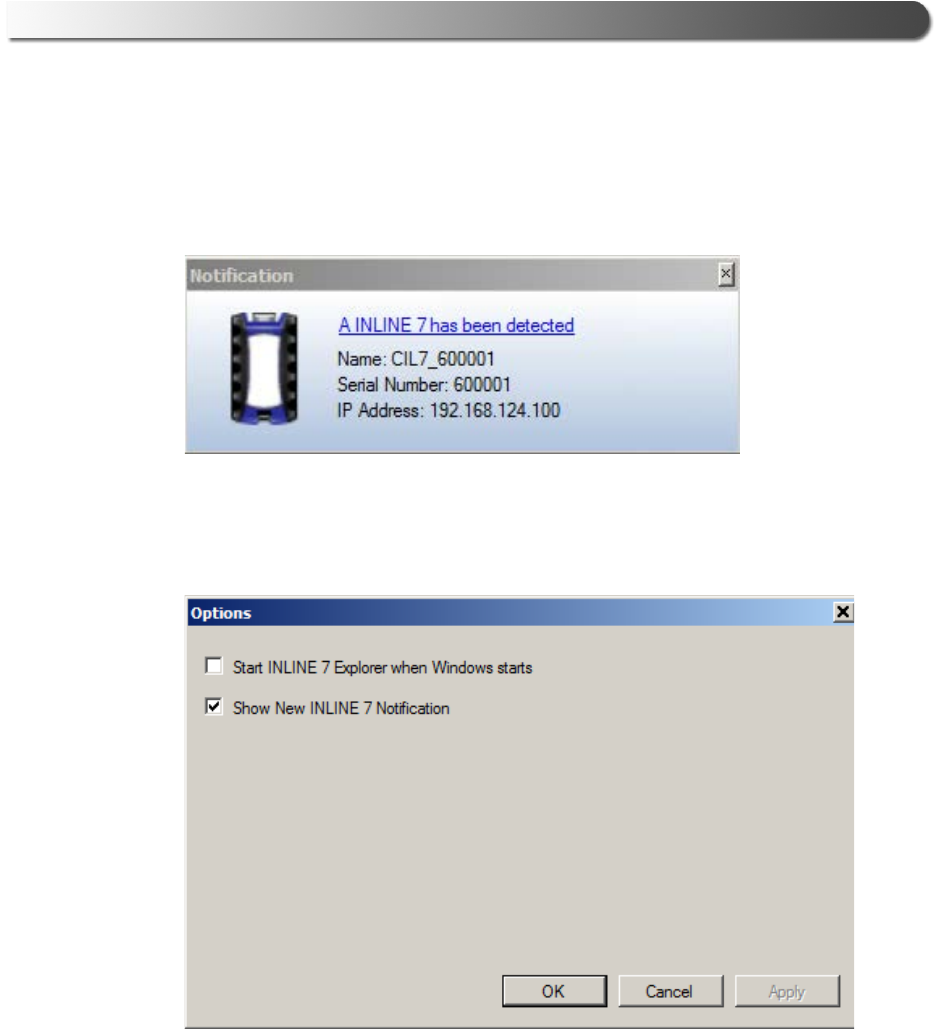

Options ............................................................................................54
Start INLINE7 Explorer when Windows Starts ...................................54
Show New INLINE7 Notification ........................................................55

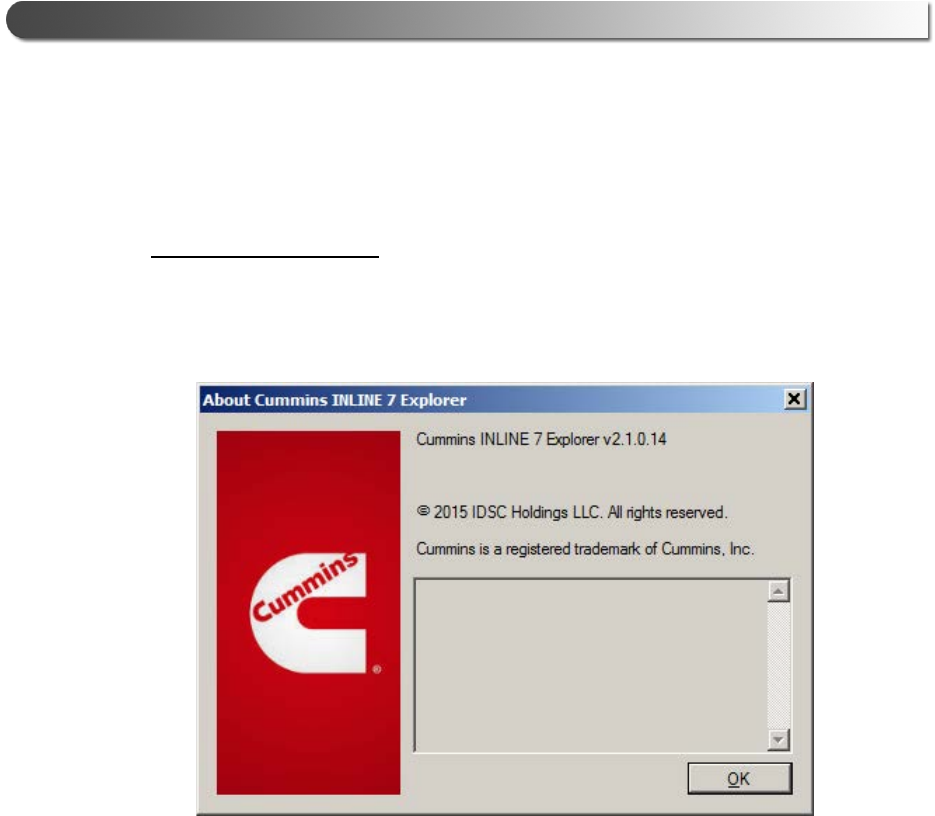

The Help Menu ...................................................................................56

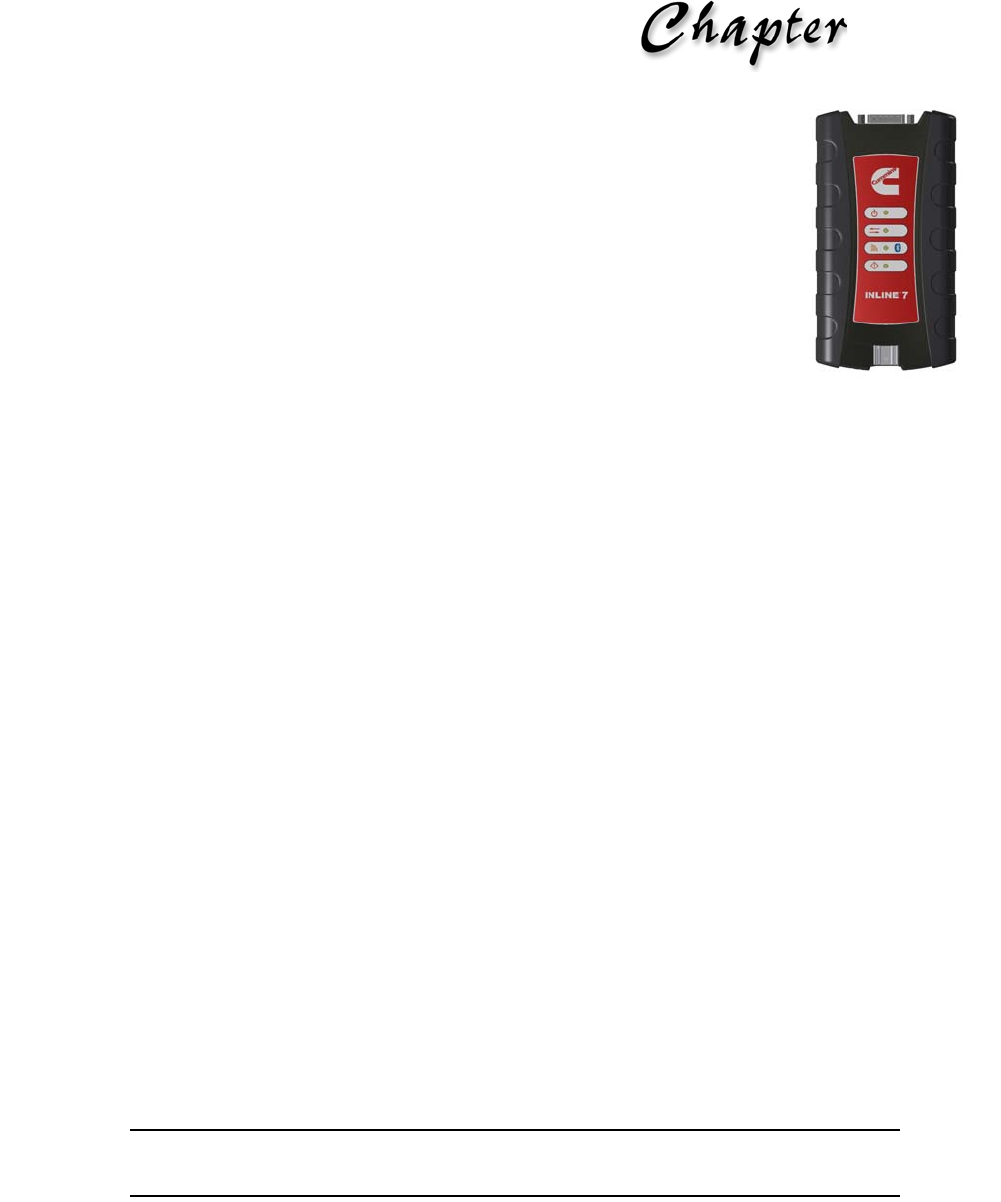

Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 1
1
Using
this Manual
Manual Overview, page 2
Conventions, page 3
This chapter provides an overview of this manual’s organization and the conventions
used throughout.
NOTE:
iScreen shots used throughout this manual are for illustrative purposes only. All data
shown is fictitious in nature.
2 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 1 • Using this Manual
Manual Overview
This manual provides basic and detailed information to support you during instal-
lation and setup of the Cummins INLINE™ 7 Data Link Adapter.
This manual is composed of the following sections:
•Table of Contents—helps you to find the information you are looking for
quickly and easily.
•Chapter 1: Using this Manual—provides an overview of this user’s
manual.
• Chapter 2: Introducing the Cummins INLINE™ 7 Data Link Adapter—
provides details regarding the communication modes available to you to
interface with your PC. It also introduces the features of the INLINE™ 7
(i.e., the LEDs, the Reset Button, the USB port, and the Vehicle port).
•Chapter 3: Installing the Drivers and Setting Up the Device—provides in-
structions for installing NEXIQ™ drivers and utilities, connecting the
INLINE™ 7 Data Link Adapter to a vehicle, connecting to a wireless net-
work, and testing the connection. It also provides information on using
the Cummins INLINE™ 7 Explorer utility.
Each chapter begins with an “at-a-glance” list of the chapter contents, along with
corresponding page numbers.
- Conventions
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 3
Conventions
This section provides descriptions of the conventions used throughout this guide.
Special Messages
Note
NOTE provides an explanation, comment, or tip related to the subject matter that
is being discussed.
Example:
NOTE:
iRefer to the page number provided for each described component for fur-
ther details.
Important
IMPORTANT indicates a situation which, if not avoided, may result in damage to
the test equipment or vehicle.
Example:
IMPORTANT:
äKeep all cables clear of moving or hot engine parts.
Caution
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in moderate or minor injury to the operator or to bystanders.
Example:
CAUTION:
äDo not use the unit to perform tests on household or industrial sources.
4 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 1 • Using this Manual
Warning
WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury to the operator or bystanders.
Example:

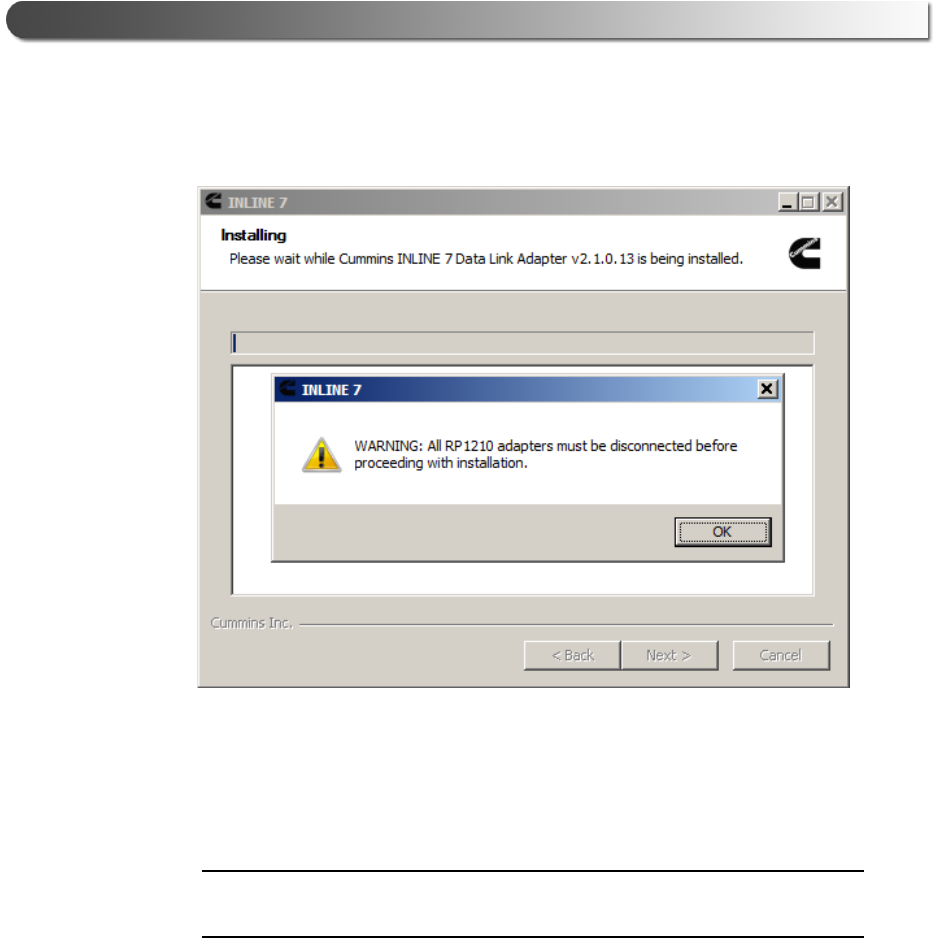

WARNING:
äAll RP1210 adapters must be disconnected before proceeding with
installation.
Troubleshooting
Information intended to help you to address or anticipate potential issues are pre-
sented in the following manner:
Check to make certain that the Power LED on the INLINE™ 7 is
illuminated.
Specialized Text
The following specially formatted text is used to help you to differentiate certain
elements discussed within this manual:
•Emphasis: Used to draw your attention to particularly important
information.
•FEATURE: Used to highlight the name of a specific feature.
Example: “Click on the Finish button to continue.”
•Field/Line: Used to highlight the name of a field or a line of text from a
display.

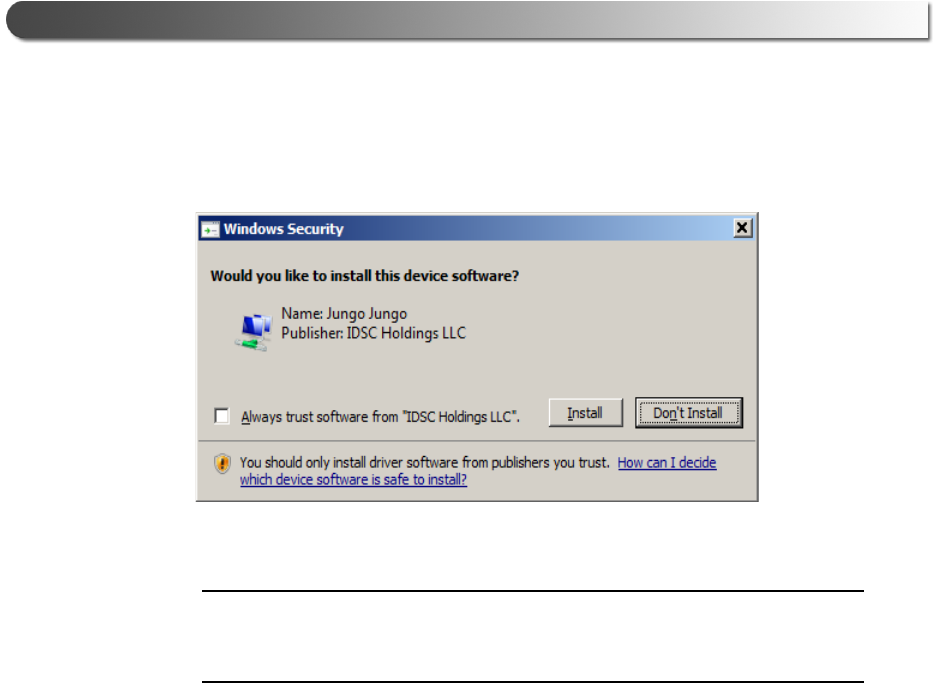

Example: “Place a check mark in the Always trust software from IDSC
Holdings LLC check box.”
• Menu Items: Used to highlight a series of menu selections.
Example: “From the Start menu, select Programs Cummins
INLINE 7 CumminsValidationTool”
• Screen titles: Used to highlight the title of a screen displayed.

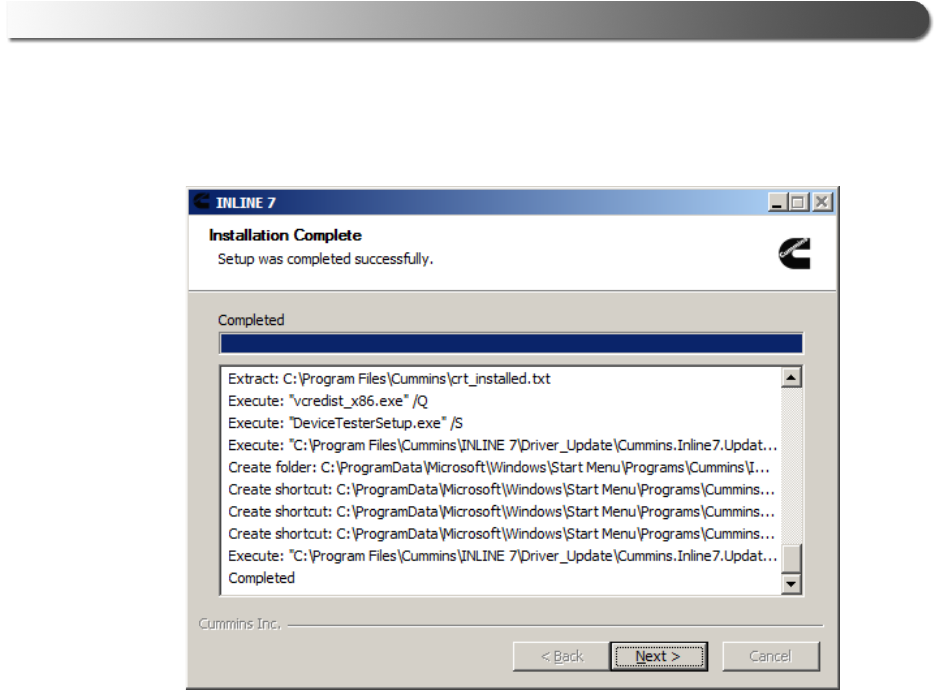

Example: “The Installation Complete screen is displayed.”

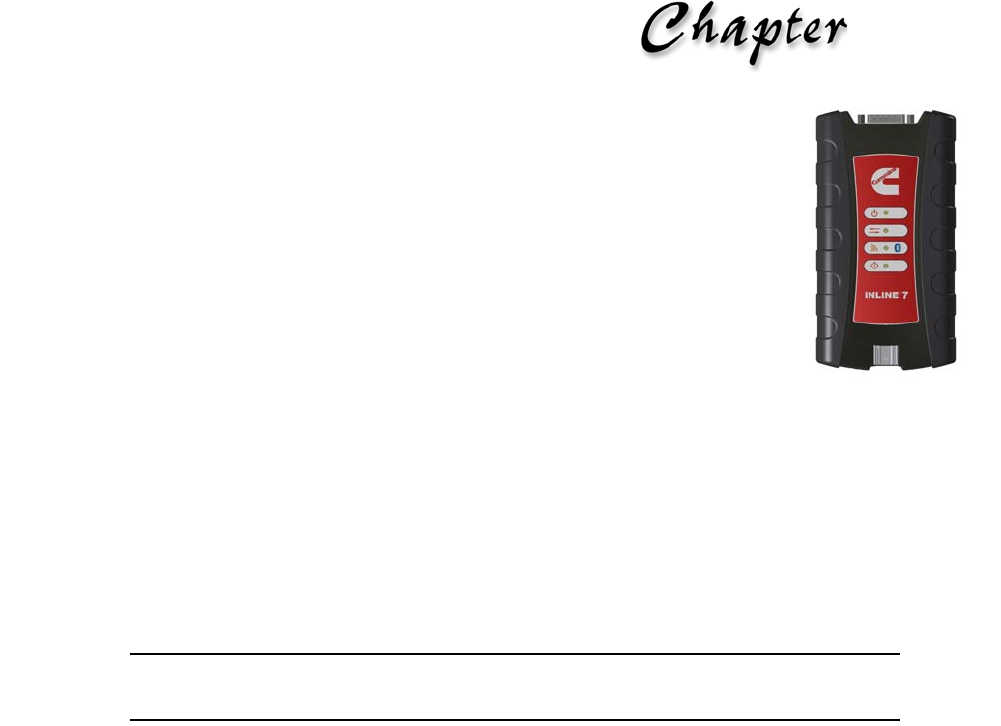

Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 5
2
Introducing the
Cummins INLINE™ 7
Data Link Adapter
Component Checklist, page 6
Product Specifications, page 7
System Requirements, page 8

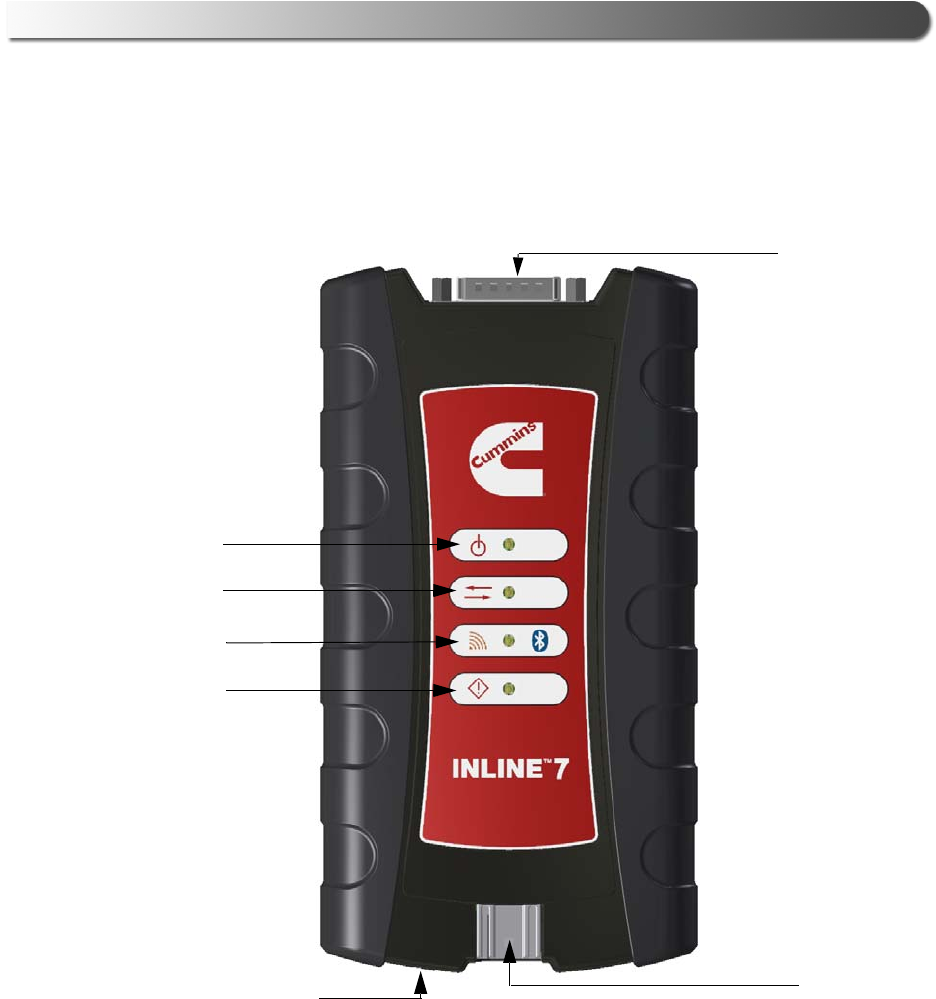

Device Features, page 9
Communication Options: Wired vs Wireless, page 13
Wired USB Connection, page 13
Wireless Bluetooth Connection, page 14
Wireless Wi-Fi Connection, page 15

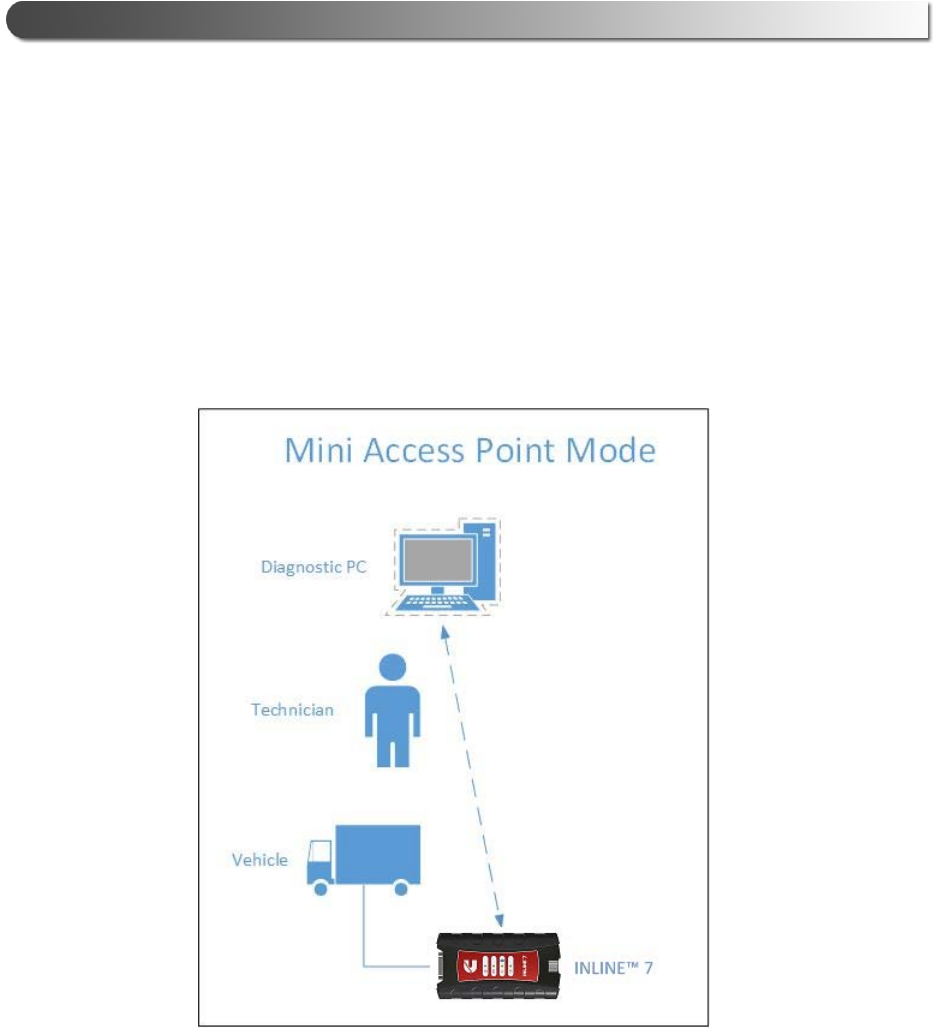

Mini Access Point Mode (Peer-to-Peer), page 16

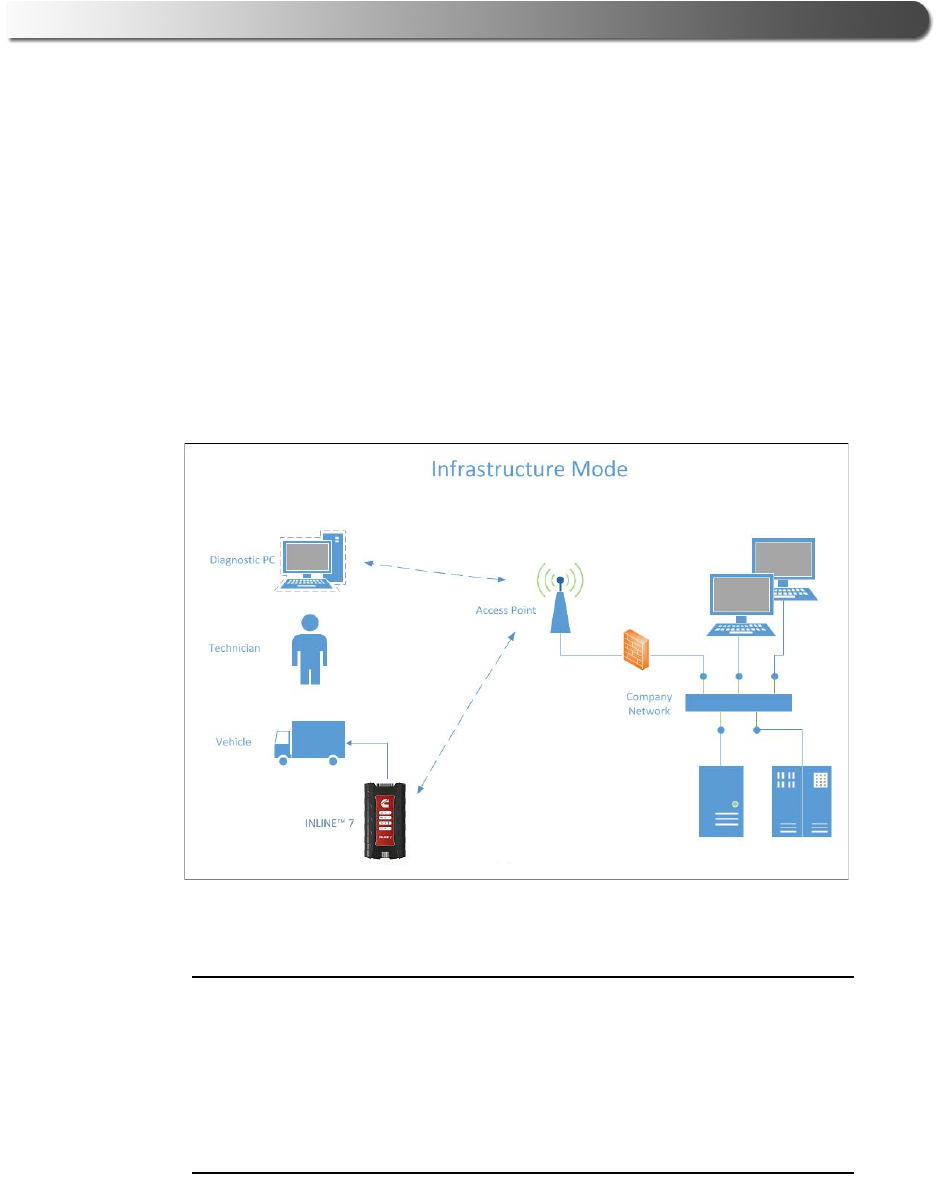

Infrastructure Mode (Connecting to your Company’s Network), page 17
The INLINE™ 7 Data Link Adapter is a hardware device that enables service bay
personal computers (i.e., PCs and/or laptops) to retrieve vehicle information using either
wireless Bluetooth® technology, a more traditional cable connection, or Wi-Fi. Once
configured, the INLINE™ 7 interfaces with your PC, enabling you to use specific PC
applications to perform vehicle diagnostics.
This chapter introduces the Cummins INLINE™ 7 Data Link Adapter and provides
details regarding the communication modes available to you to interface with your PC. It
also introduces the features of the INLINE™ 7 (i.e., the LEDs, the Reset Button, the USB
port, and the Vehicle port).
6 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 2 • Introducing the Cummins INLINE™ 7 Data Link Adapter
Component Checklist
The following components are included with your Cummins INLINE™ 7 Data Link
Adapter. Be sure you have all of the following items before using the device:
INLINE™ 7 Data Link Adapter

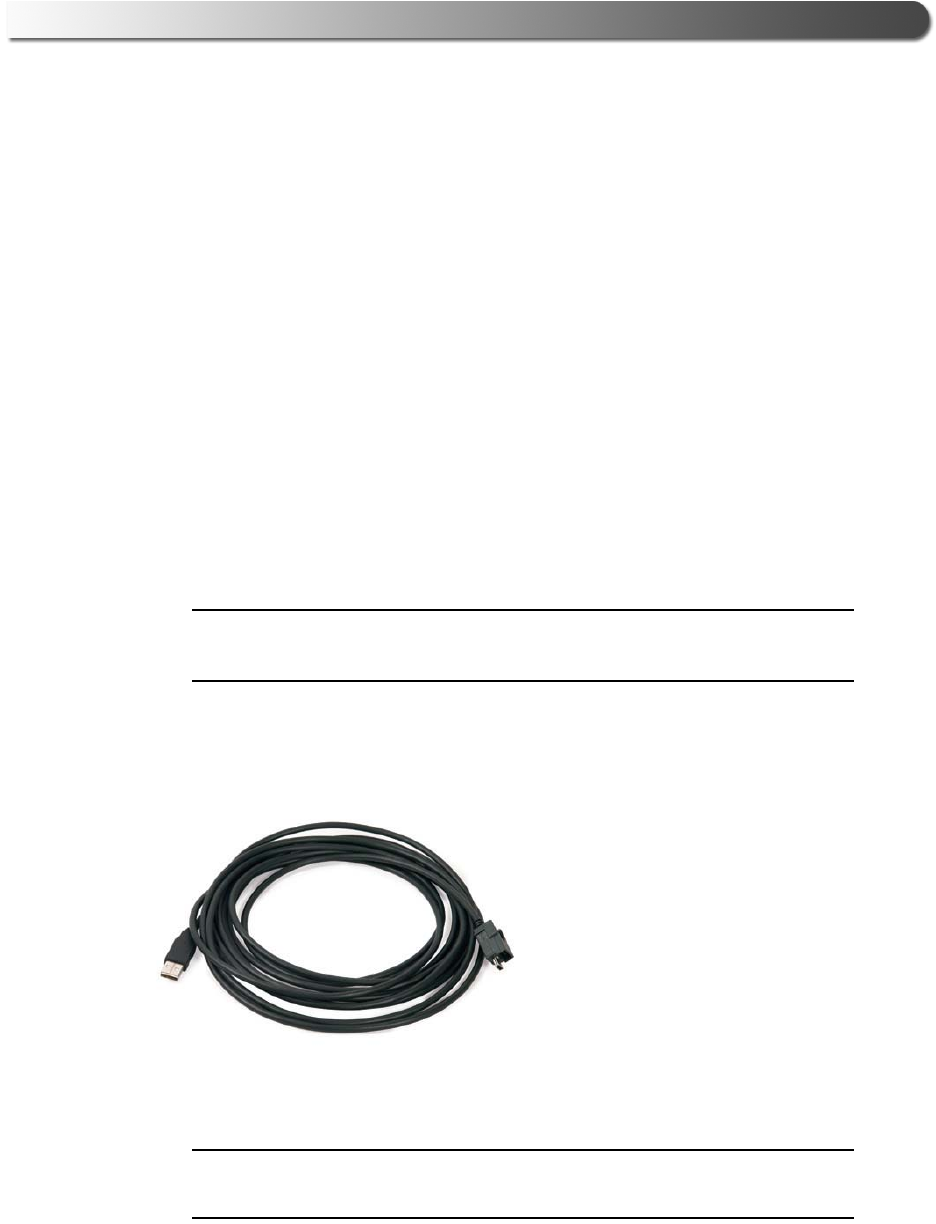

Automotive A to Mini-B USB Cable (see Figure 2.2)
6- and 9-pin “Y” Deutsch Adapter
2-pin Delphi/3-pin Deutsch Adapter (with battery clips)
Carrying Case
Cummins INLINE™ 7 Quick Start Guide
NOTE:
iINLINE™ 7 drivers and a portable document format (PDF) version of this
manual are available for download at the Cummins website [insert web
address].
- Product Specifications
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 7
Product Specifications
The INLINE™ 7 Data Link Adapter is configured with the following
specifications:
Feature Data
Physical Dimensions 6.75" x 3.75" x 1.06"
(171 mm x 95 mm x 27 mm)
Weight 8 oz. (0.22 kg)
Power Requirements 6 - 32 VDC @ 350 mA maximum
Operating Temperature 0 to +70 °C
API Driver • TMC RP1210A, RP1210B, and
RP1210C compliant
• SAE J2534 compliant
Vehicle Protocols Supported • J1708/J1587
• J1939 (250K, 500K, or 1 MB)
• CAN (125K, 250K, 500K, 1 MB)
(3 CAN channels with Auto Baud)
• ISO 9141
• ISO 14230 (KWP2000)
• ISO 15765
USB Communication USB Device, version 1.1
USB Connector Latching USB Mini-B
Wired Communication Automotive A to Mini-B USB cable 13 ft.
(4 m) maximum
Wireless Communication • Bluetooth® Class 1 adapter (up to 100
m range)
• Dual band Wi-Fi (802.11 a/b/g/n)
Vehicle Connector High Density D-sub 26-pin Male (HD26M)
8 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 2 • Introducing the Cummins INLINE™ 7 Data Link Adapter
System Requirements
Be aware of the following system requirements:
Component Requirement
IBM PC-compatible
computer • 1GHz processor or more
• RAM: 256MB or more (512MB recommended)
• USB port, version 1.1 or higher
•Wi-Fi card
Operating system • Windows® 7
• Windows® 8
• Windows® 10
Bluetooth® adapter
(sold separately)
• Bluetooth® Class 1 USB Adapter (up to 100m
range)
Note: PCs that have Integrated Bluetooth
typically use a Class 2 Bluetooth® module,
which has limited range (typically 10m).
Wi-Fi wireless
network • Dual band Wi-Fi (802.11a, b, g, or n)
- Device Features
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 9
Device Features
The following illustration details the features of the INLINE™ 7 device.
A
F
Reset Button
B
C
D
E
Figure 2.1 Cummins INLINE™ 7 Data Link Adapter
Legend
A—Vehicle Port D—Wireless Comm LED
B—Power LED E—Fault LED
C—Vehicle Data LED F—USB Port
10 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 2 • Introducing the Cummins INLINE™ 7 Data Link Adapter
The following features behave the same whether the device is in Bluetooth®
or Wi
Feature What It Does
Vehicle Port Connects the INLINE™ 7 to a vehicle/engine for
power and data.
Power LED Illuminates when the device receives power.
Vehicle Data LED Illuminates when the device is receiving data from
the vehicle.
Fault LED Illuminates when a problem is detected.
USB Port Connects the device to your PC (wired
connection).
Latching USB Mini-B Connector for connection to
PC host. Not used with iOS device.
-Fi mode:
The Wireless LED and the Reset Button, however, behave differently depend-
ing on which mode (i.e., Bluetooth or Wi-Fi) the device is in.
Feature What It Does
Wireless Comm LED:
Blue: Bluetooth Mode If the device is Discoverable:
• Illuminates solid blue when connected.
• Blinks every second when not connected.
If the device is Non-Discoverable:
• Illuminates blue when connected.
• Off when not connected.
Wireless Comm LED:
White: Wi-Fi—Mini
Access Point Mode
Mini Access Point Mode:
• Illuminates solid white when a client PC
connects to the device.
• Off when no client PC is connected.
- Device Features
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 11
Wireless Comm LED:
Orange: Wi-Fi—Infra-
structure Mode
Infrastructure Mode:
• Stays off when not associated with a
network Access Point.
• Blinks every second when associated with
an access point, but no IP address
assigned.
• Illuminates solid orange when successfully
assigned an IP address.
Reset Button
Bluetooth Mode The INLINE™ 7 factory default is Bluetooth
mode in a Non-Discoverable status. To confirm
that the device is in Bluetooth mode, press the
Reset button momentarily and the Wireless
LED will illuminate blue.
In Bluetooth mode, the Reset button is used to
change the status of the device. The two status
modes are:
•Non-Discoverable—When the INLINE™
7 is Non-Discoverable, it will only connect
to a host device with which it has previous-
ly been paired.
•Discoverable—When the INLINE™ 7 is
Discoverable, a host device can detect,
pair, or connect to it.
To change the mode from Non-Discoverable to
Discoverable, press and hold the Reset button
until the Wireless LED begins to flash blue
(about 3 seconds).
Once a connection is established, the LED
turns solid blue. After two minutes, discover-
ability will time out, and the device will go back
to Non-Discoverable status.
Feature What It Does
12 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 2 • Introducing the Cummins INLINE™ 7 Data Link Adapter
Reset Button
Wi-Fi Mode When using Wi-Fi, the INLINE™ 7 can be con-
figured for either of the following modes:
• Mini-Access Point (Wi-Fi default)
• Infrastructure
Note: INLINE™ 7 cannot be used in Infrastruc-
ture mode until it has been configured using
the Explorer utility (see Using the Cummins
INLINE™ 7 Explorer in Chapter 3 of this
manual).
Once Infrastructure mode has been config-
ured, you can switch between Mini-Access
Point and Infrastructure modes by pressing
and holding the Reset button for three (3)
seconds. The LED will change color to indicate
the mode change.
Reset Button
(to switch modes) The Reset button is also used to switch back
and forth between Bluetooth and Wi-Fi modes.
To switch modes, press and hold the Reset
button for about ten (10) seconds. All LEDs will
flash momentarily to indicate that the device
has been reconfigured and reset.
Once the device reboots, the color of the
Wireless LED will reflect the wireless mode:
•Blue = Bluetooth mode
•White = Wi-Fi, Mini Access Point mode
•Orange = Wi-Fi, Infrastructure mode
Feature What It Does
- Communication Options: Wired vs Wireless
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 13
Communication Options: Wired vs Wireless
Prior to using the INLINE™ 7, you need to decide how you want the unit to com-
municate with your PC. There are three options:
• Wired, USB Connection (pg. 13)
• Wireless, Bluetooth® Connection (pg. 14)
• Wireless, Wi-Fi Connection (pg. 15)
Wired USB Connection
A wired USB connection provides the advantages of high data throughput, low
latency, and a high-reliability data connection.
IMPORTANT:
äECU reprogramming typically requires both high throughput and critical
timing, and should always use a USB-to-PC wired connection.
Wired communication between the INLINE™ 7 and your PC requires an automo-
tive A to Mini-B USB cable (shipped with the INLINE™ 7).
Figure 2.2 Automotive A to Mini-B USB Cable
NOTE:
iFor detailed instructions on making a wired connection, refer to Making a
Wired USB Connection in Chapter 3 of this manual.
14 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 2 • Introducing the Cummins INLINE™ 7 Data Link Adapter
Wireless Bluetooth Connection
The INLINE™ 7 can be configured to use Bluetooth® wireless technology to
provide communication between the INLINE™ 7 and your PC. Bluetooth® has
limited bandwidth and exhibits latency when compared to WI-FI or a wired USB
connection. This may result in dropped messages in situations requiring high
bandwidth.
The INLINE™ 7 Data Link Adapter is equipped with a Class 1 Bluetooth® module
with a range of up to 100m when communicating with another Class 1 Bluetooth®
device. Most PCs that feature Integrated Bluetooth® are equipped with a Class 2
Bluetooth® module, which limits the useful range to around 10m.
NOTE:
iFor maximum wireless range, the use of an external, Class 1 USB Blue-
tooth® adapter (sold separately) is recommended.
If you decide to employ an external, Class 1 USB Bluetooth® adapter, you will
have to perform the following tasks:
• Disable the integrated Bluetooth® device
• Install the drivers supplied with the external adapter
• Configure the Bluetooth® environment.
For detailed instructions on configuring the INLINE™ 7 for Bluetooth®, see Making
a Bluetooth Wireless Connection, in Chapter 3 of this manual.
- Communication Options: Wired vs Wireless
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 15
Wireless Wi-Fi Connection
The INLINE™ 7 can also be configured to use Wi-Fi to provide wireless commu-
nication between the INLINE™ 7 and your PC.
There are two network options:
• Mini Access Point Mode (pg. 16)
• Infrastructure Mode (pg. 17)
Wi-Fi performance can be affected by network congestion or radio frequency in-
terference if there are too many other wireless devices in the vicinity.These
conditions may result in dropped messages. For this reason, Wireless communi-
cation is not recommended for ECU reprogramming (i.e, reflashing).
16 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 2 • Introducing the Cummins INLINE™ 7 Data Link Adapter
Mini Access Point Mode (Peer-to-Peer)
The easiest and quickest way to connect your INLINE™ 7 to your PC is Mini
Access Point mode. In Mini Access Point mode (also known as Access Point Em-
ulation mode), the PC communicates directly with the INLINE™. The INLINE™ 7
emulates the function of an access point, allowing the PC to connect directly to the
INLINE™ 7, as if it were an access point. When the PC is connected to the
INLINE™ 7 in Mini Access Point mode, neither device is connected to the
company network.
Figure 2.3 Mini Access Mode
If you use your PC’s internal wireless network card to connect to your company’s
network and the Internet, you may want to obtain an additional wireless network
card for use with the INLINE™ 7. Otherwise when you connect the INLINE™ 7 to
your PC using Mini Access Point mode, you will not have access to the Internet
until you have finished your session and reconnected to your company’s network.
- Communication Options: Wired vs Wireless
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 17
For instructions on connecting the INLINE™ 7 Data Link Adapter and your PC
using Mini Access Point Mode, see Connect Using Wi-Fi, in Chapter 3 of this
manual.
Infrastructure Mode (Connecting to your Company’s Network)
In Infrastructure mode, your PC communicates with your company’s computer
network through a Wireless Access Point (not included), which acts as a bridge
between the wireless network and the wired network. In this mode, the INLINE™
7 is configured to communicate with the same access point. All communication
between the PC and the INLINE™ 7 passes through the access point.
Figure 2.4 Infrastructure Mode
NOTE:
iThe settings for connecting to your company network may differ from one
installation to another. To ensure network security, your Information Tech-
nology (IT) administrator will need to oversee the installation and specify
the appropriate configuration parameters. Your IT administrator should be
able to properly configure the INLINE™ 7 for infrastructure mode, using
the INLINE™ 7 Explorer utility (see Using the Cummins INLINE™ 7
Explorer Utility in Chapter 3 of this manual).
18 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 2 • Introducing the Cummins INLINE™ 7 Data Link Adapter
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 19
3
Installing the Drivers
and Setting Up the
Device
Installation Process Outline, pg. 20
Step 1: Install the Drivers, pg. 21
Step 2: Connect the INLINE™ 7 to a Vehicle, pg. 30
Making a Wired USB Connection, pg. 31
Making a Wireless Bluetooth Connection, pg. 32
Connecting via a Class 1, External Bluetooth Adapter, pg. 32
Pair the Device, pg. 34
Making a Wireless Wi-Fi Connection, pg. 39
Mini Access Point Mode, pg. 39
Infrastructure Mode, pg. 43
Step 3: Test the Connection, pg. 44
Using the Cummins INLINE™ 7 Explorer Utility, pg. 48
This chapter provides instructions for installing Cummins INLINE™ 7 drivers and utili-
ties, connecting the INLINE™ 7 Data Link Adapter to a vehicle, connecting to a wireless
network, and testing the connection. It also provides information on using the Cummins
INLINE™ 7 Explorer utility.
NOTE:
iScreen shots used throughout this manual are for illustrative purposed only. All data
shown is fictitious in nature.
20 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
Installation Process Outline
Step 1: Install the INLINE™ 7 drivers (pg. 21).
Step 2: Connect the INLINE™ 7 Data Link Adapter to the vehicle (pg. 30).
Connect to your PC using one of the following options:
•A wired, USB connection (pg. 31)
•A wireless, Bluetooth® connection (pg. 32)
• A wireless, Wi-Fi connection
There are two options:
—Mini Access Point Mode (pg. 39)
—Infrastructure Mode (pg. 43)
Step 3: Test the connection between the INLINE™ 7 and the vehicle using the
Cummins Communication Validation Tool (pg. 44)
NOTE:
iIf you have questions about using this product, call 1-800-433-9341
- Step 1: Install the Drivers
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 21
Step 1: Install the Drivers
Prior to using the INLINE™ 7, you have to install the necessary INLINE™ 7
drivers. The INLINE™ 7 drivers are compatible with both Microsoft® Windows® 7,
Windows® 8 and Windows® 10.
IMPORTANT:
äRemember, you must have Administrator security rights and be logged in
as “Admin” to successfully complete the installation process outlined in
this manual.
The following procedure assumes that you have Internet access.
To install the drivers on your laptop or PC:
1On your laptop or PC, navigate to the following website:
http://cumminsengines.com/inline-downloads
Figure 3.1 Cummins Download Page
2Select the latest version of the INLINE™ 7 drivers.
3Click on Open to open the .zip file.
4Double-click on the .exe file to run the install.
22 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
The Welcome to INLINE™ 7 Setup screen is displayed.

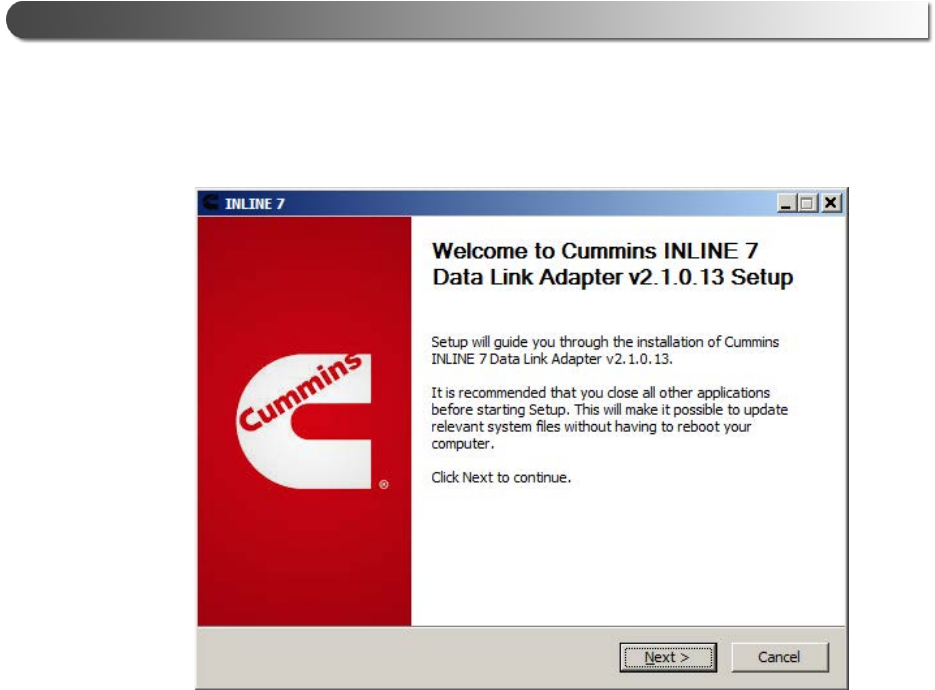

Figure 3.2 Welcome to Cummins INLINE 7 Setup Screen
5Carefully read the information displayed on the screen, and follow the
recommendations.
6Click Next.
- Step 1: Install the Drivers
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 23
The License Agreement screen is displayed.

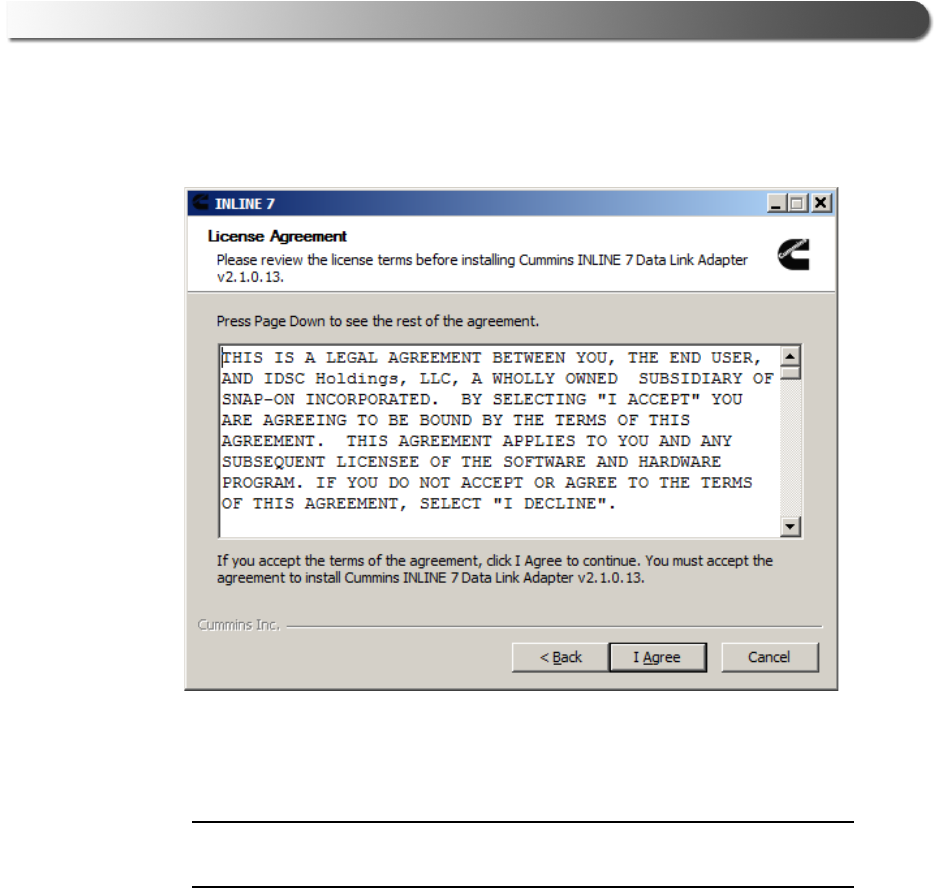

Figure 3.3 License Agreement Screen
7Read all the information on this screen, then click I Agree.
NOTE:
iIf you do not agree to the terms, click Cancel. A message is displayed
prompting you to confirm quitting INLINE™ 7 Setup. Click Yes to quit.
24 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
The following warning message is displayed.
Figure 3.4 Warning Message
8Carefully read the warning message, and disconnect all RP1210 adapters to
which your laptop or PC might be connected prior to proceeding with the
installation.
NOTE:
iYou must also exit the WVL2™ Explorer utility if NEXIQ™ WVL2™ drivers
have been installed on your laptop or PC.
9Once you have complied with the requirements of the warning message, click
OK.
- Step 1: Install the Drivers
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 25
The installation begins and the following screen is displayed.
Figure 3.5 Installation Screen
26 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
If you are running Windows® 7 or Windows® 8, the following Windows
Security dialog may be displayed.
Figure 3.6 Windows Security Dialog
NOTE:
iYou may want to place a check mark in the Always trust software from
“Jungo LTD” check box. If you leave it unchecked, this dialog may be dis-
played more than once.
10 Click Install to continue.
11 Wait briefly while the installation continues.
- Step 1: Install the Drivers
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 27
The Installation Complete screen is displayed.
Figure 3.7 Installation Complete Screen
12 Click Next.
28 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
The following completion screen is displayed.

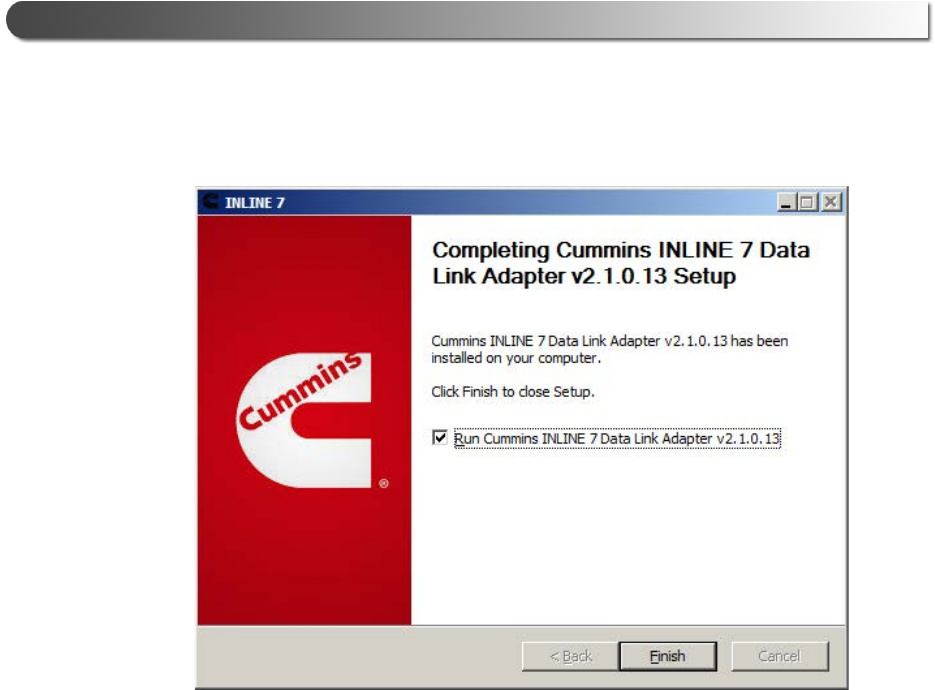

Figure 3.8 Completion Screen
13 Click Finish.
- Step 1: Install the Drivers
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 29
The Cummins INLINE™ 7 Explorer utility opens.
Figure 3.9 Cummins INLINE™ 7 Explorer Utility
NOTE:
iFor information on using the Cummins INLINE 7 Explorer, see Using the
Cummins INLINE™ 7 Explorer Utility on page 48 of this manual.
14 Move on to Step 2: Connect the INLINE™ 7 to a Vehicle, next in this manual.
30 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
Step 2: Connect the INLINE™ 7 to a Vehicle
Once you have installed the INLINE™ 7 drivers, you are ready to connect the
INLINE™ 7 to a vehicle using an adapter cable. Any of the following adapters can
provide the interface:
•6-pin Deutsch
•9-pin Deutsch
• 9-pin Deutsch (1 meter)
• 6- and 9-pin Deutsch Y
• 16-pin J1962 for OBD II
Next, you connect the INLINE™ 7 to your PC using one of the following options:
•A wired, USB connection (pg. 31)
•A wireless, Bluetooth® connection (pg. 32)
— Connecting via a Class 1, external Bluetooth® adapter
(recommended)
or
— Connecting via Integrated Bluetooth®
•A wireless Wi-Fi connection (pg. 39)
—Mini Access Point Mode (pg. 39)
or
— Infrastructure Mode (pg. 43)
- Step 2: Connect the INLINE™ 7 to a Vehicle
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 31
Making a Wired USB Connection
To connect the INLINE™ 7 to your PC using a USB cable:
1Connect the USB cable (i.e., an automotive A to Mini-B USB cable) to the USB
port of the PC or laptop.
2Connect the other end of the cable to the port on the bottom of the device.
3Connect the DB26 female end of the appropriate adapter cable to the
INLINE™ 7.
4Attach the other end of the adapter cable (i.e., the Deutsch connector end) to
the vehicle’s diagnostic connector.
NOTE:
iThe vehicle’s diagnostic connector is typically located under the dash-
board on the driver’s side, or beside the driver’s seat. It can also be
located in the engine compartment, near the electronic control module
(ECM).
5Move on to Step 3: Test the Connection (pg. 44).
32 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
Making a Wireless Bluetooth Connection
NOTE:
iThe INLINE™ 7 factory default is Bluetooth® mode in a Non-Discoverable
status. To confirm that the device is in Bluetooth® mode, press the Reset
button momentarily and the Wireless LED will illuminate blue.
The INLINE™ 7 Data Link Adapter is equipped with a Class 1 Bluetooth® module
with a range of up to 100m when communicating with another Class 1 Bluetooth®
device. Most PCs that feature Integrated Bluetooth® are equipped with a Class 2
Bluetooth® module, which limits the useful range to around 10m.
For maximum wireless range, the use of an external, Class 1 USB Bluetooth®
adapter (sold separately) is recommended.
There are two connection options:
• Connecting via a Class 1, external Bluetooth® adapter (recommended)
• Connecting via Integrated Bluetooth®
The procedure for connecting via Integrated Bluetooth® is much the
same as connecting via an external Bluetooth® adapter. To connect
using your PC’s Integrated Bluetooth®, jump to Step 5 on page 34 of
the following procedure.
Connecting via a Class 1, External Bluetooth Adapter
If you decide to employ an external, Class 1 USB Bluetooth® adapter, you will
have to perform the following tasks:
• Disable your PCs Integrated Bluetooth® device
• Install the drivers supplied with the external adapter, if required
NOTE:
iDepending on the Bluetooth® adapter you are using for your wireless con-
nection, you may need to install the necessary Bluetooth® drivers. For
some adapters the drivers will install automatically.
• Connect the INLINE™ 7 to a vehicle
• Pair the INLINE™ 7 with your PC (pg. 34)
- Step 2: Connect the INLINE™ 7 to a Vehicle
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 33
To connect via an external Bluetooth adapter:

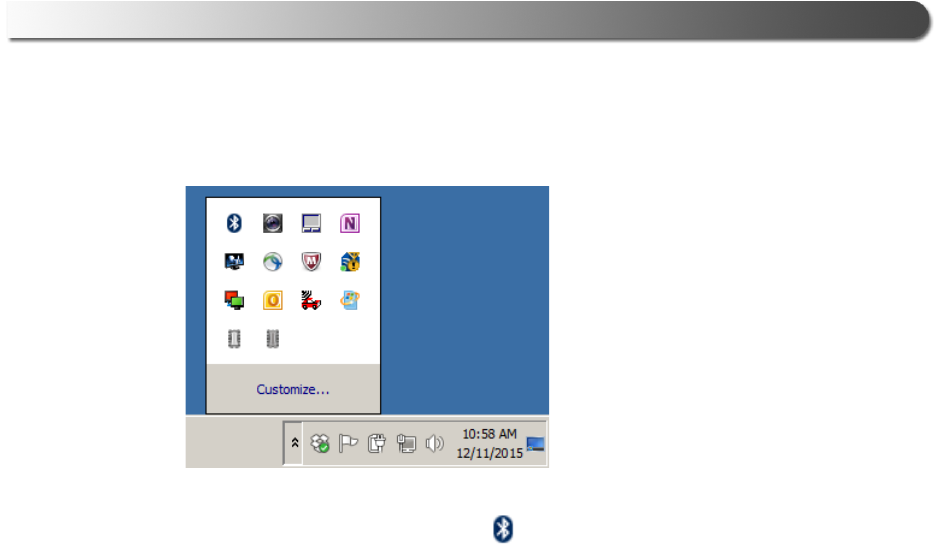

1Click on the Show Hidden Icons arrow in your PC’s System Tray.
Figure 3.10 Hidden Icons
The hidden icons are displayed.
2Right-click on the Bluetooth® icon .
3Click on Turn Adapter Off.
4Plug the Class 1 Bluetooth® adapter you have selected into an available
USB port on your PC, and wait while Windows® installs the required drivers.
NOTE:
iDepending on the Bluetooth® adapter you are using for your wireless con-
nection, you may need to install the necessary Bluetooth® drivers. For
some adapters the drivers will install automatically.
The following message is displayed:
Installing device driver software.
When the installation is complete, the following message is displayed:
Your device is ready to use.
NOTE:
iSome Bluetooth® adapters may require you to configure a Bluetooth®
environment. If this is necessary, an Initial Bluetooth Configuration Wizard
screen will display at the conclusion of the adapter installation process.
If this happens, use the CD that came with the adapter.
34 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
5Connect the DB26 female end of the appropriate adapter cable to the
INLINE™ 7.
6Attach the other end of the adapter cable (i.e., the Deutsch connector end) to
the vehicle’s diagnostic connector.
NOTE:
iThe vehicle’s diagnostic connector is typically located under the dash-
board on the driver’s side, or beside the driver’s seat. It can also be
located in the engine compartment, near the electronic control module
(ECM).
—At this point, the Power LED (green) on the INLINE™ 7 should be illumi-
nated (on).
—If the Power LED is not illuminated, turn the vehicle’s key to the ON posi-
tion, leaving the engine off
7Press and hold the Reset Button until the Wireless LED begins to flash blue
(about 3 seconds).
This will put the INLINE™ 7 in Discoverable Mode. When the INLINE™ 7 is
Discoverable, a host device can detect, pair, or connect to it. Once a con-
nection is established, the LED turns solid blue. After two minutes,
discoverability will time out, and the device will go back to Non-Discoverable
status.
NOTE:
iSee Device Features in Chapter 2 of this manual for a detailed discussion
of the Reset Button.
8Move on to Pair the Device, next in this manual.
Pair the Device
You use the Windows® utility to pair the device (i.e., the INLINE™ 7 with your PC).
To pair the device:
1Click on the Show Hidden Icons arrow in your PC’s System Tray.
Figure 3.11 Hidden Icons
- Step 2: Connect the INLINE™ 7 to a Vehicle
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 35
The hidden icons are displayed.
2Right-click on the Bluetooth® icon .
3Click Add a Device.

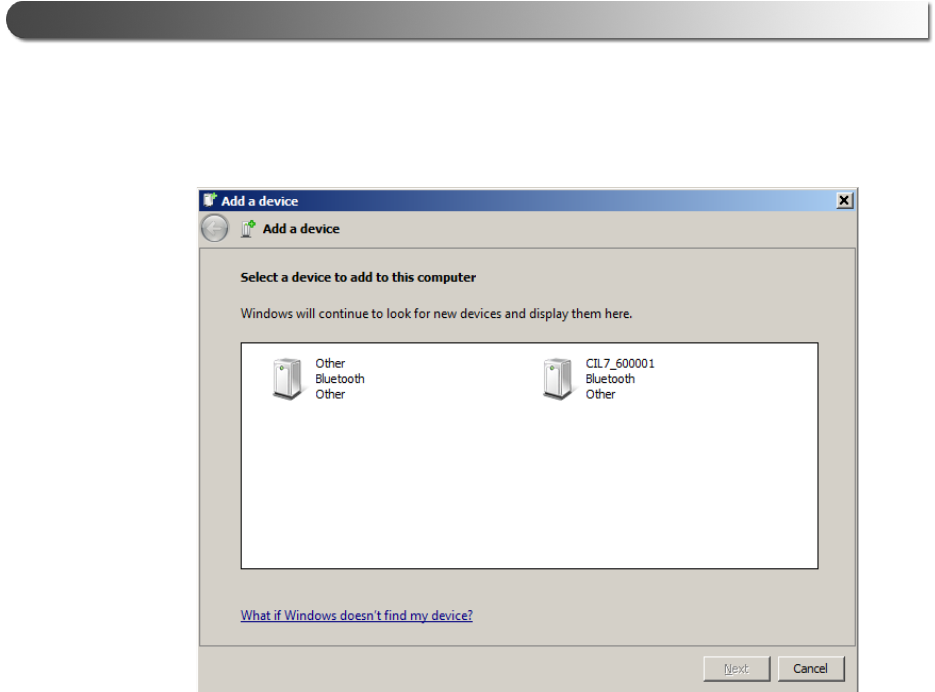

Figure 3.12 Add a Device Screen
36 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
The Add a device screen is displayed.
4Select the device displayed that matches the serial number on the back of
your INLINE™ 7 (e.g., CIL7_xxxxxx).
- Step 2: Connect the INLINE™ 7 to a Vehicle
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 37
Your selection is highlighted.
Figure 3.13 Add a Device Screen Refreshed
5Click Next.
NOTE:
iYou may be prompted to enter a pairing code for the device. If you are
prompted to enter a PIN or pairing code, enter NEXIQ (all uppercase).

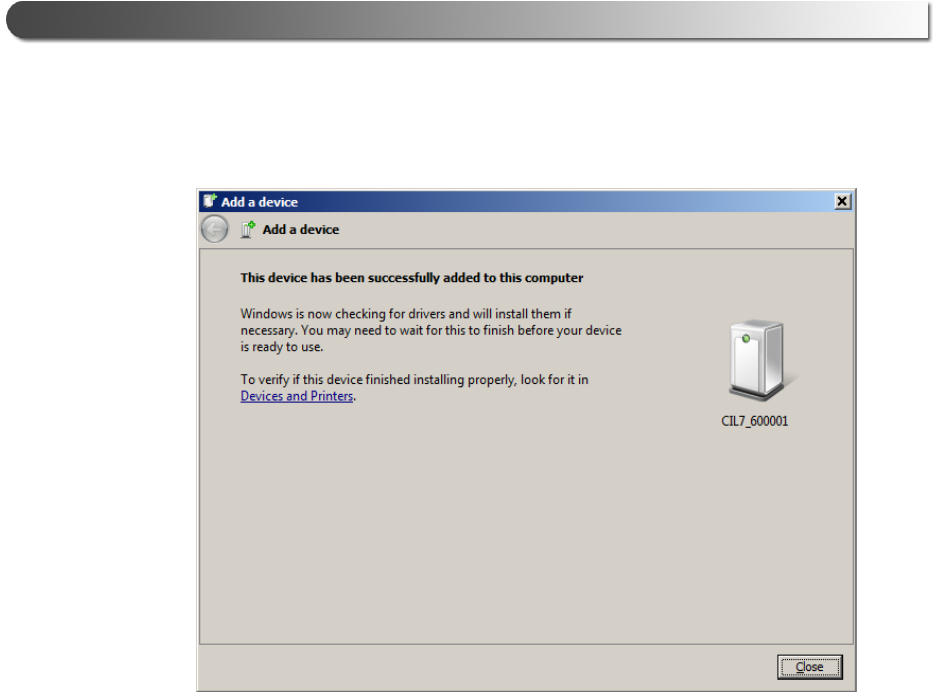

Figure 3.14 Device Successfully Added Screen
38 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
The following System Tray message is displayed.
Your device is ready to use.
6Click Close.
7Move on to Step 3: Test the Connection on page 44 of this manual.
- Step 2: Connect the INLINE™ 7 to a Vehicle
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 39
Making a Wireless Wi-Fi Connection
When using Wi-Fi, the INLINE™ 7 can be configured for either of the following
modes:
• Mini Access Point, the Wi-Fi default (pg. 39)
• Infrastructure (pg. 43)
NOTE:
iINLINE™ 7 cannot be used in Infrastructure mode until it has been config-
ured using the Explorer utility (see Using the Cummins INLINE™ 7
Explorer in Chapter 3 of this manual).
Mini Access Point Mode
The easiest and quickest way to connect your INLINE™ 7 to your PC is Mini
Access Point mode. In Mini Access Point mode (also known as Access Point Em-
ulation mode), the PC communicates directly with the INLINE™ 7. The INLINE™
7 emulates the function of an access point, allowing the PC to connect directly to
the INLINE™ 7, as if it were an access point. When the PC is connected to the
INLINE™ 7 in Mini Access Point mode, neither device is connected to the
company network.
Figure 3.15 Mini Access Mode
40 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
To connect the INLINE™ 7 to your PC using Mini Access Point Mode:
1Connect the DB26 female end of the appropriate adapter cable to the con-
nector on the top of the INLINE™ 7.
2Attach the other end of the adapter cable (i.e., the Deutsch connector end) to
the vehicle’s diagnostic connector.
NOTE:
iThe vehicle’s diagnostic connector is typically located under the dash-
board on the driver’s side, or beside the driver’s seat. It can also be
located in the engine compartment, near the electronic control unit (ECU).
—At this point, the Power LED (green) on the INLINE™ 7 should be illumi-
nated (On).
—If the Power LED is not illuminated, turn the vehicle’s key to the ON posi-
tion, leaving the engine Off.
3Press and hold the Reset Button for about ten (10) seconds to switch from
Bluetooth Mode (the factory default) to Mini Access Point Mode.
All of the LEDs on the device will flash momentarily to indicate that the
device has been reconfigured. Once the connection is complete, the
Wireless LED will display white to indicate Wi-Fi Mini Access Point Mode.
NOTE:
iSee Device Features in Chapter 2 of this manual for a detailed discussion
of the Reset Button.
4Navigate to the System Tray on your PC.
Figure 3.16 Windows® System Tray
5Click on the Network icon in the System Tray.

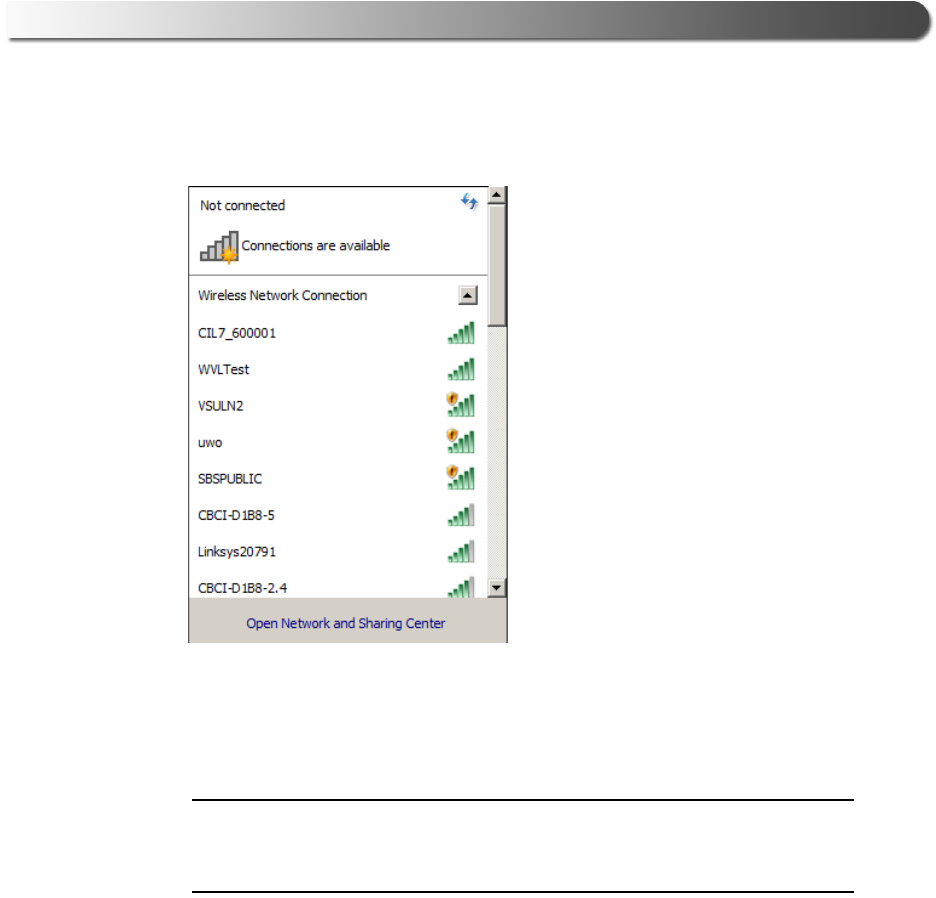

Figure 3.17 Network Selection Screen
- Step 2: Connect the INLINE™ 7 to a Vehicle
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 41
The Network Selection screen is displayed.
6Select CIL7_xxxxxx from the list (where xxxxxx is the serial number of the
INLINE™ 7).
NOTE:
iIf CIL7_xxxxxx is not displayed, make sure you are connected to the vehi-
cle. Also, make sure you are within range (i.e., within 100 ft.). You may
need to move your PC closer to the vehicle.
Figure 3.18 Selection Highlighted
42 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
CIL7_xxxxxx is highlighted.
7Click Connect.
Figure 3.19
8Enter the Security Key located on the label on the back of the device.
The device is now connected and ready to use.
9Move on to Step 3: Test the Connection, on page 44 of this manual.
- Step 2: Connect the INLINE™ 7 to a Vehicle
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 43
Infrastructure Mode
In Infrastructure mode, your PC communicates with your company’s computer
network through a Wireless Access Point (not included), which acts as a bridge
between the wireless network and the wired network. In this mode, the INLINE™
7 is configured to communicate with the same access point. All communication
between the PC and the INLINE™ 7 passes through the access point.
Figure 3.20 Infrastructure Mode
NOTE:
iThe settings for connecting to your company network may differ from one
installation to another. To ensure network security, your Information Tech-
nology (IT) administrator will need to oversee the installation and specify
the appropriate configuration parameters. Your IT administrator should be
able to properly configure the INLINE™ 7 for infrastructure mode, using
the Cummins INLINE™ 7 Explorer utility (see Switching Modes: Mini
Access Point and Infrastructure on page 51 of this manual).
44 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
Step 3: Test the Connection
You use the Cummins Communication Validation Tool to test the connection
between the INLINE™ 7 and the vehicle. At startup, the Communication Valida-
tion Tool checks for any INLINE™ 7 drivers installed on the PC.
To test the connection between the INLINE™ 7 and the vehicle:
1Click Start and then select All ProgramsCummins INLINE 7
CumminsValidationTool.
The application is started and the Communication Validation Tool screen
is displayed.
Figure 3.21 Communication Validation Tool: Status Not Connected
2Use the button in the Driver box to select the appropriate driver (i.e.,
Cummins INLINE 7 Data Link Adapter - CIL7R32).
3Use the button in the Device box to select the appropriate device (for
example, Cummins Data Link Adapter using Bluetooth).
—The Device box lists all the devices supported by the INLINE™ 7 drivers
installed on the PC.
- Step 3: Test the Connection
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 45
4Use the button in the Protocol box to select the appropriate protocol (e.g.,
J1939, CAN, ISO 15765, J1708).
—The Protocol box lists only the protocols supported by the device selected
in the Device box.
5Press the Start Test button.
The Communication Validation Tool screen is refreshed and the Connec-
tion Indicator button (located in the bottom left corner of the display)
changes from Not Connected (red) to Connected (green).

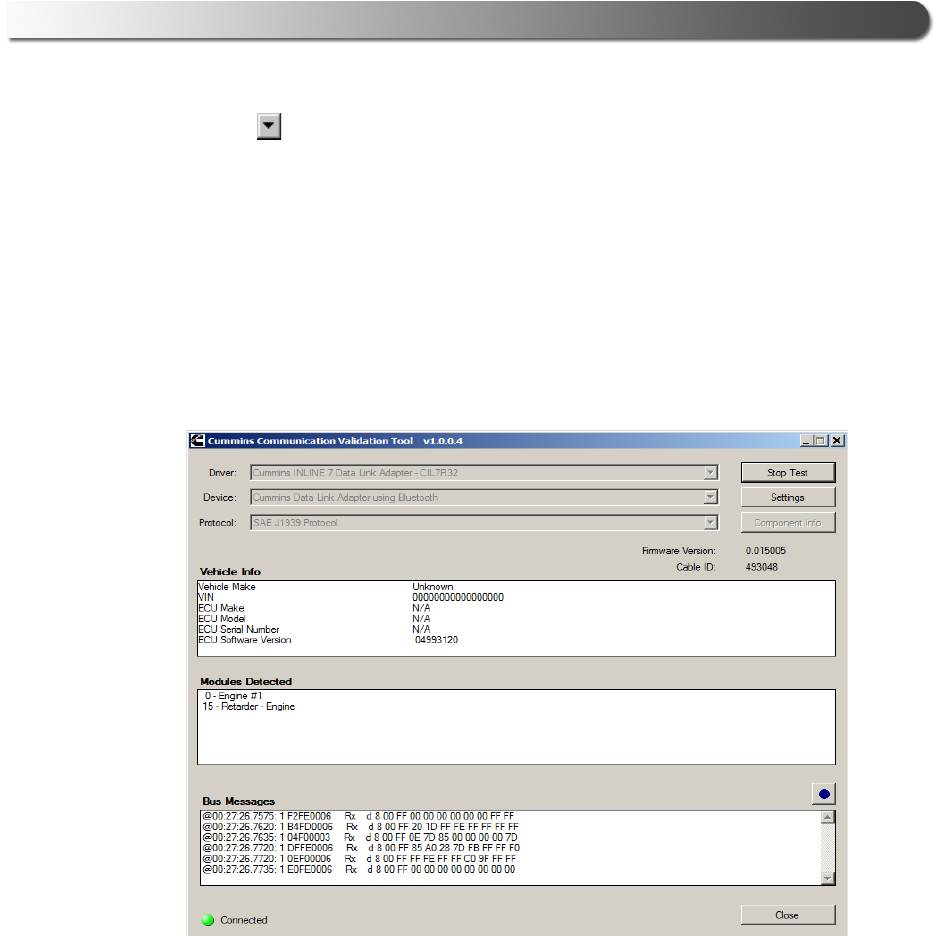

Figure 3.22 Communication Validation Tool: Status Connected
The Vehicle Info window displays information about the vehicle to which
you are connected (depending on the protocol selected).
The Modules Detected window in the middle portion of the screen displays
a list of all systems seen on the bus. It is used for J1708 and J1939 only. For
all other protocols this window will be unavailable (i.e., NOT USED).
The Bus Messages window at the bottom of the screen displays data
received from the vehicle bus.
46 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
If the Connection Indicator button is red (i.e., Not Connected), do one of the
following:
—For a wireless connection:
• In the Device list, make sure that the appropriate device is select-
ed, for example:
— Cummins Data Link Adapter using Bluetooth
or
— Cummins Data Link Adapter using WiFi
• In the Protocol list, make sure that the appropriate protocol is se-
lected, for example J1939.
• Check to ensure that the connections between the INLINE™ 7
and the vehicle are secure (i.e., the Diagnostic Connector).
• Check to make certain that the Power LED on the INLINE™ 7 is
illuminated.
—For a wired connection using a USB cable:
• In the Device list, make sure that the appropriate device is select-
ed, for example Cummins Data Link Adapter using USB.
•In the Protocol list, make sure the appropriate protocol is select-
ed, for example J1939.
• Check to ensure that the connections between the INLINE™ 7
and the PC are secure (i.e., the USB cable).
• Check the connections between the INLINE™ 7 and the vehicle
(i.e., the Diagnostic Connector).
• Check to make certain that the Power LED on the INLINE™ 7 is
illuminated.
NOTE:
iFor additional information, refer to “Connect the INLINE™ 7 to a Vehicle”
on page 30 of this manual.
6Click on the Component Info button.

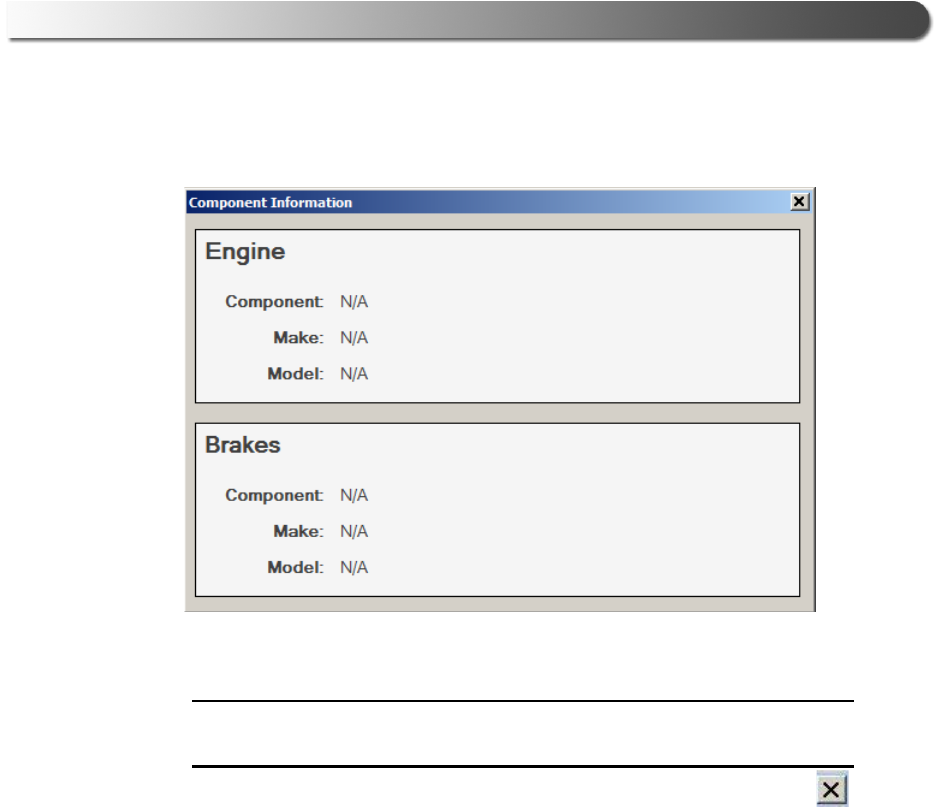

Figure 3.23 Component Information Window.
- Step 3: Test the Connection
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 47
The Component Information window is displayed.
NOTE:
iComponent Information for Engines and Brakes is available only during a
J1708 connection.
7When you have finished viewing the information, click the Close button
in the upper right corner of the window.
8Click Stop Test to end the test, or select another device to test.
48 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
Using the Cummins INLINE™ 7 Explorer Utility
The Cummins INLINE™ 7 Explorer utility opened automatically when you installed
the INLINE™ 7 drivers and utilities (see Figure 3.9, on page 29).
To re-open the Cummins INLINE™ 7 Explorer once it has been closed, click on
the Show Hidden Icons arrow in your PC’s System Tray.
Figure 3.24 Hidden Icons
Then, double-click on the INLINE™ 7 icon 7 .
NOTE:
iYou can also access the Cummins INLINE™ 2 Explorer from your PC’s
Start menu. Click Start and then select All ProgramsCummins
INLINE 7 INLINE 7 Explorer.
- Using the Cummins INLINE™ 7 Explorer Utility
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 49
The Cummins INLINE™ 7 Explorer opens.
Figure 3.25 Cummins INLINE™ 7 Explorer
The following menu options are provided:
• File (pg. 52)
•Tools (pg. 53)
•Help (pg. 56)
Each menu option includes a number of features. Each of the menu options
are discussed in the following sub-sections.
When you click on a INLINE™ 7 in the list in the left pane, the Configuration
tab is displayed (Figure 3.26).
50 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
The Configuration Tab
The Configuration tab provides the following information:
• Device:
—Name
— MAC Address
• Wireless Settings
• Internet Protocol (TCP/IP) Settings
This information can be useful when troubleshooting network connection prob-
lems. You also use the Configuration tab when switching between the two
wireless Connection Types (i.e., Wireless and Bluetooth), or when setting up a Wi-
Fi connection in Infrastructure Mode.
To access the Configuration tab:
1Click on a CIL7_xxxxxx in the list in the left pane of the Explorer.
Figure 3.26 Configuration Tab
- Using the Cummins INLINE™ 7 Explorer Utility
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 51
Switching Modes: Mini Access Point and Infrastructure
The INLINE™ 7 provides several ways to switch modes. From the INLINE 7
Explorer Configuration tab, you can use the Mode drop-down menu under
Wireless Settings.
Figure 3.27 Wireless Settings: Mode Drop-down Menu
Once, you have selected Infrastructure, the Internet Protocol (TCP/IP)
portion of the screen is available to you to enter the required settings. There
are two options:
• Obtain an IP address automatically
• Specify an IP address
NOTE:
iThe settings for connecting to your company network may differ from one
installation to another. To ensure network security, your Information Tech-
nology (IT) administrator will need to oversee the installation and specify
the appropriate configuration parameters.
52 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
You can also use the Reset Button to switch from Infrastructure Mode back to Mini
Access Point Mode (the Wi-Fi default). Just push and hold the button until all the
lights on the front of the INLINE™ 7 flash (about 5 seconds).
The File Menu
The File menu has one feature, Exit. You use the Exit feature to close the
Cummins INLINE™ 7 Explorer.
To exit the Cummins INLINE™ 7 Explorer:
1Select File from the Cummins INLINE™ 7 Explorer menu bar.
Figure 3.28 Exit Selected
2Select Exit.
The Cummins INLINE™ 7 Explorer closes.
- Using the Cummins INLINE™ 7 Explorer Utility
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 53
The Tools Menu
The Tools menu provides the following features:
•Ping
•Options
Ping
The Ping feature uses the PING protocol to check for the presence of a device on
the network.
To check for a device:
1Select Tools from the Cummins INLINE™ 7 Explorer menu bar.
2Select Ping.
Figure 3.29 Ping Dialog Box
3Enter the IP address of the device you want to locate (e.g., 192.168.123.107).
4Click Start.
The Cummins INLINE™ 7 Explorer searches for the device and, if found,
displays the reply.
5Click Stop.
6Click the Close button on the dialog box.
54 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
Options
The Options feature provides the following features, which are presented as check
boxes:
• Start INLINE 7 Explorer when Windows starts (pg. 54)
• Show New INLINE 7 Notification (pg. 55)
Start INLINE7 Explorer when Windows Starts
You use this feature to manage when the Cummins INLINE™ 7 Explorer opens.
The default is to not open the Cummins INLINE™ 7 Explorer when Windows
starts.
Figure 3.30 Options Menu
To change the default, click on the check box to add the check mark. Then click
OK.
- Using the Cummins INLINE™ 7 Explorer Utility
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 55
Show New INLINE7 Notification
You use this feature to manage when to display the New INLINE7 notification
message box.
Figure 3.31 Notification Box
The default is to display the notification message box whenever a new INLINE™
7 is detected.
Figure 3.32 Options Menu
To change the default, click the box to remove the check mark. Then click OK.
56 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
The Help Menu
The Help menu has one feature, About. You use the About feature to display in-
formation about the Cummins INLINE™ 7 Explorer.
To access the Help menu:
1Select Help from the Cummins INLINE™ 7 Explorer menu bar.
2Select About.
Figure 3.33 About Cummins INLINE™ 7 Explorer
3When you have finished reviewing the information, click OK to close the
dialog box.
