IDT Technology SMS001 Huger e-skateboard User Manual
IDT Technology Limited Huger e-skateboard
USER MANUAL
REMOTE CONTROL
Huger board Mik
SMS608
User Manual
INTRODUCTION
Thank you for purchasing the Huger board Mik. Please read this user manual before
using your new product.
This product is the most state of art skateboard design on the market and Li-Po battery
powered for high performance. It is controlled with the wireless controller and our
dedicated App, max speed up to 25 KM/H with 20 KM travel distance per one charger
that make you enjoy the most fun of skating.
Note: Please keep this manual handy as you use your new product. It contains practical
step-by-step instructions, as well as technical specications and warnings you should
know about.
IMPORTANT SAFETY PRECAUTIONS!
• The product is only suitable for the user over the age of 14. Children under 14 years
of age must be accompanied by parents to play.
• Please wear protective equipments, such as: helmet, elbow and knee pads. Please wear
the right clothes to play. Do not barefoot or play on the beach. Fasten the shoelaces,
do not let the shoelaces contact the wheels and drive system, causing danger.
• Beginners/novices are recommended to use/practice at low speed and on a dry, at
surface.
• Check the surroundings before playing. For the user who is unfamiliar with the
operations must be far away from crowds. Improper operation may cause serious
body injury and property damage.
• Adjust the front and rear wheels to ensure they run freely before playing.
• Adjust the exibility of the damping shim by the locknut.
• Do not touch the motor and the brakes during running or just after use to avoid hot.
• This product is designed for people with safe driving ability. Please place the skateboard
in a place where children under 8 years of age are not touched.
• Please comply with local laws and regulations and use it in places where electric
skateboards are allowed.
• Please be careful to drive. Accidentally encountered obstacles in the process will cause
the skateboard out of control. Please be careful to avoid pedestrians and other means
of transport (such as: balance cars, skateboards, bicycles, etc.).
• Please use the skateboard in a suitable outdoor environment, and press the remote
control after standing steadily on the skateboard. Do not arbitrarily accelerate
skateboard in other environment.
• Do not try the action of the skateboard on the electric skateboard, such as bounce,
jerk and other actions.
• Only play on a at, open road. Do not play on potholes, gravels, gravel, muddy, rugged,
ramps. Do not play on a smooth or wet ground, such as snow, ice, slippery ground,
to prevent slipping.
• Do not use the product on the carpet or places that not suitable for playing.
• Do not use the skateboard in rain and snow.
• Do not use skateboards at night or in poor vision.
• Do not use your phone or headphones while playing.
• Do not hook the skateboard on other vehicles or drag other objects.
• Do not immerse the product in water, and the electronic drive parts will be damaged.
• For accessories replacement, only use the accessories with the same type and
specications.
• If you have any problem during using, operating, repairing, please contact customer
service.
PACKAGING CONTENTS
• 1x Skateboard
• 1x Remote control
• 1x Charger
• 1x USB charging cable
• Charger extra adaptor
• 2x Name card
• 1x T tool
• 1x User manual

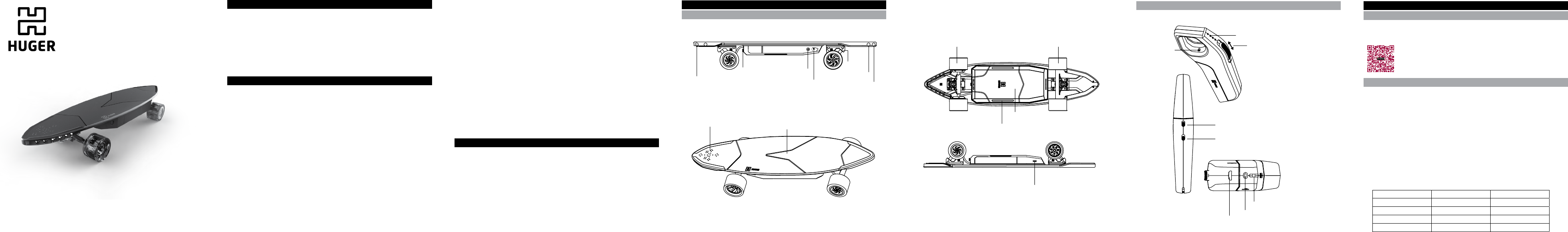

OVERALL
MAIN UNIT
Deck
Headlights
Turning lights
Power button
Truck
Locking screw
Navigation indicators
Charging port
Taillights
Power indicators
Forward/Reverse
Rear wheel Front wheel
Battery compartment
Night lights
Horn
Go/Stop switchGo/Stop switch
High/Low speed mode switch
Signal indicator
Power button
USB charging port
Horn On/Off
Age 14+
GETTING STARTED
DOWNLOAD APP
Scan the following QR code or Search Oregon Scientic XXX to nd the App to
download on your smart device. The App is available on both Apple App Store and
Google Play store.
CHARGE
Fully charge your skateboard and remote control before rst use. Normal charging takes
about 2.5 hours for the main unit and 1 hours for the remote.
1. Connect the supplied charger to the charging port of the skateboard, and then plug
into a tandard household outlet.
OR
Loosen the locking screw on the battery compartment and take out the battery pack to
charge separately. The power indicator on the charger lights red during charging,
and turns green when fully charged.
2. Connect the supplied USB charging cable to the charging port of the remote, and
then plug into a computer or an adapter. The power indicator for the remote lights
red during charging and turns green when fully charged.
3. Check the App to nd the power capacity of the skateboard.
4. Check the power indicators on the remote to nd the power capacity of the remote.
LEDs Color Power
3 Green Full
2 Green 75%
1Green 50%
1 Red <25%
PLAY YOUR SKATEBOARD
1. Press the power button to turn on/off the skateboard. The headlights turn on.
2. Press and hold the power button for 3 seconds to turn on/off the remote.
3. Push the Go/Stop switch forward to go, release to stop.
4. Double press the power button on the remote to turn on/off the headlights.
5. Changing the playing mode by Forward/Reverse and High/Low speed switches.
NOTE
• Taillights beam in normal mode; Flash by automatically detect in stop mode.
• Left and right turning indicators will ash and are controlled by Gyroscope automatically
when turning direction.
APP OPERATIONS
Open the App, it will nd the skateboard automatically. With the App, you can
• Navigate directions
• Check the power, light, speed status
• Set the horn sound and light colour
• Turn on/off the headlights and taillights
• Control the night lights
NOTE
The navigation indicators on the deck will turn on and indicate the directions when using
the GPS navigating function.
PAIR SKATEBOARD WITH REMOTE
NOTE: The remote and the skateboard are paired in the factory. If a new remote is
needed, pair the new remote with the skateboard before using.
1. Turn off the skateboard and the remote.
2. Pull the Go/Stop switch as far backwards as it will allow.
3. Turn on the remote. The Signal indicator of the remote ashes quickly.
4. Turn on the skateboard.
5. Release the Go/Stop switch. The Signal indicator of the remote lights steady. The
remote and the skateboard are successfully paired.
SPECIFICATIONS
Items Specication Remark
Drive Unit 2x 250 W brushless DC motor at rear
wheels
at rear wheels
Speed Normal Speed mode: ≤12 km/h Setting by
Remote contro
High speed mode: : ≤32 km/h
Endurance Mileage Normal mode: ≤10 km
High speed mode: : ≤20 km
Remote Control BLE 4.0 module connected to Mobile
Pedal and brake control
Forward/Reverse control
Battery LG MG1 Power battery pack
36 V 4 Ah (20x 18650 - 3.6 V) (2200
mAh-10S2P)
Size 800 mm x 255 mm x 114 mm
Recharge Time 2~2.5 hr
Wheel Base Diameter: 83 mm
Weight About 6.1 kg
Board Material Canadian Maple Wood
Max Load 100 kg
Operation Conditions -10 to 60 0C ≤85 % R.H.
Storage Condition -20 to 80 0C ≤95 % R.H.
LITHIUM BATTERY SAFETY INSTRUCTIONS
• Do not burn or bury batteries. Do not puncture or crush. Do not disassemble.
• Recycle lithium batteries. Do not dispose of in the trash
• If the electrolyte in the cells should get on your skin, thoroughly wash with soap and
water.
• If in the eyes, rinse thoroughly with cool water. Immediately seek medical attention.
• The built-in battery may discharge completely after a long period without use. Recharge
the battery before use.
• The skateboard should never be left unattended while charging.
• Use only the supplied charger and cable for charging.
• Charge batteries on a reproof surface away from ammable items or liquids.
• Do not charge inside an automobile, especially while driving.
• Follow the instructions for charging. Do not charge longer than recommended. Unplug
the USB cable when the battery is charged.
PRECAUTIONS
• Do not subject the device to excessive force, shock, dust, temperature or humidity.
• Do not immerse the device in water. If you spill liquid over it, dry it immediately with a
soft, lintfree cloth.
• Do not clean the device with abrasive or corrosive materials.
• Do not tamper with the device’s internal components. Doing so invalidates the warranty.
• Images shown in this manual may differ from the actual display.
• When disposing of this product, ensure it is collected separately for special treatment.
• The contents of this manual may not be reproduced without the permission of the
manufacturer.
NOTE:The technical specications for this product and the contents of the user manual
are subject to change without notice.
NOTE: Features and accessories will not be available in all countries. For more
information, please contact your local retailer. To download an electronic version of the user
manual, please visit http://global.oregonscientic.com/customerSupport.php.
ABOUT OREGON SCIENTIFIC
Visit our website www.oregonscientic.com to learn more about Oregon Scientic
products.
For any inquiry, please contact our Customer Service at info@oregonscientic.com.
Oregon Scientic Global Distribution Limited reserves the right to interpret and construe
any contents, terms and provisions in this user manual and to amend it, at its sole
discretion, at any time without prior notice. To the extent that there is any inconsistency
between the English version and any other language versions, the English version
shall prevail.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause undesired
operation.
WARNING Changes or modications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
This Class B digital apparatus complies with Canadian ICES-3(B)/NMB-3(B)
DECLARATION OF CONFORMITY
The following information is not to be used as contact for support or sales. Please call
our customer service number (listed on our website at www.oregonscientic.com), or
on the warranty card for this product for all inquiries instead.
We
Name: Oregon Scientic, Inc.
Address: Centerpointe center 5 centerpointe drive, suite 400
ofce no. 11 & 19 Lake oswego, oregon 97035
Telephone No.: 971-204-0378
declare that the product
Product No.: SMS606
Product Name: Huger board Mik
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate, Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon, Hong Kong
EU – DECLARATION OF CONFORMITY
Hereby the manufacturer, IDT Technology Limited, declares that the radio equipment
type [Huger board Mik (SMS606)] is in compliance with 2014/53/EU Directive. The full
text of the EU Declaration of Conformity is available at the following internet address :
www.oregonscientic.com
COUNTRIES RED APPROVED COMPLIED
All EU countries, Switzerland and Norway
DISPOSAL INFORMATION FOR USERS
Pursuant to and in accordance with Article 14 of the Directive 2012/19/EU of
the European Parliament on waste electrical and electronic equipment
(WEEE), and pursuant to and in accordance with Article 20 of the Directive
2013/56/EU of the European Parliament on batteries and accumulators and
waste batteries.
The barred symbol of the rubbish bin shown on the equipment indicates that, at the end
of its useful life, the product must be collected separately from other waste.
Please note that the batteries/rechargeable batteries must be removed from the
equipment before it is given as waste. To remove the batteries/accumulators refer to
the specications in the user manual. Therefore, any products that have reached the
end of their useful life must be given to waste disposal centers specializing in separate
collection of waste electrical
and electronic equipment, or given back to the dealer when purchasing a new WEEE,
pursuant to and in accordance with Article 14 as implemented in the country.
The adequate separate collection for the subsequent start-up of the equipment sent to
be recycled, treated and disposal of in an environmentally compatible way contributes
to preventing possible negative effects on the environment and health and optimizes
the recycling and reuse of components making up the apparatus.
Abusive disposal of the product by the user involves application of the administrative
sanctions according to the laws in force.
