IDT Technology THGN132N-01 Thermo-Hygrometer Remote Sensor (433.92MHz Tx) User Manual MODEL RA313PA

IDT Technology Limited Thermo-Hygrometer Remote Sensor (433.92MHz Tx) MODEL RA313PA

Contents

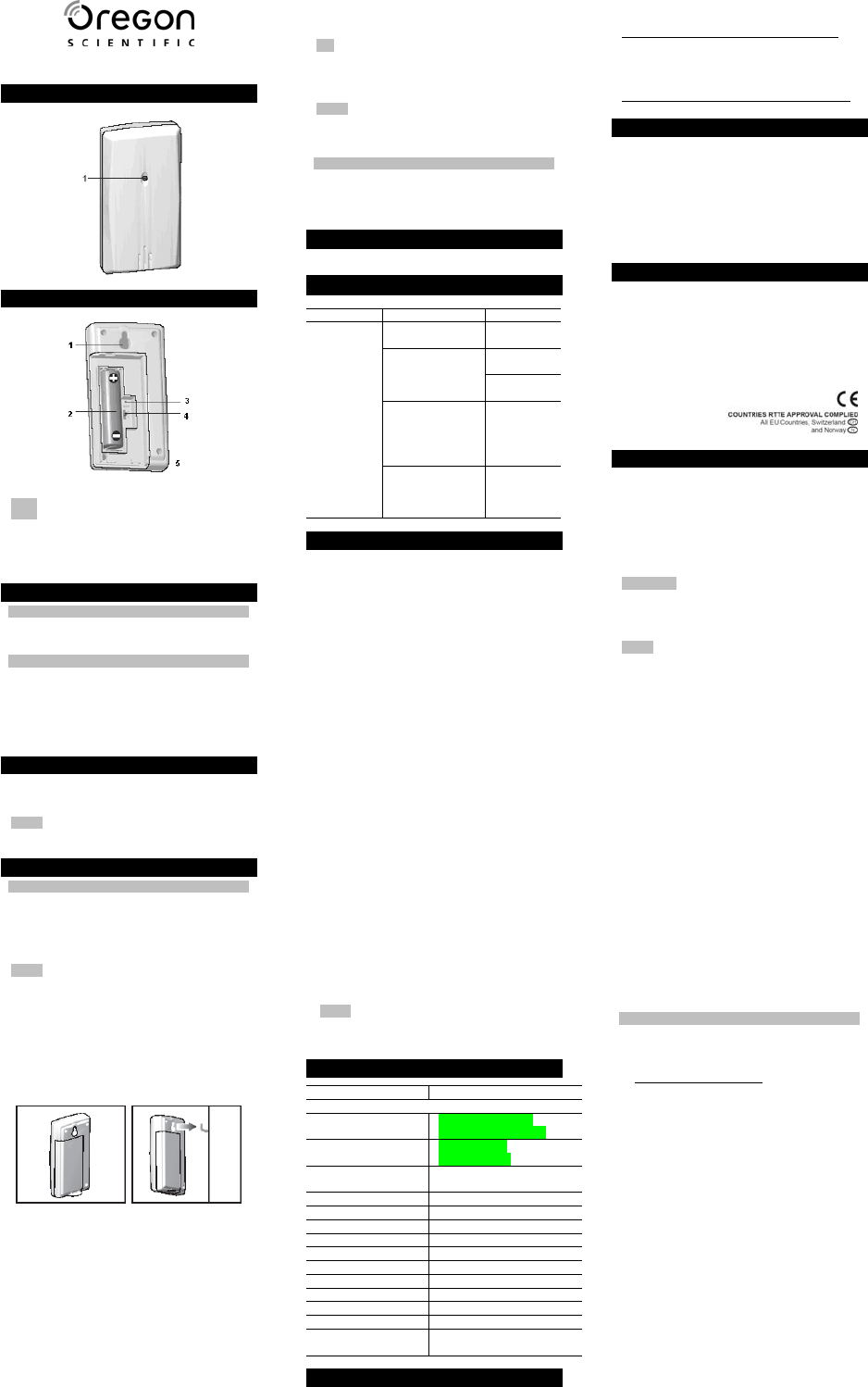

User Manual

THGN132N
FIG. 1
FIG. 2
EN
Remote Thermo-Hygro Sensor
Model: THGN132N
USER MANUAL
OVERVIEW
FRONT VIEW (FIG 1)
1. LED status indicator: blinks when
transmitting a reading.
BACK VIEW (FIG 2)
1. Wall mount hole
2. Battery compartment
3. RESET: Reset unit to default settings
4. Channel Switch
5. Table stand
COMPATIBLE UNITS
The THGN132N is compatible with a variety of
multi-channel units.
NOTE If unsure about the compatibility, please
consult your dealer.
GETTING STARTED
SENSOR SET UP
1. Slide open the battery door.
2. Insert the battery, matching the polarities (+
/ -). See FIG 2.
3. Press RESET after each battery change.
NOTE Install battery in the remote sensor
before the main unit.
4. Slide channel switch to select a channel (1,
2, 3). Ensure you use a different channel
for each sensor.
5. Press RESET.
6. Close the battery door.
7. Initiate a sensor search on the main unit to
start receiving temperature / humidity data
from the sensor.
8. Secure the sensor in the desired location
using the wall mount or table stand.
For best results:
x Place the sensor within 30 m (100 ft) of the
main unit.
x Place the sensor out of direct sunlight and
moisture.
x Position the sensor so that it faces the main
(indoor) unit, minimizing obstructions such
as doors, walls and furniture.
x Place the sensor in a location with a clear
view to the sky, away from metallic /
electronic objects.
x Position the sensor close to the main unit
during cold winter months as below-freezing
temperatures may affect battery
performance and signal transmission.
TIP The transmission range may vary
depending on many factors. You may need to
experiment with various locations to get the
best results.
NOTE Use alkaline batteries for longer usage
and consumer grade lithium batteries in
temperatures below freezing.
CHANGING CHANNELS
To change channels once channel has been
assigned:
Remove battery and repeat above procedure.
RESET
Press RESET to return to the default settings.
TROUBLE SHOOTING
PROBLEM SYMPTOM REMEDY
Remote
sensor
Abnormal /
strange readings
Press
RESET
Cannot locate
remote sensor
Check
battery
Check
location
Cannot change
channel
Check
sensors.
Only one
sensor is
working
Data does not
match main unit
Initiate a
manual
sensor
search
PRECAUTIONS
x Do not subject the unit to excessive force,
shock, dust, temperature or humidity
x Do not cover the ventilation holes with any
items such s newspapers, curtains etc.
x Do not immerse the unit in water. If you spill
liquid over it, dry it immediately with a soft,
lint-free cloth.
x Do not clean the unit with abrasive or
corrosive materials.
x Do not tamper with the unit ’s internal
components. This invalidates the warranty.
x Only use fresh batteries. Do not mix new
and old batteries.
x Images shown in this manual may differ
from the actual display.
x When disposing of this product, ensure it is
collected separately for special treatment.
x Placement of this product on certain types
of wood may result in damage to its finish
for which Oregon Scientific will not be
responsible. Consult the furniture
manufacturer's care instructions for
information.
x The contents of this manual may not be
reproduced without the permission of the
manufacturer.
x Do not dispose old batteries as unsorted
municipal waste. Collection of such waste
separately for special treatment is
necessary.
x Please note that some units are equipped
with a battery safety strip. Remove the strip
from the battery compartment before first
use.
NOTE The technical specifications for this
product and the contents of the user manual
are subject to change without notice.
SPECIFICATIONS
TYPE DESCRIPTION
REMOTE UNIT
L x W x H 117 x 80 x 171 mm
(4.78 x 3.27 x 6.98 in)
Weight 241 g (8.5 oz)
without battery
Temperature range -20°C to 60°C
(-4°F to 140°F)
Resolution 0.1°C (0.2°F)
Humidity range 25% - 95%
Humidity resolution 1%
Signal frequency 433 MHz
Transmission range 30 m (98 ft) unobstructed
No. of channels 3
Signal transmission
Channel 1 Every 39 seconds
Channel 2 Every 41 seconds
Channel 3 Every 43 seconds
Power 1 x UM-3 (AA) 1.5 V
batteries
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to
learn more about Oregon Scientific products. If
you're in the US and would like to contact our
Customer Care department directly, please
visit:
www2.oregonscientific.com/service/support
OR
Call 1-800-853-8883.
For international inquiries, please visit:
www2.oregonscientific.com/about/international
INDUSTRY CANADA STATEMENT
Operation is subject to the following two
conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause
undesired operation of the device.
IC number: 3277A-THGN132N
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this
Wireless Weather Station (model: THGN132N)
is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC. A copy of the signed and
dated Declaration of Conformity is available on
request via our Oregon Scientific Customer
Service.
FCC STATEMENT
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device must
accept any interference received, including
interference that may cause undesired
operation.
WARNING Changes or modifications not
expressly approved by the party responsible for
compliance could void the user's authority to
operate the equipment.
NOTE This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
x Reorient or relocate the receiving antenna.
x Increase the separation between the
equipment and receiver.
x Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
x Consult the dealer or an experienced radio /
TV technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as
contact for support or sales. Please call our
customer service number (listed on our website
at www.oregonscientific.com), or on the
warranty card for this product) for all inquiries
instead.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95th Ave.,Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
declare that the product
Product No.: THGN132N
Product Name: Remote Thermo-Hygro
Sensor
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1,41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions: 1) This device may not cause
harmful interference. 2) This device must
accept any interference received, including
interference that may cause undesired
operation.
