User Manual

Integrated Wind Sensor

USER MANUAL

WGR800X

The data transmit to the main unit by the RF circuit, FSK modulation. The data transmit to the main unit by the RF circuit, FSK modulation. The data transmit to the main unit by the RF circuit, FSK modulation. The data transmit to the main unit by the RF circuit, FSK modulation. The data transmit to the main unit by the RF circuit, FSK modulation. The data transmit to the main unit by the RF circuit, FSK modulation.

Integrated Wind Sensor

Model: WGR800X

USER MANUAL

CONTENTS

Introduction ...................................................................... 1

Packaging Contents ........................................................ 1

Overview ........................................................................... 2

Getting Started ................................................................. 2

Set Up Remote Integrated Wind Sensor ........................ 2

Battery Installation .......................................................... 2

Mounting the Sensor ....................................................... 2

Precautions ...................................................................... 3

Specications ................................................................... 4

About Oregon Scientic .................................................. 4

EU-declaration of Conformity ......................................... 4

Information for users ....................................................... 5

INTRODUCTION

Thank you for selecting the Oregon Scientic Integrated

Wind Sensor (WGR800X).

The sensor is battery and solar power operated. It is

capable of transmitting data to the base station wirelessly

within an approximate operating range of 100 meters

(328 feet).

NOTE Please keep this manual handy as you use

your new product. It contains practical step-by-step

instructions, as well as technical specications and

warnings you should know about.

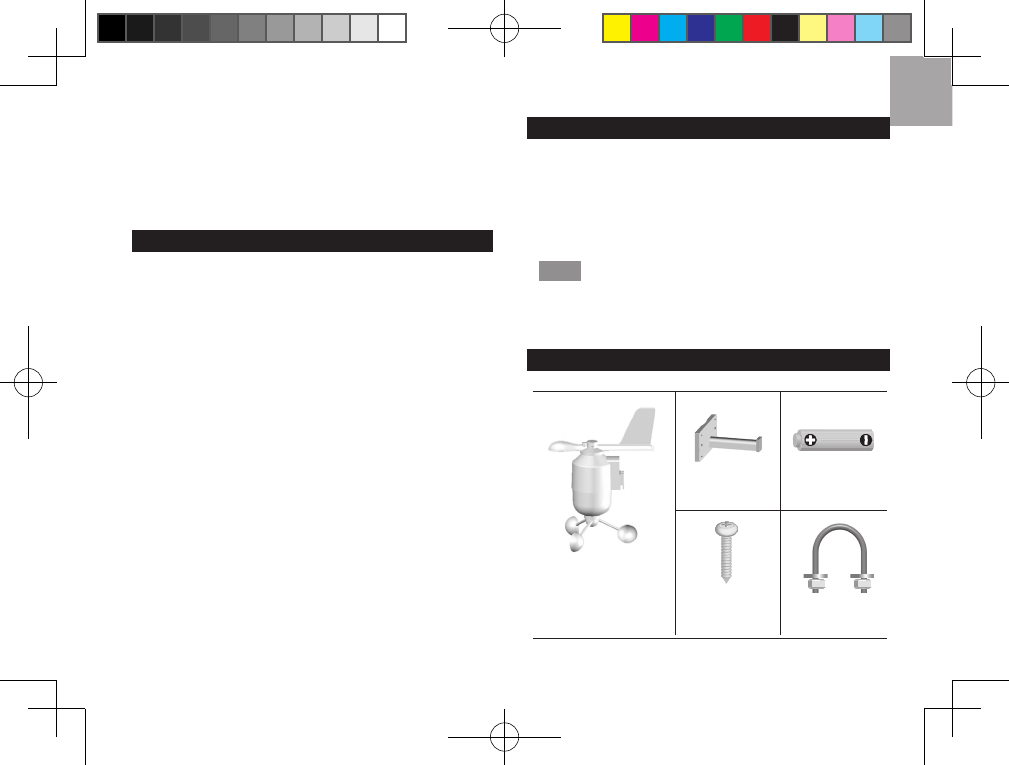

PACKAGING CONTENTS

1 x Wind Sensor (1

x Wind Vane Above

and 1 x Anemometer

Below)

1 x sensor

connector 2 x AA UM-3

1.5V batteries

4 x Screws

(Type A) 1 x Round

U- bolt

WGR800X_UM_300103595-00005-10_EN_R1.indd 1

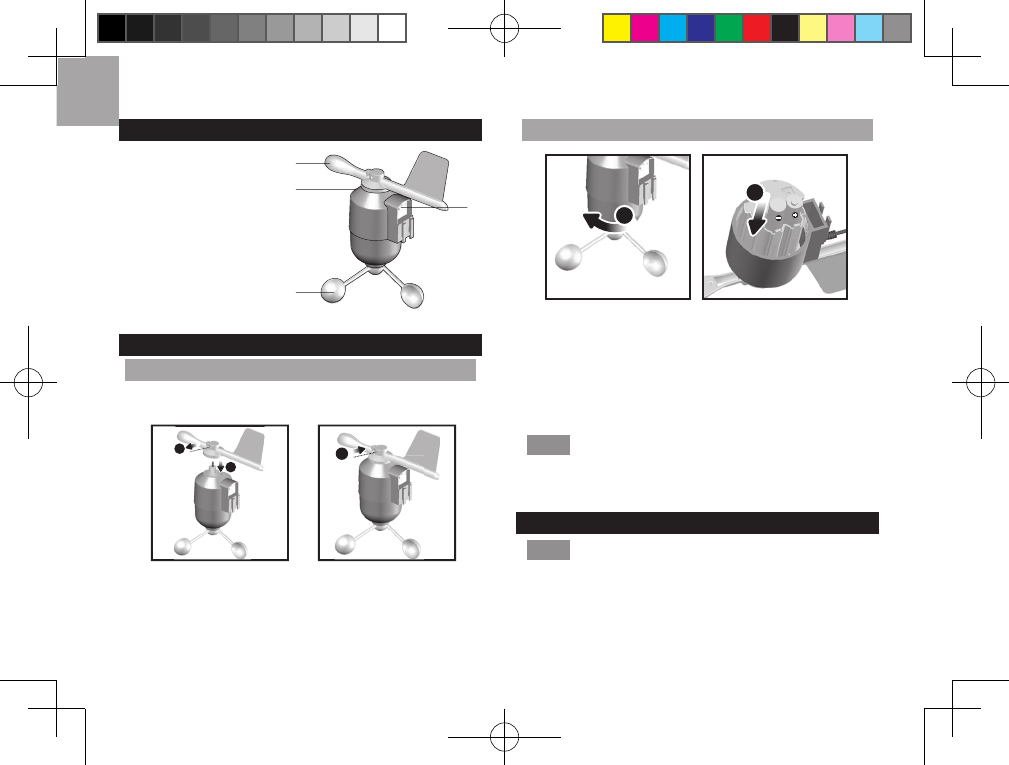

OVERVIEW

1. Wind vane

2. Wind vane casing

3. Anemometer

4. Solar power socket

GETTING STARTED

SET UP REMOTE INTEGRATED WIND SENSOR

The Integrated wind sensor takes wind speed and

direction readings.

1. Loosen the screw on the wind vane

2. Install the wind vane on the top of the wind vane

casing with some pressure.

3. Tighten the screw to secure the setup.

BATTERY INSTALLATION

1. Unscrew the anemometer from the Integrated wind

sensor carefully.

2. Insert batteries matching the polarities (+ / -) and

replace the anemometer. Press RESET after each

battery change.

NOTE Use alkaline batteries for longer usage and

consumer grade lithium batteries in temperatures below

freezing.

MOUNTING THE SENSOR

NOTE The sensor should be positioned in an open area

away from trees or other obstructions.

WGR800X_UM_300103595-00005-10_EN_R1.indd 2

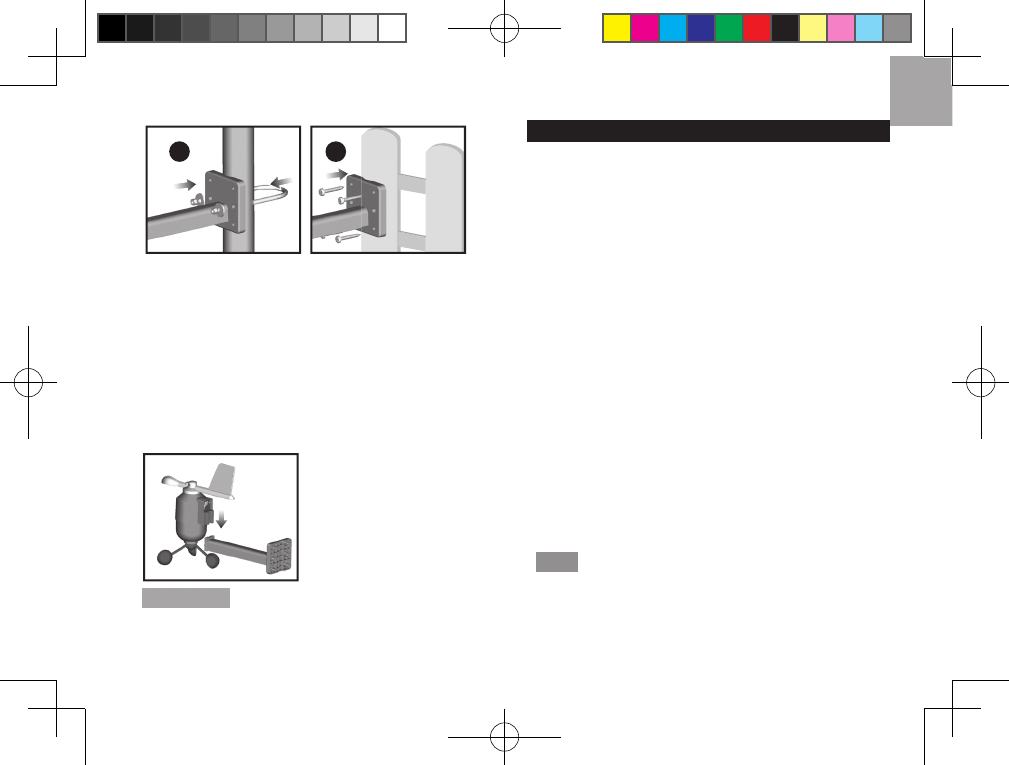

Secure the sensor connector in the desired location:

a. Align the back of the sensor connector to an existing

pole. Secure in place by inserting the ends of the

U-bolt into the holes on the sensor connector and

securing it with washers and bolts.

b. Insert 4 type A screws into the holes of the sensor

connector. Screw rmly into place, i.e., fence.

Slide wind vane onto the smaller end of the sensor

connector.

IMPORTANT Ensure that the wind sensor is pointing

North to enable it to record accurate readings.

PRECAUTIONS

• Do not subject the unit to excessive force, shock,

dust, temperature or humidity.

• Do not cover the ventilation holes with any items such

as newspapers, curtains etc.

• Do not immerse the unit in water. If you spill liquid

over it, dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or corrosive materials.

• Do not tamper with the unit’s internal components.

This invalidates the warranty.

• Only use fresh batteries. Do not mix new and old

batteries.

• Do not dispose old batteries as unsorted municipal

waste. Collection of such waste separately for

special treatment is necessary.

• Images shown in this manual may differ from the

actual display.

• When disposing of this product, ensure it is collected

separately for special treatment and not as household

waste.

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

NOTE The technical specications for this product and

the contents of the user manual are subject to change

without notice.

WGR800X_UM_300103595-00005-10_EN_R1.indd 3

undesiredoperation.

NOTE Features and accessories will not be available in

all countries. For more information, please contact your

local retailer. To download an electronic version of the

user manual, please visit

http://global.oregonscientic.com/customerSupport.php.

SPECIFICATIONS

Dimensions

(L x W x H)

178 x 76 x 214 mm

(7 x 3 x 8.4 inches)

Weight 100 g (0.22 lbs) without battery

Wind speed unit m/s, kph, mph, knots

Speed accuracy 2 m/s ~ 10 m/s (+/- 3 m/s)

10 m/s ~ 56 m/s (+/- 10%)

Direction accuracy 16 positions

Transmission of

wind speed signal Approx. every 14 seconds

Memory Max wind speed

Battery 2 x UM-3 (AA) 1.5V batteries

ABOUT OREGON SCIENTIFIC

Visit our website www.oregonscientic.com to learn

more about Oregon Scientic products.

For any inquiry, please contact our Customer Services at

info@oregonscientic.com.

Oregon Scientic Global Distribution Limited reserves

the right to interpret and construe any contents, terms

and provisions in this user manual and to amend it, at

its sole discretion, at any time without prior notice. To

the extent that there is any inconsistency between the

English version and any other language versions, the

English version shall prevail.

EU-DECLARATION OF CONFORMITY

Hereby the manufacturer, Oregon Scientific Global

Distribution Limited, declares that the radio equipment

type Wind Sensor (model: WGR800X) is in compliance

with 2014/53/EU Directive. The full text of the EU

Declaration of Conformity is available at the following

internet address:

http://global.oregonscientic.com/customerSupport.php

COUNTRIES RED APPROVED COMPLIED

All EU countries, Switzerland

and Norway

WGR800X_UM_300103595-00005-10_EN_R1.indd 4

INFORMATION FOR USERS

Pursuant to and in accordance with Article 14 of

the Directive 2012/19/EU of the European

Parliament on waste electrical and electronic

equipment (WEEE), and pursuant to and in

accordance with Article 20 of the Directive

2013/56/EU of the European Parliament on batteries and

accumulators and waste batteries.

The barred symbol of the rubbish bin shown on the equipment

indicates that, at the end of its useful life, the product must be

collected separately from other waste.

Please note that the batteries/rechargeable batteries

must be removed from the equipment before it is given as

waste. To remove the batteries/accumulators refer to the

specications in the user manual. Therefore, any products

that have reached the end of their useful life must be given

to waste disposal centers specializing in separate collection

of waste electrical and electronic equipment, or given back to

the dealer when purchasing a new WEEE, pursuant to and

in accordance with Article 14 as implemented in the country.

The adequate separate collection for the subsequent start-up

of the equipment sent to be recycled, treated and disposal

of in an environmentally compatible way contributes to

preventing possible negative effects on the environment and

health and optimizes the recycling and reuse of components

making up the apparatus.Abusive disposal of the product by

the user involves application of the administrative sanctions

according to the laws in force.

WGR800X_UM_300103595-00005-10_EN_R1.indd 5

FCCWARNING

AnyChangesexpresslyormodificationsnotapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatetheequipment.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

(1)Thisdevicemaynotcauseharmfulinterference,

and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.

FCCWARNING

AnyChangesexpresslyormodificationsnotapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatetheequipment.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

(1)Thisdevicemaynotcauseharmfulinterference,

and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.

FCCWARNING

AnyChangesexpresslyormodificationsnotapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatetheequipment.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

(1)Thisdevicemaynotcauseharmfulinterference,

and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.

FCCWARNING

AnyChangesexpresslyormodificationsnotapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatetheequipment.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

(1)Thisdevicemaynotcauseharmfulinterference,

and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.

FCCWARNING

AnyChangesexpresslyormodificationsnotapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatetheequipment.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

(1)Thisdevicemaynotcauseharmfulinterference,

and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.undesiredoperation.undesiredoperation.undesiredoperation.undesiredoperation.undesiredoperation.undesiredoperation.undesiredoperation.undesiredoperation.

FCCWARNING

AnyChangesexpresslyormodificationsnotapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatetheequipment.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

(1)Thisdevicemaynotcauseharmfulinterference,

and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.

FCCWARNING

AnyChangesexpresslyormodificationsnotapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatetheequipment.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

(1)Thisdevicemaynotcauseharmfulinterference,

and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.

WARNINGWARNINGWARNING

FCCWARNING

AnyChangesexpresslyormodificationsnot

approvedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatetheequipment.

Thisdevicecomplieswithpart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,

and(2)thisdevicemustacceptanyinterferencereceived,

includinginterferencethatmaycauseundesiredoperation.
