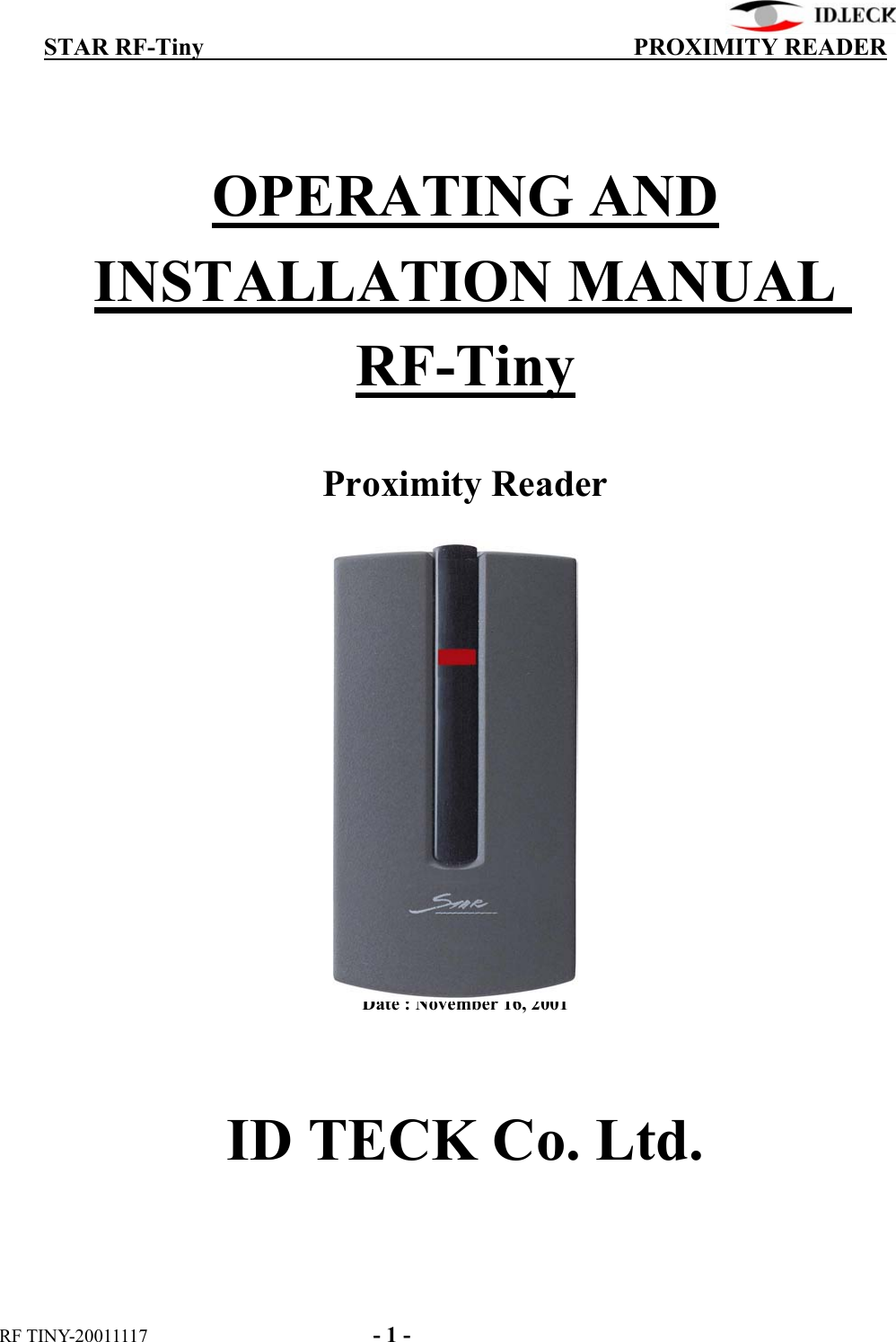

STAR RF-Tiny PROXIMITY READER RF TINY-20011117 - 1 - OPERATING AND INSTALLATION MANUAL RF-Tiny Proximity Reader Revision : 02 Date : November 16, 2001 ID TECK Co. Ltd.

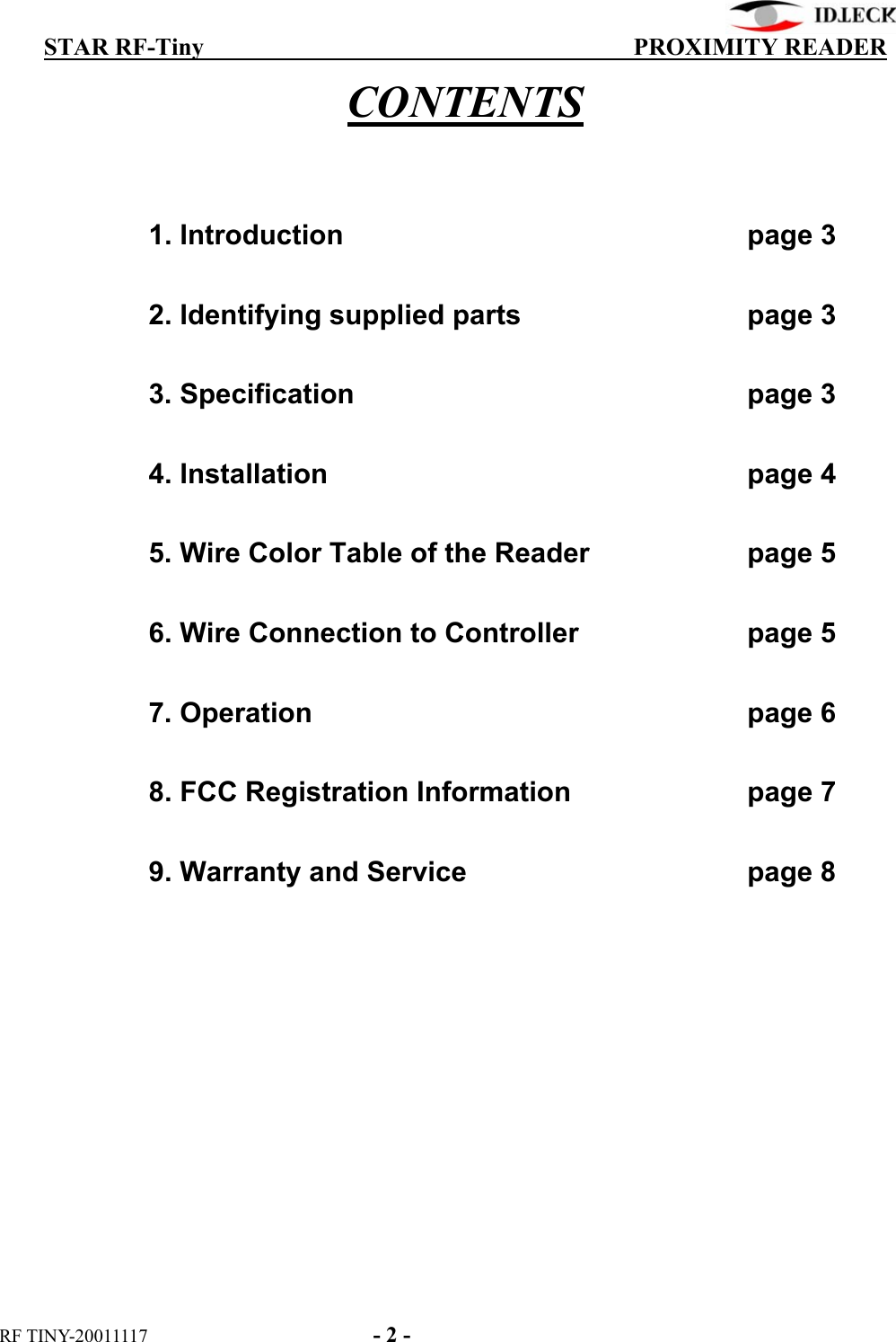

STAR RF-Tiny PROXIMITY READER RF TINY-20011117 - 2 - CONTENTS 1. Introduction page 3 2. Identifying supplied parts page 3 3. Specification page 3 4. Installation page 4 5. Wire Color Table of the Reader page 5 6. Wire Connection to Controller page 5 7. Operation page 6 8. FCC Registration Information page 7 9. Warranty and Service page 8

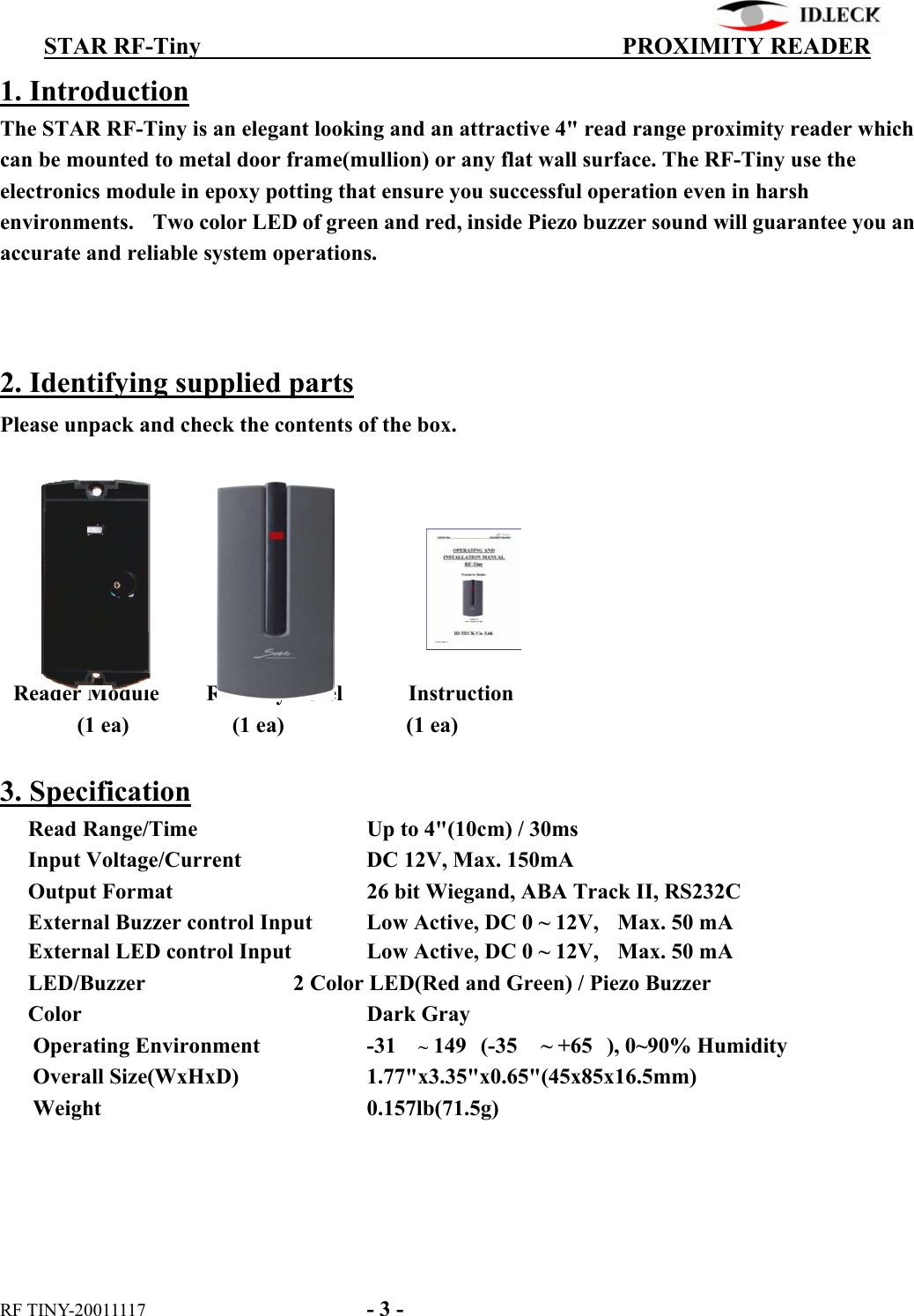

STAR RF-Tiny PROXIMITY READER RF TINY-20011117 - 3 - 1. Introduction The STAR RF-Tiny is an elegant looking and an attractive 4" read range proximity reader which can be mounted to metal door frame(mullion) or any flat wall surface. The RF-Tiny use the electronics module in epoxy potting that ensure you successful operation even in harsh environments. Two color LED of green and red, inside Piezo buzzer sound will guarantee you an accurate and reliable system operations. 2. Identifying supplied parts Please unpack and check the contents of the box. Reader Module RF-Tiny Bezel Instruction (1 ea) (1 ea) (1 ea) 3. Specification Read Range/Time Up to 4"(10cm) / 30ms Input Voltage/Current DC 12V, Max. 150mA Output Format 26 bit Wiegand, ABA Track II, RS232C External Buzzer control Input Low Active, DC 0 ~ 12V, Max. 50 mA External LED control Input Low Active, DC 0 ~ 12V, Max. 50 mA LED/Buzzer 2 Color LED(Red and Green) / Piezo Buzzer Color Dark Gray Operating Environment -31 ~ 149(-35 ~ +65), 0~90% Humidity Overall Size(WxHxD) 1.77"x3.35"x0.65"(45x85x16.5mm) Weight 0.157lb(71.5g)

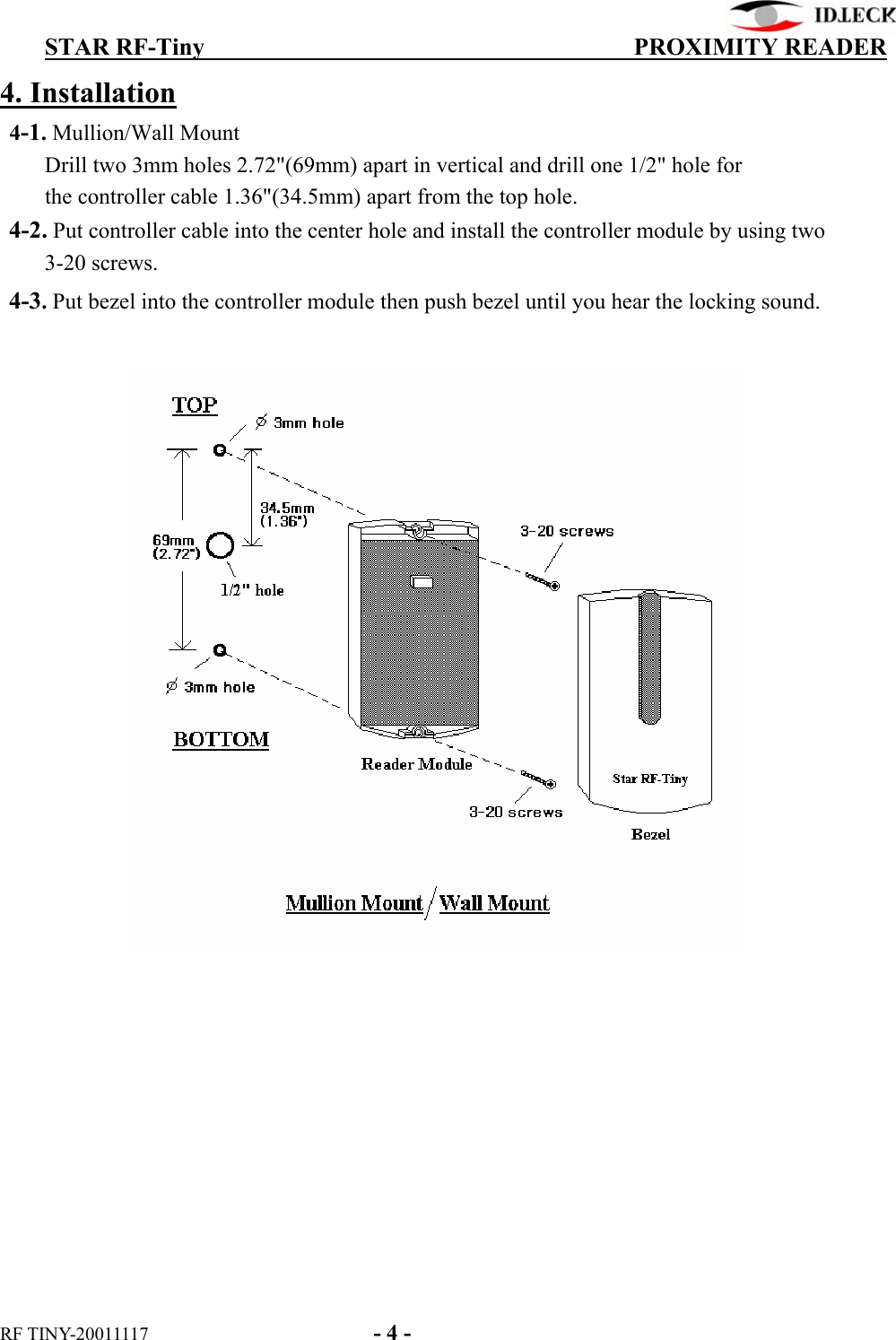

STAR RF-Tiny PROXIMITY READER RF TINY-20011117 - 4 - 4. Installation 4-1. Mullion/Wall Mount Drill two 3mm holes 2.72"(69mm) apart in vertical and drill one 1/2" hole for the controller cable 1.36"(34.5mm) apart from the top hole. 4-2. Put controller cable into the center hole and install the controller module by using two 3-20 screws. 4-3. Put bezel into the controller module then push bezel until you hear the locking sound.

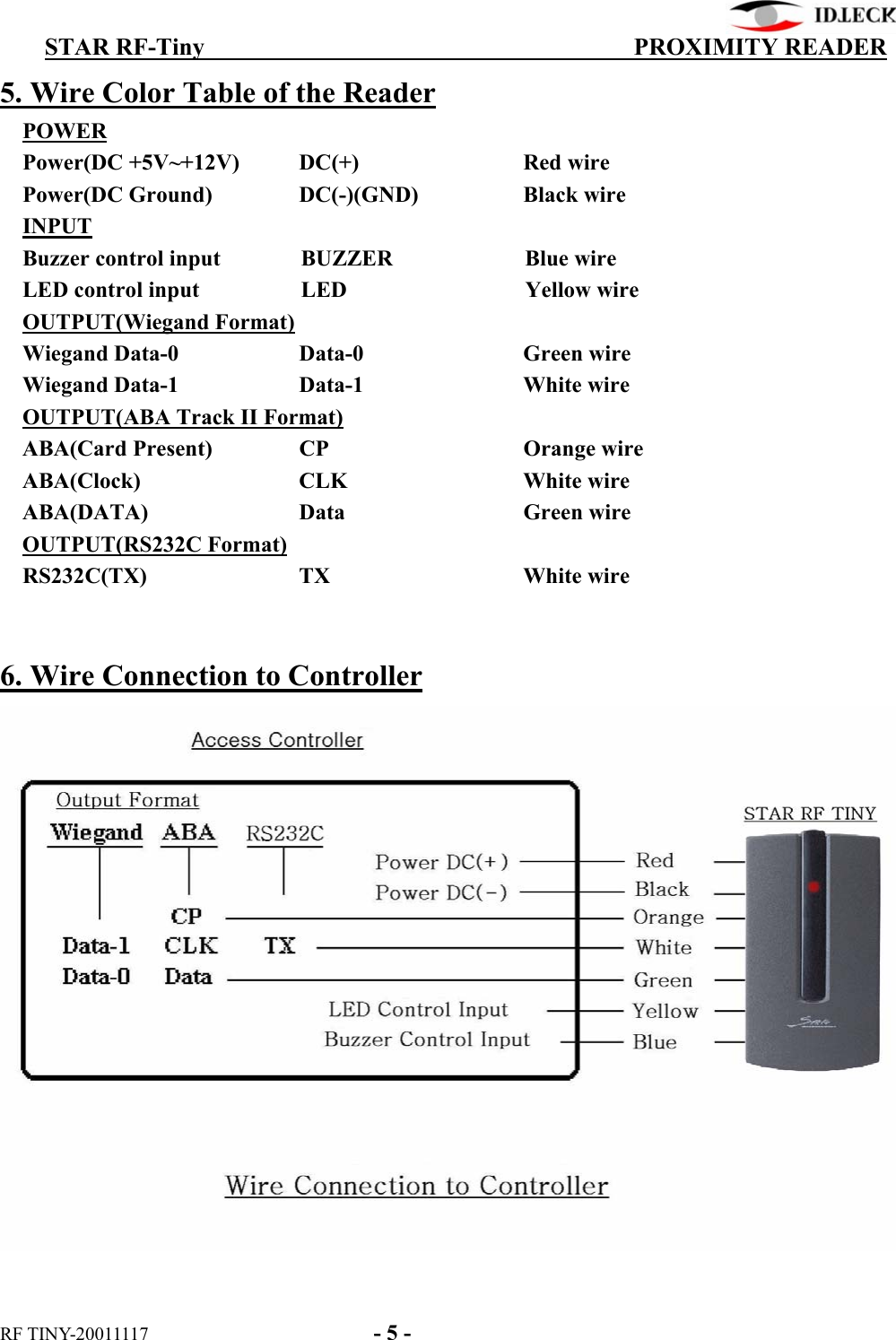

STAR RF-Tiny PROXIMITY READER RF TINY-20011117 - 5 - 5. Wire Color Table of the Reader POWER Power(DC +5V~+12V) DC(+) Red wire Power(DC Ground) DC(-)(GND) Black wire INPUT Buzzer control input BUZZER Blue wire LED control input LED Yellow wire OUTPUT(Wiegand Format) Wiegand Data-0 Data-0 Green wire Wiegand Data-1 Data-1 White wire OUTPUT(ABA Track II Format) ABA(Card Present) CP Orange wire ABA(Clock) CLK White wire ABA(DATA) Data Green wire OUTPUT(RS232C Format) RS232C(TX) TX White wire 6. Wire Connection to Controller

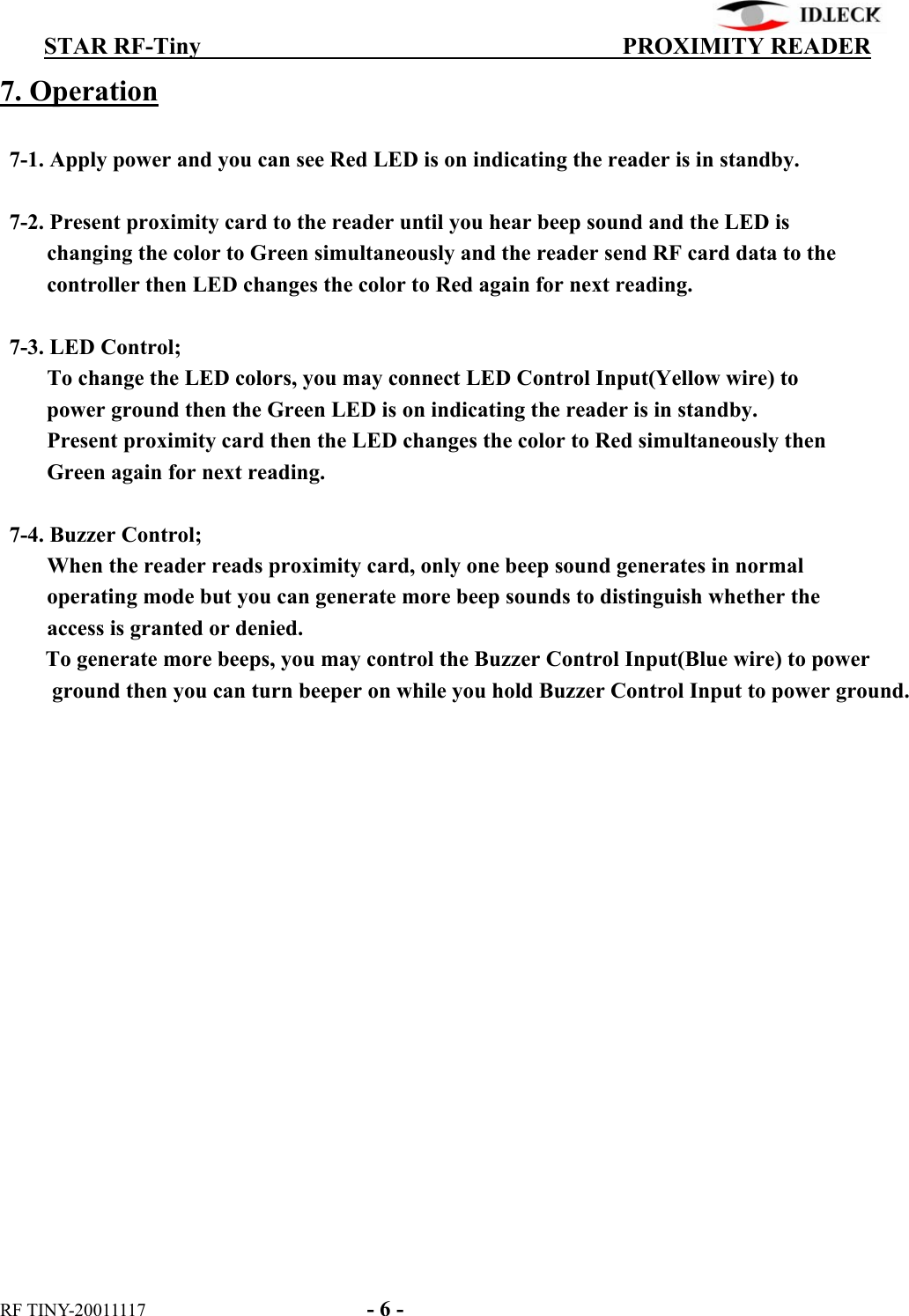

STAR RF-Tiny PROXIMITY READER RF TINY-20011117 - 6 - 7. Operation 7-1. Apply power and you can see Red LED is on indicating the reader is in standby. 7-2. Present proximity card to the reader until you hear beep sound and the LED is changing the color to Green simultaneously and the reader send RF card data to the controller then LED changes the color to Red again for next reading. 7-3. LED Control; To change the LED colors, you may connect LED Control Input(Yellow wire) to power ground then the Green LED is on indicating the reader is in standby. Present proximity card then the LED changes the color to Red simultaneously then Green again for next reading. 7-4. Buzzer Control; When the reader reads proximity card, only one beep sound generates in normal operating mode but you can generate more beep sounds to distinguish whether the access is granted or denied. To generate more beeps, you may control the Buzzer Control Input(Blue wire) to power ground then you can turn beeper on while you hold Buzzer Control Input to power ground.

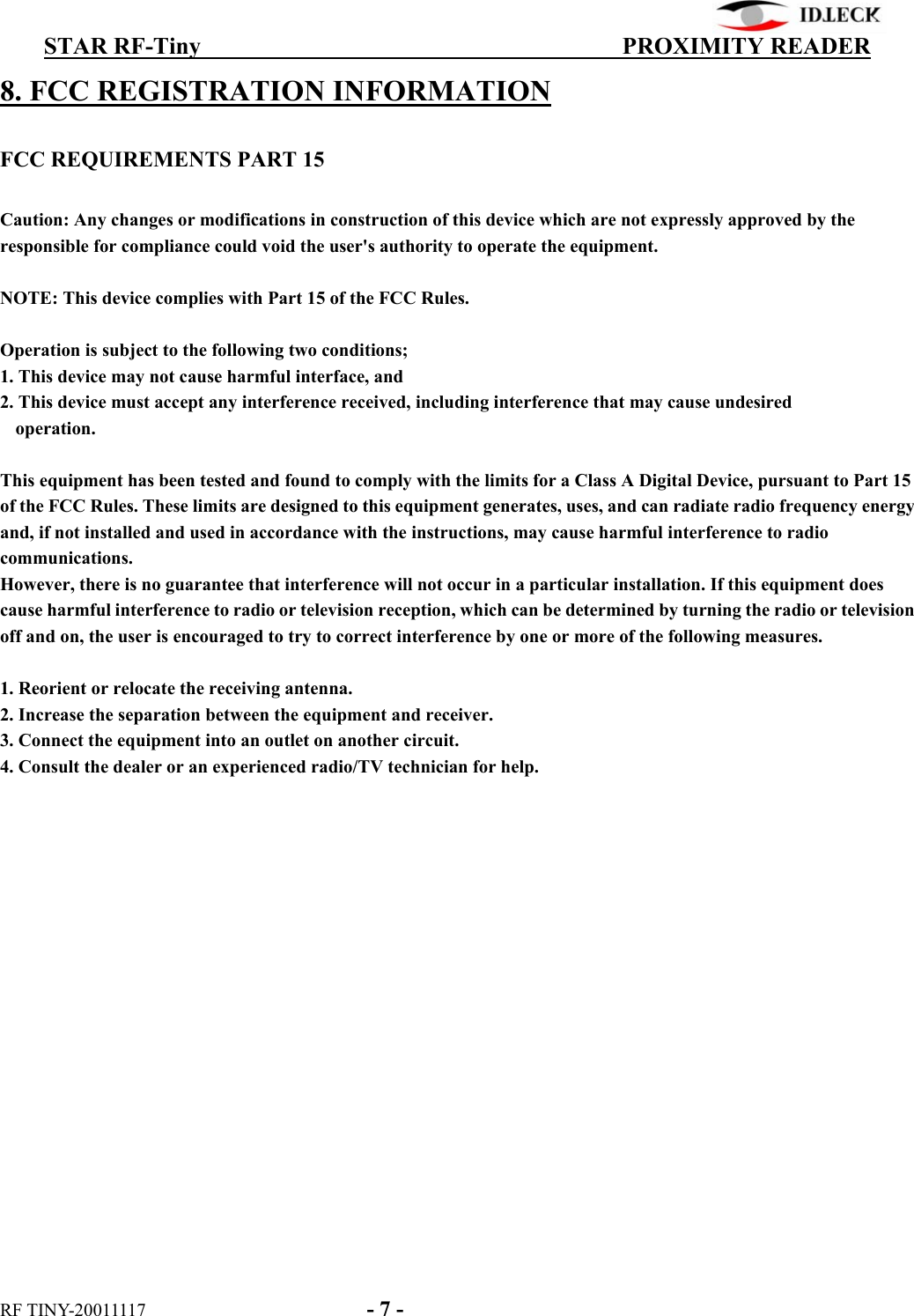

STAR RF-Tiny PROXIMITY READER RF TINY-20011117 - 7 - 8. FCC REGISTRATION INFORMATION FCC REQUIREMENTS PART 15 Caution: Any changes or modifications in construction of this device which are not expressly approved by the responsible for compliance could void the user's authority to operate the equipment. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. This device may not cause harmful interface, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the radio or television off and on, the user is encouraged to try to correct interference by one or more of the following measures. 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on another circuit. 4. Consult the dealer or an experienced radio/TV technician for help.

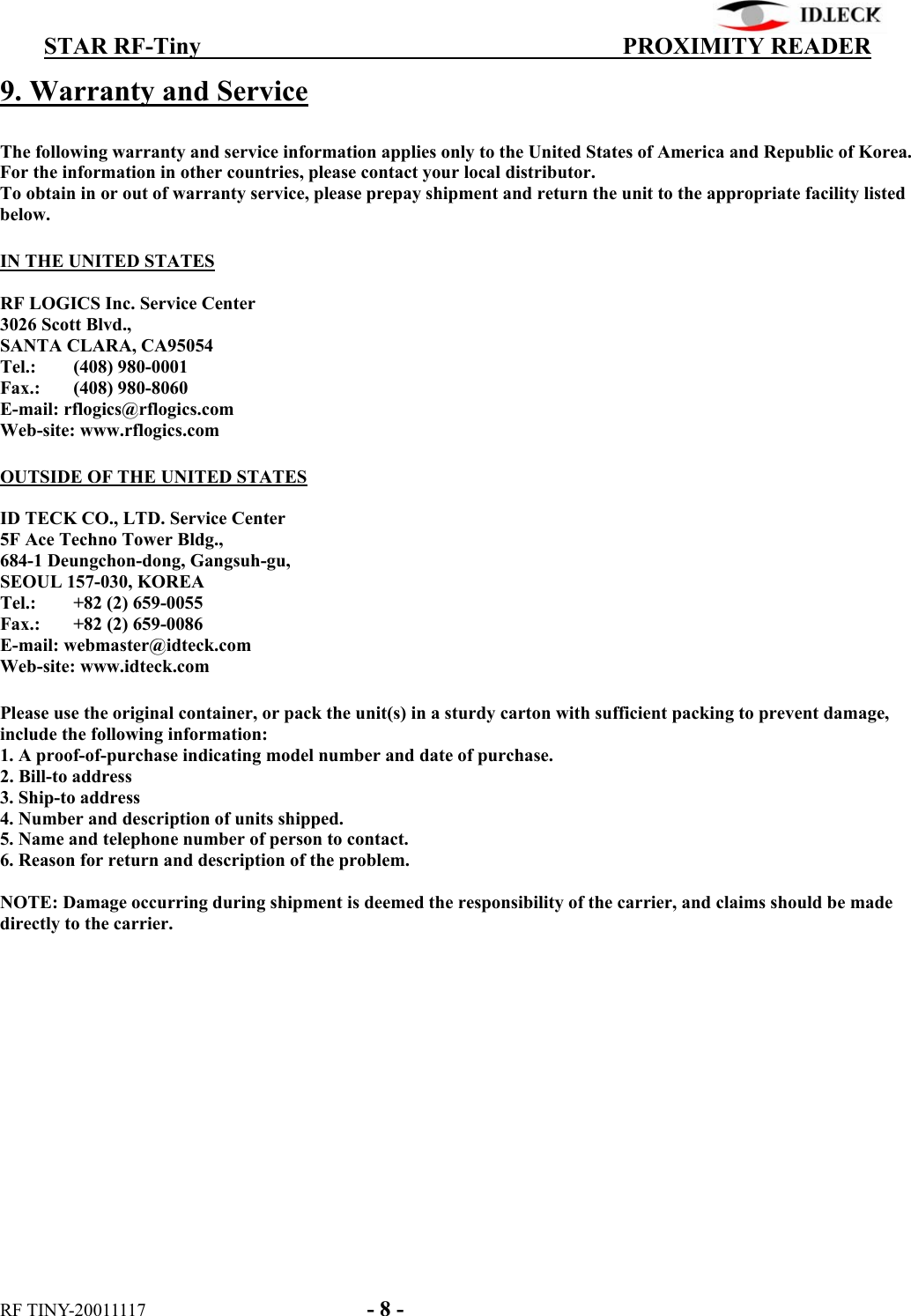

STAR RF-Tiny PROXIMITY READER RF TINY-20011117 - 8 - 9. Warranty and Service The following warranty and service information applies only to the United States of America and Republic of Korea. For the information in other countries, please contact your local distributor. To obtain in or out of warranty service, please prepay shipment and return the unit to the appropriate facility listed below. IN THE UNITED STATES RF LOGICS Inc. Service Center 3026 Scott Blvd., SANTA CLARA, CA95054 Tel.: (408) 980-0001 Fax.: (408) 980-8060 E-mail: rflogics@rflogics.com Web-site: www.rflogics.com OUTSIDE OF THE UNITED STATES ID TECK CO., LTD. Service Center 5F Ace Techno Tower Bldg., 684-1 Deungchon-dong, Gangsuh-gu, SEOUL 157-030, KOREA Tel.: +82 (2) 659-0055 Fax.: +82 (2) 659-0086 E-mail: webmaster@idteck.com Web-site: www.idteck.com Please use the original container, or pack the unit(s) in a sturdy carton with sufficient packing to prevent damage, include the following information: 1. A proof-of-purchase indicating model number and date of purchase. 2. Bill-to address 3. Ship-to address 4. Number and description of units shipped. 5. Name and telephone number of person to contact. 6. Reason for return and description of the problem. NOTE: Damage occurring during shipment is deemed the responsibility of the carrier, and claims should be made directly to the carrier.
