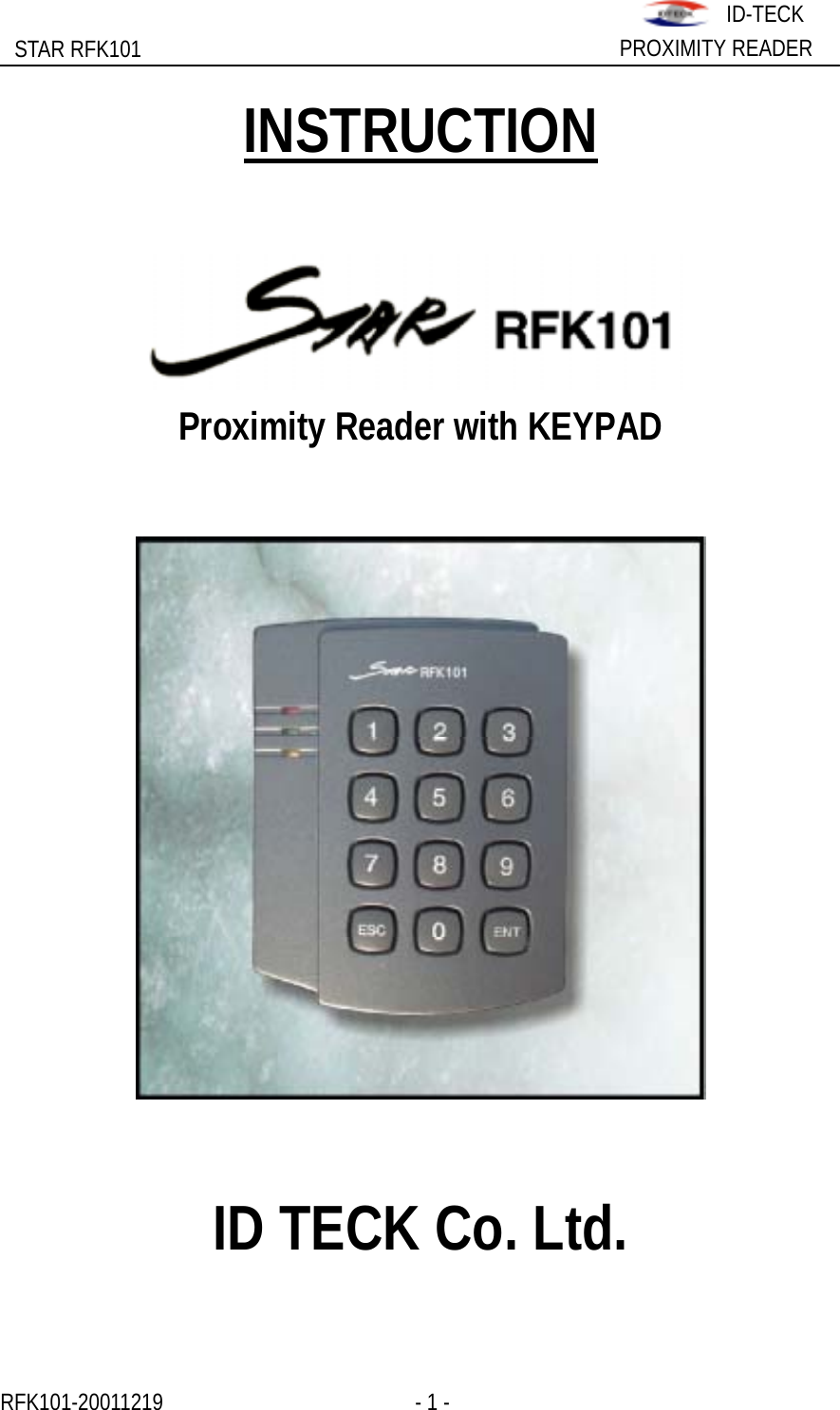

STAR RFK101 PROXIMITY READER ID-TECKINSTRUCTION Proximity Reader with KEYPAD ID TECK Co. Ltd.RFK101-20011219 - 1 -

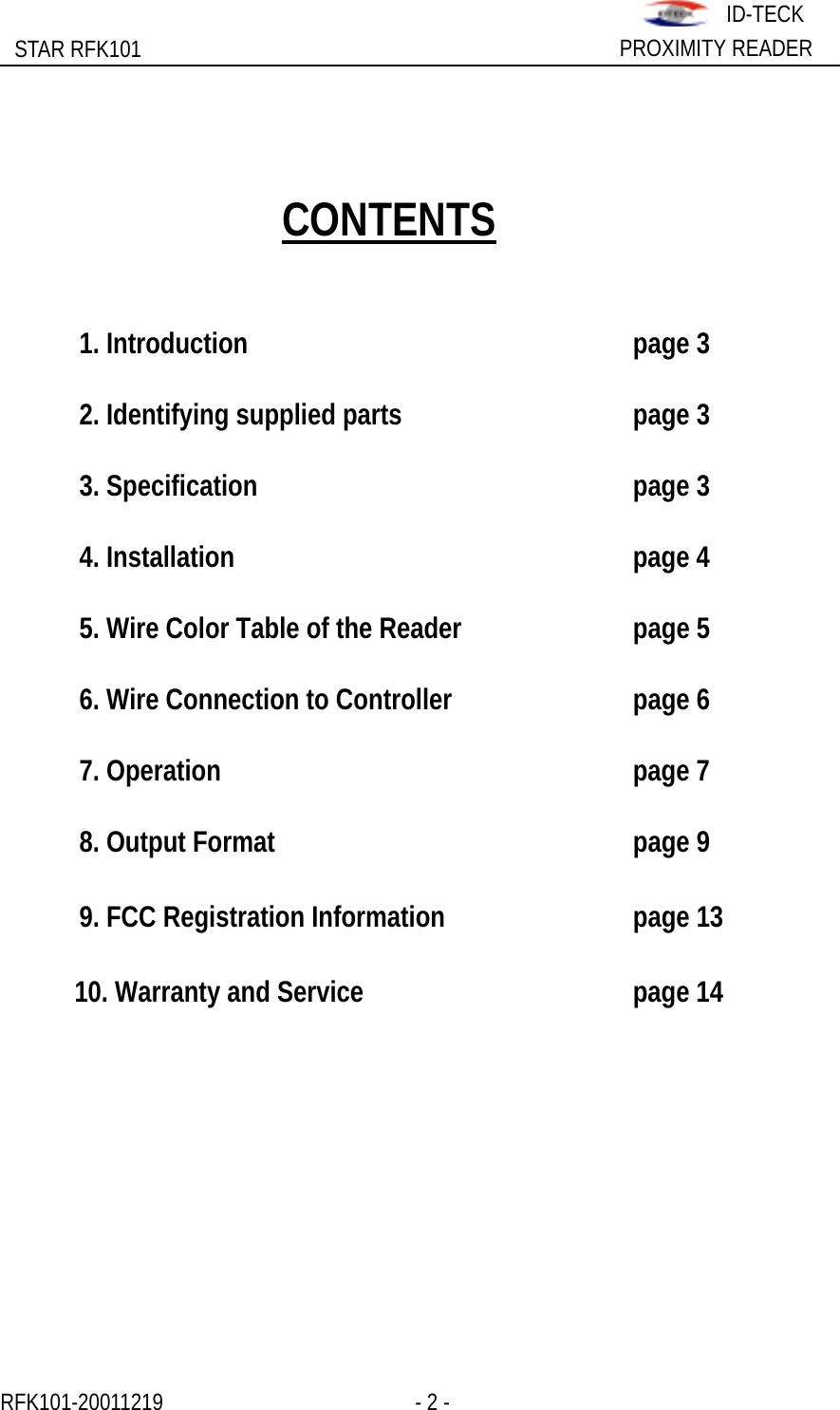

STAR RFK101 PROXIMITY READER ID-TECK CONTENTS 1. Introduction page 3 2. Identifying supplied parts page 3 3. Specification page 3 4. Installation page 4 5. Wire Color Table of the Reader page 5 6. Wire Connection to Controller page 6 7. Operation page 7 8. Output Format page 9 9. FCC Registration Information page 13 10. Warranty and Service page 14 RFK101-20011219 - 2 -

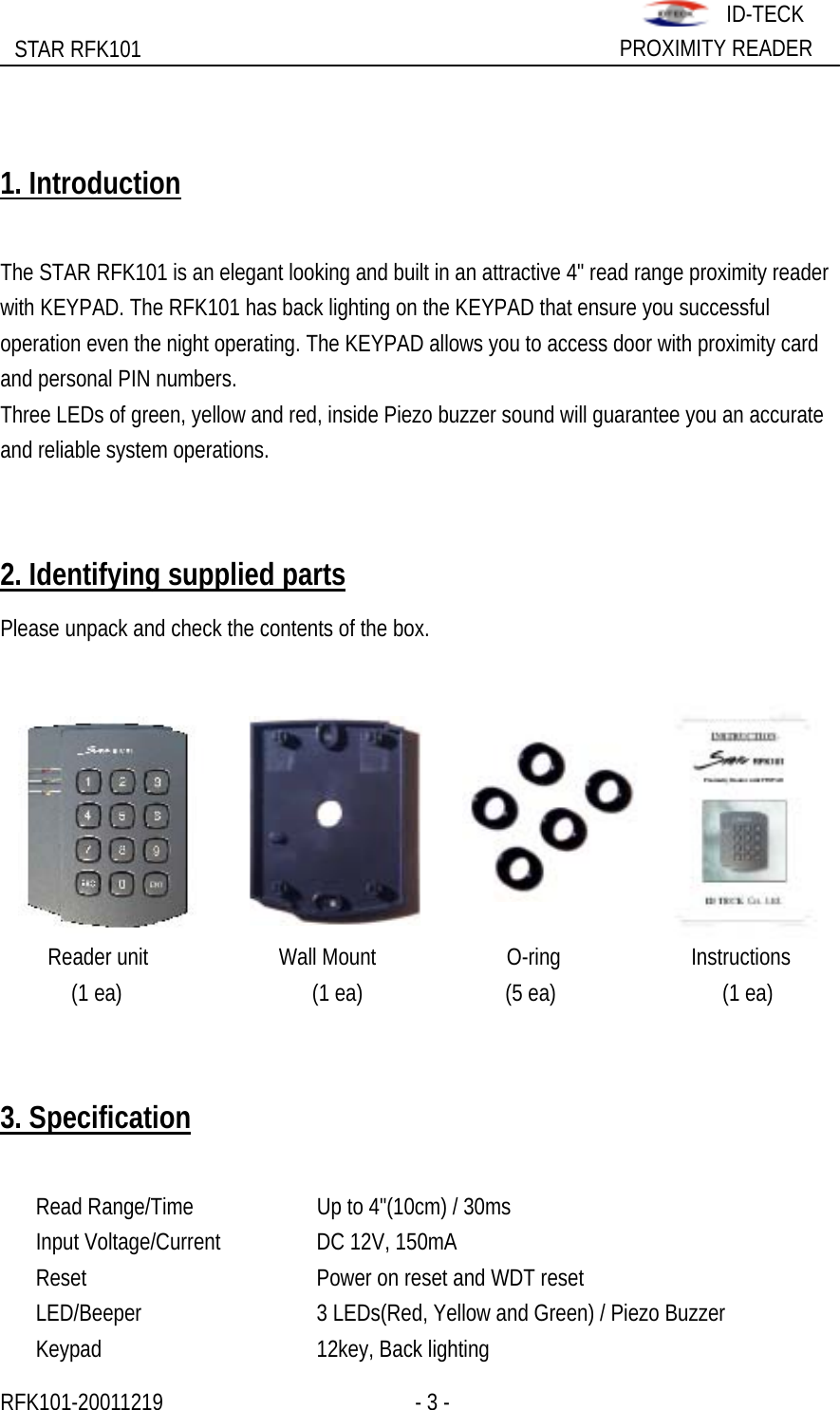

STAR RFK101 PROXIMITY READER ID-TECK 1. Introduction The STAR RFK101 is an elegant looking and built in an attractive 4" read range proximity reader with KEYPAD. The RFK101 has back lighting on the KEYPAD that ensure you successful operation even the night operating. The KEYPAD allows you to access door with proximity card and personal PIN numbers. Three LEDs of green, yellow and red, inside Piezo buzzer sound will guarantee you an accurate and reliable system operations. 2. Identifying supplied parts Please unpack and check the contents of the box. Reader unit Wall Mount O-ring Instructions (1 ea) (1 ea) (5 ea) (1 ea) 3. Specification Read Range/Time Up to 4"(10cm) / 30ms Input Voltage/Current DC 12V, 150mA Reset Power on reset and WDT reset LED/Beeper 3 LEDs(Red, Yellow and Green) / Piezo Buzzer Keypad 12key, Back lighting RFK101-20011219 - 3 -

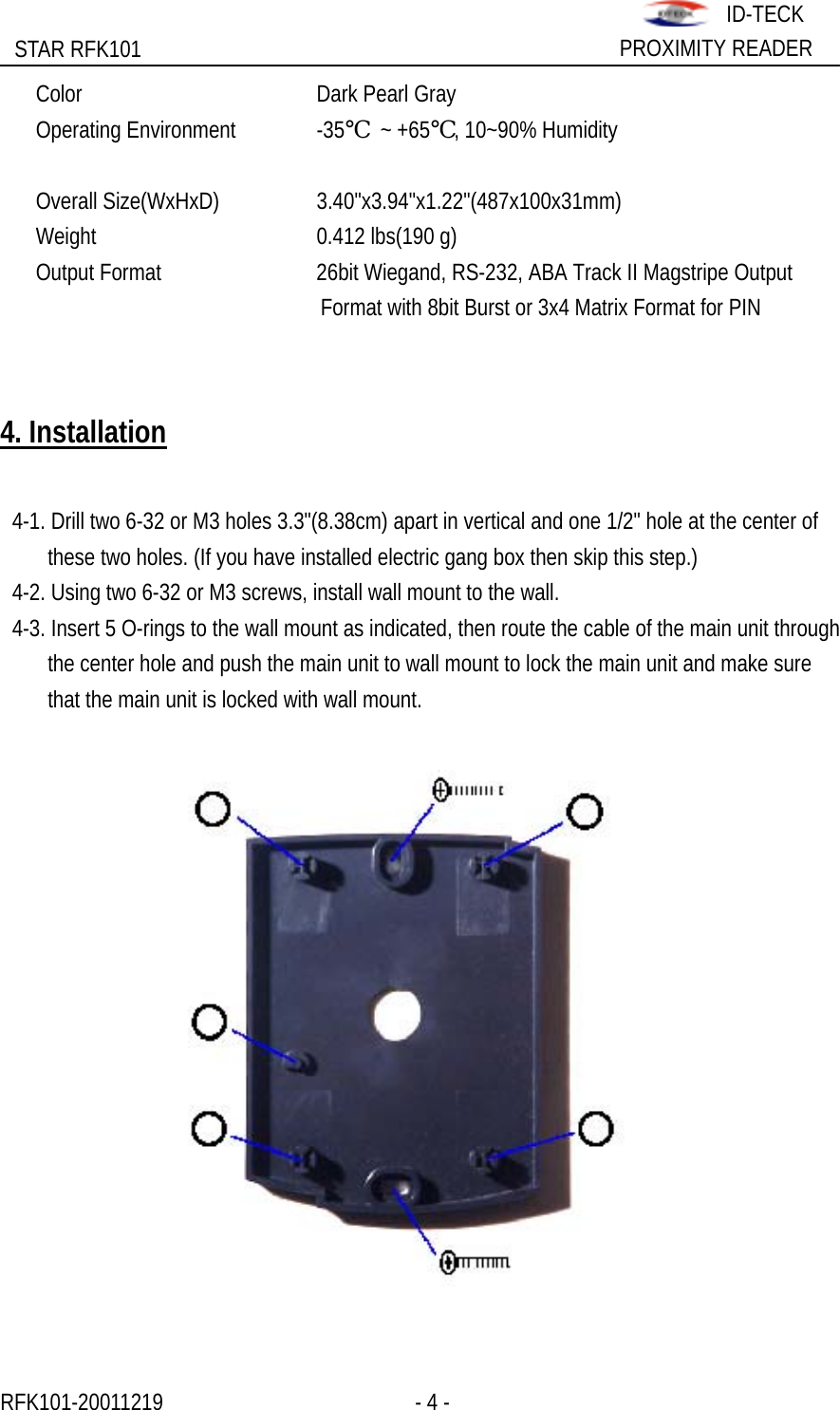

STAR RFK101 PROXIMITY READER ID-TECK Color Dark Pearl Gray Operating Environment -35℃ ~ +65℃, 10~90% Humidity Overall Size(WxHxD) 3.40"x3.94"x1.22"(487x100x31mm) Weight 0.412 lbs(190 g) Output Format 26bit Wiegand, RS-232, ABA Track II Magstripe Output Format with 8bit Burst or 3x4 Matrix Format for PIN 4. Installation 4-1. Drill two 6-32 or M3 holes 3.3"(8.38cm) apart in vertical and one 1/2" hole at the center of these two holes. (If you have installed electric gang box then skip this step.) 4-2. Using two 6-32 or M3 screws, install wall mount to the wall. 4-3. Insert 5 O-rings to the wall mount as indicated, then route the cable of the main unit through the center hole and push the main unit to wall mount to lock the main unit and make sure that the main unit is locked with wall mount. RFK101-20011219 - 4 -

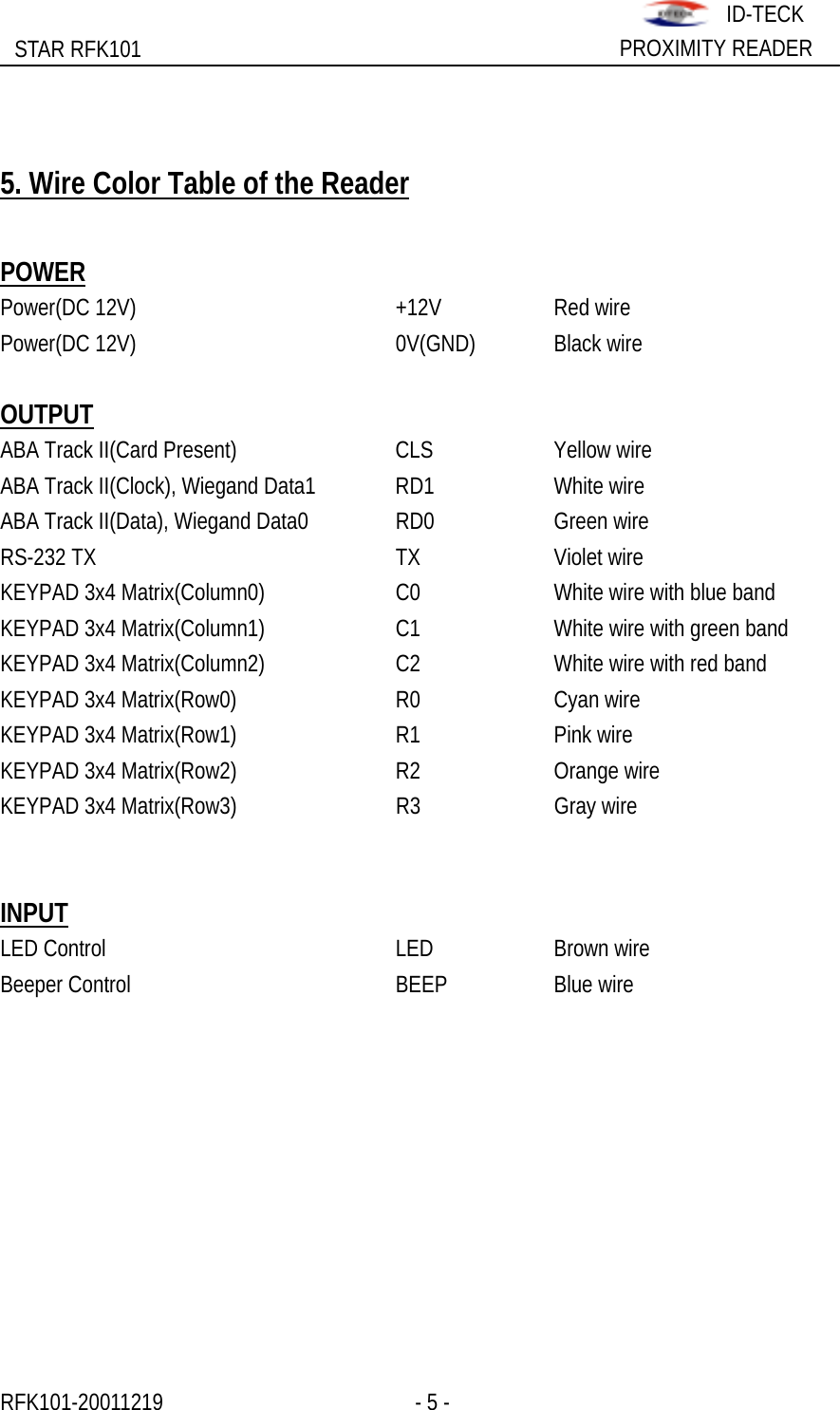

STAR RFK101 PROXIMITY READER ID-TECK 5. Wire Color Table of the Reader POWER Power(DC 12V) +12V Red wire Power(DC 12V) 0V(GND) Black wire OUTPUT ABA Track II(Card Present) CLS Yellow wire ABA Track II(Clock), Wiegand Data1 RD1 White wire ABA Track II(Data), Wiegand Data0 RD0 Green wire RS-232 TX TX Violet wire KEYPAD 3x4 Matrix(Column0) C0 White wire with blue band KEYPAD 3x4 Matrix(Column1) C1 White wire with green band KEYPAD 3x4 Matrix(Column2) C2 White wire with red band KEYPAD 3x4 Matrix(Row0) R0 Cyan wire KEYPAD 3x4 Matrix(Row1) R1 Pink wire KEYPAD 3x4 Matrix(Row2) R2 Orange wire KEYPAD 3x4 Matrix(Row3) R3 Gray wire INPUT LED Control LED Brown wire Beeper Control BEEP Blue wire RFK101-20011219 - 5 -

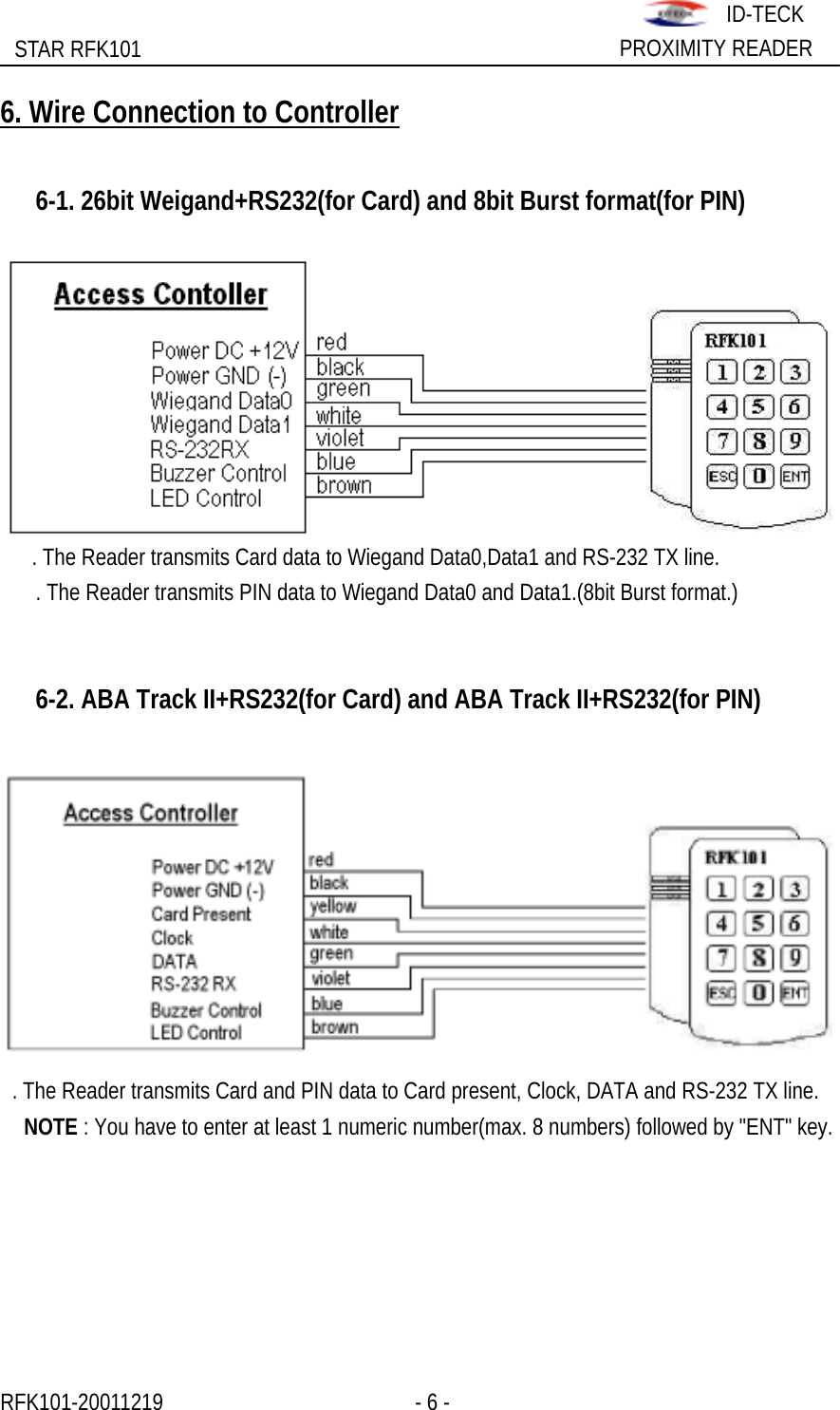

STAR RFK101 PROXIMITY READER ID-TECK6. Wire Connection to Controller 6-1. 26bit Weigand+RS232(for Card) and 8bit Burst format(for PIN) . The Reader transmits Card data to Wiegand Data0,Data1 and RS-232 TX line. . The Reader transmits PIN data to Wiegand Data0 and Data1.(8bit Burst format.) 6-2. ABA Track II+RS232(for Card) and ABA Track II+RS232(for PIN) . The Reader transmits Card and PIN data to Card present, Clock, DATA and RS-232 TX line. NOTE : You have to enter at least 1 numeric number(max. 8 numbers) followed by "ENT" key. RFK101-20011219 - 6 -

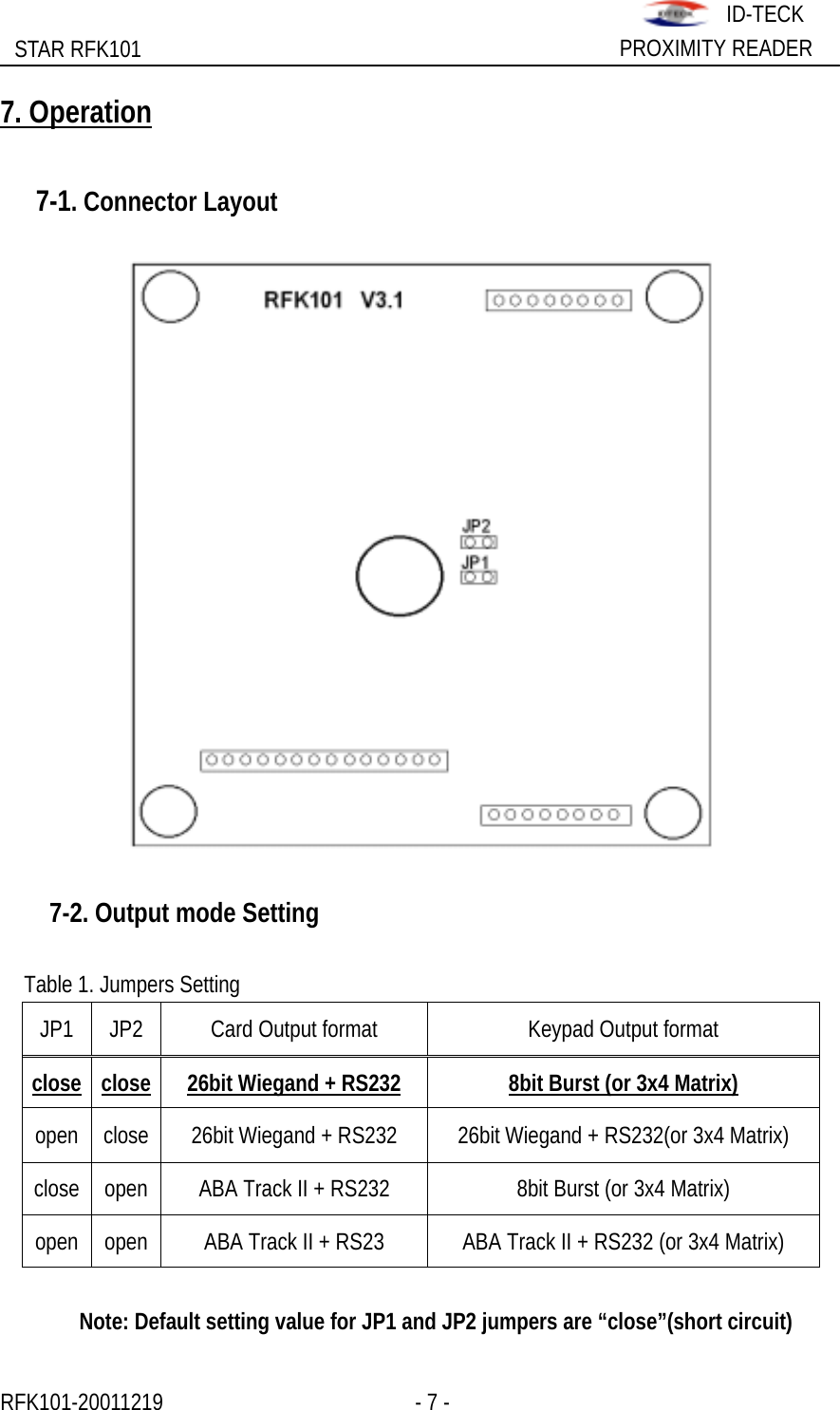

STAR RFK101 PROXIMITY READER ID-TECK7. Operation 7-1. Connector Layout 7-2. Output mode Setting Table 1. Jumpers Setting JP1 JP2 Card Output format Keypad Output format close close 26bit Wiegand + RS232 8bit Burst (or 3x4 Matrix) open close 26bit Wiegand + RS232 26bit Wiegand + RS232(or 3x4 Matrix) close open ABA Track II + RS232 8bit Burst (or 3x4 Matrix) open open ABA Track II + RS23 ABA Track II + RS232 (or 3x4 Matrix) Note: Default setting value for JP1 and JP2 jumpers are “close”(short circuit) RFK101-20011219 - 7 -

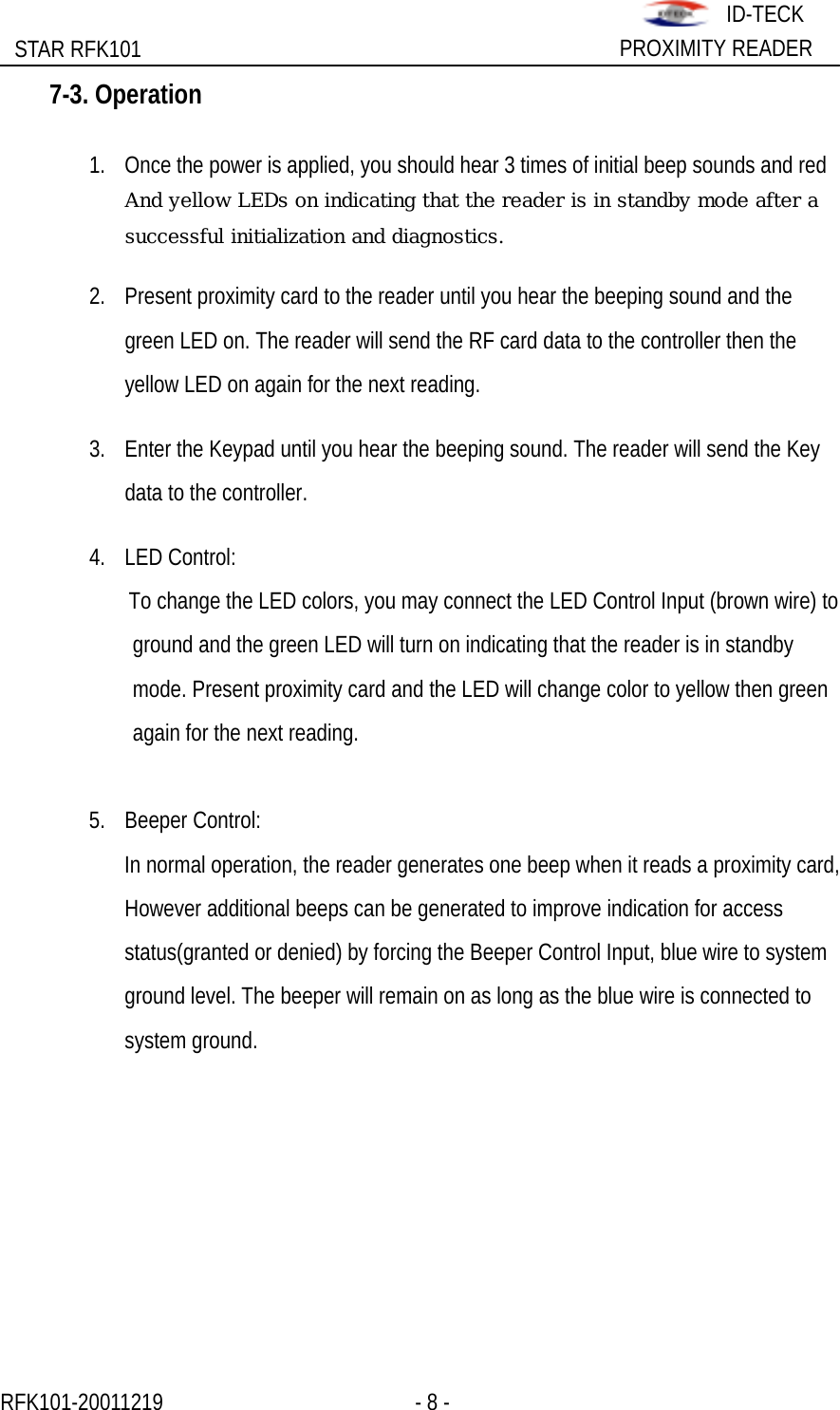

STAR RFK101 PROXIMITY READER ID-TECK 7-3. Operation 1. Once the power is applied, you should hear 3 times of initial beep sounds and red And yellow LEDs on indicating that the reader is in standby mode after a successful initialization and diagnostics. 2. Present proximity card to the reader until you hear the beeping sound and the green LED on. The reader will send the RF card data to the controller then the yellow LED on again for the next reading. 3. Enter the Keypad until you hear the beeping sound. The reader will send the Key data to the controller. 4. LED Control: To change the LED colors, you may connect the LED Control Input (brown wire) to ground and the green LED will turn on indicating that the reader is in standby mode. Present proximity card and the LED will change color to yellow then green again for the next reading. 5. Beeper Control: In normal operation, the reader generates one beep when it reads a proximity card, However additional beeps can be generated to improve indication for access status(granted or denied) by forcing the Beeper Control Input, blue wire to system ground level. The beeper will remain on as long as the blue wire is connected to system ground. RFK101-20011219 - 8 -

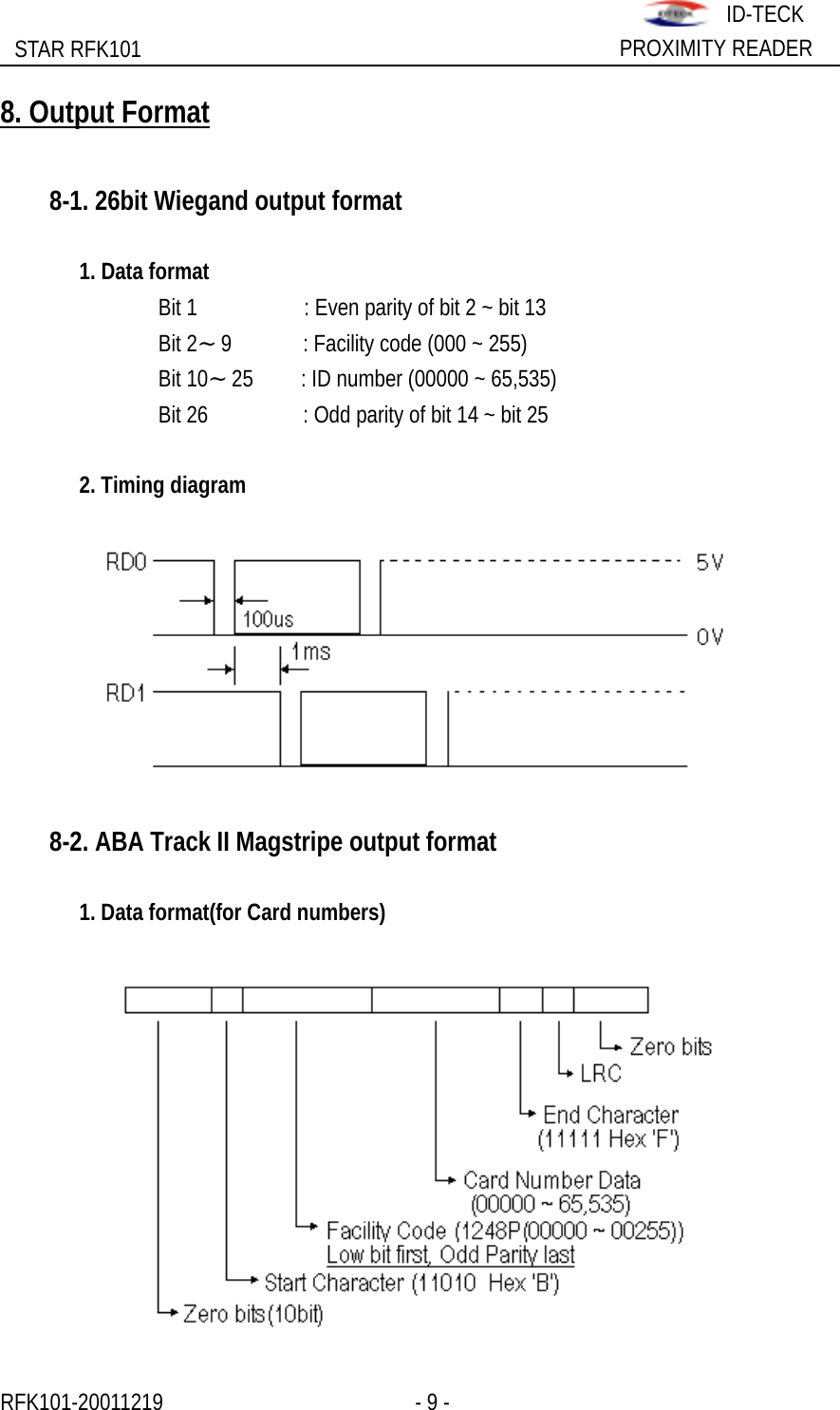

STAR RFK101 PROXIMITY READER ID-TECK8. Output Format 8-1. 26bit Wiegand output format 1. Data format Bit 1 : Even parity of bit 2 ~ bit 13 Bit 2～9 : Facility code (000 ~ 255) Bit 10～25 : ID number (00000 ~ 65,535) Bit 26 : Odd parity of bit 14 ~ bit 25 2. Timing diagram 8-2. ABA Track II Magstripe output format 1. Data format(for Card numbers) RFK101-20011219 - 9 -

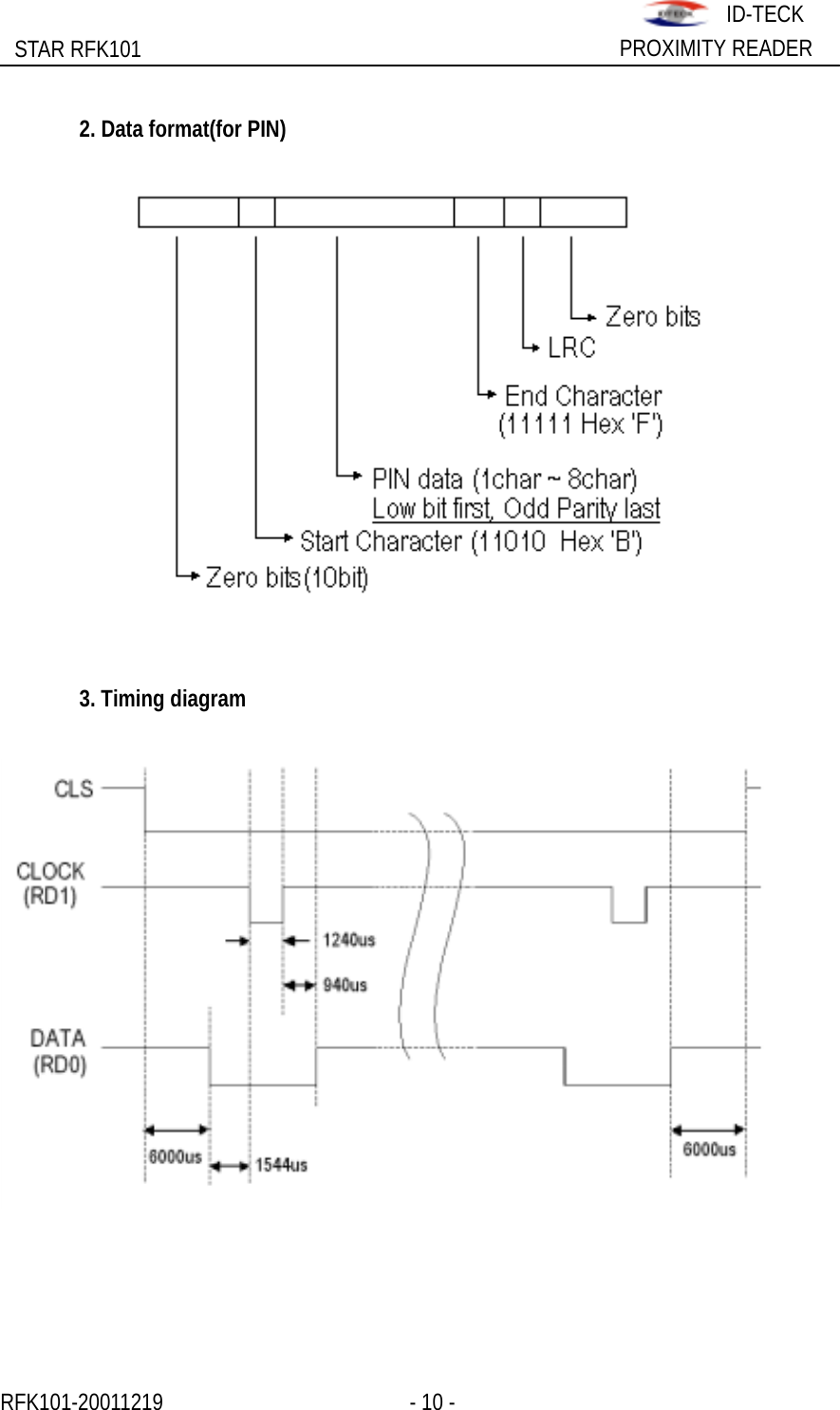

STAR RFK101 PROXIMITY READER ID-TECK 2. Data format(for PIN) 3. Timing diagram RFK101-20011219 - 10 -

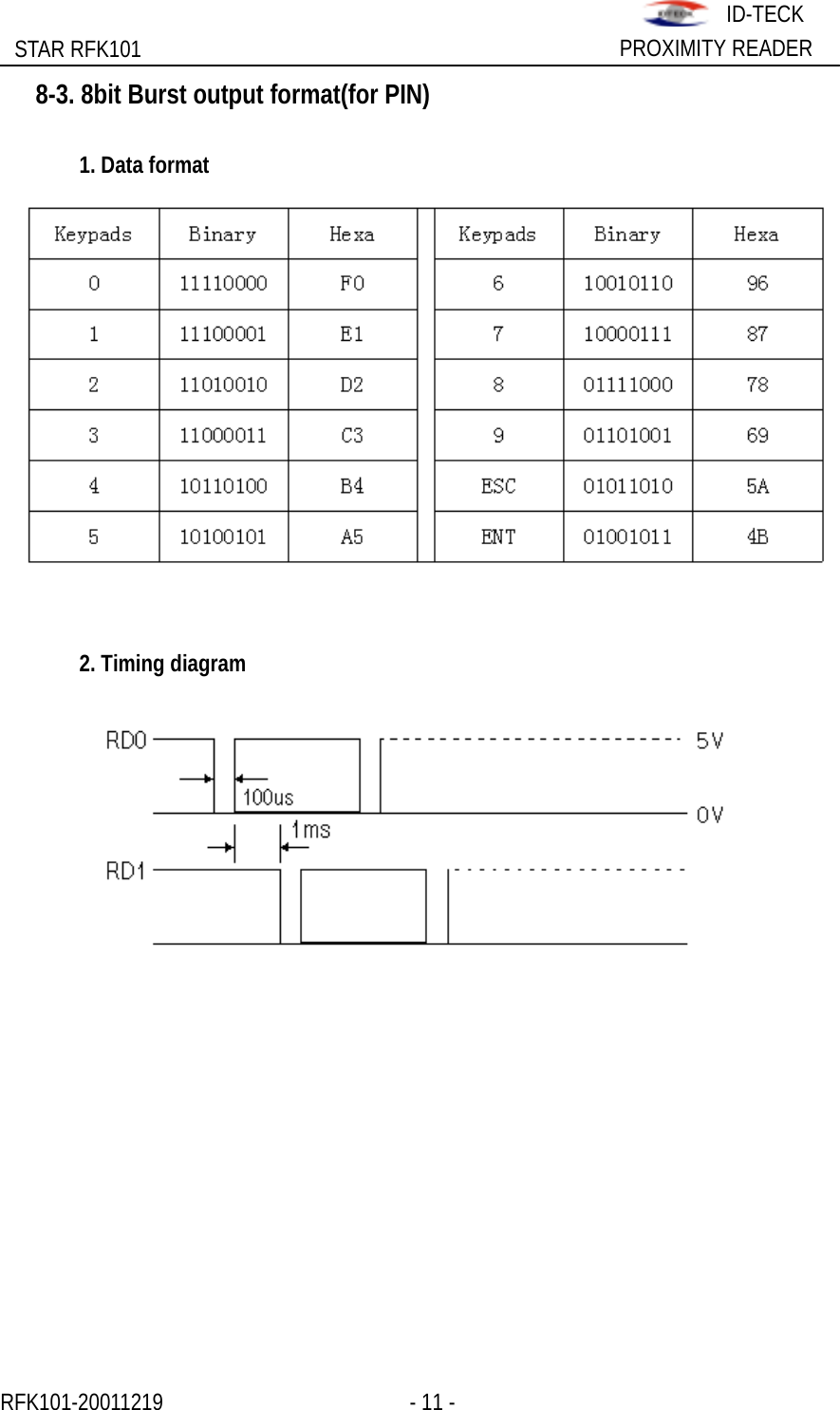

STAR RFK101 PROXIMITY READER ID-TECK8-3. 8bit Burst output format(for PIN) 1. Data format 2. Timing diagram RFK101-20011219 - 11 -

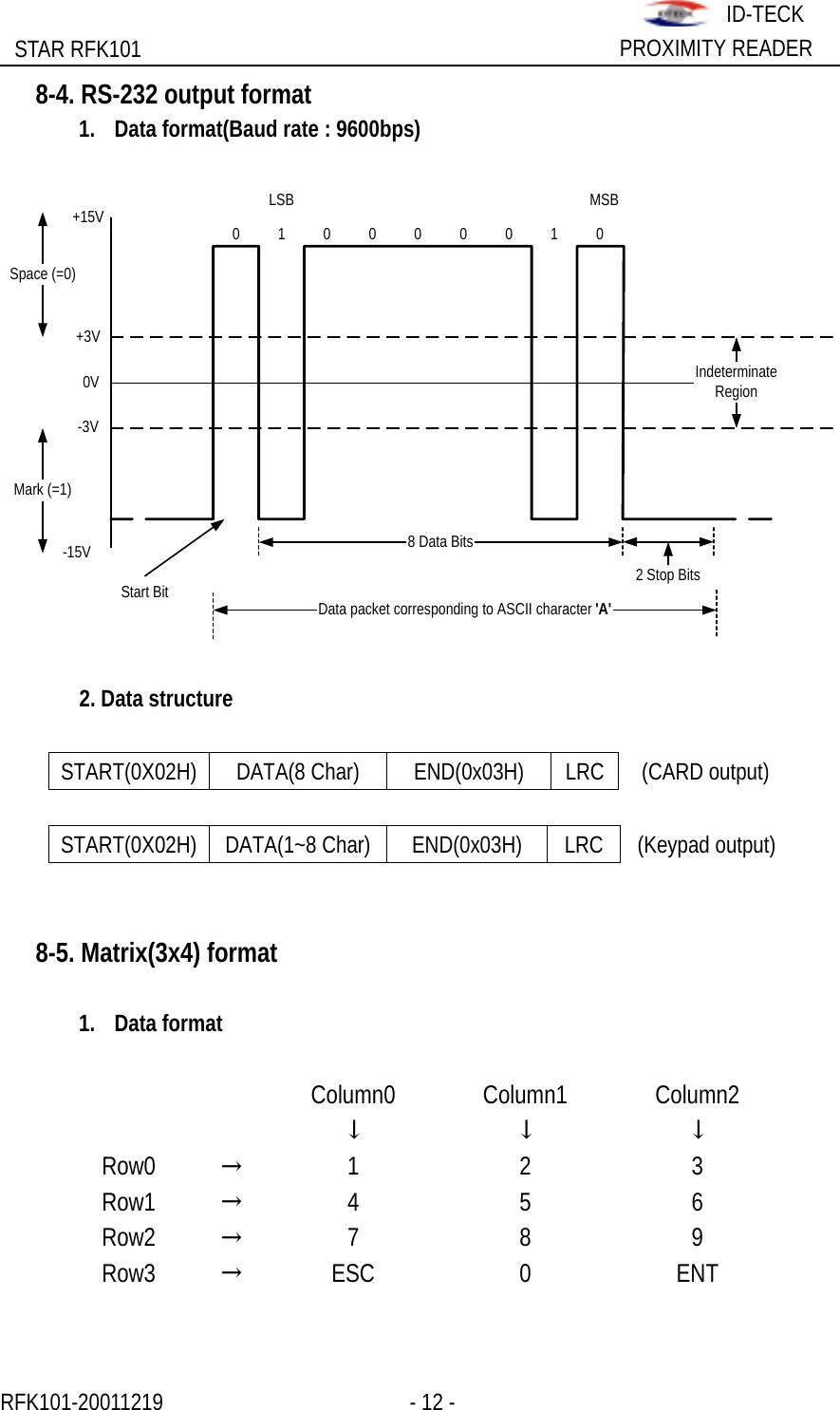

STAR RFK101 PROXIMITY READER ID-TECK8-4. RS-232 output format 1. Data format(Baud rate : 9600bps) +15V-15V+3V-3VSpace (=0)Mark (=1)8 Data Bits2 Stop BitsIndeterminateRegionData packet corresponding to ASCII character 'A'Start Bit010000010LSB MSB0V 2. Data structure START(0X02H) DATA(8 Char) END(0x03H) LRC (CARD output) START(0X02H) DATA(1~8 Char) END(0x03H) LRC (Keypad output) 8-5. Matrix(3x4) format 1. Data format Column0 Column1 Column2 ↓ ↓ ↓ Row0 → 1 2 3 Row1 → 4 5 6 Row2 → 7 8 9 Row3 → ESC 0 ENT RFK101-20011219 - 12 -

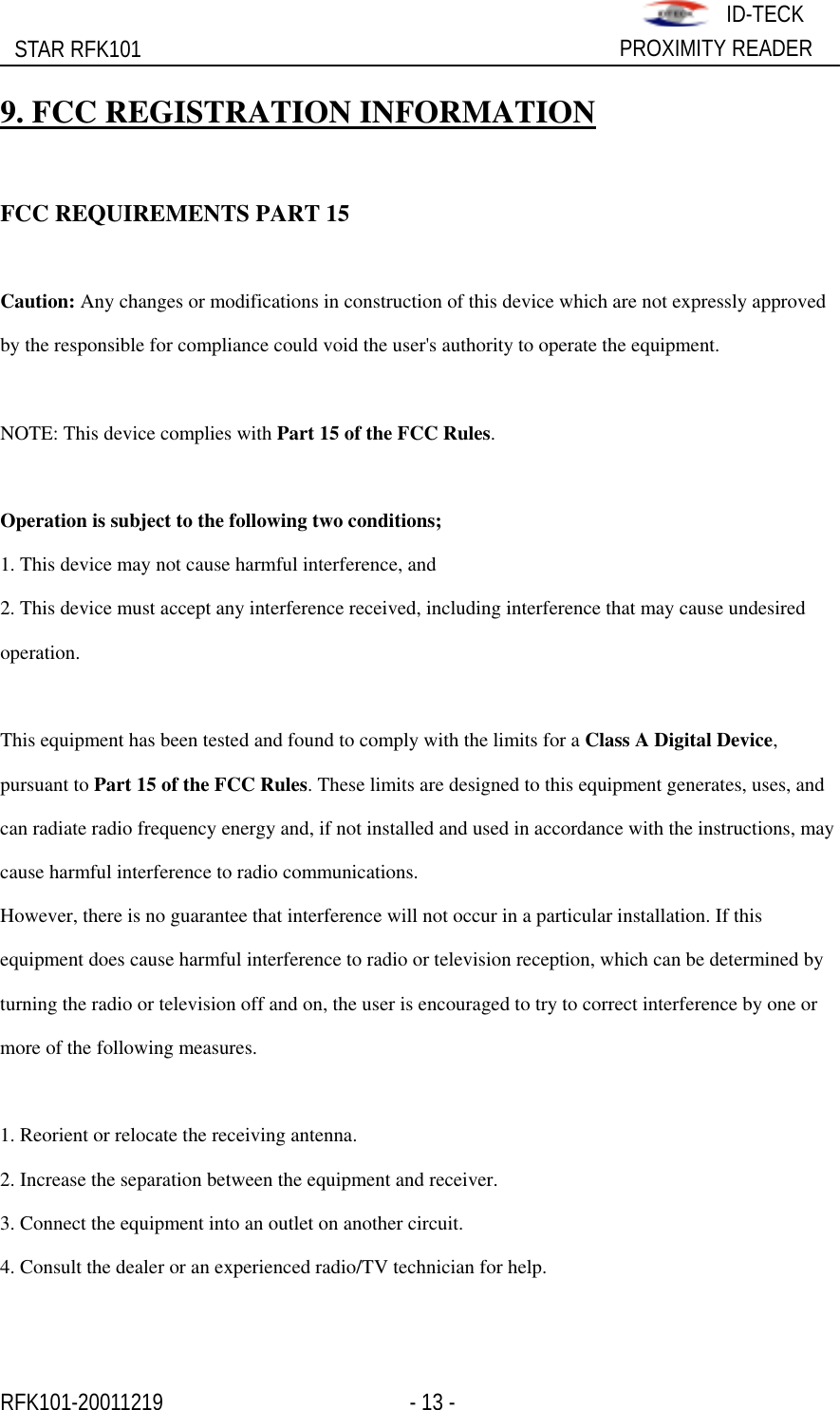

STAR RFK101 PROXIMITY READER ID-TECK9. FCC REGISTRATION INFORMATION󰚟󰚟FCC REQUIREMENTS PART 15 󰚟Caution: Any changes or modifications in construction of this device which are not expressly approved by the responsible for compliance could void the user's authority to operate the equipment. 󰚟NOTE: This device complies with Part 15 of the FCC Rules. 󰚟Operation is subject to the following two conditions; 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. 󰚟This equipment has been tested and found to comply with the limits for a Class A Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the radio or television off and on, the user is encouraged to try to correct interference by one or more of the following measures. 󰚟1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on another circuit. 4. Consult the dealer or an experienced radio/TV technician for help. 󰚟RFK101-20011219 - 13 -

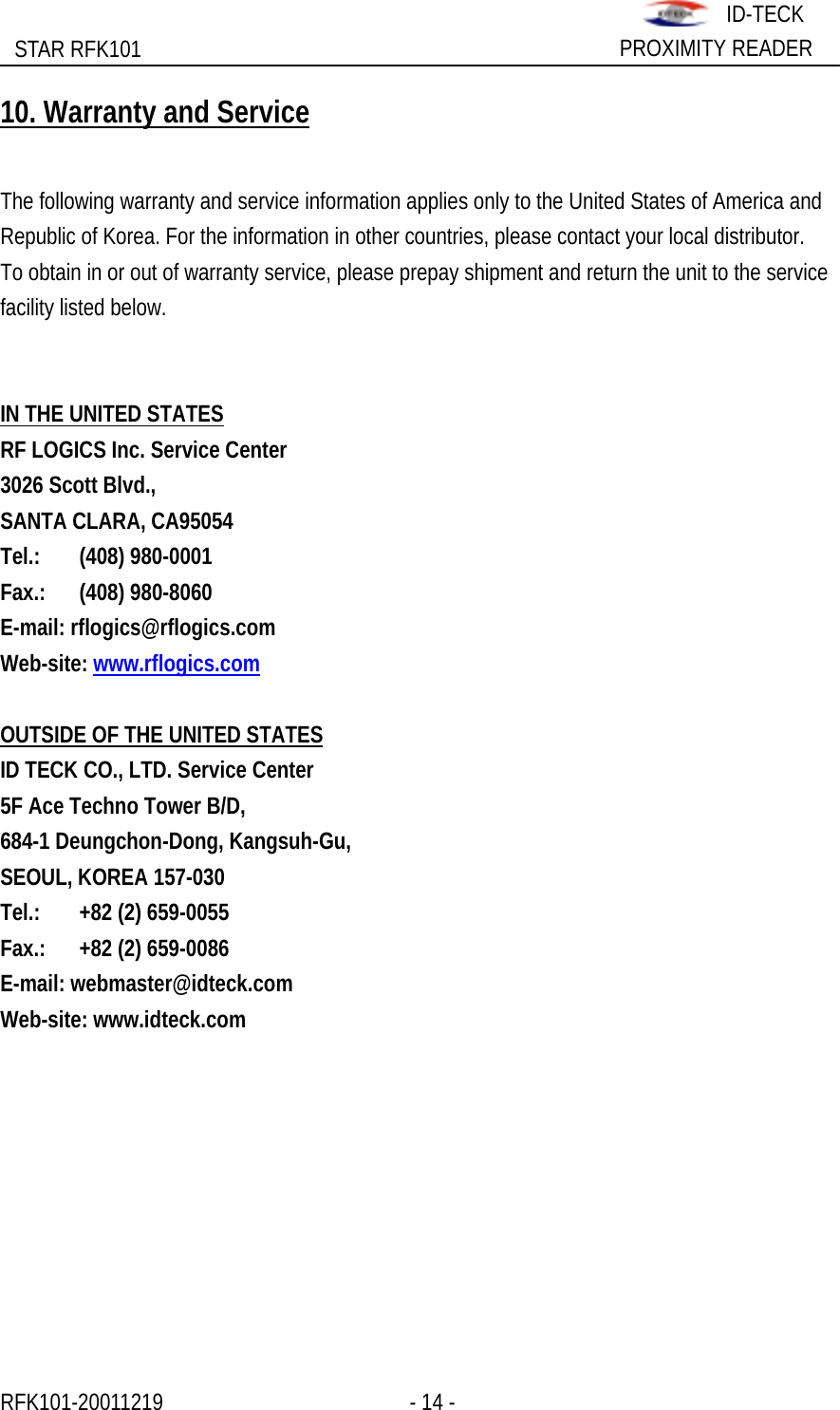

STAR RFK101 PROXIMITY READER ID-TECK10. Warranty and Service The following warranty and service information applies only to the United States of America and Republic of Korea. For the information in other countries, please contact your local distributor. To obtain in or out of warranty service, please prepay shipment and return the unit to the service facility listed below. IN THE UNITED STATES RF LOGICS Inc. Service Center 3026 Scott Blvd., SANTA CLARA, CA95054 Tel.: (408) 980-0001 Fax.: (408) 980-8060 E-mail: rflogics@rflogics.com Web-site: www.rflogics.com OUTSIDE OF THE UNITED STATES ID TECK CO., LTD. Service Center 5F Ace Techno Tower B/D, 684-1 Deungchon-Dong, Kangsuh-Gu, SEOUL, KOREA 157-030 Tel.: +82 (2) 659-0055 Fax.: +82 (2) 659-0086 E-mail: webmaster@idteck.com Web-site: www.idteck.com RFK101-20011219 - 14 -
