IDX CW-3-130701 Wireless Video Transmission System User Manual CW 3

IDX Company, Ltd. Wireless Video Transmission System CW 3

Users Manual

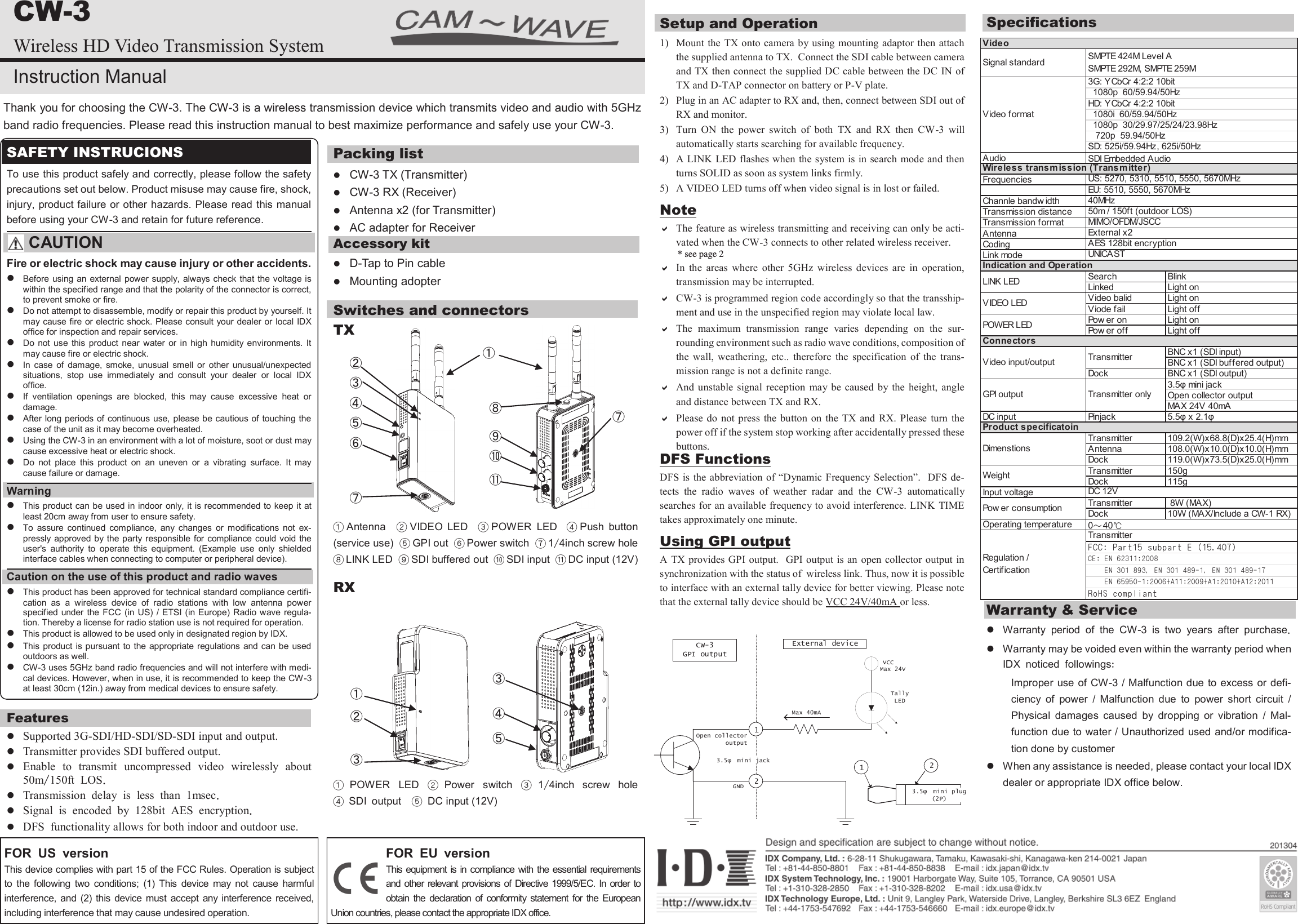

CW-3 Wireless HD Video Transmission System Instruction Manual Thank you for choosing the CW-3. The CW-3 is a wireless transmission device which transmits video and audio with 5GHz band radio frequencies. Please read this instruction manual to best maximize performance and safely use your CW-3. SAFETY INSTRUCIONS To use this product safely and correctly, please follow the safety precautions set out below. Product misuse may cause fire, shock, injury, product failure or other hazards. Please read this manual before using your CW-3 and retain for future reference. CAUTION Fire or electric shock may cause injury or other accidents.  Before using an external power supply, always check that the voltage is within the specified range and that the polarity of the connector is correct, to prevent smoke or fire.  Do not attempt to disassemble, modify or repair this product by yourself. It may cause fire or electric shock. Please consult your dealer or local IDX office for inspection and repair services.  Do not use this product near water or in high humidity environments. It may cause fire or electric shock.  In case of damage, smoke, unusual smell or other unusual/unexpected situations, stop use immediately and consult your dealer or local IDX office.  If ventilation openings are blocked, this may cause excessive heat or damage.  After long periods of continuous use, please be cautious of touching the case of the unit as it may become overheated.  Using the CW-3 in an environment with a lot of moisture, soot or dust may cause excessive heat or electric shock.  Do not place this product on an uneven or a vibrating surface. It may cause failure or damage. Warning  This product can be used in indoor only, it is recommended to keep it at least 20cm away from user to ensure safety.  To assure continued compliance, any changes or modifications not ex-pressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example use only shielded interface cables when connecting to computer or peripheral device). Caution on the use of this product and radio waves  This product has been approved for technical standard compliance certifi-cation as a wireless device of radio stations with low antenna power specified under the FCC (in US) / ETSI (in Europe) Radio wave regula-tion. Thereby a license for radio station use is not required for operation.  This product is allowed to be used only in designated region by IDX.  This product is pursuant to the appropriate regulations and can be used outdoors as well.  CW-3 uses 5GHz band radio frequencies and will not interfere with medi-cal devices. However, when in use, it is recommended to keep the CW-3 at least 30cm (12in.) away from medical devices to ensure safety. Features  Supported 3G-SDI/HD-SDI/SD-SDI input and output.  Transmitter provides SDI buffered output.  Enable to transmit uncompressed video wirelessly about 50m/150ft LOS.  Transmission delay is less than 1msec.  Signal is encoded by 128bit AES encryption.  DFS functionality allows for both indoor and outdoor use. Packing list  CW-3 TX (Transmitter)  CW-3 RX (Receiver)  Antenna x2 (for Transmitter)  AC adapter for Receiver Accessory kit  D-Tap to Pin cable  Mounting adopter Switches and connectors TX ①Antenna ②VIDEO LED ③POWER LED ④Push button (service use) ⑤GPI out ⑥Power switch ⑦1/4inch screw hole ⑧LINK LED ⑨SDI buffered out ⑩SDI input ⑪DC input (12V) RX ①POWER LED ②Power switch ③1/4inch screw hole ④ SDI output ⑤ DC input (12V) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑦ ② ③ ④ ⑤ ③ Setup and Operation 1) Mount the TX onto camera by using mounting adaptor then attach the supplied antenna to TX. Connect the SDI cable between camera and TX then connect the supplied DC cable between the DC IN of TX and D-TAP connector on battery or P-V plate. 2) Plug in an AC adapter to RX and, then, connect between SDI out of RX and monitor. 3) Turn ON the power switch of both TX and RX then CW-3 will automatically starts searching for available frequency. 4) A LINK LED flashes when the system is in search mode and then turns SOLID as soon as system links firmly. 5) A VIDEO LED turns off when video signal is in lost or failed. Note  The feature as wireless transmitting and receiving can only be acti-vated when the CW-3 connects to other related wireless receiver.  In the areas where other 5GHz wireless devices are in operation, transmission may be interrupted.  CW-3 is programmed region code accordingly so that the transship-ment and use in the unspecified region may violate local law.  The maximum transmission range varies depending on the sur-rounding environment such as radio wave conditions, composition of the wall, weathering, etc.. therefore the specification of the trans-mission range is not a definite range.  And unstable signal reception may be caused by the height, angle and distance between TX and RX.  Please do not press the button on the TX and RX. Please turn the power off if the system stop working after accidentally pressed these buttons. DFS Functions DFS is the abbreviation of “Dynamic Frequency Selection”. DFS de-tects the radio waves of weather radar and the CW-3 automatically searches for an available frequency to avoid interference. LINK TIME takes approximately one minute. Using GPI output A TX provides GPI output. GPI output is an open collector output in synchronization with the status of wireless link. Thus, now it is possible to interface with an external tally device for better viewing. Please note that the external tally device should be VCC 24V/40mA or less. Specifications Warranty & Service  Warranty period of the CW-3 is two years after purchase.  Warranty may be voided even within the warranty period when IDX noticed followings: Improper use of CW-3 / Malfunction due to excess or defi-ciency of power / Malfunction due to power short circuit / Physical damages caused by dropping or vibration / Mal-function due to water / Unauthorized used and/or modifica-tion done by customer  When any assistance is needed, please contact your local IDX dealer or appropriate IDX office below. VCCTally LEDCW-3GPI outputExternal deviceMax 24VMax 40mA3.5φ mini jack12GNDOpen collectoroutput3.5φ mini plug (2P)12FOR US version This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FOR EU version This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. In order to obtain the declaration of conformity statement for the European Union countries, please contact the appropriate IDX office. ① Signal standardAudioFrequenciesChannle bandw idthTransmission distanceTransmission formatAntennaCodingLink modeSearch BlinkLinkedLight onVideo balidLight onViode failLight offPow er onLight onPow er offLight offBNC x1 (SDI input)BNC x1 (SDI buffered output)DockBNC x1 (SDI output)3.5φ mini jackOpen collector outputMAX 24V 40mADC input Pinjack 5.5φ x 2.1φTransmitter109.2(W)x68.8(D)x25.4(H)mmAntenna108.0(W)x10.0(D)x10.0(H)mmDock119.0(W)x73.5(D)x25.0(H)mmTransmitter150gDock115gInput voltageTransmitter 8W (MAX)Dock10W (MAX/Include a CW-1 RX)Operating temperatureVideoSMPTE 424M Level ASMPTE 292M, SMPTE 259MVideo format3G: YCbCr 4:2:2 10bit 1080p 60/59.94/50HzHD: YCbCr 4:2:2 10bit 1080i 60/59.94/50Hz 1080p 30/29.97/25/24/23.98Hz 720p 59.94/50HzSD: 525i/59.94Hz, 625i/50HzVIDEO LEDExternal x2SDI Embedded AudioWireless transm ission (Transm itter)US: 5270, 5310, 5510, 5550, 5670MHzEU: 5510, 5550, 5670MHz40MHz50m / 150ft (outdoor LOS)MIMO/OFDM/JSCCAES 128bit encryptionUNICASTIndication and OperationLINK LED0～40℃POWER LEDConnectorsVideo input/output TransmitterGPI output Transmitter onlyProduct specificatoinDimenstionsWeightDC 12VPow er consumptionRegulation /CertificationTransmitterCE: EN 62311:2008 EN 301 893, EN 301 489-1, EN 301 489-17 EN 65950-1:2006+A11:2009+A1:2010+A12:2011FCC: Part15 subpart E (15.407)RoHS compliant* see page 2
