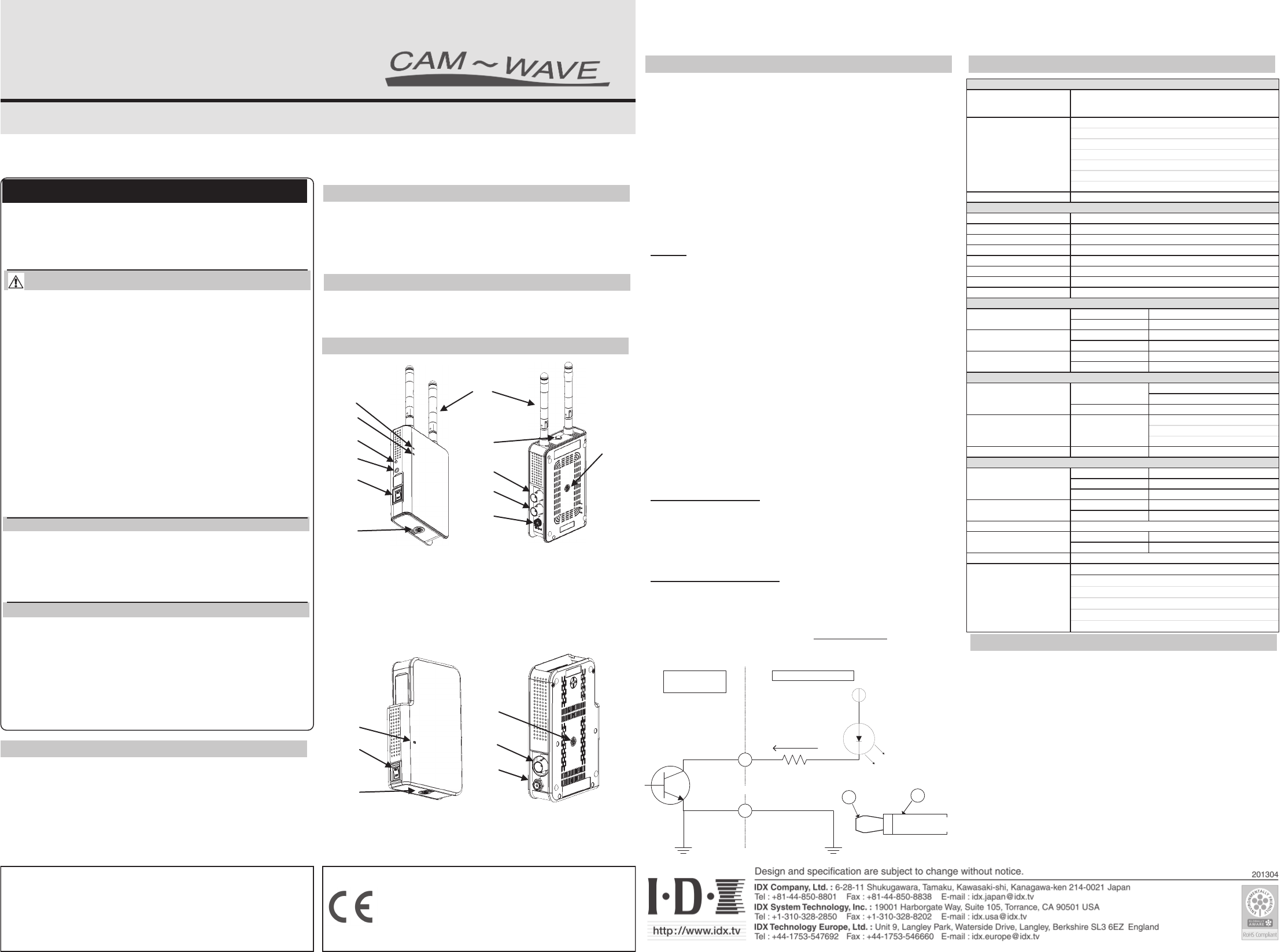

Thank you for choosing the CW-3. The CW-3 is a wireless transmission device which transmits video and audio with 5GHz
band radio frequencies. Please read this instruction manual to best maximize performance and safely use your CW-3.
SAFETY INSTRUCIONS
To use this product safely and correctly, please follow the safety
precautions set out below. Product misuse may cause fire, shock,
injury, product failure or other hazards. Please read this manual
before using your CW-3 and retain for future reference.
CAUTION
Fire or electric shock may cause injury or other accidents.
Before using an external power supply, always check that the voltage is
within the specified range and that the polarity of the connector is correct,
to prevent smoke or fire.
Do not attempt to disassemble, modify or repair this product by yourself. It
may cause fire or electric shock. Please consult your dealer or local IDX
office for inspection and repair services.
Do not use this product near water or in high humidity environments. It
may cause fire or electric shock.
In case of damage, smoke, unusual smell or other unusual/unexpected
situations, stop use immediately and consult your dealer or local IDX
office.
If ventilation openings are blocked, this may cause excessive heat or
damage.
After long periods of continuous use, please be cautious of touching the
case of the unit as it may become overheated.
Using the CW-3 in an environment with a lot of moisture, soot or dust may
cause excessive heat or electric shock.
Do not place this product on an uneven or a vibrating surface. It may
cause failure or damage.
Warning
This product can be used in indoor only, it is recommended to keep it at
least 20cm away from user to ensure safety.
To assure continued compliance, any changes or modifications not ex-
pressly approved by the party responsible for compliance could void the
user's authority to operate this equipment. (Example use only shielded
interface cables when connecting to computer or peripheral device).
Caution on the use of this product and radio waves
This product has been approved for technical standard compliance certifi-
cation as a wireless device of radio stations with low antenna power
specified under the FCC (in US) / ETSI (in Europe) Radio wave regula-
tion. Thereby a license for radio station use is not required for operation.
This product is allowed to be used only in designated region by IDX.
This product is pursuant to the appropriate regulations and can be used
outdoors as well.
CW-3 uses 5GHz band radio frequencies and will not interfere with medi-
cal devices. However, when in use, it is recommended to keep the CW-3
at least 30cm (12in.) away from medical devices to ensure safety.
Features
Supported 3G-SDI/HD-SDI/SD-SDI input and output.
Transmitter provides SDI buffered output.
Enable to transmit uncompressed video wirelessly about
50m/150ft LOS.
Transmission delay is less than 1msec.
Signal is encoded by 128bit AES encryption.
DFS functionality allows for both indoor and outdoor use.
Packing list
CW-3 TX (Transmitter)
CW-3 RX (Receiver)
Antenna x2 (for Transmitter)
AC adapter for Receiver
Accessory kit
D-Tap to Pin cable
Mounting adopter
Switches and connectors
TX
①Antenna ②VIDEO LED ③POWER LED ④Push button
(service use) ⑤GPI out ⑥Power switch ⑦1/4inch screw hole
⑧LINK LED ⑨SDI buffered out ⑩SDI input ⑪DC input (12V)
RX
①POWER LED ②Power switch ③1/4inch screw hole
④ SDI output ⑤ DC input (12V)
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑦
②
③
④
⑤
③
Setup and Operation
1) Mount the TX onto camera by using mounting adaptor then attach
the supplied antenna to TX. Connect the SDI cable between camera
and TX then connect the supplied DC cable between the DC IN of
TX and D-TAP connector on battery or P-V plate.
2) Plug in an AC adapter to RX and, then, connect between SDI out of
RX and monitor.
3) Turn ON the power switch of both TX and RX then CW-3 will
automatically starts searching for available frequency.
4) A LINK LED flashes when the system is in search mode and then
turns SOLID as soon as system links firmly.
5) A VIDEO LED turns off when video signal is in lost or failed.
Note
The feature as wireless transmitting and receiving can only be acti-
vated when the CW-3 connects to other related wireless receiver.
In the areas where other 5GHz wireless devices are in operation,
transmission may be interrupted.
CW-3 is programmed region code accordingly so that the transship-
ment and use in the unspecified region may violate local law.
The maximum transmission range varies depending on the sur-
rounding environment such as radio wave conditions, composition of
the wall, weathering, etc.. therefore the specification of the trans-
mission range is not a definite range.
And unstable signal reception may be caused by the height, angle
and distance between TX and RX.
Please do not press the button on the TX and RX. Please turn the
power off if the system stop working after accidentally pressed these
buttons.
DFS Functions
DFS is the abbreviation of “Dynamic Frequency Selection”. DFS de-
tects the radio waves of weather radar and the CW-3 automatically
searches for an available frequency to avoid interference. LINK TIME
takes approximately one minute.
Using GPI output
A TX provides GPI output. GPI output is an open collector output in
synchronization with the status of wireless link. Thus, now it is possible
to interface with an external tally device for better viewing. Please note
that the external tally device should be VCC 24V/40mA or less.
Specifications
Warranty & Service
Warranty period of the CW-3 is two years after purchase.
Warranty may be voided even within the warranty period when
IDX noticed followings:
Improper use of CW-3 / Malfunction due to excess or defi-
ciency of power / Malfunction due to power short circuit /
Physical damages caused by dropping or vibration / Mal-
function due to water / Unauthorized used and/or modifica-
tion done by customer
When any assistance is needed, please contact your local IDX
dealer or appropriate IDX office below.
VCC
Tally
LED
CW-3
GPI output
External device
Max 24V
Max 40mA
3.5φ mini jack
1
2
GND
Open collector
output
3.5φ mini plug
(2P)
12
FOR US version
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions; (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FOR EU version
This equipment is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC. In order to
obtain the declaration of conformity statement for the European
Union countries, please contact the appropriate IDX office.
①
Signal standard
Audio
Frequencies
Channle bandw idth
Transmission distance
Transmission format
Antenna
Coding
Link mode
Search Blink
Linked
Light on
Video balid
Light on
Viode fail
Light off
Pow er on
Light on
Pow er off
Light off
BNC x1 (SDI input)
BNC x1 (SDI buffered output)
Dock
BNC x1 (SDI output)
3.5φ mini jack
Open collector output
MAX 24V 40mA
DC input Pinjack 5.5φ x 2.1φ
Transmitter
109.2(W)x68.8(D)x25.4(H)mm
Antenna
108.0(W)x10.0(D)x10.0(H)mm
Dock
119.0(W)x73.5(D)x25.0(H)mm
Transmitter
150g
Dock
115g
Input voltage
Transmitter
8W (MAX)
Dock
10W (MAX/Include a CW-1 RX)
Operating temperature
Video
SMPTE 424M Level A
SMPTE 292M, SMPTE 259M
Video format
3G: YCbCr 4:2:2 10bit
1080p 60/59.94/50Hz
HD: YCbCr 4:2:2 10bit
1080i 60/59.94/50Hz
1080p 30/29.97/25/24/23.98Hz
720p 59.94/50Hz
SD: 525i/59.94Hz, 625i/50Hz
VIDEO LED
External x2
SDI Embedded Audio
Wireless transm ission (Transm itter)
US: 5270, 5310, 5510, 5550, 5670MHz
EU: 5510, 5550, 5670MHz
40MHz
50m / 150ft (outdoor LOS)
MIMO/OFDM/JSCC
AES 128bit encryption
UNICAST
Indication and Operation
LINK LED
0～40℃
POWER LED
Connectors
Video input/output Transmitter
GPI output Transmitter only
Product specificatoin
Dimenstions
Weight
DC 12V
Pow er consumption
Regulation /
Certification
Transmitter
CE: EN 62311:2008
EN 301 893, EN 301 489-1, EN 301 489-17
EN 65950-1:2006+A11:2009+A1:2010+A12:2011
FCC: Part15 subpart E (15.407)
RoHS compliant
* see page 2
