IDY IR700B-WW Wireless M2M Router User Manual

IDY Corporation Wireless M2M Router

User manual

Wireless M2M Router iR700B
Delivery Specification
Version 1.4
Systena America, Inc.
iR700B Delivery Specification
-1-
SYSTENA AMERICA INC. CONFIDENTIAL
1. Scope
This specification document applies to the wireless M2M router (model name: iR700B
series) delivered by IDY Co., Ltd. (Eye-Dee-Why).
2. Overview
This product is a 4G-WiFi wireless M2M router for business using 4G wireless
communications modules such as LTE and WiMAX2+, as well as 3G and PHS wireless
communication module.
By using mini PCI-Express card slot for the internal interface, it is possible to equip with
every type of wireless WAN certified communications module, including 4G LTE, WiMAX2 +,
3G HSPA, and PHS.
The list of available communications modules includes not only full and half-size mini
PCI-Express cards, but through the use of a conversion adapter, M.2 (NGFF) standard
modules can be installed as well.
Also, by equipping with RS232/RS485 interface compliant serial data D+/D- terminal, WiFi,
and Ethernet, you can connect the router directly to existing equipment.
3. Constitution
This product will be configured as follows.
1) iR700B Main Body
2) Wireless WAN communication module (* 1)
a. This will be built into Main Body at our factory.
3) Antenna
a. Antenna for WiFi x 1
b. Wireless WAN antenna (* 2)
4) AC adapter
5) Rubber foot x 4
(*1) Wireless WAN communication module can accommodate selection of communication
network in accordance with your application.
Router is compatible with both full and half-size cards.
The customer must provide the SIM card for the communications module.
Please contact us to request our recommendation of SIM cards.
(*2) Depending on communications card, 1 or 2 Wireless WAN antennae may be required.
The included antennae are certified as a set with the communications module. Please
be sure to use with the included antennae.
iR700B Delivery Specification
-2-
SYSTENA AMERICA INC. CONFIDENTIAL
4. Specification
Item
Specifications
Remarks
Remarks
CPU:MIPS24KEc (580MHz)
SPI FLASH:8MB
DDR2 SDRAM:64MB
RALINK MT7620A
LED display
WiFi LED upper x1
green
wireless LAN status display
WiFi LED low r x1
blue / red
for extension (not used)
WWAN LED upper x1
green
wireless WAN status display
WWAN LED low r x1
blue / red
wireless WAN receiving electric field intensity
display
STAT LED x1
orange
body status display
PWR LED x1
green
power indicator
LAN/WANx1, LANx3
green
wired LAN status display
Wireless WAN
LTE
ASKEY module
Telit module
Each communication module is certified.
Please refer to the attachment for a detailed
specification of the communication module,
such as support band.
Model number is different for each module.
3G
ASKEY module
u-blox AG module
Telit module
PHS
ABIT Corporation
module
WiMAX2+
Shinsei Corporation
module
WiFi
IEEE802.11b/g/n(1T1R)
construction design certification (TELEC)
acquired
SSIDx2 (standard)
can be up to eight by the options
Security
No security encryption
WPA
WPA2
WPA/WPA2
SSID notification (enable / disable)
MAC address filtering
WPA encryption scheme
TKIP、AES、authentication method: PSK
WPA2 encryption scheme
TKIP、AES、TKIP/AES、authentication
method: PSK
WPA/WPA2 encryption method
TKIP、AES、TKIP/AES、authentication
method: PSK
Router function
address translation
Firewall function
Dynamic DNS
NAT,NAPT(IP masquerade)
Port forwarding, virtual DMZ
DDNS
WWAN monitoring
function
LTE
3G
PHS
WiMAX2+
Monitoring method is different by each
communication module.
iR700B Delivery Specification
-3-
SYSTENA AMERICA INC. CONFIDENTIAL
Item
Specifications
Remarks
Front
Interface
USB
USB2.0 Host(High-Speed USB compatible)
Micro SD
SDHC/SDXC compatible
Reset button
The body of the reset and initialized (factory)
during use
Rear
interface
DC 5V jack
Connect the AC adapter of the body attached
RS232 / 485 (silver RJ-45) x 1
Use the option of a dedicated conversion
cable
(RJ-45 to D-sub 9-pin conversion cable)
It can be used as a RS232C or RS485
LAN / WAN combination, LAN dedicated port
(Black RJ-45) x 4
4 ports can be used as LAN or 3 ports can be
used as LAN and 1 port can be used as WAN.
DIOx1
By customizing the software of external
devices data input, it can be used for the
output of the control signal.
Mode button
By customizing the software, it can be used as
any of the function buttons.
Side
interface
For wireless WAN antenna
SMA connector (Receptacle / Normal-Type)
Depending on the number of antennas is 1 or
2.
* Waterproof external antenna options are
available.
SMA connector for WiFi antenna (Receptacle /
Reverse-Type)
2.4GHz support of WiFi antenna
Bottom
interface
SIM slot x 1
* It becomes the inside of the screwing cover
Micro SIM
*Standard size SIM can be available as an
option
DC 5V power input
Rated voltage DC 5V ± 5% (@ load current 0 ~
3.0A)
ripple voltage not more than 200mVp-p
More than DC5.5V voltage (overshoot,
that surge, etc.) is not applied.
AC adapter
Input: AC100V-240V, 50 / 60Hz
Output: DC5V 3A
PSE acquisition
Power consumption
Operation: 5W (max)
During use of Wireless WAN, WiFi, WAN, or
LAN,
It will differ by each communication module.
External dimensions
vertical 76x horizontal 121x high 25 (mm)
excluding protrusions
Mass
275g
A communication module is not included.
Operating
temperature range
0 ℃ ~ 50 ℃ (body)
AC adapter is not included.
Storage
temperature range
-20 ℃ ~ 70 ℃
Humidity range
10% to 95% (with no condensation)
*Please contact us for information about customizing the software.
iR700B Delivery Specification
-4-
SYSTENA AMERICA INC. CONFIDENTIAL

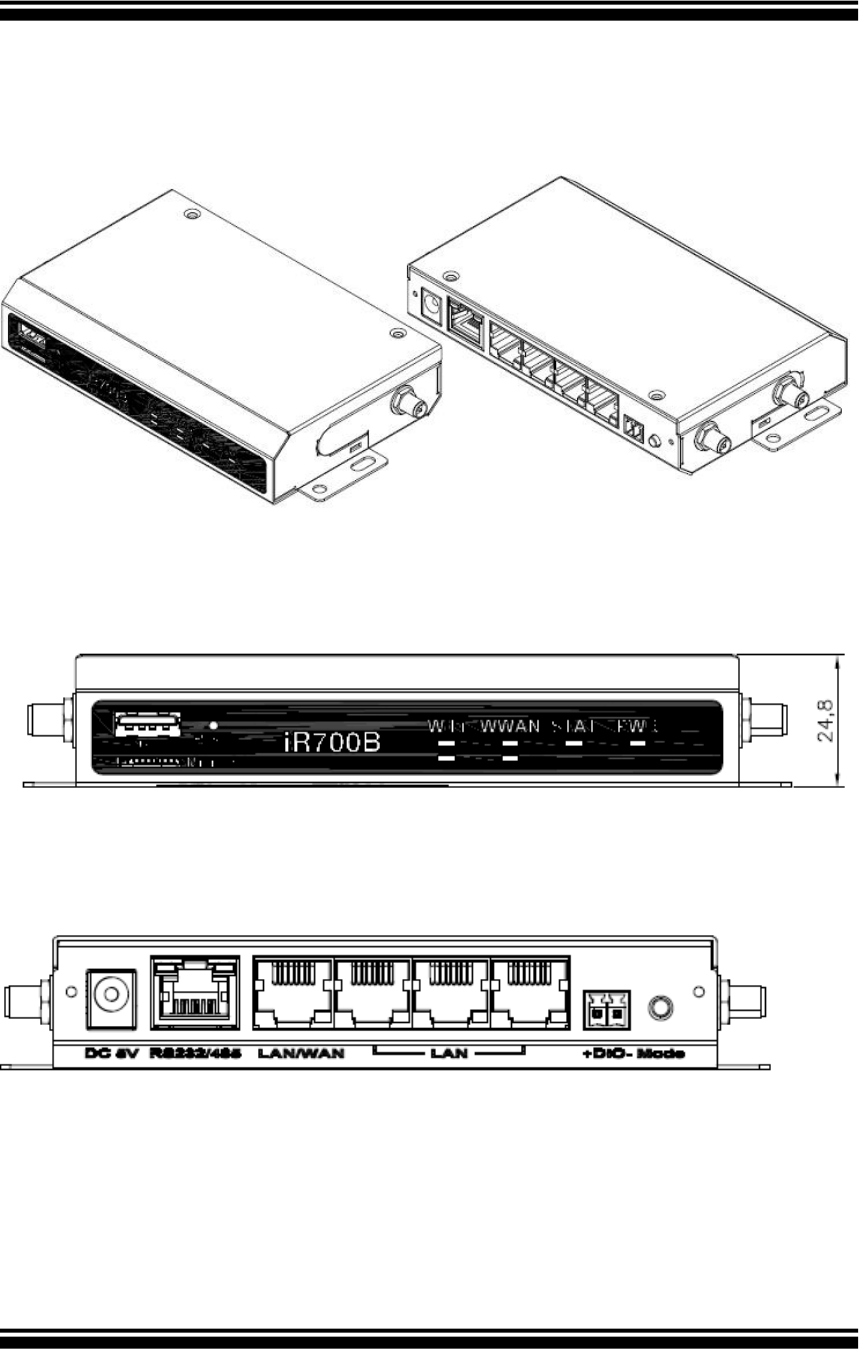

5. External view
- Overall Appearance -
- Front View -
- Rear View -
iR700B Delivery Specification
-5-
SYSTENA AMERICA INC. CONFIDENTIAL
- Right View –
- Left View -
- Top View -
iR700B Delivery Specification
-6-
SYSTENA AMERICA INC. CONFIDENTIAL

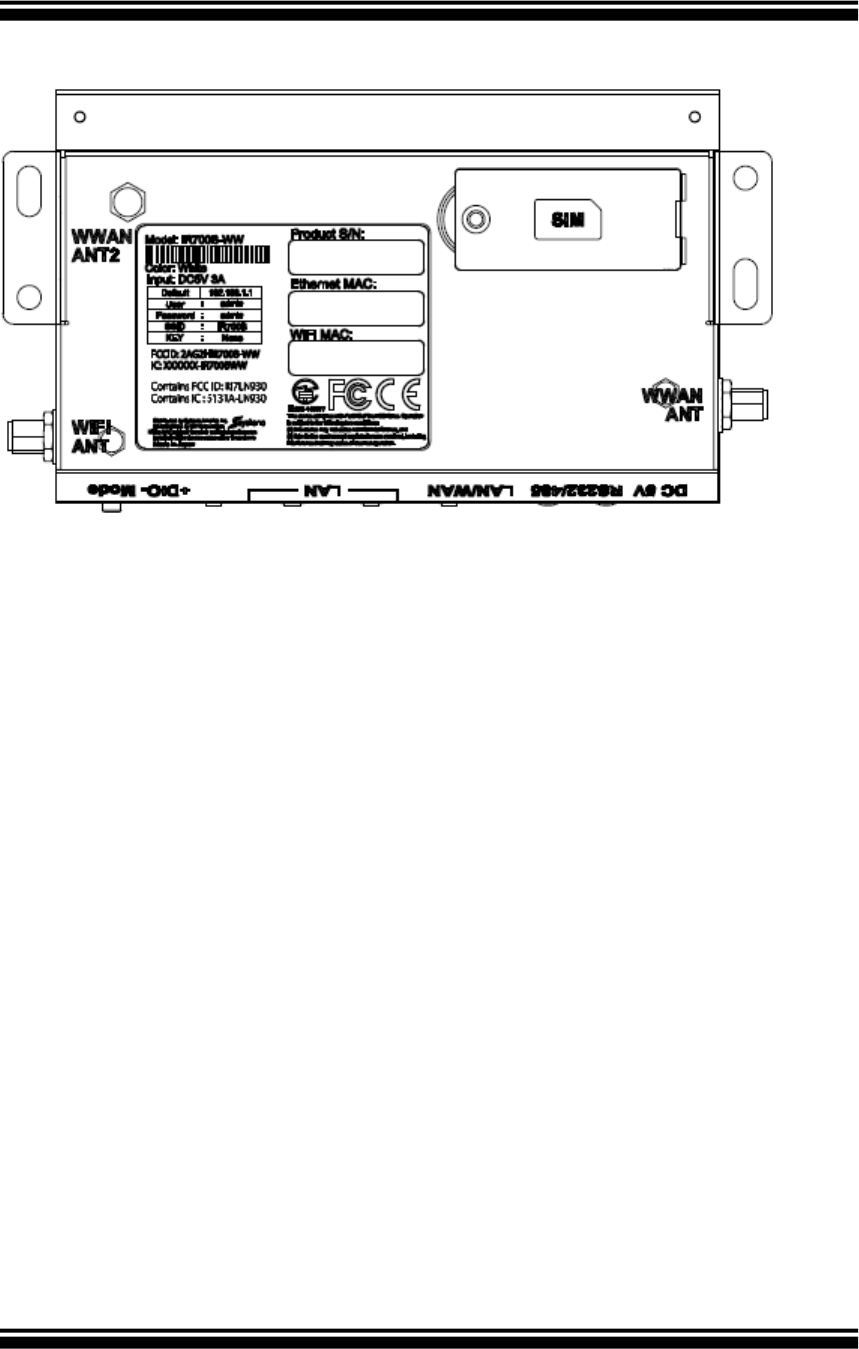

- Bottom View -
iR700B Delivery Specification
-7-
SYSTENA AMERICA INC. CONFIDENTIAL
6. Packaging Specification

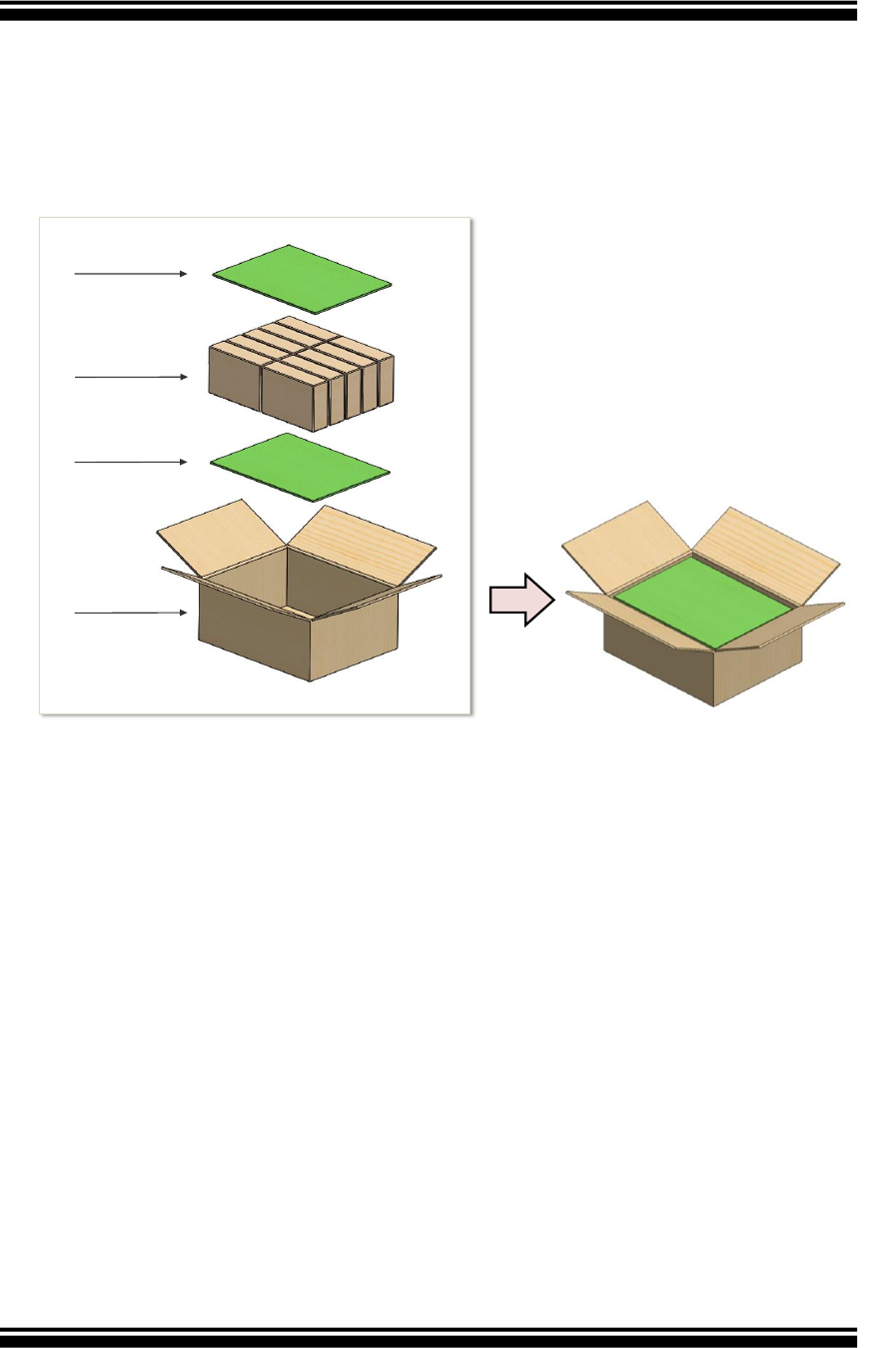

6-1. Carton Composition
iR700B Delivery Specification
-8-
SYSTENA AMERICA INC. CONFIDENTIAL

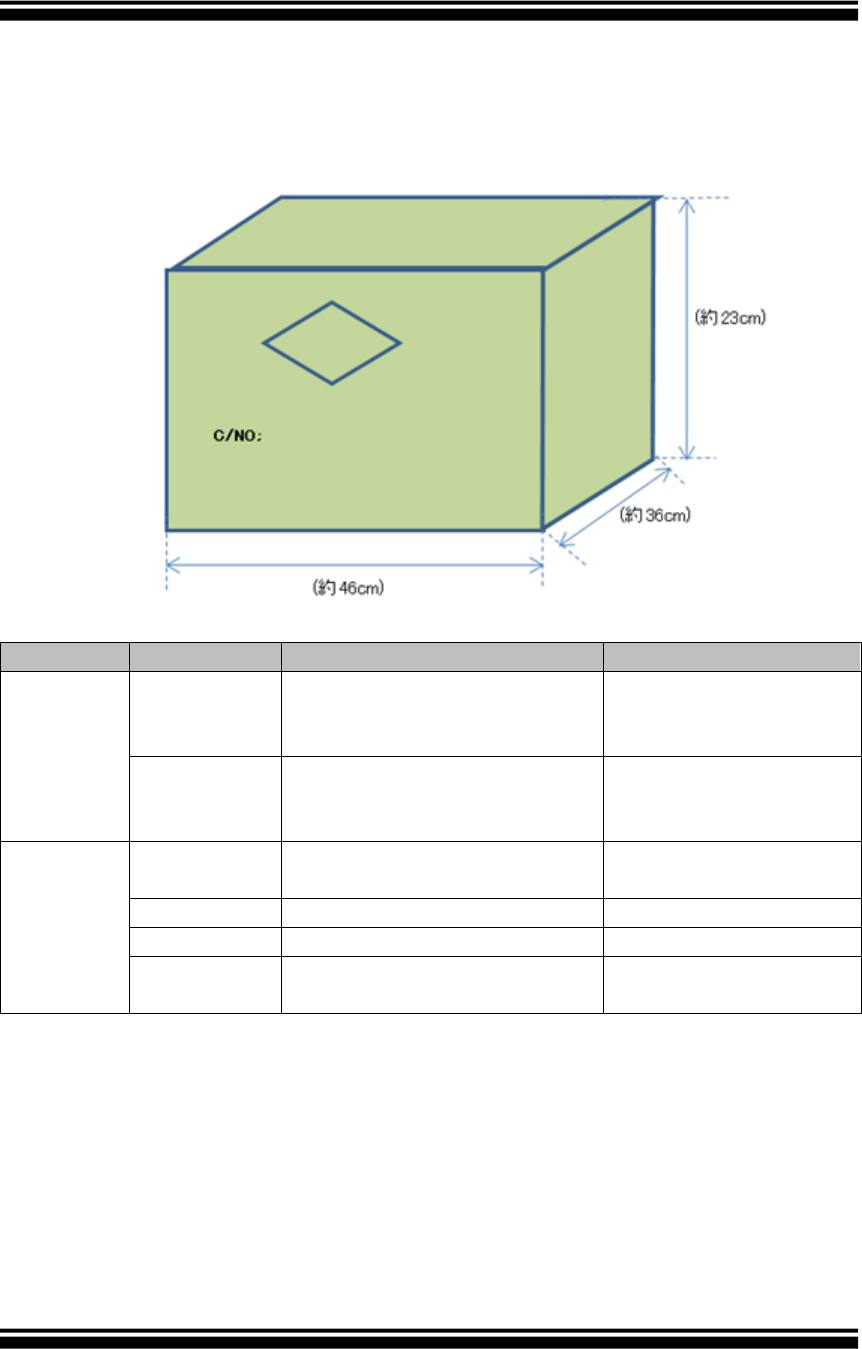

6-2. SHIPPING MARK
Our company’s standard SHIPPING MARK is stamped on the outer carton.
If you have a specific request [for markings], please inform us when placing your order.
Side
Items
Marking
Note
Shipping
Mark
Carton No.
C/NO: n-mm
<n>th item in master carton
<mm>. (Printed on carton, or
written on label.)
Country of
Manufacture
MADE IN XXXXX
Country of Manufacture is
sometimes changed. (Printed
on carton, or written on label.)
Care Mark
Product Name
MODEL: iR700B
(Printed on carton, or written
on label.)
Quantity
QTY : 10 PCS
Total Weight
G.W. :
(10pcs/7.6kg)
Carton
Dimensions
MEAS:
46 X 23 X 36 cm
iR700B Delivery Specification
-9-
SYSTENA AMERICA INC. CONFIDENTIAL

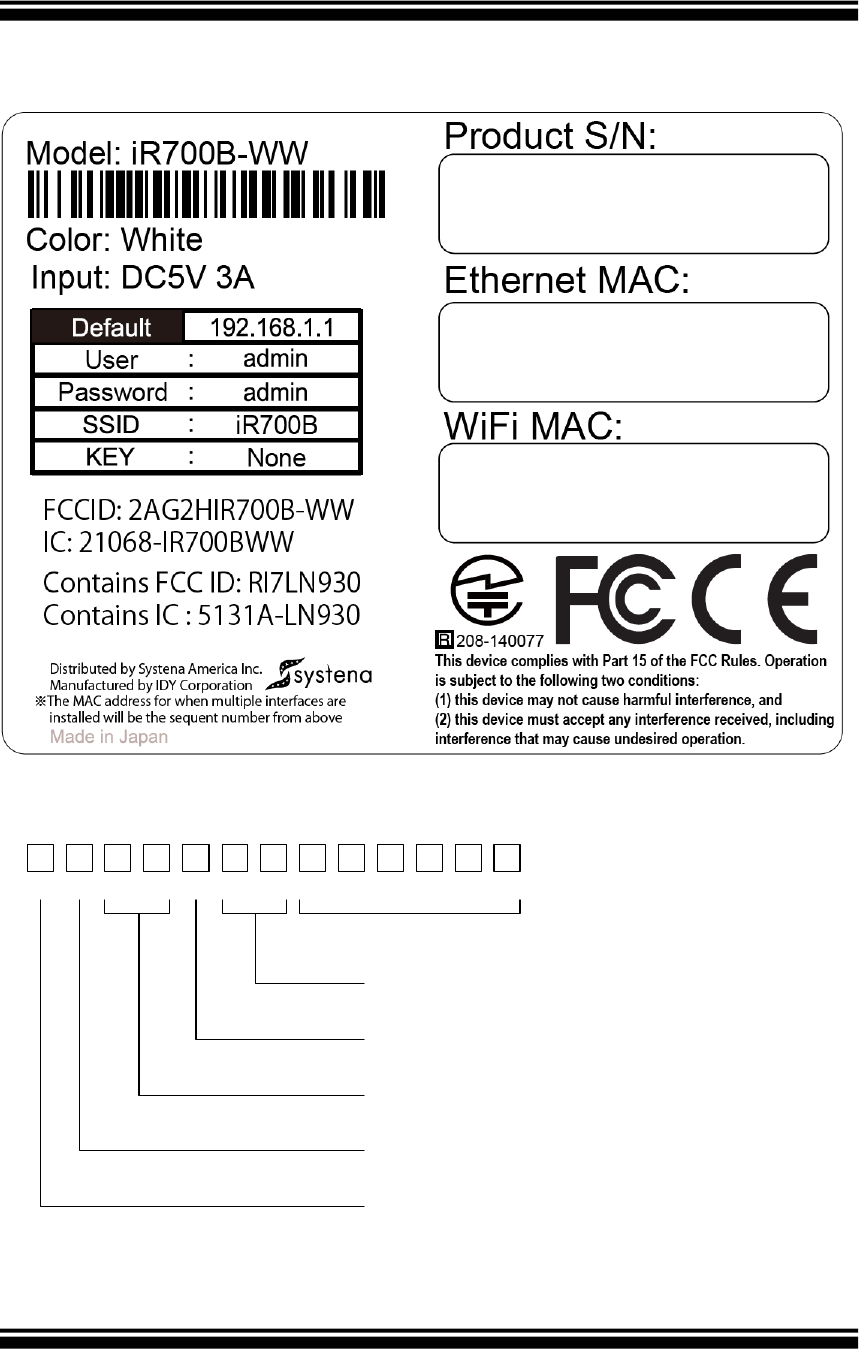

7. Label Specification
Below is the explanation of the product label on the bottom surface of the main body.
7-1.S/N: Serial Number
Serial Numbers are assigned according to the code below.
(*1) Model Number:11 (11 is for iR700B standard model. For customized models, a different number is
allocated.) (*2) Factory ID: Fixed as 0.
0 10 000052B
Product Serial Number
(000001 - 999999)
Day of Producted Date
(0 - 31)
Month of Producted Date
(1 - C)
A:Oct, B:Nov, C:Dec
End Digit of A.D.
(0 - 9)
Factory Number
(0 - 9)
000
Model Number (00 - 99)
iR700B Delivery Specification
-10-
SYSTENA AMERICA INC. CONFIDENTIAL
7-2.Ethernet MAC:MAC address
Device is shipped with IDY MAC(1C:06:56:xx:xx:xx).
If you need a specific MAC address, please provide it when placing your order.
7-3.WiFi MAC:MAC address
Device is shipped with IDY MAC(1C:06:56:xx:xx:xx).
If you need a specific MAC address, please provide it when placing your order.
7-3.WiFi Manufacture Design Certification Number
For this product, it is “208-140077”.
7-4.Manufacture Design Certification Number for Wireless WAN Communications Module
For type with Wireless WAN Communications Module: Displayed on communications
module inside main body
For type without Wireless WAN Communications Module: No Manufacture Design
Certification Number.
iR700B Delivery Specification
-11-
SYSTENA AMERICA INC. CONFIDENTIAL
8. Shipping Inspection
Test Environment:Temperature 15~30°C, Humidity 50~80% RH
Power setting: Voltage 5V±5%, Current limit depends on Communications module (*)
Product condition: SIM card, WiFi/WWAN Antenna equipped
8-1.Inspection Items
Category
Item
Inspection Detail
Judgment Criteria
Electrical Inspection
Power-up
Initial Power-up
After feeding power, device able to power up.
LED Display
WiFi LED Upper
Green: Blinks 20 seconds after feeding power
WiFi LED Lower
Blue: Illuminated up to 15 seconds after feeding power.
Red:
WWAN LED Upper
Green: Illuminated 20 seconds after feeding power.
WWAN LED Lower
Blue: Illuminated up to 15 seconds after feeding power.
Red:
STAT LED
Orange: Illuminated 15 to 60 seconds after feeding power.
PWR LED
Green: Illuminated while feeding power.
LAN/WAN, LAN x 3
Green: Illuminated by LAN cable connection with PC.
WiFi
Wifi Connection
Able to connect to PC via Wifi
WWAN
SIM Card
Able to read SIM phone number.
Communication
Module
Main Body-Communications between Comm. Modules: Able to
read IMEI
Coaxial connection: No anomalies when checking RSSI values on
Live Network
USB
USB Memory
Access
Able to Write/Read to connected USB drive
Micro SD
Micro SD Card
Access
Able to Write/Read to inserted Micro SD
AC Adapter
Power Transmission
Able to connect to iR700B main
body & operate.
FW Version
Read via Inspection Tool
Has correct Firmware
MAC Address (WLAN/LAN/WAN)
Read via Inspection Tool
Correct value/No duplication
IMEI Check
While checking Comm.
Module
Correct value
iR700B Delivery Specification
-12-
SYSTENA AMERICA INC. CONFIDENTIAL
External Appearance
Shape
Dents, Welds
Per our external appearance
standards
Scratches
Length, Depth
Per our external appearance
standards
Printing
Stains, Fading
Per our external appearance
standards
*Current consumption limit value differs based on Communications module.
Example: ASKEY Computer Corporation LTE module : 1000mA Shinsei Corporation WMAX/WIMAX2+ module:
1500mA
iR700B Delivery Specification
-13-
SYSTENA AMERICA INC. CONFIDENTIAL
Exhibit.1
iR700B-WW Product Composition Chart
Included Items
Model No.
Qty
Notes
1
iR700B Main Body
iR700B-WW
1
2
LTE Antenna
W50-S-V3-I
2
3
WiFi Antenna
AN2400-5510RS
1
4
AC Adapter
SWI18-5-N
1
DOE Level 6, 5V 3A
5
LTE Communications
Module
Telit LN930
1
Built into the iR700B Main Body
iR700B Delivery Specification
-14-
SYSTENA AMERICA INC. CONFIDENTIAL
Exhibit.2
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF exposure
compliance. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
iR700B Delivery Specification
-15-
SYSTENA AMERICA INC. CONFIDENTIAL
Exhibit.3
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection
of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Contact Us
Systena America, Inc.
1660 S. Amphlett Blvd., Suite 114
TEL: +1 (650) 346-6531

Navigation menu
