SECTION 1: THEORY OF OPERATION
402004 Page 4
GENERAL BLOCK DIAGRAM
General Block Diagram Definitions
For increased data security, the modem supports the U.S. Government developed Digital Encryption
Standard (DES) data encryption and decryption protocols. This capability requires installation of third-
party IP compliant DES encryption and decryption software.
The standard IPSeries base station circuit board contains five (5) main sections defined below:
Input/Output Circuitry associated with one of the following base station’s data
connectors:
RS232 Serial Port DB9 Data Connector
RJ45 Ethernet 10 Base T Interface Connection
System Controller Houses the modem, diversity, and Ethernet circuitry. Manages the
operation of the base station’s modem providing transmit timeout
protection in the event a fault causes the base station to become
halted in the transmit mode. The system controller also handles the
loading of selected transmit and receive frequencies into the injection
synthesizer. Includes memory for storage through Electrically
Erasable Programmable Read Only Memory (EEPROM) of the base
station’s operating parameters, which are retained after the base
stations power is cycled off.
![](/img.php?id=402004&img=bg5.png)
SECTION 1: THEORY OF OPERATION
402004 Page 5
Modems Convert data into an analog audio waveform for transmission and
analog audio from the receiver to serial data interface. There is one
(1) modem that is dedicated to the transmit operation and two (2)
modems dedicated to the receive operation. The modem dedicated
to the transmit supports a 115.2 KBPS data transmission rate on the
serial port, SLIP protocol, and a 32 KBPS over-the-air data
transmission rate. Provides Forward Error Correction (FEC) and
Error Detection (CRC), bit interleaving for more robust data
communications, and third generation collision detection and
correction capabilities.
Diversity Reception Circuitry selects one of three (3) diversity receiver audio outputs for
processing by the modem by comparing the Received Signal
Strength Indication (RSSI) output from each receiver. Audio from the
receiver with the highest RSSI value is passed to the modems.
RX Injection The Injection Synthesizer board provides a highly stable local
oscillator signal for the three (3) receivers. This displays a serial
data input/output interface, synthesizer, and VCO.
Transmitter Consists of an exciter and a power amplifier module covering various
frequency bands in segments. A different power amplifier module is
required for each segment. The transmitter power control is included
with the power supply circuitry on the same board.
Receiver 1/Receiver 2/ Uses three (3) discrete receivers tuned to the same frequency.
Receiver 3 The three (3) receivers are required to support IPMobileNet’s base
station Diversity Reception System (DRS).
NOTE: Some installations use only two (2) receivers.
The receivers are double-conversion superhetrodynes with an
Intermediate Frequency (IF) of 45 MHz. Each receiver consist of
bandpass filters, RF amplifiers, a mixer, 45 MHz crystal filter, and a
one-chip IF system. The injection synthesizer provides the first local
oscillator signal and outputs from each receiver including RSSI and
analog audio for Diversity Reception.
Power Supply Power supply circuitry derives the various operating voltages
required by the base station. Fixed voltage regulators are employed
through the base station for this purpose.
![](/img.php?id=402004&img=bg6.png)
SECTION 1: THEORY OF OPERATION
402004 Page 6
B32150-25 Base Station Section Descriptions
System Controller
This section displays the Central Processing Unit (CPU)(U1), clock, and power-on reset circuitry. It
provides more processing power than required for future capabilities to be incorporated without changing
processors. Such capabilities include data encryption/decryption (DES) and remote fault monitoring. U1
features a 16-bit address bus and 128K of internal flash random access memory (RAM).
NOTE: To enter the programming mode it is necessary to reset the switch (S1) and power up again.
CPU operations are controlled by Y3 an 18.432 MHz clock module. Capacitor (C1) and an internal
Schmidt trigger circuit inside of U1 generates the power on reset signal. The RESET* output from U1
drives a latch and decoder found elsewhere on the board.
This section displays the RAM, decoder, EEPROM, and programming power supply circuitry. U2 is a
512K x 8 bit static RAM chip, which provides temporary storage of base station configuration data while
the power is on. This is necessary in order to program the base station. U2 is controlled directly by the
address, data, and control busses from the CPU.
Chip U5 decodes the A11-A14 address bus to provide chip selects for the modem and EEPROM
memory. Chip U6 is an 8-bit latch. It latches inputs from the D0-D7 bus and lights the front panel status
indicators (TX, CD, RX1, RX2, and RX3).
Chip U3 is a serial EEPROM, which provides 2K bits of pre-programmed data storage for the CPU. Data
is clocked out of U3 by EECLK, and back into the CPU via EEDATA.
A programming power supply is required for the flash RAM inside of the CPU, and this function is
performed by U4. This chip is a low dropout voltage regulator with a shutdown control. Resistors R22
and R21 set the output voltage. When the base station configuration data is to be stored in flash RAM,
the CPU makes VPP_ENABLE high. This turns on the regulator, producing a 12-volt output via VPP for
the flash RAM.
This section displays a dedicated processor and voltage regulator. Chip U7 is a processor, which permits
manual keyboard operation of the base station. Regulator VR2 provides 5 volts DC power for all logic
circuitry on the System Controller Board.
Input/Output
This section displays the CPU input/output circuitry. Chip U8 is an RS232 transceiver, which interfaces
the CPU to the modem via J1. From there, the RS232 data goes directly to a rear panel DB9 connector.
U8 converts 5-volt logic-level data to +/-12 volt data in RS232C form, and vice-versa. A charge pump
power supply on the chip converts the +5 volt DC power to the +/-12 volt levels required. The charge
pump uses capacitors (C28 to C31) to generate voltages.
NOTE: The RS232 serial port data transmission rate of the base station is 115.2 KBPS.
Modem Switching
This section displays the connector wiring and modem switching circuitry. Connector J7 is routed to the
front-panel TX, CD, and RX1-RX3 LED indicators. The base station will also accept modulation from an
external source (modem or amplified microphone audio). Transmission gate U10A switches this signal
source.
![](/img.php?id=402004&img=bg7.png)
SECTION 1: THEORY OF OPERATION
402004 Page 7
Modem
This base station uses separate modems for receive and transmit functions so that full-duplex operation
may be obtained. The A0-A1 address bus in addition to the individual read (RD*), write (WR*), and chip
select (MODEMTXCS*) lines control all three (3) modems. Modem operations are timed by Y2, an 8.0
MHz clock module.
Modem chip U14 is dedicated to the transmit operation. Data from the D0-D7 bus is read by the chip,
and then converted to a 4-level FSK analog signal, which appears on the TXOUT pin. Op amp U21B
buffers the signal, which becomes the MODEM_TXMOD output. From this point, the signal is routed to
the modulation circuitry on the Exciter Board.
Chip U14 has the ability to demodulate receiver audio, although this capability is not used in most
systems. Incoming data-bearing audio from the Diversity Reception circuitry (and selected receiver)
appears at DISC_AUDIO. The signal passes through resistor R54 and into the modem chip. Resistor
R52 and capacitor C41 serve as feedback elements, limiting both the gain and bandwidth of an amplifier
within U14. The modem chip demodulates the audio into 8-bits of data, which exit U14 on the D0-D7 bus.
Chip U14 also provides a bias voltage for the analog circuitry on the Exciter Board. This voltage is about
2.5 volts DC, and it appears on the VBIAS line. The purpose of VBIAS is to bias the Exciter Board analog
circuitry for proper operation. Please note that if this voltage is low or missing, the Exciter Board circuitry
may not work.
Modem chip U15 is dedicated to the receive operation. Incoming data-bearing audio from the Diversity
Reception circuitry (and selected receiver) appears at DISC_ AUDIO. The signal passes through resistor
R56 and into the modem chip. Resistor R55 and capacitor C46 serve as feedback elements, limiting both
the gain and bandwidth of an amplifier within U15. The modem chip breaks down the audio into 8 bits of
data, which exit U15 on the D0-D7 bus.
Modem chip U16 is also dedicated to the receive operation, although it may not be used in this
application. The operation of U16 is exactly the same as U15.
Receive Signal Strength Indication Comparator
This section displays the RSSI comparator circuitry. A series of comparators (U20BCD) simultaneous
compare RSSI1 to RSSI2, RSSI2 to RSSI3, and RSSI1 to RSSI3. Within this process eight (8) possible
results are then forwarded by the comparators to a series of NAND gates (U18ABC), which reduce the
number of results to three (3) and translates the results for an analog multiplexer (U19A). To determine
which of the three (3) results is the strongest, the following needs to occur:
For Receiver 1 to be selected as the strongest signal, both input pins on the NAND gate (U18D) must
go high (driving pin 7 of U19A). If Receiver 1 has the strongest signal, a light emitting diode
(LED)(D1) lights indicating Receiver 1 was selected.
For Receiver 2 to be selected as the strongest signal, the inverter (U17B) must go high (driving pin 6
of U19A). If Receiver 2 has the strongest signal, D2 lights indicating Receiver 2 was selected.
For Receiver 3 to be selected the strongest signal, the inverter (U17C) must go high (driving pin 5 of
U19A). If Receiver 3 has the strongest signal, D3 lights indicating Receiver 3 was selected.
SEL_RSSI is the output selected with the strongest signal. When RSSI voltage exceeds a threshold,
another LED (D4) lights. As the other three (3) LEDs, this circuit is intended as a diagnostic tool. It
provides a go/no go indication that an RF signal has been received. A pot (R74) sets the turn-on voltage.
![](/img.php?id=402004&img=bg8.png)
SECTION 1: THEORY OF OPERATION
402004 Page 8
Baseband
This circuitry amplifies the audio from each receiver, routes it through a RF multiplexer, and selects the
audio from the receiver with the highest RSSI value. The comparator circuit on the previous sheet
controls it.
There are three (3) channels of audio, with separate gain and DC offset adjustments to compensate for
performance differences in the receivers. For example, incoming audio from receiver 1 appears at
AUDIO 1. An op amp (U12D) is then amplifies the audio. A pot (R72) adjusts the gain, while another pot
(R57) adjusts the DC offset on the output. The amplifier output passes through a RF multiplexer (U19B),
then drives a low pass filter (U9) through another op amp (U12A) and through the AUDIO_OUT line,
which goes to a switch (S3) and to pin 4 of a connector (J3).
The remaining audio circuits work in the same manner.
The output from U19B also appears on DISC_AUDIO, which goes to the CPU (U1) and from there the
audio is demodulated by the modems.
Receiver Board
Please be aware that the base station uses three (3) identical receiver boards. As a result, the circuitry
will be described only once.
Front end. Incoming signals pass through a SAW filter (FLT1). The desired signals are amplified by U2
and additional selectivity is provided by a monolithic SAW filter (FLT2). Another amplifier (U1) further
amplifies the signal and the output pass through two (2) crystal filters (FLT4 and FLT5).
IF Amplifier
The incoming 45 MHz signal goes to U3 a super heterodyne IF subsystem. Inside the chip, the signal is
applied to a mixer. The mixer also accepts a 44.545 MHz local oscillator input. The local oscillator
consists of an internal amplifier, plus crystal (Y1) and associated components. The mixer output passes
through FLT6, a 455 KHz ceramic IF filter. It is amplified, passed through ceramic filter (FLT7), and on to
a second IF stage. The IF output drives a quadrature detector. The recovered audio appears at pin 9,
while RSSI appears at pin 7.
Within the RSSI circuitry, chip U3 uses a detector, which converts the AGC voltage generated inside the
chip into a DC level corresponding logarithmically to signal strength. RSSI is used by Diversity Reception
on the System Controller to select the receiver with the highest quality signal.
A filter consisting of a resistor (R14) and a capacitor (C32) provides high frequency de-emphasis for the
audio. The audio is buffered by op amp U4A. From there the AUDIO output line goes to a connector, for
hookup to Diversity Reception on the System Controller Board.
Resistor (R15) and capacitor (C33) provides RF filtering for the DC RSSI voltage. The RSSI is buffered
by op amp U4B. From there the RSSI output line goes to a connector, for hookup to Diversity Reception
on the System Controller Board.
Several sets of 455 KHz IF filters (FLT6 and FLT7) are available to suit receiver selectivity
requirements. Should replacement of these filters be required, exact replacement parts must be used.
![](/img.php?id=402004&img=bg9.png)
SECTION 1: THEORY OF OPERATION
402004 Page 9
Receiver Injection
This displays a serial data input/output interface, synthesizer, and VCO. The I/O interface circuitry
accepts clock, serial data, and enable signals from the System Controller Board via terminal block TB1. A
lock detect (LD) status output is returned to the System Controller Board from the synthesizer. U1 is a
hex Schmidt Trigger inverter, which squares up incoming signals for reliable operation of the synthesizer
chip. This is necessary because of a cable run between the two (2) boards.
The main section of this board is synthesizer chip (U2). The device contains the key components of a
phase locked loop (PLL), including a 1.1 GHz prescaler, programmable divider, and phase detector. In
operation, the desired frequency is loaded into U2 as a clocked serial bit stream via the CLK and DATA/I
inputs. The lock detection circuitry consists of inverters U1E/U1F, diode CR1, and resistor R4. When the
synthesizer is in lock, the LD pin on U2 is high, making the LD output on terminal block TB1 high. The
EXC LD input on TB1 routes the lock detect output from the Exciter Board through diode CR1, and out
through LD. This configuration tells the CPU on the System Controller Board that it is acceptable to
process received data, or to key the transmitter when LD is high. Otherwise, if a fault in either synthesizer
prevents a lock, receive and transmit operation will be inhibited.
Other items of interest include a programming switch and serial data output. Switch (JMP1) may be used
to program the firmware configuration inside chip U2. The system controller board performs programming
so a jumper is installed in the LNVCC (operation) position instead. The EXT DATA output on block TB1
sends frequency programming data to the transmitter synthesizer on the Exciter Board.
The injection signal is generated by module U7. This device is an RF oscillator with buffered outputs.
The voltage is generated by the phase detector output (PD/O) of U2, which drives a loop filter consisting
of R5, C8, C5, R3 and C9. The filter integrates the pulses, which normally appear on PD/O into a smooth
DC control signal for the oscillator.
This section displays the DC power supplies, frequency reference, and RF output circuitry. Regulator
VR1 provides 9 volts DC for U7, and RF amplifier (U6). Regulator (VR2) provides a low noise 5-volt DC
output for inverter (U1), synthesizer (U2), and reference (Y1).
Reference module (Y1) provides a high-stability 10 MHz reference frequency. Y1 is a voltage controlled,
temperature controlled crystal oscillator (VCTCXO). This device also has a VC input which accepts a
control voltage from pot R10. The pot permits a slight shift in the reference frequency which enables the
three (3) receivers to be tuned precisely to the assigned receive frequency. A diode (CR2) provides
additional voltage regulation, improving the frequency stability of reference Y1.
The RF output circuitry consists of RF amplifier (U6), and power splitters (U5, U3, and U4). U6 increases
the signal level to correct for losses in the splitters. The splitter U8 provides two (2) RF outputs. One
output drives splitter U5, which provides local oscillator injection for receivers 2 and 3. The other output
drives splitter (U4), which drives receiver 1 and the PLL_FEEDBACK input on chip U2.
Exciter Board
This section displays the input/output interface, transmitter keying, and power supply circuitry. The
input/output interface is built around terminal block (TB1) and Schmidt Trigger inverters (U2). Incoming
clock, serial data, and chip select signals on block TB1 are squared up by U2. Then they are sent to the
appropriate inputs on the transmitter synthesizer (U9). The EXCDATA source comes from the receive
synthesizer on the Injection Synthesizer Board. A Schmidt Trigger chip is used here because of a cable
ran to the System Controller Board. The synthesizer returns a lock detect output to the Injection
Synthesizer Board via U1 and EXCLD.
![](/img.php?id=402004&img=bga.png)
SECTION 1: THEORY OF OPERATION
402004 Page 10
A regulator (VR2) powers the T/R switch circuitry. When the System Controller Board makes TXKEY*
low, inverter U1B goes high, turning on transistor Q2 and FET Q1. This applies 5-volt power to the
TXENABLE output, turning on the T/R switch on the Power Amplifier Board. At the same time, transistor
Q3 conducts, grounding the KEY* input of the Power Amplifier Board. Finally, inverter U1A goes high
and turns on RF switch U7, connecting the VCO output to the Power Amplifier Board for transmission.
The power supply consists of two (2) voltage regulators. A regulator (VR1) provides 9-volt power for the
VCO. Another regulator (U3) provides low noise 5-volt power for the logic circuitry, synthesizer chip, and
analog circuitry.
Analog Modulation
This section displays the analog modulation circuitry. Incoming modem audio from the System Controller
Board appears at TXMOD, and is buffered by op amp U4A. If an external modulation source (modem or
amplified microphone) is connected to the base station’s DB9 connector, audio appears at EXTMOD.
From there the audio passes through low pass filter U6. The audio is inverted and amplified by an op
amp (U4B). It then passes on to the VCO module via VCOMOD. Pot R18 adjusts the level to suit the
VCO.
The 10 MHz reference is also modulated in order to counteract the corrective effects of the synthesizer
loop circuitry. For example, if only the VCO were modulated, the synthesizer would try to compensate for
the frequency “error,” caused by the modulation. This effectively reduces the amount of modulation
available. Modulating the reference and the VCO simultaneously deceives the loop into not
compensating for the modulation, because when the reference frequency goes high, the VCO frequency
goes high, and vice-versa.
An op amp (U5B) amplifies the AUDIO output from another op amp (U4B) and applies it to jumper block
JMP1. Pot R12 adjusts the gain of U5B. Op amp (U5A) inverts the phase of the audio and applies it to
the other side of jumper block JMP1. The purpose of the jumper block is to select the proper phase of the
audio. If the wrong phase is used, on modulation peaks the reference will swing in the same direction as
the VCO, canceling out most of the modulation. The output from the jumper block goes to the 10 MHz
reference via REFMOD.
The VBIAS input is a 2.5-volt DC source, which biases the op amps to the correct operating point. It is
generated by modem chip (U14) on the System Controller Board.
Phase Locked Loop
This section displays phase locked loop (PLL) circuitry. The 10-MHz reference (Y1), runs synthesizer
(U9), which in turn controls VCO VCO1. The main section of this board is the synthesizer chip (U9). The
device contains the key components of a PLL, including a 1.1 GHz prescaler, programmable divider, and
phase detector.
In operation, the desired frequency is loaded into U9 as a clocked serial bit stream via the CLK and DATA
inputs. The lock detection circuitry consists of inverters U1F and U1E, diode CR1, and resistor R1.
When the synthesizer is in lock, the LD pin on U9 is high, making the EXCLD output on terminal block
(TB1) high. The EXCLD output on TB1 routes the lock detect output from the Exciter Board. This
configuration tells the CPU on the System Controller Board that it is acceptable to process received data,
or to key the transmitter when LD is high. Otherwise, if a fault in either synthesizer prevents a lock,
receive and transmit operation will be inhibited.
The switch (JMP1) is used to select the supply voltage to chip U9. The injection signal is generated by
U7. The voltage is generated by the phase detector output (PD/O) of U9, which drives a loop filter
![](/img.php?id=402004&img=bgb.png)
SECTION 1: THEORY OF OPERATION
402004 Page 11
consisting of R30, C45, C28, and C37. The filter integrates the pulses, which normally appear on PDOUT
into a smooth DC control signal for the VCO. The output of U7 is attenuated by module AT1, resulting in
improved VCO stability.
Power Amplifier
The transmit injection signal from the RF injection section is applied to the high-powered linear amplifier
(U1) one (1) watt amplifier. The signal is then routed to the final power amplifier boosting the output
signal to 40 watts. The transmitter output power is controlled with RV2. RV2 controls the output voltage
of a voltage regulator (VR1). The signal KEY* enables the regulator. The output of the amplifier is routed
to transmit antenna port ANT.
![](/img.php?id=402004&img=bgc.png)
SECTION 2: FCC LABEL
402004 Page 12

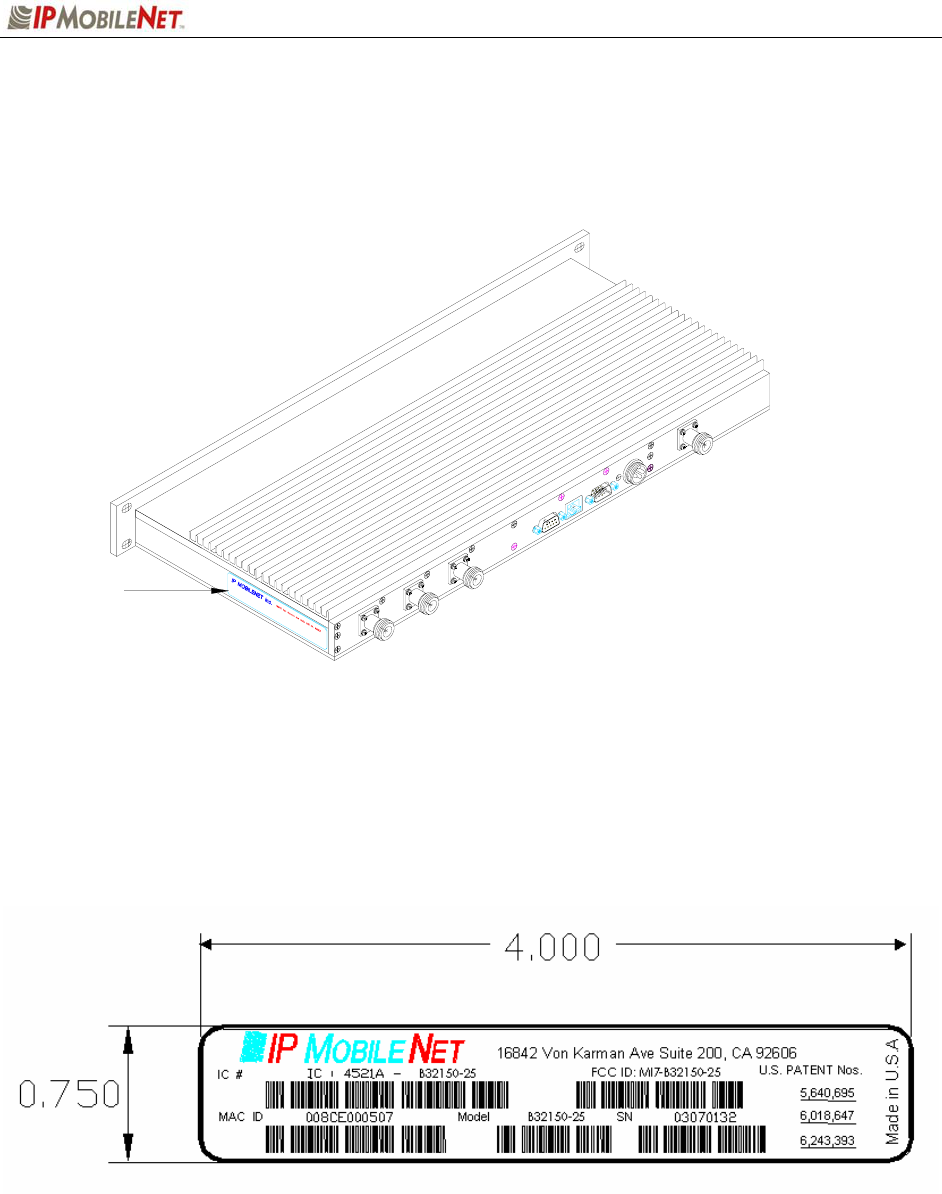

B32150-25 Base Station FCC Label Placement
LABEL
B32150-25 Base Station FCC Label
![](/img.php?id=402004&img=bgd.png)
APPENDIX A: CIRCUIT BOARD DIAGRAMS
402004 Page 13
System Controller
Receiver - Top
C90
R41
R42
R43
C89
J7
1
VR3
J8
R44
1
R82
R81
+
U19
D7
U18
U14
TP5
U10
C83
51
C56
50
16
R62
C84
75
76
32
U4
U16
U15
C8
C7
R31
ADD JUMPER (30 AWG INSULATED WIRE)
73
U7
72
REWORK INSTRUCTION
R33
TP4
TP8
F1
S1
26 100 R80
R65
R66
R79
C88
10
9
7
U21
8
U6
2
1
J5
U17
Y2
U2
109
108
from U19 Pin2 to VIA (RVCC)
R83
R40
12
R39 C58
R88
C59
U20
J3
25 1
Y1
U13
C76
J2
R50
C28
S2
S3
U8
J1
C77
R51
C75
T1
C74
FLT6
+

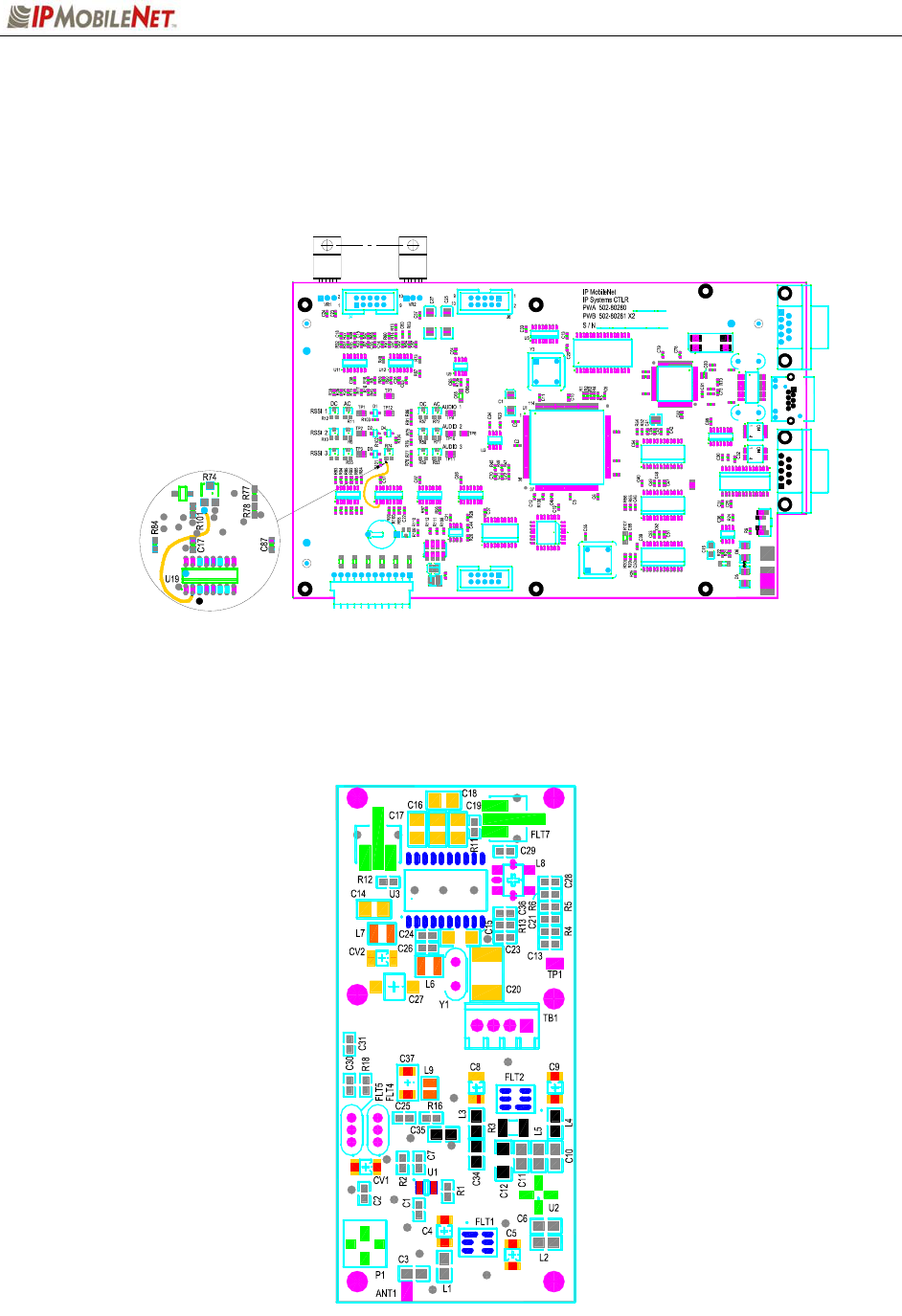

![](/img.php?id=402004&img=bge.png)
APPENDIX A: CIRCUIT BOARD DIAGRAMS
402004 Page 14
Receiver – Bottom
Receiver Injection
+
+
+
+
++
+

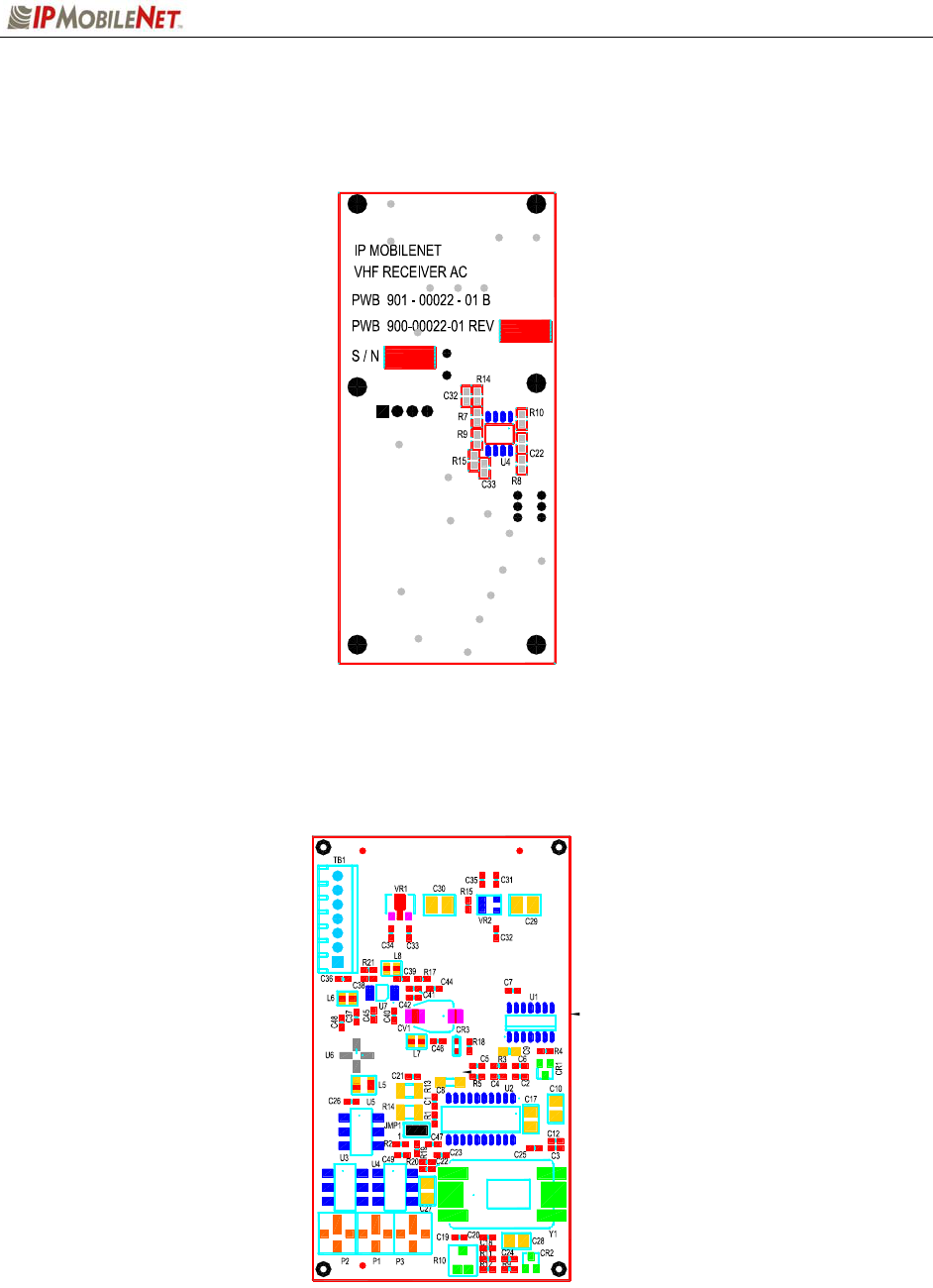

![](/img.php?id=402004&img=bgf.png)
APPENDIX A: CIRCUIT BOARD DIAGRAMS
402004 Page 15
Exciter – Top
Exciter – Bottom
+
+
+
+
+
+
+
+

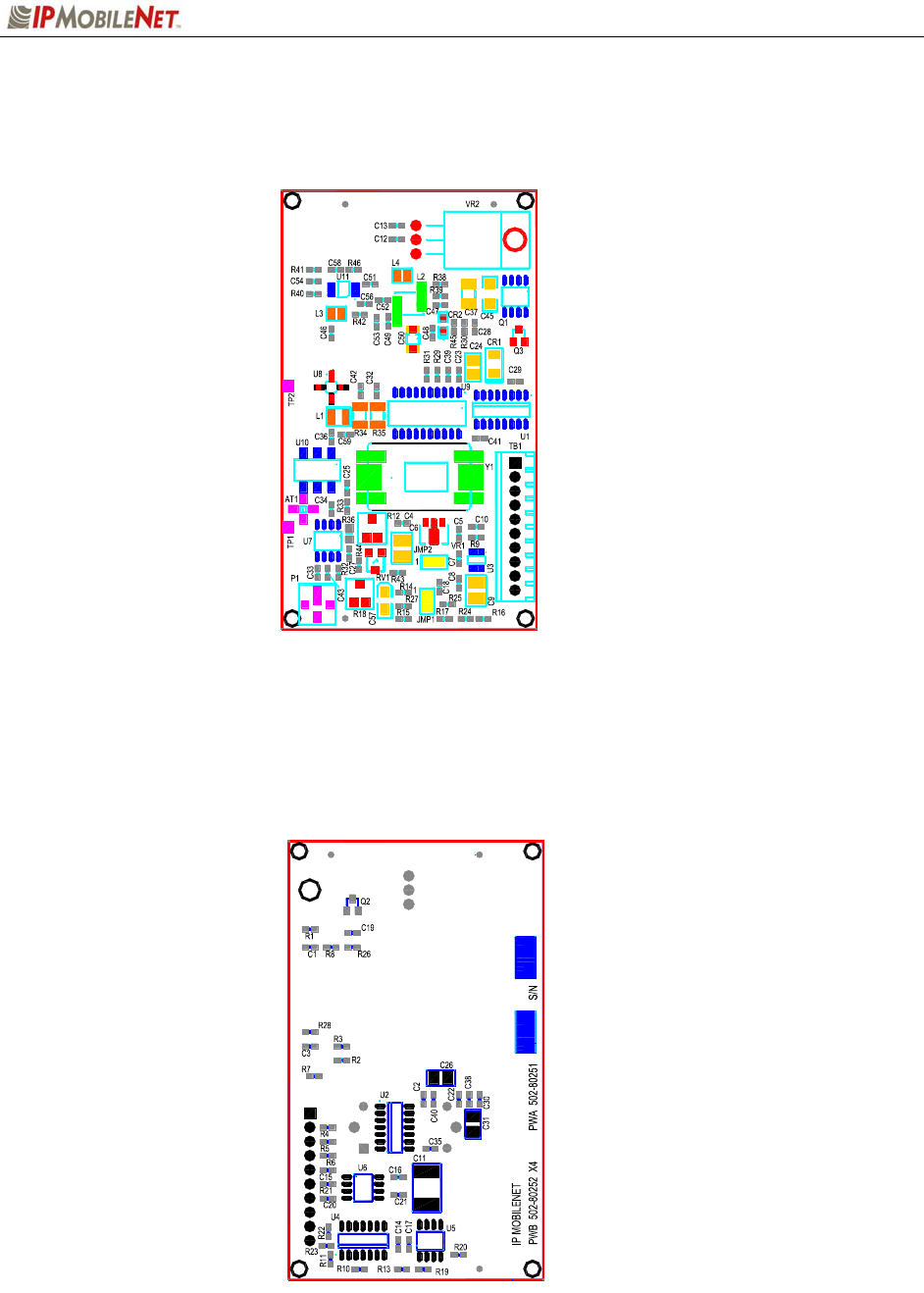

![](/img.php?id=402004&img=bg10.png)
APPENDIX A: CIRCUIT BOARD DIAGRAMS
402004 Page 16
Power Amplifier
+
+

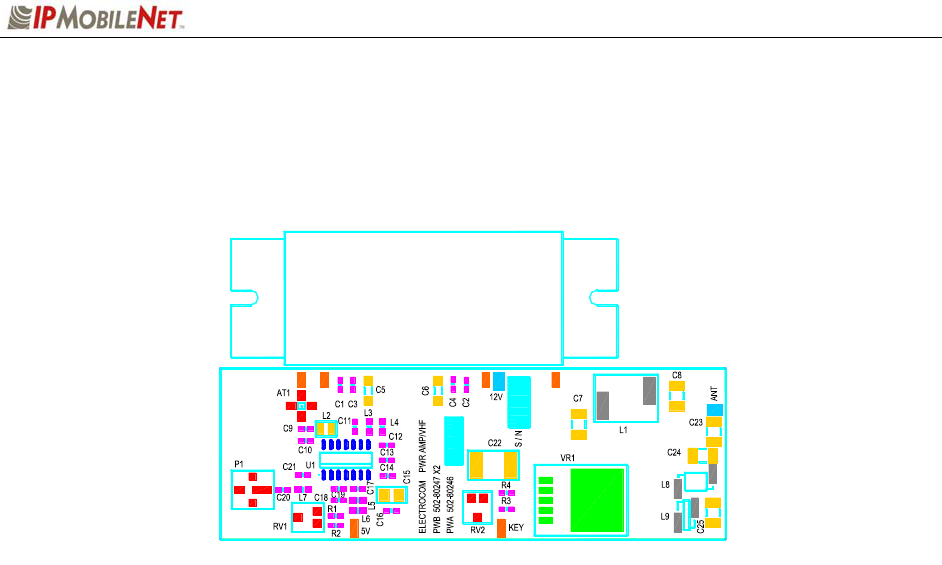

![](/img.php?id=402004&img=bg11.png)
APPENDIX B: B32150-25 TEST DATA SHEET
402004 Page 17
Program and Configure the Base Station
Date
Serial Number
Firmware Revision
End User
Tester
Adjustment / Alignment Procedures
Receiver Injection
Parameter Spec Measured
Injection Frequency Error at RXINJ1(within +/- 10
Hz of exact injection frequency) +/- 100 Hz
P3 & C2 5 +/- 1 dBm
Receiver Diversity Reception Controller 1, 2 & 3
Parameter Spec Receiver 1
Measured
Receiver 2
Measured
Receiver 3
Measured
U3 Pin 4 +10 to +5 dBm
RSSI Test Point TB1-4 2.8 to 3.0 VDC
Distortion
(1 kHz Test Tone @ 5.0 kHz) 3%<
SINAD 12 dB
(1 kHz Test Tone @ 5 kHz) -119dBm >
SINAD 12 dB TP1 0.75 VDC
+/- 1 mV
SINAD +50 dB TP1 2.75 +/- 1 mV
Audio AC Amplitude
(1 kHz Test Tone @ 5 kHz
Deviation)
350 mVRMS
+/- 1mV
Audio DC Amplitude
(1 kHz Test Tone @ 5 kHz
Deviation)
2.5 VDC
+/1 1mV
Carrier Detect Light Set -116 dBm
![](/img.php?id=402004&img=bg12.png)
APPENDIX B: B32150-25 TEST DATA SHEET
402004 Page 18
Data Quality
Parameter Spec Measured
Receiver 1 Data Quality
(x=1400, 19 Command IPMessage Utility) 240>
Receiver 2 Data Quality
(x=1400, 19 Command IPMessage Utility) 240>
Receiver 3 Data Quality
(x=1400, 19 Command IPMessage Utility) 240>
Exciter
Parameter Spec Measured
Transmit Frequency Error
(Transmitting 1400 character test message) +/- 500 Hz
Transmit Modulation Deviation
(5.3 kHz while transmitting 1400 character test
message)
5.1 kHz to 5.3 kHz
Transmit Data Quality
(While transmitting 1400 character test message
to the base station)
240>
Transmit Power Control
Warning: Do Not exceed 40 Watts RF output power during this test
Parameter Spec RF Out RF Out Max Level set to
Output Power
(Use x=1400,19 command) 40 +/- 1 Watt
Test Check List
Test Task Completed
(9)
Attached copy of Base Station’s Firmware Settings
Visual Inspection
Copy Base Station Settings Below:
