IPS Technology HT-HS01 wifi doorbell User Manual
IPS Technology Co.,Ltd. wifi doorbell Users Manual
User Manual-revised
Brief Instruction Manual
for EggBell
29/July/2015

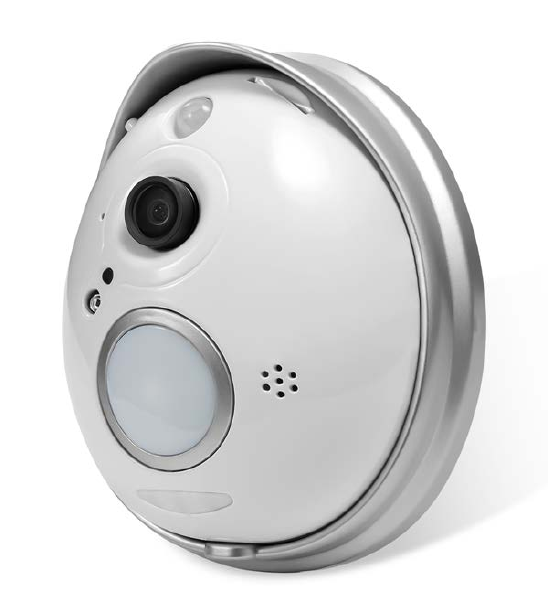

1. Product Introduction & Description
1.1 Brief introduction
Accessories：
----EggBell 1 pcs
----Power adapter 1 pcs
----CD with software 1 pcs
----Instruction Manual 1 pcs
----Installation Package 1 pcs
----Bracket 1 pcs

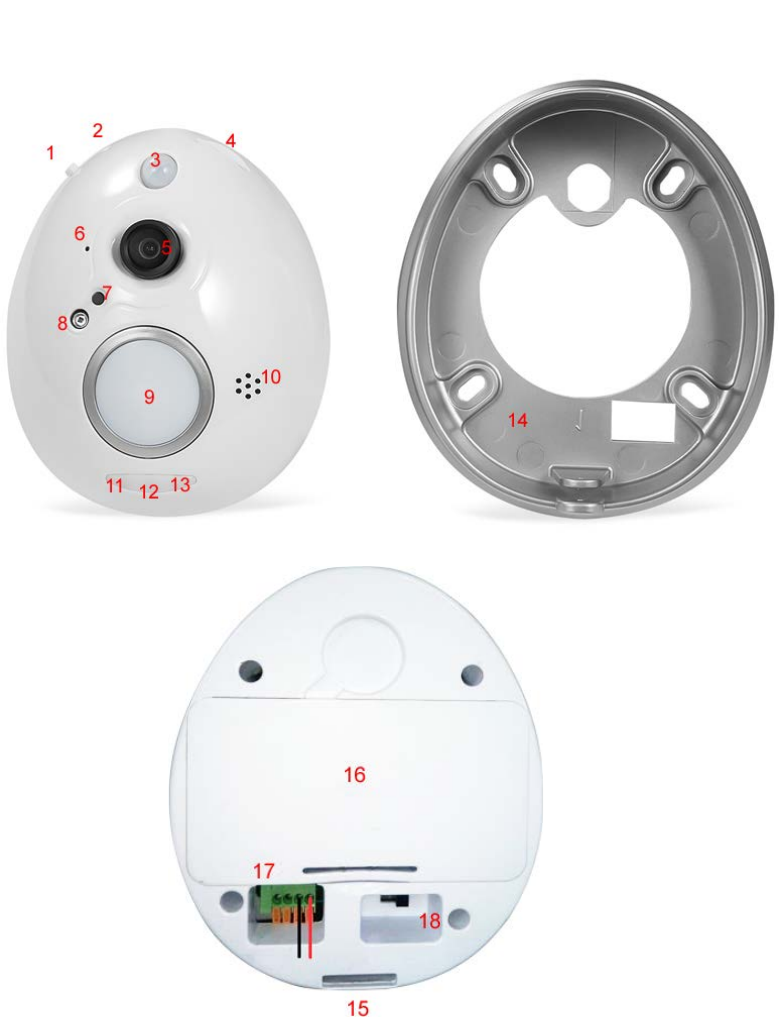

1.2 Product description
1 WPS 9 Bell Button
2 Reset 10 Speaker
3 PIR 11 Indicator LED for video Recording
4 SD slot 12 Indicator LED for Powe r
5 Camera Lens 13 Indicator LED for Wifi
6 Microphone 14 Waterproof Case
7 IR cut 15 Anti-tampe r screw hole
8 IR LED 16 battery compartment
(18650 batteries, brand such as UltraFire)
17 Power port 18 Power switch
Note：When EggBell is switched on, the default mode is ”Smart link” mode; Press once the
“WPS” key, it will enter into WPS mode, Press the “WPS” key continuously for 5 seconds, it
will enter into AP mode.
2. Installation
2.1 Installation of EggBell
A Installation to replace the peep-hole on the door

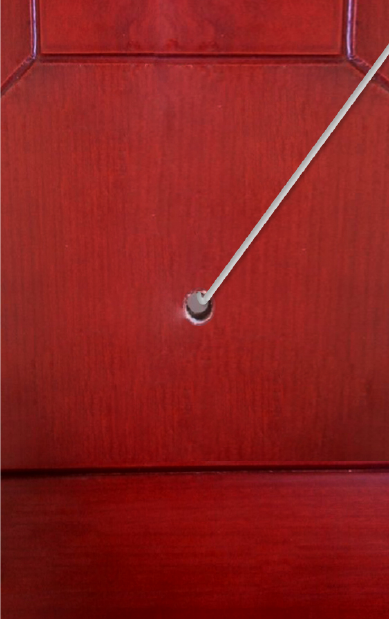

1、 Remove the peep-hole
Remove the peep-hole from the door, and get the power cord through the hole,
just like the picture below：
2、 Connection of the power supply

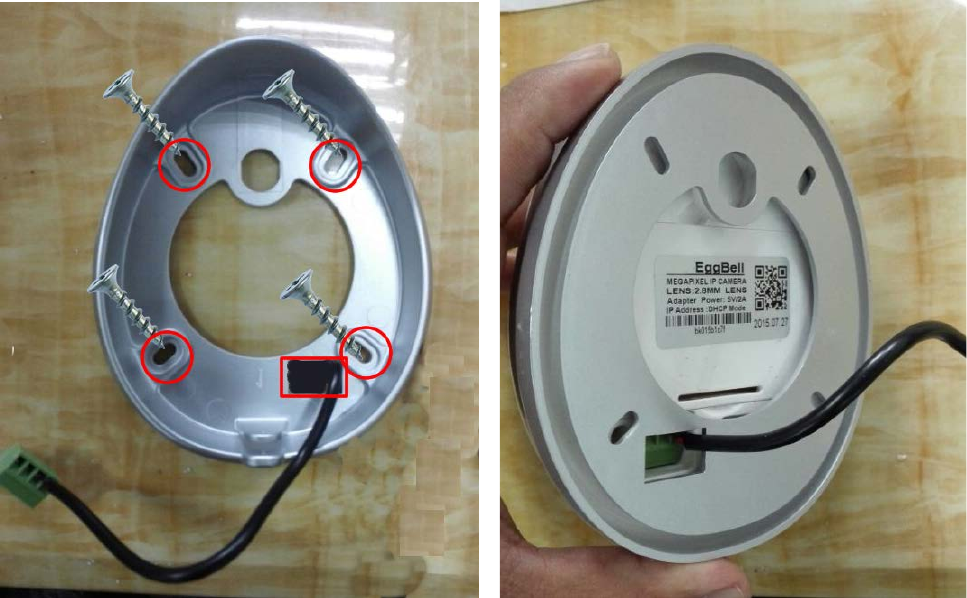

Fix the small rod on the bracket with the hexagonal screw tighten，get the power cord through
the rod; Connect the power cord into the power port, just like the picture below：
Warning: Please use the standard AC adapter for the product,
in case that EggBell will be damaged.
3、Fix the Bracket
Screw on the four corners of the bracket fixed on the door with the accessories in the installation
package, and tighten the special anti-tamper screw on the bottom, plug in power source.
B Installation on the wall
1 Drill the screw holes of which the location is matched with the four holes of the bracket, fix
the bracket on the wall with four screws;
2 Get the power cord connected with the power port through the hole on the back of the
bracket
2.2 Connection with mobile device
1. Download and install the P2P application”EggBell”
2. Search the Application ”EggBell” on application store , and download it on your phone (Android
users can get it from “Android Market”，or find and install the APP from the CD attached; iOS users
can download on App Store）。
3. Install the the application on your mobile phone and then run it, configure the Wifi of the device
under Smart Link mode (entering into Smart Link mode by default when EggBell is switched on).

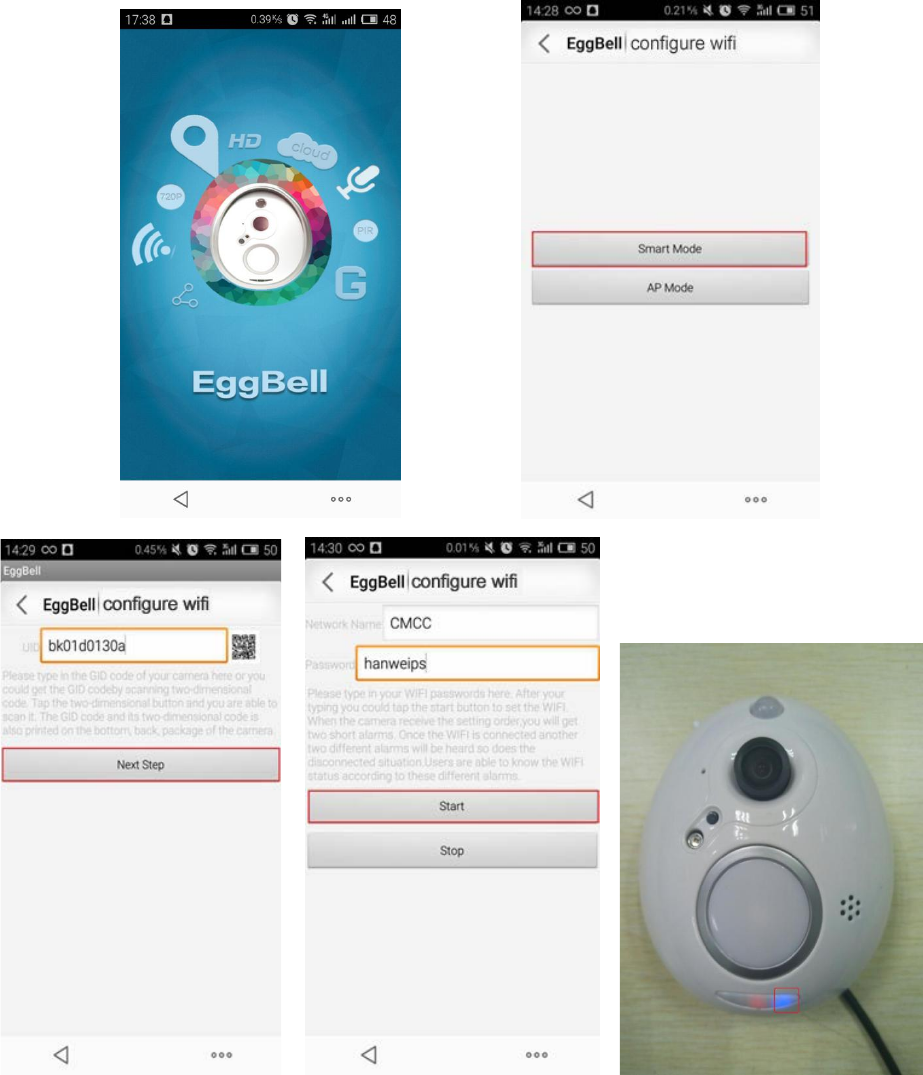

Click the “Configure Device” — “Smart Mode” — Enter in the UID of EggBell UID
( Or scan the QR code to add the device）— Configuration WiFi
Note: During the process when configuring Wifi, the blue indicator LED on the right side will
flash frequently; After connected to Wifi, the bule LED will keep always on (like the picture
above), while there will be prompt tone “ding-dong” from the device to tell you configuring
successfully.
3、After WiFi Configuration, Click “Direct access” —Add Device—Add a networked
device.
Three ways to add device, all of them can add EggBell successsfully
Add automatically: Click “search in the LAN”, the UID of EggBell will be
automatically searched, then click Add.

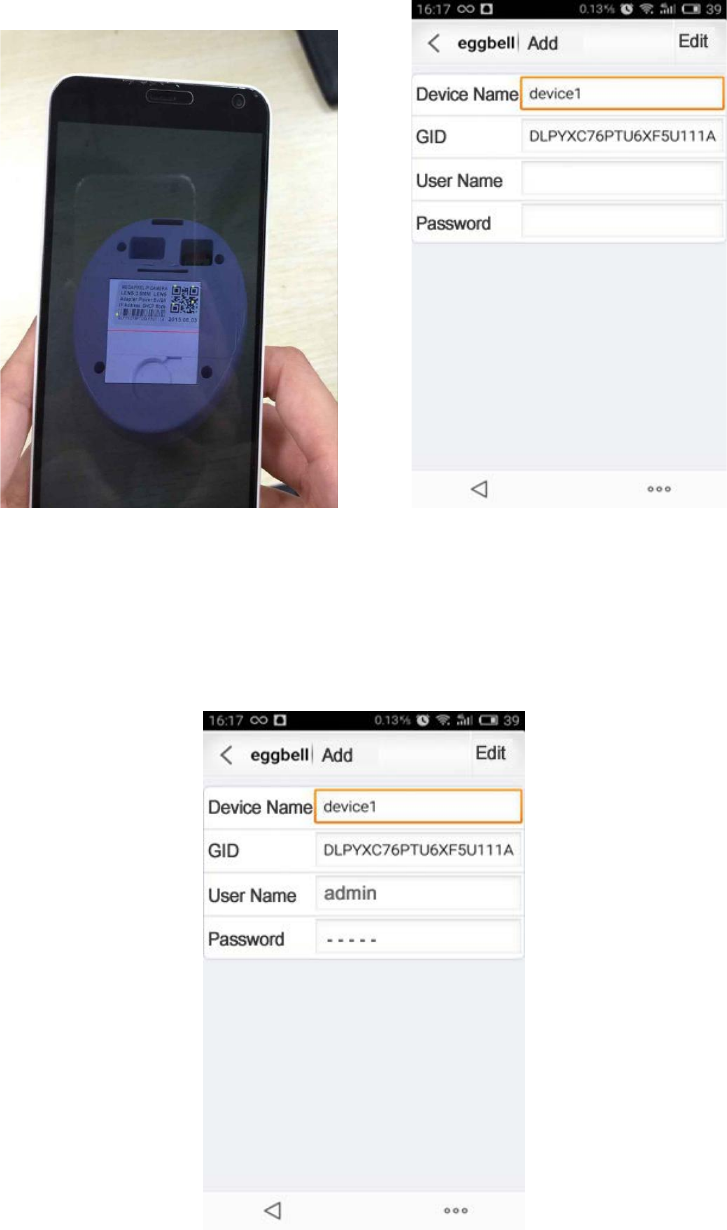

Scan mode: Click the button to scan the QR code on EggBell, the red line need to be
aligned with
the QR code scanner, when hear a "beep", it tells scanning successfully, the scanner will
automatically put the serial number scanned in UID blank. Then enter in the User Name and Password
(They are both “admin” by default). Click the “Edit” on the top right corner, the device will
appear on the device list.

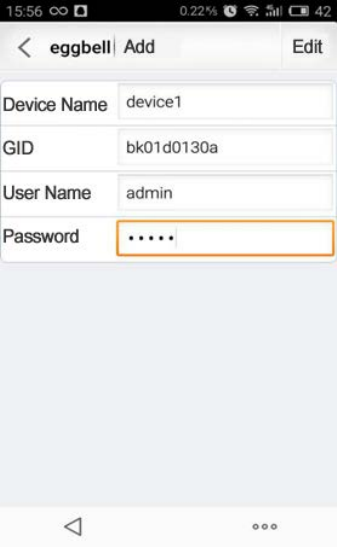

Manually：Click the "Add" ico n, manually enter the serial number UID（UID serial number at
the bottom of the label on EggBell, mixed with letters and numbers). Then enter in the User Name and
Password (They are both “admin” by default). Click the “Ed it ” on the top right corner, the device
will appear on the device list.

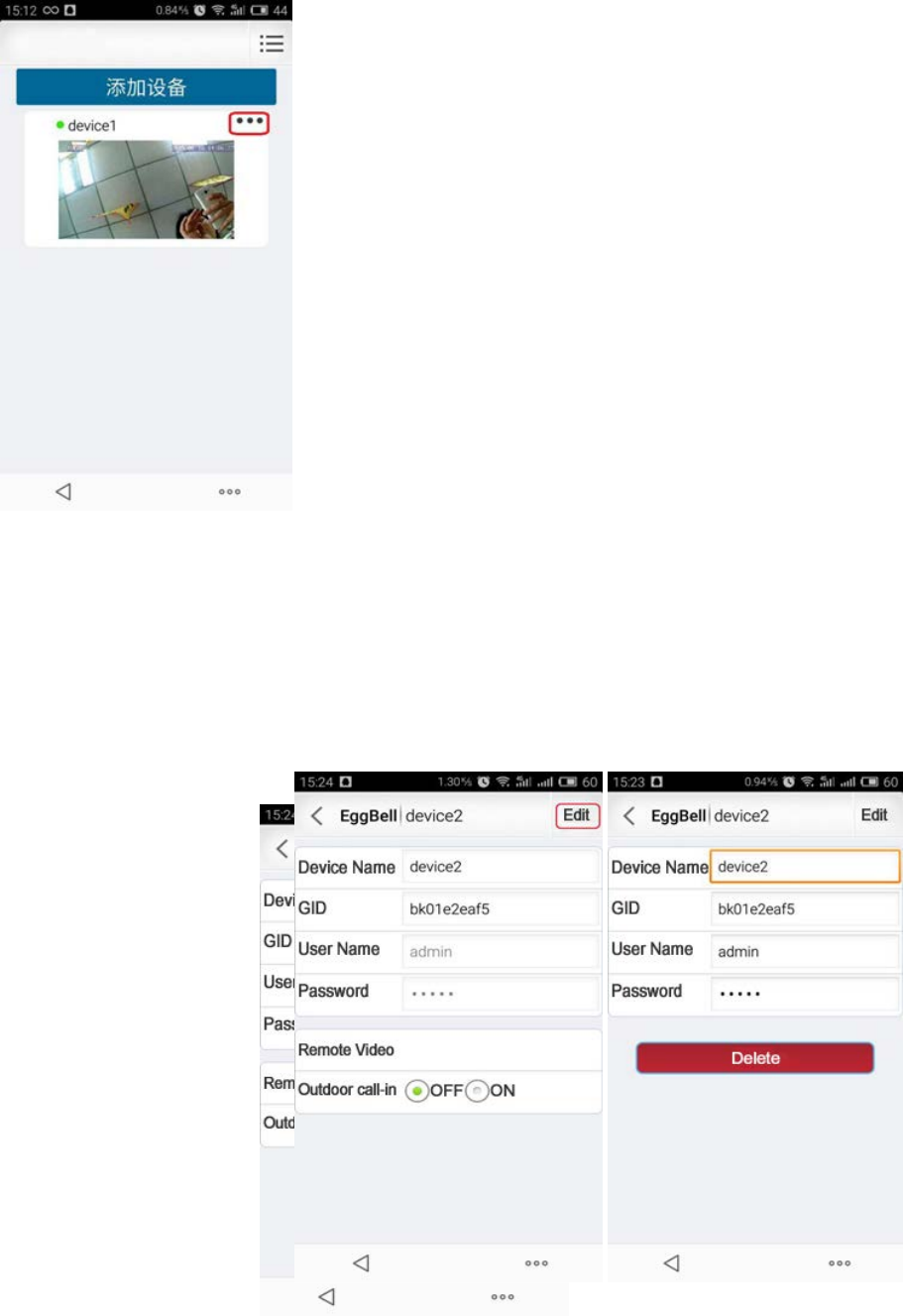

4. The door bell will appear on the device list when added successfully. When click the “Edit” on the
top right corner, you can also reset the device name, the user name, the password, and delete the
device from the list, etc.
3.Function Introduction
3.1Push Function
After the door bell added successfully, admit ”Outdoor call-in”, the push function
will be available.

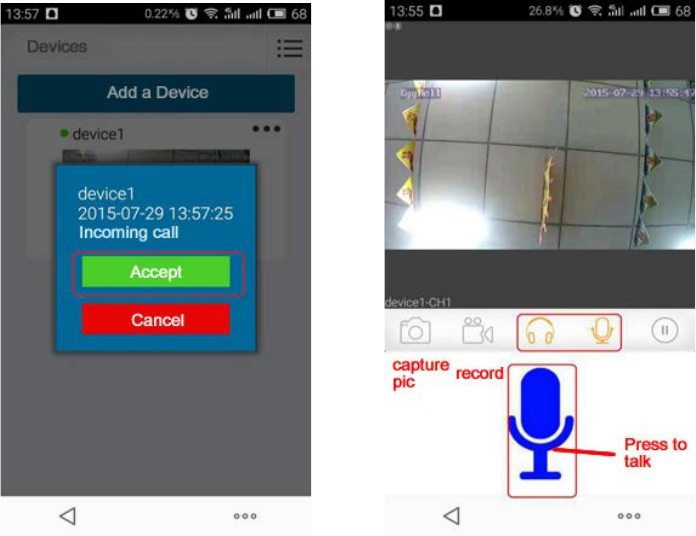

3.1.1 Push notification when press the bell button
When someone press the bell button, EggBell will start recording the video automatically for 20
seconds, and storing the video file in the TF card, at the same time it will push the message to the
APP on your phone with ringing tone. You could click to accept the call, then enter into the monitor
image to reach the function such as snapshot, record video, talk with the visitor, etc. Just like the
picture below:
3.1.2 Push notification for staying
When someone keep staying in front of EggBell for 20-30 seconds,EggBell will start recording the
video automatically for 20 seconds, and storing the video file in the TF card, at the same time it will
push the message to the APP on your phone with ringing tone. You could click to accept the call,
then enter into the monitor image to reach the function such as snapshot, record video, talk with
the visitor, etc. Just like the picture above.
3.2 Access to the files of recording and snapshot
3.2.1 Access to the local files on the phone for recording and snapshot
The files for snapshot manually and recording are stored locally on mobile phone，you can access to
them, and check the call logs on APP, just like the picture below:

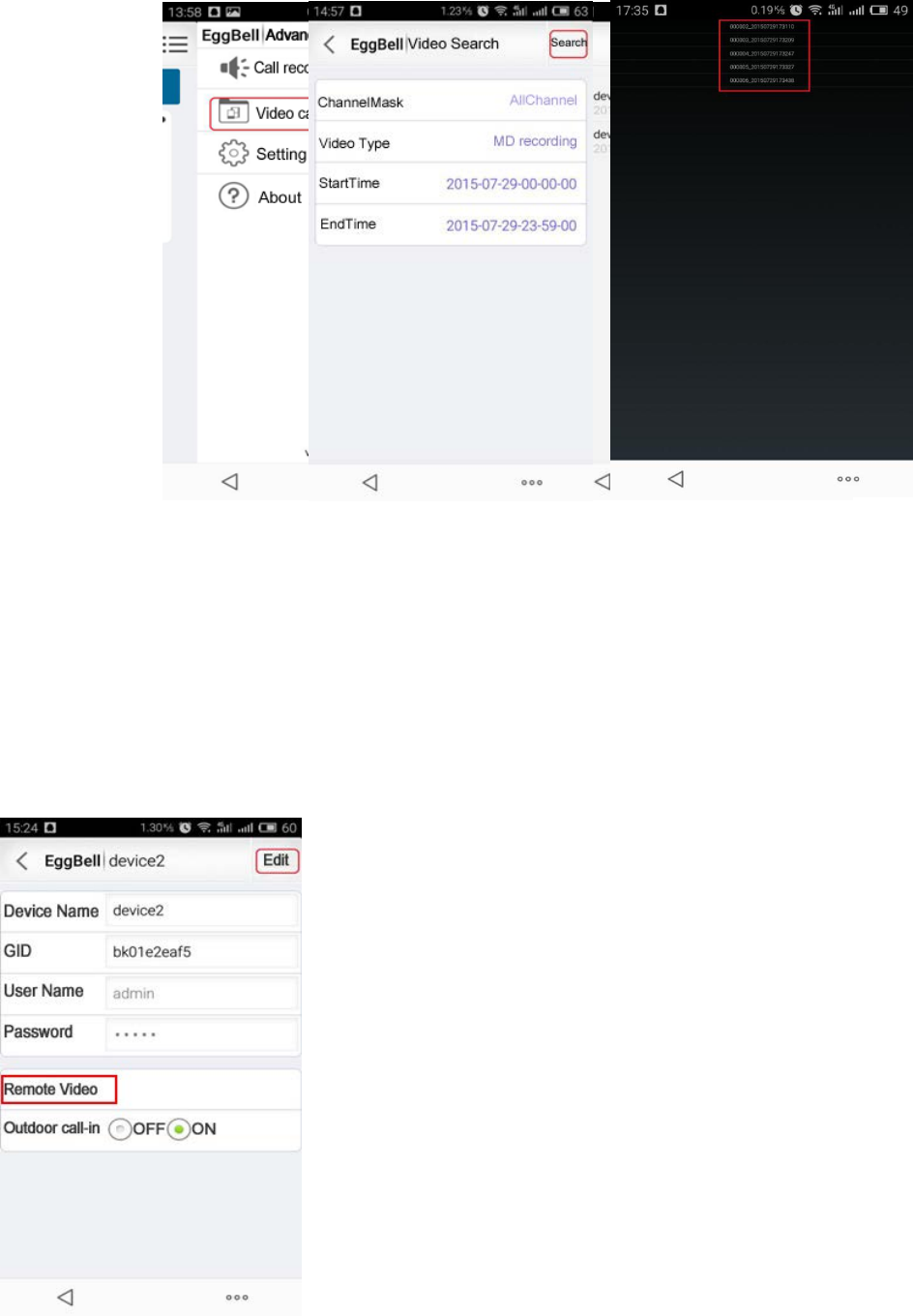

3.2.2 Access to the files saved in the TF card for recording and snapshot
The files of snapshot and recording via Pressing button and Staying overti me are stored in the TF
card, you can access remotely to these files on APP, just like the files below:
