IQAIR ATEM03 ATEM Air Purifier with RFID User Manual

IQAIR AG ATEM Air Purifier with RFID

User Manual

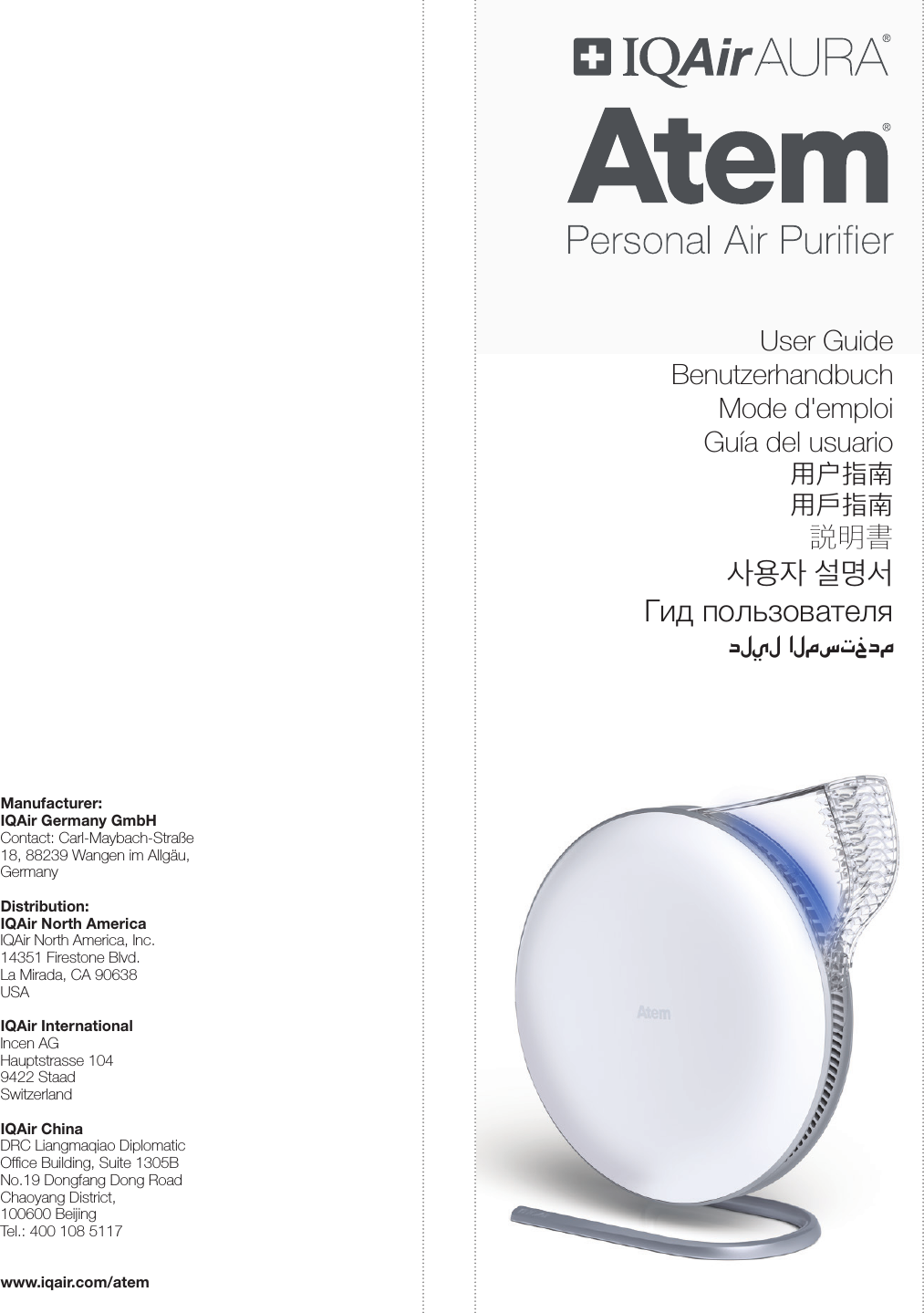

User GuideBenutzerhandbuchMode d'emploiGuía del usuario用户指南用戶指南説明書사용자 설명서 Гид пользователяدليل المستخدمManufacturer:IQAir Germany GmbHContact: Carl-Maybach-Straße 18, 88239 Wangen im Allgäu, GermanyDistribution: IQAir North AmericaIQAir North America, Inc.14351 Firestone Blvd.La Mirada, CA 90638USAIQAir InternationalIncen AGHauptstrasse 1049422 StaadSwitzerlandIQAir China DRC Liangmaqiao Diplomatic Office Building, Suite 1305BNo.19 Dongfang Dong RoadChaoyang District, 100600 BeijingTel.: 400 108 5117 www.iqair.com/atem
Product Components 1 Atem® Air Purier 2 PureJet™ Diffuser 3 Back Plate4 Stand Head5 Stand Base6 HyperHEPA® Filter 7 Silencer 8 Power Adapter & Plugs9 Connector Cover ProduktKomponenten1 Luftreiniger2 PureJet Diffusor3 Rückenplatte4 Stand Kopf5 Standfuß6 Primärlter7 Schalldämpfer8 Wechselstrom Adapter & Stecker9 DC-Steck verbinder Abdeckung ProduitComposants1 puricateur d'air2 Diffuseur PureJet3 Plaque de Dos4 tête de stand5 Base de support6 Filtre Primaire7 Silencieux8 Alimentation AC Adaptateur et ches9 Connecteur DC CouvertureProductoComponentes1 puricador de aire2 Difusor PureJet3 Placa Trasera4 Cabezal de pie5 Soporte Base6 Filtro principal7 Silenciador8 Alimentación de AC Adaptador y enchufes9 Conector de DC Cubrir產品組件 1 空氣淨化器2 PureJet擴散器3 背板4 站頭5 站立基地6 主濾波器7 消聲器8 交流電源適配器 和插頭9 直流連接器蓋 产品组件 1 空气净化器2 PureJet扩散器3 背板4 站头5 站立基地6 主滤波器7 消声器8 交流电源适配器和插头9 直流连接器盖製品コンポ ー ネント1 空気清浄機2 PureJetディフュ ーザー3 バックプレート4 スタンドヘッド5 スタンドベ ース6 プ ライマリフィル タ7 サイレンサー8 AC電源 アダプタ ー＆プラグ9 DCコネクタカバー생성물구성 요소 1 공기 청정기2 PureJet 기관총3 뒷판4 스탠드 헤드5 받침대6 기본 필터7 소음기8 AC 전원어댑터 및플러그9 DC 커넥 터덮개ПродуктКомпоненты 1 очиститель воздуха2 Распылитель PureJet3 Задняя панель4 -х голова5 Подставка основания6 Первичный фильтр7 Глушитель шума8 Мощность переменного тока Адаптеры и пробки9 Разъем постоянного тока Обложкаالمنتجالمكونات1 لتنقية الهواء2 بوريجيت الناشر3 لوحة الظهر4 الوقوف رئيس 5 قاعدة الوقوف 6 تصفية الأولية7 كاتم الصوت8 أس السلطة محول & المقابس9 موصل دس غطاء، يغطي11229 34-545768To be translated
Congratulations on your purchase of the IQAir Atem® personal air purifier. Please study this User Guide carefully to familiarize yourself with the special features and functions of this IQAir product. Retain this document in a safe place for future reference.HerzlichenGlückwunschzumKaufdiesesIQAir Atem®Hochleistungs-Luftreinigungssystems.BittelesenSiedieseBedienungsanleitungsorgfältigdurch,umsichmitdenBesonderheitenundFunktionenIhresIQAir®Systemsvertrautzumachen,undbewahrenSieesaneinemsicherenOrtauf.恭喜您購買了此IQAir Atem®高性能空氣淨化系統。請仔細閱讀本用戶手冊，以熟悉IQAir®系統的特殊功能和功能，並將其保存在安全的地方以備將來參考。恭喜您购买了此IQAir Atem®高性能空气净化系统。请仔细阅读本用户手册，以熟悉IQAir®系统的特殊功能和功能，并将其保存在安全的地方以备将来参考。IQAir Atem® 개인용 공기 청정기를 구입하신 것을 축하드립니다. 이 사용자 가이드를주의 깊게 살펴보고이 IQAir 시스템의 특수 기능을 숙지하십시오. 나중에 참조 할 수 있도록이 문서를 안전한 장소에 보관하십시오.Introduction To be translatedTo be translated
English .......................................1-10Deutsch .....................................30-40Français ....................................40-50Espanol ......................................60-70简体中文 ...................................10-20中國傳統的 ................................10-20日本 ...........................................70-80한국어 ........................................80-90русский ....................................90-100عربى ........................................100-110For the user guide in other languages visit www.iqair.com/userguideTo be translatedTo be translatedTo be translatedTo be translatedESCNSPCNTRJPFRKORUARDEEN

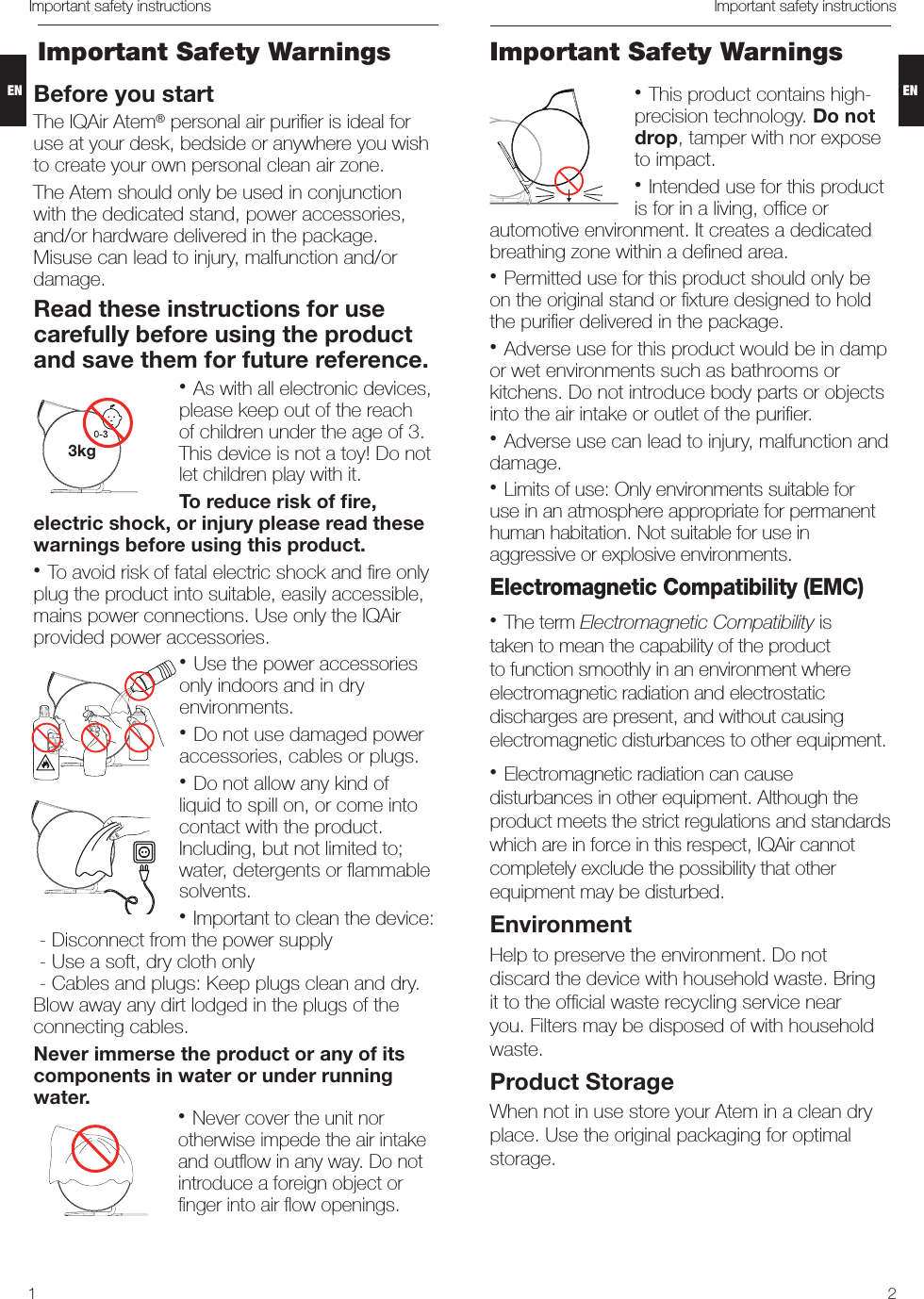

21Important safety instructions Important safety instructionsBefore you startThe IQAir Atem® personal air purifier is ideal for use at your desk, bedside or anywhere you wish to create your own personal clean air zone. The Atem should only be used in conjunction with the dedicated stand, power accessories, and/or hardware delivered in the package. Misuse can lead to injury, malfunction and/or damage.Read these instructions for use carefully before using the product and save them for future reference.• As with all electronic devices, please keep out of the reach of children under the age of 3. This device is not a toy! Do not let children play with it. To reduce risk of fire, electric shock, or injury please read these warnings before using this product.• To avoid risk of fatal electric shock and fire only plug the product into suitable, easily accessible, mains power connections. Use only the IQAir provided power accessories. • Use the power accessories only indoors and in dry environments. • Do not use damaged power accessories, cables or plugs.• Do not allow any kind of liquid to spill on, or come into contact with the product. Including, but not limited to; water, detergents or flammable solvents.• Important to clean the device: - Disconnect from the power supply - Use a soft, dry cloth only - Cables and plugs: Keep plugs clean and dry. Blow away any dirt lodged in the plugs of the connecting cables. Never immerse the product or any of its components in water or under running water. • Never cover the unit nor otherwise impede the air intake and outflow in any way. Do not introduce a foreign object or finger into air flow openings.Important Safety WarningsImportant Safety Warnings3kg• This product contains high-precision technology. Do not drop, tamper with nor expose to impact.• Intended use for this product is for in a living, office or automotive environment. It creates a dedicated breathing zone within a defined area. • Permitted use for this product should only be on the original stand or fixture designed to hold the purifier delivered in the package. • Adverse use for this product would be in damp or wet environments such as bathrooms or kitchens. Do not introduce body parts or objects into the air intake or outlet of the purifier.• Adverse use can lead to injury, malfunction and damage. • Limits of use: Only environments suitable for use in an atmosphere appropriate for permanent human habitation. Not suitable for use in aggressive or explosive environments.Electromagnetic Compatibility (EMC)• The term Electromagnetic Compatibility is taken to mean the capability of the product to function smoothly in an environment where electromagnetic radiation and electrostatic discharges are present, and without causing electromagnetic disturbances to other equipment.• Electromagnetic radiation can cause disturbances in other equipment. Although the product meets the strict regulations and standards which are in force in this respect, IQAir cannot completely exclude the possibility that other equipment may be disturbed.EnvironmentHelp to preserve the environment. Do not discard the device with household waste. Bring it to the official waste recycling service near you. Filters may be disposed of with household waste.Product StorageWhen not in use store your Atem in a clean dry place. Use the original packaging for optimal storage.ENEN
43This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.- Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For Canada: This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:(1) This device may not cause interference; and(2) This device must accept any interference, including interference that may cause undesired operation of the device.Important safety instructions Product use and operationsProduct Components and AssemblyProduct components See product drawing inside the cover.1 Atem® air purifier 2 PureJet™ diffuser 3 Back plate4 Stand head5 Stand base6 HyperHEPA® filter 7 Silencer 8 Power adapter and plugs9 Connector coverAssembly After unboxing you will find the Atem personal air purifier (1) with the PureJet diffuser (2) attached. Power and stand assemblyRemove and unpack the power adapter & plug box. Select the correct plug for your region and snap into place as shown. Take the stand head (4) and remove the connector cover (black part) (9) and set aside. The location of the compliance statements on Atem Purifier is found under the Back Plate cover.For USA: FCC StatementAssembled plug.Remove the connector cover.Select your regions plug.Snap into place.FCC USA English ONLY - do not translate!FCC For Canada: French ONLY translate!FCC USA English ONLY - do not translate!EN

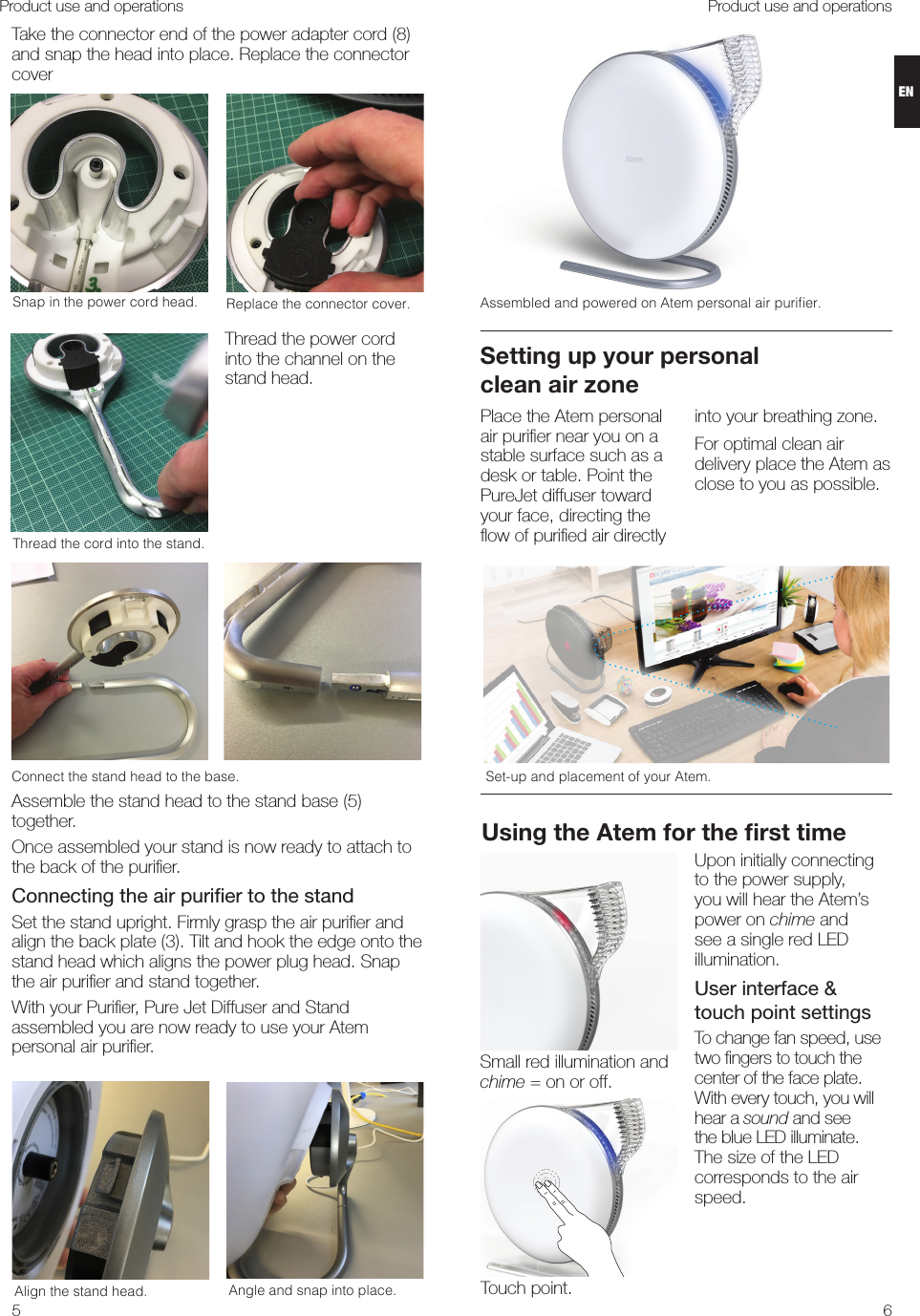

65Take the connector end of the power adapter cord (8) and snap the head into place. Replace the connector coverThread the power cord into the channel on the stand head.Assemble the stand head to the stand base (5) together. Once assembled your stand is now ready to attach to the back of the purifier.Connecting the air purifier to the standSet the stand upright. Firmly grasp the air purifier and align the back plate (3). Tilt and hook the edge onto the stand head which aligns the power plug head. Snap the air purifier and stand together. With your Purifier, Pure Jet Diffuser and Stand assembled you are now ready to use your Atem personal air purifier. Product use and operationsProduct use and operationsThread the cord into the stand.Align the stand head.Connect the stand head to the base. Angle and snap into place. Snap in the power cord head. Replace the connector cover.Set-up and placement of your Atem. Place the Atem personal air purifier near you on a stable surface such as a desk or table. Point the PureJet diffuser toward your face, directing the flow of purified air directly into your breathing zone. For optimal clean air delivery place the Atem as close to you as possible.Setting up your personal clean air zoneAssembled and powered on Atem personal air purier. Using the Atem for the first timeUpon initially connecting to the power supply, you will hear the Atem’s power on chime and see a single red LED illumination.User interface & touch point settingsTo change fan speed, use two fingers to touch the center of the face plate. With every touch, you will hear a sound and see the blue LED illuminate. The size of the LED corresponds to the air speed.Small red illumination and chime = on or off. Touch point.EN

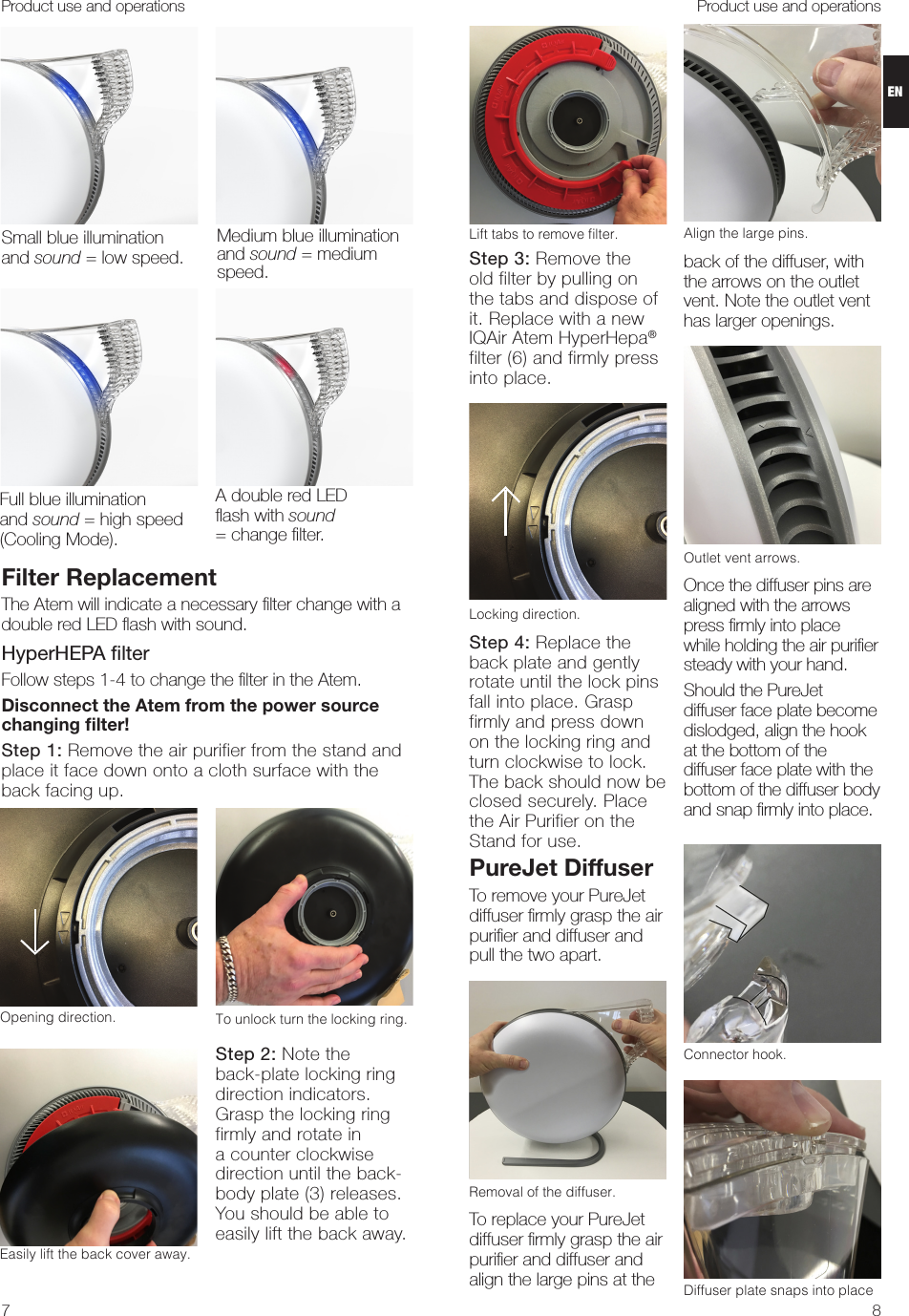

87Filter ReplacementThe Atem will indicate a necessary filter change with a double red LED flash with sound. HyperHEPA filterFollow steps 1-4 to change the filter in the Atem. Disconnect the Atem from the power source changing filter!Step 1: Remove the air purifier from the stand and place it face down onto a cloth surface with the back facing up.Step 2: Note the back-plate locking ring direction indicators. Grasp the locking ring firmly and rotate in a counter clockwise direction until the back-body plate (3) releases. You should be able to easily lift the back away. Product use and operationsProduct use and operationsStep 3: Remove the old filter by pulling on the tabs and dispose of it. Replace with a new IQAir Atem HyperHepa® filter (6) and firmly press into place. Step 4: Replace the back plate and gently rotate until the lock pins fall into place. Grasp firmly and press down on the locking ring and turn clockwise to lock. The back should now be closed securely. Place the Air Purifier on the Stand for use. PureJet Diffuser To remove your PureJet diffuser firmly grasp the air purifier and diffuser and pull the two apart. To replace your PureJet diffuser firmly grasp the air purifier and diffuser and align the large pins at the back of the diffuser, with the arrows on the outlet vent. Note the outlet vent has larger openings.Once the diffuser pins are aligned with the arrows press firmly into place while holding the air purifier steady with your hand. Should the PureJet diffuser face plate become dislodged, align the hook at the bottom of the diffuser face plate with the bottom of the diffuser body and snap firmly into place. A double red LED flash with sound = change filter.Medium blue illumination and sound = medium speed.Small blue illumination and sound = low speed.Full blue illumination and sound = high speed(Cooling Mode).To unlock turn the locking ring.Easily lift the back cover away.Lift tabs to remove lter.Locking direction.Opening direction.Removal of the diffuser.Outlet vent arrows.Align the large pins.Connector hook.Diffuser plate snaps into placeEN

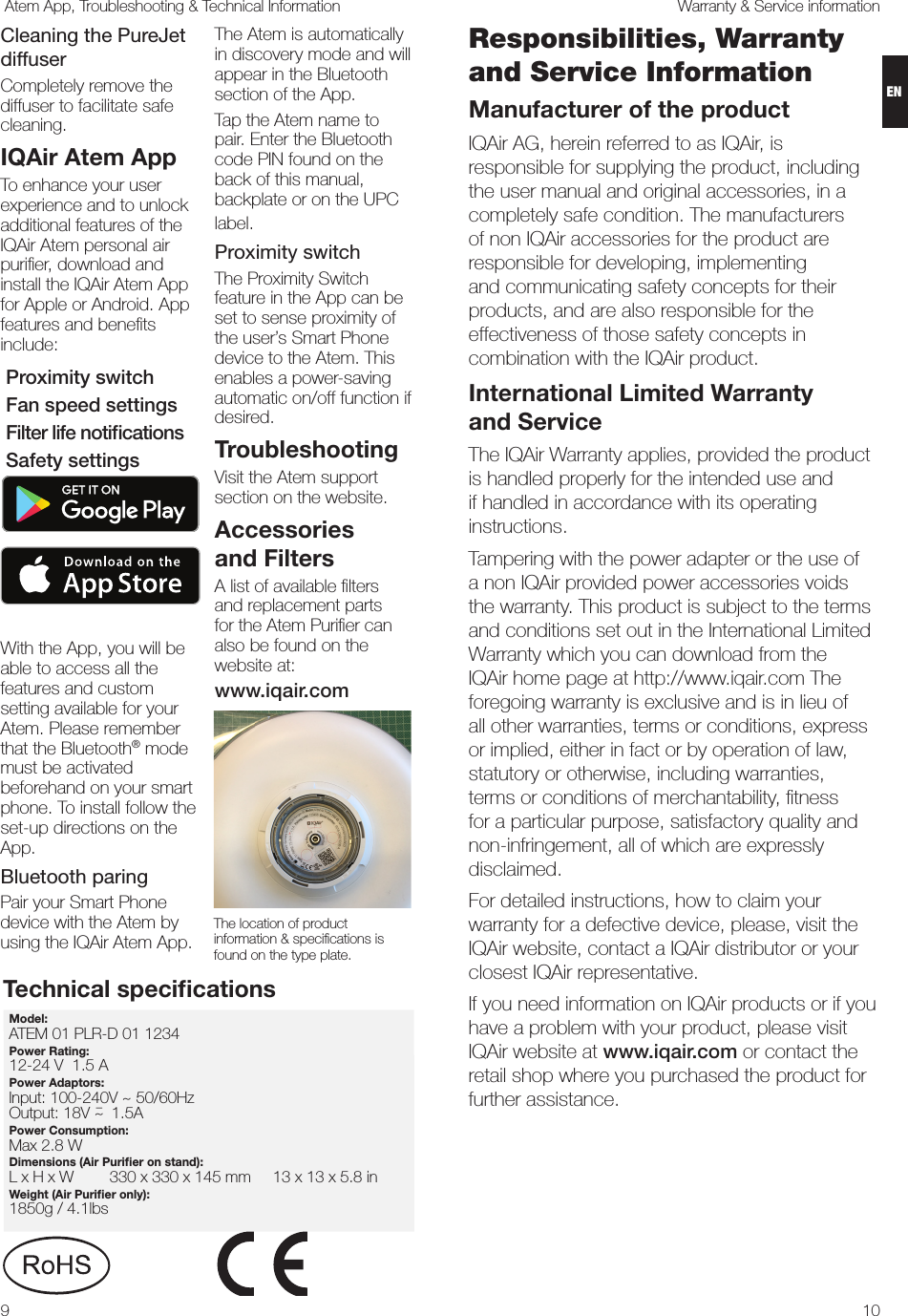

109Warranty & Service information Atem App, Troubleshooting & Technical InformationCleaning the PureJet diffuserCompletely remove the diffuser to facilitate safe cleaning. IQAir Atem App To enhance your user experience and to unlock additional features of the IQAir Atem personal air purifier, download and install the IQAir Atem App for Apple or Android. App features and benefits include: Proximity switch Fan speed settings Filter life notifications Safety settingsWith the App, you will be able to access all the features and custom setting available for your Atem. Please remember that the Bluetooth® mode must be activated beforehand on your smart phone. To install follow the set-up directions on the App. Bluetooth paring Pair your Smart Phone device with the Atem by using the IQAir Atem App. The Atem is automatically in discovery mode and will appear in the Bluetooth section of the App.Tap the Atem name to pair. Enter the Bluetooth code PIN found on the back of this manual, backplate or on the UPC label. Proximity switchThe Proximity Switch feature in the App can be set to sense proximity of the user’s Smart Phone device to the Atem. This enables a power-saving automatic on/off function if desired.TroubleshootingVisit the Atem support section on the website. Accessories and FiltersA list of available filters and replacement parts for the Atem Purifier can also be found on the website at:www.iqair.comThe location of product information & specifications is found on the type plate.Model: ATEM 01 PLR-D 01 1234 Power Rating: 12-24 V 1.5 APower Adaptors: Input: 100-240V ~ 50/60HzOutput: 18V ~¯ 1.5A Power Consumption:Max 2.8 W Dimensions (Air Purifier on stand): L x H x W 330 x 330 x 145 mm 13 x 13 x 5.8 inWeight (Air Purifier only):1850g / 4.1lbs Technical specificationsResponsibilities, Warranty and Service InformationManufacturer of the productIQAir AG, herein referred to as IQAir, is responsible for supplying the product, including the user manual and original accessories, in a completely safe condition. The manufacturers of non IQAir accessories for the product are responsible for developing, implementing and communicating safety concepts for their products, and are also responsible for the effectiveness of those safety concepts in combination with the IQAir product.International Limited Warranty and ServiceThe IQAir Warranty applies, provided the product is handled properly for the intended use and if handled in accordance with its operating instructions. Tampering with the power adapter or the use of a non IQAir provided power accessories voids the warranty. This product is subject to the terms and conditions set out in the International Limited Warranty which you can download from the IQAir home page at http://www.iqair.com The foregoing warranty is exclusive and is in lieu of all other warranties, terms or conditions, express or implied, either in fact or by operation of law, statutory or otherwise, including warranties, terms or conditions of merchantability, fitness for a particular purpose, satisfactory quality and non-infringement, all of which are expressly disclaimed.For detailed instructions, how to claim your warranty for a defective device, please, visit the IQAir website, contact a IQAir distributor or your closest IQAir representative. If you need information on IQAir products or if you have a problem with your product, please visit IQAir website at www.iqair.com or contact the retail shop where you purchased the product for further assistance. EN
1211Wichtige Sicherheitshinweise Wichtige SicherheitshinweiseLesen Sie diese Gebrauchsanweisung sorgfältig durch, bevor Sie das Produkt verwenden und sie für zukünftige Referenz gespeichert werden.Bevor Sie beginnenVielen Dank für die IQAir Atem persönliche Luftreiniger kaufen. Bevor Sie es installieren, Zeit nehmen, diese Anleitung zu lesen.Die IQAir Atem persönliche Luftreiniger hilft Ihnen, Ihre Gesundheit zu schützen, indem die Qualität der Luft in der Atemzone an Ihrem Schreibtisch zu verbessern, wo Sie schlafen und wo immer Sie Ihre persönliche Atemzone erstellen möchten.Die IQAir Atem persönliche Luftreiniger entfernt feine Partikel aus der Luft und erzeugt einen Strom von gereinigter Luft, die Sie erstellen Ihre persönlichen Atemzone hilft.ContentsImportant safety instructions ................. Page 12Important product information ........................13Un-Boxing & Assembling ................................6Using your Atem .............................................6Atem Apps ...................................................... 7 Blue tooth paring and App settings ..................8Troubleshooting .............................................. 9Accessories .................................................10Warranty and Customer care info ...................10Wichtige SicherheitshinweiseTo be translatedTo be translatedTo be translatedDEEN

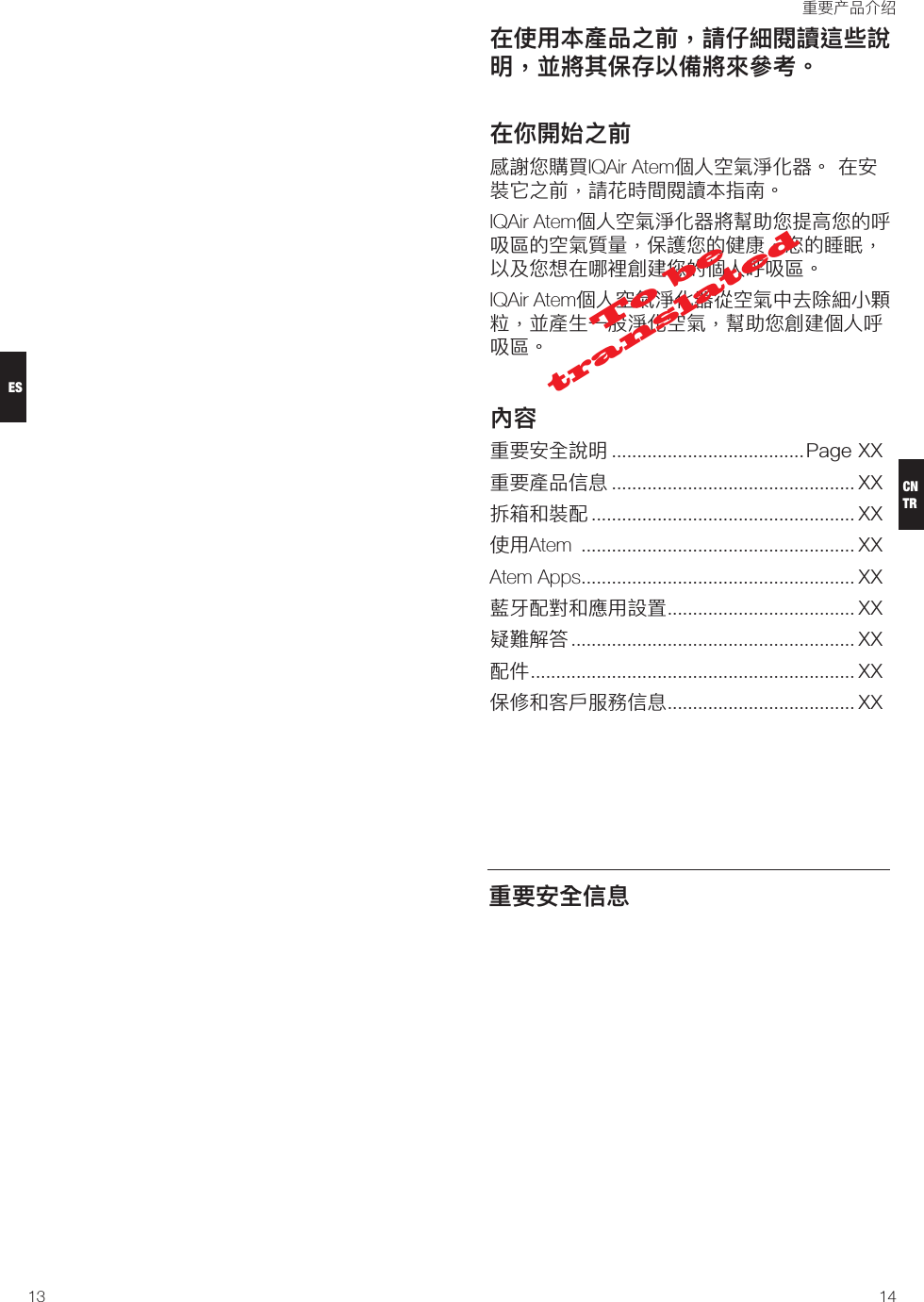

1413在使用本產品之前，請仔細閱讀這些說明，並將其保存以備將來參考。在你開始之前感謝您購買IQAir Atem個人空氣淨化器。在安裝它之前，請花時間閱讀本指南。IQAir Atem個人空氣淨化器將幫助您提高您的呼吸區的空氣質量，保護您的健康，您的睡眠，以及您想在哪裡創建您的個人呼吸區。IQAir Atem個人空氣淨化器從空氣中去除細小顆粒，並產生一股淨化空氣，幫助您創建個人呼吸區。內容重要安全說明......................................PageXX重要產品信息................................................ XX拆箱和裝配.................................................... XX使用Atem...................................................... XXAtem Apps...................................................... XX藍牙配對和應用設置..................................... XX疑難解答........................................................ XX配件................................................................ XX保修和客戶服務信息..................................... XX重要产品介绍重要安全信息To be translatedCNTRES
