User Manual
User Guide
Benutzerhandbuch
Mode d'emploi
Guía del usuario
用户指南
用戶指南
説明書
사용자 설명서
Гид пользователя
دليل المستخدم
Manufacturer:
IQAir Germany GmbH
Contact: Carl-Maybach-Straße
18, 88239 Wangen im Allgäu,
Germany
Distribution:
IQAir North America
IQAir North America, Inc.
14351 Firestone Blvd.
La Mirada, CA 90638
USA
IQAir International
Incen AG
Hauptstrasse 104
9422 Staad
Switzerland
IQAir China
DRC Liangmaqiao Diplomatic
Office Building, Suite 1305B
No.19 Dongfang Dong Road
Chaoyang District,
100600 Beijing
Tel.: 400 108 5117
www.iqair.com/atem
Product
Components
1
Atem
®
Air Purier
2
PureJet
™
Diffuser
3 Back Plate
4 Stand Head
5 Stand Base
6 HyperHEPA
®
Filter
7 Silencer
8 Power Adapter
& Plugs
9 Connector
Cover
Produkt
Komponenten
1 Luftreiniger
2 PureJet Diffusor
3 Rückenplatte
4 Stand Kopf
5 Standfuß
6 Primärlter
7 Schalldämpfer
8 Wechselstrom
Adapter &
Stecker
9 DC-Steck
verbinder
Abdeckung
Produit
Composants
1 puricateur d'air
2 Diffuseur
PureJet
3 Plaque de Dos
4 tête de stand
5 Base de support
6 Filtre Primaire
7 Silencieux
8 Alimentation AC
Adaptateur et
ches
9 Connecteur DC
Couverture
Producto
Componentes
1 puricador de
aire
2 Difusor PureJet
3 Placa Trasera
4 Cabezal de pie
5 Soporte Base
6 Filtro principal
7 Silenciador
8 Alimentación de
AC Adaptador
y enchufes
9 Conector
de DC
Cubrir
產品組件
1 空氣淨化器
2 PureJet擴散器
3 背板
4 站頭
5 站立基地
6 主濾波器
7 消聲器
8 交流電源適配器
和插頭
9 直流連接器蓋
产品组件
1 空气净化器
2 PureJet扩散器
3 背板
4 站头
5 站立基地
6 主滤波器
7 消声器
8 交流电源
适配器和插头
9 直流连接器盖
製品
コンポ ー ネント
1 空気清浄機
2 PureJetディフュ
ーザー
3 バックプレート
4 スタンドヘッド
5 スタンドベ ース
6 プ ライマリフィル タ
7 サイレンサー
8 AC電源 アダプタ
ー＆プラグ
9 DCコネクタカバー
생성물구성 요소
1 공기 청정기
2 PureJet 기관총
3 뒷판
4 스탠드 헤드
5 받침대
6 기본 필터
7 소음기
8 AC 전원어댑터
및플러그
9 DC 커넥
터덮개
Продукт
Компоненты
1 очиститель
воздуха
2 Распылитель
PureJet
3 Задняя панель
4 -х голова
5 Подставка
основания
6 Первичный
фильтр
7 Глушитель
шума
8 Мощность
переменного
тока
Адаптеры и
пробки
9 Разъем
постоянного
тока Обложка
المنتج
المكونات
1 لتنقية الهواء
2 بوريجيت الناشر
3 لوحة الظهر
4 الوقوف رئيس
5 قاعدة الوقوف
6 تصفية الأولية
7 كاتم الصوت
8 أس السلطة
محول & المقابس
9 موصل دس
غطاء، يغطي
1
1
2
29 3
4-5
4
5
7
6
8
To be
translated
Congratulations on your purchase of the IQAir
Atem® personal air purifier. Please study this
User Guide carefully to familiarize yourself with
the special features and functions of this IQAir
product. Retain this document in a safe place for
future reference.
HerzlichenGlückwunschzumKaufdieses
IQAir
Atem®
Hochleistungs-Luftreinigungssystems.
BittelesenSiedieseBedienungsanleitung
sorgfältigdurch,umsichmitden
BesonderheitenundFunktionenIhresIQAir®
Systemsvertrautzumachen,undbewahrenSie
esaneinemsicherenOrtauf.
恭喜您購買了此IQAir Atem®高性能空氣淨化系統。
請仔細閱讀本用戶手冊，以熟悉IQAir®系統的特殊功
能和功能，並將其保存在安全的地方以備將來參考。
恭喜您购买了此IQAir Atem®高性能空气净化系统。
请仔细阅读本用户手册，以熟悉IQAir®系统的特殊功
能和功能，并将其保存在安全的地方以备将来参考。
IQAir Atem® 개인용 공기 청정기를 구입하신
것을 축하드립니다. 이 사용자 가이드를주의
깊게 살펴보고이 IQAir 시스템의 특수 기능을
숙지하십시오. 나중에 참조 할 수 있도록이 문서를
안전한 장소에 보관하십시오.
Introduction
To be
translated
To be
translated
English .......................................1-10
Deutsch .....................................30-40
Français ....................................40-50
Espanol ......................................60-70
简体中文 ...................................10-20
中國傳統的 ................................10-20
日本 ...........................................70-80
한국어 ........................................80-90
русский ....................................90-100
عربى ........................................100-110
For the user guide in other languages visit
www.iqair.com/userguide
To be
translated
To be
translated
To be
translated
To be
translated
ES
CN
SP
CN
TR
JP
FR
KO
RU
AR
DE
EN
21
Important safety instructions Important safety instructions
Before you start
The IQAir Atem® personal air purifier is ideal for
use at your desk, bedside or anywhere you wish
to create your own personal clean air zone.
The Atem should only be used in conjunction
with the dedicated stand, power accessories,
and/or hardware delivered in the package.
Misuse can lead to injury, malfunction and/or
damage.
Read these instructions for use
carefully before using the product
and save them for future reference.
• As with all electronic devices,
please keep out of the reach
of children under the age of 3.
This device is not a toy! Do not
let children play with it.
To reduce risk of fire,
electric shock, or injury please read these
warnings before using this product.
• To avoid risk of fatal electric shock and fire only
plug the product into suitable, easily accessible,
mains power connections. Use only the IQAir
provided power accessories.
• Use the power accessories
only indoors and in dry
environments.
• Do not use damaged power
accessories, cables or plugs.
• Do not allow any kind of
liquid to spill on, or come into
contact with the product.
Including, but not limited to;
water, detergents or flammable
solvents.
• Important to clean the device:
- Disconnect from the power supply
- Use a soft, dry cloth only
- Cables and plugs: Keep plugs clean and dry.
Blow away any dirt lodged in the plugs of the
connecting cables.
Never immerse the product or any of its
components in water or under running
water.
•
Never cover the unit nor
otherwise impede the air intake
and outflow in any way. Do not
introduce a foreign object or
finger into air flow openings.
Important Safety Warnings
Important Safety Warnings
3kg
• This product contains high-
precision technology. Do not
drop, tamper with nor expose
to impact.
• Intended use for this product
is for in a living, office or
automotive environment. It creates a dedicated
breathing zone within a defined area.
• Permitted use for this product should only be
on the original stand or fixture designed to hold
the purifier delivered in the package.
• Adverse use for this product would be in damp
or wet environments such as bathrooms or
kitchens. Do not introduce body parts or objects
into the air intake or outlet of the purifier.
• Adverse use can lead to injury, malfunction and
damage.
• Limits of use: Only environments suitable for
use in an atmosphere appropriate for permanent
human habitation. Not suitable for use in
aggressive or explosive environments.
Electromagnetic Compatibility (EMC)
• The term Electromagnetic Compatibility is
taken to mean the capability of the product
to function smoothly in an environment where
electromagnetic radiation and electrostatic
discharges are present, and without causing
electromagnetic disturbances to other equipment.
• Electromagnetic radiation can cause
disturbances in other equipment. Although the
product meets the strict regulations and standards
which are in force in this respect, IQAir cannot
completely exclude the possibility that other
equipment may be disturbed.
Environment
Help to preserve the environment. Do not
discard the device with household waste. Bring
it to the official waste recycling service near
you. Filters may be disposed of with household
waste.
Product Storage
When not in use store your Atem in a clean dry
place. Use the original packaging for optimal
storage.
ENEN
43
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communication.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and the receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
- Changes or
modifications not
expressly approved by
the party responsible
for compliance
could void the user’s
authority to operate the
equipment.
For Canada:
This device complies
with Industry Canada’s
licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
Important safety instructions Product use and operations
Product Components
and Assembly
Product components
See product drawing inside the cover.
1 Atem® air purifier
2 PureJet™ diffuser
3 Back plate
4 Stand head
5 Stand base
6 HyperHEPA® filter
7 Silencer
8 Power adapter and plugs
9 Connector cover
Assembly
After unboxing you will find the Atem personal air
purifier (1) with the PureJet diffuser (2) attached.
Power and stand assembly
Remove and unpack the power adapter & plug box.
Select the correct plug for your region and snap into
place as shown.
Take the stand head
(4) and remove the
connector cover (black
part) (9) and set aside.
The location of the compliance
statements on Atem Purifier is
found under the Back Plate cover.
For USA: FCC Statement
Assembled plug.
Remove the connector cover.
Select your regions plug.
Snap into place.
FCC
USA English ONLY -
do not translate!
FCC
For Canada: French
ONLY translate!
FCC
USA English ONLY -
do not translate!
EN
65

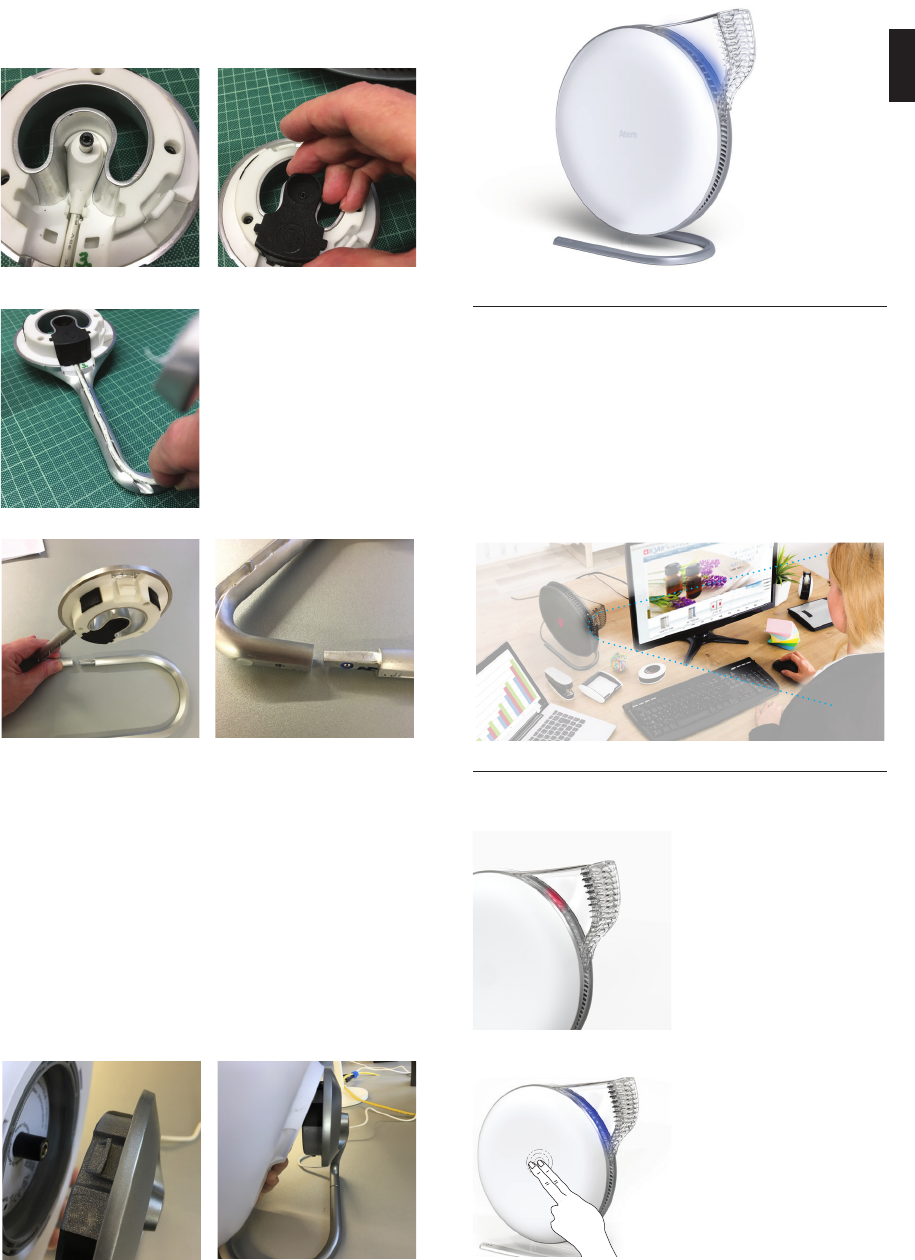

Take the connector end of the power adapter cord (8)
and snap the head into place. Replace the connector
cover
Thread the power cord
into the channel on the
stand head
.
Assemble the stand head to the stand base (5)
together.
Once assembled your stand is now ready to attach to
the back of the purifier.
Connecting the air purifier to the stand
Set the stand upright. Firmly grasp the air purifier and
align the back plate (3). Tilt and hook the edge onto the
stand head which aligns the power plug head. Snap
the air purifier and stand together.
With your Purifier, Pure Jet Diffuser and Stand
assembled you are now ready to use your Atem
personal air purifier.
Product use and operationsProduct use and operations
Thread the cord into the stand.
Align the stand head.
Connect the stand head to the base.
Angle and snap into place.
Snap in the power cord head. Replace the connector cover.
Set-up and placement of your Atem.
Place the Atem personal
air purifier near you on a
stable surface such as a
desk or table. Point the
PureJet diffuser toward
your face, directing the
flow of purified air directly
into your breathing zone.
For optimal clean air
delivery place the Atem as
close to you as possible.
Setting up your personal
clean air zone
Assembled and powered on Atem personal air purier.
Using the Atem for the first time
Upon initially connecting
to the power supply,
you will hear the Atem’s
power on chime and
see a single red LED
illumination.
User interface &
touch point settings
To change fan speed, use
two fingers to touch the
center of the face plate.
With every touch, you will
hear a sound and see
the blue LED illuminate.
The size of the LED
corresponds to the air
speed.
Small red illumination and
chime = on or off.
Touch point.
EN
87
Filter Replacement
The Atem will indicate a necessary filter change with a
double red LED flash with sound.
HyperHEPA filter
Follow steps 1-4 to change the filter in the Atem.
Disconnect the Atem from the power source
changing filter!
Step 1: Remove the air purifier from the stand and
place it face down onto a cloth surface with the
back facing up.
Step 2: Note the
back-plate locking ring
direction indicators.
Grasp the locking ring
firmly and rotate in
a counter clockwise
direction until the back-
body plate (3) releases.
You should be able to
easily lift the back away.
Product use and operationsProduct use and operations
Step 3: Remove the
old filter by pulling on
the tabs and dispose of
it. Replace with a new
IQAir Atem HyperHepa®
filter (6) and firmly press
into place.
Step 4: Replace the
back plate and gently
rotate until the lock pins
fall into place. Grasp
firmly and press down
on the locking ring and
turn clockwise to lock.
The back should now be
closed securely. Place
the Air Purifier on the
Stand for use.
PureJet Diffuser
To remove your PureJet
diffuser firmly grasp the air
purifier and diffuser and
pull the two apart.
To replace your PureJet
diffuser firmly grasp the air
purifier and diffuser and
align the large pins at the
back of the diffuser, with
the arrows on the outlet
vent. Note the outlet vent
has larger openings.
Once the diffuser pins are
aligned with the arrows
press firmly into place
while holding the air purifier
steady with your hand.
Should the PureJet
diffuser face plate become
dislodged, align the hook
at the bottom of the
diffuser face plate with the
bottom of the diffuser body
and snap firmly into place.
A double red LED
flash with sound
= change filter.
Medium blue illumination
and sound = medium
speed.
Small blue illumination
and sound = low speed.
Full blue illumination
and sound = high speed
(Cooling Mode).
To unlock turn the locking ring.
Easily lift the back cover away.
Lift tabs to remove lter.
Locking direction.
Opening direction.
Removal of the diffuser.
Outlet vent arrows.
Align the large pins.
Connector hook.
Diffuser plate snaps into place
EN
109
Warranty & Service information Atem App, Troubleshooting & Technical Information
Cleaning the PureJet
diffuser
Completely remove the
diffuser to facilitate safe
cleaning.
IQAir Atem App
To enhance your user
experience and to unlock
additional features of the
IQAir Atem personal air
purifier, download and
install the IQAir Atem App
for Apple or Android. App
features and benefits
include:
Proximity switch
Fan speed settings
Filter life notifications
Safety settings
With the App, you will be
able to access all the
features and custom
setting available for your
Atem. Please remember
that the Bluetooth® mode
must be activated
beforehand on your smart
phone. To install follow the
set-up directions on the
App.
Bluetooth paring
Pair your Smart Phone
device with the Atem by
using the IQAir Atem App.
The Atem is automatically
in discovery mode and will
appear in the Bluetooth
section of the App.
Tap the Atem name to
pair. Enter the Bluetooth
code PIN found on the
back of this manual,
backplate or on the UPC
label.
Proximity switch
The Proximity Switch
feature in the App can be
set to sense proximity of
the user’s Smart Phone
device to the Atem. This
enables a power-saving
automatic on/off function if
desired.
Troubleshooting
Visit the Atem support
section on the website.
Accessories
and Filters
A list of available filters
and replacement parts
for the Atem Purifier can
also be found on the
website at:
www.iqair.com
The location of product
information & specifications is
found on the type plate.
Model:
ATEM 01 PLR-D 01 1234
Power Rating:
12-24 V 1.5 A
Power Adaptors:
Input: 100-240V ~ 50/60Hz
Output: 18V ~
¯
1.5A
Power Consumption:
Max 2.8 W
Dimensions (Air Purifier on stand):
L x H x W 330 x 330 x 145 mm 13 x 13 x 5.8 in
Weight (Air Purifier only):
1850g / 4.1lbs
Technical specifications
Responsibilities, Warranty
and Service Information
Manufacturer of the product
IQAir AG, herein referred to as IQAir, is
responsible for supplying the product, including
the user manual and original accessories, in a
completely safe condition. The manufacturers
of non IQAir accessories for the product are
responsible for developing, implementing
and communicating safety concepts for their
products, and are also responsible for the
effectiveness of those safety concepts in
combination with the IQAir product.
International Limited Warranty
and Service
The IQAir Warranty applies, provided the product
is handled properly for the intended use and
if handled in accordance with its operating
instructions.
Tampering with the power adapter or the use of
a non IQAir provided power accessories voids
the warranty. This product is subject to the terms
and conditions set out in the International Limited
Warranty which you can download from the
IQAir home page at http://www.iqair.com The
foregoing warranty is exclusive and is in lieu of
all other warranties, terms or conditions, express
or implied, either in fact or by operation of law,
statutory or otherwise, including warranties,
terms or conditions of merchantability, fitness
for a particular purpose, satisfactory quality and
non-infringement, all of which are expressly
disclaimed.
For detailed instructions, how to claim your
warranty for a defective device, please, visit the
IQAir website, contact a IQAir distributor or your
closest IQAir representative.
If you need information on IQAir products or if you
have a problem with your product, please visit
IQAir website at www.iqair.com or contact the
retail shop where you purchased the product for
further assistance.
EN
1211
Wichtige Sicherheitshinweise Wichtige Sicherheitshinweise
Lesen Sie diese Gebrauchsanweisung
sorgfältig durch, bevor Sie das
Produkt verwenden und sie für
zukünftige Referenz gespeichert
werden.
Bevor Sie beginnen
Vielen Dank für die IQAir Atem persönliche
Luftreiniger kaufen. Bevor Sie es installieren, Zeit
nehmen, diese Anleitung zu lesen.
Die IQAir Atem persönliche Luftreiniger hilft Ihnen,
Ihre Gesundheit zu schützen, indem die Qualität
der Luft in der Atemzone an Ihrem Schreibtisch
zu verbessern, wo Sie schlafen und wo immer
Sie Ihre persönliche Atemzone erstellen möchten.
Die IQAir Atem persönliche Luftreiniger entfernt
feine Partikel aus der Luft und erzeugt einen
Strom von gereinigter Luft, die Sie erstellen Ihre
persönlichen Atemzone hilft.
Contents
Important safety instructions ................. Page 12
Important product information ........................13
Un-Boxing & Assembling ................................6
Using your Atem .............................................6
Atem Apps ...................................................... 7
Blue tooth paring and App settings ..................8
Troubleshooting .............................................. 9
Accessories .................................................10
Warranty and Customer care info ...................10
Wichtige Sicherheitshinweise
To be
translated
To be
translated
To be
translated
DE
EN
1413
在使用本產品之前，請仔細閱讀這些說
明，並將其保存以備將來參考。
在你開始之前
感謝您購買IQAir Atem個人空氣淨化器。在安
裝它之前，請花時間閱讀本指南。
IQAir Atem個人空氣淨化器將幫助您提高您的呼
吸區的空氣質量，保護您的健康，您的睡眠，
以及您想在哪裡創建您的個人呼吸區。
IQAir Atem個人空氣淨化器從空氣中去除細小顆
粒，並產生一股淨化空氣，幫助您創建個人呼
吸區。
內容
重要安全說明......................................PageXX
重要產品信息................................................ XX
拆箱和裝配.................................................... XX
使用Atem...................................................... XX
Atem Apps...................................................... XX
藍牙配對和應用設置..................................... XX
疑難解答........................................................ XX
配件................................................................ XX
保修和客戶服務信息..................................... XX
重要产品介绍
重要安全信息
To be
translated
CN
TR
ES
