ITEAD Intelligent Systems SONOFF Temperature And Humidity Monitoring WiFi Smart Switch User Manual
ITEAD Intelligent Systems Co., Ltd Temperature And Humidity Monitoring WiFi Smart Switch
User Manual

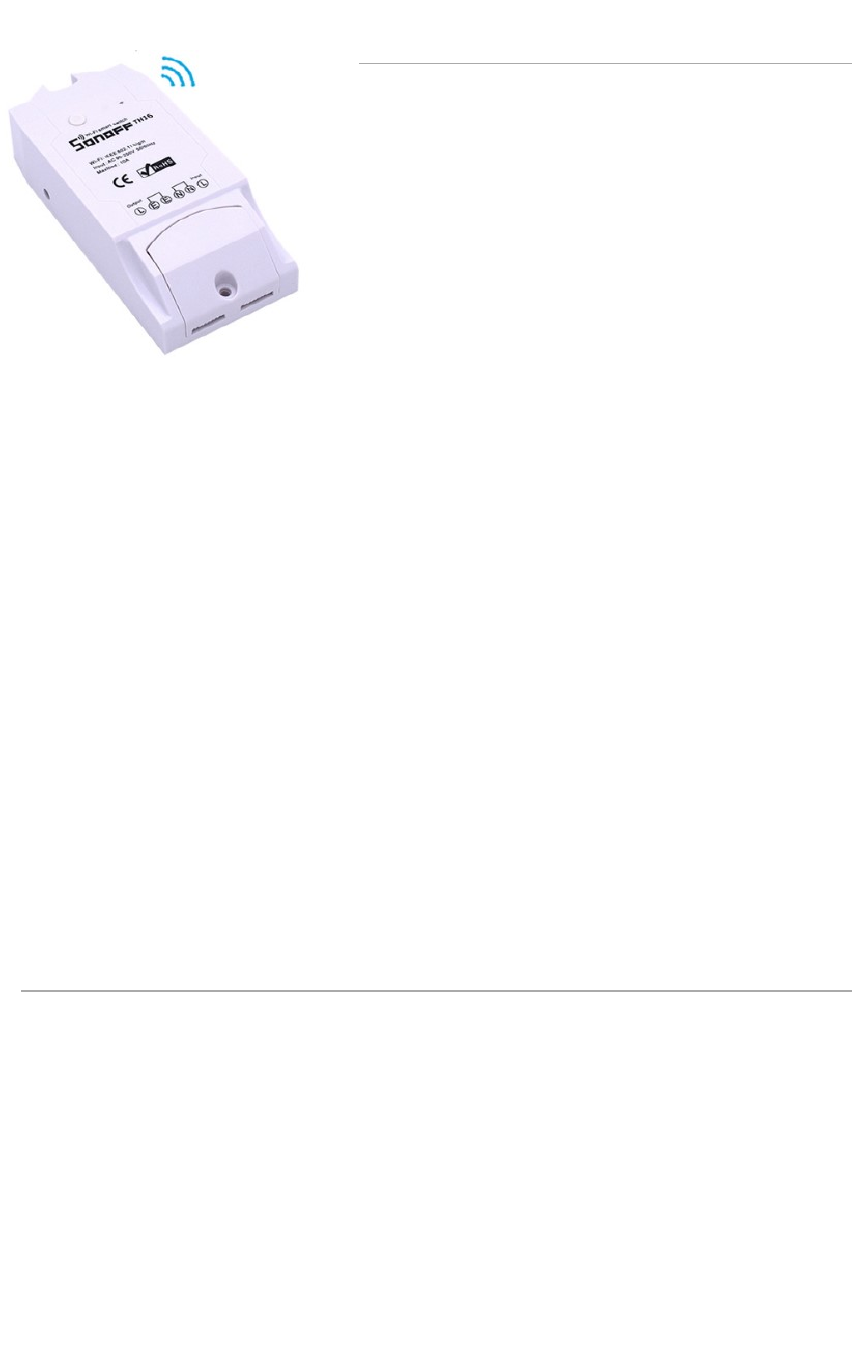

Overview
onoff TH10/16 is a Sonoff version that can
monitor and set temperature and humidity through
the APP eWeLink. Just as the name indicats, the
new version Sonoff TH device supports two power
supply specifications: 10A or 16A. Sonoff TH 10/16
supports presetting range for temperature or
humidity, when the temperature or humidity of the
environment falls into the range, it will
automatically turn on or turn off connected
devices.
The device supports connecting to three kinds of temperature and humidity sensors
(AM2301, DS18B20, DHT11). Actually, Sonoff TH 10A/16A Sonoff TH 10A/16A can work
as a Sonoff when without connecting to a sensor. But compared to Sonoff, Sonoff
10/16 is more safer, less radiation and in bigger size, easy operation. Most
importantly, with the support of latest ewelink app, you can create chains of simple
conditional statements(Smart Scene). This means you can use them with temperature
and humidity sensors (AM2301, DS18B20, DHT11) to collect temperature and humidity
data, while these data can be used to trigger ON/OFF other smart devices(Sonoff,
Sonoff RF, Sonoff SV, Slampher, smart socket, etc.) under your account. This device
is perfect to work with electric fan, air conditioner, humidifier. Please note that
this version does not have 433MHz RF function.
We are selling two kinds of sensors: AM2301 and DS18B20. We've customize an
interface for Sonoff TH10/TH16 to easily connect with the sensor, just plug and play.
Note that the sensor should be plug into Sonoff TH before you power it up, don't
plug or unplug the sensor in power on status. AM2301 is non-waterproff, while DS18B20
can work in water.
Features
Supports 90 ~ 250V AC input
Support max 10A /16A input
Support fast configure SSID and password connection through APP
Support automatic connect to server, register and update status info.
Support tracking device status and timely remote control through APP
Support setting single/repeat/countdown timing tasks
Support real-time temperature and humidity displaying
Support 3 temperature and humidity sensors (AM2301, DS18B20, DHT11)
Support preset temperature and humidity range to turn on/off
WIFI Characteristics
802.11 b/g/n
• Built-in Tensilica L106 ultra-low power consumption 32-bit micro-MCU, dominant
frequency support 80 MHz and 160 MHz, support RTOS
• Built-in TCP/IP protocol stack
• Built-in TR switch, balun, LNA, power amplifier and matching network
• Built-in PLL, voltage regulator and power supply management components, 802.11b
mode +20 dBm output power
• A-MPDU&A-MSDU aggregation and 0.4μs guard interval
• WiFi @ 2.4 GHz, supports WPA / WPA2 safe mode
• Support cloud OTA upgrade
• Support STA/AP/STA + AP mode
• Standby power consumption is less than 1.0 mW (DTIM3)
• Other parameters are as follows

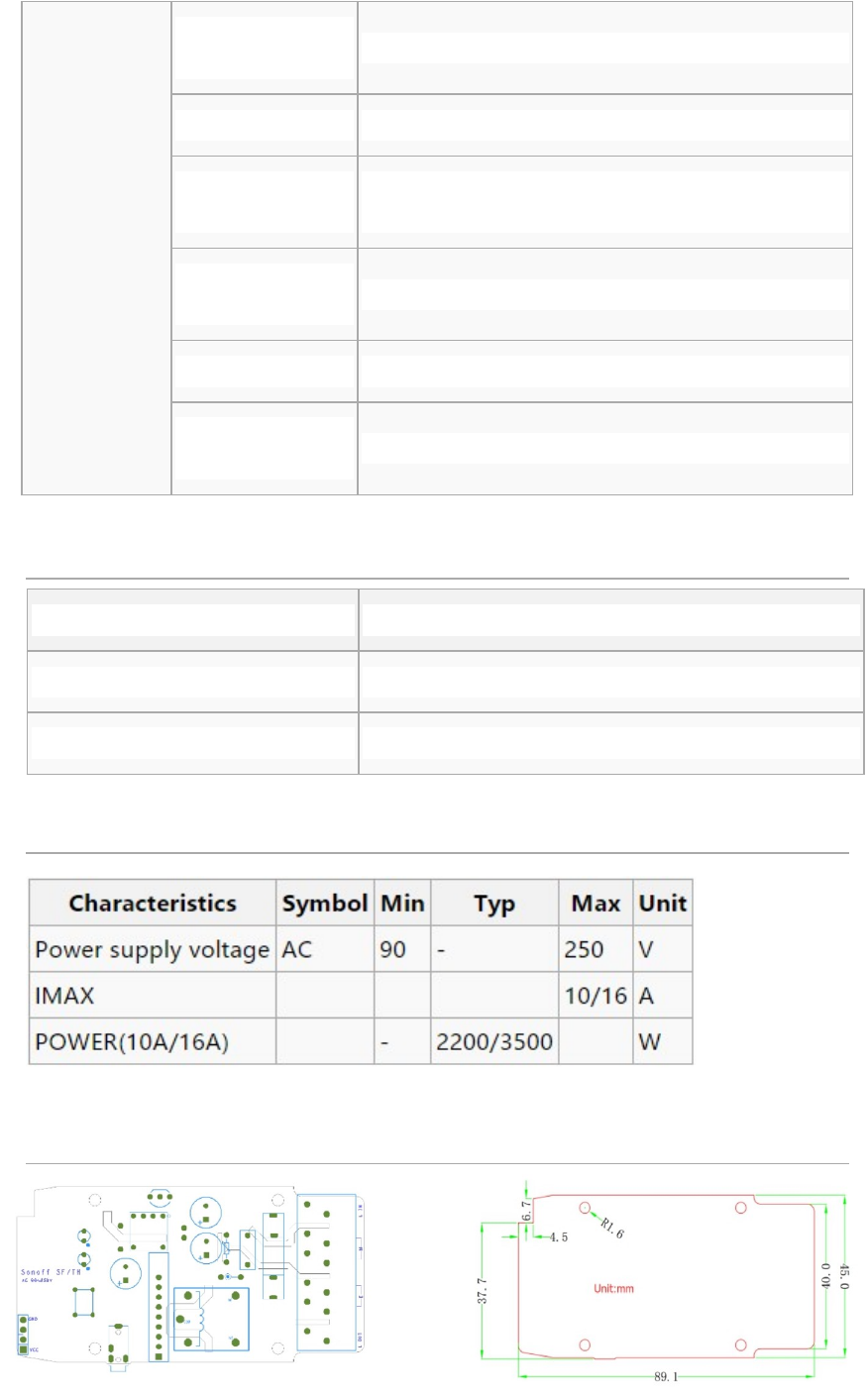

Category Parameters Description
Wireless
Parameter
Wireless standard 802.11 b/g/n
Frequency range 2.4GHz-2.5GHz (2400M-2483.5M)
Hardware
Parameter
Data port
UART/I2C
GPIO/PWM
Operating voltage 3.0~3.6V(recommend 3.3V)
Operating current Average： 80mA
Operating
temperature 0ºC-40ºC(32°F-104°F)
Operating
Humidity 5%-90%RH, Non-condensing
PCBA size 89.1mm*45.0mm*1.2mm
Software
Parameter
Wireless network
mode station/softAP/SoftAP+station
Security
mechanism WPA/WPA2
Encryption type WEP/TKIP/AES
Firmware
upgration
Local serial programming/Cloud Upgrade/Host
download programming
Software
development Support secondary development
Network protocols IPv4, TCP/UDP/HTTP/FTP
User
configuration cloud server, Android/iOS APP
Specification
Electrical Characteristics
Hardware
PCB_Size 89.1X45.0X1.2mm
Interface DHT11/DS18B20/AM2301
Indicator LED WiFi, on or off state
