Ibis Networks 301 Single InteliSocket User Manual DataSheet IS 301x
Ibis Networks Inc. Single InteliSocket DataSheet IS 301x
User Manual
IS-301
Single InteliSocket
™
Ibis Networks
·
841 Bishop Street Suite 1601
·
Honolulu, HI 96813
·
www.ibisnetworks.com 1
02/24/16

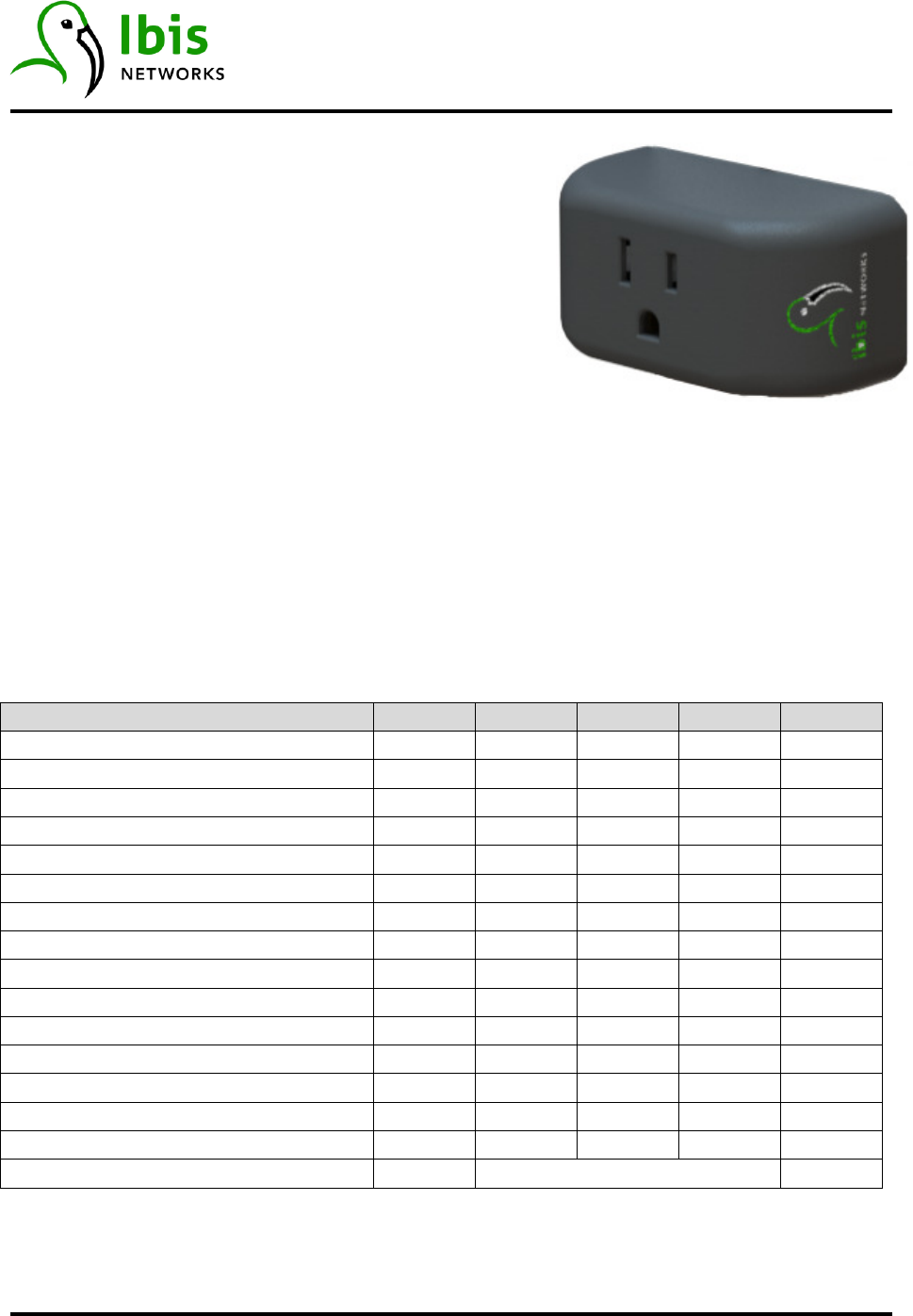

FEATURES
• 120V 15A
• UL Certification
• ZigBee Pro
• 17dBm RF Power
• Surge Protected
•
RoHS Compliant
DESCRIPTION
The IS-301 is a smart socket which meters plug load energy usage and provides device on/off
capability. It works with other InteliSockets
TM
to form a secure wireless mesh network for
control and reporting of data. Each network is anchored by an InteliGateway
TM
base station
providing connectivity to the InteliNetwork
TM
, a cloud-based data collection and analysis
application.
PERFORMANCE
Parameter Symbol Min Typ Max Units
Input Voltage (RMS) V
IN
108 120 132 V
Input Frequency 60 Hz
Output Current (RMS) I
OUT
15 A
Output Power P
OUT
1800 W
Power Consumption 1 W
Reporting Interval 1 15 255 s
Accuracy (Energy) 0.5 %
Accuracy (Voltage) 1 %
Accuracy (Interval) 1 ms
Resolution 1 W-s
RF Range 50 m
RF Transmit Power 17 dBm
Sockets per Network 120
ZigBee Channels 11 26*
ZigBee Hive 0x3000 0x3FFF
Size 3.0 x 1.5 x 1.4 inches
* Channel 26 limited to 3dBm
IS-301
Single InteliSocket
™
Ibis Networks
·
841 Bishop Street Suite 1601
·
Honolulu, HI 96813
·
www.ibisnetworks.com 2
02/24/16
COMPLIANCE
Agency File
UL916 – Energy Management Equipment
ZigBee Profile (Plover) 0x114B
FCC
ENVIRONMENTAL
Parameter Symbol Min Typ Max Units
Operating Temperature T
O
0 25 40 C
Storage Temperature T
S
-40 100 C
Relative Humidity RH 0 95 %
InteliSockets are for indoor use only.
PROTOCOL
InteliSockets use Ibis’ custom Plover profile for commands, acknowledgements, and reporting
of data.
DATA
InteliSockets report data typically every 15 seconds. Each report packet is comprised of socket
type, ZigBee channel, ZigBee hive (PANID), interval (seconds), voltage (RMS), frequency (Hz),
energy (watt-seconds), and power factor (fraction). From these data we can calculate
instantaneous power (watts) and current (amps).
·
The InteliGateway appends additional information (IP, timestamp, location, etc.) before
uploading to the InteliNetwork. This allows any socket in the world to be located and
addressed individually.
IS-301
Single InteliSocket
™
Ibis Networks
·
841 Bishop Street Suite 1601
·
Honolulu, HI 96813
·
www.ibisnetworks.com 3
02/24/16
PUSHBUTTON
The illuminated pushbutton provides addition control features. First and foremost, it is a
manual override for turning the outlet on (green) and off (red). If pressed and held for at least
three seconds it causes a reboot of the socket. If held in for ten seconds (two reboots) it
reverts back into factory mode settings. This is a useful feature for maintenance purposes or
when a socket gets moved from one location to another. A blinking backlight indicates the
socket has not associated with a mesh network yet.
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The user is cautioned that changes and modifications made to the equipment without the
approval of manufacturer could void the user’s authority to operate this equipment.
To satisfy RF exposure requirements, this device and its antenna must operate with a
separation distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter.
