Ibis Networks 302 Dual InteliSocket User Manual DataSheet IS 302x

Ibis Networks Inc. Dual InteliSocket DataSheet IS 302x

Users Manual

IS-302Dual InteliSocket™Ibis Networks · 841 Bishop Street Suite 1601 · Honolulu, HI 96813 · www.ibisnetworks.com 1 02/24/16 FEATURES •120V 15A•ZigBee Pro• dBm RF Power•Surge Protected•RoHS Compliant•Title 24 Part 6 CompliantDESCRIPTION The IS-302 is a dual smart socket which meters plug load energy usage and provides device on/off capability. It works with other InteliSocketsTM to form a secure wireless mesh network for control and reporting of data. Each network is anchored by an InteliGatewayTM base station providing connectivity to the InteliNetworkTM, a cloud-based data collection and analysis application. PERFORMANCE Parameter Symbol Min Typ Max Units Input Voltage (RMS) VIN 108 120 132 V Input Frequency 60 Hz Output Current (RMS) IOUT15 AOutput Power POUT 1800 W Power Consumption 1 W Reporting Interval 1 15 255 s Accuracy (Energy) 0.5 % Accuracy (Voltage) 1 % Accuracy (Interval) 1 ms RF Range 50 m Resolution 1 W-s RF Transmit Power 13 dBm Sockets per Network 120 ZigBee Channels 11 26* ZigBee Hive 0x3000 0x3FFF Size 4.5 x 2.75 x 1.4 inches * Channel 26 limited to 3dBm13

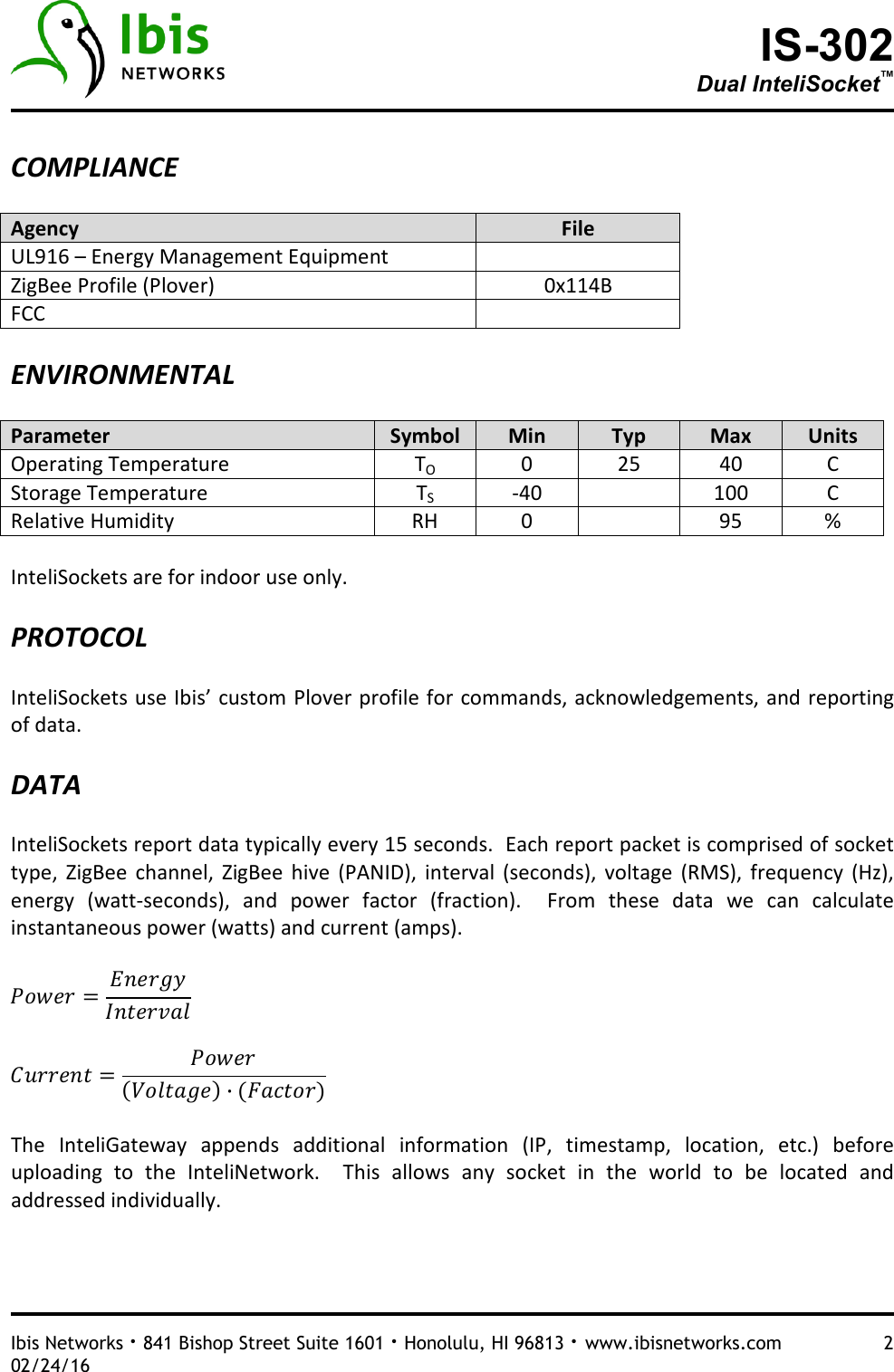

IS-302 Dual InteliSocket™ Ibis Networks · 841 Bishop Street Suite 1601 · Honolulu, HI 96813 · www.ibisnetworks.com 2 02/24/16 COMPLIANCE Agency File UL916 – Energy Management Equipment ZigBee Profile (Plover) 0x114B FCC ENVIRONMENTAL Parameter Symbol Min Typ Max Units Operating Temperature TO 0 25 40 C Storage Temperature TS -40 100 C Relative Humidity RH 0 95 % InteliSockets are for indoor use only. PROTOCOL InteliSockets use Ibis’ custom Plover profile for commands, acknowledgements, and reporting of data. DATA InteliSockets report data typically every 15 seconds. Each report packet is comprised of socket type, ZigBee channel, ZigBee hive (PANID), interval (seconds), voltage (RMS), frequency (Hz), energy (watt-seconds), and power factor (fraction). From these data we can calculate instantaneous power (watts) and current (amps). ܲ݋ݓ݁ݎ ൌ ܧ݊݁ݎ݃ݕܫ݊ݐ݁ݎݒ݈ܽ ܥݑݎݎ݁݊ݐ ൌ ܲ݋ݓ݁ݎሺܸ݋݈ݐܽ݃݁ሻ· ሺܨܽܿݐ݋ݎሻ The InteliGateway appends additional information (IP, timestamp, location, etc.) before uploading to the InteliNetwork. This allows any socket in the world to be located and addressed individually.

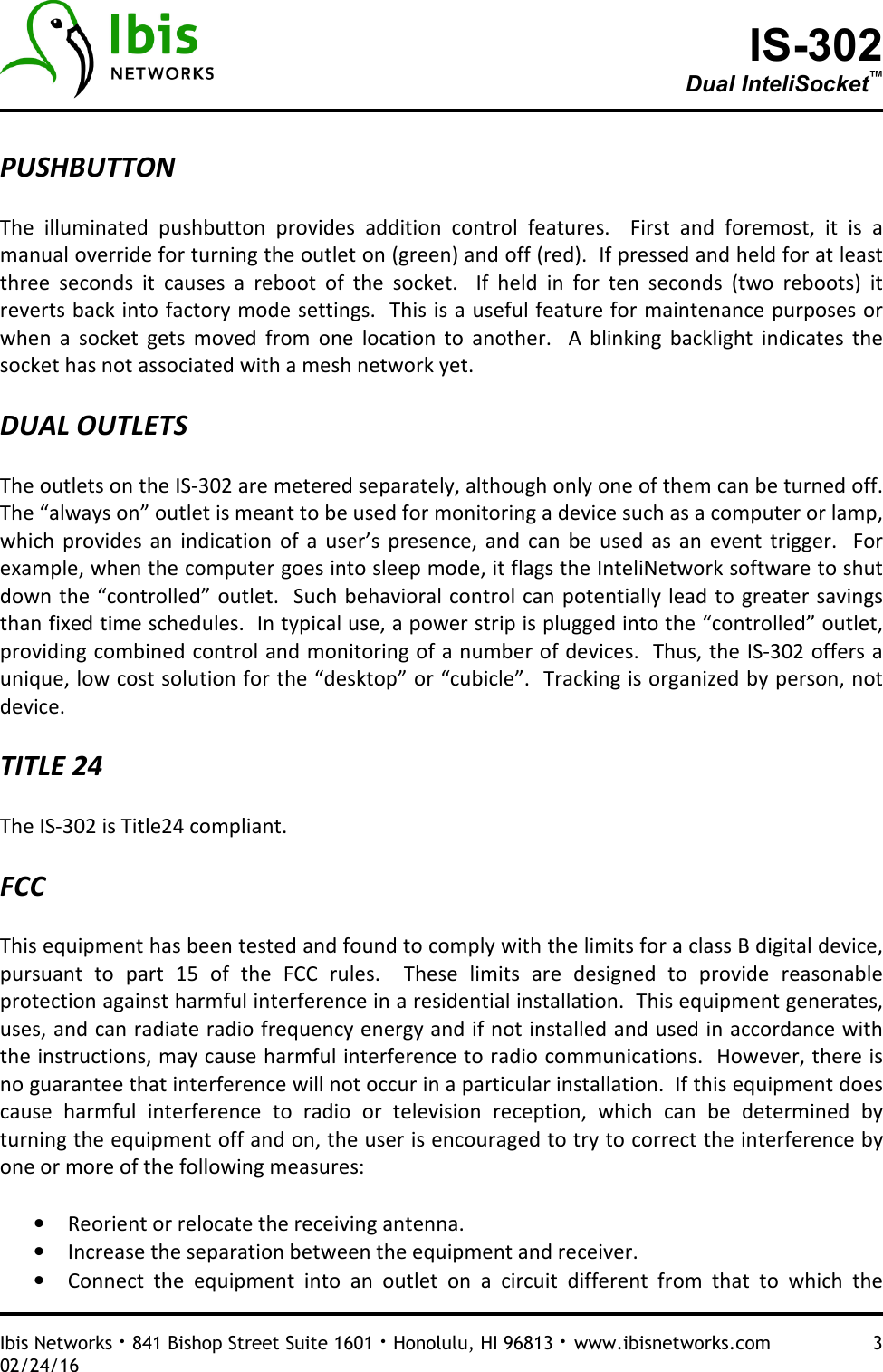

IS-302 Dual InteliSocket™ Ibis Networks · 841 Bishop Street Suite 1601 · Honolulu, HI 96813 · www.ibisnetworks.com 3 02/24/16 PUSHBUTTON The illuminated pushbutton provides addition control features. First and foremost, it is a manual override for turning the outlet on (green) and off (red). If pressed and held for at least three seconds it causes a reboot of the socket. If held in for ten seconds (two reboots) it reverts back into factory mode settings. This is a useful feature for maintenance purposes or when a socket gets moved from one location to another. A blinking backlight indicates the socket has not associated with a mesh network yet. DUAL OUTLETS The outlets on the IS-302 are metered separately, although only one of them can be turned off. The “always on” outlet is meant to be used for monitoring a device such as a computer or lamp, which provides an indication of a user’s presence, and can be used as an event trigger. For example, when the computer goes into sleep mode, it flags the InteliNetwork software to shut down the “controlled” outlet. Such behavioral control can potentially lead to greater savings than fixed time schedules. In typical use, a power strip is plugged into the “controlled” outlet, providing combined control and monitoring of a number of devices. Thus, the IS-302 offers a unique, low cost solution for the “desktop” or “cubicle”. Tracking is organized by person, not device. TITLE 24 The IS-302 is Title24 compliant. FCC This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the

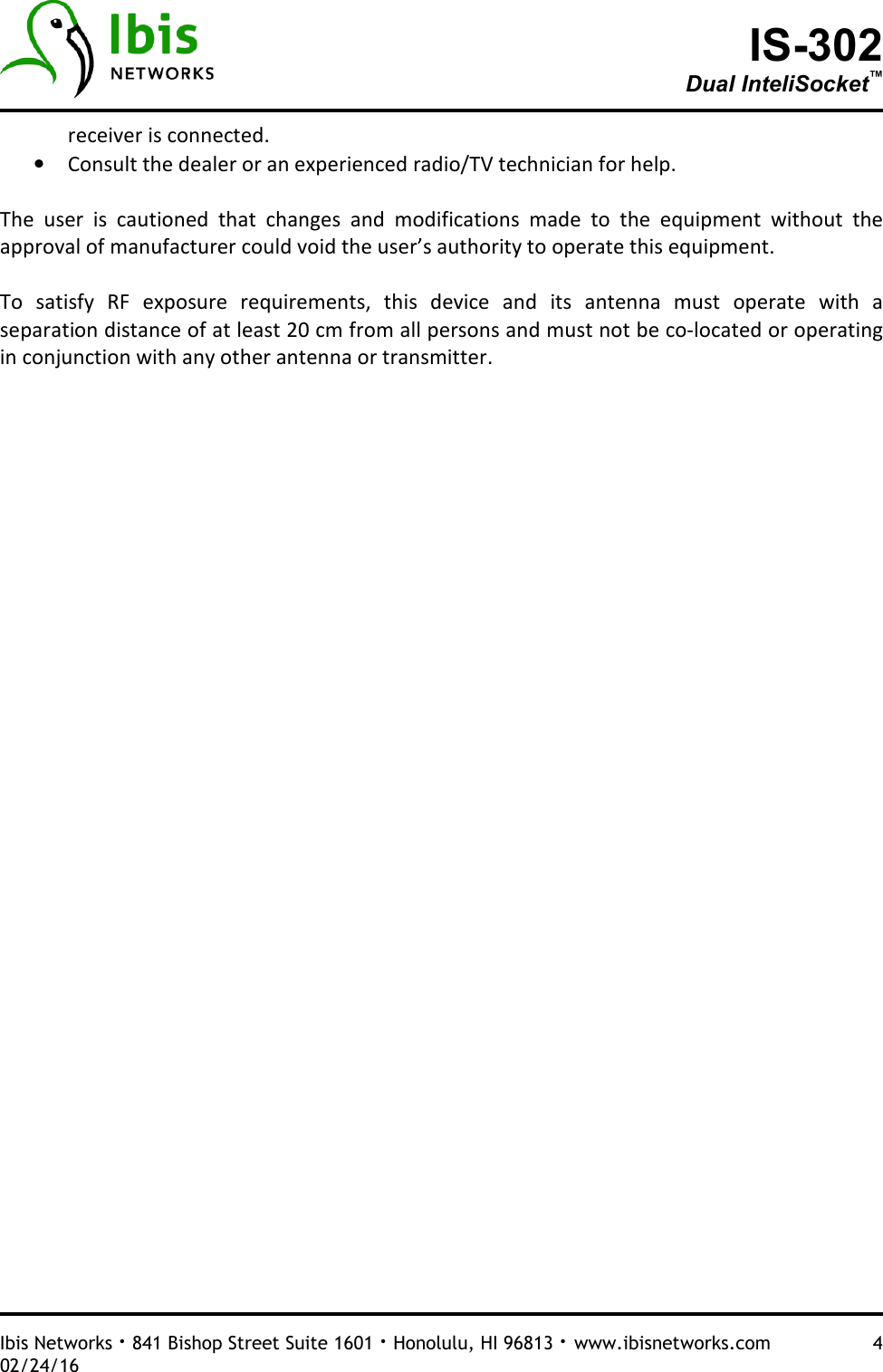

IS-302 Dual InteliSocket™ Ibis Networks · 841 Bishop Street Suite 1601 · Honolulu, HI 96813 · www.ibisnetworks.com 4 02/24/16 receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
