AIP‐W511ultracompactwirelessadapter

QuickInstallationGuide



PackageContent

ThankyouforchoosingALFAultracompactwirelessadapter.Beforeinstallingthe

adapter,pleaseverifycontentsinsidetheproductbox.

□AIP‐W511ultracompactwirelessadapter

□QuickInstallationGuide



NOTE:

Ifanyiteminthispackageismissingordamaged,pleasecontactthedistributor

immediately.



ProductOutlook





WPSbuttonPowerLANWLANModeSwitch

Resetbutton

Installation

 DefaultoperationmodeisUSBwirelessadapter

 InserttheultracompactwirelessadapterintotheUSBportofPCoryourlaptop

computer.



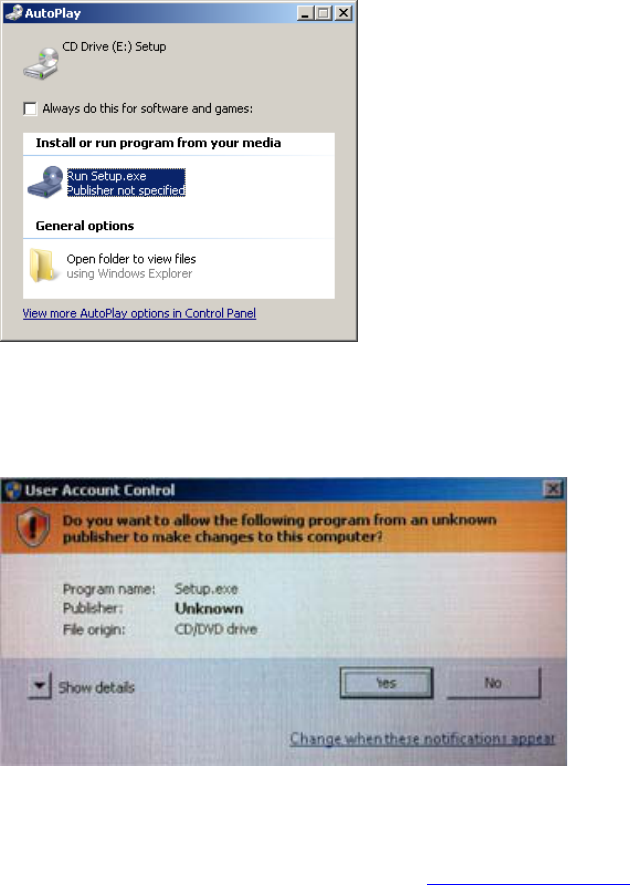

 Click“Setup.exe”whenwindow’sauto‐playmenuisprompted.



ClickYesorAllowwhenwindowsUserAccountControlwindowpop‐up.



Pleasewaittilldriverofultracompactwirelessadapterisinstalledonyour

computer.Openyourwebbrowser,andinserthttp://alfasetup.comintheaddress

bar.



NOTE:inthismode,WindowsandMACOSX(10.6orlater)driversaresupported.



 UnderstandProductOperationModes,andmakeselection



Defaultoperationmodeofultracompactwirelessadapteriswirelessadapter.



 Wirelessadaptermode

Inthismode,ultracompactwirelessadapterperformsasa802.11nwireless

adapterforWLANaccess.Justconnectultracompactwirelessadaptertoyour

laptopordesktopPC,WLANaccessisreadytouse.



NOTE:inthismode,WindowsandMACOSX(orlater)driversaresupported.



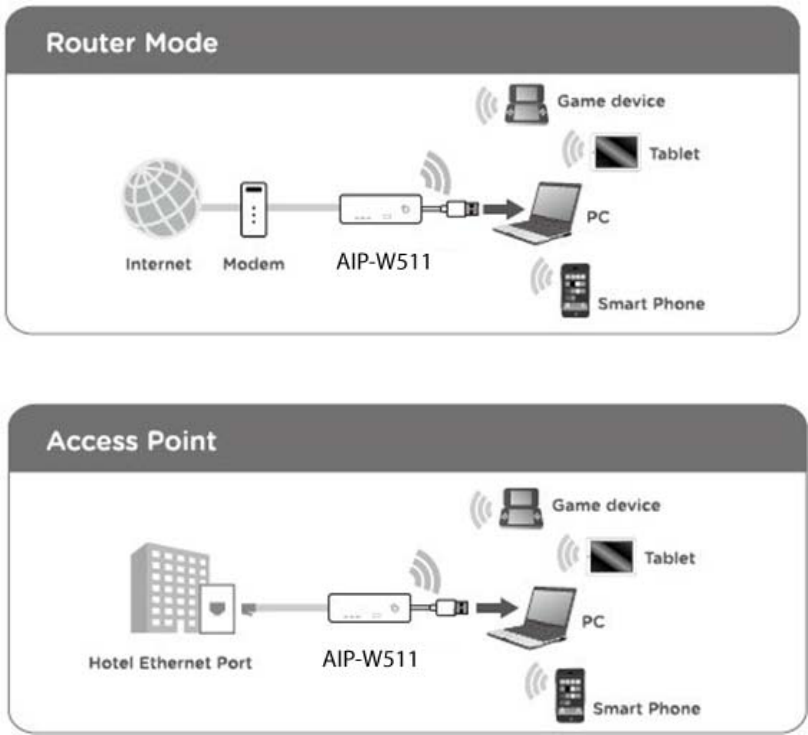

 HotelAP/RouterMode

ONLYDSLmodem/cableexistedinyournetwork,ultracompactwirelessadapter

isveryconvenienttoconvertEthernettowirelesssignals.Itactsasawireless

AP/routerforWLANaccess,andInternetsharing.JustconnectUltracompact

wirelessadaptertoDSLmodemviaEthernet/RJ‐45cable,itwilldothetasksfor

you.



NOTE:inthismode,ultracompactwirelessadaptercanbepoweredby

PC/laptopormobilepowerbank.



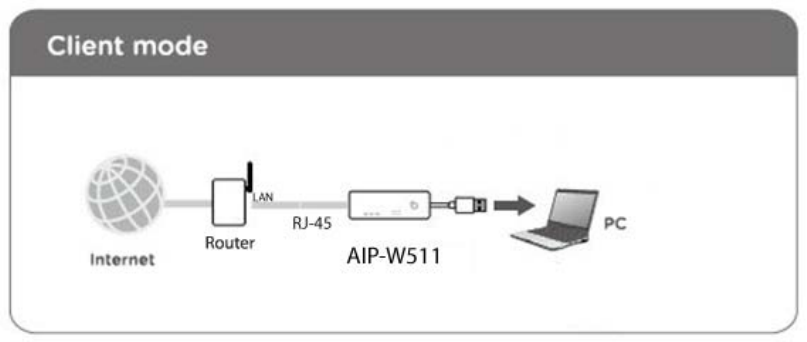

 Ethernetadaptermode

Inthismode,easilyconnectyourlaptoporcomputertoanEthernetnetwork

withtheultracompactwirelessadapter.Stylishandcompact,itconnectstothe

USB2.0portofyourlaptoporcomputerandprovidesanRJ‐45connectorthat

supports10/100BASE‐Tnetworkaccess.



 ProductConfigurations

Indefaultmode,ultracompactwirelessadapterisWLANclient.

Tostarttheproductconfigurations,connectUSBcabletoultracompactwireless

adapter..

Openwebbrowser,andenterhttp://alfasetup.com,productsettingpagewill

appearasbelow:



WLANclientmode:



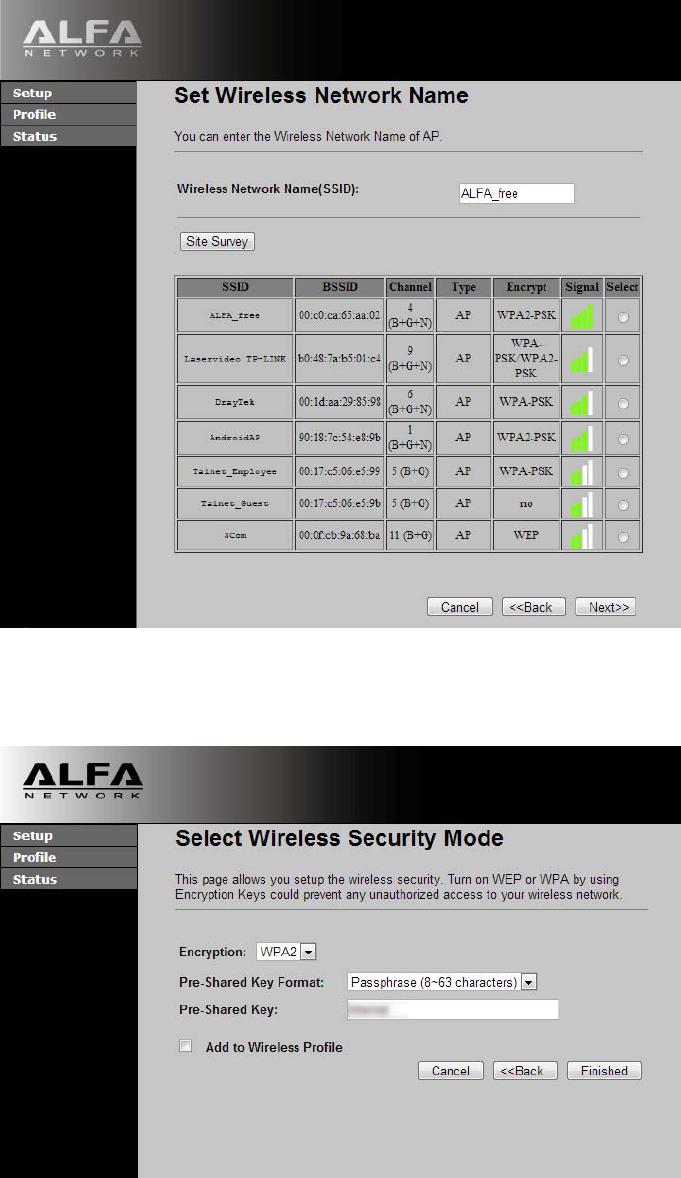

ClickonNext,insertSSIDofwirelessAPmanuallyorperformaSiteSurveyto

scantheavailablewirelessAPnearby.



ClickonNexttoselect,andinsertsuitablewirelesssecuritytoconnecttotarget

wirelessAP.



ClickonFinished,theultracompactwirelessadaptershallnowconnectto

wirelessAP,andyoumaystartInternetbrowsing.



 WLANAP(AccessPoint)mode:

Openwebbrowser,andenterhttp://alfasetup.com,productsettingpagewill

appearasbelow:

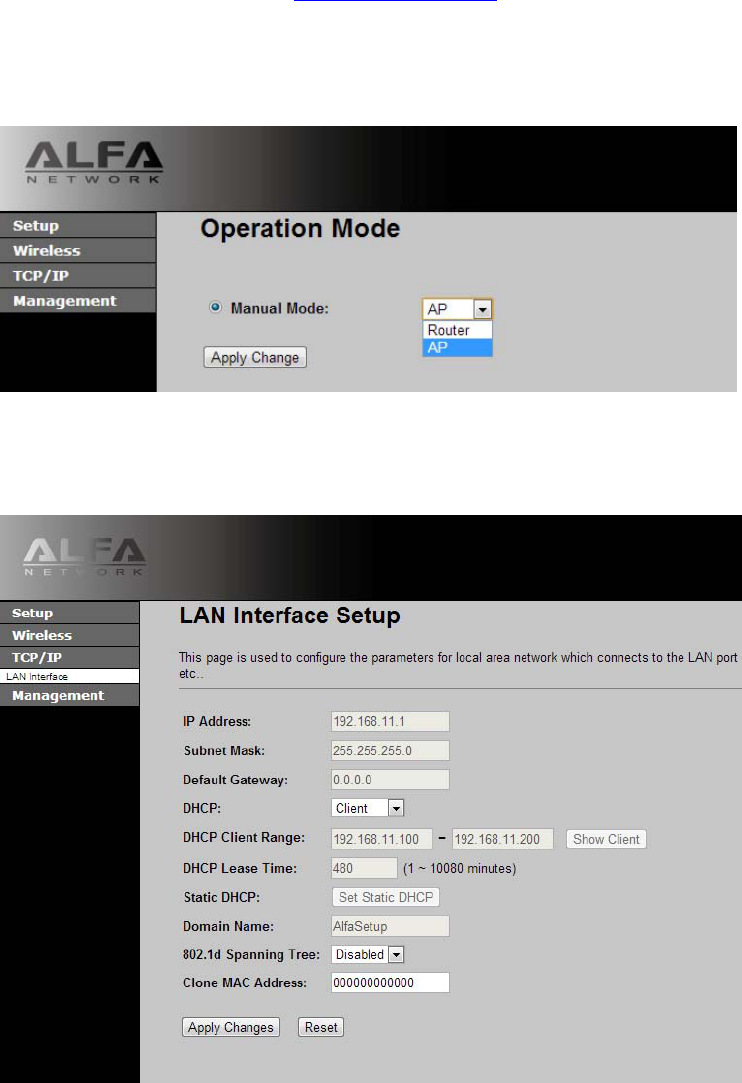

PleaseselectAPinmodeselectiontab.



ClickonTCP/IPmenu,tochangeorkeepLANIPparametersinwirelessAP

mode.



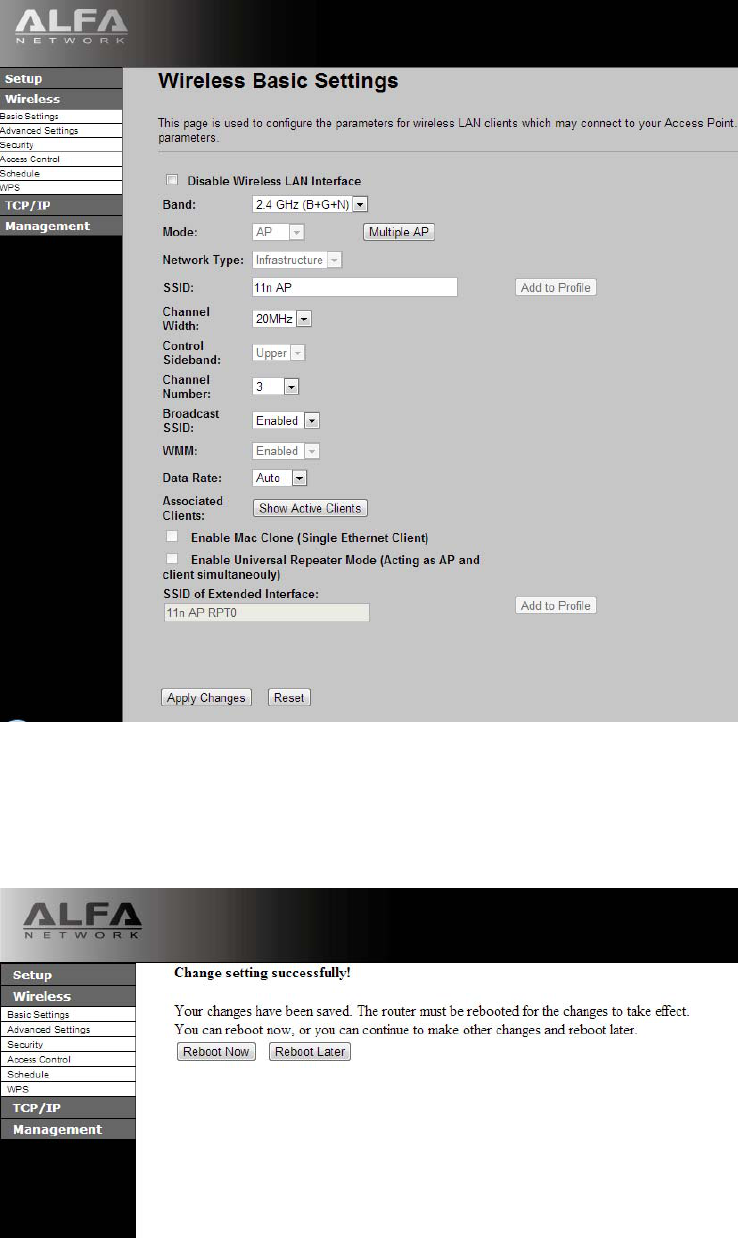

ClickonWireless‐‐>BasicSettingsmenu,tochangeorkeepLANIPparameters

inwirelessAPmode.



ClickonWireless‐‐>SecuritySettingsmenu,thereisadefaultsecurityconfig

inthispage.Tochangeorkeepwirelesssecurityparameters,pleasechangethe

valuesinthispage.



NOTE:Toapplythechanges,pleasereboottheroutertoactivatethenew

configurationsintheWLANAPsettingmenu.



 WLANRoutermode:

Openwebbrowser,andenterhttp://alfasetup.com,productsettingpagewill

appearasbelow:

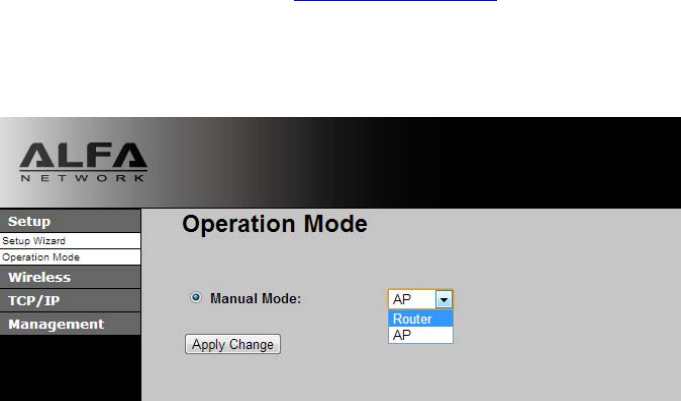

PleaseselectRouterinmodeselectiontab.



ClickonSetupWizardmenu,refertothescreeninstructionstofill‐inrequired

parametersforInternetaccess.



NOTE:defaultIPaddressinroutermodeis192.168.11.1



FURTHERINFORMATION

Thestepsaboveintroducesimpleinstallationforultracompactwirelessadapter.

ForfurtherconfigurationoftheWi‐FiProtectedSetup(WPS),SoftwareAPetc,

pleaserefertotheuser’smanual.Anyfurtherquestions,pleasecontactthelocal

dealerordistributorwhereyoupurchasedthisproduct.



Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

The device has been evaluated to meet general RF exposure requirement. Th

e device can be used in portable exposure condition without restriction.

This device and its antenna(s) must not be co-located or operation in

conjunction with any other antenna or transmitter.

Note: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

FCC ID: 2AB87511

Model No.: AIP-W511

Model name: 802.11n 150M Ultra Wireless LAN Router

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.
