IDENTEC SOLUTIONS’ ILR® (Intelligent Long Range®) technology is the next generation of
long range RFID (Radio Frequency Identification). The objective is wireless and automated
data collection over large distances.
HOW RFID WORKS
Data is transmitted via high frequency radio waves between a tag and an interrogator.
Information stored on the tag can be read and modified. Data can be exchanged over long
distances, even in the presence of extreme operating conditions such as dust, dirt, paint or
oil.
The core element of the system is the active ILR tag, which can communicate large
amounts of data (up to 32 kBytes) at a rapid rate of transmission over very long distances
(up to 100 meters). A sophisticated anti-collision handling algorithm enables the
interrogator (i-PORT) to record data simultaneously from hundreds of these tags within
seconds. Connection of the interrogator to a host computer system permits global data
accessibility via a variety of software platforms.
CHARACTERISTICS OF ILR:
• UHF Frequency (868 / 916 MHz)
• Long read and write range of up to 100 meters
• Variable read range from just a few meters up to 100 meters
• Large storage capacity (8 kB or 32 kB)
• Temperature monitoring and recording (optional)
• Highly visible LED “pick-by-light” (optional)
• Long battery lifetime (up to 6 years)
• Anti-collision process and multi-tag handling
1.2 System Overview
IDENTEC SOLUTIONS’ ILR-System consists of 4 main components:
• Active tags (also called transponders) with internal power supply, which are used to
identify goods or to store data and histories
• Interrogator (i-PORT; fixed-mounted) and handheld devices (mobile), which exchange
information with the tags and host computer systems
• Patch antenna for definition of read zone
• A central computer system as basis for control and monitoring
_______________________________________________________________________
2.0 COMPONENTS
2.1 i-PORT III
i-PORT III is the next generation of IDENTEC SOLUTIONS’ ILR interrogators. It is capable
of communicating with i-Q series tags with a communication range up to 100 meters.
Up to four antennas (plus one extra send antenna) can
be connected to i-PORT III. Built-in signal strength
measurement capability enables the localization of tags
using triangulation.
i-PORT III is delivered complete with standard software,
which offers the user a variety of options:
• Communication with ILR i-Q tags
• Simultaneous operation with up to four antennas
(receive), with the option of a fifth antenna (send)
• Communication with host computer systems via
Ethernet interface
• Data processing (event messages, in/out, etc.)
• Configuration by means of web-interface (remote
maintenance)
i-PORT III has a Real-Time Operating System (RTOS: Thread X) and an internal Real-Time
Clock (RTC), which permit an exact time allocation of the data. Up to 2000 data messages
can be stored temporarily.
2.2 Antennas
Patch antennas can be used with i-PORT III for definition of read zones. Your system
installer will select the appropriate mounting height for optimal communication range
along with consideration of safety issues.
_________________________________________________________________________
Document #7201-003, Rev B Page 7
2.3 i-Q Tag
The i-Q series active tag is particularly suited for:
- Identification
- Tracking and Tracing
- Localization
- Temperature Monitoring
- Data carrying
i-Q tags are available in a variety of configurations, i.e. with 8 kByte or 32 kByte of
memory, an optional LED for visual recognition, and optional temperature logging function.
They are available in two different radio frequencies: 868 MHz for use in Europe, 916 MHz
for use in North America or dual frequency for transcontinental applications. The i-Q tags
have a two-way communication range of up to 100 meters (300 feet).
Polarization is dependent on orientation and is rotation symmetrical.
Vertically Polarized
Horizontally Polarized
_________________________________________________________________________
Document #7201-003, Rev B Page 8
2.4 Data communication between i-PORT and Tag:
Data communication between the i-PORT reader and tag always initiates from the reader.
First the i-PORT sends out a scan signal, which contains an i-PORT ID and the number of
available slots. All tags that are located in the read zone and that receive the signal search
out a slot at random and answer in this slot. Each slot has a duration of 1.2 ms. This
anti-collision process requires the availability of at least double the number of slots as the
maximum number of tags expected; the probability of collisions increases as the slots are
utilized. As a result of this scan signal, the i-PORT generates a tag list. Data can now be
exchanged (read from or written to) with the tags on this list. Before data is exchanged
with the tag, the i-PORT sends a Session Setup signal to this tag in order to prepare the
tag for the impending data interrogation. In contrast to the scan, which addresses all the
tags, all other commands refer to only one particular tag.
_________________________________________________________________________
Document #7201-003, Rev B Page 9
3.0 Using Your RFID Hardware
Now that your RFID system has been professionally installed, setup, and tested, the
following section will provide you with user interface diagnostic descriptions and
maintenance tips to ensure your RFID system will operate trouble free.
3.1 LED Displays
Status LEDs:
a) POWER: Lights when power is applied to the i-PORT
b) RUN: Blinks (every 2 seconds) as soon as the i-PORT has booted (approx. 10
seconds after power-up)
c) HOST: Lights when a host is connected to the i-PORT
d) ERROR: Lights when an error occurs (see section: Troubleshooting)
COM LEDs:
a) RX: Lights when the i-PORT receives data on serial interface
b) TX: Lights when the i-PORT sends data on serial interface
INPUT LEDs:
a) 1-4: Light when Inputs 1-4 are set (Connection to Ground)
NOTE: This functionality has not been implemented at this time.
ANTENNA LEDs:
a) 1-4: Light when there is activity at corresponding Antennas 1-4
Green: Antenna is sending
Red: Antenna is receiving (Orange to red, depending on the strength of
the signal
b) W: Lights when there is activity at the Wake-up Antenna
OUTPUT LEDs:
a) 1-4: Light when the corresponding Outputs 1-4 are set
NOTE: This functionality has not been implemented at this time.
_________________________________________________________________________
Document #7201-003, Rev B Page 10

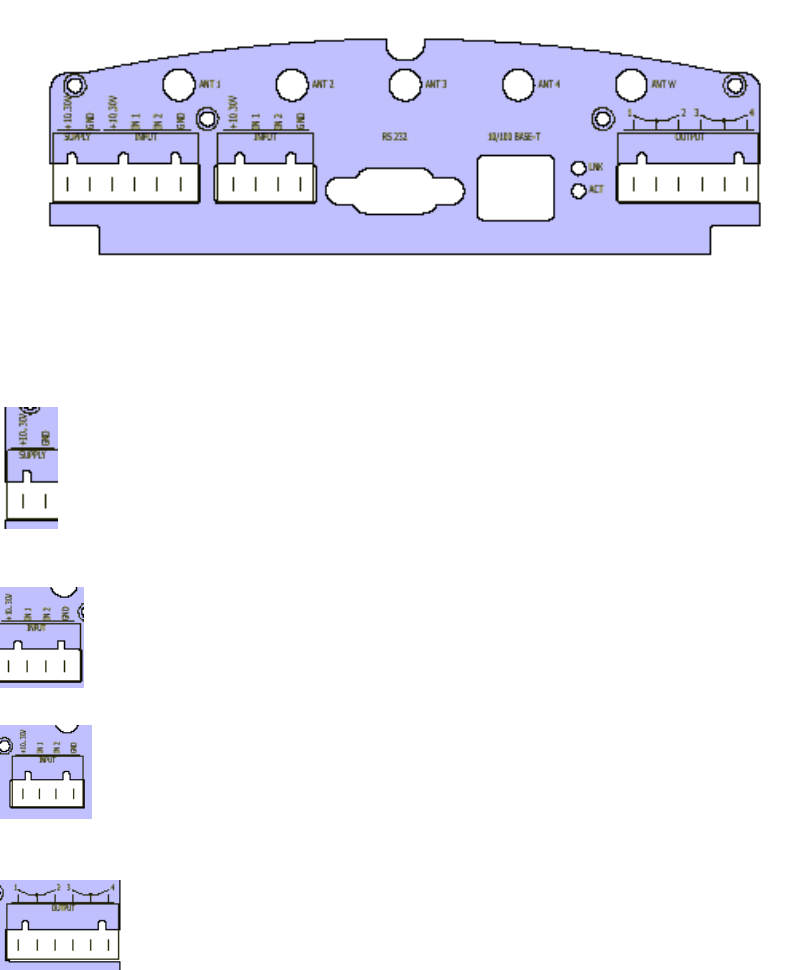

Cable Connections and Plug Allocation
Depending on your project requirements, the installer of this device will have wired one or
more input and output devices. The following will describe the operation of each terminal
block employed on the i-PORT III.
Antenna jacks:
ANT1-4: SMA sockets, send and receive antennas
ANT W: SMA socket, send antenna ONLY (WakeUp Antenna, for i-Q tags only)
Terminal Block 1: +10-30V Connection for power supply (10-30V DC) Supply
GND Connection for power supply (GND) Supply
Terminal Block 2: Functionality has not been implemented at this time.
Terminal Block 3: Functionality has not been implemented at this time.
Terminal Block 4: Functionality has not been implemented at this time.
Serial and Ethernet Interface:
RS 232 interface (up to 115 kb/s) (for setup and diagnostics only) and Ethernet interface
(10 / 100 Mbit/s)
_________________________________________________________________________
Document #7201-003, Rev B Page 11
4.0 Software, Configuration
4.1 IP-Address, Password
The installer of your RFID reader will require an unused IP address for each device
installed in your facility. The installer will configure each i-PORT III reader during the
installation process. If the i-PORT III should be reset for any reason, the default factory
settings are as follows:
IP-Address 192.168.2.244
Subnet-Mask: 255.255.255.0
User Name: user
Password: identec
4.2 Configuration, Settings
Direct Connection:
Connect the i-PORT directly to the network connection in your PC, laptop, etc. using a
crossover network cable.
Ensure that the PC’s IP-Address lies in the same subnet as that of the i-PORT.
Network Connection:
Connect the i-PORT with a straight network cable to the network.
4.3 Interfaces
Ethernet Interface:
Rate of transmission: 10 / 100 Mbit/s
Protocols: TCP/IP, FTP, Telnet, HTTP, SNMP
Ports: Debugport 7090 for Debug data
Communication Port 7070 for communication (commands, messages)
WLAN:
It is possible to effect a WLAN connection by means of a converter, for example a Client
Bridge or Access Point.
4.4 Protocols
The protocol used by the i-PORT is an ASCII protocol. The protocol allows a host computer
to take control of the process or of the i-PORT. It is possible to execute scans, to read or
write data, to start temperature logs etc. on command.
For more information about the protocol, please refer to the i-PORT “Communication
Protocol”.
_________________________________________________________________________
Document #7201-003, Rev B Page 12
5.0 Technical Specifications
5.1 Codes, Parameters
ILR® Parameters
Compatibility ILR® i-Q Tags
ILR® i-Q Tag
Read range (adjustable) 100m (300 ft)
Write range (adjustable) 100m (300 ft)
Max. response time (single tag) < 150 ms
Read rate (ID only) 100 tags/s
Read rate – 128 bit data 35 tags/s
Multi-tag-handling (simultaneous) Up to 2,000 tags
RF Interface
Frequency 868 MHz (EU) or
916 MHz (NA) ISM Band
Certification
FCC, Part 15 (US)
Industry Canada
EN 330 220 (EU)
RF rate of transmission i-Q 115.2 kbit/s
Number of antennas 5 (4 read/write + 1 wakeup)
Antenna transmitters 1
Output power: up to 6 dBm — adjustable (50 steps)
Antenna receivers 4
Sensitivity: up to -85 dBm — adjustable (100 steps)
Antenna control Independent antennas, simultaneous operation (receive)
User Interface
Ethernet interface 10 Mbit/s / 100 Mbit/s
Protocols
Ports TCP/IP, FTP, Telnet, HTTP, SNMP
7090 Debug port, 7070 Communication port
Serial interface RS 232 – Setup and diagnostics only
Status signals 19 status LEDs (for service and installation)
CPU
Operating system RTOS (Real Time Operating System) Thread X
Program memory 2 MB Flash
8 MB DRAM
Data memory 128 KB SRAM
Configuration memory 8 KB EEPROM
Time base Battery-backed Real Time Clock (RTC)
Electrical Data
Input voltage 10 – 30 VDC
Input power 7.5 W minimum
Standards / safety CE and EN 330 220
Environmental Conditions
Operating temperature 0°C to +50°C
optional –30°C to +70°C
_________________________________________________________________________
Document #7201-003, Rev B Page 13
Storage temperature -40°C to +80°C
Humidity 90%, non-condensing
Physical Data
Dimensions 211mm x 190mm x 58mm
Enclosure Aluminum, anodized
Mass 1.9 kg
Mounting 4 mounting holes, diameter 5mm
Enclosure rating IP 64
_________________________________________________________________________
Document #7201-003, Rev B Page 14
6.0 Troubleshooting
6.1 Troubleshooting
1) If the red Error LED blinks during the boot process and continues blinking after a
restart, contact the IDENTEC SOLUTIONS hotline.
2) If the Error LED lights up during operation, a system error has occurred (exception).
First execute a cold start (interrupt the power supply) and observe the system. If the
error occurs again, contact the IDENTEC SOLUTIONS hotline.
3) For other problems, follow the procedures as outlined below.
Problem Possible Cause Procedure Solution
No functionality after
turning on the power
supply
No power
- Measure the
voltage at the
terminal blocks
- If no voltage at terminal
blocks, check power supply
unit
- Measure directly at the outlet
for a power adaptor
- For a switching power supply,
measure voltage at both input
and output sides
Change power supply
unit, if necessary
No communication
between i-PORT and
network (PC) i.e.
cannot ping i-PORT
Wrong IP address - Double-check the i-PORT IP
address. Default-IP:
192.168.2.244
- Perform a ping on the IP (see
“Configuration, Settings”)
- If this is unsuccessful, connect
to the I-PORT via a null
modem cable and terminal
program, start the Boot menu
and check/change the IP
Change the IP address if
necessary and try to
ping the i-PORT
i-PORT IP and Host
IP are not in the
same subnet
- Double-check the subnet mask
Change the subnet mask
Wrong network
cable - Direct connection i-PORT /
Host: cross-over network cable
- i-PORT integrated into
network: network cable
Possibly change the
network cable
Defective network
cable - Do visual check on cable
Change network cable
Tags are not being
recognized Antennas are not
connected - Check if the antennas are
connected correctly
Fasten antenna cables
to the designated sites.
Use torque wrench, if
available, otherwise
tighten the SMA plug
lightly.
Antennas are not
being triggered - Check if antenna LEDs light up
(LED: ANT1, ANT2, ANT3,
Activate the
corresponding antenna
_________________________________________________________________________
Document #7201-003, Rev B Page 15
ANT4, W)
(see “Configuration”)
Antenna is defective - Do visual check to see if
antenna is defective
Change antenna(s) if
necessary
Tag is out of read
zone - Hold a test tag in front of the
antenna and check if tag is
being recognized (blinks, i.e.
Debug port)
If necessary, adjust the
output power to the
requirements
Tag is too close to
antenna (Note: can
manifest if using
high power setting
and high sensitivity
tag setting)
- Move the tag away from the
antenna
If necessary, reduce the
output power to the
requirements
Tags are stationary
in an RF “dead” spot
- Move the tags. Move the antenna
slightly, add additional
antennas, or shield or
move nearby reflecting
surfaces
i-PORT does not scan
on various antennas Antennas are not
being triggered - Check if the antennas in
question are activated and
scan-enabled (see
“Configuration”)
Turn on the desired
antennas
No messages on Port
7090 (Debug port) DebugInfo has been
turned off (7090) - Check if Debug port is
activated (i.e. which data is
being transmitted)
Activate the Debug port
(“Configuration”)
File download
unsuccessful, i.e.
i-PORT does not
accept the file
No connection with
i-PORT - Check the IP address and the
network cable
Change the IP address if
required or change the
network cable
Internet browser
cannot display
i-PORT web page
Browser is trying to
access Proxy Server
- Deactivate your Internet
browser’s proxy function
6.2 Contact
In North America:
IDENTEC SOLUTIONS Inc.
#102 – 1860 Dayton Street
Kelowna, BC
Canada
V1Y 7W6
Tel: (250) 860
-6567
Fax: (250) 860-6541
In Europe:
IDENTEC SOLUTIONS AG
Millennium Park 2
A-6890 Lustenau
Austria
Tel.: +43 (0)5577 87387
-0
Fax: +43 (0)5577 87387-15
