PACT 13x2 Outdoor reader- Installation and Operation Manual Page 1 of 5
Installation and Operation Manual
PAT 13x2
Rev 1.0
18th November 2005
PACT 13x2 Outdoor reader- Installation and Operation Manual Page 2 of 5

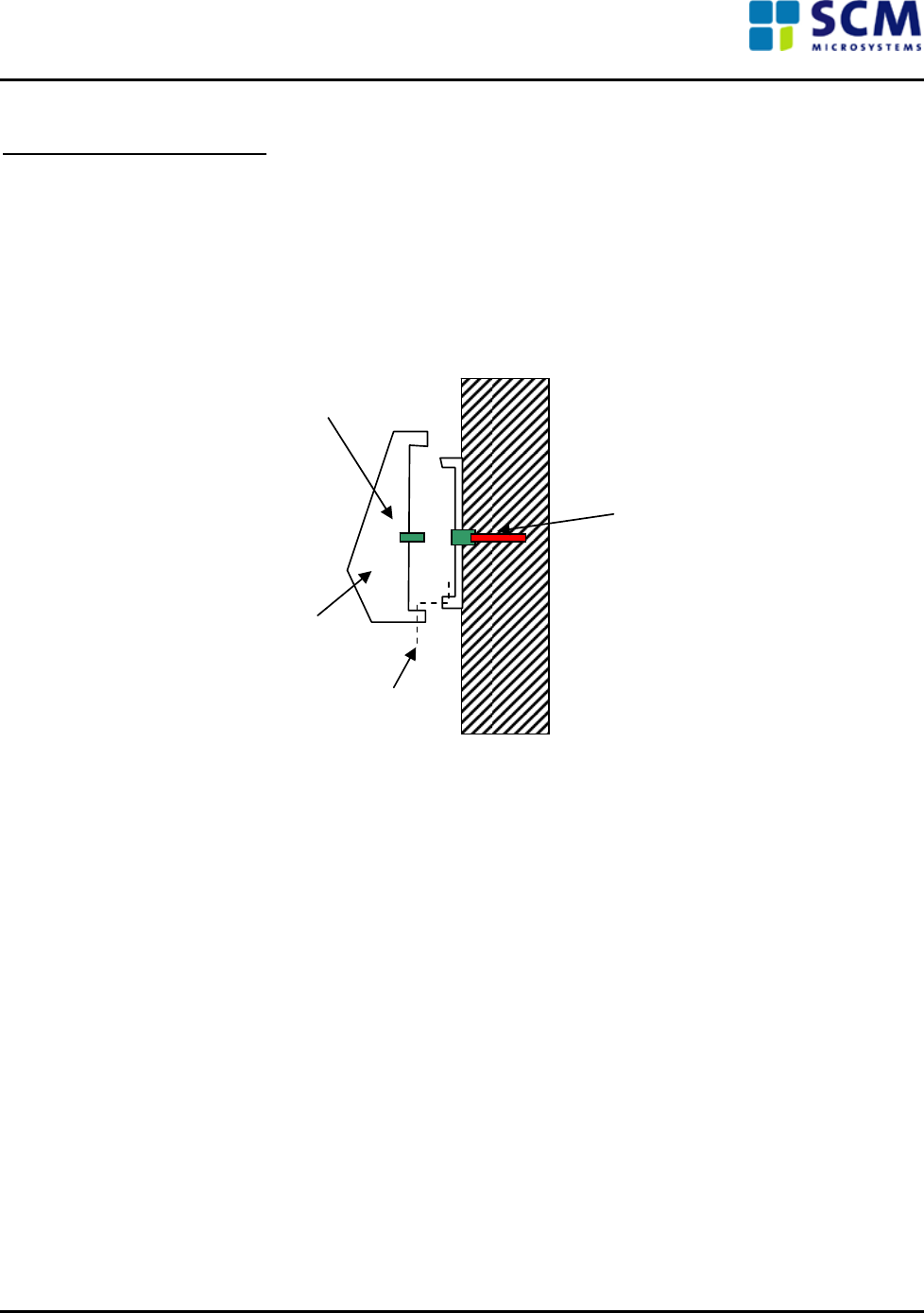

Installation Instructions:
• Fix the mounting plate in an appropriate position on the wall, where the cable can be easily
connected to the back of the reader.
• Place the reader on the mounting plate and fix it by using mounting screw.
This is shown in the picture below.
Unit
Mounting
plate
Connector
Male - female
Screw
Cable
PACT 13x2 Outdoor reader- Installation and Operation Manual Page 3 of 5

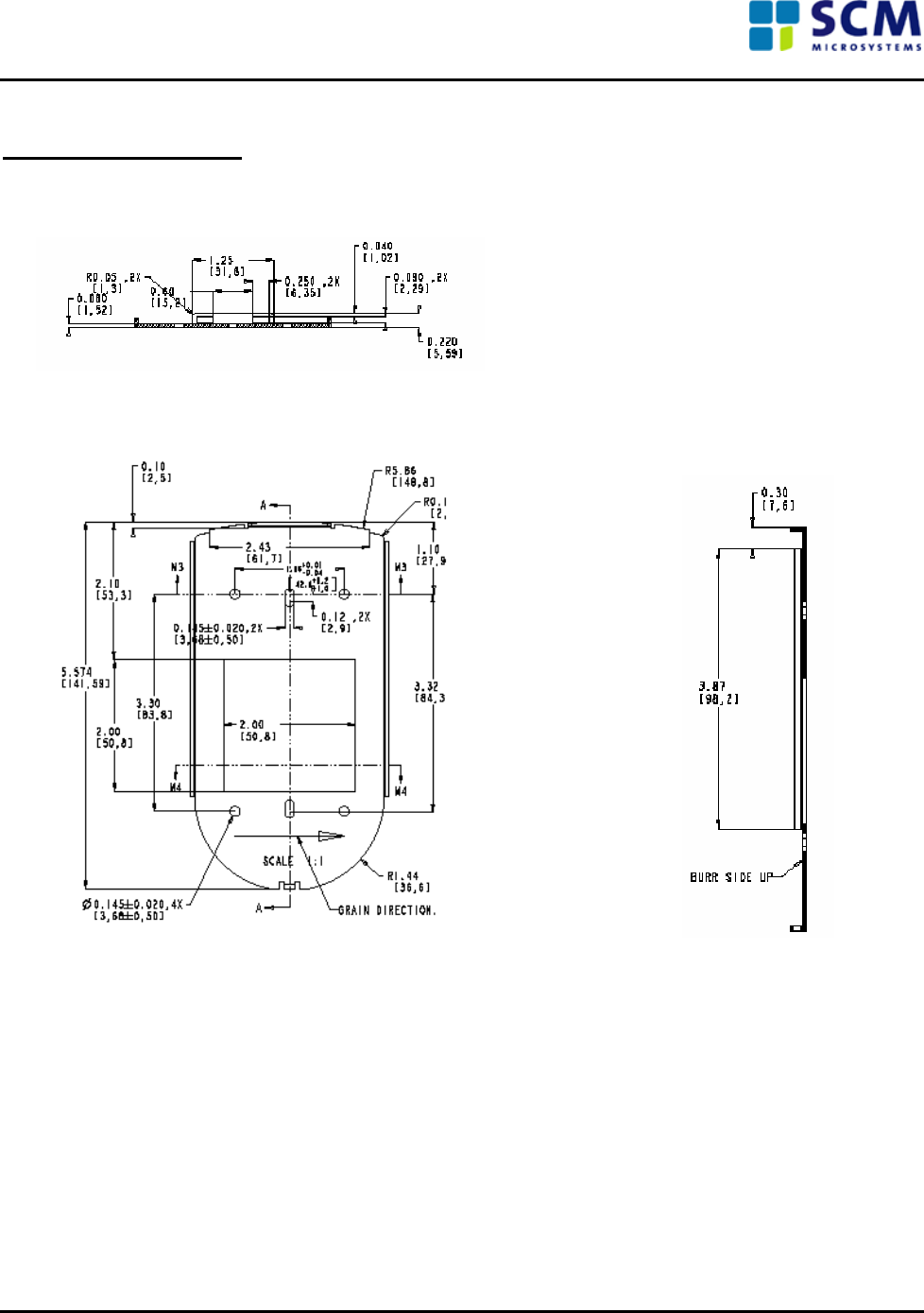

Mounting plate details
Fig 1.1 Mounting plate (Horizontal view)
Fig 1.2 Mounting plate (Normal view) Fig 1.3 Mounting plate (Vertical view)
PACT 13x2 Outdoor reader- Installation and Operation Manual Page 4 of 5
Pin details
Connector details for Wiegand/Magstripe – 10pin connection
Connector details for RS485 – 8pin connection
Pin Number Signal Name
(Full Duplex Operation ) Signal Name
(Half Duplex Operation)
1 RX_A RX/TX_A
2 RX_B RX/TX_B
3 TX_A No connection
4 TX_B No connection
5 RS485 GND RS485 GND
6 SHIELD SHIELD
7 Power +12V Power +12V
8 Power GND Power GND
A – Non-inverted RS485 differential signal; B – Inverted RS485 differential signal
**Only for reader installed at the ends in the RS485 network
Testing:
• Connect the reader to the host through Wiegand/Magstripe/RS485 interface
• Switch on the power to the reader and check if the keypad LED glows. This signifies that the reader is
waiting for the PIN
• Enter the PIN
• Check if the contactless LED glows. This activity of the reader signifies that the PIN has been
successfully accepted and the reader is waiting for the contactless card.
• Wave the Contactless Test card in front of the reader.
• Check for the contact less LED to blink steadily .This activity of the reader signifies that the reader is
reading the data from the card and passing it to the host.
• For a successful read, the access control LED bar should glow in GREEN and a short beep sound
must be heard from the reader.
Note: The Product is to be connected to a UL Listed compatible Access Control System.
Pin Number Signal Name
1 Relay IN1
2 Relay IN2
3 Relay IN3
4 Relay GND
5 Wiegand Data0 / Mag Data
6 Wiegand Data1 / Mag CLK
7 Wiegand LED IN
8 Wiegand Buzzer IN
9 Wiegand GND
10 Wiegand +12V
PACT 13x2 Outdoor reader- Installation and Operation Manual Page 5 of 5
CAUTION
Changes or modifications to hardware that are not expressly approved by SCM Microsystems shall void the
user’s authority to operate the equipment.
