Identiv SDI011-1000 Smart Card Reader User Manual Reference manual
Identiv, Inc Smart Card Reader Reference manual
Identiv >
User Manual
SCM Microsystems
Reference Manual – version 1.01
SDI011
Dual interface (contactless and contact) stationary reader
Reference manual
SDI011 Dual Interface (Contactless and Contact)
Stationary Reader
© SCM Microsystems
Oskar-Messter-Strasse, 13
85737 Ismaning
Germany
Phone +49 89 9595 5000 • Fax +49 89 9595 5555
Document history
Date
Version
Description of change
08/09/2010
1.0
Initial Version
11/10/2010
1.01
Add FCC warning
Typo corrections
Contact information
http://www.scmmicro.com/products-services/smart-card-readers-terminals/contactless-dual-
interface-readers.html
For sales information, please email sales@scmmicro.com
Table of Contents
1. Legal information ................................................................................................................... 9
1.1. Disclaimers ..................................................................................................................... 9
1.2. FCC ................................................................................................................................ 9
1.2.1. Section 15.21 Information to user ........................................................................... 9
1.2.2. Section 15.105 (b) ................................................................................................... 9
1.3. Licenses ......................................................................................................................... 9
1.4. Trademarks .................................................................................................................. 10
2. Introduction to the manual ................................................................................................... 11
2.1. Objective of the manual ............................................................................................... 11
2.2. Target audience ........................................................................................................... 11
2.3. Product version corresponding to the manual ............................................................. 11
2.4. Definition of various terms and acronyms .................................................................... 12
2.5. References ................................................................................................................... 13
2.6. Conventions ................................................................................................................. 14
3. General information about SDI011 ...................................................................................... 15
3.1. SDI011 key benefits ..................................................................................................... 15
3.2. SDI011 key features ..................................................................................................... 15
3.3. SDI011 ordering information ........................................................................................ 16
3.4. SDI011 customization options ...................................................................................... 16
3.5. Contactless communication principles and SDI011 usage recommendations ............ 17
3.5.1. Power supply......................................................................................................... 17
3.5.2. Data exchange ...................................................................................................... 17
3.5.3. Recommendations ................................................................................................ 18
3.6. Applications .................................................................................................................. 19
3.6.1. General ................................................................................................................. 19
3.6.2. Applications provided by SCM Microsystems ....................................................... 19
4. SDI011 characteristics ........................................................................................................ 20
4.1. SDI011 high level architecture ..................................................................................... 20

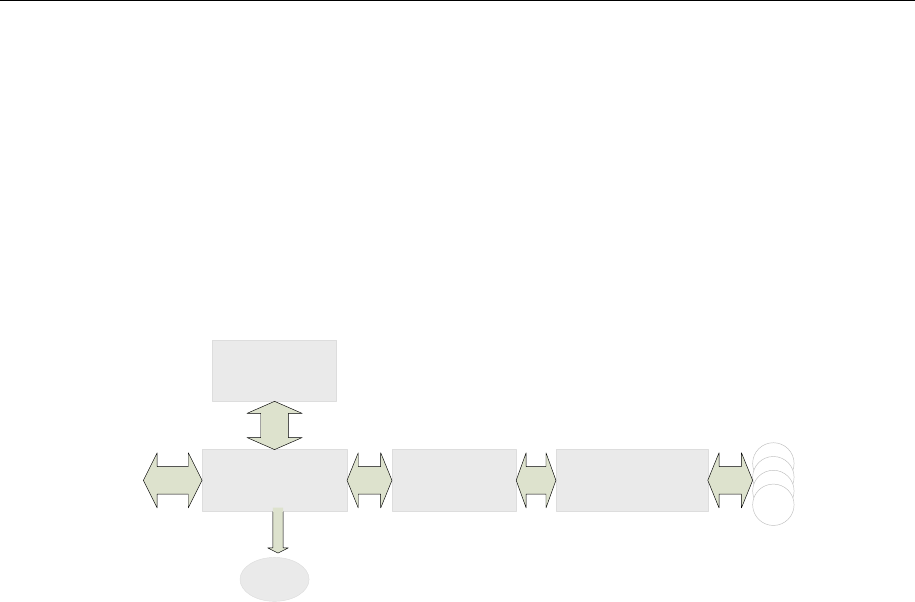

4.1.1. Block diagram ....................................................................................................... 20
4.1.2. Software architecture ............................................................................................ 21
4.2. Quick reference data .................................................................................................... 22
4.2.1. SDI011 dimensions ............................................................................................... 22
4.2.2. LED behavior ........................................................................................................ 23
4.2.3. Other data ............................................................................................................. 24
5. Software modules ................................................................................................................ 26
5.1. Installation .................................................................................................................... 26
5.2. Utilities .......................................................................................................................... 26
5.3. Driver ............................................................................................................................ 26
5.3.1. SDI011 listing ........................................................................................................ 26
5.3.2. Supported operating systems ............................................................................... 27
5.3.3. PC/SC 2.0 compliant ATR for contactless interface ............................................. 27
5.4. Firmware ...................................................................................................................... 30
5.4.1. CCID transport protocol ........................................................................................ 30
5.4.2. Automatic PPS for the contactless interface ......................................................... 31
6. Commands description ........................................................................................................ 32
6.1. Generic APDU .............................................................................................................. 32
6.1.1. Get UID Command ............................................................................................... 32
6.1.2. Escape command APDU ...................................................................................... 34
6.2. Set of APDU for contactless storage user tokens ........................................................ 35
6.2.1. STORAGE_CARD_CMDS_READ_BINARY ........................................................ 35
6.2.2. STORAGE_CARD_CMDS_WRITE_BINARY ...................................................... 37
6.2.3. STORAGE_CARD_CMDS_LOAD_KEYS ............................................................ 39
6.2.4. STORAGE_CARD_CMDS_AUTHENTICATE ...................................................... 40
6.2.5. STORAGE_CARD_CMDS_VALUE_BLOCK ....................................................... 42
6.3. Set of APDU for ISO/IEC14443-4 user tokens ............................................................ 43
6.3.1. T=CL Command .................................................................................................... 43
6.3.2. T=CL user command ............................................................................................ 44
6.4. Set of APDU defined by SCM Microsystems ............................................................... 45
6.4.1. MIFARE DESFire Commands .............................................................................. 45
6.5. Escape commands for the contactless interface ......................................................... 46
6.5.1. Sending escape commands to SDI011 ................................................................ 46
6.5.2. Escape command codes ....................................................................................... 46
6.5.3. READER_GETCARDINFO ................................................................................... 47
6.5.4. READER_LED_CONTROL_BY_FW .................................................................... 48
6.5.5. READER_LEDCONTROL .................................................................................... 48
6.5.6. READER_CNTLESS_GET_MFRC_REV ............................................................. 48
6.5.7. READER_CNTLESS_GET_ATS_ATQB .............................................................. 49
6.5.8. READER_CNTLESS_GET_TYPE ....................................................................... 49
6.5.9. READER_CNTLESS_SET_TYPE ........................................................................ 49
6.5.10. READER_CNTLESS_RF_SWITCH ..................................................................... 50
6.5.11. READER_CNTLESS_RAW_CFG ........................................................................ 50
6.5.12. READER_CNTLESS_RAW_XMIT_EX ................................................................ 51
6.5.13. READER_ CNTLESS_DISABLE_PPS ................................................................. 52
6.5.14. READER_SWITCH_RF_ON_OFF ....................................................................... 52
6.5.15. READER_CNTLESS_848KBPS ........................................................................... 53
6.5.16. READER_CNTLESS_BAUDRATE ....................................................................... 54
6.5.17. READER_CNTLESS_FORCE_BAUDRATE_PCSC_REV2 ................................ 55
6.6. Escape commands for the contact interface ................................................................ 56
6.6.1. Sending escape commands to SDI011 ................................................................ 56
6.6.2. Escape command codes ....................................................................................... 56
6.6.3. READER_SETMODE ........................................................................................... 56
6.6.4. READER_GETMODE ........................................................................................... 57
6.6.5. READER_APDU_TRANSFER.............................................................................. 57
6.6.6. READER_SWITCH_SPEED ................................................................................. 58
6.6.7. READER_SWITCH_PROTOCOL......................................................................... 58
6.6.8. READER_DISABLE_PPS ..................................................................................... 59
6.6.9. READER_GETIFDTYPE ...................................................................................... 59
6.6.10. READER_GETINFO_EXTENDED ....................................................................... 60
7. Annexes ............................................................................................................................... 61
7.1. Annex A – Status words table ...................................................................................... 61
7.2. Annex B – Sample code using escape commands through Escape IOCTL ............... 62
7.3. Annex C - SCM Proprietary CLA bytes ........................................................................ 67

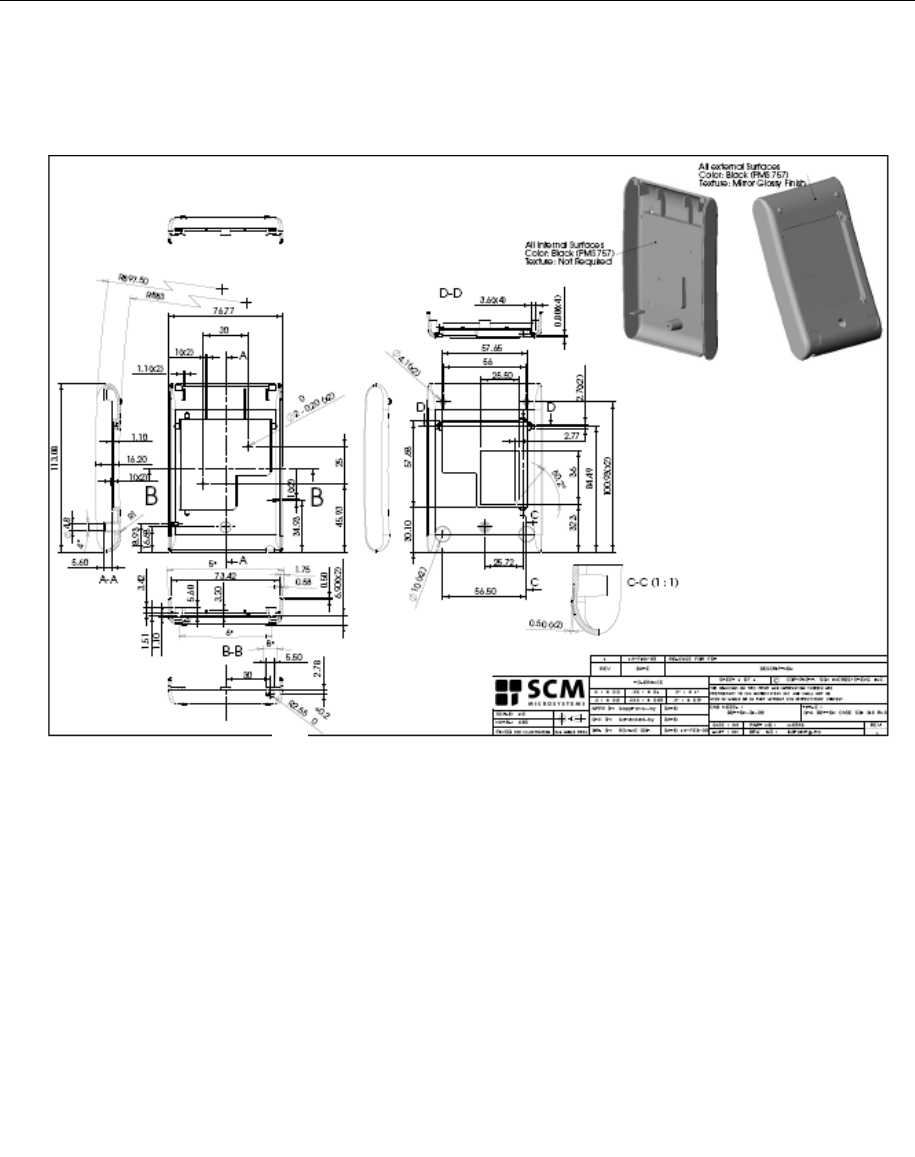

7.4. Annex D – Mechanical drawings .................................................................................. 68
7.4.1. Top Casing ............................................................................................................ 68
7.4.2. Bottom Casing ...................................................................................................... 69
7.4.3. Stand ..................................................................................................................... 70
SDI011 REFERENCE MANUAL 9
1. Legal information
1.1. Disclaimers
The content published in this document is believed to be accurate. SCM Microsystems does
not, however, provide any representation or warranty regarding the accuracy or completeness
of its content and regarding the consequences of the use of information contained herein. If this
document has the status ―Draft‖, its content is still under internal review and yet to be formally
validated.
SCM Microsystems reserves the right to change the content of this document without prior
notice. The content of this document supersedes the content of previous versions of the same
document. The document may contain application descriptions and/or source code examples,
which are for illustrative purposes only. SCM Microsystems gives no representation or warranty
that such descriptions or examples are suitable for the application that the reader may want to
use them for.
Should you notice problems with the provided documentation, please provide your feedback to
support@scmmicro.com.
1.2. FCC
1.2.1. Section 15.21 Information to user
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment
1.2.2. Section 15.105 (b)
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
1.3. Licenses
If the document contains source code examples, they are provided for illustrative purposes only
and subject to the following restrictions:
You MAY at your own risk use or modify the source code provided in the document
in applications you may develop. You MAY distribute those applications ONLY in
form of compiled applications.
SDI011 REFERENCE MANUAL 10
You MAY NOT copy or distribute parts of or the entire source code without prior
written consent from SCM Microsystems.
You MAY NOT combine or distribute the source code provided with Open Source
Software or with software developed using Open Source Software in a manner that
subjects the source code or any portion thereof to any license obligations of such
Open Source Software.
If the document contains technical drawings related to SCM Microsystems products, they are
provided for documentation purposes only. SCM Microsystems does not grant you any license
to its designs.
1.4. Trademarks
MIFARE is a registered trademark of NXP Semiconductors BV.
Windows is a trademark of Microsoft Corporation.
SDI011 REFERENCE MANUAL 11
2. Introduction to the manual
2.1. Objective of the manual
This manual provides an overview of the hardware and software features of the SDI011 dual
interface (contactless and contact) reader, hereafter referred to as ―SDI011‖.
This manual describes in details interfaces and supported commands available for developers
using SDI011 in their applications.
2.2. Target audience
This document describes the technical implementation of SDI011.
The manual targets software developers. It assumes knowledge about 13.56 MHz contactless
technologies like ISO/IEC 14443 and commonly used engineering terms.
Should you have questions, you may send them to support@scmmicro.com .
2.3. Product version corresponding to the manual
Item
Version
Hardware
1.0
Firmware
7.36
Windows
Contact Driver
5.19
Windows
Contactless
Driver
5.20
MAC driver
5.0.18
LINUX Driver
5.0.18
SDI011 REFERENCE MANUAL 12
2.4. Definition of various terms and acronyms
Term
Expansion
APDU
Application Protocol Data Unit
ATR
Answer to Reset, defined in ISO7816
ATS
Answer to select, defined in ISO/IEC 14443
Byte
Group of 8 bits
CCID
Chip Card Interface Device
CID
Card Identifier
CL
Contactless
DFU
Device Firmware Upgrade
DR
Divider receive: used to determine the baud rate between the reader to the card
DS
Divider send: used to determine the baud rate between the card to the reader
LED
Light emitting diode
MIFARE
The ISO14443 Type A with extensions for security (NXP)
NA
Not applicable
NAD
Node Address
Nibble
Group of 4 bits. 1 digit of the hexadecimal representation of a byte.
Example: 0xA3 is represented in binary as (10100011)b. The least significant nibble is 0x3
or (0011)b and the most significant nibble is 0xA or (1010)b
PCD
Proximity Coupling Device
PC/SC
Personal Computer/Smart Card: software interface to communicate between a PC and a
smart card
PICC
Proximity Integrated Chip Card
PID
Product ID
Proximity
Distance coverage till ~10 cm.
PUPI
Pseudo unique PICC identifier
RFU
Reserved for future use
RF
Radio Frequency
STCII
Smart card reader controller ASIC from SCM Microsystems
USB
Universal Serial Bus
VID
Vendor ID
(xyz)b
Binary notation of a number x, y, z 0,1
0xYY
The byte value YY is represented in hexadecimal
SDI011 REFERENCE MANUAL 13
2.5. References
Doc ref in
the manual
Description
Issuer
ISO/IEC 7816-
3
Identification cards — Integrated circuit
cards — Part 3: Cards with contacts — Electrical
interface and transmission protocols
ISO / IEC
ISO/IEC 7816-
4
Identification cards - Integrated circuit(s) cards with
contacts
Part 4: Interindustry commands for interchange
ISO/IEC 7816-4: 1995 (E)
ISO / IEC
ISO/IEC
14443-3
Identification cards — Contactless
integrated circuit(s) cards — Proximity
cards — Part 3: Initialization and anti-collision
ISO / IEC
ISO/IEC
14443-4
Identification cards — Contactless integrated
circuit(s) cards — Proximity cards
Part 4: Transmission protocol ISO/IEC 14443-
4:2001(E)
ISO / IEC
PC/SC
Interoperability Specification for ICCs and Personal
Computer Systems v2.01
PC/SC Workgroup
CCID
Specification for Integrated Circuit(s) Cards
Interface Devices 1.1
USB-IF
USB
Universal Serial Bus Specification 2.0
USB-IF
SDI011 REFERENCE MANUAL 14

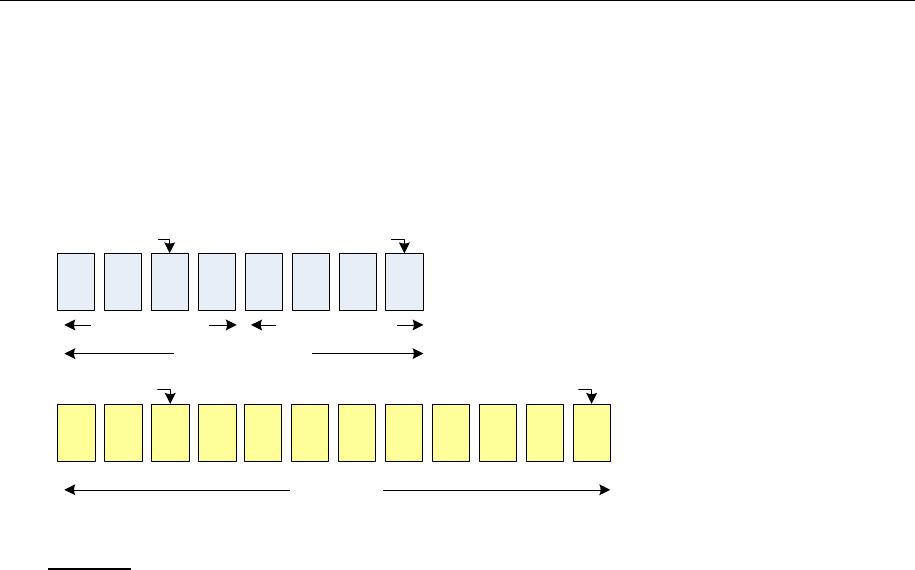

2.6. Conventions
Bits are represented by lower case ‗b‘ where followed by a numbering digit.
Bytes are represented by upper case ‗B‘ where followed by a numbering digit.
b7 b6 b5 b4 b3 b2 b1 b0
B4 B5 B6 B7 B8 B9 B10 B11B0 B1 B2 B3
Least significant nibbleMost significant nibble
1 Byte = 8 bits = 2 nibbles
Bit number 0Bit number 5
String of 12 bytes
Byte number 11Byte number 2
Example:
163 decimal number is represented
in hexadecimal as 0xA3
in binary as (10100011)b
The least significant nibble of 0xA3 is
0x3 in hexadecimal
(0011)b in binary
The most significant nibble of =xA3 is
0xA in hexadecimal
(1010)b in binary
SDI011 REFERENCE MANUAL 15
3. General information about SDI011
3.1. SDI011 key benefits
With its combination of a modern slim design and its state of the art feature set, SDI011 is the
perfect desktop reader choice for environments where both contact and contactless smart card
support is required. Such environments may be corporate where physical and logical access
control is implemented.
As for all SCM Microsystems products, SDI011 is designed to offer best in class interoperability
with various formats of tokens: cards, dongles, watches or NFC mobile phones.
Its infield upgradeable firmware makes SDI011 a secure and future-proof investment providing
both flexibility and fast time to market for new applications as well as minimum risk linked to
contactless technology standards evolution.
3.2. SDI011 key features
13.56MHz contactless reader:
o ISO14443 type A & B,
o MIFARE
ISO7816 compliant contact smart card reader
PC/SC v2.0 compliant
In field upgradeable firmware
Unique serial number which enables that SDI011 can be plugged into any USB slot
on a PC without having to re-install the driver.
SDI011 REFERENCE MANUAL 16
3.3. SDI011 ordering information
Item
Part number
SDI011
905214
Contactless SDK
905124
Contact SDK
905129
3.4. SDI011 customization options
Upon request, SCM can customize:
The color of the casing
The logo
The product label
The USB strings
Terms and conditions apply, please contact your local SCM representative or send an email to
sales@scmmicro.com.
SDI011 REFERENCE MANUAL 17
3.5. Contactless communication principles and SDI011
usage recommendations
SDI011 is a dual interface reader capable of reading both contact smart cards and contactless
user tokens. The following paragraph focuses on a few specifics of the contactless
communication to outline usage recommendations in order to ensure best user experience.

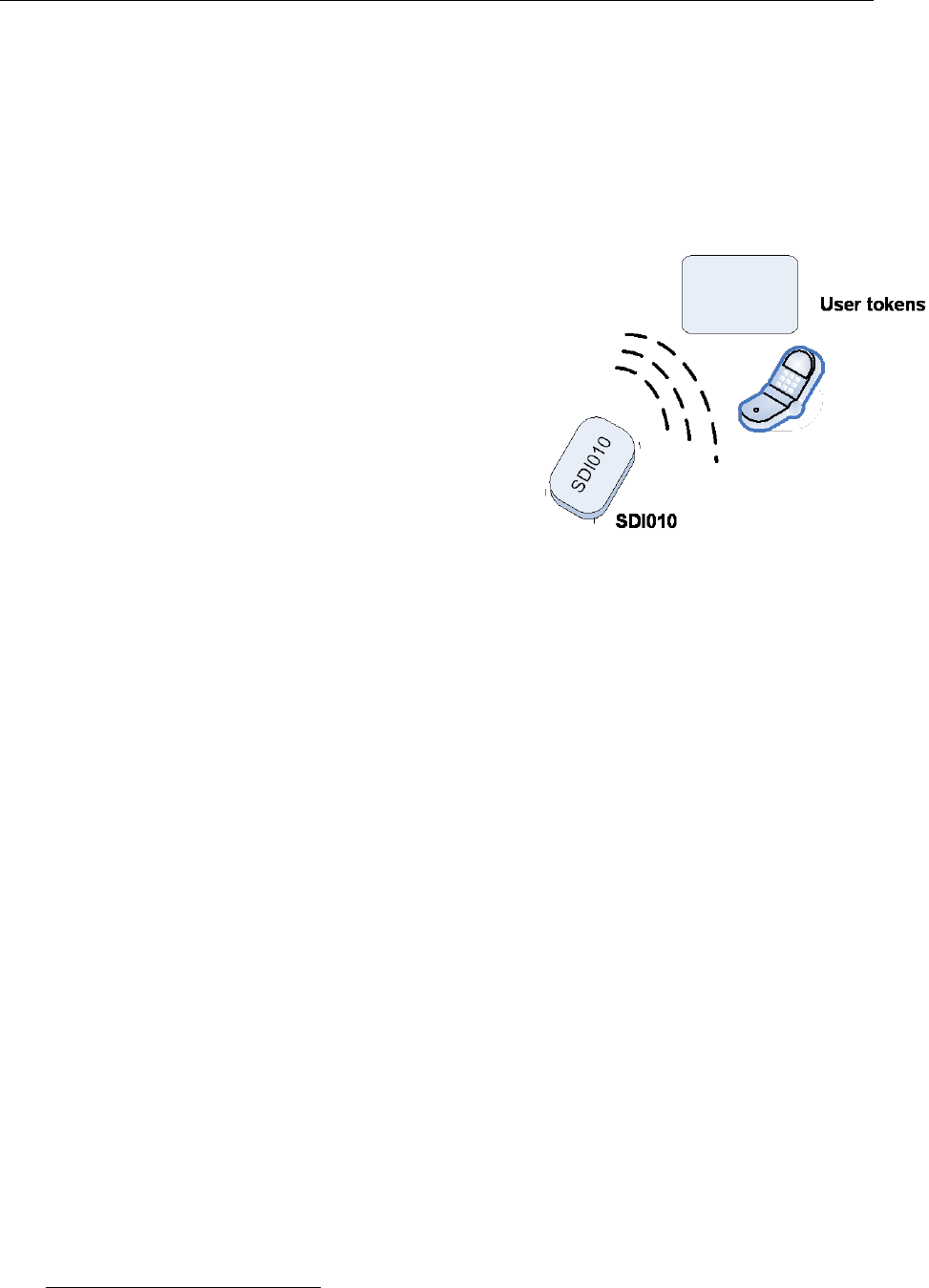

SDI011 is a contactless reader1 designed to
communicate with user tokens.
User tokens2 are made of a contactless
integrated circuit card connected to an
antenna
User tokens can take several form factors:
Credit card sized smart card
Key fob
NFC mobile phone etc…
Communication between SDI011 and user
tokens uses magnetic field inductive
coupling.
The magnetic field generated by SDI011 has a carrier frequency of 13.56MHz.
3.5.1. Power supply
When the user token is put in the magnetic field of the reader, its antenna couples with the
reader and an induction current appears in the antenna thus providing power to the integrated
circuit. The generated current is proportional to the magnetic flux going through the antenna of
the user token.
3.5.2. Data exchange
The carrier frequency of the magnetic field is used as a fundamental clock signal for the
communication between the reader and the card. It is also used as a fundamental clock input
for the integrated circuit microprocessor to function.
To send data to the user token the reader modulates the amplitude of the field. There are
several amplitude modulation and data encoding rules defined in ISO/IEC 14443. The reader
should refer to the standard for further details.
To answer to the reader, the integrated circuit card of the user token modulates its way of
loading (impedance) the field generated by the reader. Here also further details can be found in
ISO/IEC 14443.
1 In the ISO/IEC 14443 standard, the reader is called the proximity coupling device (PCD)
2 In the ISO/IEC 14443 standard, the user token is called proximity integrated chip card (PICC)
SDI011 REFERENCE MANUAL 18
3.5.3. Recommendations
The communication between the reader and the user token is sensitive to the presence of
material or objects interfering with the magnetic field generated by the reader.
The presence of conductive materials like metal in the vicinity of the reader and the user token
can severely degrade the communication and even make it impossible. The magnetic field of
the reader generates Eddy or Foucault‘s currents in the conductive materials; the field is
literally absorbed by that kind of material.
It is recommended for proper communication to avoid putting SDI011 in close
proximity of conductive materials.
The presence of multiple user tokens in the field also interferes with the communication. When
several user tokens are in the field of the reader, load of the field increases which implies that
less energy is available for each of them and that the system is detuned. For this reason, SCM
Microsystems has implemented in its driver only 1 slot by default. This means that in the event
several user tokens are in the field of the SDI011, only one will be active. It is possible using
INF configuration to enable up to 4 slots – i.e. to activate up to 4 user tokens nevertheless
depending on the power consumption of the user tokens communication cannot be guaranteed.
It is recommended to present only one user credential at a time in front of
SDI011.
Please note that multiple contactless slots feature is supported but is kept disabled by default.
The SDI011 driver on configuration allows the presence and use of several PICCs (maximum 4) at
the same time. The driver can support multiple logical connections and present each of them as a
slot logical device to the Resource Manager and higher components. Also the simultaneous working
of multiple Contactless cards is not guaranteed and depends on the antenna size and the power
requirements of the card.
The communication between the reader and the user token is sensitive to the geometry of the
system {reader, user token}. Parameters like the geometry and specially the relative size of the
reader and user token antennas directly influence the inductive coupling and therefore the
communication.
SDI011 was primarily designed and optimized to function with user credentials of various
technologies having the size of a credit card.
It may happen that SDI011 is not capable of communicating with extremely
large or extremely small antennas.
In order to optimize the coupling between the reader and the user token, it is
recommended to put both antennas as parallel as possible
In order to optimize transaction speed between the reader and the card it is
recommended to place the user token as close as possible to the reader. This
will increase the amount of energy supplied to the user credential which will
then be able to use its microprocessor at higher speeds
SDI011 REFERENCE MANUAL 19
3.6. Applications
3.6.1. General
SDI011 is a transparent reader designed to interface a personal computer host supporting
PC/SC interface with 13.56MHz user tokens like public transport cards, contactless banking
cards, electronic identification documents – e.g. e-passports, e-ID cards, driving licenses etc.
Those user tokens can have several form factors like credit cards, key fobs, NFC mobile
phones or USB dongles like SCT3511 that SCM Microsystems markets.

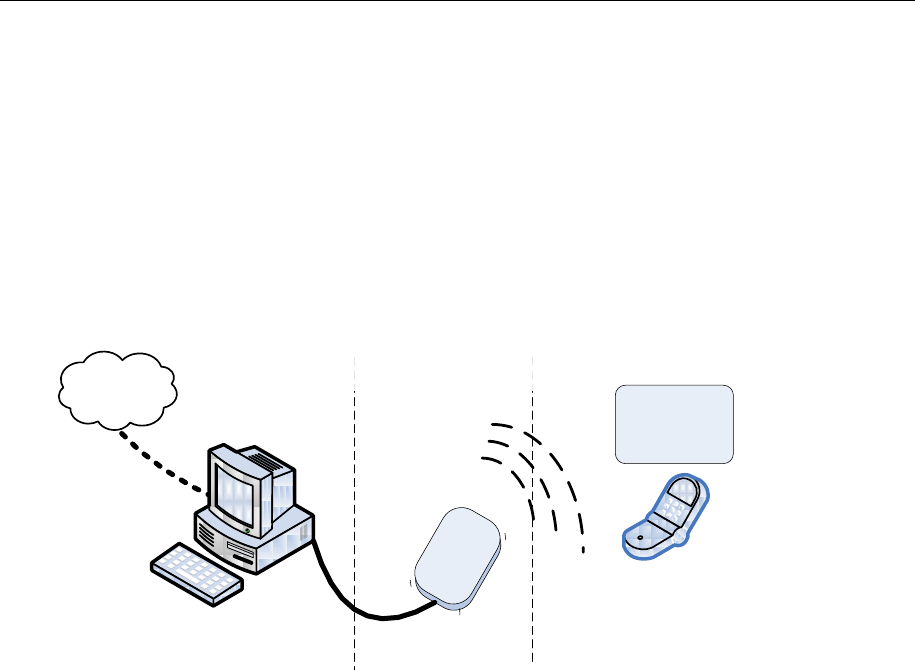

SDI010
Tokens
Application logic + User
personal data for given
set of applications
USB link
PC/SC interface RF link (13.56MHz)
ISO14443 interface
Host
Application logic
SDI010
Interface device
Network
`
SDI011 itself handles the communication protocol but not the application related to the token.
The application-specific logic has to be implemented by software developers on the host.
3.6.2. Applications provided by SCM Microsystems
SCM Microsystems does not provide payment or transport applications.
SCM Microsystems provides a few applications for development and evaluation purposes that
can function with SDI011. There are many tools provided; here are two of them:
The NFC forum tag reader/writer is a standalone application that enables the user to
read and write NFC forum compliant records into NFC forum compatible tags. It is an
easy to use tool to configure rapidly NFC forum tag demonstrations. Note: SDI011
supports NFC forum tag type 2 and 4, only.

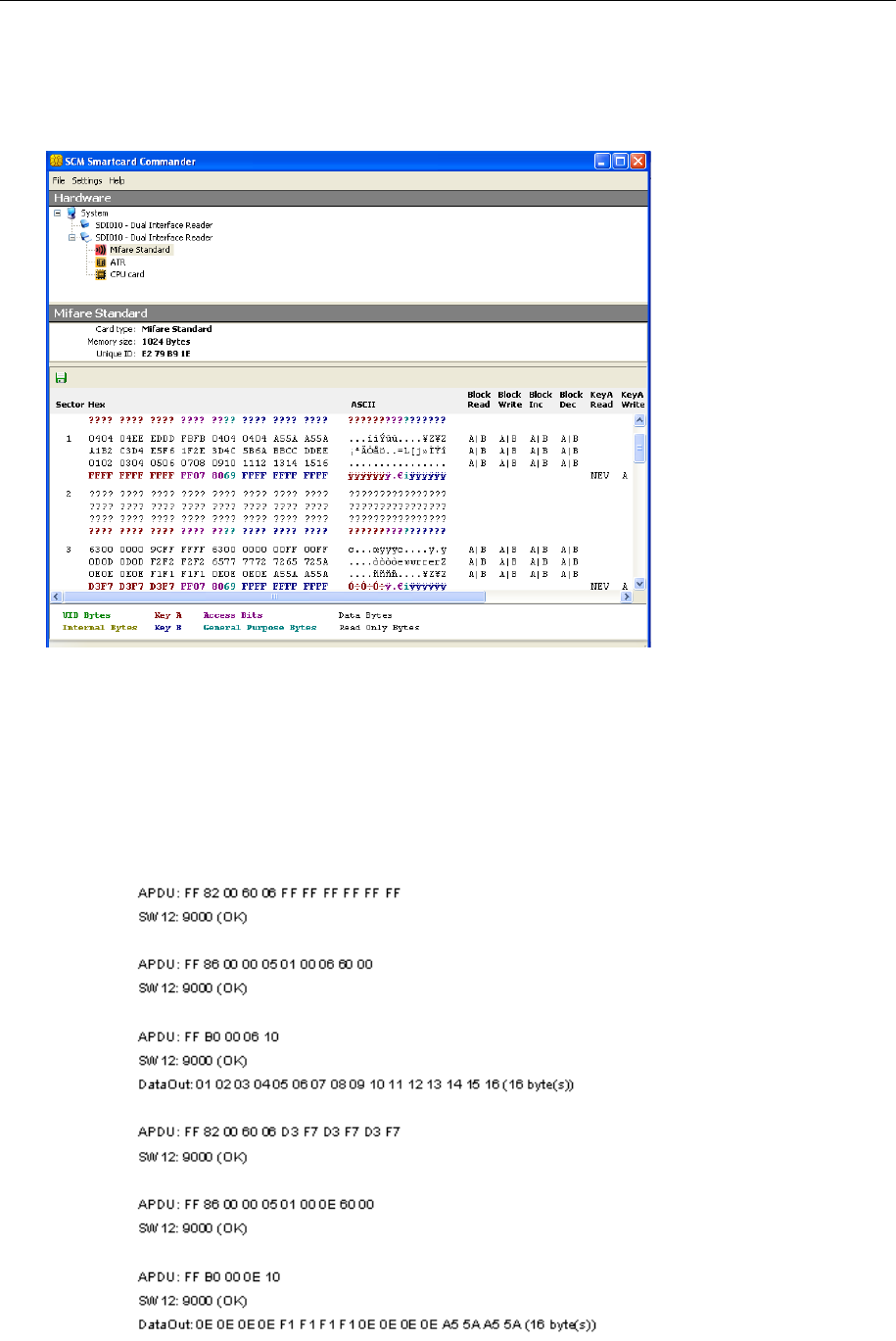

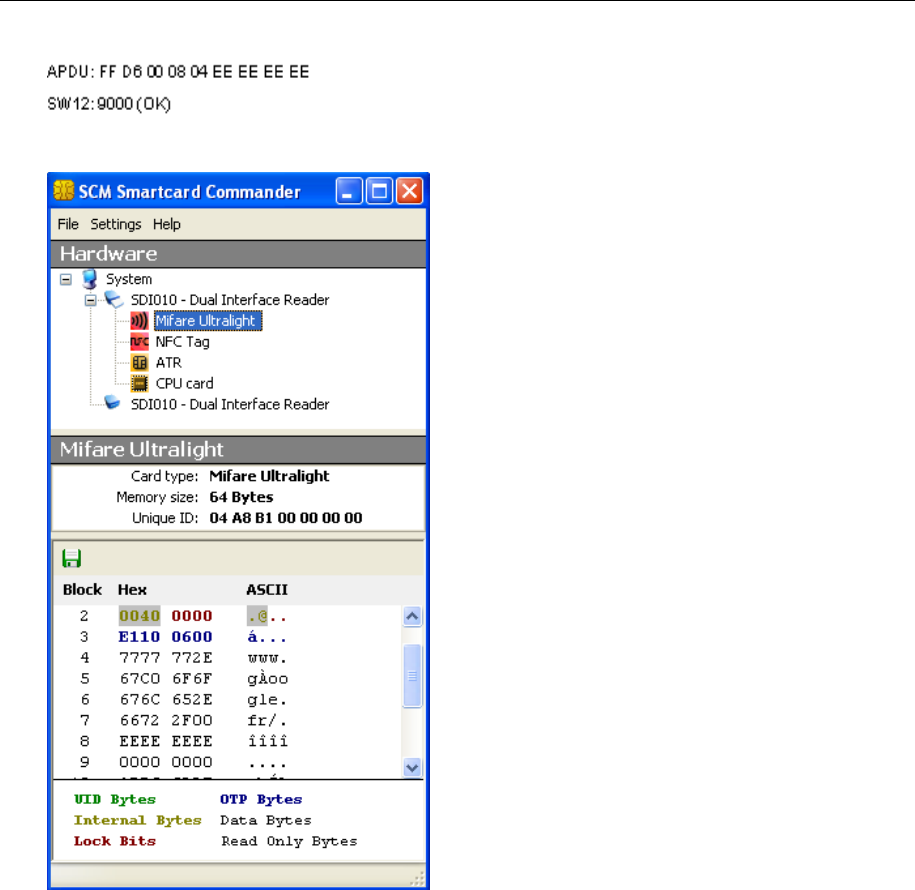

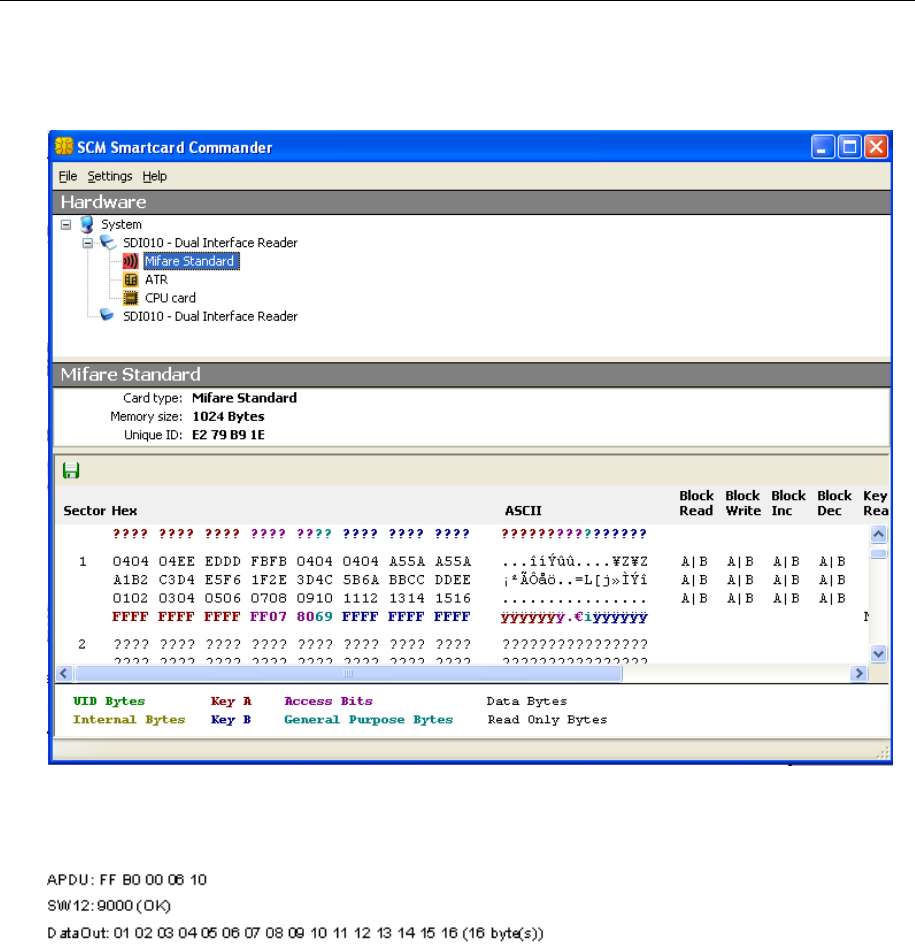

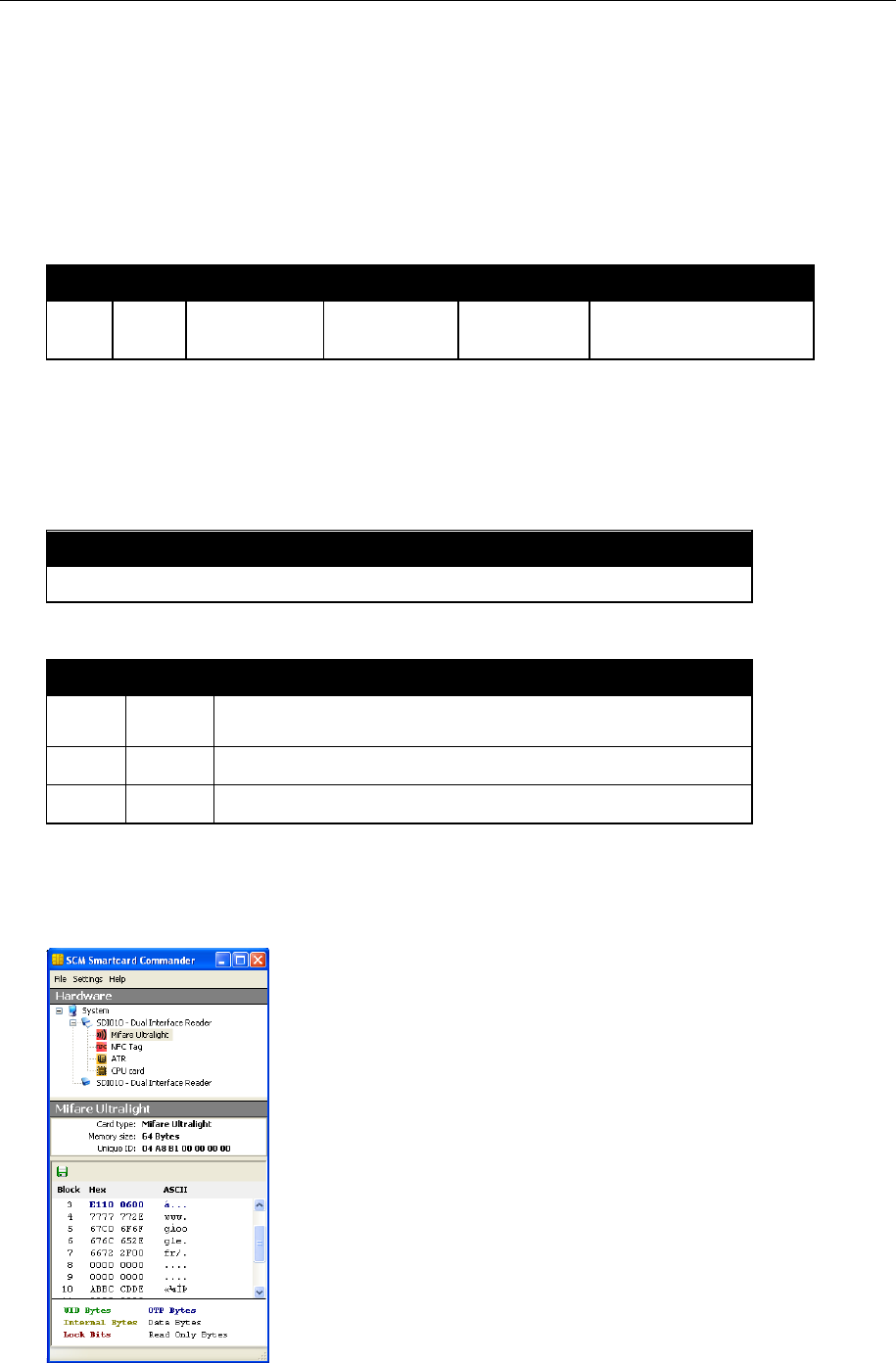

Smart card commander version 1.1 provides NFC forum record parsing functionality
of NDEF records in XML format as well as scripting functionality which can be very
useful for developers to develop and debug their applications. This tool can be used
for both the contact and the contactless interfaces of SDI011.
SDI011 REFERENCE MANUAL 20
4. SDI011 characteristics
4.1. SDI011 high level architecture
4.1.1. Block diagram
The link between SDI011 and the host to which it is connected is the USB interface providing
both the power and the communication channel.
Device controller
STC2 ASIC (SCM) with
embedded flash
RF front-end
MFRC531 (NXP)
EMC filter +
Matching circuitry
LED
text
text
text
Antenna
To host
ISO7816 contact
smart card interface
SDI011 has a device controller which is SCM‘s STCII ASIC. This ASIC has several interfaces
available. In SDI011 implementation 3 peripherals are connected to the device controller:
LED for reader status indication
A contact smart card interface
An RF front-end that handles the RF communication
The ASIC embeds flash memory. The flash is programmed during the manufacturing of SDI011
devices. This flash contains the firmware developed by SCM Microsystems to handle all the
ISO7816 contact protocol, the RF communication protocols and the PC/SC communication
protocol with the host. The flash can be upgraded once the device is deployed in the field,
hence enabling firmware upgrades to add and potentially patch features.
The RF front-end ensures the coding/decoding/framing modulation/demodulation required for
the RF communication. It is controlled by the device controller through registers.
The matching circuitry provides the transmission and receiver paths adaptation for the antenna
to function properly.
SDI011 REFERENCE MANUAL 21
4.1.2. Software architecture
Applications can interface with the driver directly through the PC/SC interface.
The SDI011 driver implements PC/SC v2.0 API towards upper layers and uses SCM firmware
commands encapsulated in CCID-like protocol for the contactless slot and full CCID for the
contact slot.
The SDI011 contactless driver handles all the contactless-related intelligence – i.e. ISO/IEC
14443 and the SDI011 firmware handles the raw transport of data to and from the contactless
cards.
SDI011 REFERENCE MANUAL 22
4.2. Quick reference data

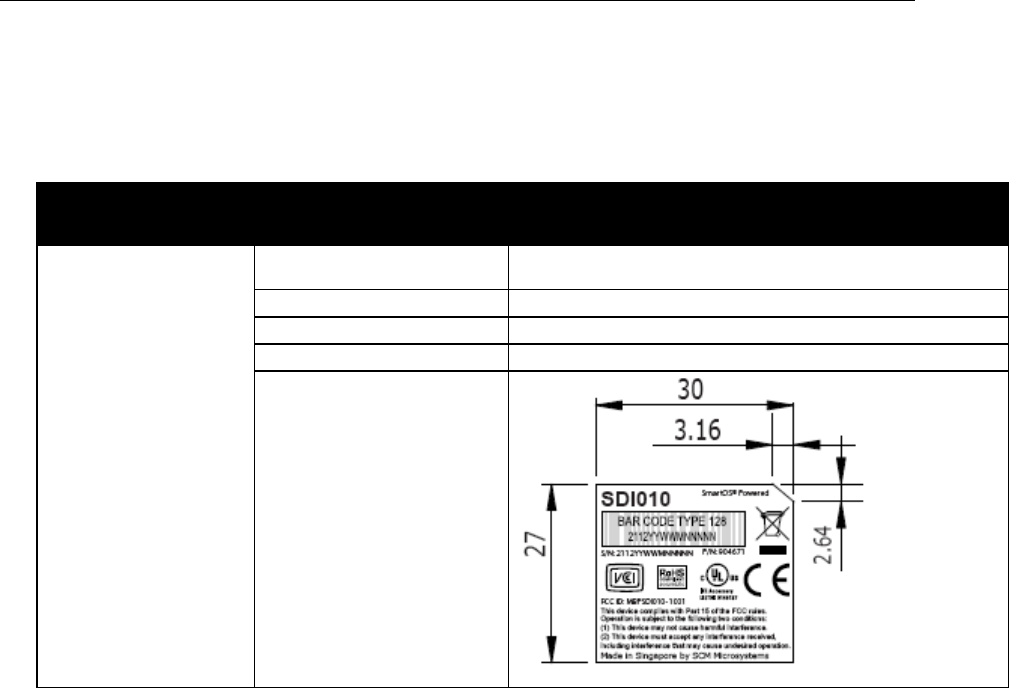

4.2.1. SDI011 dimensions
Item
Characteristic
Value
SDI011
Weight
128 Grams
External dimensions
L 118 mm W 78mm H 22mm
Cable length
1.5 meter long with USB type A connector
Default color
Black with metallic silver
Default label
Drawing with dimensions of the SDI011 and accessories can be found in annex.
SDI011 REFERENCE MANUAL 23
4.2.2. LED behavior
SDI011 is equipped with a bicolor LED. Its behavior is described in the table below.
SDI011 states
LED1 Indication
(GREEN)
LED2 Indication
(RED)
Just after plug-in (with drivers
already installed)
ON
OFF
Just after DFU operation
ON
OFF
Suspend / standby
OFF
OFF
Reader powered, Contact card IN, but not powered
(98/ME – issue power down using the Testresman
utility)
500ms ON
500ms OFF
OFF
Reader powered, Contact card IN, but not powered
(2K/XP – power down takes place )
ON
OFF
Reader powered, Contactless card IN, but not
powered (98/ME - issue power down using the
Testresman utility)
500ms ON
500ms OFF
500ms ON
500ms OFF
Reader powered, Contactless card IN, but not powered
(2K/XP - power down takes place )
ON
ON
Contact card powered / communication
500ms ON
500ms OFF
OFF
Contactless card powered / communication
500ms ON
500ms OFF
500ms ON
500ms OFF
Reader / card errors
OFF
100ms ON
100ms OFF
Firmware upgrade running
OFF
ON
Combi3 card powered in contact Slot
500ms ON
500ms OFF
OFF
Combi card powered using RF field
500ms ON
500ms OFF
500ms ON
500ms OFF
3 A combi card is a smart card which has both a contact and a contactless interface. Some of those cards have one
controller with two interfaces. Data can be accessed through the contact or the contactless interface. For those when
the contact interface is powered up the contactless interface is disabled. There are nevertheless in the market combi
cards with 1 contact chip and 1 contactless chip. Those cards can be seen at the same time as a contact and a
contactless card when inserted in the contact interface of SDI011.
SDI011 REFERENCE MANUAL 24
4.2.3. Other data
4.2.3.1. General
Parameter
Value/Description
Clock of the device
controller
24 MHz
API
PC/SC 2.0
Operating temperature
range
0º to 50ºC
Operating humidity
range
Up to 95%RH non condensing
Certifications
USB
CE
FCC
VCCI
WEEE
RoHS
WHQL
4.2.3.2. USB
Parameter
Value/Description
DC characteristics
High bus powered (SDI011 draws power from USB bus)
Voltage: 5V
Max. Current : 200mA
Suspend current : 380uA
USB specification
USB 2.0 FS Device
USB Speed
Full Speed Device (12Mbit/s)
Device Class
Vendor
PID
0x5121
VID
0x04E6
SDI011 REFERENCE MANUAL 25
4.2.3.3. Contactless interface
Parameter
Value/Description
RF carrier frequency
13.56 MHz +/- 50ppm
Modulation
12 to 14 %
ID1 format tokens
supported
ISO/IEC 14443-4 PICC type A and type B
MIFARE
Type B memory card PICC through SCM-proprietary APDU
Maximum baud rate
424Kbps (848 Kbps is available as configurable option)
Multiple PICC in field
Supported and is kept disabled by default.
Allows the presence and use of several PICC‘s (Maximum 4) at the same
time. The driver can support multiple logical connections and present each of
them as a slot logical device to the Resource Manager and higher
components. Also the simultaneous working of multiple Contactless cards is
not guaranteed and depends on the antenna size and the power requirements
of the card.
4.2.3.4. Contact interface
Parameter
Value/Description
Smart card operating
frequency
4MHz
Maximum supported
card baud-rate
500Kbps
Cards supported
Class A and Class AB smart cards (Class B only cards not supported)
Synchronous smart cards
ISO-7816 compliant
Yes
EMV‘2000 compliant
Not validated
CT-API compliant
Yes
Number of slots
Single smart card slot
Ejection mechanism
Manual
SDI011 REFERENCE MANUAL 26
5. Software modules
5.1. Installation
SCM provides an installer for Windows and for Mac
The installers can be used to install the driver as well as some utilities.
5.2. Utilities
The following utilities are available:
A tool for device firmware upgrade (DFU)
A tool for testing the installation of the PC/SC driver
A tool for testing the resource manager
A tool called PC/SC Diag capable of providing basic information about the reader
and a card through PC/SC stack
The DFU utility comes with a specific driver for dynamic Device Firmware Upgrade (DFU)
through the USB interface.
Operating systems supported by DFU tool:
Windows 98
Windows ME
Windows 2000
Windows 2003 Server (32 & 64 bit)
Windows XP (32 & 64 bit)
Windows Vista (32 & 64 bit)
Windows Server 2008 (32 & 64 bit)
5.3. Driver
5.3.1. SDI011 listing
SDI011 is listed by PC/SC applications as
SCM Microsystems Inc. SDI011 Smart Card Reader for the contact reader
SCM Microsystems Inc. SDI011 Contactless Reader for the contactless reader
SDI011 REFERENCE MANUAL 27
5.3.2. Supported operating systems
Operating systems supported by the driver:
Windows 98
Windows ME
Windows 2000
Windows 2003 Server (32 & 64 bit)
Windows XP (32 & 64 bit)
Windows Vista (32 & 64 bit)
Windows Server 2008 (32 & 64 bit)
5.3.3. PC/SC 2.0 compliant ATR for contactless interface
When a user token is placed on the reader, initialization, anti-collision is done. The user token
is automatically activated and an ATR is built as defined in the PC/SC specification.
SDI011 REFERENCE MANUAL 28
5.3.3.1. ATR for contactless storage user tokens
The ATR of the user token is composed as described in the table below. In order to allow the
application to identify the storage card properly, it‘s Standard and Card name describing bytes
must be interpreted according to the Part 3 Supplemental Document, maintained by PC/SC.
Tokens using technology like MIFARE are examples of such user tokens.
Byte#
Value
Designation
Description
0
0x3B
Initial header
1
0x8n
T0
n indicates the number of historical bytes in
following ATR
2
0x80
TD1
Nibble8 indicates no TA2, TB2, TC2
Nibble 0 means T=0
3
0x01
TD2
Nibble8 indicates no TA3, TB3, TC3
Nibble 1 means T=1
4...3+n
0x80
A status indicator may be present in an
optional TLV data object
0x4F
Optional TLV
data object
Tag: Application identifier
Length
1 byte
RID
Registered identifier on 5 bytes
PIX
Proprietary identifier extension on 3 bytes
0x00 0x00 0x00 0x00
4 RFU bytes
4+n
TCK
XOR of all previous bytes

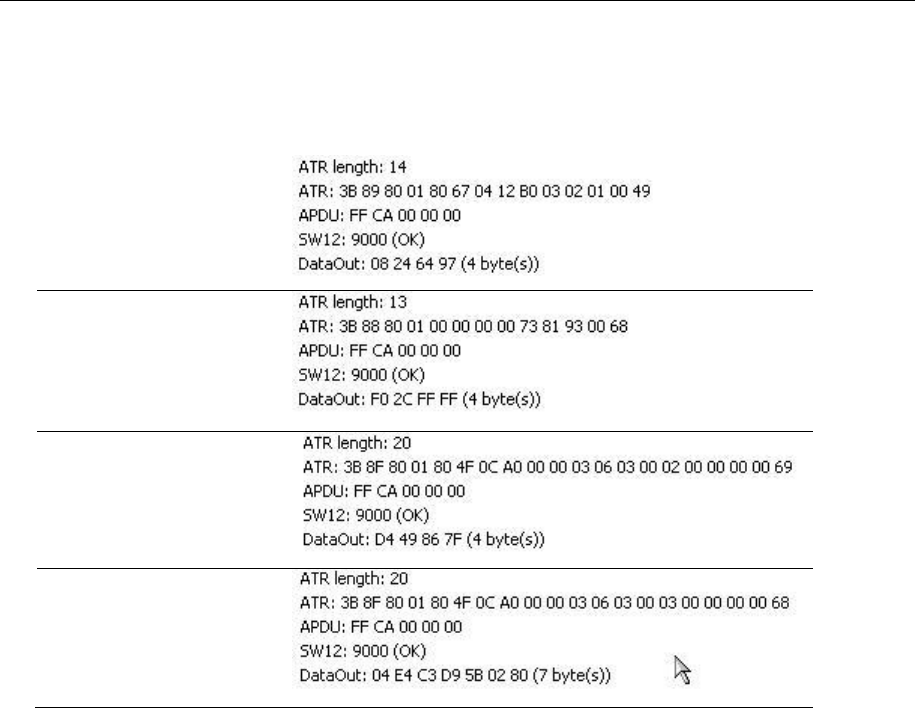

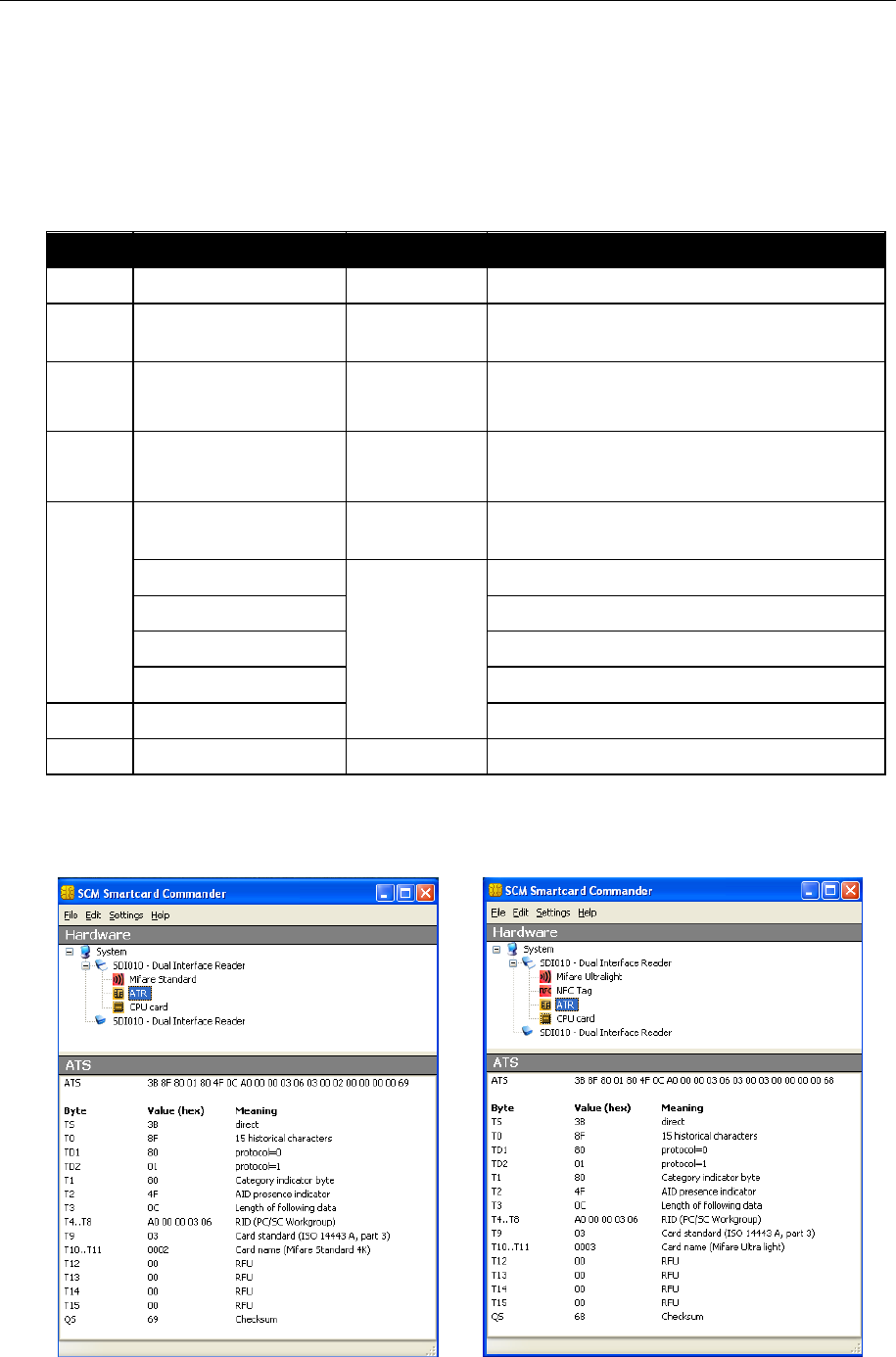

Example of the ATR built for contactless storage tokens:
MIFARE Classic 4K
MIFARE Ultralight
SDI011 REFERENCE MANUAL 29
5.3.3.2. ATR for ISO/IEC 14443-4 user tokens
The user token exposes its ATS or application information which is mapped to an ATR. The
table describes how this mapping is done.
Byte#
Value
Designation
Description
0
0x3B
Initial header
1
0x8n
T0
n indicates the number of historical bytes in following ATR
2
0x80
TD1
Nibble8 indicates no TA2, TB2, TC2
Nibble 0 means T=0
3
0x01
TD2
Nibble8 indicates no TA3, TB3, TC3
Nibble 1 means T=1
4...3+n
Historical
bytes or
application
information
Type A: the historical bytes from the ATS (up to 15 bytes)
Type B (8 bytes):
Byte 0 through 3: application data from ATQB,
Byte 4 through 6: protocol info byte from ATQB,
Byte 7: highest nibble is the MBLI (maximum
buffer length index) from ATTRIB, lowest nibble
is 0x0
4+n
TCK
XOR of all previous bytes

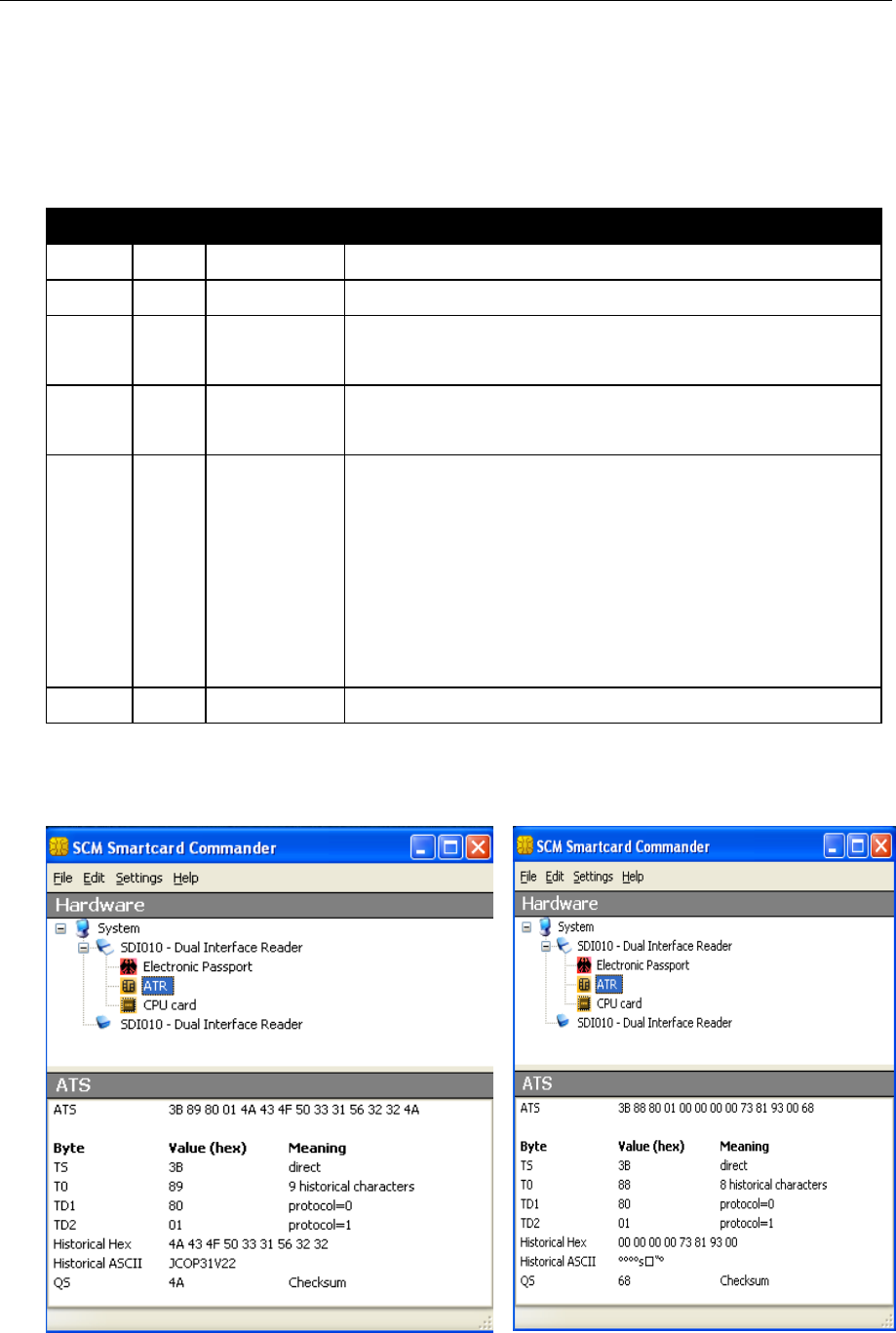

Example of the ATR built for an ISO14443-4 user tokens:
Type A
Type B
SDI011 REFERENCE MANUAL 30
5.4. Firmware
5.4.1. CCID transport protocol
SDI011 implements a transport protocol that is compliant with USB Device Class: Smart Card
CCID Specification for Integrated Circuit(s) Cards Interface Devices Revision 1.10 for the
contact smart card interface and CCID-like transport protocol for the contactless interface.
This paragraph describes the CCID specification features that are implemented and those that
are not implemented.
5.4.1.1. CCID class requests supported
Abort
5.4.1.2. CCID messages supported
The following CCID messages are supported both for the contact and the contactless interfaces
when received through bulk-out endpoint.
PC_to_RDR_IccPowerOn
PC_to_RDR_IccPowerOff
PC_to_RDR_GetSlotStatus
PC_to_RDR_XfrBlock
PC_to_RDR_GetParameters
PC_to_RDR_SetParameters
PC_to_RDR_Escape
PC_to_RDR_Abort
PC_to_RDR_NotifySlotChange
The following CCID messages are NOT implemented and hence fail with command not
supported error:
PC_to_RDR_ResetParameters
PC_to_RDR_IccClock
PC_to_RDR_T0APDU
PC_to_RDR_Secure
PC_to_RDR_Mechanical
PC_to_RDR_SetDataRateAndClockFrequency
5.4.1.3. CCID Error Codes
Extensive error codes are reported on many conditions during all CCID responses. Most of the
error messages are reported by the CCID appropriately. Some of the main error codes for the
contact interface are:
HW_ERROR
XFR_PARITY_ERROR
SDI011 REFERENCE MANUAL 31
BAD_ATR_TS
BAD_ATR_TCK
ICC_MUTE
The following sub-sections discuss when and why these error codes are returned:
5.4.1.3.1. HW_ERROR
This error code is returned when a hardware short circuit condition is detected, during
application of power to the card or if any other internal hardware error is detected. This error
code has been defined in the error code table 6.2-2 of the CCID specification.
5.4.1.3.2. XFR_PARITY_ERROR
This error code is returned when a parity error condition is detected. This error will be reported
in the response to a PC_to_RDR_XfrBlock message. This error code has been defined in the
error code table 6.2-2 of the CCID specification.
5.4.1.3.3. ICC_MUTE
This error code is returned when the card does not respond until the reader time out occurs.
This error will be reported in the response to PC_to_RDR_XfrBlock message and
PC_to_RDR_IccPowerOn messages. This error code has been defined in the error code table
6.2-2 of the CCID specification.
5.4.2. Automatic PPS for the contactless interface
Automatic PPS is implemented in SDI011‘s driver. This means that by default SDI011 switches
to the maximum communication speed indicated by the card during its selection. Automatic
PPS can be disabled using escape messages as explained later in this manual.
When Auto PPS is disabled (discussed in escape messages section) the reader works at the
default baud rate of 106kbps. An escape command has been introduced in the driver to force
the required baud rate.
The maximum speed supported by SDI011 is 424Kbps by default. Using escape messages as
explained later in this manual it is possible to change this.
SDI011 REFERENCE MANUAL 32
6. Commands description
6.1. Generic APDU
6.1.1. Get UID Command
6.1.1.1. Description
GET UID will retrieve the UID or SNR or PUPI of the user token. This command can be used
for all supported technologies.
6.1.1.2. Format
CLA
INS
P1
P2
Lc
Data in
Le
0xFF
0xCA
0x00
0x00
-
-
XX
Setting Le = 0x00 can be used to request the full UID or PUPI is sent back.(e.g. for ISO14443A
single 4 bytes, double 7 bytes, triple 10 bytes, for ISO14443B 4 bytes PUPI).
6.1.1.3. Response
Data Out
UID + SW1 + SW2
6.1.1.4. Status Words
SW1
SW2
Description
0x90
0x00
NO ERROR
0x62
0x82
End of UID reached before Le bytes (Le is
greater than UID length)
0x6C
0xXX
Wrong Length.
0xXX is the exact value for Le
Further error codes can be found in annex
SDI011 REFERENCE MANUAL 33
6.1.1.5. Examples
ISO14443-4A
ISO14443-4B
MIFARE 4K
MIFARE Ultralight
SDI011 REFERENCE MANUAL 34
6.1.2. Escape command APDU
6.1.2.1. Description
This command can be used to send escape commands to SDI011. For description of escape
commands please refer to the dedicated chapter in this manual.
6.1.2.2. Format
CLA
INS
P1
P2
P3
Data in
0xFF
0xCC
0x00
0x00
Lc
Input buffer of escape command
Lc is the length of the escape command‘s input buffer. See escape commands description later
in this manual
6.1.2.3. Response
Output buffer of the escape command
6.1.2.4. Example

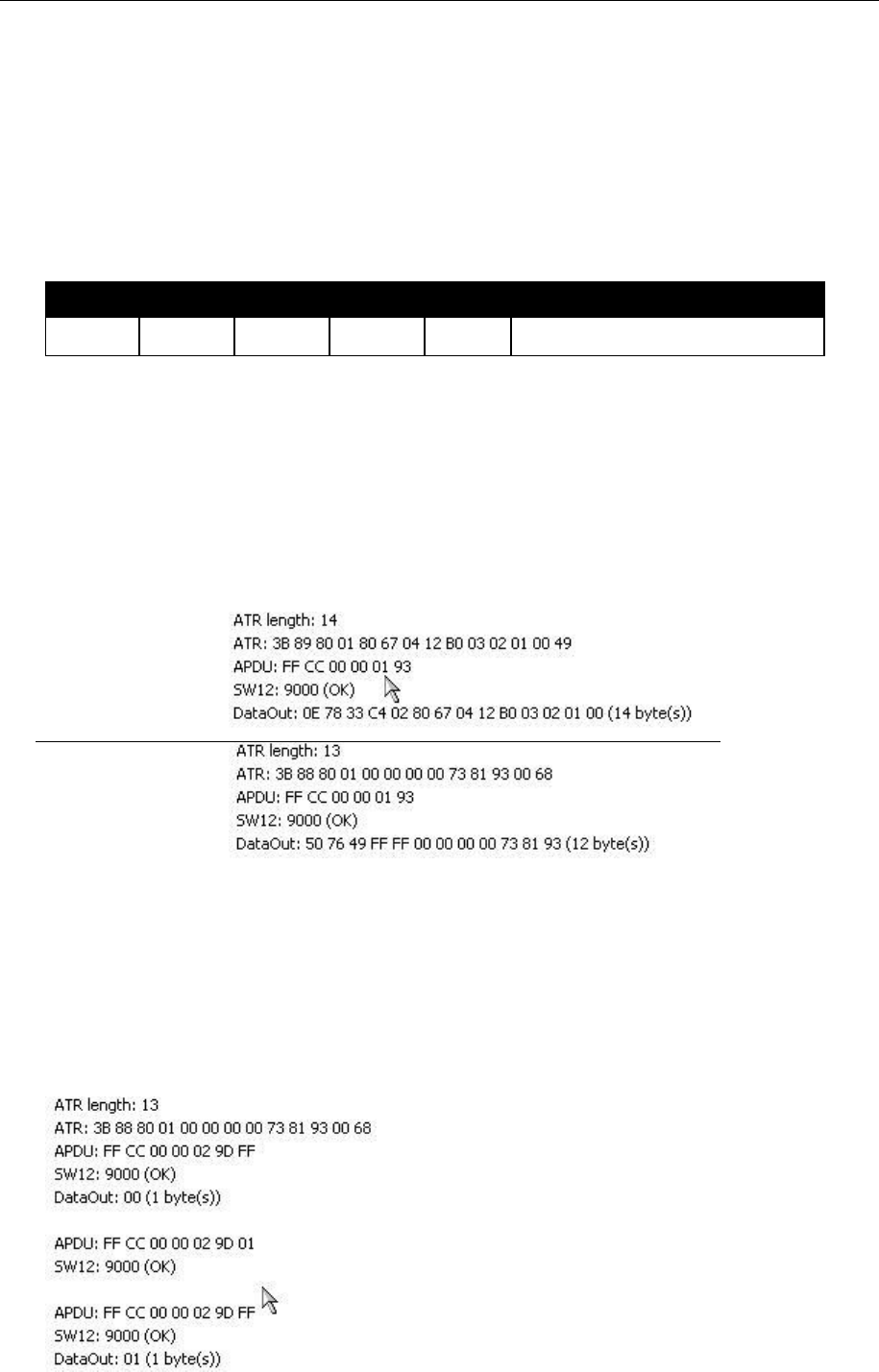

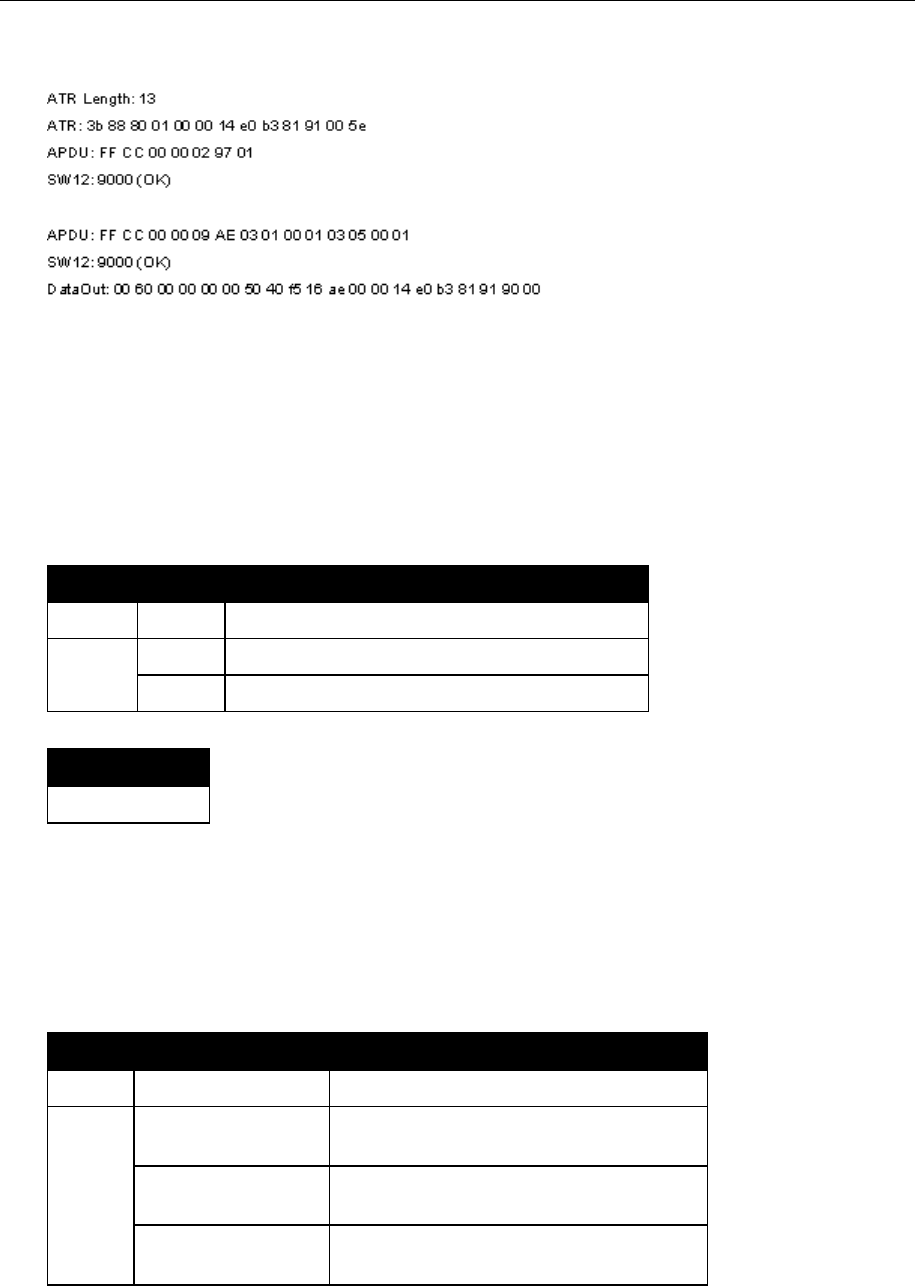

To get the ATS or ATQB of the ISO14443-4 based user token, you can use this APDU to send
the READER_CNTLESS_GET_ATS_ATQB (0x93) escape command
Type A passport
Type B passport
To get the reader status about support of 848Kbps, you can use this APDU to send the
READER_CNTLESS_848KBPS (0x9D) escape command.
By default the SDI011 doesn‘t have 848Kbps enabled on its contactless interface, the following
sequence
Checks the status (0x00 as response, means 848Kbps is disabled)
Enables 848Kbps
Checks the status again and the answer 0x01 indicates 848Kbps is enabled
SDI011 REFERENCE MANUAL 35
6.2. Set of APDU for contactless storage user tokens
6.2.1. STORAGE_CARD_CMDS_READ_BINARY
6.2.1.1. Description
Using this APDU, application can read a memory block on user tokens based on technologies
like MIFARE Classic 1K or 4K (block size 0x10 bytes) or MIFARE Ultra light (block size 0x04
bytes).
6.2.1.2. Format
CLA
INS
P1
P2
Le
0xFF
0xB0
Address
MSB
Address
LSB
0xXX
Where:
P2 indicates the block number from where to read
Le can be a short (maximum value 255) or extended (maximum value 65535). If
Le=0x00, then all the bytes until the end of the block are read (0x10 bytes for
MIFARE Classic 1K or 4K cards and 0x04 bytes for MIFARE Ultra Light cards).
6.2.1.3. Response
Data Out
Data + SW1 + SW2
6.2.1.4. Status words
SW1
SW2
Description
0x90
0x00
NO ERROR
0x62
0x81
WARNING: part of the returned data may be
corrupted
0x82
WARNING: end of file reached before Le bytes
where read
0x67
0x00
Length incorrect
0x68
0x00
CLA byte incorrect
0x69
0x81
Command not supported
0x82
Security status not satisfied
0x86
Command not allowed
0x6A
0x81
Function not supported
0x82
File not found, addressed blocks or bytes do not
exist
0x6B
0x00
Wrong P1, P2 parameters
0x6C
0xXX
Wrong Le, 0xXX is the correct value
SDI011 REFERENCE MANUAL 36
6.2.1.5. Example
For a MIFARE Classic 1K card which has the following memory content:
To read the seventh block, you have to issue the following command and get the following
response:
SDI011 REFERENCE MANUAL 37
6.2.2. STORAGE_CARD_CMDS_WRITE_BINARY
6.2.2.1. Description
This APDU writes data to a memory address
6.2.2.2. Format
CLA
INS
P1
P2
Lc
Data in
0xFF
0xD6
Address
MSB
Address
LSB
0xXX
Data
Where:
P2 indicate the memory block number where data should be written
Lc=0x10 for MIFARE Classic 1K/4K. Lc=0x04 for MIFARE Ultralight
6.2.2.3. Response
Data Out
SW1 + SW2
6.2.2.4. Status Words
SW1
SW2
Description
0x90
0x00
NO ERROR
0x69
0x81
Command not supported
0x64
0x00
State of the non-volatile memory unchanged
6.2.2.5. Example
For a MIFARE Classic Ultralight card which has the following memory content:
Issuing the command
SDI011 REFERENCE MANUAL 38
Results into the following memory mapping
SDI011 REFERENCE MANUAL 39
6.2.3. STORAGE_CARD_CMDS_LOAD_KEYS
6.2.3.1. Description
Some type of user tokens like MIFARE Classic may require that an authentication happens
before any data can be read or written. To perform this authentication, keys need to be loaded
in the reader‘s memory using this command.
6.2.3.2. Format
CLA
INS
P1
P2
Lc
Data in
0xFF
0x82
0x00
Key Type
Key Length
Key value
Where P2 can have the following values (please refer to MIFARE documentation from NXP for
further details on what is key A and Key B):
0x60 to use the Key A
0x61 to use the Key B
6.2.3.3. Response
Data Out
SW1 + SW2
6.2.3.4. Status Words
SW1
SW2
Description
0x90
0x00
NO ERROR
0x69
0x83
Reader key not supported
0x85
Secured transmission not supported
0x87
Non volatile memory not available
0x88
Key number not valid
0x89
Key length not correct
SDI011 REFERENCE MANUAL 40
6.2.4. STORAGE_CARD_CMDS_AUTHENTICATE
6.2.4.1. Description
This command enables to perform authentication for user tokens based on MIFARE Classic 1K
or 4K. Before this command can be successfully executed, the
STORAGE_CARD_CMDS_LOAD_KEY command must have been executed.
6.2.4.2. Format
CLA
INS
P1
P2
Lc
Data in
0xFF
0x86
0x00
0x00
0x05
Data
Where the data field is structured as follow
Byte #
Value
Description
B0
0x01
Version
B1
Address MSB
B2
Address LSB
B3
0x60
Key A
0x61
Key B
B4
Number of the key to be used for authentication
Information about memory structure of MIFARE Classic must be requested from NXP
Semiconductors.
6.2.4.3. Response
Data Out
SW1 + SW2
6.2.4.4. Status Words
SW1
SW2
Description
0x90
0x00
NO ERROR
0x63
0x00
WARNING no further info
0x69
0x82
Security status not satisfied
0x84
Referenced key not usable
0x86
Key type not known
SDI011 REFERENCE MANUAL 41
6.2.4.5. Example
For a MIFARE Classic 1K card which has the following memory mapping:
Reading sector 0 or sector 1 of this card requires authentication with key A or key B.
The following example:
authenticates with key A of sector 1
reads block #6
authenticates against sector 3
reads block #E
SDI011 REFERENCE MANUAL 42
6.2.5. STORAGE_CARD_CMDS_VALUE_BLOCK
6.2.5.1. Description
This APDU is used to interact with MIFARE Classic e-purse applications. Please refer to
MIFARE Classic documentation available from NXP Semiconductors for further details on
MIFARE classic memory mapping and commands.
6.2.5.2. Format
CLA
INS
P1
P2
Lc
Data in
0xFF
0xF0
0x00
Block#
Lc
Data
Where P2 code the address of the block number addressed
Where the data field is structured as follow
Byte #
Value
Description
B0
0xC0
Increment
0xC1
Decrement
B1
Block number
B2-B5
Value (LSB first)
6.2.5.3. Response
Data Out
SW1 + SW2
6.2.5.4. Status Words
SW1
SW2
Description
0x90
0x00
NO ERROR
0x67
0x00
Length incorrect
0x68
0x00
CLA byte incorrect
0x6A
0x81
Function not supported
0x6B
0x00
Wrong P1, P2 parameters
6.2.5.5. Example
CLA
INS
P1
P2
Lc
Data in
0xFF
0xF0
0x00
0x1E
0x06
0xC0 0x1E 0x01 0x00 0x00 0x00
The above APDU will increment the value in block number 0x1E of a MIFARE Classic-based
user token by a value of 0x01.
SDI011 REFERENCE MANUAL 43
6.3. Set of APDU for ISO/IEC14443-4 user tokens
6.3.1. T=CL Command
Description
SDI011 can transfer directly ISO/IEC7816-4 APDU to the PICC.
SDI011 supports user tokens that have both the MIFARE and T=CL partitions. Depending on
the APDU sent by the host, the reader switches to the corresponding mode (MIFARE or T=CL)
automatically and the command is processed accordingly.
6.3.1.1. Format
CLA
INS
P1
P2
P3
Data
Description of the APDU commands can be found in ISO/IEC 7816-4 specification.
6.3.1.2. Response
Data Out
PICC answer as defined in ISO/IEC 7816-4+ SW1 + SW2
As defined in ISO/IEC 7816-4.
6.3.1.3. Status Words
SW1
SW2
Description
See ISO/IEC 7816-4
As defined in ISO/IEC 7816-4.
6.3.1.4. Example
The following APDU sequence reads the first 256 bytes of the data group 1 as specified in
ICAO LDS (logical data structure) for machine readable travel documents with open access. It
first selects the issuer application using its AID (0xA0 0x00 0x00 0x02 0x47 0x10 0x01), then
selects the DG1 file (0x01 0x01) and then does a read binary.
SDI011 REFERENCE MANUAL 44
6.3.2. T=CL user command
Description
This command can be used to send raw data to the user token.
6.3.2.1. Format
CLA
INS
P1
P2
P3
Data
0xFF
0xFE
0x00
0x00
Lraw_data
Raw_data
6.3.2.2. Response
Data Out
PICC response data+ SW1 + SW2
6.3.2.3. Status Words
SW1
SW2
Description
User should refer to the status words defined by the PICC manufacturer for a description of the
status words
6.3.2.4. Example

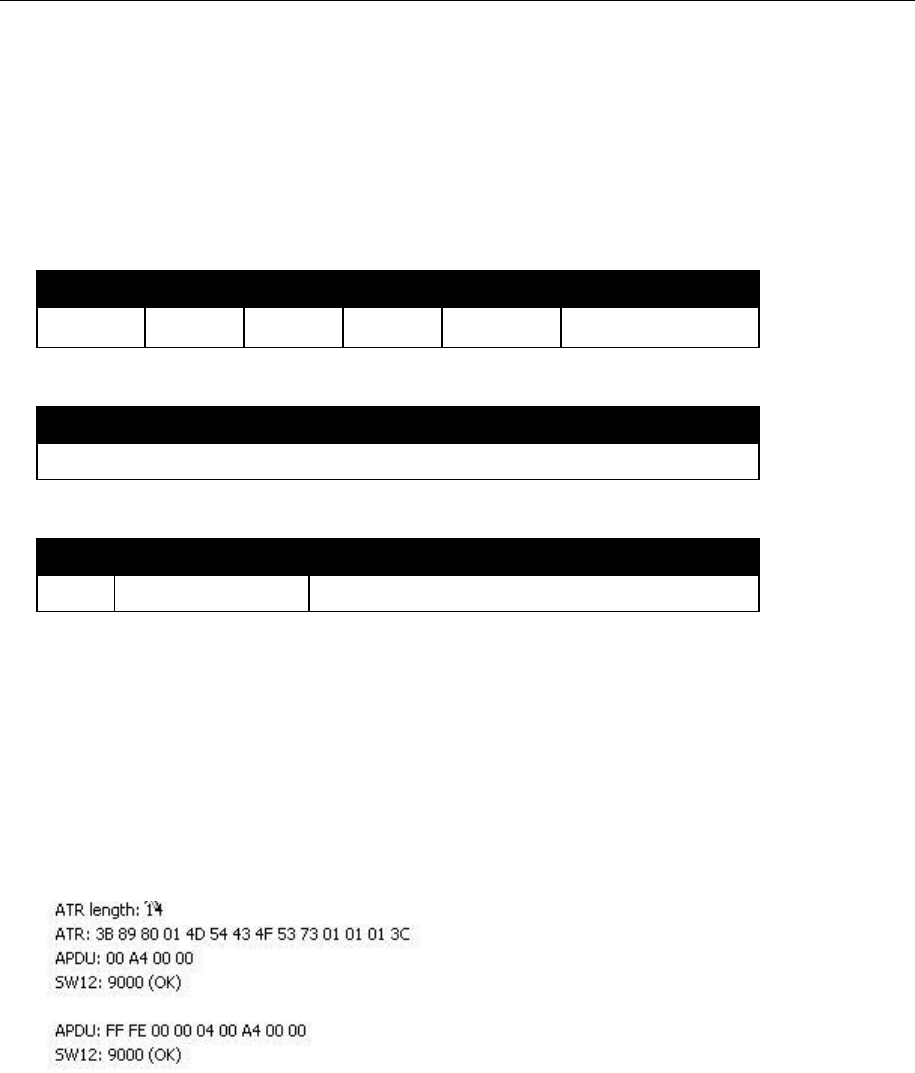

Let‘s consider the Select command defined in ISO7816-4. This command being ISO can be
sent to the user token in 2 different ways:
Using the T=CL command
Using the T=CL user command
Here are the 2 answers for the select command:
The T=CL command is nevertheless more useful for sending commands which are not defined
in ISO7816.
SDI011 REFERENCE MANUAL 45
6.4. Set of APDU defined by SCM Microsystems
6.4.1. MIFARE DESFire Commands
Description
This command can be used to send commands to DESFire-based user tokens.
For a description of DESFire commands please contact NXP Semiconductors.
6.4.1.1. Format
CLA
INS
P1
P2
P3
Data
0xFF
0xDE
0x00
0x00
Lcommand
Command
Response
Data Out
DESFire response data+ 9000 if the DESFire response data is of single byte
DESFire response data if the DESFire response data is more than 1 byte
SDI011 REFERENCE MANUAL 46
6.5. Escape commands for the contactless interface
6.5.1. Sending escape commands to SDI011
A developer can use 2 methods to send escape commands to SDI011 to the contactless
interface
SCardControl method defined in PC/SC API
SCardTransmit method defined in PC/SC API in conjunction with the escape
command APDU defined earlier in this manual
6.5.2. Escape command codes
Escape commands can be used by an application to configure SDI011 to function in a mode
that is not its default configured mode or to get specific information. To put the SDI011 back
into its default mode, either the SDI011 has to be unplugged and plugged again or the
application can send again the same escape command.
The following escape commands are supported by SDI011 for the contactless interface.
Escape command
Code
READER_GETCARDINFO
0x11
READER_LEDCONTROL
0x19
READER_CNTLESS_GET_MFRC_REV
0x92
READER_CNTLESS_GET_ATS_ATQB
0x93
READER_CNTLESS_GET_TYPE
0x94
READER_CNTLESS_SET_TYPE
0x95
READER_CNTLESS_RF_SWITCH
0x96
READER_CNTLESS_RAW_CFG
0x97
READER_CNTLESS_RAW_XMIT_EX
0xAE
READER_ CNTLESS_DISABLE_PPS
0x99
READER_SWITCH_RF_ON_OFF
0x9C
READER_CNTLESS_848KBPS
0x9D
READER_CNTLESS_BAUDRATE
0x9E
READER_CNTLESS_FORCE_BAUDRATE_PCSC_REV2
0xAD
READER_LEDCTRL_BY_FW
0xB2
Sample code to send escape commands can be found in annex.
SDI011 REFERENCE MANUAL 47
6.5.3. READER_GETCARDINFO
This escape command is used to get information about the card placed on the reader. The
SDI011 returns an error if no card is placed on it.
The input buffer shall contain the escape command code
Input buffer
0x11
The output buffer contents are described below.
Output buffer
Value
Description
B0
0x01
Contactless card present
B1
0xNN
Baud rate of card-reader communication
B2
0xXY
X – Upper nibble indicates 0 - memory card
1 - T=CL card
2 - Dual mode card
Y – Lower nibble indicates 0 - Type A card
1 - Type B card
The Baud rate of card-reader communication 0xNN shall indicate a BYTE as follows
b8
b7
b6
b5
b4
b3
b2
b1
0
b1 – 212kbps supported (direction reader to card)
b2 – 424kbps supported (direction reader to card)
b3 – 848kbps supported (direction reader to card)
b5 – 212kbps supported (direction card to reader)
b6 – 424kbps supported (direction card to reader)
b7 – 848kbps supported (direction card to reader)
b8 – 1 – indicates same baud rate in both directions
0 – indicates different baud rates in opposite directions
For Example:
If 0xNN = 0x77, the card supports all baud rates namely 106, 212, 424 and 848 kbps in both
directions. This card can be forced to work at different baud rates in the send and receive
directions using the escape command
READER_CNTLESS_FORCE_BAUDRATE_PCSC_REV2.
If 0xNN = 0xB3, the card supports 106, 212 and 424 kbps in both directions. This card can be
made to work only at the same baud rate in the send and receive directions using the escape
command READER_CNTLESS_FORCE_BAUDRATE_PCSC_REV2.
SDI011 REFERENCE MANUAL 48
6.5.4. READER_LED_CONTROL_BY_FW
This escape command may be used to enable or disable LED control by the firmware.
The input buffer is
Byte #
Value
Description
B0
0xB2
Escape command code
B1
0x00
Disable LED control by FW
0x01
Enable LED control by FW
The output buffer is
Output buffer
NULL
6.5.5. READER_LEDCONTROL
This escape command is used to turn ON/OFF the LED.
This escape command shall work only if LED control by firmware is disabled.
The input buffer shall contain 3 bytes
Byte #
Value
Description
B0
0x19
Escape command code
B1
0x00
LED number
B2
0x00
LED ON
0x01
LED OFF
The output buffer is
Output buffer
NULL
6.5.6. READER_CNTLESS_GET_MFRC_REV
This escape message retrieves the revision number of the RF ASIC MFRC531.
The input buffer contains the escape command code
Input buffer
0x92
The output buffer contains the version of the MFRC531 ASIC.
SDI011 REFERENCE MANUAL 49
6.5.7. READER_CNTLESS_GET_ATS_ATQB
This escape command enables the host to retrieve the ATS for Type A T= CL or the ATQB for
Type B cards.
The input buffer contains the escape command code
Input buffer
0x93
The output buffer contains the ATS bytes or the ATQB bytes depending on the type of PICC
placed on the reader.
6.5.8. READER_CNTLESS_GET_TYPE
This escape command retrieves the type of the card which SDI011 is configured to poll for.
The input buffer shall contain the escape command code
Input buffer
0x94
The output buffer shall point to a BYTE buffer which will contain the type value coded as
Value
Description
0x00
Type A
0x01
Type B
0x02
Type A + type B
6.5.9. READER_CNTLESS_SET_TYPE
This escape command configures the type of cards SDI011 will poll for.
Using this command can improve the polling efficiency of SDI011 for applications where only
type A or only type B cards are expected.
The default is Type A + type B (0x02).
The input buffer shall contain 2 bytes
Byte #
Value
Description
B0
0x95
Escape command code
B1
0x00
Type A
0x01
Type B
0x02
Type A + type B
The output buffer is
Output buffer
NULL
SDI011 REFERENCE MANUAL 50
6.5.10. READER_CNTLESS_RF_SWITCH
This escape command can be used to retrieve/set the RF state of SDI011.
The default RF field state is ON.
The input buffer shall contain 2 bytes
Byte #
Value
Description
B0
0x96
Escape command code
B1
0x00
Switch RF Field OFF
0x01
Switch RF Field ON
0xFF
Get current field state
After the RF is turned off, to turn the RF ON again, card connect shall be done in direct mode.
If B1 of the input buffer is 0x00 or 0x01 the output buffer is
Output buffer
NULL
If B1 of the input buffer is 0xFF, the output buffer is a BYTE buffer with 2 possible values
Output buffer
Description
0x01
RF field is OFF
0x00
RF field is ON
6.5.11. READER_CNTLESS_RAW_CFG
This escape command switches SDI011 to raw mode.
When SDI011 is in raw mode it only polls for one type of contactless card.
SDI011 is by default not in this mode and therefore READER_CNTLESS_RAW_XMIT_EX
would fail.
The input buffer contains 2 bytes
Byte #
Value
Description
B0
0x97
Escape Function code
B1
0x00
Type A will be use for further
transmissions in raw mode
0x01
Type B will be use for further
transmissions in raw mode
The output buffer is
Output buffer
NULL
Once SDI011 is in raw mode commands can be sent using
READER_CNTLESS_RAW_XMIT_EX escape command.
SDI011 REFERENCE MANUAL 51
6.5.12. READER_CNTLESS_RAW_XMIT_EX
This escape command can only be executed by the firmware once SDI011 is put in raw mode
using the READER_CNTLESS_RAW_CFG escape command.
This escape command can be used to send commands to smart card when SDI011 is in raw
mode
The input buffer is
Byte #
Value
Description
B0
0xAE
Escape Function code
B1
Wait Time
B2
Is CRC required?
B3
No of bits per command
B4
Card Type
0 – Type A
1 – type B
B5
Command length
B6 - Bn
Command
The output buffer contains the response to the command from the offset B6 onwards.
The following example uses the raw mode to send a REQB command
First, we have to switch the SDI011 into raw mode for type B communication
Byte #
Value
Description
B0
0x97
READER_CNTLESS_RAW_CONFIG code
B1
0x01
Type B will be used
Then, we can send the following bytes to obtain the ATQB response of any type B user token in
the field
Byte #
Value
Description
B0
0xAE
READER_CNTLESS_RAW_XMIT_EX code
B1
0x03
FWI is set to 3
B2
0x01
Enable CRC (CRC will be calculated by the
RF front end of SDI011)
B3
0x00
Number of bits to be sent in the command
0 – Entire byte will be sent
B4
0x01
Type B
B5
0x03
Command length in bytes
B6
0x05
REQB command‘s anti-collision prefix byte
B7
0x00
REQB command‘s application family
identifier
B8
0x01
REQB command parameter with slot number
set as 1
SDI011 REFERENCE MANUAL 52
6.5.13. READER_ CNTLESS_DISABLE_PPS
By default SDI011 does automatic PPS – i.e. it switches the RF communication speed to the
highest possible supported by the card.
This escape command can be used to switch ON/OFF automatic PPS. When automatic PPS is
OFF, then 106Kbps only is available.
The input buffer is
Byte #
Value
Description
B0
0x99
Escape command code
B1
0x01
Disable Auto-PPS
0x00
Enable Auto-PPS
The output buffer is
Output buffer
NULL
6.5.14. READER_SWITCH_RF_ON_OFF
This escape command can be used to switch the RF field ON or OFF when a Contact smart
card is inserted into the reader.
By default, the RF field is always in the ON state and when any contact smart card is inserted
in the reader, the RF field is turned OFF.
The input buffer shall contain 2 bytes
Byte #
Value
Description
B0
0x9C
Escape command code
B1
0x00
Switch RF Field OFF when contact card
is present in the reader
0x01
Switch RF Field ON when contact card
is present in the reader
0xFF
Get current field state when Contact
smart card is present in the reader
After the RF is turned off, to turn the RF ON again, card connect shall be done in direct mode.
SDI011 REFERENCE MANUAL 53
If B1 of the input buffer is 0x00 or 0x01 the output buffer is
Output buffer
NULL
If B1 of the input buffer is 0xFF, the output buffer is a BYTE buffer with 2 possible values
Output buffer
Description
0x00
RF field is OFF
0x01
RF field is ON
6.5.15. READER_CNTLESS_848KBPS
This escape command can be used to enable/disable 848kbps support by SDI011 as well as
query whether 848kbps is currently enabled or disabled by SDI011.
The RF communication with a user token will only switch to 848Kbps provided the user token
supports this baud rate and provided automatic PPS is ON.
The input buffer shall contain 2 bytes
Byte #
Value
Description
B0
0x9D
Escape command code
B1
0x00
Disable 848Kbps support
0x01
Enable 848Kbps support
0xFF
Get current status on 848Kbps support
If B1 of the input buffer is 0x00 or 0x01 then the output buffer is
Output buffer
NULL
If B1 of the input buffer is 0xFF, the output buffer is a BYTE buffer with following possible
values
Output buffer
Description
0x00
848Kbps is disabled
0x01
848Kbps is enabled
SDI011 REFERENCE MANUAL 54
6.5.16. READER_CNTLESS_BAUDRATE
This escape command can be used to get the actual operating baud rate of card-reader
communication.
The input buffer shall contain the escape message value.
Input buffer
0x9E
The output buffer shall point to a BYTE buffer with following possible values
Output buffer
Description
0x00
106Kbps in both directions
0x01
106Kbps from PICC to PCD, 212Kbps from PCD to PICC
0x02
106Kbps from PICC to PCD, 424Kbps from PCD to PICC
0x03
106Kbps from PICC to PCD, 848Kbps from PCD to PICC
0x10
212Kbps from PICC to PCD, 106Kbps from PCD to PICC
0x11
212Kbps in both directions
0x12
212Kbps from PICC to PCD, 424Kbps from PCD to PICC
0x13
212Kbps from PICC to PCD, 848Kbps from PCD to PICC
0x20
424Kbps from PICC to PCD, 106Kbps from PCD to PICC
0x21
424Kbps from PICC to PCD, 212Kbps from PCD to PICC
0x22
424Kbps in both directions
0x23
424Kbps from PICC to PCD, 848Kbps from PCD to PICC
0x30
848Kbps from PICC to PCD, 106Kbps from PCD to PICC
0x31
848Kbps from PICC to PCD, 212Kbps from PCD to PICC
0x32
848Kbps from PICC to PCD, 424Kbps from PCD to PICC
0x33
848Kbps in both directions
SDI011 REFERENCE MANUAL 55
6.5.17. READER_CNTLESS_FORCE_BAUDRATE_PCSC_REV2
This escape command can be used to force baud rate for Contactless cards.
The input buffer is
Byte #
Value
Description
B0
0xAD
Escape command code
B1
0x00
Apply the baud rate specified by the card
0x01
Force baud rate specified in B2
B2
b0- DR=2 supported, if bit is set to 1
b1- DR=4 supported, if bit is set to 1
b2- DR=8 supported, if bit is set to 1
b3- shall be set to 0, 1 is RFU
b4- DS=2 supported, if bit is set to 1
b5- DS=4 supported, if bit is set to 1
b6- DS=8 supported, if bit is set to 1
b7- 1 if the same D is required for
both communication directions
b8- 0 if different D is supported for
each communication direction
Encoding of the baud rate to be forced if
B1 value is 0x01. No need to send this
byte in case B1 has the value =x00
NULL
If B1=0x00
The output buffer is
Output buffer
NULL
SDI011 REFERENCE MANUAL 56
6.6. Escape commands for the contact interface
6.6.1. Sending escape commands to SDI011
A developer can use the following method to send escape commands to SDI011 for the contact
interface
SCardControl method defined in PC/SC API
6.6.2. Escape command codes
Escape commands can be used by an application to configure SDI011 to function in a mode
that is not its default configured mode or to get specific information. To put the SDI011 back
into its default mode, either the SDI011 has to be unplugged and plugged again or the
application can send again the same escape command.
The following escape commands are supported by SDI011 for the contact interface
Escape command
Code
READER_SETMODE
0x01
READER_GETMODE
0x02
READER_APDU_TRANSFER
0x08
READER_SWITCH_SPEED
0x0A
READER_SWITCH_PROTOCOL
0x0C
READER_DISABLE_PPS
0x0F
READER_GETIFDTYPE
0x12
READER_GETINFO_EXTENDED
0X1E
6.6.3. READER_SETMODE
This escape command may be used to set the mode of the reader. Applications may call this
function, to set the desired mode. Typically, this call is used to switch between the EMV,
ISO7816 and the memory card modes of operation.
The input buffer is
Byte #
Value
Description
B0
0x01
Escape command code
B1
0x00
ISO 7816 mode
0x01
EMV mode
0x02
Memory card mode
The output buffer is
Output buffer
NULL
SDI011 REFERENCE MANUAL 57
6.6.4. READER_GETMODE
This escape command may be used to retrieve the current mode of the reader.
The input buffer is
Byte #
Value
Description
B0
0x02
Escape command code
The output buffer is
Output buffer
Description
0x00
ISO 7816 mode
0x01
EMV mode
0x02
Memory card mode
6.6.5. READER_APDU_TRANSFER
This escape command may be used to exchange an APDU with the smart card.
The input buffer is
Byte #
Value
Description
B0
0x08
Escape command code
B1- Bn
Command APDU
The output buffer contains the response APDU.
The maximum number of bytes that can be transmitted and received is given below.
Transmit:
Case 1,2,3 APDU: Max of 256 bytes per APDU
Case 4 APDU: Max of 255 bytes per APDU
Receive:
Max of 259 bytes per APDU
SDI011 REFERENCE MANUAL 58
6.6.6. READER_SWITCH_SPEED
In case, when the application is capable of switching the card‘s speed through APDU (if the
card supports such a feature), this escape command is used to inform the reader about the
speed change occurred between application and card. The first byte will contain the escape
function value; the next two bytes contain Fi and Di respectively. The output buffer field shall be
NULL.
The input buffer is
Byte #
Value
Description
B0
0x0A
Escape command code
B1
Fi value
B2
Di value
The output buffer is
Output buffer
NULL
6.6.7. READER_SWITCH_PROTOCOL
In case, when the application is capable of switching the card‘s protocol through APDU (if the
card support such a feature), this escape command is used to inform the reader about the
protocol change occurred between application and card.
The input buffer is
Byte #
Value
Description
B0
0x0C
Escape command code
B1
0x00
T0_PROTOCOL
0X01
T1_PROTOCOL
The output buffer is
Output buffer
NULL
SDI011 REFERENCE MANUAL 59
6.6.8. READER_DISABLE_PPS
This escape command disables the automatic PPS done by the firmware.
The input buffer is
Byte #
Value
Description
B0
0x0F
Escape command code
B1
0x00
Enable PPS
0X01
Disable PPS
The output buffer is
Output buffer
NULL
6.6.9. READER_GETIFDTYPE
This escape command is used to get the current IFD type from the reader. The first byte of the
input buffer contains the escape id value. The reader gets the value from the reader capability
structure, which is implemented in the reader as a configurable item. The output buffer shall
point to a WORD buffer. The IFD type of SDI011-Generic is 0x010E,
The input buffer is
Byte #
Value
Description
B0
0x12
Escape command code
SDI011 REFERENCE MANUAL 60
6.6.10. READER_GETINFO_EXTENDED
This escape command is used to get the information of the reader like the major and minor
version of the firmware, capabilities of the reader and the Unicode serial number. The output
buffer shall point to an application allocated SCARD_READER_GETINFO_PARAMS_EX
structure mentioned below.
The input buffer is
Byte #
Value
Description
B0
0x1E
Escape command code
typedef struct __SCARD_READER_GETINFO_PARAMS_EX
{
OUT BYTE byMajorVersion;
OUT BYTE byMinorVersion;
OUT BYTE bySupportedModes; // 0 – ISO7816, 1 – EMV, 2 – Memory card
OUT WORD wSupportedProtocols; // 1 – T=0; 2 - T=1; 3 – T=0 & T=1
OUT WORD winputDevice;
OUT BYTE byPersonality;
OUT BYTE byMaxSlots;
OUT BYTE bySerialNoLength;
OUT BYTE[28] bySerialNumber;
}SCARD_READER_GETINFO_PARAMS_EX, *PSCARD_READER_GETINFO_PARAMS_EX;
SDI011 REFERENCE MANUAL 61
7. Annexes
7.1. Annex A – Status words table
SW1
SW2
Description
0x90
0x00
NO ERROR
0x67
0x00
LENGTH INCORRECT
0x6D
0x00
INVALID INSTRUCTION BYTE
0x6E
0x00
CLASS NOT SUPPORTED
0x6F
0x00
UNKNOWN COMMAND
0x63
0x00
NO INFORMATION GIVEN
0x65
0x81
MEMORY FAILURE
0x68
0x00
CLASS BYTE INCORRECT
0x69
0x82
Command not allowed, security status not
satisfied
0x6A
0x81
FUNCTION NOT SUPPORTED
0x6B
0x00
WRONG PARAMETER P1-P2
SDI011 REFERENCE MANUAL 62
7.2. Annex B – Sample code using escape commands
through Escape IOCTL
File Name : T_hbr.H
#ifdef __cplusplus
extern "C" {
#endif
#define IOCTL_CCID_ESCAPE SCARD_CTL_CODE (0xDAC)
#define CCID_GET_848KBPS_STATUS 0xFF9D
#define CCID_SET_848KBPS_ON 0x019D
#define CCID_SET_848KBPS_OFF 0x009D
#define MINTIMEOUT 300
#ifdef __cplusplus
}
#endif
File Name : T_hbr.CPP
#include <windows.h>
#include <winbase.h>
#include <stdio.h>
#include <conio.h>
#include "winscard.h"
#include "winerror.h"
#include "T_hbr.H"
VOID main(VOID)
{
SCARDCONTEXT ContextHandle;
SCARDHANDLE CardHandle;
BYTE OutByte;
WORD InWord,i;
DWORD ActiveProtocol; /* ICC protocol */
ULONG InBufLen,ResLen;
ULONG ret;
SDI011 REFERENCE MANUAL 63
SCARD_READERSTATE Reader[1];
// please add the name of the used reader here or use SCardListReaders
// to find the right reader name
char *ReaderName[] = {"SCM Microsystems Inc. SDI011 Contactless Reader 0",
NULL};
/***************************************************************************************
*****************/
ContextHandle = -1;
ret = SCardEstablishContext(SCARD_SCOPE_USER, NULL, NULL, &ContextHandle);
if (ret == SCARD_S_SUCCESS)
{
ret = SCardConnect( ContextHandle,
ReaderName[0],
SCARD_SHARE_SHARED,
SCARD_PROTOCOL_T0 | SCARD_PROTOCOL_T1,
&CardHandle,
&ActiveProtocol);
if (ret == SCARD_S_SUCCESS)
{
/* get actual 848kbps status: ON/OFF */
InBufLen = 2;
InWord = CCID_GET_848KBPS_STATUS;
ret = SCardControl (CardHandle,
IOCTL_CCID_ESCAPE,
&InWord,
InBufLen,
&OutByte,
1,
&ResLen);
printf ("\n Get 848kbps status: %lx: %.2x", ret,OutByte);
Reader[0].dwCurrentState = SCARD_STATE_UNAWARE;
Reader[0].dwEventState = SCARD_STATE_UNAWARE;
Reader[0].szReader = ReaderName[0];
ret = SCardGetStatusChange( ContextHandle,
SDI011 REFERENCE MANUAL 64
MINTIMEOUT,
Reader,
1);
printf ("\nATR: ");
for (i=0; i<Reader->cbAtr; i++)
{
printf ("%.2x ",Reader->rgbAtr[i]);
}
printf ("\n----------------------------------------------\n");
/* enable 848KBPS: ON */
printf ("\nEnable 848kbps ");
InBufLen = 2;
InWord = CCID_SET_848KBPS_ON;
ret = SCardControl (CardHandle,
IOCTL_CCID_ESCAPE,
&InWord,
InBufLen,
&OutByte,
1,
&ResLen);
ret = SCardDisconnect(CardHandle, SCARD_RESET_CARD);
ret = SCardConnect (ContextHandle,
ReaderName[0],
SCARD_SHARE_SHARED,
SCARD_PROTOCOL_T0 | SCARD_PROTOCOL_T1,
&CardHandle,
&ActiveProtocol);
/* get actual 848KBPS status: ON/OFF */
InBufLen = 2;
InWord = CCID_GET_848KBPS_STATUS;
ret = SCardControl (CardHandle,
IOCTL_CCID_ESCAPE,
&InWord,
InBufLen,
&OutByte,
1,
&ResLen);
SDI011 REFERENCE MANUAL 65
printf ("\n Get 848kbps status: %lx: %.2x", ret,OutByte);
Reader[0].dwCurrentState = SCARD_STATE_UNAWARE;
Reader[0].dwEventState = SCARD_STATE_UNAWARE;
Reader[0].szReader = ReaderName[0];
ret = SCardGetStatusChange (ContextHandle,
MINTIMEOUT,
Reader,
1);
printf ("\nATR: ");
for (i=0; i<Reader->cbAtr; i++)
{
printf ("%.2x ",Reader->rgbAtr[i]);
}
printf ("\n----------------------------------------------\n");
/* Disable 848Kbps: OFF */
printf ("\nDisable 848KBPS ");
InBufLen = 2;
InWord = CCID_SET_848KBPS_OFF;
ret = SCardControl(CardHandle, IOCTL_CCID_ESCAPE,
&InWord, InBufLen,
&OutByte, 1, &ResLen);
ret = SCardDisconnect(CardHandle, SCARD_RESET_CARD);
ret = SCardConnect(ContextHandle,
ReaderName[0],
SCARD_SHARE_SHARED,
SCARD_PROTOCOL_T0 | SCARD_PROTOCOL_T1,
&CardHandle,
&ActiveProtocol);
/* get actual 848KBPS status: ON/OFF */
InBufLen = 2;
InWord = CCID_GET_848KBPS_STATUS;
ret = SCardControl(CardHandle, IOCTL_CCID_ESCAPE,
&InWord, InBufLen,
&OutByte, 1, &ResLen);
printf ("\n Get 848KBPS status: %lx: %.2x", ret,OutByte);
Reader[0].dwCurrentState = SCARD_STATE_UNAWARE;
Reader[0].dwEventState = SCARD_STATE_UNAWARE;
SDI011 REFERENCE MANUAL 66
Reader[0].szReader = ReaderName[0];
ret = SCardGetStatusChange(ContextHandle, MINTIMEOUT, Reader, 1);
printf ("\nATR: ");
for (i=0; i<Reader->cbAtr; i++)
{
printf ("%.2x ",Reader->rgbAtr[i]);
}
printf ("\n----------------------------------------------\n");
ret = SCardDisconnect(CardHandle, SCARD_RESET_CARD);
}
else
{
printf("\n SCardConnect failed with 0x%.8lX",ret);
}
ret = SCardReleaseContext(ContextHandle);
}
else
{
printf("\n SCardEstablishContext failed with %.8lX",ret);
}
printf("\npress any key to close the test tool\n");
getch();
}
SDI011 REFERENCE MANUAL 67
7.3. Annex C - SCM Proprietary CLA bytes
CLA Byte
Function
0xF0
Contact Memory cards
0xFF
MIFARE-TCL Switching
T=CL User command
Escape command APDU
The second SCM Proprietary APDU is blocked for the application layer. This is used for internal
communication i.e. between the driver and the firmware.
Function
CLA byte – PC/SC1.0
CLA byte – PC/SC2.0
T=CL User Command APDU
0xFC
0xFF
MIFARE DESFire APDU
0xFC
0xFF
Escape Command APDU
0xFD
0xFF
In order to maintain compatibility with some customer applications which use the CLA bytes of
PC/SC 1.0 architecture, the following switching mechanism can be used.
Option1: Use the CLA byte of PC/SC1.0 architecture
Option2: Use the CLA byte of PC/SC2.0 architecture
The above two options can be controlled by
Configuring the firmware
INF/registry entry
Vendor IOCTL.
By default, option #2 is set in the firmware binary.
The entry System\CurrentControlSet\Services\SCM\ProprietaryAPDUOption is kept disabled in
the INF by default. Enabling this key and setting this entry to 0 will override the firmware setting
with option #1. Enabling this key and setting this entry to 1 will override the firmware setting
with option #2.
Vendor IOCTL_SWITCH_PROPRIETARY_APDU_OPTION (0x856) can also be used to switch
between the two options. Input buffer with value 0x00 will switch to option#1 and input buffer
with value 0x01 will switch to option#2.
SDI011 REFERENCE MANUAL 68
7.4. Annex D – Mechanical drawings
7.4.1. Top Casing
SDI011 REFERENCE MANUAL 69
7.4.2. Bottom Casing
SDI011 REFERENCE MANUAL 70

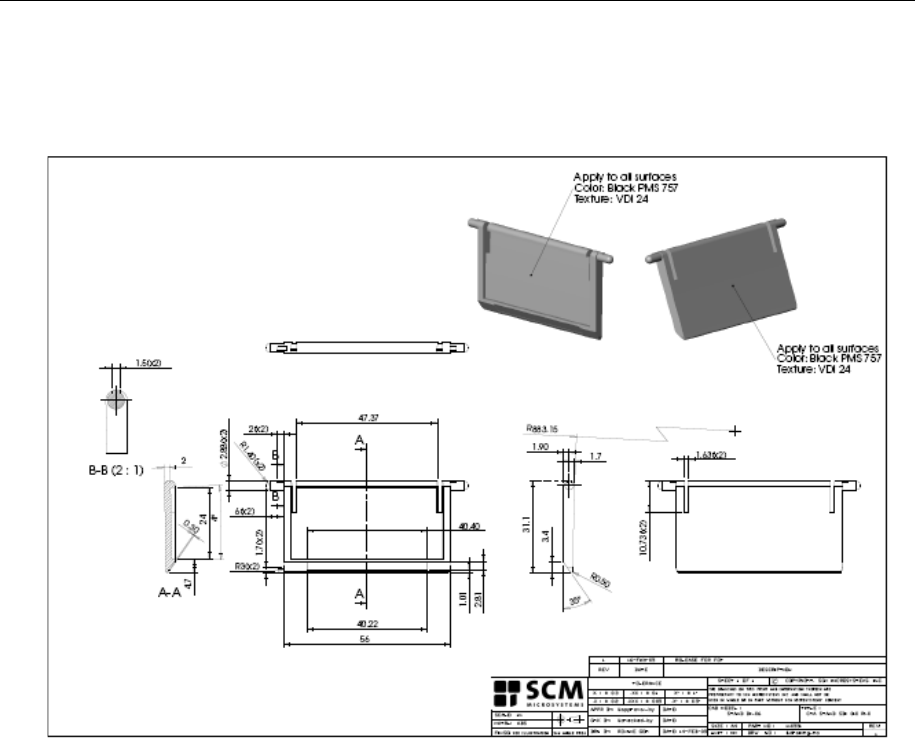

7.4.3. Stand
