Installation and User manual
For
uTrust TS ScramblePad SC Reader
Version 1.1
Confidential
Author Sixtus Stanly
Version 1.1
Date 31-Jan-2018
Document no 833601
Document History
Version
Date
Description of Change
Author
1.0 10-Jan-18 Initial version Sixtus Stanly
1.1 31-Jan-18 Updated comments from uL Sixtus Stanly
uTrust TS Scramblepad SC
Page 3 of 9
Contents
1.0 Introduction ................................................................................................................................ 4
2.0 Reader ......................................................................................................................................... 4
2.1 Functionality .............................................................................................................................. 4
2.2 Front/Top Casing with Contact Card ........................................................................................ 4
2.3 Rear view with back plate and metal bracket ........................................................................... 5
3.0 Product details ........................................................................................................................... 5
4.0 Specifications ............................................................................................................................. 6
4.1 Rated current - PoE operating voltage range ........................................................................... 6
5.0 Power up and Testing ................................................................................................................ 6
6.0 Product Label ............................................................................................................................. 7
7.0 Installation .................................................................................................................................. 8
8.0 Certifications .............................................................................................................................. 9
8.1 FCC........................................................................................................................................... 9
8.2 IC .............................................................................................................................................. 9
8.3 UL 294 ...................................................................................................................................... 9
uTrust TS Scramblepad SC
Page 4 of 9
1.0 Introduction
This document details the Physical Access Control Reader uTrust TS ScramblePad SC, Model
Number: 8336) and its user instruction and installation procedures. The 8336 reader extends the
features already supported by the uL 294 certified 8330 readers, by adding an interface for accessing
a Contact Smart Card. This is achieved by the addition of two add-on boards to the 8330 hardware
that provides the Contact Smart card functionality. The interfaces to the control panel and all external
cabling are identical to that of the 8330 readers.
2.0 Reader
2.1 Functionality
TS ScramblePad reader is a physical access control smart card reader that can read HF and LF
contactless credentials, conforming to the following standards: ISO 14443 A & B, ISO15693 with a
randomly displayed keypad pin entry for additional security. The reader addition of the contact
interface enables the reader to access ISO-7816 complaint contact smart cards in the ID-1 form
factor. The reader can interface with an access control system equipped with a Wiegand, RS485 half-
duplex or the Ethernet interface. Interface to the control unit via Ethernet is not evaluated by uL.

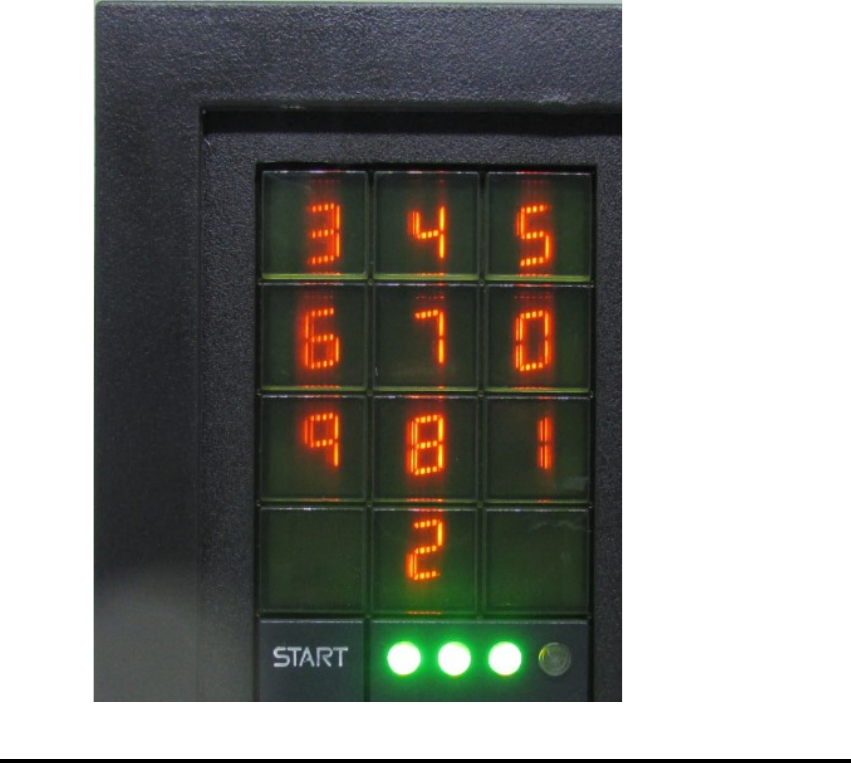

2.2 Front/Top Casing with Contact Card
uTrust TS Scramblepad SC
Page 5 of 9

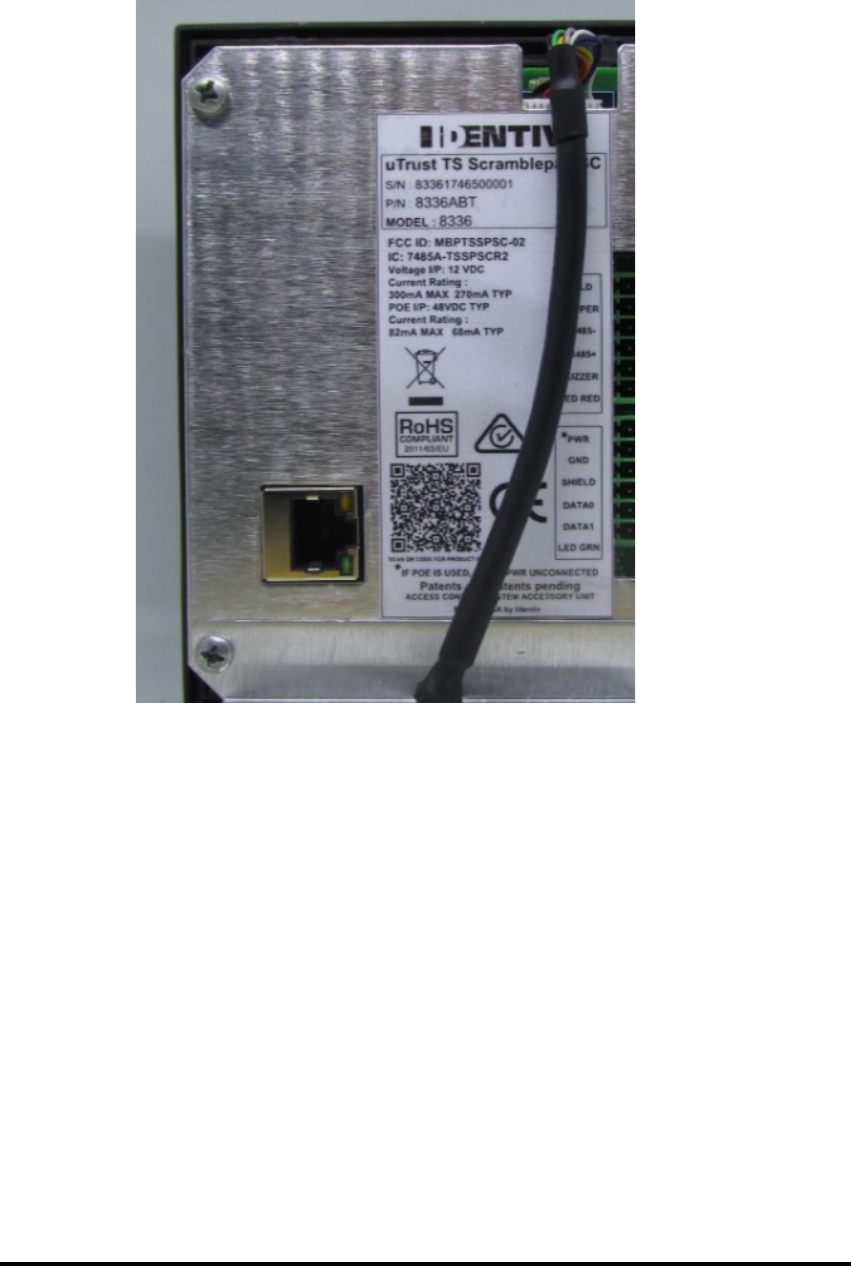

2.3 Rear view with back plate and metal bracket
3.0 Product details
Product Name : uTrust TS ScramblePad SC
Model Name : 8336
Device Type : Physical Access control Reader (accessory equipment) that has
RFID reader, 13.56MHz (HF) / 125 KHz (LF), Scramble Keypad and
Contact Smart Card interface.
Type of equipment : Suitable for Indoor use
Interface Type : Phoenix connectors and RJ45
Voltage Rating : 12V DC (or) 48V on RJ45 Connector (POE)
Current Rating @12V : Max Current : 300 mA, Typ Current : 270 mA
Current rating via POE : Max Current : 82mA , Typ Current : 68mA
Communication protocol : Wiegand; Shielded cable ,Max length - 500ft ,Min AWG - 22
RS485 (2wire - Half Duplex); Shielded twisted pair; Max length
1000ft, Min AWG -24
uTrust TS Scramblepad SC
Page 6 of 9
10BaseT ETH – Not evaluated by uL
4.0 Specifications
Wiring methods shall be in accordance with the National Electrical Code (ANSI/NFPA70), local codes,
and the authorities having jurisdiction.
Model Operating Voltage Current Operating
temp
Operating
humidity
8336
12 VDC
Typ: 270 mA
Max: 300 mA 0 to +49C
85 +/-5 % RH
POE@ 48VDC Typ: 68 mA
Max: 82 mA
Class 2 listed power supply with 12VDC to be used to power the reader
POE sourcing equipment shall be UL Listed. Eg ALTRONIX NetWay8M
When the readers use POE as a power source, the power input wiring from the control unit
(i.e. Red and Black for 8336) shall be disconnected
The maximum length of the Ethernet cable when using POE as the power source in UL
installations is limited to 30 meters (98.5 feet)
4.1 Rated current - PoE operating voltage range
Voltage (V) Max Current (mA) Typ Current (mA)
44 87 73
46 84 70
48 82 68
50 78 65
52 75 64
54 73 67
56 72 60
57 70 59
5.0 Power up and Testing
1 Turn power on
The LED blinks 3 times green with a long beep, then turns Blue
2 Insert a Contact Smart Card in the Contact Slot.
Scrambling display comes up with buzzer tone. LED glows Orange.
3 Flash a Contactless card on the reader face
The LED glows Orange, and turns to blue when the card is removed.
4 Press Start Key
Scrambling display with buzzer tone & displays scrambled key
5 Wiegand / RS485
Communication to the Panel is done through Wiegand / RS485.
6 RJ45 Ethernet cable
Reader can be powered from POE. Communication happens through Ethernet also, but not
evaluated by uL.
uTrust TS Scramblepad SC
Page 7 of 9
This is the default reader behavior in a standalone condition.
6.0 Product Label
- SHIELD – should be connected to the cable shield.
Caution:
During wiring make sure that the PWR lines does not contact any other conductors, as it might affect
reader functionality / cause damage to the reader.
uTrust TS Scramblepad SC
Page 8 of 9

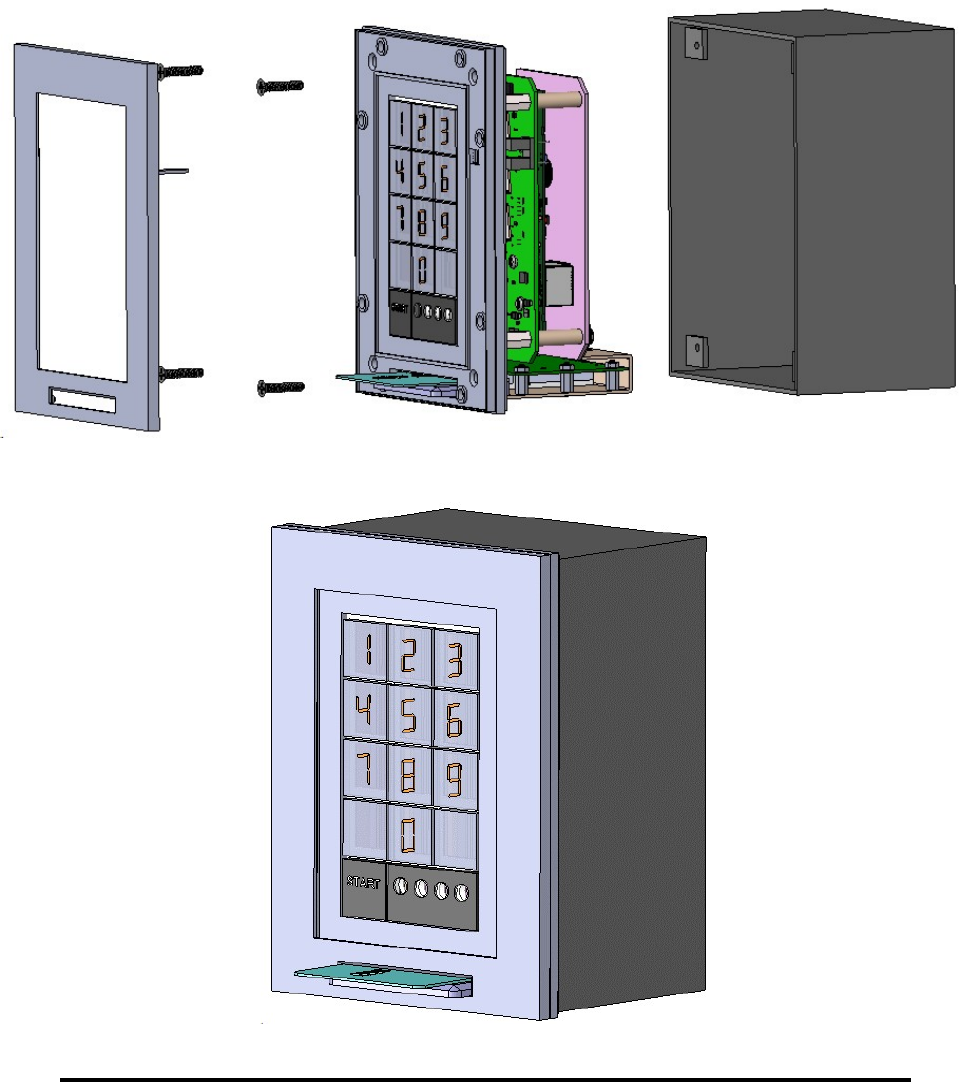

7.0 Installation
All cabling and wiring shall be uL Listed and/or uL Recognized.
Install the required mounting box to the wall
Take the cable from the rear side of the reader as per the pin outs in the label drawing
Secure the reader unit with four screws at the corner into the mounting box
Fix the bezel on the top of the casing
uTrust TS Scramblepad SC
Page 9 of 9
8.0 Certifications
8.1 FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Information to user
Changes or modifications not expressly approved by Identiv could void the user's authority to operate
the equipment.
8.2 IC
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
8.3 UL 294
Access control performance levels
Destructive attack : IV
Line Security : I
Endurance : I
Standby Power : I
