CB432 Programming & Install Instructions 1 P/N 430673-01 Rev B
CB432 Wireless Call Box
Programming and Install Instructions
Overview
The CB432 is a 1-button Shopper Call Box designed for use at Customer
Service locations. The CB432 has a large HELP Button designed for ease
of use in service applications. The Call Box must be properly programmed
to communicate with a control unit. Un-programmed call boxes default to
Alarm Code 001. Triggering a call box at this address may trigger an
advisory message or trigger no message at all.

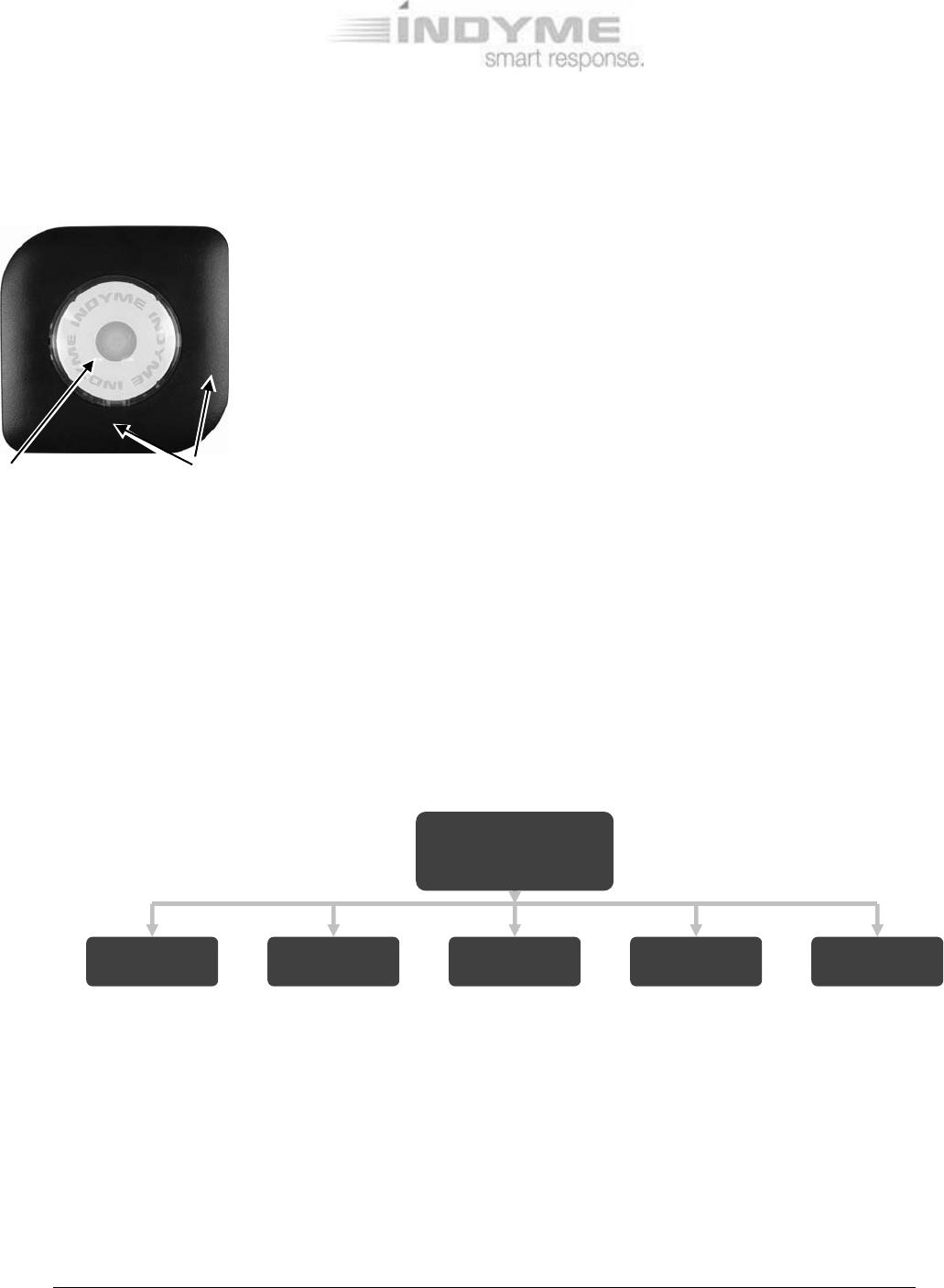

Programming a call box requires a series of button presses. The specific buttons vary by call
box type. On the CB432, SET is the “large clear button in the middle” and RESET is the
“black outer casing”. The assurance LED is red and is located BEHIND the SET button.
This LED will flash during programming to indicate your progress.
Call Box Programming
Call Boxes use a hierarchy based menu structure. You must enter the Programming Menu first,
to select the desired submenu. Each submenu may have one or more options available. These
options are used to assign specific operational characteristics to the call box. Review the
submenus/options before you begin programming. The submenus/options will vary by call box
model.
Enter the Programming Menu
Press and hold the RESET button until the assurance LED flashes one time.
Press and hold the SET button, until the assurance LED flashes two times.
Press and hold the RESET button, until the assurance LED flashes three times.
The call box is now in the Programming Menu mode, proceed to the desired submenu.
(***)
Programming
Menu
Address N/A Operation N/A N/A
Menu-1 Menu-2 Menu-3 Menu-7 Menu-8
CB432
RESET SET
![](/img.php?id=1815794&img=bg2.png)
CB432 Programming & Install Instructions 2 P/N 430673-01 Rev B
Menu-1: Call Box Address Programming
Assigns the call box to a corresponding alarm event programmed in the control unit. A call box
address is a three digit number from 001 to 999. Leading zeros are required.
After entering the Programming Menu;
Press the SET button one time for Menu-1, RESET once to save.
The assurance LED will flash one time to indicate Menu-1 was selected.
Use SET and RESET to program the 3-digit address as follows;
SET = digits 1-9, RESET = digit 0 and SAVE. Leading zeros are required
For example, program Alarm-082 as follows:
Press RESET once to represent the zero. (0)
Press SET eight times, RESET once to save. (8)
Press SET two times, RESET once to save. (2)
Note: When the RESET button is pressed to save the 3rd digit, the assurance LED will flash to
indicate the address that was entered. The assurance LED will indicate digit zero by a long
flash. (approximately 1-sec.)
Menu-3: Call Box Operating Mode
Assigns the call box operating characteristics; timeout duration, RESET signal and number of
active buttons. Operating Modes will vary by call box type, below are the default modes for this
call box.
After entering the Programming Menu;
Press the SET button three times for Menu-3, RESET once to save.
The assurance LED will flash three times to indicate Menu-3 was selected.
Press the SET button to select a Call Box Operating Mode: <1, 2, >, RESET once to
save.
The assurance LED will flash to indicate the selected Operating Mode.
Mode 1 - 1-Button Call Box 5-min timeout, No Reset
Press the SET button to trigger the alarm state; the LED will flash for 5 minutes, then
extinguish with no reset sent. The RESET button will send a reset signal for the
active channel.
Mode 2 - 1-Button Call Box 30-sec timeout, No Reset
Same as above, with 30-second timeout.
![](/img.php?id=1815794&img=bg3.png)
CB432 Programming & Install Instructions 3 P/N 430673-01 Rev B
INSTALLATION AND TROUBLESHOOTING TIPS
1. Identify all programming characteristics before you begin programming or installation.
Call Box Addresses
Call Box Mode
Mounting Location
2. Program the Alarm Address and Mode of each call box.
3. Install the call box in accordance with store policy, Indyme work order and/or Americans with
Disabilities Act guidelines where applicable.

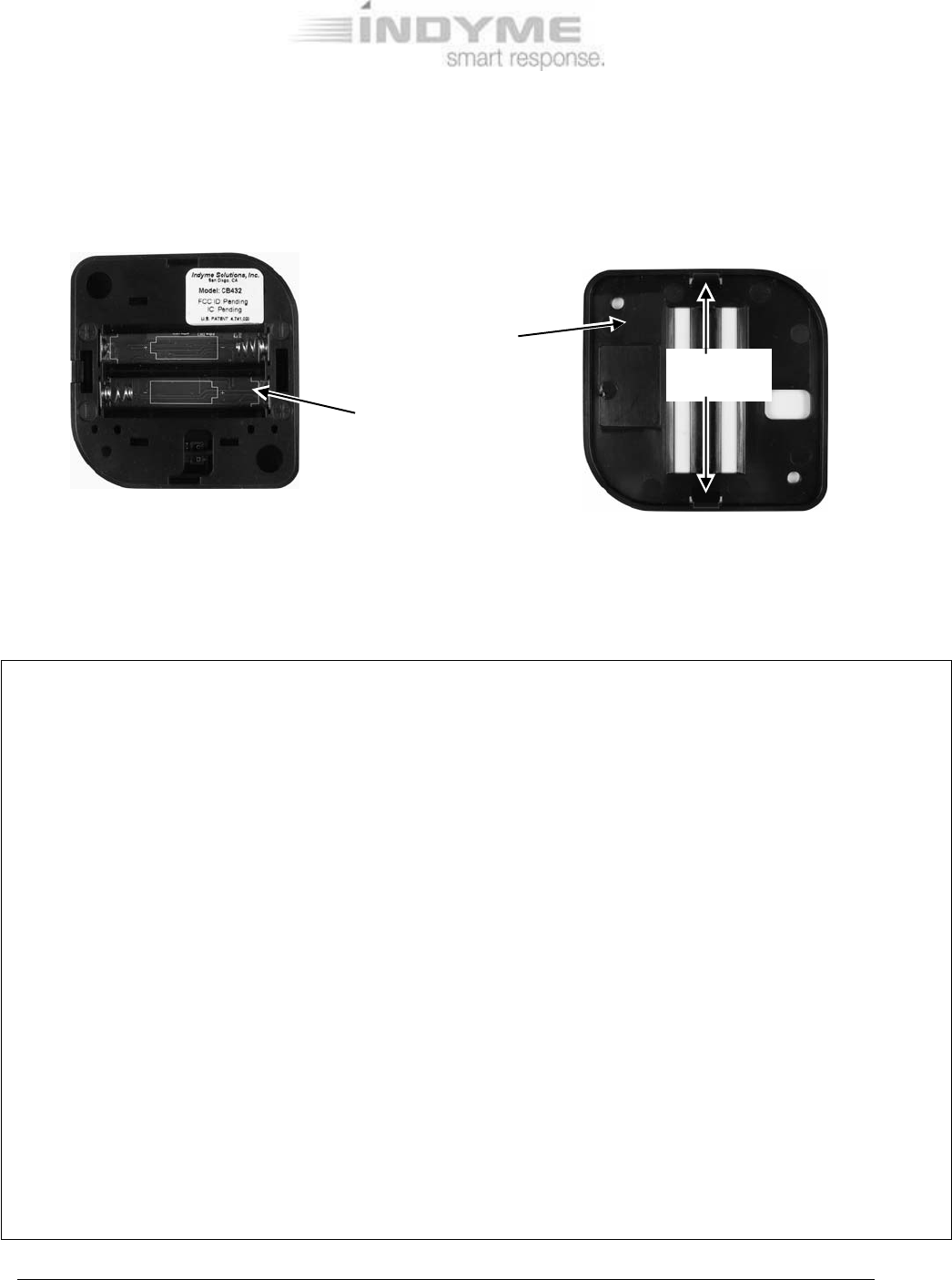

The CB432 Call Box uses two AA-size 1.5-volt alkaline batteries. Always use the same type of
battery for optimum performance. To replace the batteries, remove the call box from its
mounting location. Turn the call box over to the back of the call box. Remove the old batteries
from the battery holders. Install the new alkaline batteries. (**) The call box does not loose the
programmed characteristics when the batteries are removed.
Location Considerations
Call boxes are typically located at cash registers, service counters or other areas in which
customers require assistance. Stores and installers should be aware of the Americans with
Disabilities Act (ADA) requirements for accessibility.
Call Boxes use a low powered transmitter, and operate best with a clear line of sight to the nearest
receiver. Tall shelving, merchandise and metal signs can block or reduce the call box signal.
Install the Call Box
1. Verify call box placement with the Store Manager and according to provided instructions.
Determine the best mounting method before installing the call box, verify address
programming.
Wall Mount
Counter Top Mount
Store Shelving
2. The CB432 has 2-different mounting options available; wall or counter top. Choose the
appropriate option for your situation. The CB432 mounting bracket MUST be used for wall or
counter top installation.
Wall Mounting
1. Identify the desired mounting height for the SET button.
2. Align the mounting bracket at that the correct height so the words on the CB432 Button will be
upright.
3. If mounting to glass or a smooth non-porous surface, use the double-sided adhesive ONLY. If
mounting to a solid surface or drywall, mark and drill through the two mounting holes.
4. Insert mounting hardware in the two holes and secure the mounting bracket.
a. wall anchors and screws if drywall or masonry
b. screws only for wood.
![](/img.php?id=1815794&img=bg4.png)
CB432 Programming & Install Instructions 4 P/N 430673-01 Rev B
5. Place the mounting holes on the back of the call box over the mounting tabs on the wall
bracket; push the call box over the mounting tabs to snap in place.
6. From the final mounting location, press the SET button on the call box and verify the
appropriate message is broadcast over the desired output device.
NOTES:
(**)DO NOT use rechargeable batteries in the call box.
(***)The call box will automatically exit any programming menu if no buttons are pressed for 30-
seconds.
FCC and Industry Canada Notice of Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with Industry Canada licence-exempt RSS standard(s). Le carolcrum;présent appareil est
conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Class B statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Mounting
Bracket
Battery
Compartment
Mounting
Tabs
