DM9032/DM9032-SA SmartDome™ Dwell Detector
Programming and Installation Instructions
Overview
The DM9032/DM9032-SA SmartDome™ are part of Indyme’s Smart Sense
Solution Suite. Indyme smart devices use custom algorithms and
intelligent sensors to detect activity within the coverage area. The
SmartDome™ uses a Passive Infrared sensor to detect when someone is
dwelling in a coverage area beyond a defined threshold. Once detected, a
SmartDome™ can be programmed to activate both local and/or remote
alerts through the Indyme infrastructure. As a member of the Indyme
Global Solutions Family, the DM9032/DM9032-SA can also communicate
with other GSF devices. GSF and Smart devices operate in the 800-900MHz
frequency spectrum. They are not compatible with legacy devices.
SmartDome™ Programming
Indyme Smart devices are programmed using the cloud based Smartportal
website and the local Indyme infrastructure. (DM9032-SA is
preprogrammed in the factory.) Ensure the Indyme control unit and access
point(s) are installed and operational, with full access to Smartportal
before proceeding. Incomplete infrastructure will prevent programming of any Smart devices.
The DM9032-SA is preprogrammed to function directly out of the box. No additional programming is necessary.
The DM9032 device leaves the factory at default settings, these settings will NOT function in a customer environment.
All devices must be properly programmed using the Smartportal website. Smart devices use three primary
programming parameters; Location, Activity Profile and Alert Profile. These parameters will be provided with your
Work Order. Identify the locations and profiles before you begin programming.
• Location – department in the store where the device will be
installed.
• Activity Profile – setting used to indicate timing algorithms for
activation. (default activity profile is “Cosmetic”)
• Alert Profile – settings used to activate the local device alert tone
and LED. (default alert profile is “On”)
Using your internet enabled device; cellphone, tablet or laptop, and the
credentials provided on your Work Order, login to the website,
https://smartportal.indyme.com .
Follow the on-screen instructions to configure each DM9032, one at a time.
It is NOT advisable to have multiple users logged into the same Work Order.
Failure to follow these instructions will result in a failed installation of some or all devices.
NOTE: The DM9032 devices should be programmed while in the designated location OR after they are physically
mounted.

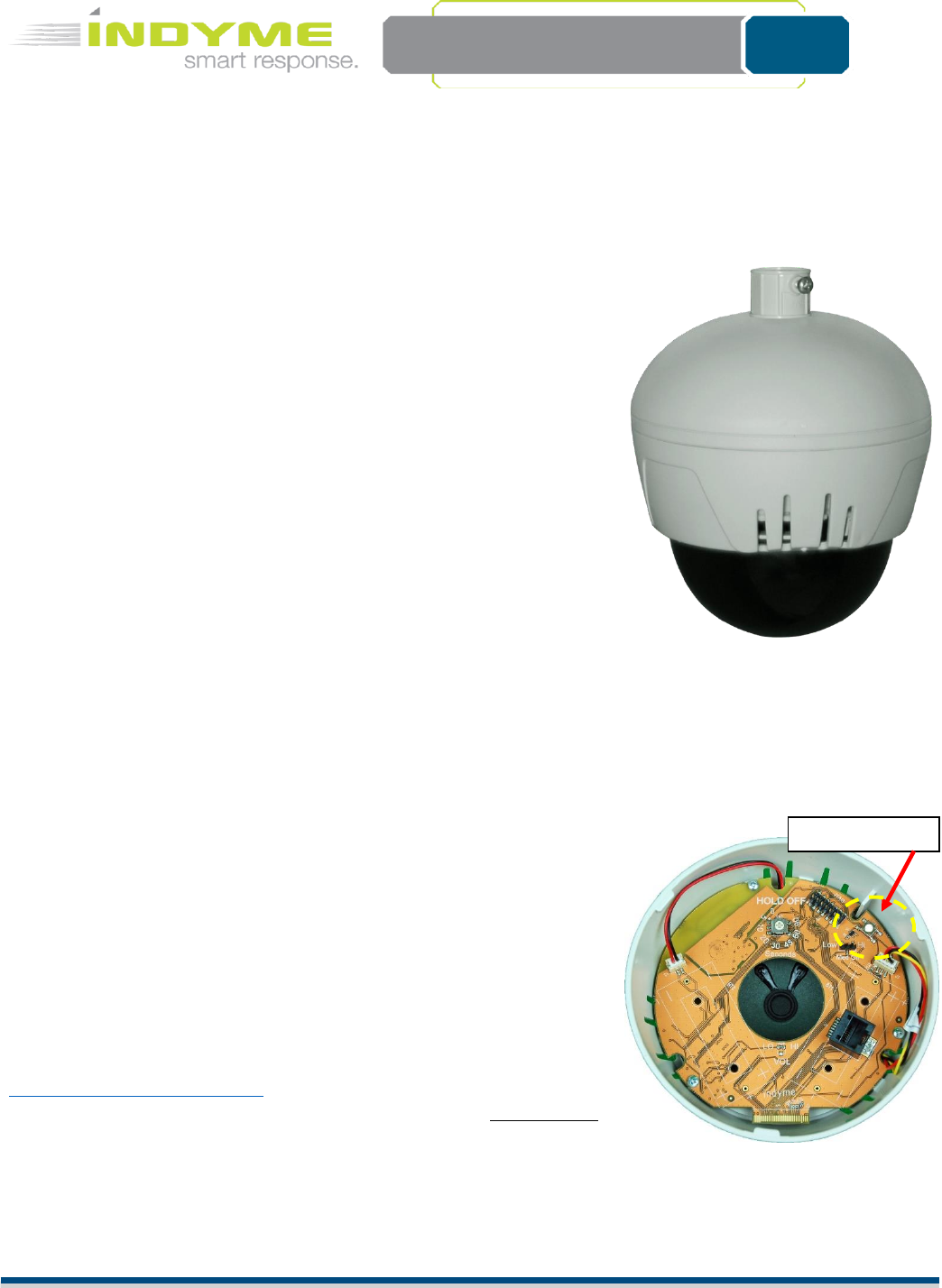

Activation Button
Technical Document
430758-02
Rev. B
Indyme Solutions, Inc.⬧ 8295 Aero Place ⬧ San Diego, CA 92123 USA +1.858.268.0717 ⬧ +1.800.829.6141 Page 2 of 6
1. On the Installer Registration screen, enter your name and contact information. This information will be used by
Indyme Support personnel throughout the install and to ensure you are at the correct job site.
2. On the Work Order screen, verify the listed details match your present job site and, the list of devices match your
inventory of products. Once all details are confirmed, select the “Start Work” button and begin your installation.
3. With the Devices screen showing, connect POE power source to the RJ45 inside the DM9032. (Power may come
from a POE switch OR a POE injector.) The device will power up and produce a VERY LOUD “chime” tone and the
LEDs will flash. The unit will associate with the local Indyme infrastructure, (access point and control unit), and its
unique-id will appear highlighted in green on the webpage. Verify the unique-id that appears matches the sticker
inside the DM9032.
4. Select the highlighted device, (DM9032). In the Device Details screen, select the Location where the device
will be installed. The Activity Profile and Alert Profile will automatically be filled in. Do not change these
values.
5. Select the “Add Picture” button and take a picture of the device properly mounted.
6. Select the “Save” button.
6a. (After the Save button), A “Sending Changes” pop up will appear. This will transfer the Device’s data to
the control unit.
6b. The “Ready for Activation” pop up appears directing the user to press the button, (Activation Button) to
activate changes.
6c. Push the Activation Button as indicated. When the transaction is complete, another pop up will appear –
“Your changes have been saved. Return to devices list?”. Select Yes
6d. Repeat until all DM9032 devices are properly programmed.
7. Once all devices have been programmed, return to the Work Order screen. Verify the number of Completed
devices. Select the “Stop Work” button and close the work order.
8. Call Indyme to verify the devices are correctly configured and working.
NOTE: The DM9032 devices should be programmed while in the designated location OR after they are physically
mounted to ensure proper signal strength with the system antenna(s).
SmartDome™ Installation
The DM9032/DM9032-SA SmartDome™ are designed as ceiling mounted devices. They may be mounted directly
to a drop-tile ceiling grid, extended from the grid using a telescoping pole or extended from a ceiling truss.
Mounting hardware is available for all options. For ceiling heights of 11-feet or less, the DM9032-DM9032-SA
should be direct mounted, heights greater than 11-feet should use the telescoping pole. Ideal height is 12-feet or
less.
Required Tools
The following tools are recommended to complete the installation according to these instructions;
(1) 1/4” or 1/2” socket wrench handle, (1) 9/16” socket, (1) 7/16” deep socket, (1) 3/16” Allen wrench, (1) pair
pliers, (1) Philips screwdriver.
Technical Document
430758-02
Rev. B
Indyme Solutions, Inc.⬧ 8295 Aero Place ⬧ San Diego, CA 92123 USA +1.858.268.0717 ⬧ +1.800.829.6141 Page 3 of 6
DM9032/DM9032-SA SmartDome Mounting

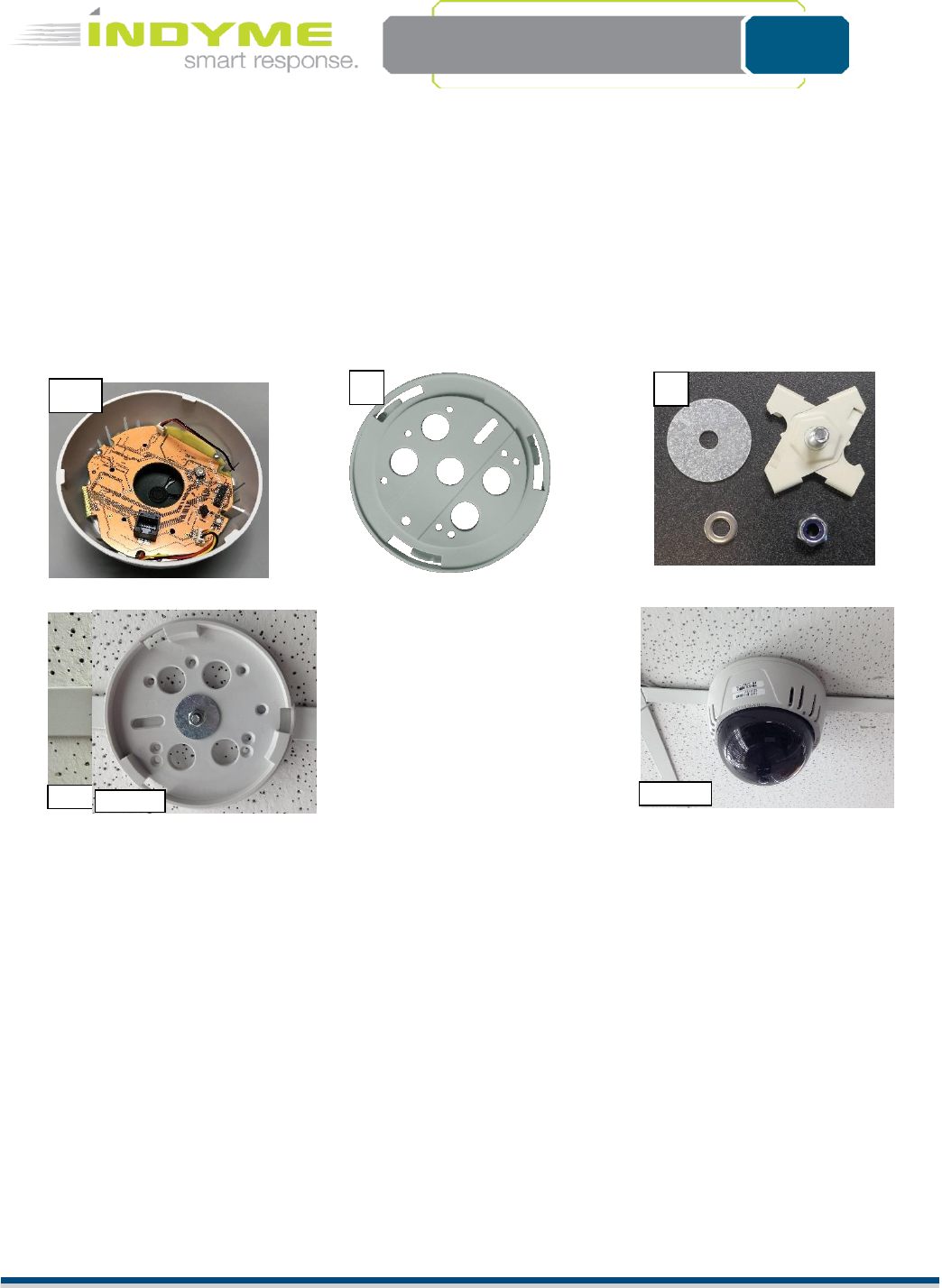

Direct Ceiling Mount
1. Identify all necessary mounting hardware.
• (A) Dome Assembly
• (B) Dome Mounting Plate
• (C) Grid Mounting Clip w/hardware
2. Attach the Grid Mounting Clip-(C), to the ceiling frame in the target area. Squeeze the clip to lock it in place.
(Fig-1)
3. Attach the Dome Mounting Plate-(B), to the Grid Mounting Clip-(C), and secure in place with the washer and
7/16” nut. Make sure groove in back of mounting plate (B) aligns with the ceiling grid. (Fig-2)
4. Attach the Dome Assembly-(A) to the Dome Mounting Plate -(B), gently turn clockwise to lock in-place. (Fig-3)
B
C
Fig-1
Fig-2
Fig-3
A
Technical Document
430758-02
Rev. B
Indyme Solutions, Inc.⬧ 8295 Aero Place ⬧ San Diego, CA 92123 USA +1.858.268.0717 ⬧ +1.800.829.6141 Page 4 of 6

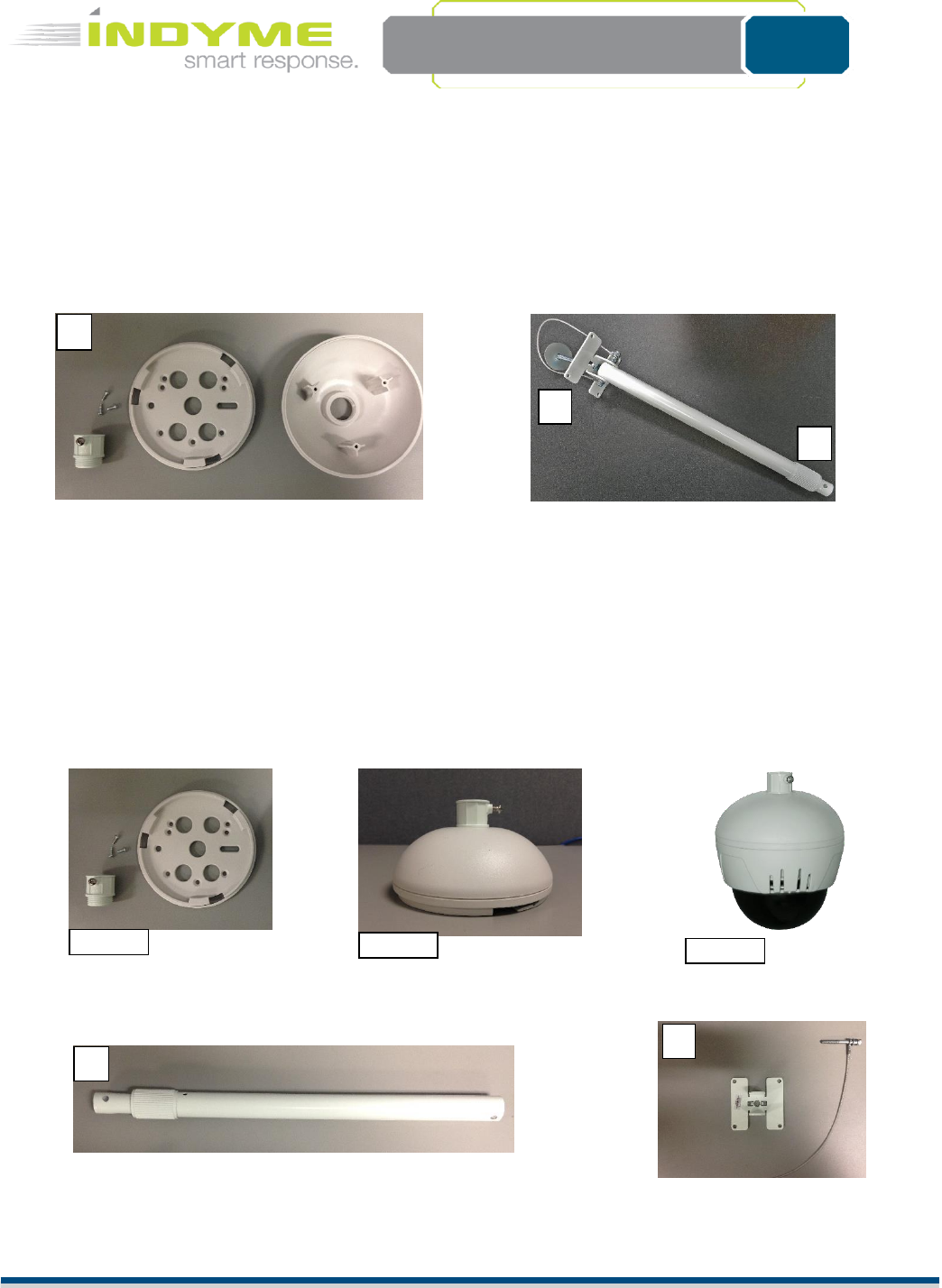

Telescoping Pole Mount
1. Identify additional necessary mounting hardware.
• (D) Pole Pendant Cap & Conduit Connector (white) w/hardware
• (E) Telescoping Pole
• (F) Elbow Joint
• Items (A), (B), (C) above are required.
2. Place the Dome Mounting Plate (B) on top of the Pole Pendant Cap (D). Align the screw holes and secure in
place with the provided screws. Screw the conduit connector to top of pole pendant cap. (Fig-5)
3. Attach the Dome assembly to the attached Pole Pendant and Dome Mounting Plate (B), press in and turn
clockwise to lock in-place. (Fig-6)
D
E
Fig-4
Fig-5
Fig-6
F
E
F
Technical Document
430758-02
Rev. B
Indyme Solutions, Inc.⬧ 8295 Aero Place ⬧ San Diego, CA 92123 USA +1.858.268.0717 ⬧ +1.800.829.6141 Page 5 of 6
4. The Telescoping Pole comes with a 4-1/4” bolt attached at the Elbow Joint. Disassemble the Elbow Joint and
remove the bolt. (3/16” Allen Wrench, 7/16” Socket) (This bolt is ONLY used for mounting to an open ceiling
truss.)

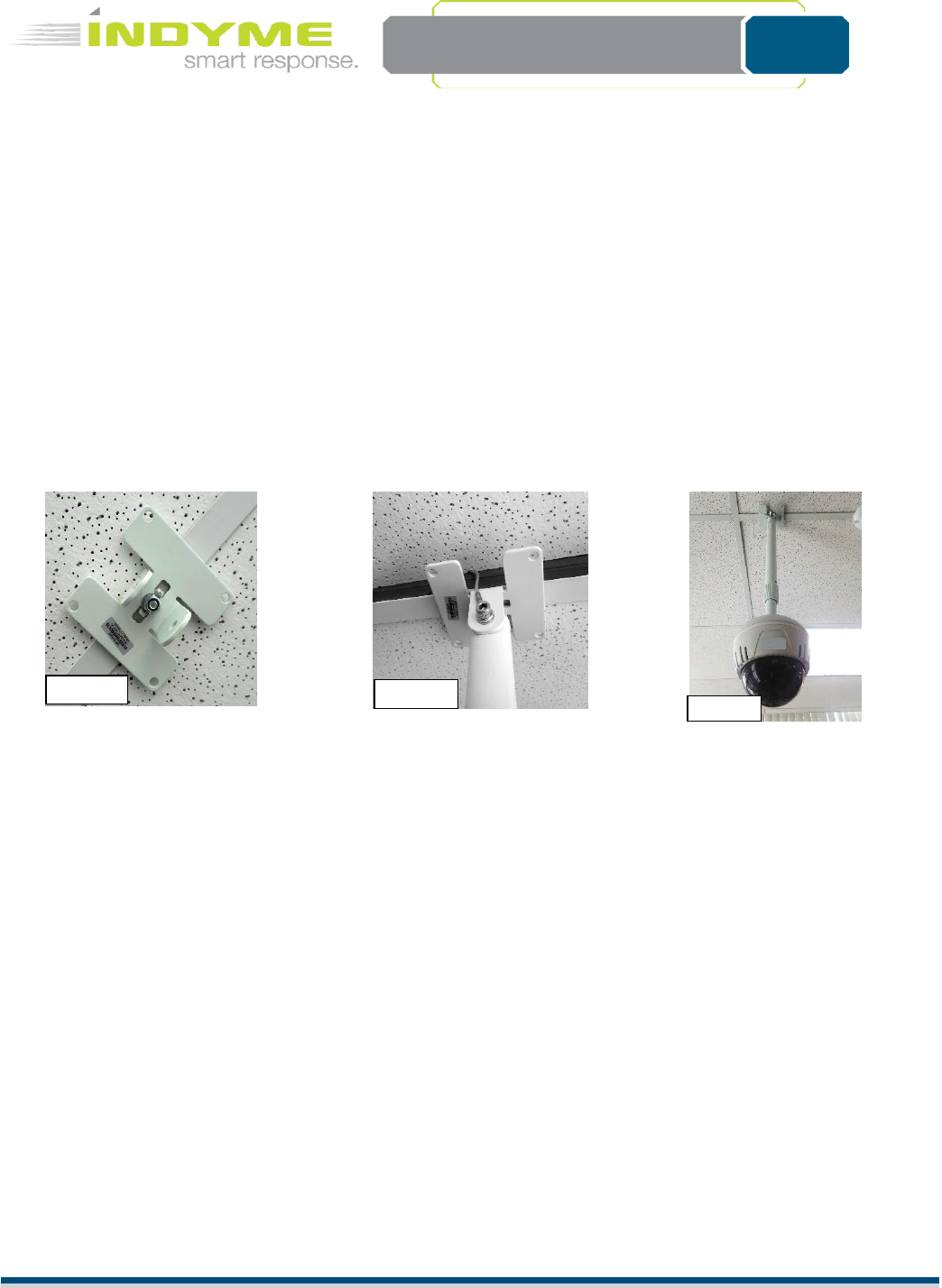

5. Attach the Grid Mounting Clip (C), to the ceiling in the target area. Squeeze the clip to lock it in place. (Fig-1)
Attach the Elbow Joint (F) to the Grid Mounting Clip using the provided small washer and 7/16” nut. (Fig-7)
6. Re-attach the pole (E) to the Elbow Joint insuring the pole is straight up and down. Feed the Safety Cable
around the ceiling tile frame and attach to opposite end of bolt. (Fig-8)
7. Loosen the pole collar (E) and extend to the desired length.
8. Attach the complete Dome Assembly to the end of the Telescoping Pole (E) using the machine screw. DO NOT
align the screw with the hole in the side of the pole. Align the screw so it will tighten against the side of the
pole. (Fig-9)
Fig-7
Fig-8
Fig-9
Technical Document
430758-02
Rev. B
Indyme Solutions, Inc.⬧ 8295 Aero Place ⬧ San Diego, CA 92123 USA +1.858.268.0717 ⬧ +1.800.829.6141 Page 6 of 6
FCC Notice of Compliance
FCC ID J69SD
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Notice of Compliance
IC: 1809A-SD
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Les changements ou modifications non approuvés expressément par la partie responsable de la conformité pourrait
annuler l'autorité de l'utilisateur à faire fonctionner l'équipement.
Innovation, Science and Economic Development Canada ICES 003 Compliance Label: CAN ICES-3 (B)/NMB-3(B)
