Infinition BR-1022 BR-1022 Doppler Radar User Manual BR1022 July 30 2004

Infinition Inc BR-1022 Doppler Radar BR1022 July 30 2004

User manual

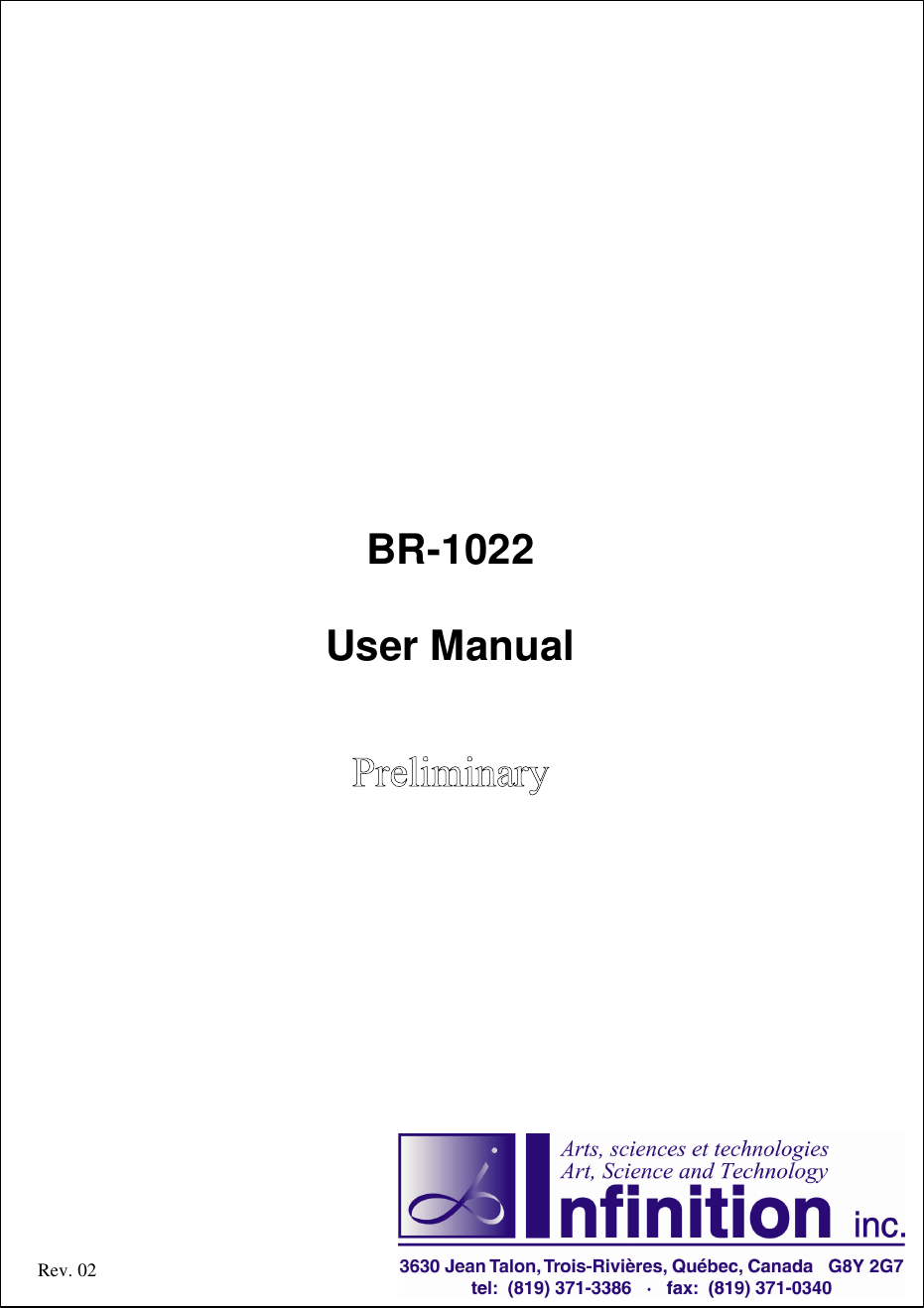

BR-1022User ManualRev. 02

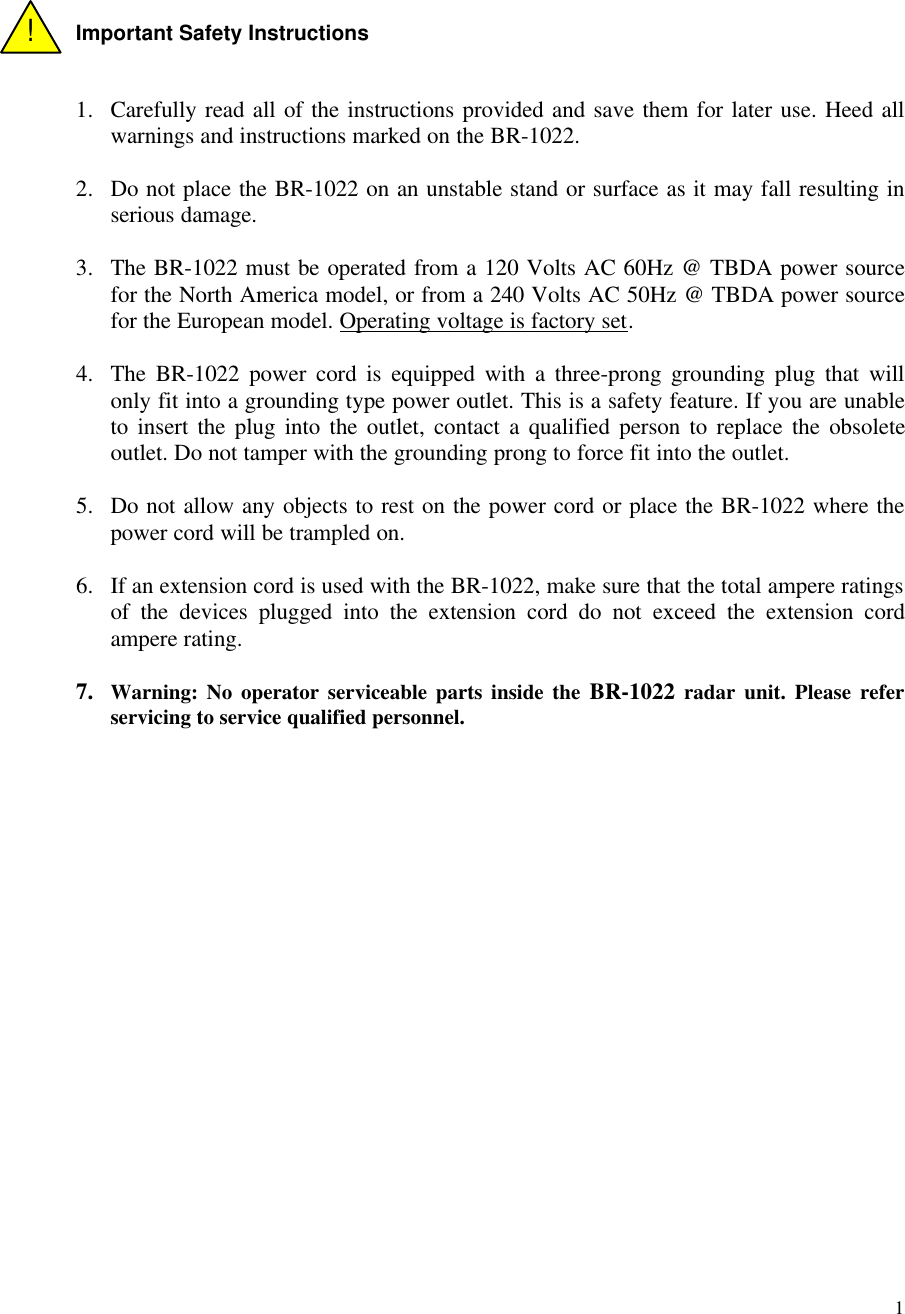

1Important Safety Instructions1. Carefully read all of the instructions provided and save them for later use. Heed allwarnings and instructions marked on the BR-1022.2. Do not place the BR-1022 on an unstable stand or surface as it may fall resulting inserious damage.3. The BR-1022 must be operated from a 120 Volts AC 60Hz @ TBDA power sourcefor the North America model, or from a 240 Volts AC 50Hz @ TBDA power sourcefor the European model. Operating voltage is factory set.4. The BR-1022 power cord is equipped with a three-prong grounding plug that willonly fit into a grounding type power outlet. This is a safety feature. If you are unableto insert the plug into the outlet, contact a qualified person to replace the obsoleteoutlet. Do not tamper with the grounding prong to force fit into the outlet.5. Do not allow any objects to rest on the power cord or place the BR-1022 where thepower cord will be trampled on.6. If an extension cord is used with the BR-1022, make sure that the total ampere ratingsof the devices plugged into the extension cord do not exceed the extension cordampere rating.7. Warning: No operator serviceable parts inside the BR-1022 radar unit. Please referservicing to service qualified personnel.!

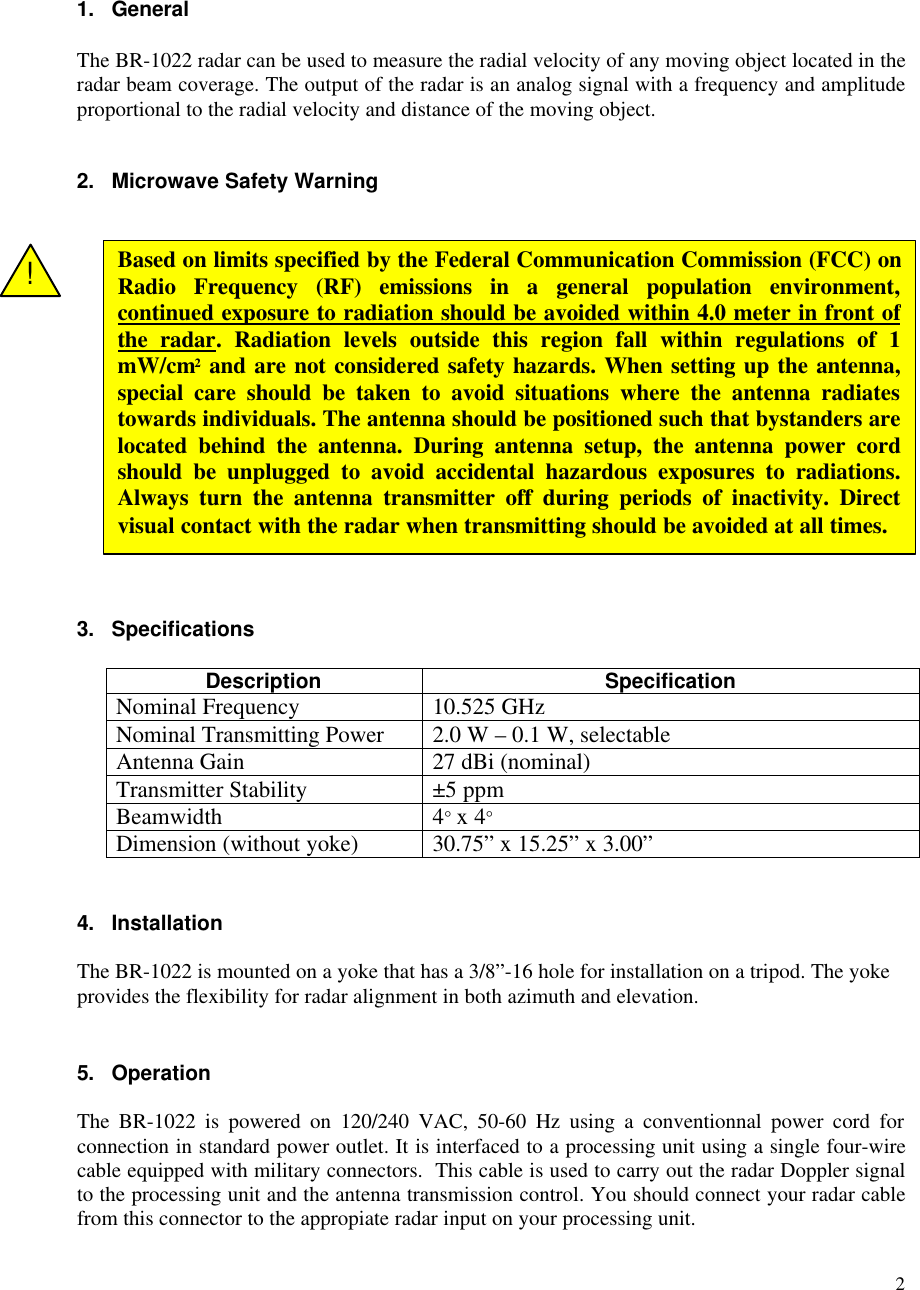

21. GeneralThe BR-1022 radar can be used to measure the radial velocity of any moving object located in theradar beam coverage. The output of the radar is an analog signal with a frequency and amplitudeproportional to the radial velocity and distance of the moving object.2. Microwave Safety Warning3. SpecificationsDescription SpecificationNominal Frequency 10.525 GHzNominal Transmitting Power 2.0 W – 0.1 W, selectableAntenna Gain 27 dBi (nominal)Transmitter Stability ±5 ppmBeamwidth 4° x 4°Dimension (without yoke) 30.75” x 15.25” x 3.00”4. InstallationThe BR-1022 is mounted on a yoke that has a 3/8”-16 hole for installation on a tripod. The yokeprovides the flexibility for radar alignment in both azimuth and elevation.5. OperationThe BR-1022 is powered on 120/240 VAC, 50-60 Hz using a conventionnal power cord forconnection in standard power outlet. It is interfaced to a processing unit using a single four-wirecable equipped with military connectors. This cable is used to carry out the radar Doppler signalto the processing unit and the antenna transmission control. You should connect your radar cablefrom this connector to the appropiate radar input on your processing unit.Based on limits specified by the Federal Communication Commission (FCC) onRadio Frequency (RF) emissions in a general population environment,continued exposure to radiation should be avoided within 4.0 meter in front ofthe radar. Radiation levels outside this region fall within regulations of 1mW/cm2 and are not considered safety hazards. When setting up the antenna,special care should be taken to avoid situations where the antenna radiatestowards individuals. The antenna should be positioned such that bystanders arelocated behind the antenna. During antenna setup, the antenna power cordshould be unplugged to avoid accidental hazardous exposures to radiations.Always turn the antenna transmitter off during periods of inactivity. Directvisual contact with the radar when transmitting should be avoided at all times.!
3The radar head has an override transmitter control switch that can be used to activate thetransmitter locally at the antenna.In addition, the radar has a transmitter power control switch to select between low or high outputpower. At the low setting, the transmitter output power is 0.1 Watt and at the high setting, theoutput is 2.0 Watts.The BR-1022 has three LED indicators, one for the main power, one for the transmitter on/offstatus and the one for the transmitter output power selection (low or high).Also, the BR-1022 has a provision for connecting a 12 VDC (2 amperes maximum) warningdevice. The warning device is automatically enabled when the radar transmitter is switched on.This safety feature is useful to warn bystanders when the radar is radiating.6. MaintenanceThe BR-1022 radar does not require much maintenance. Attention should however be paid to afew points:- Keep the connectors clean from dirt and moisture to avoid corrosion and bad connections.- Now and then wipe the radar enclosure and antenna panels with a soft and wet cloth.The radar fuses are located inside the radar unit. To replace them, refer the radar system toqualified personnel.7. Power Connector SpecificationConnector type: Amphenol T3110-000Pin Description1AC Neutral2120Vac3240Vac4Protective groundWarning: No operator serviceable parts inside the radar unit. Please referservicing to service qualified personnel!

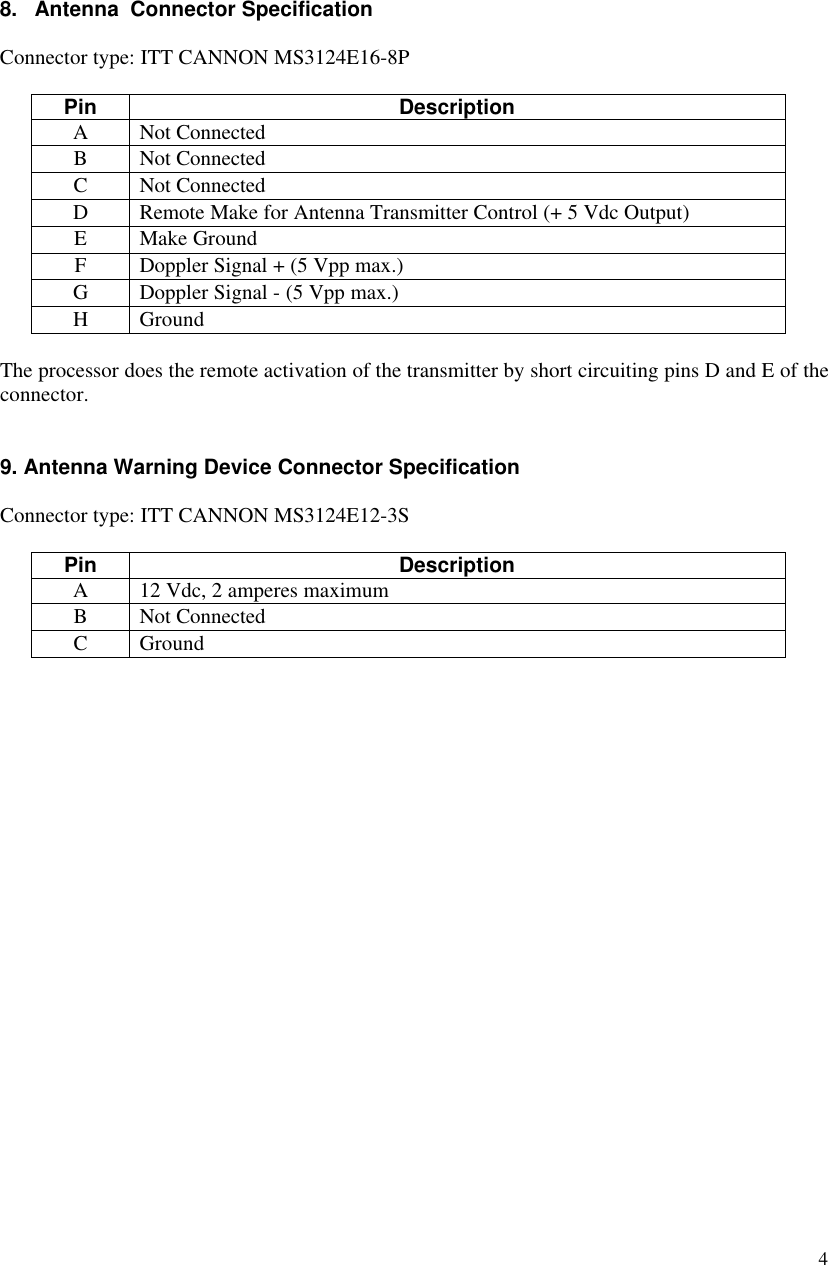

48. Antenna Connector SpecificationConnector type: ITT CANNON MS3124E16-8PPin DescriptionANot ConnectedBNot ConnectedCNot ConnectedDRemote Make for Antenna Transmitter Control (+ 5 Vdc Output)EMake GroundFDoppler Signal + (5 Vpp max.)GDoppler Signal - (5 Vpp max.)HGroundThe processor does the remote activation of the transmitter by short circuiting pins D and E of theconnector.9. Antenna Warning Device Connector SpecificationConnector type: ITT CANNON MS3124E12-3SPin DescriptionA12 Vdc, 2 amperes maximumBNot ConnectedCGround

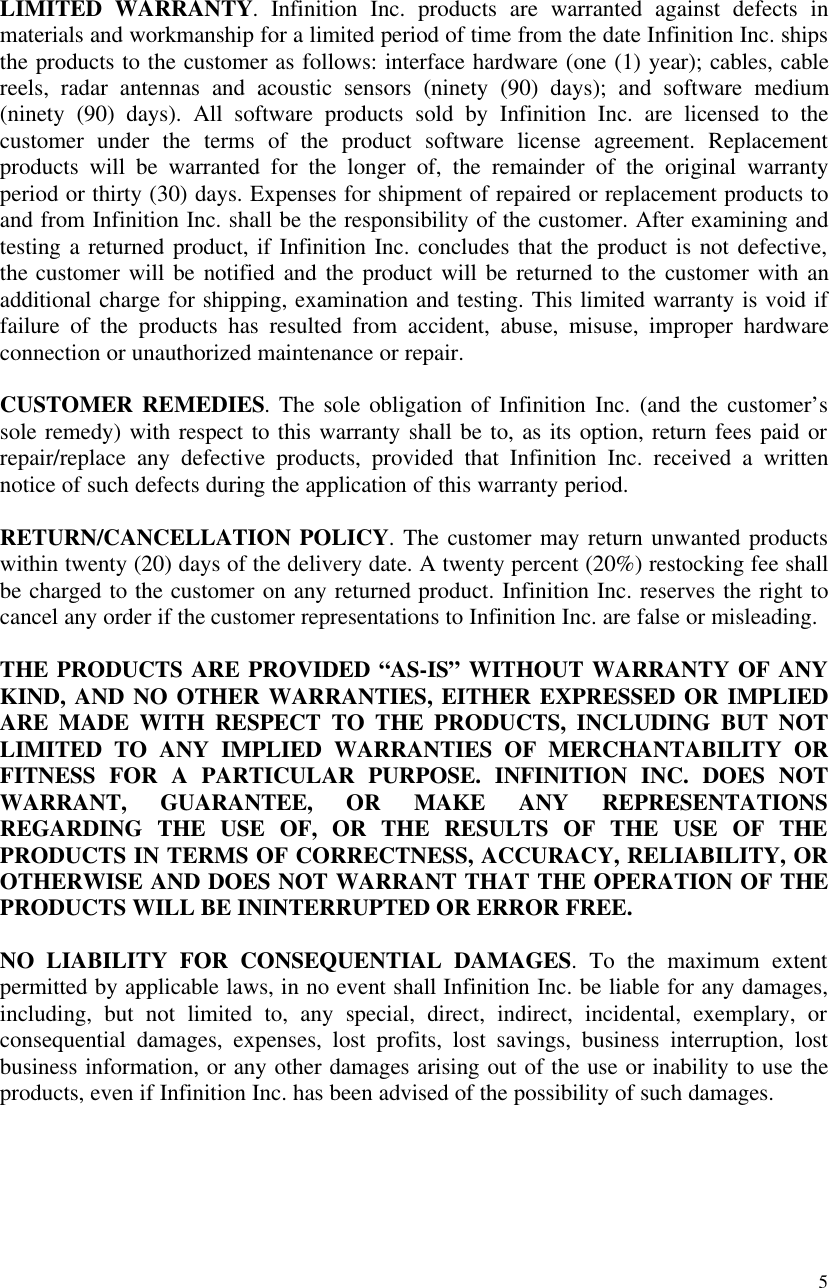

5LIMITED WARRANTY. Infinition Inc. products are warranted against defects inmaterials and workmanship for a limited period of time from the date Infinition Inc. shipsthe products to the customer as follows: interface hardware (one (1) year); cables, cablereels, radar antennas and acoustic sensors (ninety (90) days); and software medium(ninety (90) days). All software products sold by Infinition Inc. are licensed to thecustomer under the terms of the product software license agreement. Replacementproducts will be warranted for the longer of, the remainder of the original warrantyperiod or thirty (30) days. Expenses for shipment of repaired or replacement products toand from Infinition Inc. shall be the responsibility of the customer. After examining andtesting a returned product, if Infinition Inc. concludes that the product is not defective,the customer will be notified and the product will be returned to the customer with anadditional charge for shipping, examination and testing. This limited warranty is void iffailure of the products has resulted from accident, abuse, misuse, improper hardwareconnection or unauthorized maintenance or repair.CUSTOMER REMEDIES. The sole obligation of Infinition Inc. (and the customer’ssole remedy) with respect to this warranty shall be to, as its option, return fees paid orrepair/replace any defective products, provided that Infinition Inc. received a writtennotice of such defects during the application of this warranty period.RETURN/CANCELLATION POLICY. The customer may return unwanted productswithin twenty (20) days of the delivery date. A twenty percent (20%) restocking fee shallbe charged to the customer on any returned product. Infinition Inc. reserves the right tocancel any order if the customer representations to Infinition Inc. are false or misleading.THE PRODUCTS ARE PROVIDED “AS-IS” WITHOUT WARRANTY OF ANYKIND, AND NO OTHER WARRANTIES, EITHER EXPRESSED OR IMPLIEDARE MADE WITH RESPECT TO THE PRODUCTS, INCLUDING BUT NOTLIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY ORFITNESS FOR A PARTICULAR PURPOSE. INFINITION INC. DOES NOTWARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONSREGARDING THE USE OF, OR THE RESULTS OF THE USE OF THEPRODUCTS IN TERMS OF CORRECTNESS, ACCURACY, RELIABILITY, OROTHERWISE AND DOES NOT WARRANT THAT THE OPERATION OF THEPRODUCTS WILL BE ININTERRUPTED OR ERROR FREE.NO LIABILITY FOR CONSEQUENTIAL DAMAGES. To the maximum extentpermitted by applicable laws, in no event shall Infinition Inc. be liable for any damages,including, but not limited to, any special, direct, indirect, incidental, exemplary, orconsequential damages, expenses, lost profits, lost savings, business interruption, lostbusiness information, or any other damages arising out of the use or inability to use theproducts, even if Infinition Inc. has been advised of the possibility of such damages.
