User manual

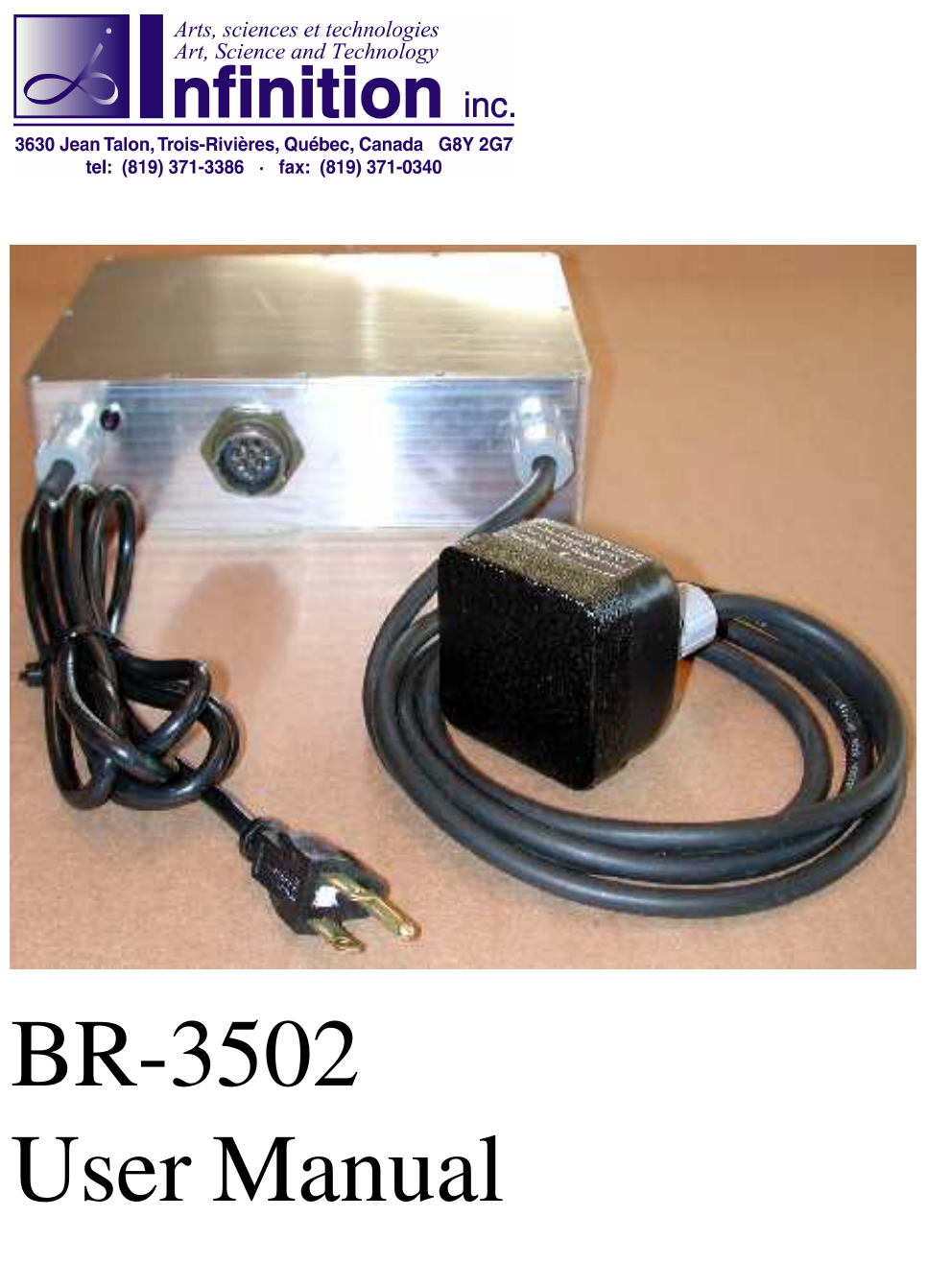

BR-3502User Manual

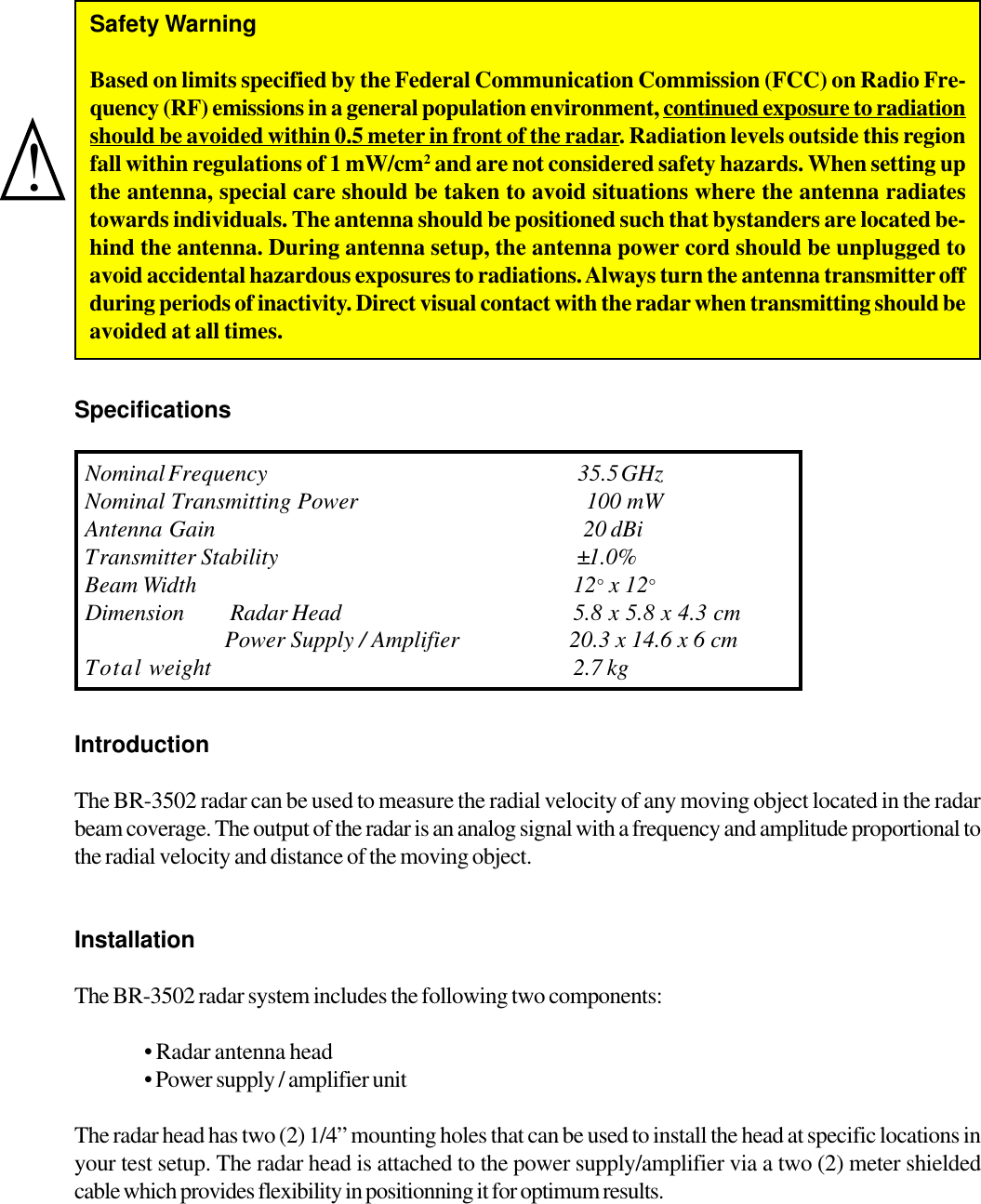

SpecificationsIntroductionThe BR-3502 radar can be used to measure the radial velocity of any moving object located in the radarbeam coverage. The output of the radar is an analog signal with a frequency and amplitude proportional tothe radial velocity and distance of the moving object.InstallationThe BR-3502 radar system includes the following two components:• Radar antenna head• Power supply / amplifier unitThe radar head has two (2) 1/4” mounting holes that can be used to install the head at specific locations inyour test setup. The radar head is attached to the power supply/amplifier via a two (2) meter shieldedcable which provides flexibility in positionning it for optimum results.Nominal Frequency 35.5 GHzNominal Transmitt ing Power 100 mWAntenna Gain 20 dBiTransmitter Stability ±1.0%Beam Width 12° x 12°Dimension Radar Head 5.8 x 5.8 x 4.3 cmPower Supply / Amplifier 20.3 x 14.6 x 6 cmTotal weight 2.7 kg!Safety WarningBased on limits specified by the Federal Communication Commission (FCC) on Radio Fre-quency (RF) emissions in a general population environment, continued exposure to radiationshould be avoided within 0.5 meter in front of the radar. Radiation levels outside this regionfall within regulations of 1 mW/cm2 and are not considered safety hazards. When setting upthe antenna, special care should be taken to avoid situations where the antenna radiatestowards individuals. The antenna should be positioned such that bystanders are located be-hind the antenna. During antenna setup, the antenna power cord should be unplugged toavoid accidental hazardous exposures to radiations. Always turn the antenna transmitter offduring periods of inactivity. Direct visual contact with the radar when transmitting should beavoided at all times.

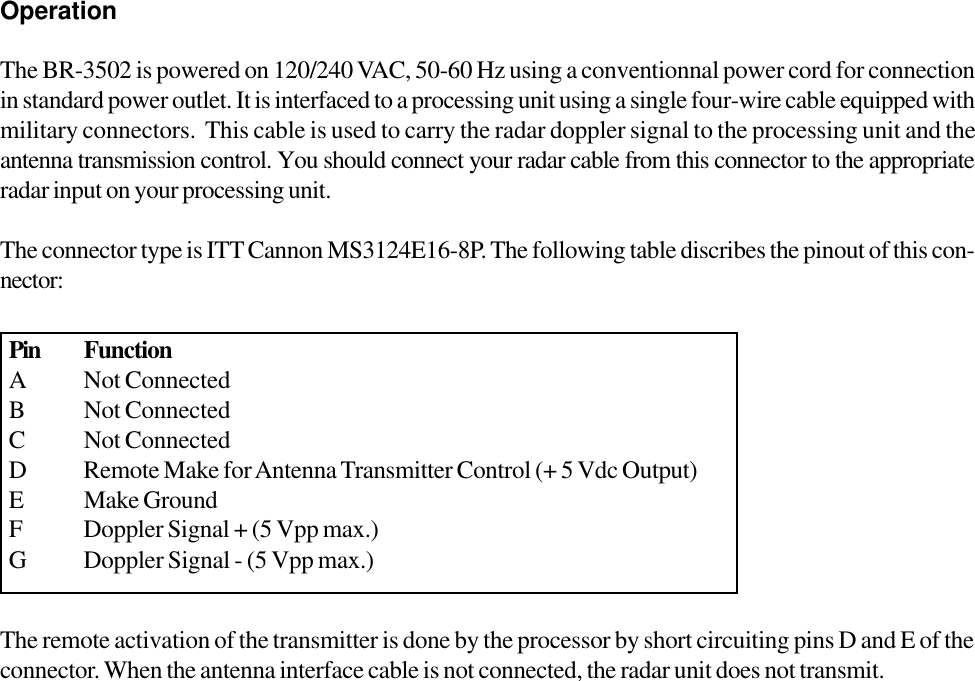

OperationThe BR-3502 is powered on 120/240 VAC, 50-60 Hz using a conventionnal power cord for connectionin standard power outlet. It is interfaced to a processing unit using a single four-wire cable equipped withmilitary connectors. This cable is used to carry the radar doppler signal to the processing unit and theantenna transmission control. You should connect your radar cable from this connector to the appropriateradar input on your processing unit.The connector type is ITT Cannon MS3124E16-8P. The following table discribes the pinout of this con-nector:The remote activation of the transmitter is done by the processor by short circuiting pins D and E of theconnector. When the antenna interface cable is not connected, the radar unit does not transmit.Pin FunctionA Not ConnectedB Not ConnectedC Not ConnectedD Remote Make for Antenna Transmitter Control (+ 5 Vdc Output)E Make GroundF Doppler Signal + (5 Vpp max.)G Doppler Signal - (5 Vpp max.)

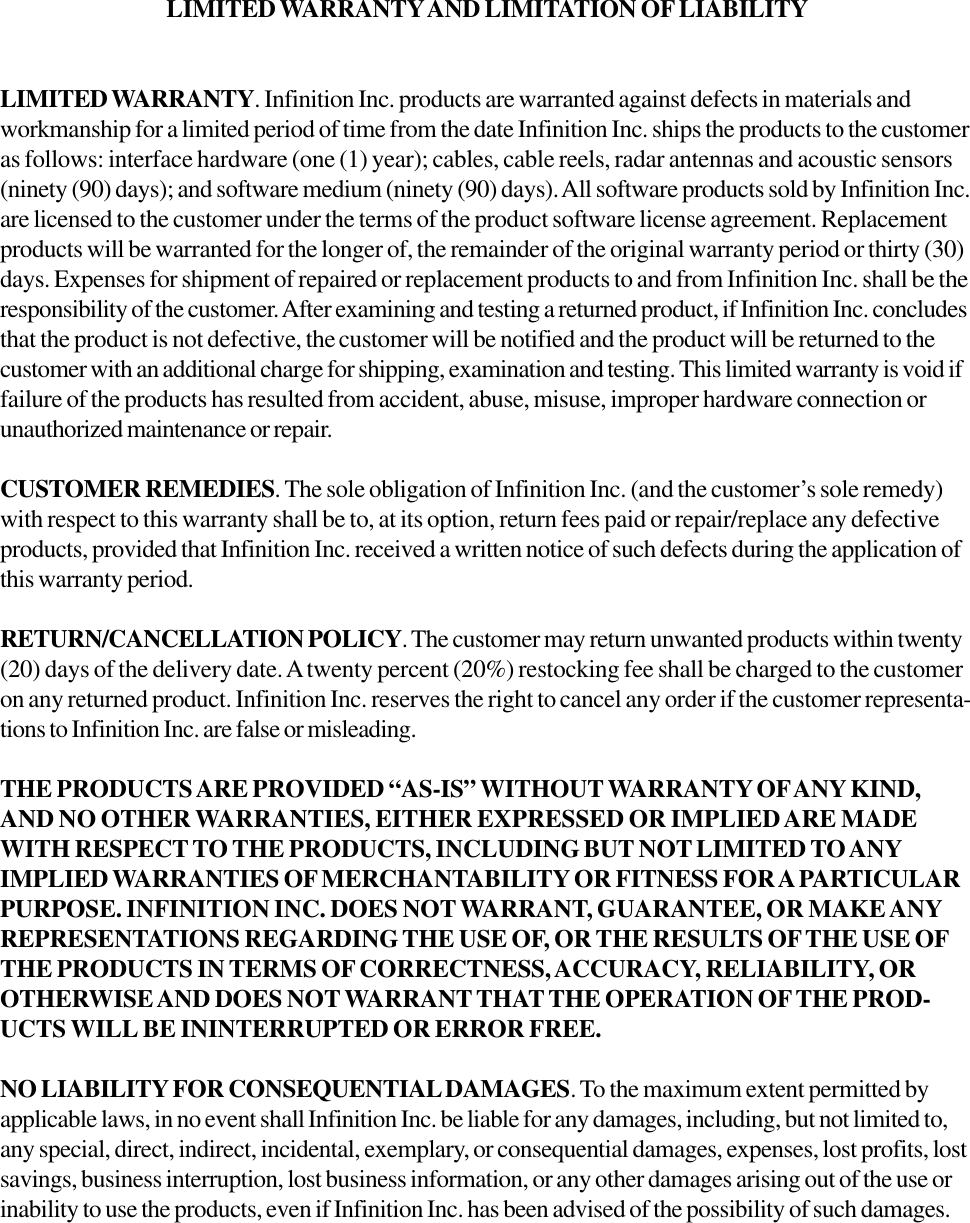

LIMITED WARRANTY AND LIMITATION OF LIABILITYLIMITED WARRANTY. Infinition Inc. products are warranted against defects in materials andworkmanship for a limited period of time from the date Infinition Inc. ships the products to the customeras follows: interface hardware (one (1) year); cables, cable reels, radar antennas and acoustic sensors(ninety (90) days); and software medium (ninety (90) days). All software products sold by Infinition Inc.are licensed to the customer under the terms of the product software license agreement. Replacementproducts will be warranted for the longer of, the remainder of the original warranty period or thirty (30)days. Expenses for shipment of repaired or replacement products to and from Infinition Inc. shall be theresponsibility of the customer. After examining and testing a returned product, if Infinition Inc. concludesthat the product is not defective, the customer will be notified and the product will be returned to thecustomer with an additional charge for shipping, examination and testing. This limited warranty is void iffailure of the products has resulted from accident, abuse, misuse, improper hardware connection orunauthorized maintenance or repair.CUSTOMER REMEDIES. The sole obligation of Infinition Inc. (and the customer’s sole remedy)with respect to this warranty shall be to, at its option, return fees paid or repair/replace any defectiveproducts, provided that Infinition Inc. received a written notice of such defects during the application ofthis warranty period.RETURN/CANCELLATION POLICY. The customer may return unwanted products within twenty(20) days of the delivery date. A twenty percent (20%) restocking fee shall be charged to the customeron any returned product. Infinition Inc. reserves the right to cancel any order if the customer representa-tions to Infinition Inc. are false or misleading.THE PRODUCTS ARE PROVIDED “AS-IS” WITHOUT WARRANTY OF ANY KIND,AND NO OTHER WARRANTIES, EITHER EXPRESSED OR IMPLIED ARE MADEWITH RESPECT TO THE PRODUCTS, INCLUDING BUT NOT LIMITED TO ANYIMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULARPURPOSE. INFINITION INC. DOES NOT WARRANT, GUARANTEE, OR MAKE ANYREPRESENTATIONS REGARDING THE USE OF, OR THE RESULTS OF THE USE OFTHE PRODUCTS IN TERMS OF CORRECTNESS, ACCURACY, RELIABILITY, OROTHERWISE AND DOES NOT WARRANT THAT THE OPERATION OF THE PROD-UCTS WILL BE ININTERRUPTED OR ERROR FREE.NO LIABILITY FOR CONSEQUENTIAL DAMAGES. To the maximum extent permitted byapplicable laws, in no event shall Infinition Inc. be liable for any damages, including, but not limited to,any special, direct, indirect, incidental, exemplary, or consequential damages, expenses, lost profits, lostsavings, business interruption, lost business information, or any other damages arising out of the use orinability to use the products, even if Infinition Inc. has been advised of the possibility of such damages.
