Infopia IGM-1003F Blood Glucose Test Meter User Manual
OSANG Healthcare Co., Ltd. Blood Glucose Test Meter
Infopia >
User Manual
Dear GluNEO Lite Smart Blood Glucose Monitoring
System
Owner
,
Thank
you for
choosing
the
GluNEO Lite Smart Blood Glucose Monitoring System.
This
manual contains everything
you need to know
about
your new
glucometer
and how it
works.
Please
take a
moment
to read the
instructions carefully.
We
understand
that
self-testing
of
blood glucose
level
provides
a way to
control your
diabetes
and may give you
peace
of mind by
testing regularly. GluNEO Lite Smart
has
been developed
to
provide
you with a fast and
accurate reading
in a
convenient
and
simple process.
Our goal for the
GluNEO Lite Smart Blood Glucose Monitoring System
is to
provide you
with the best
quality healthcare products coupled
with
superior customer
service. Always consult
with your
healthcare professional, before making
any
changes
to
your
diabetes management.
The
GluNEO Lite Smart Blood Glucose Monitoring System
is for
in-vitro diagnostic
use
only.
Customer Service
is
available
24
hours
a day, 7 days a
week,
and 365 days a
year.
Please
call
customer support center
in your local
area.
Important Inf
ormation
The
GluNEO Lite Smart
Blood Glucose Monitoring System
is
intended
for use
outside
the
body (in-vitro diagnostic
use
only).
It
should
be used only for
testing blood glucose
with
fresh whole blood samples(Capillary and/or venous).
It
should
not be used for the
diagnosis of diabetes. Consult
with your
physician
or
diabetic healthcare professional about
daily management
of your
diabetes
and
proper
use of the
glucometer. Please
pay close
attention when handling blood. Improper procedures
may
cause serious hazards
to your
health. The GluNEO Lite Smart
Blood Glucose Monitoring System contains
small
parts,
which could
be
a choking hazard
for
children
if
swallowed.
Test
Principle
GluNEO Lite Smart
blood glucose
test strip is the
bio-sensor which
is
composed
of
the FAD-dependent glucose dehydrogenase(enzyme). FAD-GDH(enzyme)
quantitatively reacts
with the
glucose
in the
whole blood
and the
mediator. Glucose
in the
whole blood sample reacts
with the
reagent
of the test strip and
generates
an
electrical.
The
amount of current, which
is
related
with
glucose concentration,
is
measured
by the
current,
for
which
the
method
is
called amperometry.
W
ARNING
1. All parts of the kit are
considered bio-hazardous
and can
potentially transmit
infectious diseases,
even after you have
taken cleaning
and
disinfection measures.
2.
Always
use a new,
sterile lancet. Lancets
are for
single
use
only.
3.
Avoid getting
hand
lotions,
oil, dirt or
debris
in
and/or
on the
lancets
and
reusable
lancing device.
4.
Please
refer to page 33 for
cleaning
and
disinfecting GluNEO Lite Smart
Blood
Glucose
Monitoring System.
5. Do not
change
your
medication based
on the
GluNEO Lite Smart meter
test
results
without contacting
your
physician
or
healthcare professional first.
6. Do not
assemble
or
disassemble
the
blood glucose
test
meter.
7. Keep out of
direct sunlight.
CA
UTION
1.
Please
keep your
monitoring system
out of
reach
of
children.
2.
Make
sure it does not
come
in
contact
with
water
and
moisture.
3.
Avoid getting
dirt and
moisture.
4.
Close supervision
is
necessary when equipment
is used by, on, or near
children,
handicapped persons
or
invalids.
5. Do not
place
the
equipment
in
liquid,
nor put it
where
it
could
fall into
liquid.
If
the
equipment becomes
wet,
unplug
it
before touching it.
6. Do not use
accessories which
are not
supplied
or
recommended
by the
manufacturer.
7. Do not
place anything
on top of the
equipment.
NOTE:
1.
Blood Glucose Monitoring System
may also be
called
as
Blood Glucose
Test
Meter,
the
Meter,
Test
Meter
in this
manual,
for
which
they have
equal meaning
to
each
other.
2.
Blood Glucose
Test Strip may also be
called
as the Test Strip, Strip, for
which they
equal meaning
to each
other.
Table of
Contents
1. Learning the
System
Intended use
of
blood glucose test meter
--------------------------------------------------- 6
GluNEO Lite Smart
kit
contents ---------------------------------------------------------------- 7
GluNEO Lite Smart
meter ------------------------------------------------------------------------ 8
GluNEO Lite Smart
meter Display ------------------------------------------------------------- 9
GluNEO Lite Smart
test strip ---------------------------------------------------------------------10
2.
Before
Testing:
Setting your meter ------------------------------------------------------------------------------12
Auto-coding function ----------------------------------------------------------------------------14
Performing
a
Glucose Control Solution Test------------------------------------------ 15-18
3. Performing your
test:
Testing Blood
-
preparation -------------------------------------------------------------- 19-20
Performing
a
blood test with your finger
tip
------------------------------------------ 21-25
Test Strip ejector function ---------------------------------------------------------------------26
4.
Re
viewing
Your
Results:
Reviewing your blood sugar ------------------------------------------------------------------27
Reviewing your averages ----------------------------------------------------------------------27
Reviewing your results with activated user
ID
--------------------------------------------28
Deleting test results -----------------------------------------------------------------------------28
5. Alternate
Site
Test:
Lancing and sampling from
an
alternate
site
area --------------------------------- 29-31
Lancing device clear
tip is
used
for
alternate
site
testing-------------------------- 31-32
6. Caring f
or
Your GluNEO Lite Smart
System:
Cleaning your meter and maintenance ---------------------------------------------------33
Storage
of
your GluNEO Lite Smart
system ------------------------------------------ 34-35
Bluetooth function
---------------------------------------------------------------------------------- 36
7.
T
ransferring
Your Result Data
----------------------------------------------------------------37
8. Battery Installation
-------------------------------------------------------------------------------38

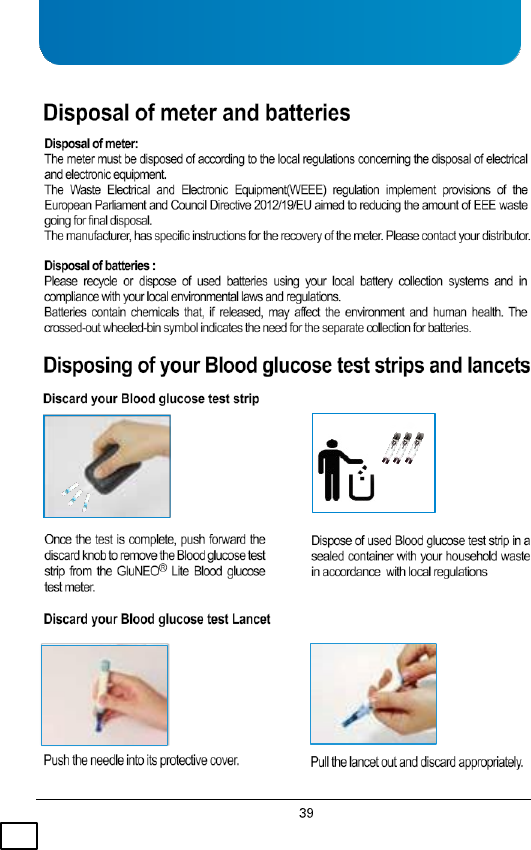

9. Disposal
---------------------------------------------------------------------------------------------39

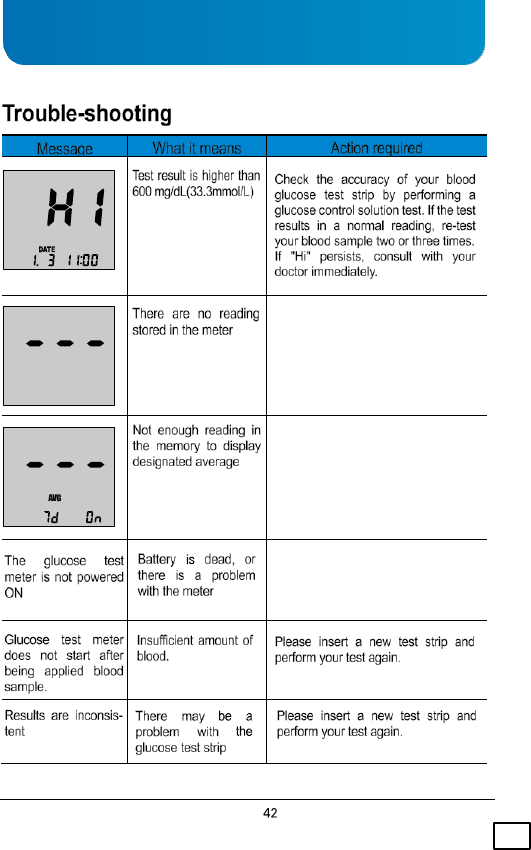

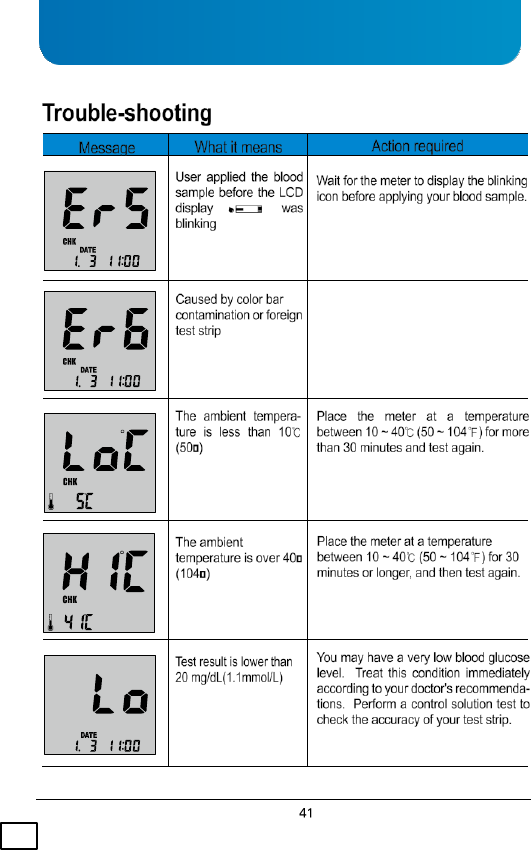

10.
T
r
oub
le-shooting
---------------------------------------------------------------------------- 40-42

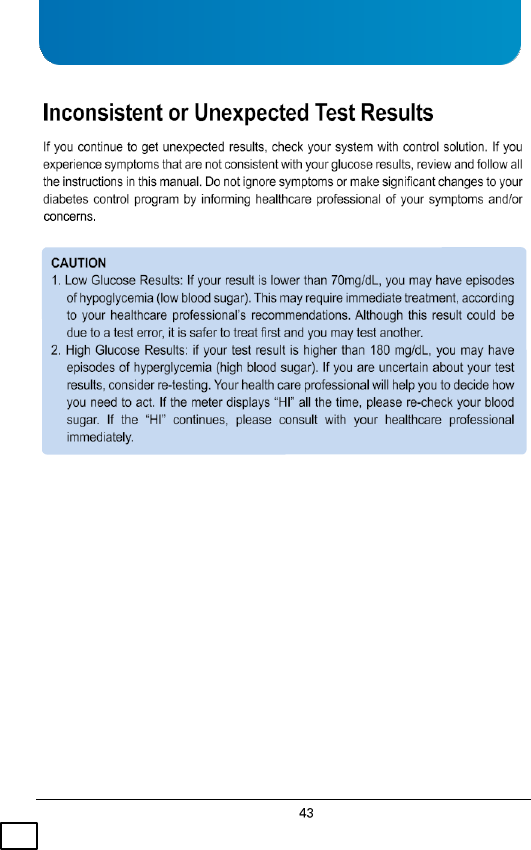

11. Inconsistent or
Unexpected
Test Results
------------------------------------------------43

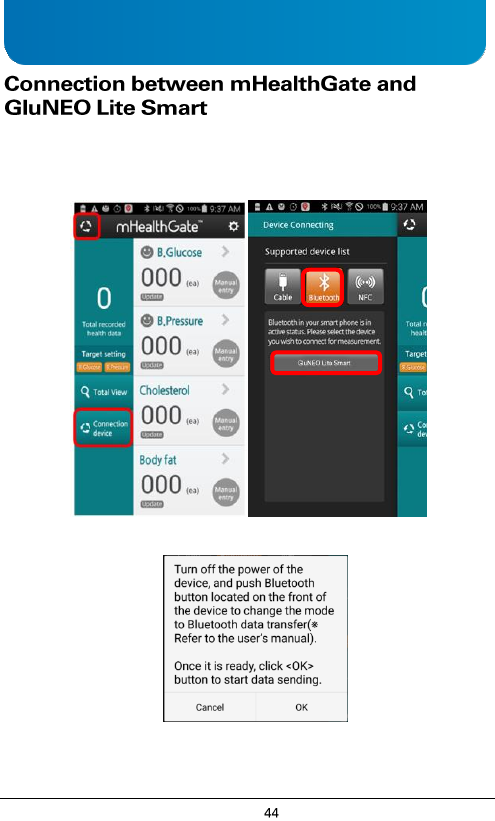

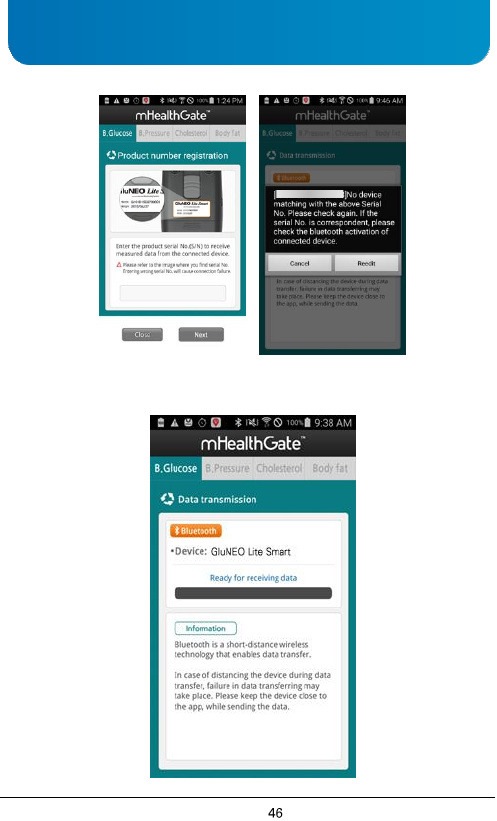

12.

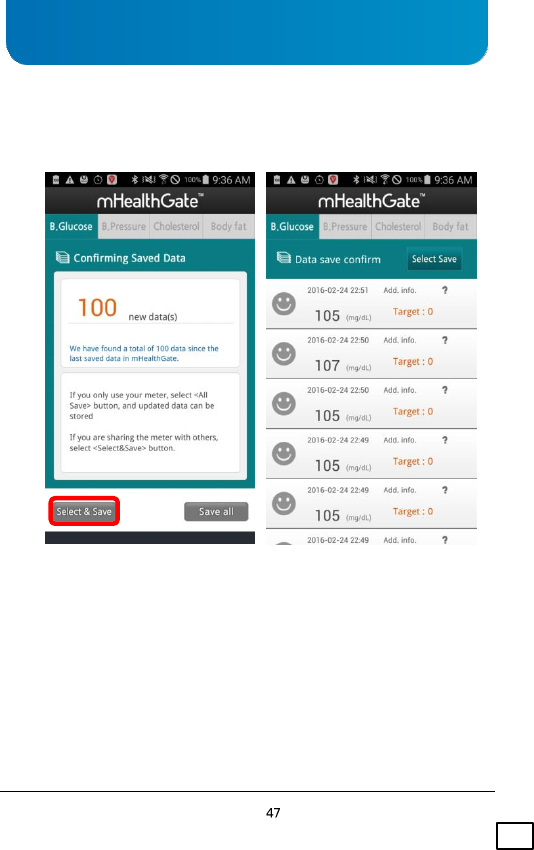

Connection between mHealthGate and GluNEO Lite Smart
------------------------------44
13.
Warranty
-------------------------------------------------------------------------------------------48
14. Declaration of Conformity
---------------------------------------------------------------------49

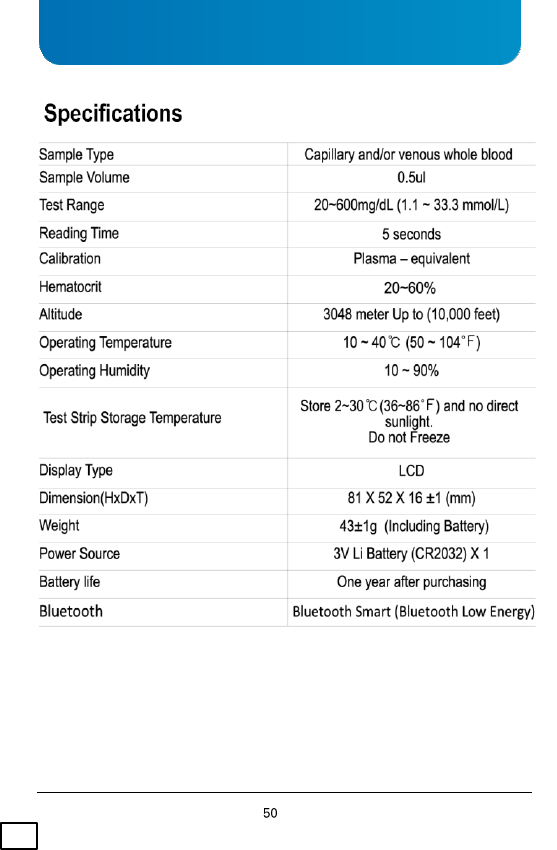

14. Specifications
------------------------------------------------------------------------------------50

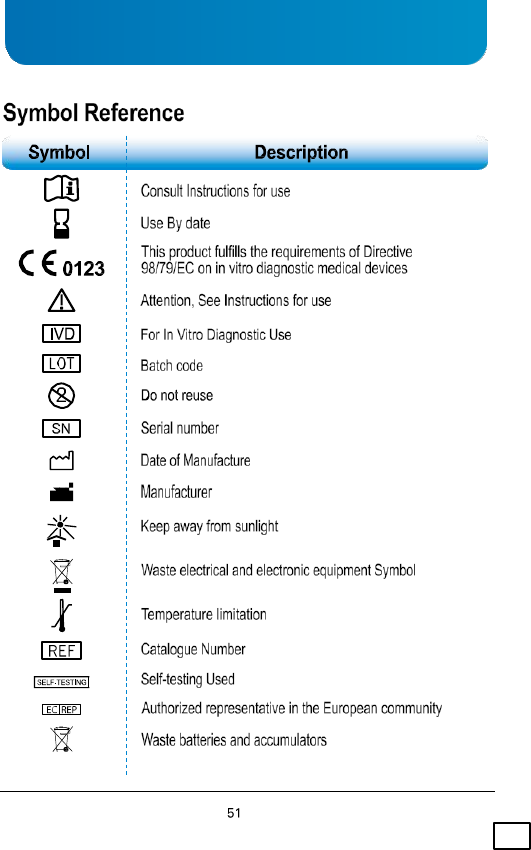

15. Symbol
Ref
erence
-------------------------------------------------------------------------------51
Learning the
System
Intended
use
The
GluNEO Lite Smart
test meter is used with
GluNEO Lite Smart
test strip for the
measurement of
glucose
in fresh whole blood
samples(Capillary
and/or
venous).
It should not be used for the
diagnosis
or
screening
of
diabetes
or for the testing of new
born
babies.
GluNEO Lite Smart
Blood
Glucose Monitoring
System is
intended
for use outside the body
only
(in-vitro
diagnostic use).
GluNEO Lite Smart
Blood
Glucose Monitoring
System is for
self-testing
by people with
diabetes
and by
healthcare professionals.
Recorded
results make it easier for your doctor to access your
metabolic control.
However,
the
self-testing
should not take the place of overall
diabetes management
assessment
from your
doctor.
CAUTION
- Do not use system for any other
purpose
than blood
glucose test.
-
Cholesterol concentrations
> 510 mg/dL or
triglyceride concentrations
> 3,400
mg/dL
may
produce elevated reading.
-
Icodextrin
does not
interfere
with
GluNEO Lite Smart
test
strips.
- Do not use during or soon after xylose
absorption
testing. Xylose in the blood will
cause
interference.
- Before using any
product,
please read all
instructions.
-
Consult
with your
physician
or
diabetic healthcare professional
about daily
manage-
ment
of your
diabetes
and proper use of the
glucometer.
If you have any
questions
about the
GluNEO Lite Smart product,
please contact your local
representative.
W
ARNING
- Before using
GluNEO Lite Smart system,
read all
instructions
in this
manual,
and
practice
for
accurate
and safe test. You should have
commentary recommendation
from
your
diabetes
care
professional
for the proper use of the meter and daily
management of
your
diabetes.
- If you think your blood
glucose
results are too low or too high, or if the results
are
doubtful,
please contact your
doctor.
- If your blood
glucose
result is
unusually
low or high, or you do not feel the result
is
correct,
repeat the test again with a new test
strip.
- If the results are still
inconsistent,
please consult with your
physician
before making
any
decision
in
controlling
your
diabetes.

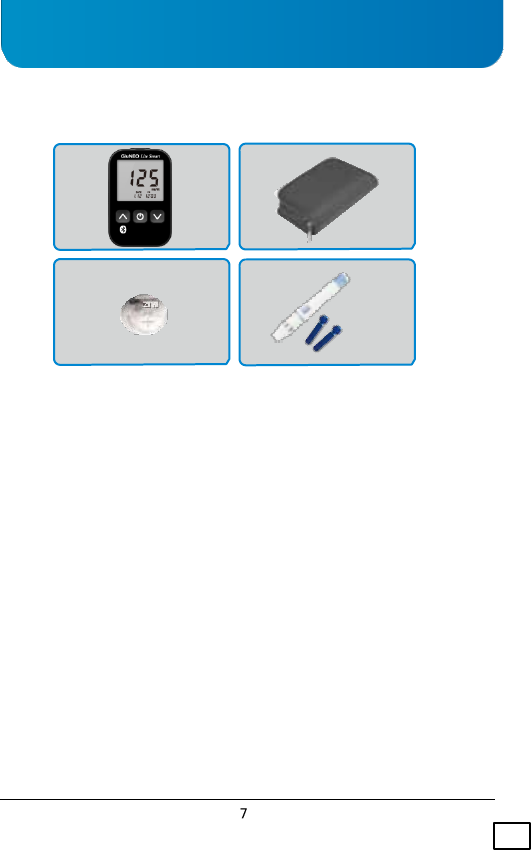

Carrying
GluNEO Lite Smart Kit
Contents
Meter
Case
Battery
Lancing Device
Lancets
1.
GluNEO Lite Smart
Meter
2.
GluNEO Lite Smart
Test
strip
3.
Reusable Lancing Device
4.
Lancets
5.
Instructions
for
use
6.
Warranty Registration Card
7.
Carrying Case
8.
Patient Logbook
9. 3V Coin
(1EA) Battery (CR2032)
Your
GluNEO Lite Smart
Blood
Glucose Monitoring
System has been sealed to protect
the contents.
If you find your seal has been broken, please return it to the place of
purchase.
GluNEO Lite Smart
Meter
Test Strip
P
or
t:
Insert
the
GluNEO Lite Smart
test
strip
Display Screen:
Displays
your test
results, symbols,
and
messages.
Power/Enter Button:
Power
the
meter on/off, prompts memory
data and acts
as
an
“Enter” button during setup
and after
tests.
Up/Down Arrow Buttons:
Scroll
up or
down
to
adjust settings
or
retrieve memory.
Test Strip
Ejector:
Releases
and
discards
test
strip.
Serial Number
Battery
Co
ver
CA
UTION
1. Do not use
GluNEO Lite Smart
glucose
test
meter
in a dry
environment,
especially If
synthetic materials
are
present. Synthetic clothes, carpets,
etc.,
may
cause damaging
static
discharge
in a dry
environment.
2. Do not use
GluNEO Lite Smart
glucose
test
meter
near
cellular
or
cordless
telephones,
walkie-talkies, garage
door
openers,
radio
transmitters,
or other
electrical
equipment
that are
sources
of
electromagnetic radiation,
as
these
may
interfere
with
the
proper operation
of the
glucose
test
meter.
GluNEO Lite Smart Meter
Display
Low
Battery Warning Symbol
Alarm
Symbol
Troubleshooting Symbol
DATE
Delete Results
Average
Test
Result System
Before Having
a
Meal
After
Having
a
Meal
After Taking Medication
After Sport
Activity
Control Solution Symbol
Blood Drop
Symbol
for
Test
User ID
Symbol
Test Strip Code
Symbol
Test
Result
Unit
Symbol
Temperature
/
Date
Time
GluNEO Lite Smart
Test
Strip
Test Strip
Port
Contact Bar
Caution
1.
Store
the
GluNEO Lite Smart
test strip vials in a cool, dry
place.
Keep out of
direct
sunlight.
Do not
freeze.
2.
Store
test
strips
in their
original
vial only. Do not mix the test
strips
in new vials or
in
any other
container.
3.
Immediately replace
the vial cap and close
tightly
after
removing
any test
strips from
the
vial.
4.
Make
a note of the
expiry
date,
which
is six
months
from the date you first open a
new
vial of test
strips. Throw GluNEO Lite Smart
test
strips
and vial away after the
expiry
date.
5. Do not use the test
strips
after the
expiration
date
printed
on the
package
or vial,
since
it may
cause inaccurate results.
6.
GluNEO Lite Smart
test
strips should
be
single
use only. DO NOT
RE-USE.
7. Do not test at
temperatures below 10 (50°F)
or
above 40 (104°F).
8. Do not test in the
condition
that
humidity
is
below
10% or
above 90%.
9. Do not
bend,
cut, or alter the test
strip.
10.
Avoid getting
dirt, food, and
water
on the test strip with wet
hands.
11.
Avoid getting
dirt, food, and
water
on the
color-coding
label
(backside
of test
strip)
12.
Refer
to
additional information
in the
GluNEO Lite Smart
test strip
package.
Bef
ore
T
esting
W
ARNING
To
reduce
the
chance
of
infection:
1.
Lancing device
and
lancets should
NOT be
shared
with
others.
2.
Always
use a new
lancet
and a new
blood glucose
test
strip.
3.
Practice using
the
lancing device
and
become accustomed
with its
use.
4.
Lancets
and
blood glucose
test
strips should
be
single
use
only.
5.
Wash
your
hands
in
warm clean running water using
soap
before testing.
6.
Avoid getting
hand
lotion,
oils, dirt or
debris
on the
lancets
or on the
lancing device.
7. Dry your
hands completely before testing.
Setting
Your
Meter
The
GluNEO Lite Smart
Meter
has a wide
variety
of
functions
to
choose.
From the
setup
mode
you can turn
activity/meal flags,
set the
date/time, designate
three
unique averages,
and
set up to five daily
alarms.
Power On
Press
for 3
seconds at
least.
Y
ear
After
pressing and
releasing either
▲ or ▼
buttons
to set the
year,
push
button.
User Activity
Option
After
pressing and
releasing either
▲ or ▼
buttons
to turn the
User
Activity Option on/off,
push
button.
Date
/
Time
After
pressing and
releasing either
▲ or ▼
buttons
to set the
date
and time,
respectively
push
button.
User ID Option
After
pressing
and
releasing
either
▲ or ▼
buttons
to
turn the User
ID
option on/off, push
button.
Test Unit
After
pressing and
releasing either
▲ or ▼
buttons
to set the
test
unit(mg/dL
or
mmol/L),
push
button.
Temperature Unit
After
pressing
and
releasing
either
▲ or ▼
buttons to
set or and
push
button.
Number of days f
or
a
vera
g
e
After
pressing
and
releasing
either
▲ or ▼
buttons
to
set
the
number
of days
for
average calculation (3
different settings possible),
push
button.
Alarm
on/off
After
pressing and
releasing either
▲ or ▼
buttons
to turn the
alarm
on/off,
push
button.
Alarm
time
After
pressing
and
releasing
either
▲ or ▼
buttons
to
set
the
alarm
hour and
minute,
push
button.
Alarm
After
programming the
number
of
desired alarms
(5
alarms possible),push
button.
CA
UTION
1.
VERY IMPORTANT:
Set the right test
unit.
Your
GluNEO Lite Smart Meter
is
pre-set
to
mg/dL
as test unit. A
wrong
test unit will
lead
to
wrong
test
result display. Please consult
your
healthcare professional
if
you’re
not
sure
which
test unit to use.
Without setting
the date
properly,
the
average
glucose
level and the
results
in
memory
will not show
proper values.
It is
recommended to
set the
glucose
test
meter before
use and also
when
new
batteries
are
installed.
2. You
cannot
test your
blood glucose
in the
setting mode.
3. To turn the
meter
off
during
the
setup, press
for at least 3
seconds.
Auto-coding Function
1.
GluNEO Lite Smart
has
automatic
code
recognition
function
(e.g.
CODE 125)
125
2. It
recognizes
the code
number automatically.
This is
a
very
convenient function preventing
the
inconve-
nience
of
setting
the code
number
on the
glucose test
meter every
time.
Check
the code on the vial to see
if
the
codes match
each
other
CA
UTION
1. Do not bend the
glucose
test strip to
prevent
the
automatic
code
recognition failure.
2. If the code
recognition
label is
damaged,
code
recognition
may fail.
Please check the
code
number
on the LCD
window together
with the code
number
on the
glucose test
strip vial to see if code
numbers match
each
other.
Performing a Glucose Control Solution
Test
GluNEO Lite Smart
control solution contains
a
known amount
of
glucose
that
reacts
with GluNEO Lite Smart
test strip. By
comparing
your
control solution
test
results
with the
expected range printed
on the test strip vial, you are able to
check
that the
meter
and test
strips are working properly,
and that you are
performing
the test
correctly.
It is very
important
that
you perform routine checking
to
ensure accurate results.
The
Glucose control solution should
be
used
-
Before using
a new box of test
strips.
-
Whenever
you
suspect
the
blood glucose
test
meter
or
blood glucose
test strip is
not
functioning properly.
- If your
blood glucose
test
results
are not
consistent
with your
symptoms,
or if you
think
results
are not
accurate.
- If you have
dropped
the
blood glucose
test
meter.
- For
quality control
in the point of care
usage.
- For
teaching
or
learning
the
system.
-
When using
the
meter
for
blood glucose
tests after any
disinfection procedure.
Firmly insert
the test strip into the
meter
test port.
Insert
deeply
in
direction
of
arrow
on test strip
(arrow
up).
Please
do not
insert
the
glucose
test strip
upside down.
125
When
you
insert
the
glucose
test strip into the
glucose test
meter,
the
power automatically adjusts
the
meter
accordingly.
Press
and
release either
the ▲ or ▼
button,
then,
Control
Solution bottle
icon will
appear. Then, press
(
).
1.Check
the
expiration
date
before performing
a
control
solution
test. Do not use if
expired. Please
note
the
expiration
date
marked
on the
control solution bottle.
2.Gently shake
the
control solution before use.
3.Discard
the 1st drop of
control solution.
This will
eliminate
any
residue.
Place
a drop of
control solution
liquid on a
clean,
dry
surface
(e.g. the lid of the test strip
vial)
4.Dip the test strip into the
control solution liquid.
Results
will
appear
in 5
seconds.
Compare
the
result
to the
range printed
on the test
strip
vial.
Result should
fall
within
that
range.
CA
UTION
1.
Control solution
is for
in-vitro diagnostic
use only. This
means
that it is only used
for
testing outside
the
body.
2.
Control solution
is
exclusively made
for the
GluNEO Lite Smart Blood Glucose Monito-
ring
System.
Do not use other
brand control solutions made
by other
manufacturers.
3.
Check
the
expiration
date on the vial. Do not use, if
expired.
4.
Once opened,
use it for the next three
months
only.
Record
the
discard
date on
the
control solution bottle. Discard
after three
months.
5. Do not
swallow.
This is NOT for
human
or
animal consumption.
6. The
control solution bottle
icon
contains
letter ‘C,’ so as not to be
confused
with
the
medication bottle.
This will allow you to
understand differences between
a
control
solution
test and an
actual blood test.
For example
only
If you are
using
the
normal control solution, according
to this
particular
vial of
strips, your
meter should
show a
number between
80 and
120.
Please
note that the
control values shown
in the
are not
control ranges.
NO
TE
- It is
recommended
that
glucose control solution
is
stored
at room
temperature 20~25
(68~77 )
before testing.
-
Check
the
expiration
date
before performing
a
glucose control solution test.
- Do not use
beyond expiration
date. Once
opened,
the
control solution expires
after 3
months.
If your
control solution
test falls out of
range, please follow
the next
steps before
contacting customer support:
-
Check
the
expiration dates
on all the
products
you are
using.
Be sure you are
using
GluNEO Lite Smart Control Solution.
- Try
another control solution test.
If this test falls out of
range,
try
another control solution
test with a new
unopened
bottle
of test
strips.
If you
continue
to get
control soulution
test
results
that fall
outside
the
range,
do
not
perform
a
glucose
test.
Please
call
customer support
in your local
area.
Follow-up
Action
1.
Check
your
meter
and test
strips
with the
glucose control solution.
2.
Perform
your test
again.
CA
UTION
1. If your
glucose control solution
falls out of
range,
do not
perform
a
glucose
test
and
please contact
your local
representative.
2. The
glucose control solution’s measurement range
has
nothing
to do with
individual’s
blood glucose
level, as its own
purpose
is to
check
the
status
of test strip and
meter.
Discard
the used
control solution
and test
strips carefully, according
to the
local
regulation.
P
erf
orming
Y
our
Test
Testing Blood
-
Preparation
Lancing device
is a
convenient medical
tool for
collecting capillary blood samples for
glucose monitoring
or other tests
which require
one or two
drops
of
blood.
Being
a more
advanced lancing device,
it
provides ultimate safety
and
comfort
for
obtaining
blood samples.
An
adjustable
tip
offers
5
different strength levels
of skin
penetration for
individual user’s comfort,
while a
lancet ejector enables
the safe
disposal
of the used
lancet.
As
an
added bonus,
this also
comes
with a
transparent
tip for AST
(Alternative
Site
Testing).
CA
UTION
1.
Never
use a
lancet
that has been used by
someone
else.
Sharing lancet could lead
to
contamination.
2. If the
lancing device
is to be used by
another person,
the unit must be
properly
disinfected
3. Do not
leave
the
lancet
in the
device
after
use.
4. A new
lancet
must only be
placed
into the
lancing device directly before testing.
5. This
device
has
many
small parts and
could
be a
choking hazard
for
children if
swallowed.
6. In the case of
hospital
use,
hospitals
need to
observe
their own
infection control
protocols
in order to
avoid
any
contamination.
7.
Always dispose
of the used
lancet
in a
biohazard garbage container.
COMPONENTS
Clear
Tip
Ejection
System Sliding
Barrel
Depth
Indicator/Adjustable
Tip Lancet
Holder
Release Button
USING
THE
CLEAR
TIP
(AST)
1.
Place
the
lancing device
and
lancet
on the skin in the
chosen
area,
press
and hold
it
continuously
for a few
seconds,
then push the
release button
to take a
blood sample.
2.
Watch through
the clear tip until a
sufficient blood sample
is
taken.
If there is not
enough
blood, gently massage
the area until a
sufficient sample
is
collected.
STORAGE
Products
must be
stored
at room
temperature protected
from
sunlight
or
moisture.
CLEANING AND DISINFECTION
-Clean
and wipe the outer part of
lancing device
once a week at the
minimum
with a
soft
cloth
dampened
with mild soap and
water. Wash
the
adjustable
tip and clear tip, once
a
week with mild
soap.
-DO NOT
immerse
the
lancing device
in
water
or
liquid.
WARRANTY
Lancing device
has a
2-year warranty
from the date of
purchase.
A
malfunctioning device should
be
returned
to the
following address:
put
address:
Performing a blood test with your
fing
ertip
Step
1
Firmly insert
the test strip into the
meter
test port in the
direction
of
arrow
on test strip
(arrow
up).
Please
do not
insert
the
glucose
test strip
upside down.
125
When
you
insert
the
glucose
test strip into the
glucose
test
meter,
the
power automatically
turns on with the code and
temperature.
Make
sure the
code number matches
on the test strip
bottle
(e.g.
CODE
125).
GluNEO Lite Smart
automatically recognizes
the
test strip code
number
and
adjusts
the
meter accordingly.
A
blinking
test strip will
appear
at the top of the
screen, which
indicates
that the
meter
is
ready
for
testing.
CA
UTION
1. If you do not see the code
displayed,
pull the
glucose
test strip out of the port,
and
re-start
the
procedure
from the
beginning.
2. If you do not see the code
displayed match
the code
printed
in the vial, If the
mismatch
persists, please contact
your local
representative
for
assistance.
3.
Avoid testing under direct sunlight,
for a more
accurate
test
result.
4. If you
apply
your
blood sample before
a
blinking
test strip on the
screen,

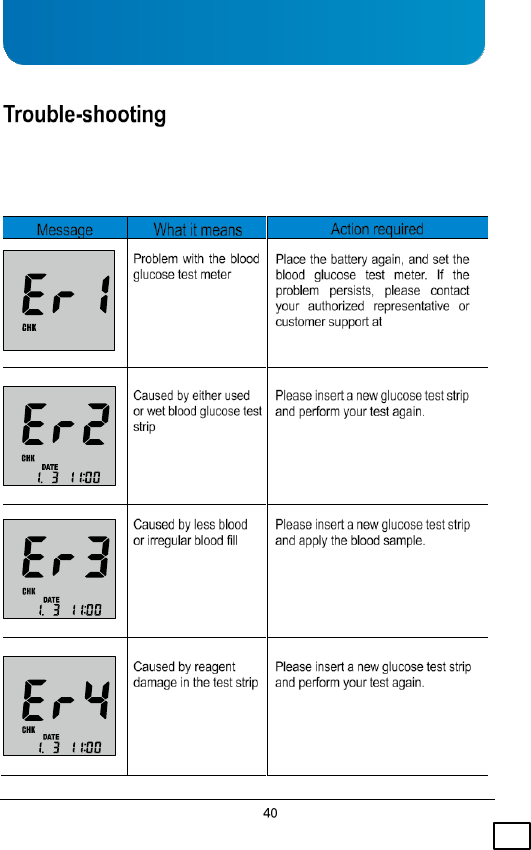

Er5
message
will
appear
on LCD.
Please
refer to Page
40.
Step
2
To obtain a suitable blood samples
•
Before obtaining
a
blood sample,
wash your
hands
with
warm, clean water
and
soap. Dry
hands completely before testing.
W
ARNING
1. All parts of the kit are
considered
bio
hazardous
and can
potentially transmit infectious
disease,
even after you have
conducted cleaning
and
disinfection measures.
2.
Avoid getting
hand
lotion,
oil, dirt or
debris
in or on the
lancets (single
use only)
and
the
lancing device.
3.
Wash
your
hands thoroughly
with soap and
clean water
after
handling
the
meter,
lancing device and/or
test
strip.
1.
Unscrew
the
lancing device tip.
2.
Insert
a
sterile lancet
into the
lancing device.
3. Twist the
protective cover
off. Do not
discard.
4. Put the
lancing
tip back and twist it
tightly.
5. To
adjust
the
depth setting:
Use
strength
level 1-2 for soft skin, 3
for
average
skin, 4-5 for thick or
calloused skin.
6. Pull the end of the
lancet device back.
7. To prick your
finger,
push the
center button.
CAUTION
1. If the
blood smears
or runs, do not use such
blood sample.
Dry the area and
gently
squeeze another
drop or
puncture
a new area of the
finger.
2. Do not
share reusable lancing device
with
anyone including
other
family members.
Step 3
•
Correct
Completely Filled
•
Incorrect
Poorly filled
•
Applying Blood
Correct
Incorrect
GluNEO Lite Smart
Test Meter only requires 0.5 ul sample
v
olume
.
• Stick the edge of the test strip to the drop of
blood.
• The
blood
will
automatically
be
‘drawn’
into the test strip
channel.
•
When
your
sample blood
is
enough,
your
meter
will
automatically count down.
•
Apply
your
blood
to the
glucose
test strip and do not take off your
finger
until you get
the
beep
sound.
The test will
automatically start.
•
Please respect recommended quantity
of
blood sample.
Too
much blood
may
cause
malfunction
of your
meter
by
contaminating it.
CA
UTION
1. If the
countdown
does not start, do not add more
blood
to the
glucose
test
strip.
Discard
the
glucose
test strip and
restart testing.
2. If you do not
conduct
the test
within
3
minutes,
the
glucose
test
meter
will
automatically
power
off to save
battery
life. In this
case,
test
procedure should
start
again
from
the
beginning.
3. You may get an
inaccurate result
if the
blood sample
is not
completely filled.
Step 4
• After the
beeping sound, test
will begin
automatically, and
your
results
will
appear
in
5
seconds.
It
should
begin
counting
down from 5 to 1
second on
the LCD
display window. LCD
window
will
display
the
result
of your blood
glucose level,
temperature
and
time.
• If you
selected
to use the User
Activity option during
set
up,
press
and
release
▲ or ▼
button
to
select
the
activity
(
,
, , ) that
correlates
with your
result,
then
press and
release
the
power button .
• If you do not
select
to use User
Activity option during
set
up,
press
the
power button
• If you
selected
to use the User ID
option during
set up,
press
▲ and ▼
button
to
select
the
correct
User ID, then
press the
power button
.
•
Record
the
result value
in your
logbook.
When glucose
test strip is
removed, glucose
test
meter turns
off
automatically.
CA
UTION
1. If the test
result
is out of the test
range, “HI/Lo” message
will be
shown
on the
LCD
window.
2.
Safely discard
used
glucose
test
strips
and
lancets
in the
proper place, according
to
the
local
regulation.
Test Strip Ejector
Function
Disposing of your test
strip
Disposing of your
lancet
1.
Once
the test is
complete,
push the test strip
forward to
remove
the test strip from the
meter
2. Used test
strips
may be
considered
bio
hazardous waste
in your
area.
Be sure to
contact
your local
representative
for
proper
disposal.
1. Push the
needle
into the
protective cover.
2. Pull the
lancet
out and
discard accordingly.
CA
UTION
1.
Pushing
the
ejector button
too hard
could cause
a
damage
to the
meter.
2. Do not give
strong impact
to
blood glucose
test
meter.
3.
Please follow
the
waste disposal regulations
on the used
lancets
and
strips imposed
by your local
authorities.
Re
viewing
Your
Results
The
GluNEO Lite Smart
meter stores
up to 365 test
results
in its
built-in memory, along
with
the average sugar
level for the
number
of
days, which
you had
preset
the
glucose
test
meter
to calculate.
Re
vie
wing
Your blood sugar
Press
and
release button.
The most
recent result appears
first. Note the time and
day
of your
blood sugar result. Press
and
release
the ▼
button
and your
previous result will
appear
on the
display
Re
vie
wing
Your
avera
g
es
Press
and
release
the ▲
button,
and your
average result
will be
displayed.
Average
Test
Result
Test
Unit
Test
Result Amount
Average
Test
Result Days
Reviewing your results with activated user ID
Press
the
button
once and the User ID
option will
appear
the LCD
screen.
Use ▲ or ▼
buttons
to scroll and
choose
the
correct
user ID, then
press
the
button.
If you
choose
the User ID to
check
the
stored results,
only the
results
of the
selected
user ID are
displayed.
DATE
Deleting
Test
Results
Deleting individual test
result
To
delete
any
individual
test
result
in the
memory, press
▲ or ▼
button
for 3
seconds.
Then
displayed
icon
will start
blinking.
Deleting all the test
results
To
delete
all test
results
in the
memory press
▲ and ▼
button
for 3
seconds.
Then
displayed
,
will
start
blinking.
CA
UTION
Deleted
test
results cannot
be
recovered. Please
be
careful
in
deleting
the test
results.
Alternative Site
Test
Upper Arm
Dorsal Hand
Forearm
Ventral Palm
Fingertips
GluNEO Lite Smart
blood glucose monitoring system
gives you the
ability
to your
sugar
from different areas
of your
body.
The
figure shown above displays
the
areas where
you can test
using
your
GluNEO
®
Lite
meter.You
may test your
blood sugar
from your
forearm, upper
arm, palm
(ventral palm
or
dorsal hand),
or
fingertips.
IMPOR
T
ANT
It is
recommended
that
alternative
site
testing
be used
when sugars
are
stable: before
meals
and
before bedtime. However, when sugars
are
changing, blood
from the
fingertip
may show
these changes sooner
than
blood
from other body
areas.
LIMIT
A
TION
1.
Alternative
site
testing results should never
be used to
calibrate continuous glucose
monitoring systems.
2.
Alternative sampling results should never
be used in
insulin dosing calculations.
Lancing and sampling from an alternative site area
Sampling
from your
upper
arm,
forearm, ventral palm,
or
dorsal
hand
allows
you to use
your
fingertips
less
often.
You may find that
obtaining
a
blood sample
from an
alternative
site is less
painful
than
using
a
fingertip.
Ventral palm/Dorsal
hand
Choose
a
fleshy
area on the
palm, below
your
thumb or
pinky
finger. Select
a spot
without
any
visible
veins
and
away from any deep lines,
which
may
cause
your
blood
sample
to
smear.
Forearm
Upper arm
Choose
a
fleshy
area of the
forearm
or
upper
arm away from
bone, visible
veins and
thick
hairs of the arm.
Sometimes
there is less
blood
flow to
these areas
than to the
fingertip.
To help you get
enough drops
of
blood,
you may
gently massage
or
apply
a
heating
pad
to
the site to
increase blood flow.
IMPOR
T
ANT
We
recommend
that you test on your
fingertips
if you are
testing
for
hypoglycemia (low
blood glucose)
or if you are
suffering
from
hypoglycemia unawareness.
To
ensure accurate results when lancing
your
arm
(forearm
or
upper
arm), or palm
(ventral
palm or
dorsal
hand), clean
the test site with soap and
water.
Make
sure there is no
cream
or
lotion
on the test
site.
Thoroughly
dry your
hands
and test
site.
W
ARNING
To
reduce
the
chances
of
getting infection: never share
a
lancet
or
lancing device with
anyone.
The lancing device clear tip is used for alternate site testing
Lance the test site with the lancing
device
1.
Remove
the
lancing
tip by
twisting off.
2.
Insert lancet
and
replace
with the clear
tip.
3. To bring fresh
blood
to the
surface
of the test site,
rub
the test site
vigorously
for a few
seconds
until you
feel
it
getting warm. Applying
heat may be
helpful.
4.
Adjust
clear tip to the
highest setting.
Hold the clear
tip
down against
a
fleshy
area on the
alternative site.
Press
the
release button.
Do not lift
up.
5.
Continue
to hold the
lancing device
and
gradually
increase pressure
for
several seconds.
6.
While holding
the
lancing device
on your test site,
look
through
the clear tip until a
round
drop of
blood
appears.
7. Lift the
lancing device straight
up; be
careful
not
to
smear
the
blood
on your
testing site.
8. Stick the edge of the test strip to the drop of
blood.
Blood
will
automatically
be
drawn up.
REMEMBER
1.
Consult
with your
healthcare professional before using alternate
site
testing.
2.
Choose
a
different puncture
site each time you test.
Repeated punctures
in the
same
spot may
cause soreness
and
calluses.
3. If
bruising occurs
at an
alternate
site or you have
difficulty getting
a
sample, consider
sampling
from a
fingertip instead.
You may want to
review
the
choice
of sites with
your
healthcare professional.
4. Do not
share reusable lancing device
with
anyone including
other
family members.
CA
UTION
Do not test on your
forearm
or palm
when
1. You think you
blood glucose
is
rapidly falling.
For
example within
two
hours of
exercise, rapid-action insulin injection,
or an
insulin pump bolus.
2.
Testing
with a
fingertip sample
may
identify hypoglycemia
or an
insulin reaction
sooner
than
testing
with a
forearm
or palm
sample.
Caring for Your GluNEO Lite Smart System
Cleaning your meter and maintenance
Blood glucose
test
meter :
Your
blood glucose
test
meter
does not
require special maintenance
or
cleaning. Avoid
getting
dirt, dust,
blood, glucose control solution,
or
liquids
on the
blood glucose
test
meter,
the test port, or data port. Your
blood glucose
test
meter’s operation temperature is
10~40°C(50~104°F).It
is
recommended
that you store the
blood glucose
test
meter
in
the
portable pouch
after each
use.
A cloth
dampened
with
water
and mild
detergent
can be used to wipe
down
the outer part
of
the
blood glucose
test
meter.
Your
GluNEO Lite Smart
blood glucose
test
meter
is a
precision instrument. Please handle
it with
care.
Lancing device :
Clean
the
lancing device
and tips with soap and tepid
water.
To
disinfect
the
lancing device,
prepare
a
disinfectant solution household bleach
and
water
in
1(bleach)
:
9(water) ratio.
Dampen
a cloth with this
solution
and wipe the
lancing device thoroughly.
Soak only the
tip
for at least 30
minutes
in the
disinfectant solution.
Do not soak the
lancing device
in
liquid.
Rinse
the
lancing device
and tip with
water,
and dry
thoroughly.
1. For
detailed instructions concerning GluNEO Lite Smart blood glucose
test
strips,
refer to
the
blood glucose
test strip
package inserted
and
found
in the
blood glucose
test strip
box.
2.
Please
store the
GluNEO Lite Smart blood glucose monitoring system
in a cool and dry
area,
out of
reach
of
children.
Do not
freeze.
For a more
accurate
test
result, avoid
testing under direct sunlight.
3. Do not soak the
blood glucose
test
meter
or
blood glucose
test
strips
in
water
or
liquid.
4. Do not
subject
the
meter
or
blood glucose
test
strips
to
excessive heat.
5. Use your
meter according
to the
instructions
in the
manual.
6. If you need to
purchase
the
lancing device, lancets
or
blood glucose
test
strips, contact
your local
representative.
7.
Discard
the used
lancets carefully,
to
prevent
any
infection.
Storage of your GluNEO Lite Smart
System
To
prevent
the
meter
and test
strips
from
getting
dirt, dust or
other contaminants, please
wash
and dry your
hands thoroughly before use
Meter
Stora
g
e
•
Storage condition: 2~30
or 36~86
(Temperature)
•
Always
store and
transport
the
meter
in its
original storage case.
•
Avoid dropping
and
strong impact.
•
Avoid direct sunlight
and
humidity
.
Test Strip
Stora
g
e
•
Storage condition: 2~30
or
36~86 (Temperature)
•
Store
your test
strips
in their
original
vial only. Do not store the test
strips
in
other
containers.
•
Store
test strip
packages
in a cool and dry
place. Keep away
from
direct sunlight
and
heat.
• Do not
freeze.
• After
removing
a test strip from the vial,
immediately close
it
tightly
.
•
Record
the
discard
date
(date
vial
opened,
plus 6
months)
on the test strip
label.
• Do not use if it is
expired(2 years)
after
manufacturing.
•
Touch
the test strip with
clean
and dry
hands.
• Do not use if 6
months
have been
passed, since
the
opening
of the vial cap for test
strips.
Control Solution Stora
g
e
•
Storage condition: Store
in a cool, dry
place
at
between 8~30
or
46~86 (Temperature)
• After use,
close
cap
tightly
.
•
Make
sure the
control solution bottle
is
tightly closed
•
Record
the
discard
date
(date
vial
opened,
plus 3
months)
on the
control solution
on
the
bottle.
• Do not use if
expiry
date has
passed.
• It
expires
in 24
months
after
manufacturing date.
• It
expires
in 3
months
after
opening
the vial
cap.
CA
UTION
1.
Store
the
GluNEO Lite Smart
test strip vials in a cool, dry
place. Keep
out of
direct
sunlight.
Do not
freeze.
2.
Store
test
strips
in their
original
vial only. Do not mix the test
strips
in new vials or
in
any
other container
.
3.
Immediately replace
the vial cap and
close tightly
after
removing
any test
strips
from the
vial.
4.
Make
a note of the
discard
date,
which
is six
months
from the date you first open
a
new vial of test
strips. Throw GluNEO Lite Smart
test
strips
and vial
away
after
the
discard date.
5. Do not use the test
strips
after the
expiration
date
printed
on the
package
or
vial,
Testing
with
expired strips
it may
cause inaccurate results.
6. Do not test at
temperatures below 10 (50°F)
or
above 40
(104°F).
7. Do not test with
humidity below
10% or
above 90%.
8. Do not
bend,
cut, or alter the test
strip.
9.
Avoid getting
dirt, food, and
water
on the test strip with wet
hands.
10.
Avoid getting
dirt, food, and
water
on the
color-coding
label
(backside
of test
strip)
Bluetooth Function
GluNEO Lite Smart Meter stores glucose test result data and can transmit it to wireless device such as a
Smart phone and Tablet PC via Bluetooth wireless technology.
STEP 1
Launch the application on your mobile phone.
If Bluetooth function or Bluetooth icon is already activated on the LCD’s first screen of your mobile phone,
please move on to the next step.
STEP 2
When you press UP button (Pair) at the same time as buzzer sound, the LCD window will display the “P”
and the operating time count by one second units. The meter will begin to transfer Bluetooth signal to your
mobile phone and to count up to 300.
STEP 3
When the meter is paired with your mobile phone, the LCD window will display “C” which confirms the
paired status. The meter can transfer the glucose test result data to external mobile device via Bluetooth
wireless technology.
STEP 4
Pressing the center/power button, the meter enters sleep mode and LCD display will then turn off. You can
then navigate to the applications to view the other features.
Transferring Your Result
Data
You can
transfer
test
results
from the
GluNEO Lite Smart meter
to a
computer.
You will need
to
download
the
software
from the
following
web site
(http://www.osanghc.com)
and
purchase
the
computer cable
from your local
representative.
This is sold
separately.
[User]
[PC]
[cable]
Battery Installation
The low
battery
icon will
appear
in the
upper
left
corner
of the LCD
display
to
alert
you
when
the
battery power
is
running
low,
which
is an
indication
that a new
battery is
needed.
Your
GluNEO Lite Smart
blood glucose
test
meter
uses only one 3V
lithium battery
(CR2032), which
is
included. When replacing battery,
only
CR2032
or
equivalent lithium
battery should
be
used.
Follow-up Action
1.
Check
your
meter
with the
glucose control solution.
2.
Perform
your test
again.
3. If you are
experiencing symptoms
that are not
consistent
with
your
blood glucose
test
results,
call your
healthcare professional.
NOTE
1.
Make
sure your date and time are
correct
after
changing
your
battery.
2.
Please recycle
or
dispose
of used
batteries using
your local
battery collection systems
and in
compliance
with your local
environmental
laws and
regulations.
3.
Caution
risk of
explosion
if
battery
is
replaced
by an
incorrect type.
The
following
chart may help you
identify certain problems,
but may not
solve
all
the
problems
that
could occur. Contact
your
authorized representative
or
customer support
center
of
OSANG Healthcare
Co., Ltd., if the
problem continues.
OSANG Healthcare
Co.,Ltd.
Please
insert a new
glucose
test
strip
and perform
your test again. If
“Sun”is
blinking,
avoid direct
sunlight
and
re-test
Contact
your local
representative or
customer support
at
OSANG Healthcare
Co., Ltd., if the
problem persists.
.
Change
the
batterry
and if the
problem
persists, contact
your local
represen-
tative or
customer support
at
OSANG
Healthcare
Co.,
Ltd.
① Measure your blood glucose level by using GluNEO Lite Smart.
② Click mHealthGate app on your smartphone
③ Click “Connection device” button as below, and then select your connecting device.
④ Once the app is ready to receive your measuring value, following message is appeared.
Turn off the power of the device by clicking power button, push Bluetooth button according to the
message
When Bluetooth mode is enabled, it starts counting numbers with beep sound
※ Refer to below image to find out the location of Bluetooth mode activation button
When mode transfer is completed, touch <OK> button to start sending data.
⑤ If Bluetooth function is off status, ‘Bluetooth permission request’ is appeared as below.
Push the <YES> to turn on Bluetooth to be connected with GluNEO Lite Smart device.
⑥ If the connection status between app and GluNEO Lite Smart is not set, the display of product number
registration will be appeared.
Register product serial number into your App. *You can check the location of product serial number at the
backside of meter as below.
※ If product number is already registered, mHealthGate App starts connecting device without
requesting the product number.
[Display of product number registration] [In case that registered product number is different from the
device product number]
[Display of Data transmission]
⑦ Once the data is completely transferred, below display will be appeared.
Select <Select & Save> button or <Save all> button, and store measuring value into your App.
※ If several people use one GluNEO Lite Smart device together, select <Select & Save> button to
select and store your measurement.
OSANG Healthcare
Co., Ltd.
warrants
to the
original purchaser
that this
instrument
will
be
free from
defects
in
workmanship
for 3 years from the date of
original purchase.
1. OSANG
Healthcare
Co., Ltd. shall not be required to replace any units which are
damaged
or
malfunctioning
due to abuse,
accidents, alteration,
neglect, misuse,
maintenance by
someone other than OSANG
Healthcare
Co., Ltd. or failure to operate, in
accordance with
the
instructions.
2. OSANG
Healthcare
Co., Ltd. reserves the right to make changes in design without
obligation
to
incorporate
such changes into
previously manufactured instruments.
3.OSANG Healthcare
Co., Ltd. has no
knowledge
of the
performance
of the
instrument when
the test strip is altered or modified in any
manner.
Purchaser
must
contact
the
customer service department
of
OSANG Healthcare
Co.,
Ltd.
by
calling +82-31-460-0300,
for
assistance and/or instructions
for
obtaining service
of
this
instrument. Alternatively,
you are
requested
to
contact
your place of
purchase
in
your
country
for initial
warranty request.
OSANG Healthcare
Co., Ltd. has
trained specialists
to help you 24 hours a day, 7 days
a
week, and
365days
a
year.
Please confirm
with the
OSANG Healthcare
Co., Ltd.
representative before returning your
meter for any
reason.
You will be given the
information needed
to get your
problem
handled correctly
and
efficiently.
Keep your
meter,
test strip and
control solution
with
you,
when you
call.
Declaration of Conformity
This Device Complies With Part 15 Of The FCC Rules.
Operation is subject to the following two conditions; this device may not
cause harmful interference, and this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
To comply with RF exposure compliance requirements, the antenna used for this
transmitter must not be colocated or operating in conjunction with any other antenna
or transmitter.
20~60%
Bluetooth
Bluetooth Smart (Bluetooth Low Energy)
MEMO
