1_Introduction
Thank you for choosing an Ingenico payment terminal.
We recommend you to read carefully this user guide: It gives you
the necessary information about safety precautions, unpacking,
installation, and maintenance of your terminal.
WARRANTY / SECURITY
To benet from the guarantee-related product, and to
respect the security, we ask you to use only the power
supply delivered in box with the product, entrusting
maintenance operations only to an authorized person.
Failure to comply with these instructions will void the
manufacturer’s responsibility.
This symbol indicates an important Warning.
This symbol indicates a piece of advice.
GARANTIE / SICHERHEIT
Um bestmöglich von dem garantierten Produkt zu protieren
und die Sicherheitsbedingungen zu gewährleisten, bitten wir
Sie ausschließlich das der Verpackung beiliegende Netzteil
zu benutzen und ausschließlich befugte Personen mit der
Wartung zu beauftragen.
Bei Nichtbeachtung dieser Anweisung erlischt die
Haftbarkeit des Herstellers.
Dieses Symbol weist auf eine wichtige Warnung.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
5
2_Unpacking

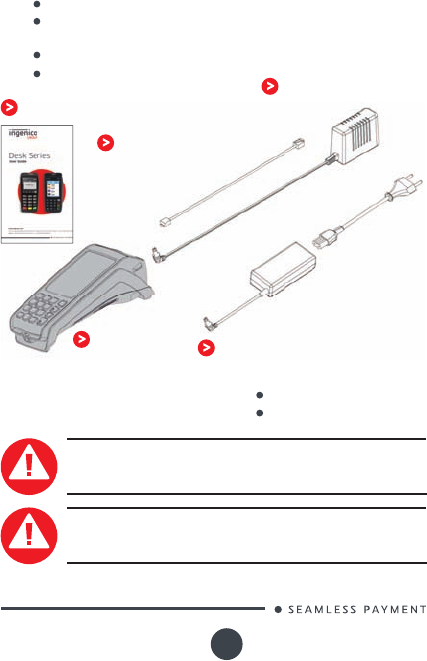

Cable connection for the
telephone or Ethernet
network
Terminal
Wall mounted power
supply unit
According to the model, the following items are included in the
packaging box (including optional accessories):
The terminal equipped with its paper roll
The power supply with its cable connection (according to the
national needs).
The cable connection for the telephone or Ethernet network
This installation guide
Radio model (all)
Desktop power supply unit
required if terminal is  tted with
the following options:
Contactless model
CAUTION
The power supply unit provided with your equipment is
specially designed for it. Do not use any other power supply.
User guide
WARNHINWEIS
Bitte verwenden Sie ausschließlich das mitgelieferte
Netzteil, kein anderes Netzteil.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
6
3_Recommendations
To power on or power down the terminal connect or disconnect the
power supply from the electric outlet.
Power on/Power down – Emergency stop
The terminal is tted with a lithium battery cell which is not accessible
to the user. Only a qualied technician is authorized to open the unit
and change this component.
Lithium battery cell
The electrical outlet must meet the following criteria:
Electrical power supply network
Must be installed near the equipment and easily accessible;
Must meet standards and regulations in the country of use;
For type A plug, the protection of the installation must be set
to 20 A.
The phone network must comply with standards and regulations in the
country of use
Telephone network
Certain regulations restrict the use of radio equipment in chemical
plants, fuel depots and any site where blasting is carried out. You are
urged to comply with these regulations. The terminal shall be protected
by a specially tted and certied cover enabling use in proximity to a
fuel pump.
Explosion areas
According to the model your terminal could be a radio transmitter which
may interfere with health appliances, such as hearing aids, pacemaker,
hospital equipment, etc. Your doctor or the equipment manufacturer
will be able to provide you with appropriate advice.
Electronic health appliances
3_1 Safety / Sicherheit
ADVICE Keep the packaging. It must be re-used whenever
the terminal is shipped.
3_1_1 Safety
Except for Norway do not connect on an IT electrical network.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
7
Located under the terminal, it must be in place during normal operation
of the terminal.
Le réseau téléphonique doit être conforme aux normes et
réglementations en vigueur dans le pays d’utilisation.
Bottom side compartment trapdoor
3_1_2 Sicherheit
Zum Ein-oder Ausschalten der Klemme stecken oder ziehen Sie das
Netzkabel aus der Steckdose.
Power ein/Power aus – Nothalt
Das Terminal ist mit einer Lithiumbatterie ausgestattet, die für den
Benutzer unzugänglich ist. Nur ein qualizierter Techniker sollte die Box
zu öffnen, um die Komponente zu ersetzen.
Lithium-Batterie
Einen Telefonstecker gemäß den Normen und Vorschriften des
Benutzerlandes bereitstellen.
Telefonnetz
Einige Vorschriften beschränken den Einsatz von Funkgeräten
in Chemieanlagen, Kraftstofagern und anderen Standorten mit
Explosionsgefahr. Sie werden gebeten, diese Vorschriften einzuhalten.
Das Terminal muss durch eine Abdeckung geschützt werden, die für
den Einsatz in der Nähe einer Kraftstoffpumpe speziell entwickelt und
zertiziert ist.
Explosionsgefährdung
Je nach Modell, könnte Ihr Gerät ein Funksender sein, der medizinische
Gerste wie Hörgeräte, Herzschrittmacher, Krankenhausausrüstung,
usw. stören kann. Ihr Arzt oder der Hersteller ist in der Lage, Sie
entsprechend zu beraten.
Elektronik Gesundheit
Sie bendet sich unter dem Terminal und muss bei normalem
Terminalbetrieb angebracht sein.
Die untere Gehäuseabdeckung
Die Steckdose muss die folgenden Kriterien erfüllen:
Anschluss an das Stromnetz
In der Nähe des Geräts benden und leicht zugänglich
Erfüllt die Normen und Vorschriften im Einsatzland
Typ-A Stecker müssen mit 20A abgesichert sein.
Mit Ausnahme von Norwegen nicht an ein IT-Stromnetz
anschließen.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
8
3_2 Telephone emergency, hanging up
You have an urgent call to make, when terminal hangs on the line.
Perform as follow in order to get a dial tone…
Place the handset in the hang up position and:
Press the red key (=cancel)
Or disconnect the power supply from the mains
Or disconnect the terminal telephone connector from the
telephone line socket, and place the telephone connector
into the telephone line socket.
You will get a dial tone within 6 seconds.
3_3 Security of your terminal (tampe-
ring attempt detection)
Your device fulls current applicable PCI PTS security requirements.
Upon receipt of your terminal you should check for signs of tampering
of the equipment. It is strongly advised that these checks are
performed regularly after receipt. You should check, for example: that
the keypad is rmly in place; that there is no evidence of unusual wires
that have been connected to any ports on your terminal or associated
equipment, the chip card reader, or any other part of your terminal.
Such checks would provide warning of any unauthorized modications
to your terminal, and other suspicious behavior of individuals that
have access to your terminal. Your terminal detects any “tampered
state”. In this state the terminal will repeatedly ash the message” Alert
Irruption!” and further use of the terminal will not be possible. If you
observe the “Alert Irruption!” message, you should contact the terminal
helpdesk immediately.
You are strongly advised to ensure that privileged access to your
terminal is only granted to staff that have been independently veried
as being trustworthy.
The terminal must never be put in or left at a location where it could be
stolen or replaced by another device.

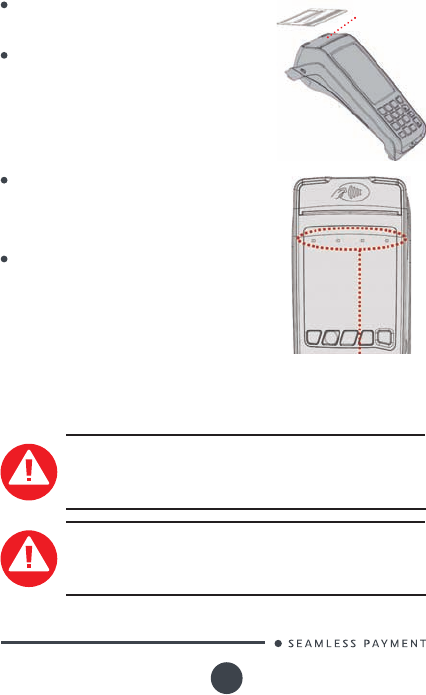

Your device is also available with PCI PTS compliant pin-shield:
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
9
CAUTION
Positioning of the terminal on check stand must be in such
a way to make cardholder PIN (Personal Identication
Number) spying infeasible. Installing device on an adjustable
stand must be in such a way that consumers can swivel the
terminal sideways and/or tilt it forwards/backwards to a
position that makes visual observation of the PIN-entry
process difcult. Positioning of in-store security cameras
such that the PIN-entry keypad is not visible. NEVER ask the
customer to divulge their PIN Code. Customers should be
advised to ensure that they are not being overlooked when
entering their PIN Code.
3_4 Desk series : Fixed Installation
If the device is to be used in a situation where it is not possible for the
cardholder to pick up and shield their PIN entry themselves, the
device may be used without PIN shield, but it must be installed in the
following manner:
a) The device must be angled at 45 or more, so that oversight of the PIN
entry from the rear of the device is not possible.
b) The device must either be tted in a swivel stand – so that the
customer can position the device in the best angle to prevent oversight
– or the device must be xed in the best possible position to prevent
oversight if such a generic position exists in the specic environment
to which the device is installed.
c) The device environment must be accompanied with conspicuous
notices and educational material which informs the customer to shield
their PIN during PIN entry.
d) The device must be deployed so that oversight from other
customers, either in different payment lanes, or in other areas of
the shopping environment, is prevented. This may be achieved
through the placement of the lanes and device , so that the customer
is automatically positioned between the device keypad and other
customers. Alternatively, it may be achieved by the environment in
which the device is installed, so that the checkout itself shields the PIN
entry process.
e) The terminal is exclusively made for indoor use If the above
conditions are not fullled, the device with PIN shield must be used.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
10
Power supply unit (wall mounted)
Weight approx 115 g
Size approx 77 x 25 x 89 mm (L x w x h)
Class Class II equipment
Input voltage AC 230V 50-60Hz
Output voltage DC 8V 2A
4A Desktop power supply unit
Weight approx 230 g (without mains cable)
Size approx 115 x 52 x 32 mm (L x w x h)
Class Class II equipment
Input voltage AC 100-240V 50-60Hz
Output voltage DC 8V 4A
The power supply unit is especially designed by the manufacturer for
its terminal with radio transceivers, do not use another one.
3A Desktop power supply unit
Weight approx 191 g (without mains cable)
Size approx 118 x 48 x 31 mm (L x w x h)
Class Class II equipment
Input voltage AC 100-240V 50-60Hz
Output voltage DC 8V 3A
The power supply unit is especially designed by the manufacturer for
its terminal with contactless function, do not use another one.
3_5 Characteristics / Haupteigenschaften
3_5_1 Main Characteristics
Weight (w/o paper roll) about 310 g to 340 g full option
Size 187 x 82 x 68 mm (l x w x h)
Terminal
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
11
Accordance terminal / type of power supply
Label on terminal Type power supply (wall mounted)
Power block cable approx 1,8 m
Cable length
approx 3 m
Telephone cable
3_5_2 Haupteigenschaften
Gewicht 310 g bis 340 g bei allen Optionen
Größe 187 x 82 x 68 mm (L x B x H)
Terminal
Gewicht ungefähr 115 g (ohne Netzkabel)
Größe ungefähr 75 x 25 x 89 mm (L x B x H)
Netzteil (an der Wand angebracht)
Klasse Ausrüstung Klasse II
Eingangsspannung AC 230V 50-60Hz
Ausgangsspannung DC 8V 2A
Label on terminal Type power supply
8V 2A Plug power supply (wall mounted) (Output 2A)
Recommended for terminals without any
Radio transceivers (ie : Ethernet/Modem).
8V 4A
Desktop power supply (Output 3A)
Recommended for terminals with Contactless
8V 3A
Desktop power supply (Output 4A)
Recommended for terminals with Radio
transceivers (2G, 3G, Wi, Bluetooth)
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
12
Kabellänge
Netzteilkabel ungefähr 1,8 m
ungefähr 3 m
Telefonkabel
Gewicht ungefähr 230 g (ohne Netzkabel)
Größe ungefähr 115 x 52 x 32 mm (L x B x H)
4A Büronetzadapter
Klasse Ausrüstung Klasse II
Eingangsspannung AC 100-240V 50-60Hz
Ausgangsspannung DC 8V 4A
Der Netzteil wurde speziell vom Hersteller für seine Terminals
entworfen und muss mit diesen benutzt werden.
Der Netzteil wurde speziell vom Hersteller für seine Terminals
entworfen und muss mit diesen benutzt werden.
Gewicht ungefähr 191 g (ohne Netzkabel)
Größe ungefähr 118 x 48 x 31 mm (L x B x H)
3A Büronetzadapter
Klasse Ausrüstung Klasse II
Eingangsspannung AC 100-240V 50-60Hz
Ausgangsspannung DC 8V 3A
Label terminal Netzteiltyp
8V 2A
Plug Netzadapter (Befestigung an der Wand)
(OUTPUT 8V 2A) oder
Büronetzadapter (OUTPUT 8V 4A)
Dazugehöriges Terminal / Netzteiltyp
8V 4A Büronetzadapter (OUTPUT 8V 4A)
8V 3A Büronetzadapter (OUTPUT 8V 3A)
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
13
4_Installation
4_1 Positioning the terminal
Install the terminal on a at surface, with an easy access to an electrical
outlet and telephone line. Place the terminal away from any heat source
and protected from dust, vibrations and electromagnetic radiations
(away from video terminals, PC, anti-shoplifting barriers, ...). The
terminal is exclusively made for indoor use.
Ambient temperature from 0°C to +40°C
Max relative humidity 85% at +40°C
Operating conditions
2000 m
Max altitude
Storage temperature -20°C, +55°C
Max relative humidity 85% at +55°C
Storage conditions
4_2 Aufstellung des Terminals
Stellen Sie das Terminal auf eine ache Oberäche mit einfachem
Zugang zu einer Netzsteckdose und Telefonleitung. Stellen Sie das
Terminal nicht in der Nähe von Wärmequellen auf und schützen Sie
es vor Staub, Vibrationen und elektromagnetischen Strahlungen (weit
entfernt von Videoterminals, PCs, Diebstahlschranken, etc.)
Umgebungstemperatur 0°C bis +40°C
Maximale Luftfeuchtigkeit 85% bei +40°C
Betriebsbedingungen
2000 m
Maximale Höhe
Lagertemperatur -20°C, +55°C
Maximale Luftfeuchtigkeit 85% bis +55°C
Lagerbedingungen
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
14

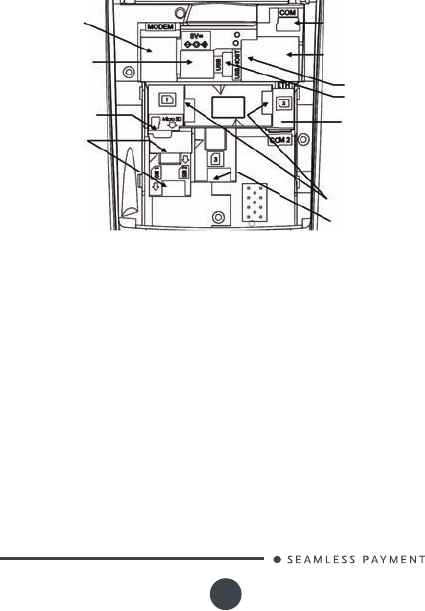

4_3 Connections
All connections are on the rear of the terminal protected by a down
side trapdoor.
Phone : TNV-3.
Power Supply : Limited Power Source.
Other connections : Safety Extra-low Voltage.
According to IEC60950-1 and EN60950-1
*according to the model
Telephone
(Optional)*
Power Supply
µSD (Optional)*
SIM 1 & 2
(Optional)*
Serial Link
RS232
Ethernet Link
(Optional)*
10/100 BaseT
USB Host
USB Host/
Slave
2nd Serial
Link RS232
(Optional)*
SAM 1 & 2
SAM 3 (Optional)*
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
15

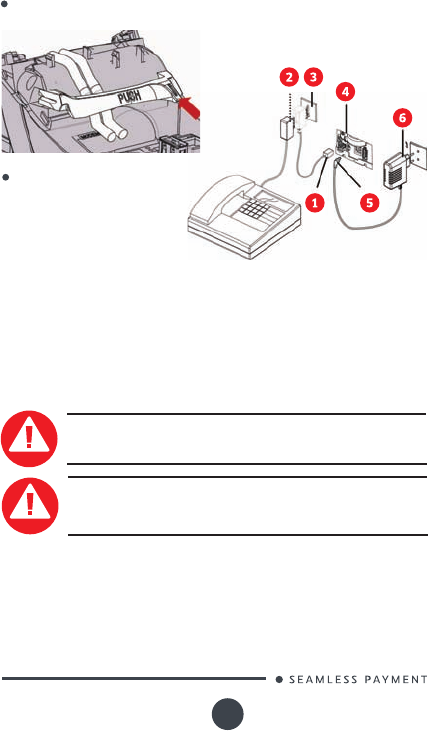

4_4 Installing the Terminal - Cable
 x i n g

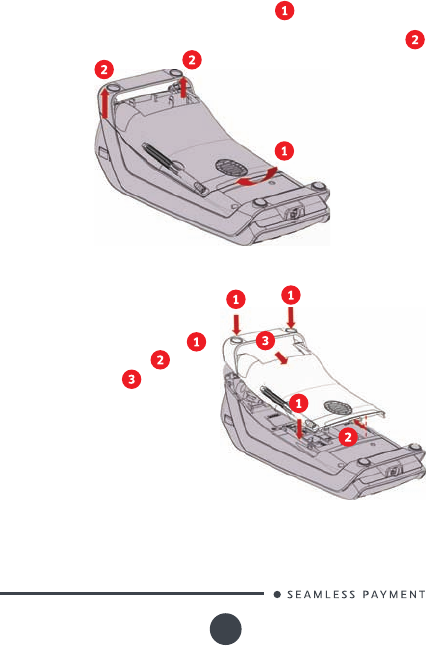

Opening down-side trapdoor
Unclip the trapdoor by pushing on the clip with your  nger as
shown on the  gure here below.
Then lift the trapdoor rearward to remove it, as shown by arrows
on the  gure
Closing down-side trapdoor
To close the trapdoor, start by
landing trapdoor on to bottom
casing as shown on the  gure ,
manage 5/6mm distance for clip
insertion then push and clip it.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
16
WARNING
Connecting is to be made when the terminal is powered off.
WARNHINWEIS
Die Anschlüsse müssen bei ausgeschaltetem Terminal
erfolgen.

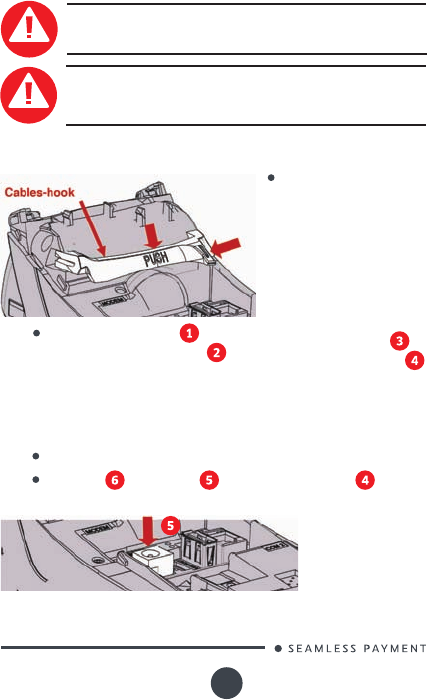

Perform the following operations:
Plug telephone line , equipped if necessary with user
country speci c converter , to the telephone network (*).
Connect the other end to the terminal telephone connection .
If necessary, connect the telephone (Telephone is not required
for the terminal to operate)
Open down side
trapdoor then unclips
the cables hook
Optionally plug others cables (Ethernet, RS232, USB…)
Plug PSU power lead into the power socket .
Connecting cables
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
17
(*): TNV-3 circuit: Telecommunication Network Voltage, as per safety
standard EN 60950-1.
4_4_1 Kit Magic Box installation (optional)
WARNING
Connecting is to be made when the terminal is powered off.
WARNHINWEIS
Die Anschlüsse müssen bei ausgeschaltetem Terminal
erfolgen.
For instance, possible
con guration for France
Plug the power
supply into the mains.
Clips the cables-hook part to secure cables path then close
down side trapdoor
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
18
Perform operations as described in “connecting cables” chapter and
connect cables as follow:

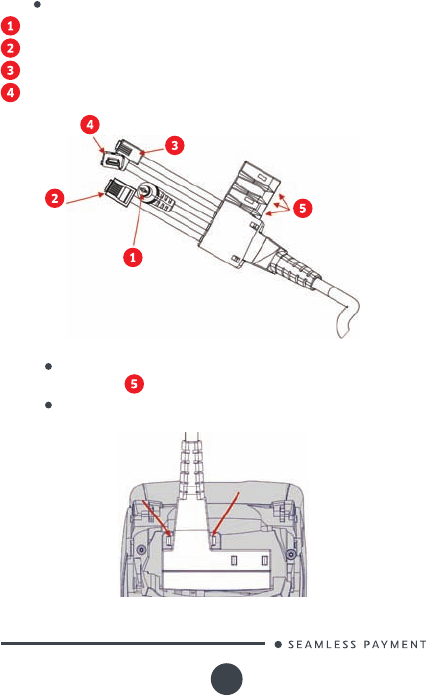

Cables to plug:
Power lead
Telephone line
Ethernet cable
Serial link RS232 cable
Install through-holes in the lead-through guides (as indicated
on the gure).
If you need extra cables then cut undesired over-molded
section at
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
19

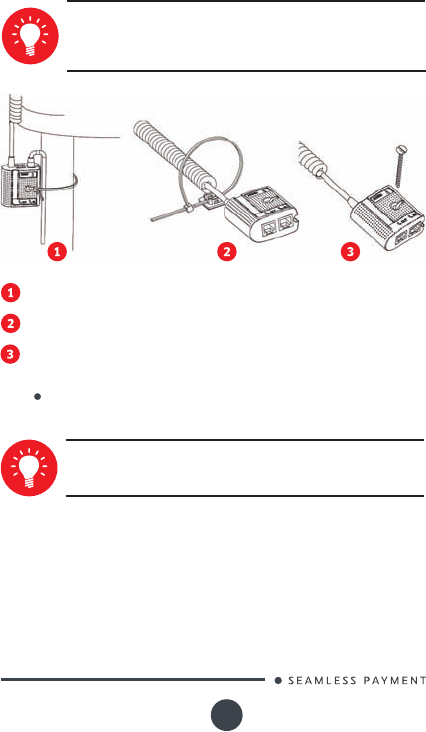

It is strongly recommended to secure the “Magic cable” to
terminal’s work area in order to reduce stress on terminal
and connection.
ADVICE
Using the supplied cable tie to attach to a table leg (or similar)
Using the supplied cable tie and self-adhesive support
Using a counter-sunk screw (not supplied) to an appropriate
surface
The “Magic Cable” should be readily accessible for terminal
maintenance and helpdesk diagnosis purposes.
The connection Magic Box can also be attached using a
VELCRO™ or other system.
NOTE:
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
20

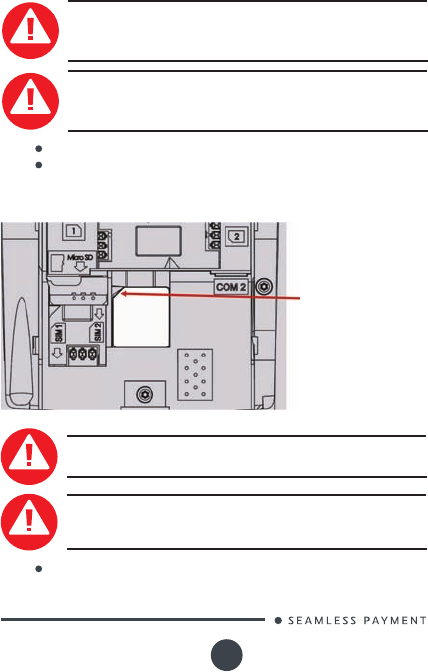

4_5 Installing SAM (Secure access
module)
CAUTION
Before starting, switch off the terminal by disconnecting the
power supply.
Perform the following operations:
Open down side trapdoor

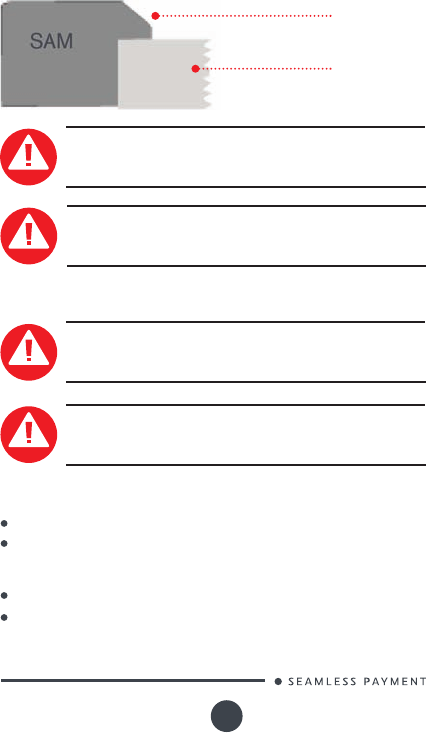

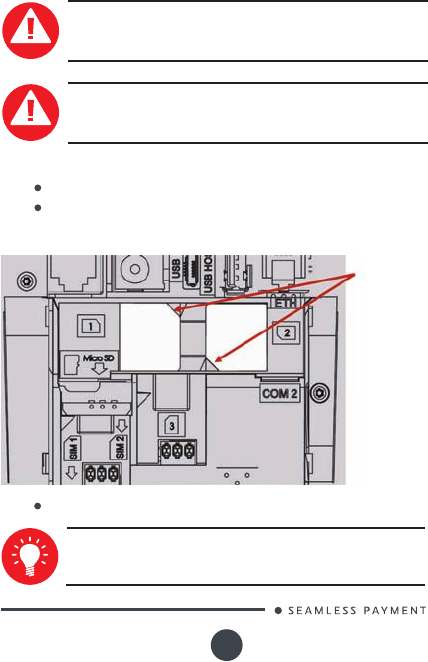

Insert the SAM Card into the slot marked (1) or (2). Take care
to ensure that the SAM Card is inserted in the correct manner.
The cut corner must be positioned as indicated on the  gure.
Cut corner
Close down side trapdoor
We suggest you to use a piece of adhesive previously
pasted on both sides of the SAM as shown here below for
easy removal
WARNHINWEIS
Bevor Sie beginnen, das Gerät auszuschalten, indem Sie das
Netz.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
21
Cut corner
Adhesive
CAUTION
Do not use any tools when installing or removing the SAM
Card.
4_6 Installing MicroSD Card (optional)
CAUTION
Before starting, switch off the terminal by disconnecting the
power supply.
WARNHINWEIS
Zum Einsetzen oder Entfernen der SAM Karte keinerlei
Werkzeug benutzen.
WARNHINWEIS
Bevor Sie beginnen, das Gerät auszuschalten, indem Sie das
Netz.
Perform the following operations:
Open down side trapdoor

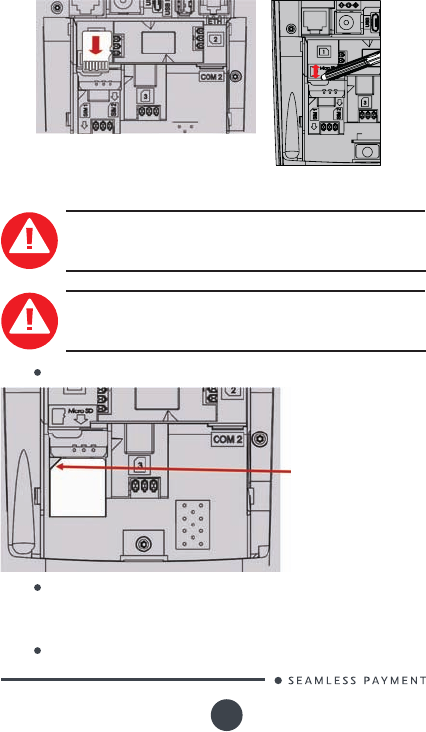

Insert completely the MicroSD Card into the slot marked (MicroSD) as
indicated on the  gure. MicroSD Card must be back side positioned
as indicated on marking.
To remove the MicroSD Card push on it with touch panel pencil.
Close down side trapdoor
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
22
4_7 Installing SIM for GPRS (optional)
CAUTION
Before starting, switch off the terminal by disconnecting the
power supply.
Open down side trapdoor
Insert the SIM GPRS into the slot marked (SIM1) as indicated on
the  gure. Take care to ensure that the SIM is inserted in the
correct manner. The cut corner must be positioned as indicated
on the  gure.
Close down side trapdoor.
WARNHINWEIS
Bevor Sie beginnen, das Gerät auszuschalten, indem Sie das
Netz.
Cut corner
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
23
Open down side trapdoor
Insert the SAM Card into the slot marked (3) as indicated on
the  gure. Take care to ensure that the SIM is inserted in the
correct manner. The cut corner must be positioned as indicated
on the  gure.
Close down side trapdoor.
Cut corner
4_8 Installing SAM3 (optional)
CAUTION
Before starting, switch off the terminal by disconnecting the
power supply.
WARNHINWEIS
Bevor Sie beginnen, das Gerät auszuschalten, indem Sie das
Netz.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
24

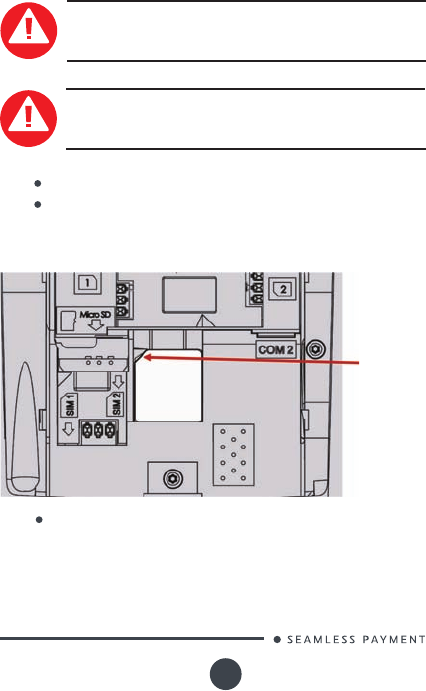

4_9 Installing 2nd SIM for GPRS
(optional)
CAUTION
Before starting, switch off the terminal by disconnecting the
power supply.
Open down side trapdoor
nsert the SIM GPRS into the slot marked (SIM2) as indicated on
the  gure. Take care to ensure that the SIM GPRS is inserted
in the correct manner. The insertion position SIM corner
(engraved on the terminal) must be located as shown on  gure.
Do not force at the insertion. Once positioned the SIM GPRS
is not fully inserted, this is normal.
Close down side trapdoor
Cut corner
WARNHINWEIS
Bevor Sie beginnen, das Gerät auszuschalten, indem Sie das
Netz.
Nicht mit Gewalt einzusetzen. Nach der Positionierung der
GPRS-SIM-Karte wird den ganzen Weg, was normal ist nicht
eingelegt.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
25
5_Installing a paper roll
Your terminal is supplied with one paper roll. When the paper roll is
nearing the end, a red line will appear on the paper; this indicates that
the paper roll must be replaced.
CAUTION
Use only paper approved by the manufacturer (diameter 40 mm).
Use of unsuitable paper is likely to damage the printer of your
terminal (see paper characteristics at “Maintenance” chapter).
Open the paper compartment by lifting the catch located at the
rear of the terminal and drag the cover to the rear.
CAUTION
Do not force the cover against the cables.
WARNHINWEIS
Nur vom Hersteller zugelassenes Papier benutzen
(Durchmesser 40 mm). Durch den Einsatz von ungeeignetem
Papier kann der Drucker des Terminals beschädigt werden
(Siehe die Papierspezi kationen in Kapitel «Wartung»).
WARNHINWEIS
Die Abdeckungen nicht gegen die Kabel drücken.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
26

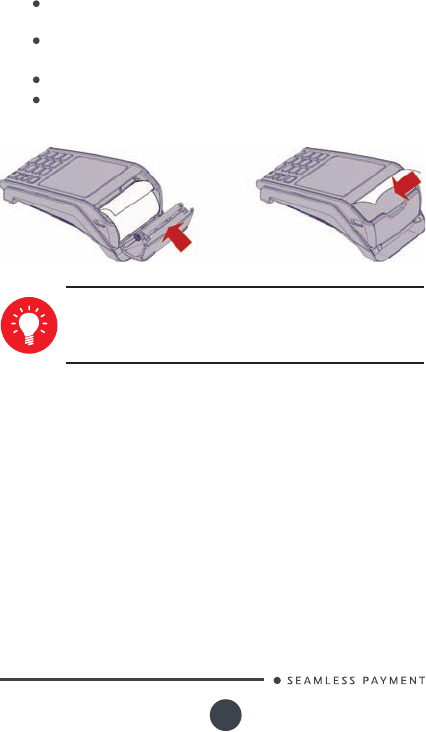

Insert the paper roll in the compartment following the
directions shown on the  gure below.
Pull the paper up to the top of the terminal and hold it in this
position.
Maintain the paper and close the lid.
Press the top of the lid in the centre as shown by arrow, until
it clips into position.
If you are inserting a new paper roll remove the  rst
complete turn (this  rst turn of sensitive surface could be
damaged during shipment).
ADVICE
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
27
6_Daily use

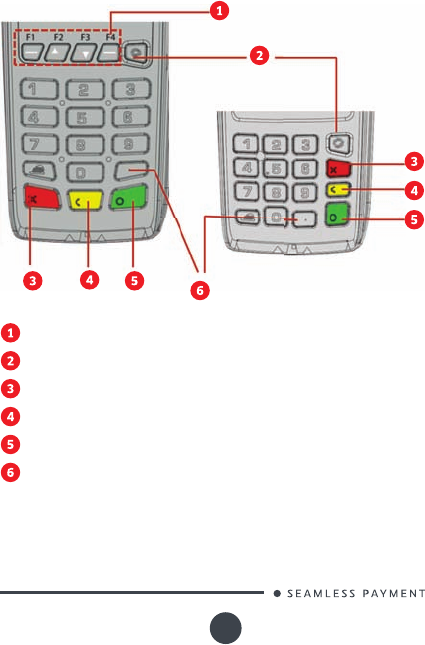

6_1 Keypad functions
NAVIGATION keys
Ingenico key
CANCEL key (red)
CLEAR key (yellow) / Feed paper (long press)
VALIDATION key (green)
Dot key
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
28
6_2 Adjusting the contrast (B&W
display only)
No contrast management for the Color display
If you wish to increase or to decrease the contrast of the characters
displayed on screen, press simultaneously on the (dot key) and
key to decrease the contrast, or the (dot key) and key to
increase it. Keep pressing the keys as long as necessary.

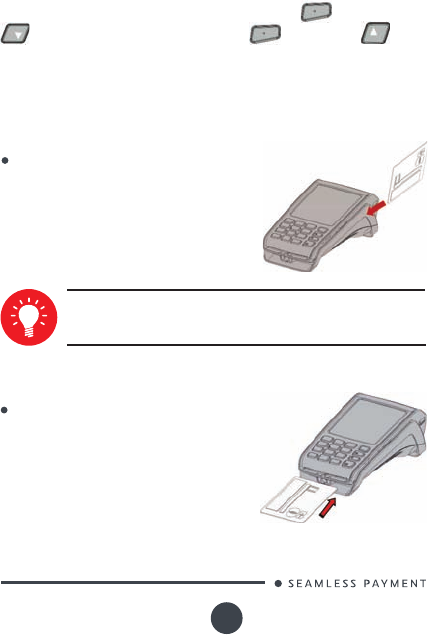

6_3 Card insertion
6_3_1 Swiping a card
Swipe the card with constant speed, not too slowly not too
fast, to maximize the reading ef ciency and avoid annoying
repetitions.
Insert the card manually in the driver,
magstripe facing the main body of the
terminal.
6_3_2 Inserting a chip card
Chip Cards should be inserted into your
terminal as illustrated with the chip facing up
and into the card reader.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
29
6_3_3 Reading Contactless (Optional)
Bring the card  rmly up to the active zone
above (at about 1cm) the contactless logo
located on paper trapdoor button.
Keep the card close to the contactless logo
during the transaction
Contactless
Active zone
Your contactless terminal provides four
contactless status lights located on display/
lens.
When a contactless transaction is started
the  rst (left hand) status light will be lit
steadily; this indicates that the contactless is
in use but a card is not being read.
When a contactless card is presented to
the contactless active zone (*) during a
transaction the second, third and fourth
status lights will be lit in turn. The card read
is successful when all four status lights are lit
and a con rmation tone can be heard.
Contactless
Status lights
(*): Contactless Symbol is a trademark owned by and used with the
permission of EMVCo, LLC.
CAUTION
Do not stick any conductive label on to contactless active
zone located on paper trapdoor button. It can decrease
seriously contactless ef ciency.
WARNHINWEIS
Keine leitende Etikett Kleben Sie nicht an kontaktlosen
aktiven Zone auf Papier Falltür-Taste be ndet. Es kann
ernsthaft kontakt Ef zienz verringern.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
30
6_3_4 Headphone output (Optional)
The headphone output jack is located under the card reader outlet.
This option is not designed to play music, but to facilitate the use by
blind people.
7_Maintenance / Wartung
CAUTION
Before making any operations of maintenance in the
terminal, make sure that the power supply is disconnected.
7_1 Paper roll
Characteristics Precisions
Colour White
58 mm
Width
Diameter 40 mm max.
The thermal paper can be deteriorated by poor storage conditions,
so we recommend you to avoid:
storage in hot wet places (near to air-conditioner, humidity
higher than 85%)
exposure to sunlight or ultraviolet for long periods
WARNHINWEIS
Bevor irgendwelche Operationen der Wartung im Terminal,
stellen Sie sicher, dass die Stromversorgung getrennt wird.
Die Kopfhörerbuchse ist unter der Chipkartenleser entfernt. Diese
Option ist nicht für die Musik zu spielen, aber nur, um die Verwendung
von blinden Menschen zu erleichtern.
contact with organic solvents (solvent type adhesive)
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
31
direct contact with «diazo» papers
direct contact with water
Rubbing or pressing the paper too strongly
CAUTION
In order to benet from the complete guarantee of the
product, use manufacturer approved thermal paper only.
WARNHINWEIS
Um in den vollen Genuss der Garantie zu kommen, darf nur
vom Hersteller zugelassenes wârmeempndliches Papier
benutzt werden.
7_2 Cleaning of the terminal
First of all, unplug all the wires from the terminal.
Good rules for proper cleaning of the terminal are:
Use a soft cloth that is very slightly soaked with soapy
water to clean the outside of the terminal. Manufacturer
wipes kit is strongly recommended (ref: 296118801).
Do not clean the electrical connections.
CAUTION
Do not use in any case, solvents, detergents or abrasive
products:
Those materials might damage the plastic or electrical
contacts.
WARNHINWEIS
In jedem Fall, verwenden Sie keine Lösungsmittel,
Reinigungsmittel oder Scheuermittel:
Diese Materialien können Kunststoff-oder elektrische
Kontakte beschädigen.
direct contact with materials containing plasticizers (PVC
transparent folders or envelopes)
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
32
Avoid exposing the terminal to the direct rays of the sun.
Do not put anything into the slot of the smart card reader
7_3 Transport and storage
Use the original packaging for any unit or stored.
Disconnect all cables from the terminal during the
transport.
7_4 Troubleshooting
The terminal does not turn on or does not connect to the telephone line
Check the power supply and telephone line cables
Check for electrical power network
The terminal fails to establish a telephone connection
Check that the tone of the phone line is free
Check the conguration of the phone line and number to
call
Get support from technical
Cards are not read
Check that the magnetic card is passed correctly (with
magstripe facing the main body of the terminal)
Swipe again the card with with constant speed, not too
slow not too fast.
Verify that the magnetic strip is not damaged, grooved or
cracked
Make sure you have inserted correctly the smart card into
the smart card reader and removed the card only after the
transaction
The ticket is not printed
Check the presence and proper positioning of the paper
roll. Possibly adjust the paper roll following instructions
present in this manual
Check the type of paper used (thermal paper must be used)
Verify thermal paper sensitive side.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
33

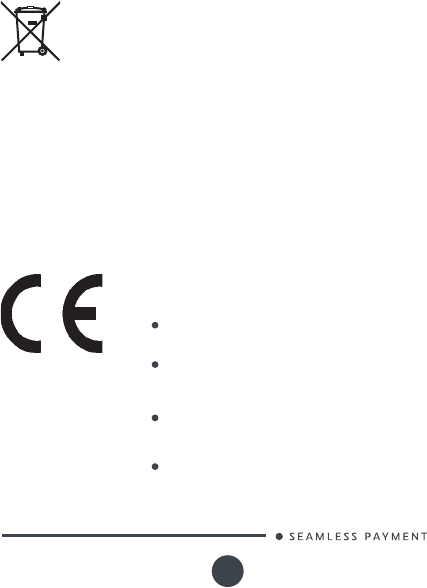

7_5 Environment (WEEE, Batteries
and Packaging)
This product is labeled in accordance with European Directives
2002/96/EC concerning Waste Electrical and Electronic Equipment
(WEEE) and 2006/66/EC concerning Batteries and Accumulators. Those
provisions are requiring producers and manufacturers to become liable
for take-back, treatment and recycling upon end of life of equipment
and batteries.
The associated symbol means that WEEE and waste
batteries must not be thrown away but collected
separately and recycled.
Ingenico ensures that efcient collection and recycling schemes are
set-up for WEEE and batteries according to the local regulation of your
country. Please contact your retailers for more detailed information
about the compliance solution in place for disposing of your old
product and used batteries.
Packaging waste must also be collected separately to assure a proper
disposal and recycling.
Please note that proper recycling of the electrical and electronic
equipment and waste batteries will ensure safety of human health and
environment
8_Markings
The CE marking indicates terminal complies with
harmonized standards and requirements of
European Directives on:
Radio and Telecommunications Terminal
Equipment (R&TTE)
RoHS (Restriction of Hazardous Substances)
der europäischen Richtlinie über Funkanlagen
und Telekommunikationsendeinrichtungen
(R&TTE).
der europäischen Richtlinie über die
Beschränkung der Verwendung bestimmter
gefährlicher Stoffe (RoHS).
Dieses Produkt, mit der CE-Kennzeichnung ,
entspricht:
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
34

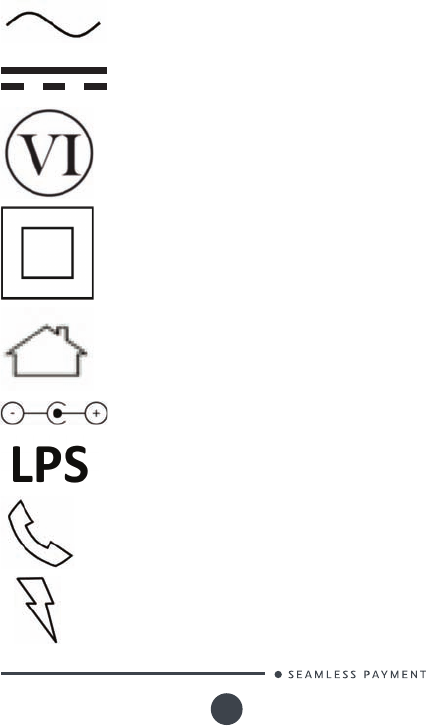

This marking indicates that the product operates
with an alternating current (AC) source (mains). It is
completed by afferent values (voltage, frequency
and max current).
This marking indicates that your terminal is
suitable for direct current (DC) only. It is completed
by afferent values (voltage, and max current).
Marking for Class II product. Such product does not
require a safety connection to electrical earth.
For Indoor use only.
Output plug is Positive (+) and the barrel (ring) of
the output plug is Negative (-)
This marking indicates power supply meets limited
power source safety requirements.
This marking is apposed on to connector for
telephone line connection.
This marking is apposed on to connector for power
supply output cable connection.
This marking indicates power supply meets the
energy ef ciency level VI requirements.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
35
8_1 FCC/IC Compliance
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct interference by one or more of the
following measures :
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Model Name
Model : DESK/5000
Eth/Mod
FCC ID IC NUMBER
Model : DESK/5000
CL/Eth/Mod
Product : DESK/5000
CL/Eth/Mod/Wi/BT
Product : DESK/3200
CL/Eth/Mod
Product : DESK/3500
CL/Eth/Mod
FCC ID : XKB-D5000M00
FCC ID : XKB-D5000M01
FCC ID : XKB-D5000
CLWIBT
FCC ID : XKB-D3200CL
FCC ID : XKB-D3500CL
IC : 2586D-D5000
M00
IC : 2586D-D5000
M01
IC : 2586D-D5000
CLWIBT
IC : 2586D-D3200
CL
IC : 2586D-D3500
CL
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
36
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may
only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and
its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
Conforment à la réglementation d’Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d’un type et
d’un gain maximal (ou inférieur) approuvé pour l’émetteur par
Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l’intention des autres utilisateurs, il faut
choisir le type d’antenne et son gain de sorte que la puissance
isotrope rayone équivalente (p.i.r.e.) ne dépasse pas l’intensi
cessaire à l’établissement d’une communication satisfaisante.
This device complies with FCC and ISED radiation exposure
limits set forth for general population (uncontrolled exposure)
in accordance with FCC rule part §2.1093, KDB447498 D01 and
RSS-102 Issue 5 for portable use conditions.
This device has been tested according to the RF exposure
guidelines for typical hand-held operation in direct contact (0
cm distance) to the user’s hands and must not be collocated or
operating in conjunction with any other antenna or transmitter.
Cases with metal parts may change the RF performance of the
device, including its compliance with RF exposure guidelines, in a
manner that has not been tested or certied.
Use of this device with an accessory in order to be worn and
operated on user’s body is strictly prohibited and will invalidate
the certications obtained for FCC and ISED.
This device complies with Part 15 of the FCC Rules and Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions:
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
37
No changes shall be made to the equipment without the
permission of Ingenico as this may void the user’s authority to
operate the equipment.
Cet appareil dans un mode portable de fonctionnement est
conforme aux limites d’exposition RF générales des personnes
dénies par FCC et ISED suivant les règles FCC part §2.1093 et
KDB447498 D01 et RSS-102 Issue 5.
Cet appareil a été testé selon les directives d’exposition RF pour
une utilisation tenue en main typique en contact direct (0cm de
distance) aux mains de l’utilisateur et ne doit pas être co-localisé
ou utilisé en conjonction avec d’autres émetteurs.
L’utilisation de cet appareil avec un accessoire dans le but d’être
porté et utilisé sur le corps de l’utilisateur est strictement prohibé
et invalidera les certications FCC et ISED obtenues.
La limite DAS adoptée par les USA et le Canada est de 4,0 W/
kg en moyenne sur 10 grammes de tissu. La valeur DAS la plus
élevée signalée à la FCC et l’ISED pour ce type d’appareil est
conforme à cette limite.
Tout changement apporté à ce terminal non expressément
approuvé par Ingenico est susceptible d’annuler le droit de
l’utilisateur à se servir de cet équipement.
The SAR limit adopted by USA and Canada is 4.0 W/kg averaged
over 10 gram of tissue. The highest SAR value reported to FCC
and ISED for this device complies with this limit.
Le présent appareil est conforme aux spécications techniques
applicables d’Innovation, Sciences et Développement
économique Canada. L’indice d’équivalence de la sonnerie (IES)
sert à indiquer le nombre maximal de dispositifs qui peuvent être
raccordés à une interface téléphonique. La terminaison d’une
interface peut consister en une combinaison quelconque de
dispositifs, à la seule condition que la somme des IES de tous les
dispositifs n’excède pas cinq. L’IES pour cet appareil est de 0.1.
This product meets the applicable Innovation, Science and
Economic Development Canada technical specications. The
Ringer Equivalence Number (REN) indicates the maximum
number of devices allowed to be connected to a telephone
interface. The termination of an interface may consist of any
combination of devices subject only to the requirement that the
sum of the RENs of all the devices not exceed ve. REN for this
device is 0.1.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
38
Part 68 of FCC Rules
Model Name
Model : DESK/5000 Eth/Mod
US MODEM
Model : DESK/5000 CL/Eth/Mod
Product : DESK/5000 CL/Eth/Mod/
Wi/BT
Product : DESK/3200 CL/Eth/Mod
Product : DESK/3500 CL/Eth/Mod
US : IEOMM01BD5000M00
US : IEOMM01BD5000M01
US : IEOMM01BD5000M01
US : IEOMM01BD3200CL
US : IEOMM01BD3500CL
The device for operation in the band 5150–5250 MHz is only for
indoor use to reduce the potential for harmful interference to co-
channel mobile satellite systems. In addition, high-power radars
are allocated as primary users (i.e. priority users) of the bands
5250–5350 MHz and 5650–5850 MHz and that these radars
could cause interference and/or damage to LE-LAN devices.
Les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz
sont réservés uniquement pour une utilisation à l’intérieur an
de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux.
D’autre part, les utilisateurs de radars de haute puissance sont
signés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) des
bandes de 5250 à 5350 MHz et de 5650 à 5850 MHz et, d’autre
part, que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs de RL-EL.
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
39
If your home has specially wired alarm equipment connected to the
telephone line, ensure the installation of this equipment does not
disable your alarm equipment. If you have questions about what
will disable alarm equipment, consult your telephone company or a
qualied installer.
U.S.A service center:
Ingenico North America
3025 Windward Plaza, suite 600
Alpharetta, GA 30005
USA
This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the bottom of this equipment
is a label that contains, among other information, a product identier
in the format US : AAAEQ##TXXXX. If requested, this number must be
provided to the telephone company.
This equipment uses the following USOC jacks : (RJ11C).
A plug and jack used to connect this equipment to the premises wiring
and telephone network must comply with the applicable FCC Part 68
rules and requirements adopted by the ACTA. A compliant telephone
cord and modular plug is provided with this product. It is designed to
be connected to a compatible modular jack that is also compliant. See
installation instructions for details.
The REN is used to determine the number of devices that may be
connected to a telephone line. Excessive RENs on a telephone line may
result in the devices not ringing in response to an incoming call. In most
but not all areas, the sum of RENs should not exceed ve (5.0). To be
certain of the number of devices that may be connected to a line, as
determined by the total RENs, contact the local telephone company.
If this equipment causes harm to the telephone network, the telephone
company will notify you in advance that temporary discontinuance
of service may be required. If advance notice is not practical, the
telephone company will notify the customer as soon as possible.
Also, you will be advised of your right to le a complaint with the FCC
if you believe it is necessary.
The telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the operation of this
equipment. If this happens, the telephone company will provide
advance notice in order for you to make the necessary modications to
maintain uninterrupted service.
If trouble is experienced with this equipment, please contact INGENICO,
or your local INGENICO distributor or service center in the U.S.A. for
repair and/or warrant information.
Tel: +1(678) 456 1200
Fax: +1 (678) 456 1201
Email: info.us@ingenico.com
Desk Series
900024281 R11 000 07/0217
Copyright© 2017 Ingenico
All rights reserved
www.ingenico.com
28-32, boulevard de Grenelle, 75015 Paris - France / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35
Ingenico - SA au capital de 47 656 332 / 317 218 758 RCS Nanterre
40
This Document is Copyright © 2017 by INGENICO Group. INGENICO
retains full copyright ownership, rights and protection in all material
contained in this document. The recipient can receive this document
on the condition that he will keep the document condential and will
not use its contents in any form or by any means, except as agreed
beforehand, without the prior written permission of INGENICO.
Moreover, nobody is authorized to place this document at the disposal
of any third party without the prior written permission of INGENICO.
If such permission is granted, it will be subject to the condition that
the recipient ensures that any other recipient of this document, or
information contained therein, is held responsible to INGENICO for the
condentiality of that information.
Care has been taken to ensure that the content of this document is
as accurate as possible. INGENICO however declines any responsibility
for inaccurate, incomplete or outdated information. The contents of
this document may change from time to time without prior notice, and
do not create, specify, modify or replace any new or prior contractual
obligations agreed upon in writing between INGENICO and the user.
INGENICO is not responsible for any use of this device, which would be
non-consistent with the present document.
All trademarks used in this document remain the property of their
rightful owners.”
Your contact

Navigation menu
