Ingenico – 28-32 Boulevard de Grenelle - 75015 PARIS

Tél. 33(0)1 58 01 80 00 - Fax 33 (0)1 58 01 91 35

Ingenico Unattended Product

iUI120

I n t é g r a t i o n G u i d e

The scope of this document is to assist third party integrators when dealing with

iUI120 Ingenico Unattended product. It offers all information needed for a successful

integration of iUI120 product into unattended kiosk machines.

For any sales information please refer to your Ingenico contact into the region.

Updates table

Version Date Nature of modifications Author Visa

0.1 06/02/2014 First Draft R Allirot

E.Dubois

0.1 15/04/14 Update IC and FCC number O.Fabregoule

Table of contents

1 GENERAL ............................................................................................................. 6

1.1 Definition of acronyms ..................................................................................... 6

1.2 iUI120 payment solution presentation ............................................................ 7

1.2.1

Diagram of iUI120 connectivity and communications .............................................. 8

1.2.2

Services ................................................................................................................. 9

1.3 Description of iUI120 product ........................................................................ 10

1.3.1

iUI120 product views ............................................................................................ 10

1.3.2

iUI120 Technical Hardware characteristics ........................................................... 11

1.3.3

iUI120 output connectors description .................................................................... 13

1.3.3.1 Ethernet ................................................................................................ 15

1.3.3.2 USB device ........................................................................................... 15

1.3.3.3 USB host ............................................................................................... 15

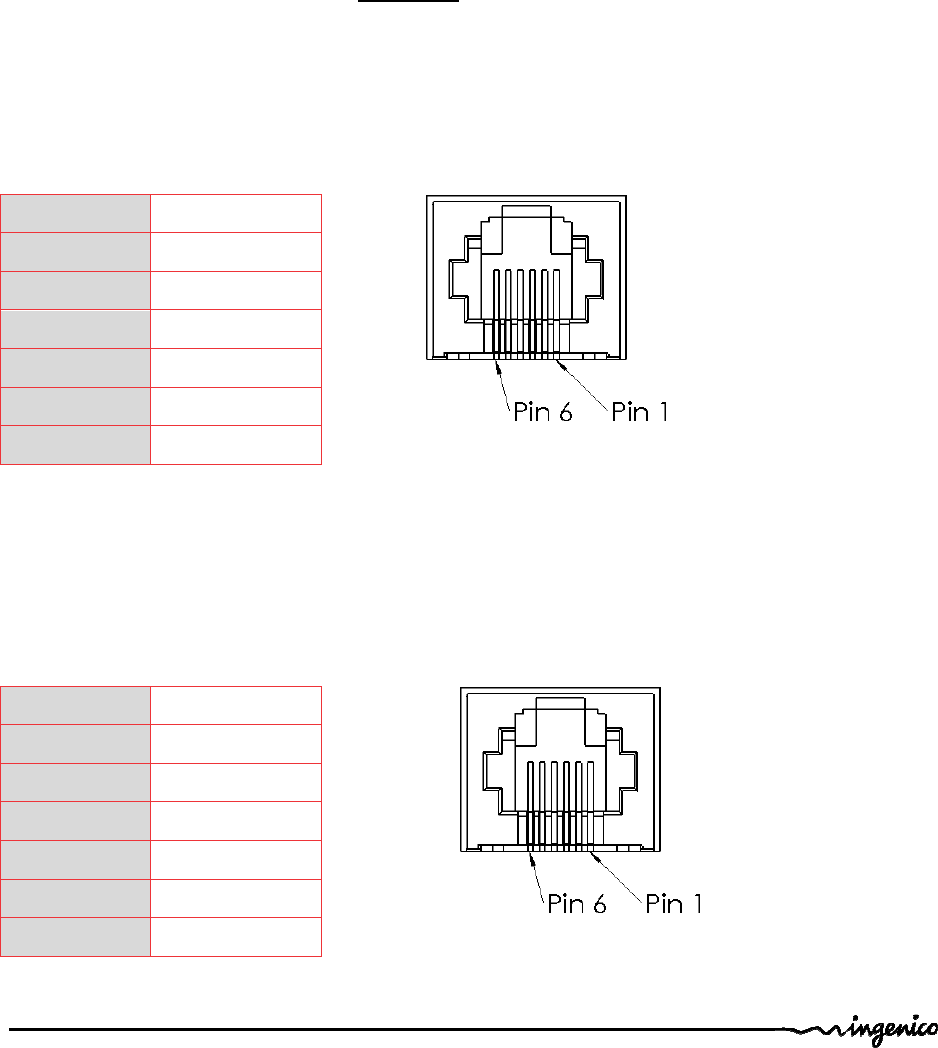

1.3.3.4 COM0 link ............................................................................................. 15

1.3.3.5 COM2 link (optional) ............................................................................. 15

1.3.3.6 MDB Slave ............................................................................................ 16

1.3.3.7 MDB master (optional) .......................................................................... 16

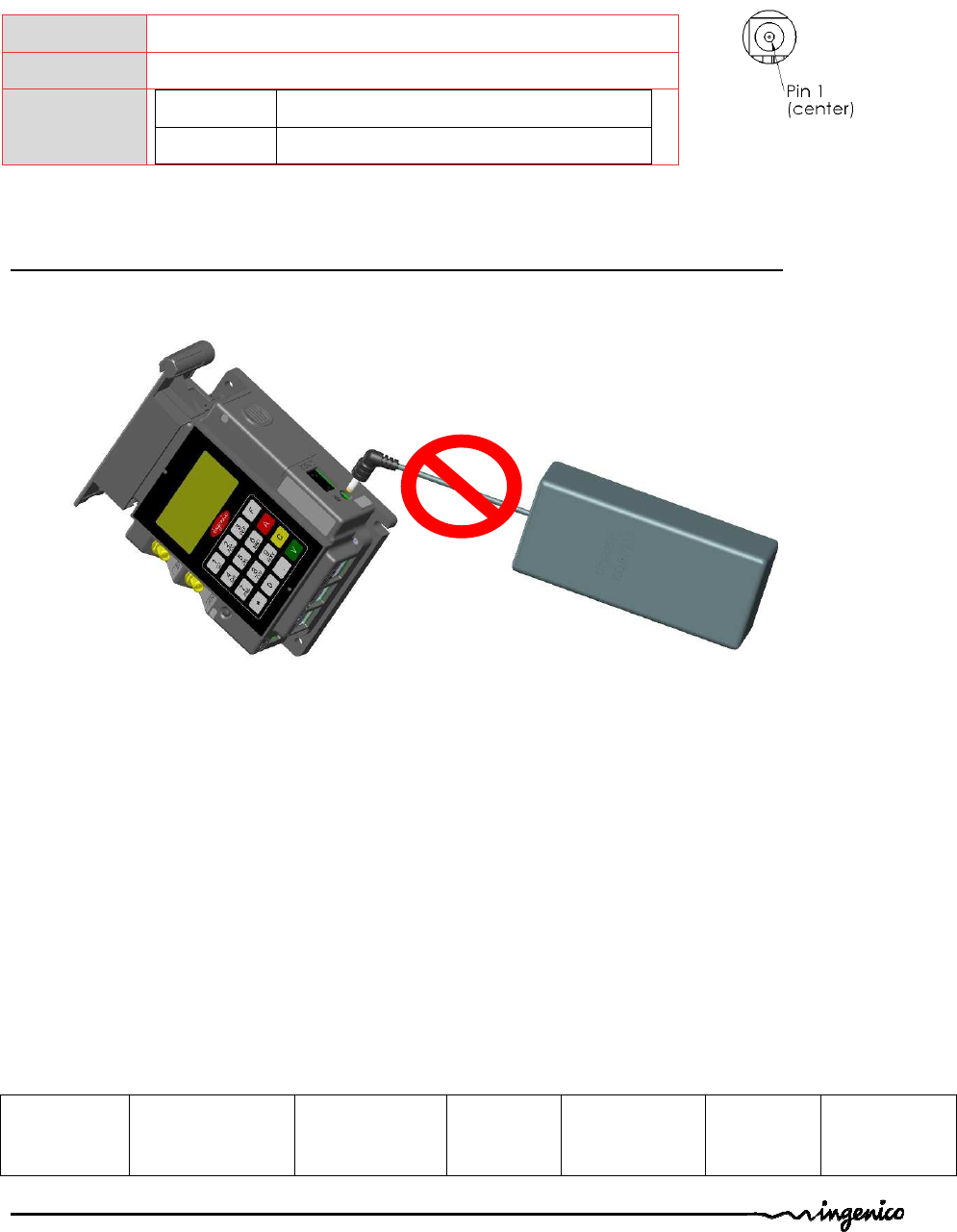

1.3.3.8 Wake-Up Jack ...................................................................................... 17

1.3.3.9 Bluetooth (optional) ............................................................................... 17

1.3.3.10 GPRS (optional) .................................................................................. 18

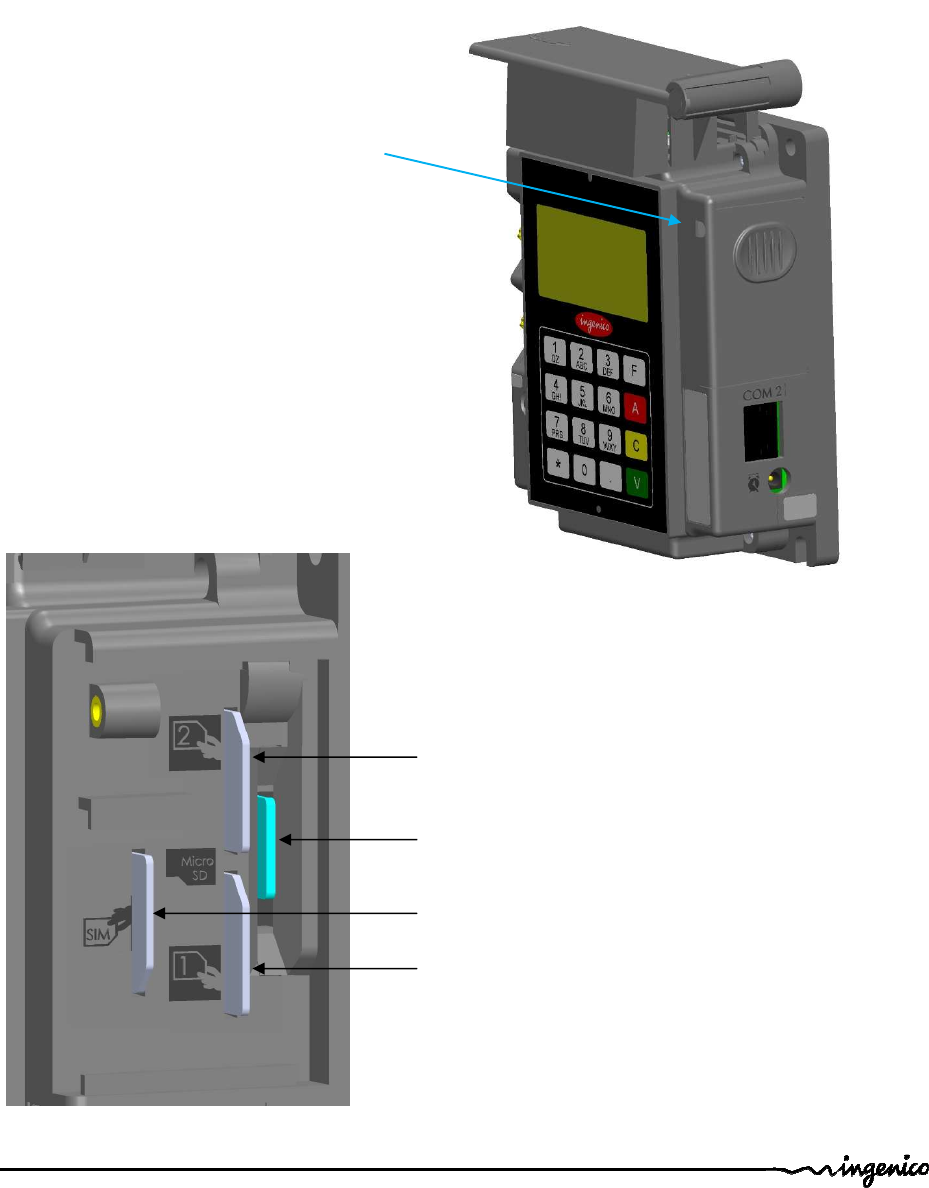

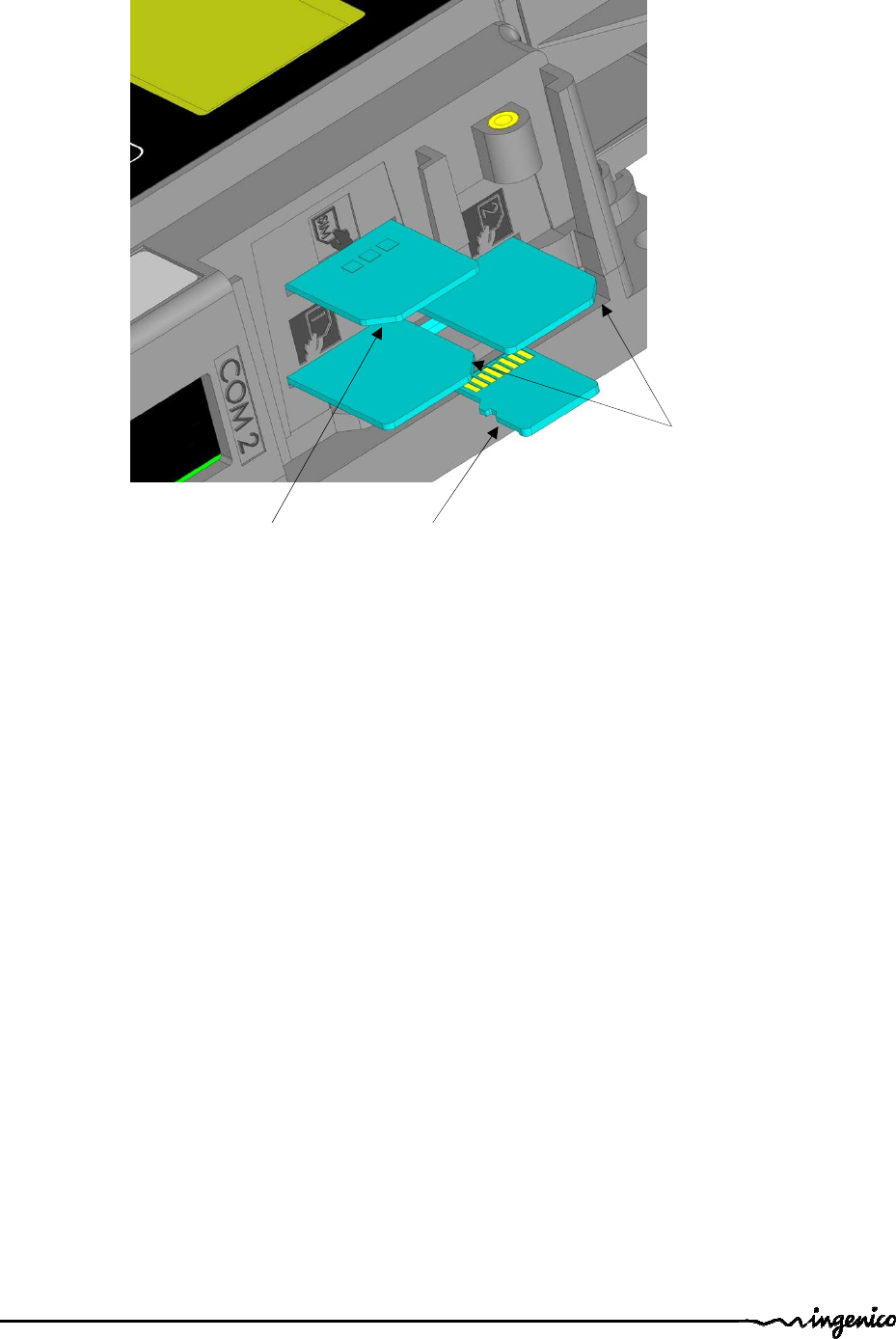

1.3.3.11 SAM & µSD Installation ....................................................................... 19

1.3.3.12 Buzzer ................................................................................................. 20

1.3.3.13 Display ................................................................................................ 20

1.3.3.14 Maintenance Button and LED ............................................................. 20

1.3.3.15 iUI 120 Keypad .................................................................................... 21

1.3.3.16 Cable Protection .................................................................................. 22

1.3.3.17 Antenna Installation ............................................................................. 23

1.4 Professional installation Requirement ......................................................... 24

1.5 Wake-UP function a revoir ............................................................................. 25

1.5.1

Wake-up mechanism iUI120 unit .......................................................................... 25

1.5.2

Recommended circuit implementation .................................................................. 26

1.5.3

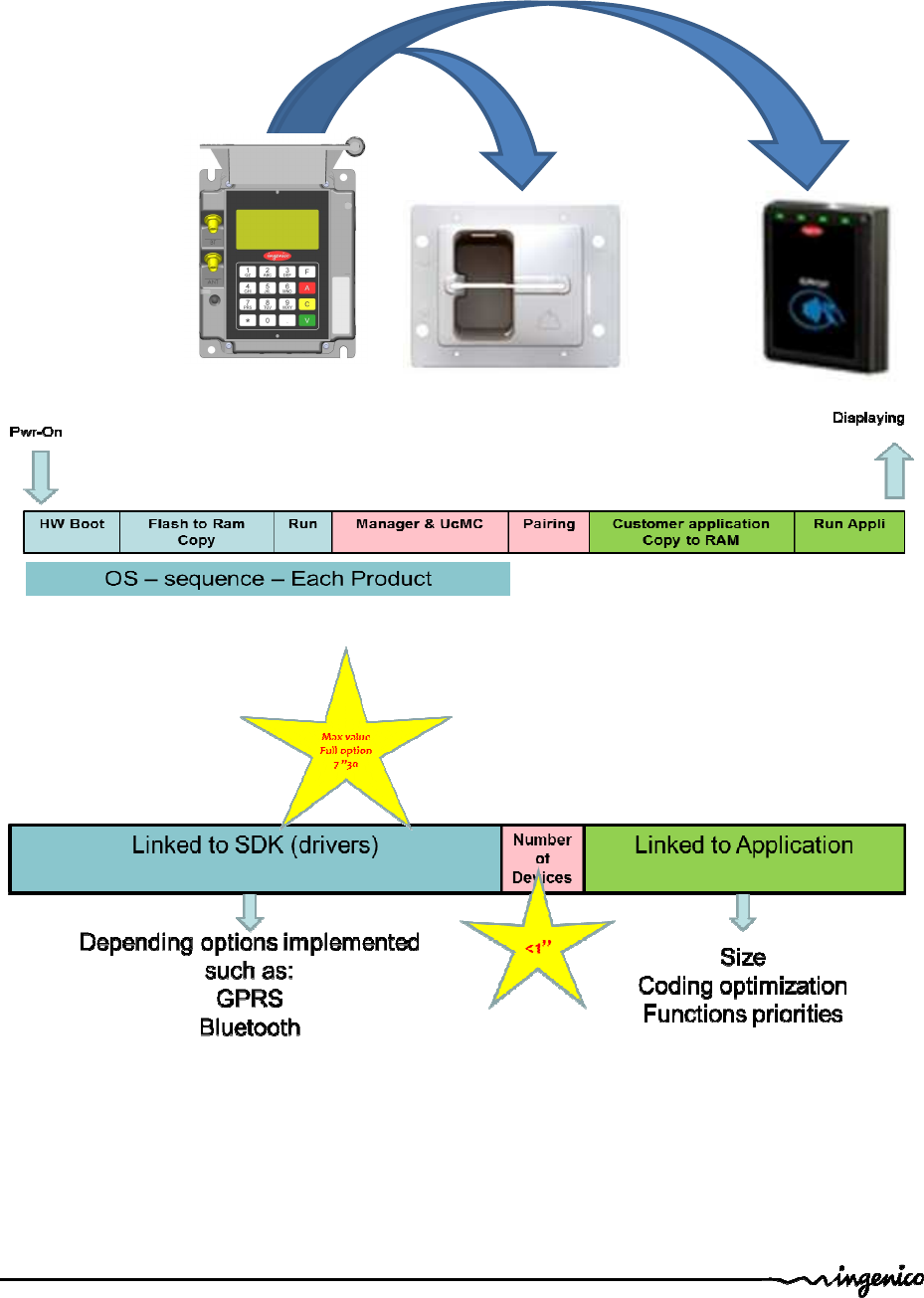

Power-On sequence iUI120/iUR250/iUC150 ........................................................ 27

2 MAIN ACCESSORIES ........................................................................................ 28

2.1.1

Generality ............................................................................................................. 28

2.1.2

Optional USB cable .............................................................................................. 28

2.1.3

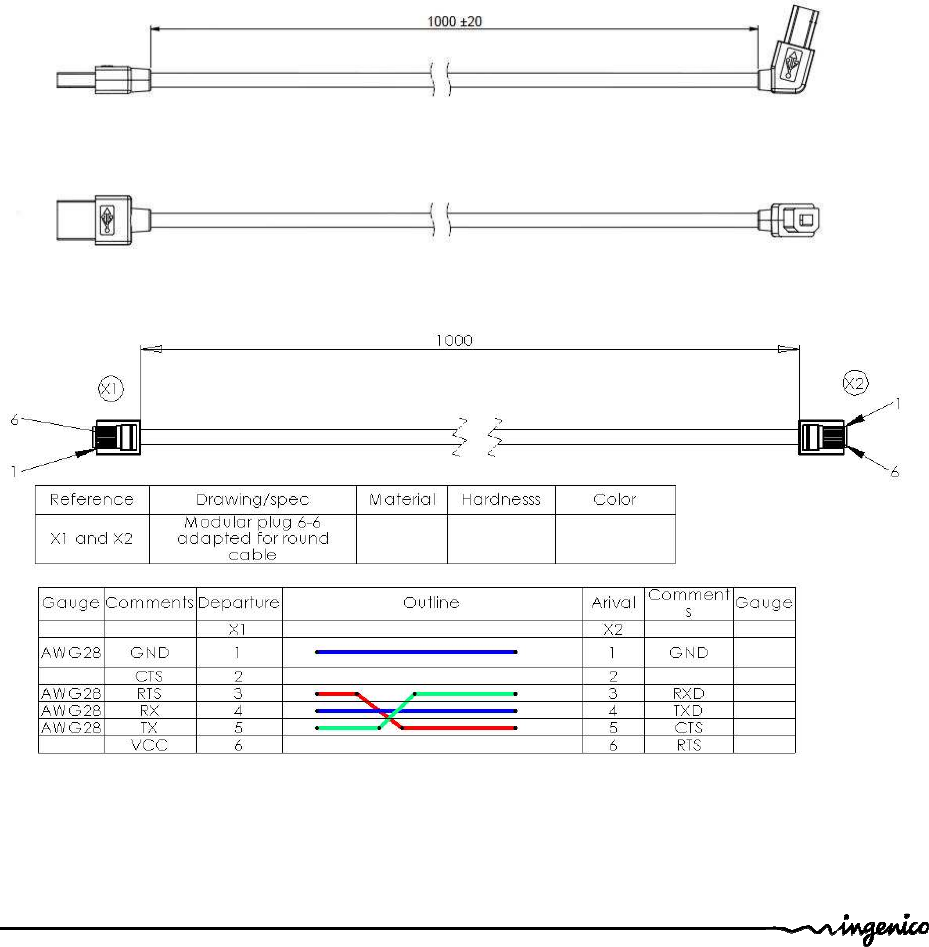

Serial cable .......................................................................................................... 28

2.1.4

LLT cable ............................................................................................................. 29

2.1.5

Stand-by management cables .............................................................................. 30

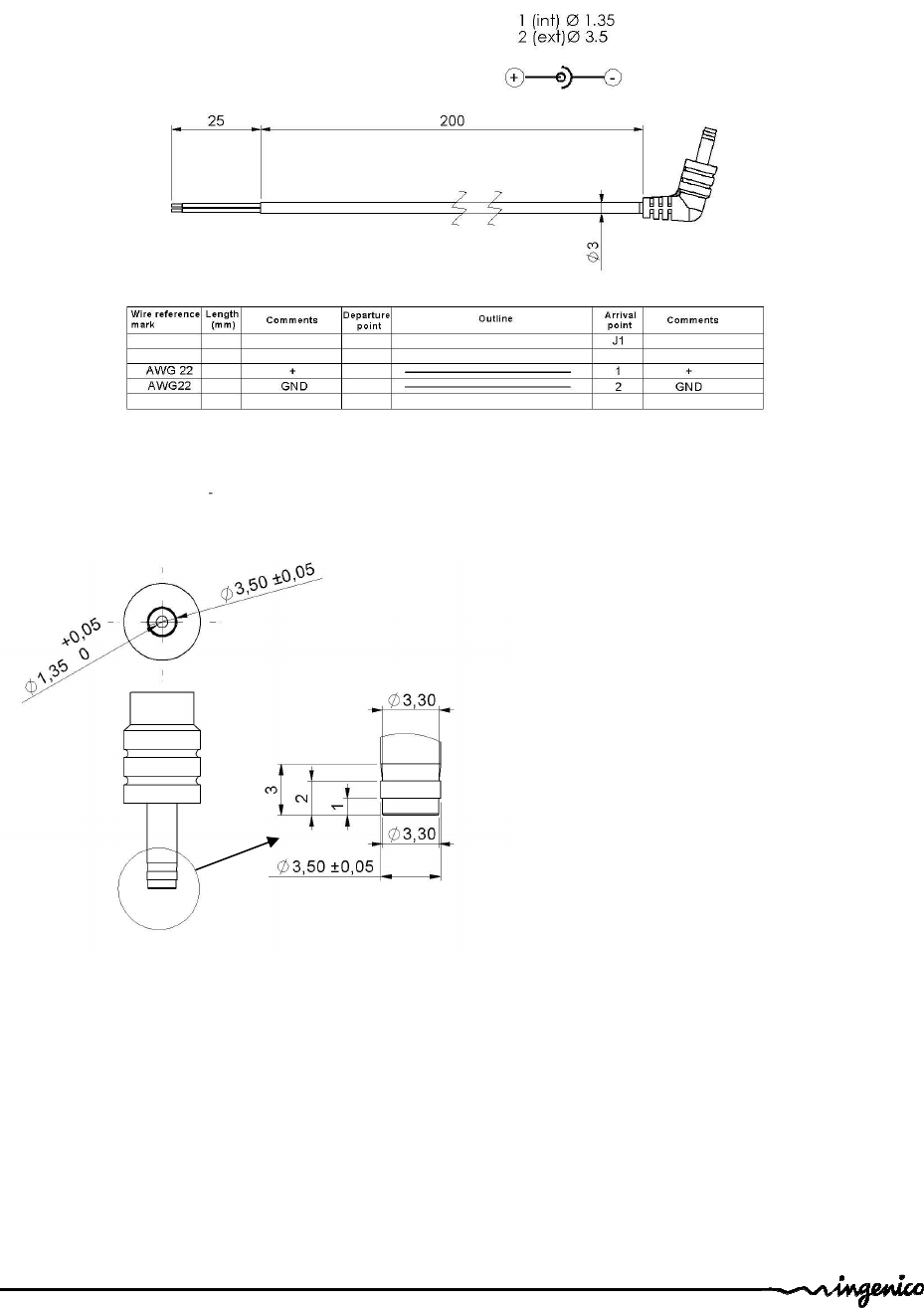

2.1.5.1 Jack connector ...................................................................................... 30

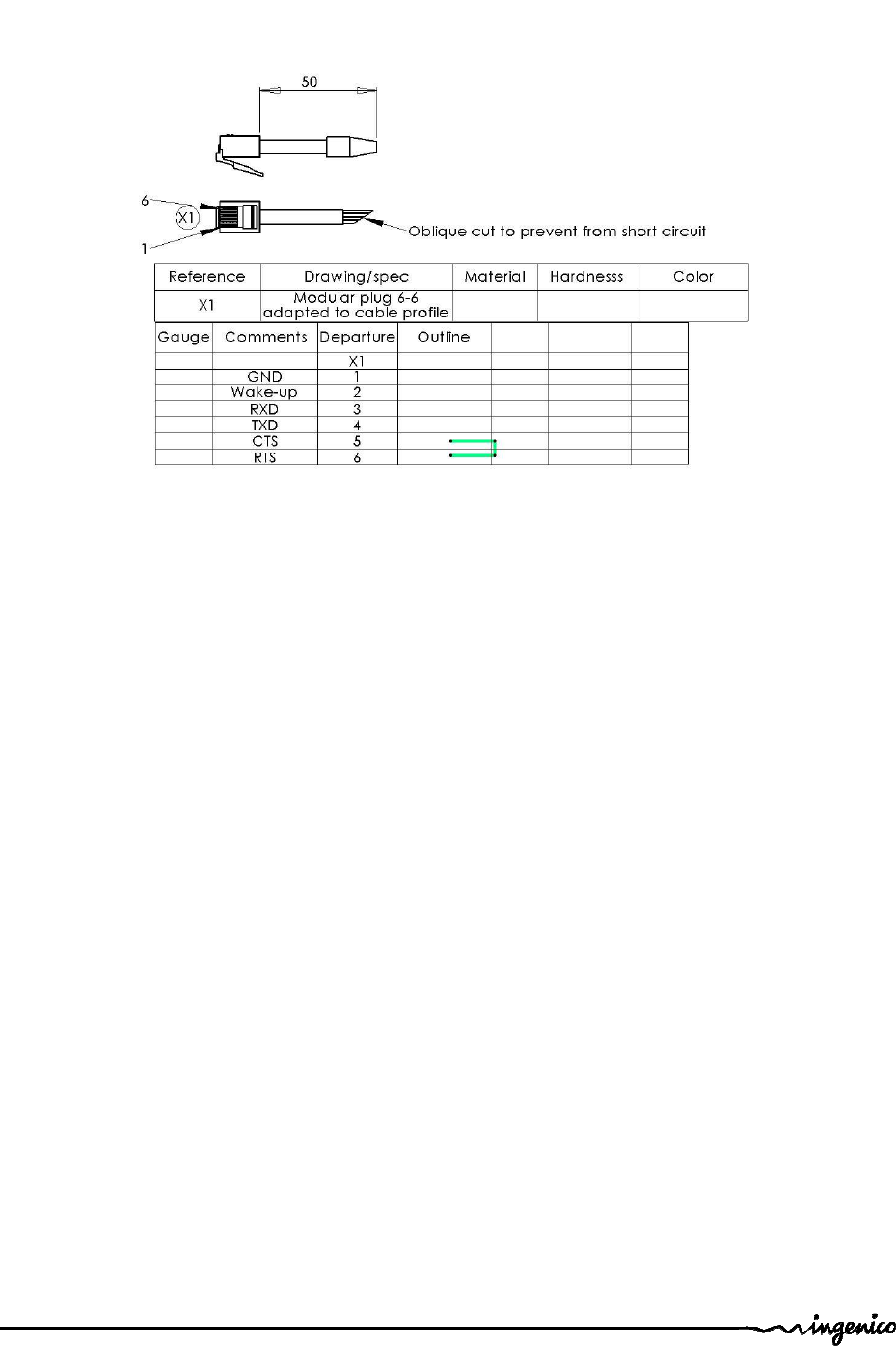

2.1.5.2 COM0 and COM2 ................................................................................. 30

3 IUI120 SOFTWARE ............................................................................................. 31

3.1.1

Software Architecture ........................................................................................... 32

3.1.2

Secure management of software .......................................................................... 33

3.1.3

Operating system ................................................................................................. 34

3.1.4

TELIUM MANAGER ............................................................................................. 35

3.1.5

Software downloading .......................................................................................... 37

3.1.6

Development station ............................................................................................. 40

4 TERMINAL MANAGEMENT SYSTEM ............................................................... 42

4.1 Introduction ..................................................................................................... 42

4.2 Basic functions ............................................................................................... 42

4.3 Advanced functions ....................................................................................... 42

4.4 Customers savings with Ingenico TMS solution ......................................... 42

5 INSTALLATION PROCEDURE IN KIOSKS ....................................................... 43

5.1 Security requirement iUI120 .......................................................................... 43

5.2 Kiosk mechanical requirements ............................... Erreur ! Signet non défini.

5.3 General installation recommendations ......................................................... 44

6 ASSEMBLY PROCEDURE FOR IUI120 ............................................................. 45

6.1 Kiosk minimum volume for iUI 120 ............................................................... 45

6.1.1

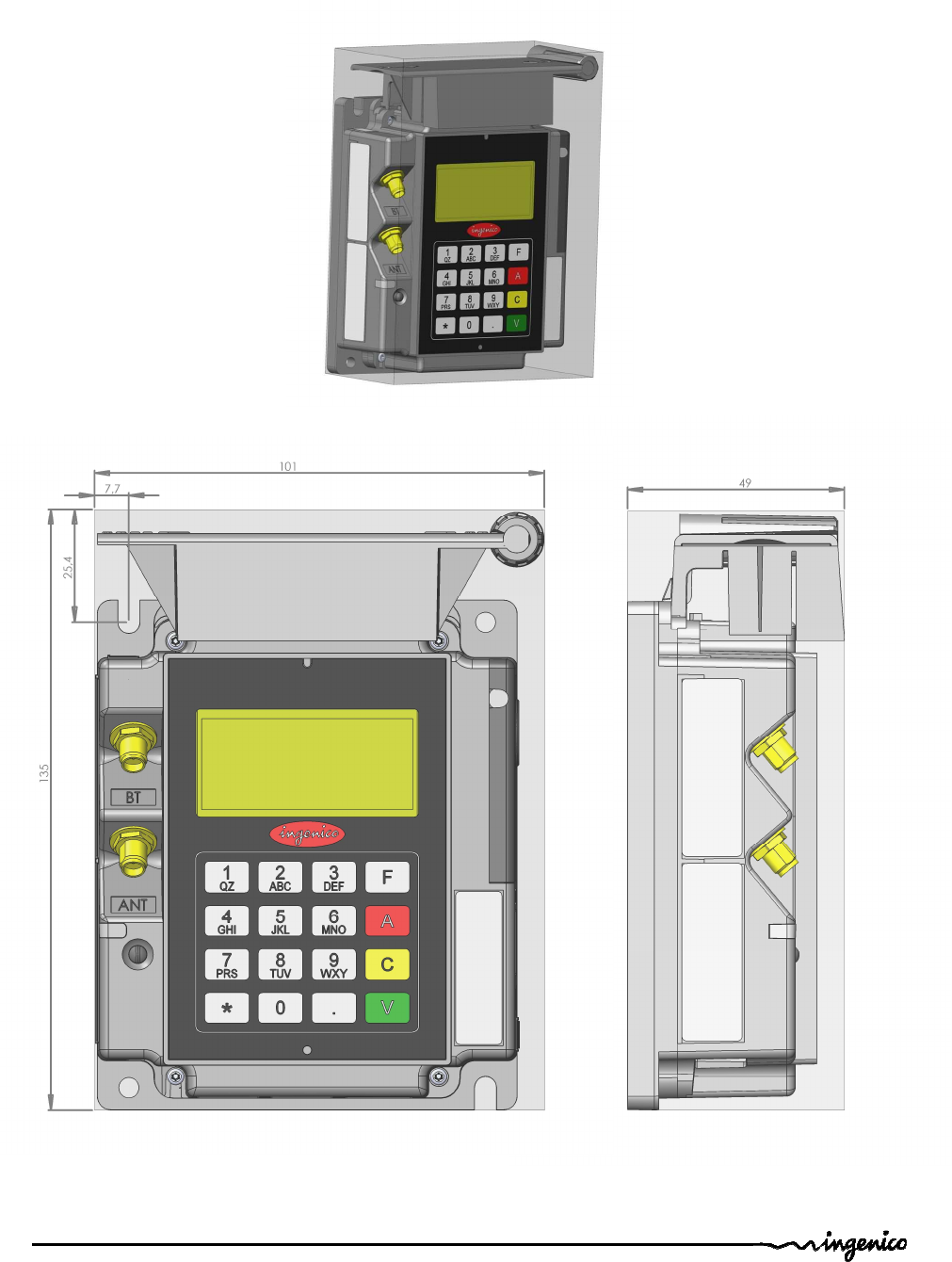

Volume for iUI 120 without cable gasket ............................................................... 45

6.1.2

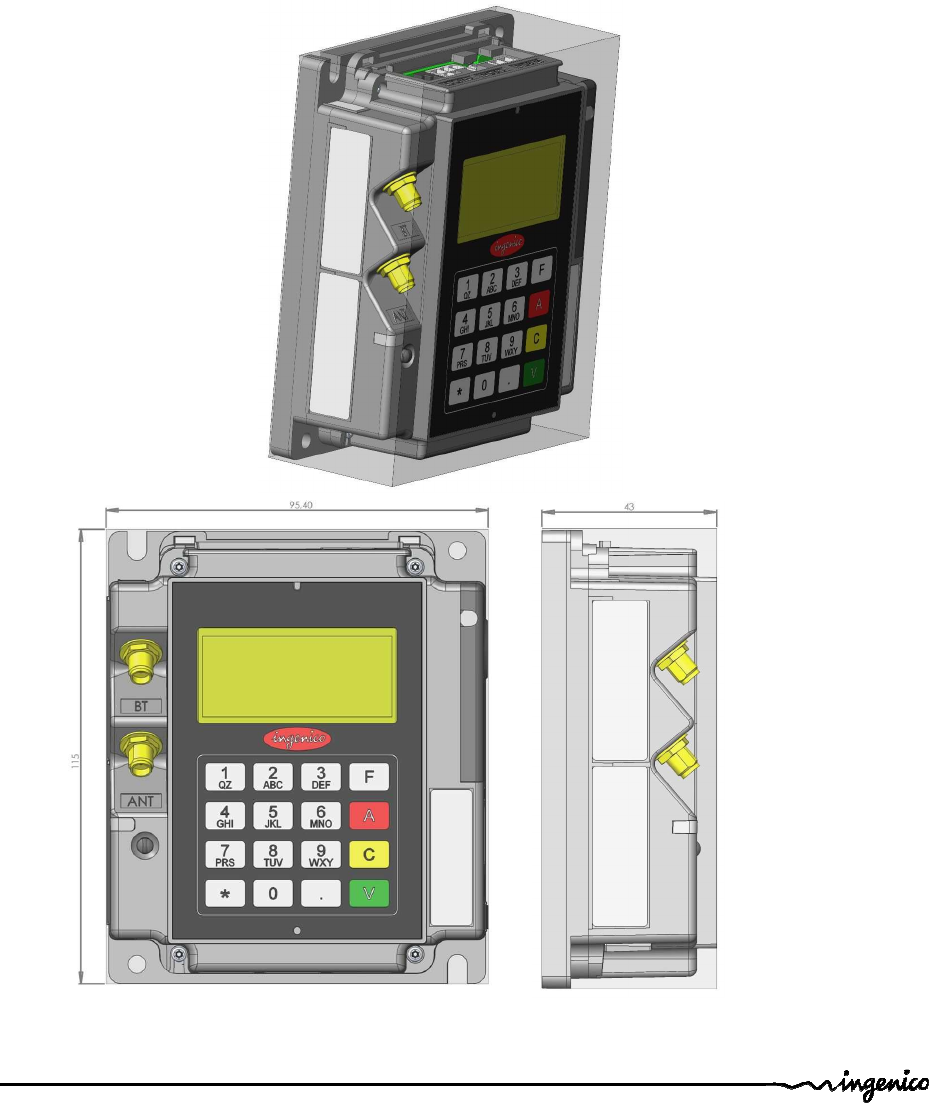

Volume for iUI 120 with cable gasket .................................................................... 46

Kiosk preparation for iUI120 new installation ....................................................... 47

6.1 Installing the iUI120 in new kiosk .................................................................. 48

6.1.1

Left horizontal on a shelve inside the kiosk ........................................................... 48

6.1.2

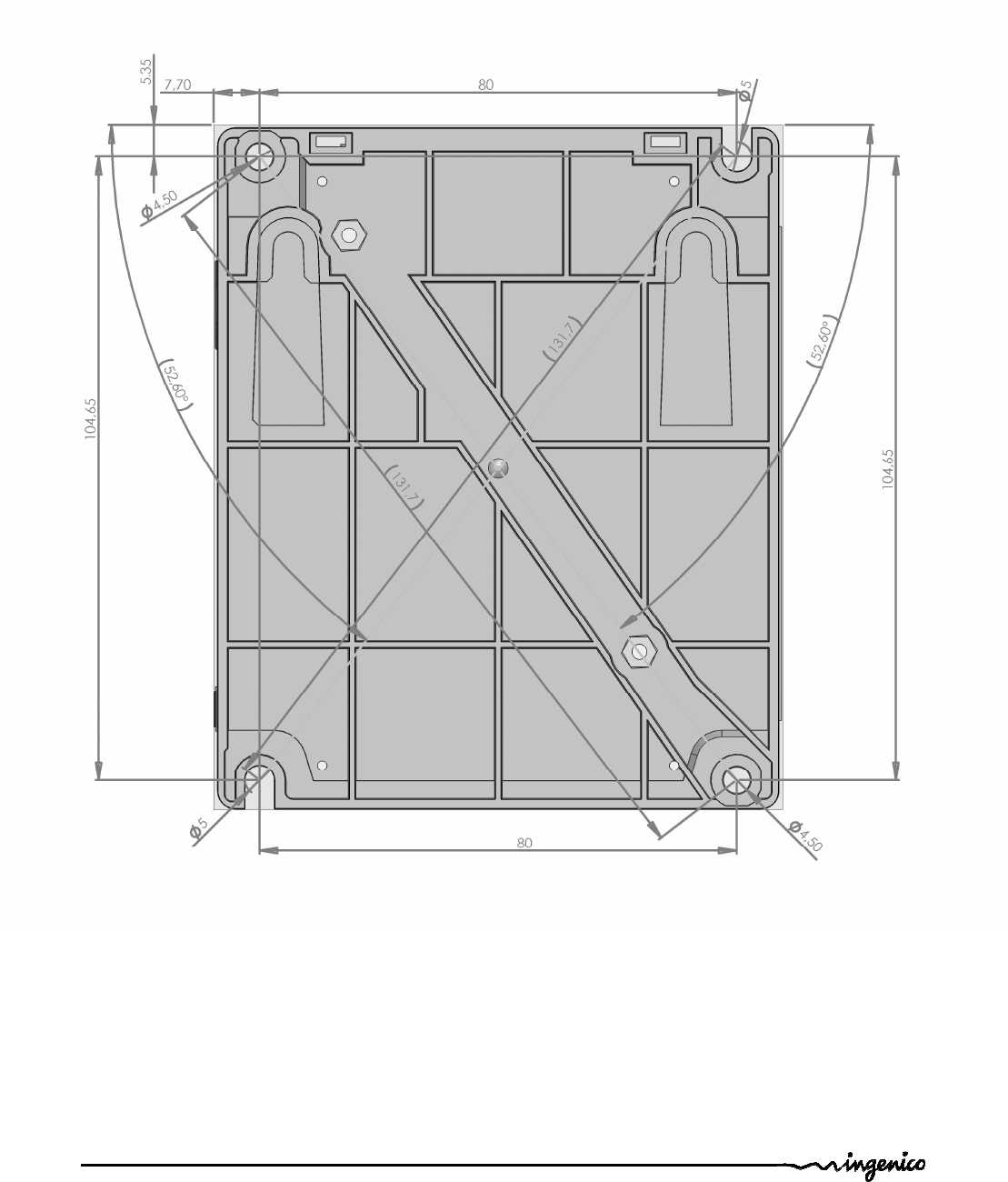

Mounted vertically on a support using EVA standard recommendation ................ 48

6.1.3

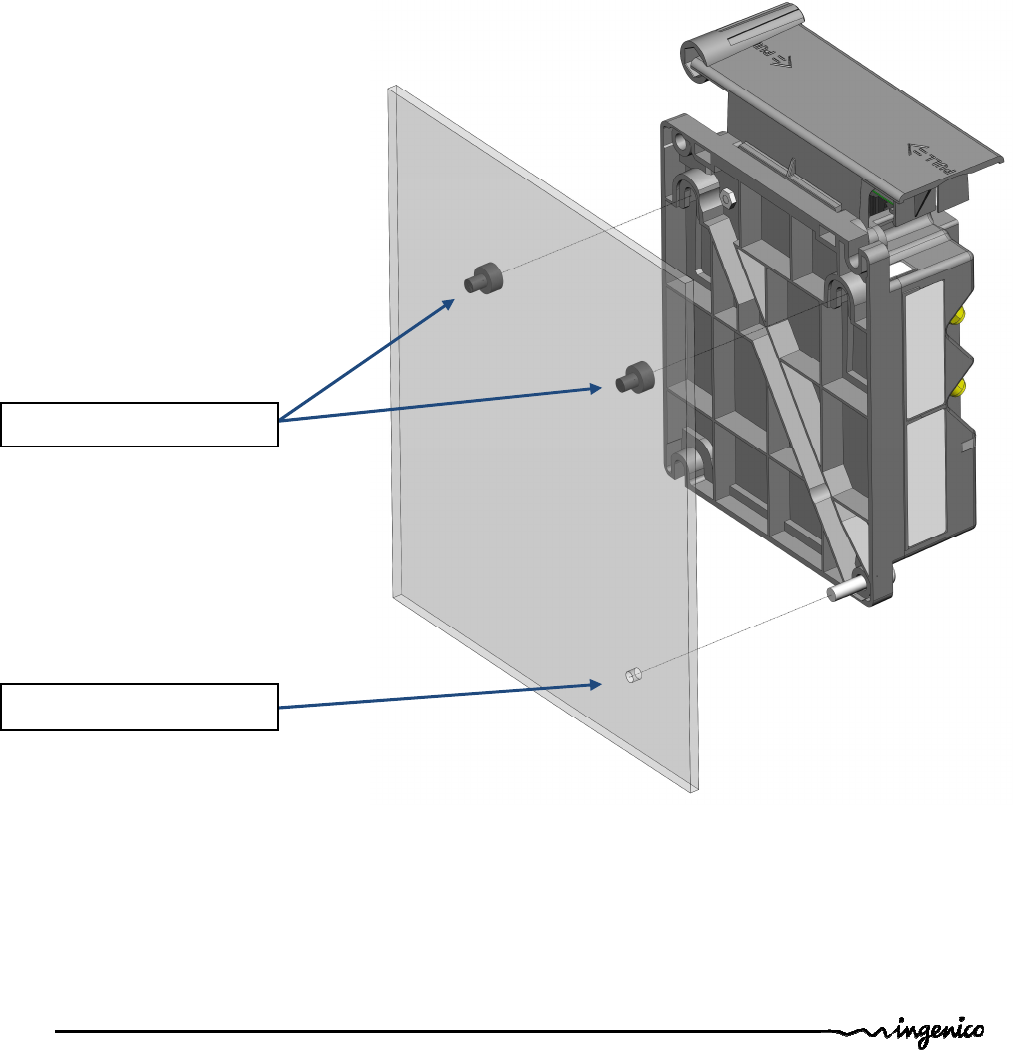

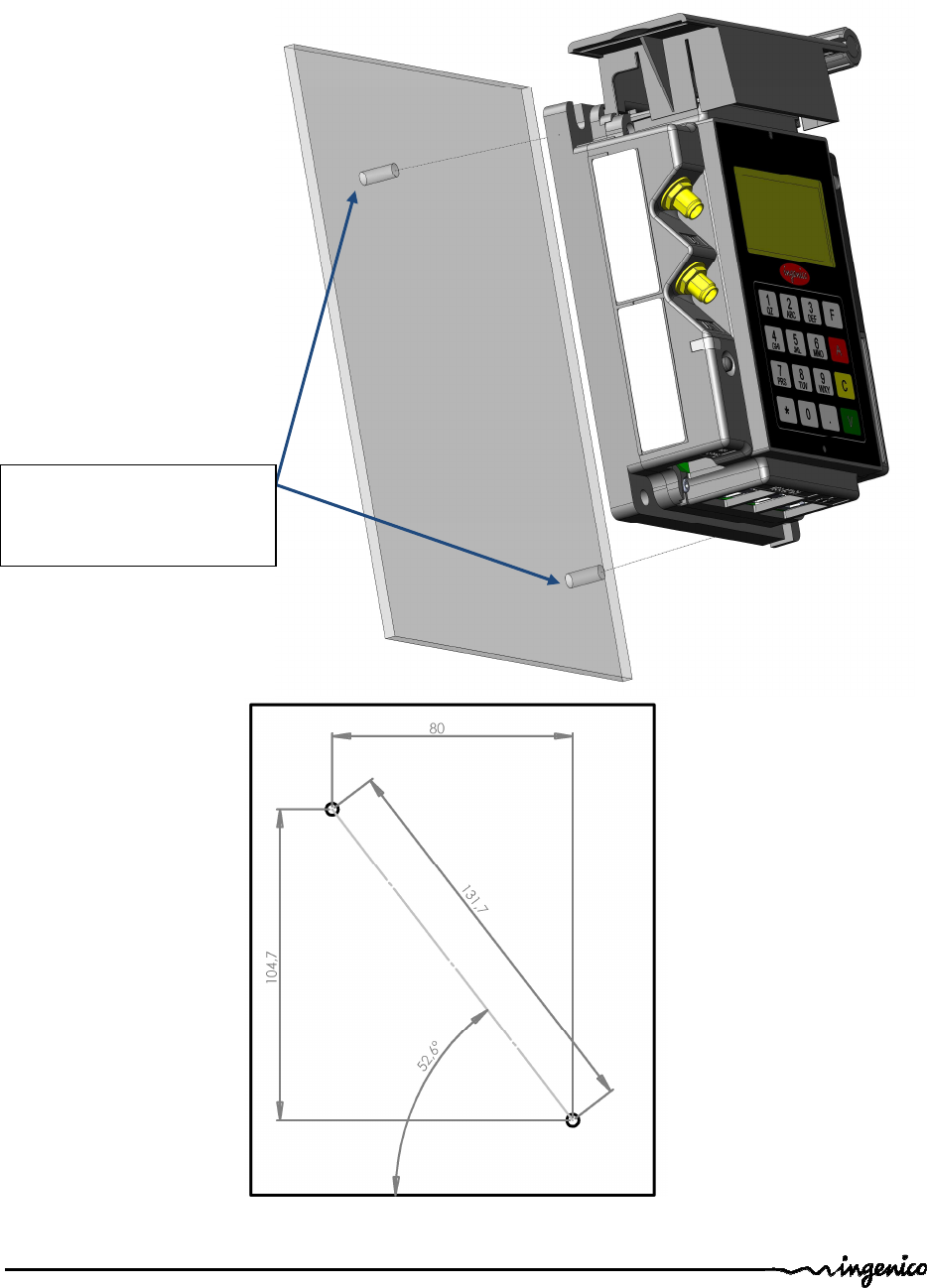

Mounted vertically on a support using bolds or studs............................................ 50

7 MAINTENANCE .................................................................................................. 52

7.1 Configuration .................................................................................................. 52

7.2 Operating life ................................................................................................... 52

8 CLEANING INSTRUCTIONS .............................................................................. 52

9 DISASSEMBLING THE PRODUCTS ACCORDING TO WEEE DIRECTIVE ..... 53

9.1 iUC120 End-of–life disassembly instructions .............................................. 53

9.1.1

MODELS AND DESCRIPTIONS .......................................................................... 53

9.1.2

COMPONENTS AND MATERIALS REQUIRING SELECTIVE TREATMENT ...... 53

9.1.3

PRODUCT DISASSEMBLY PROCESS ............................................................... 54

10 STANDARDS ................................................................................................... 55

10.1 Electrical consumptions ............................................................................. 55

10.2 Temperature and humidity .......................................................................... 55

10.3 Environmental specification continued ..................................................... 55

10.4 EC standard compliance marking .............................................................. 56

10.5 IC statements ............................................................................................... 56

10.6 FCC Statement ............................................................................................. 57

10.7 Environment (WEEE, Batteries and Packaging) ....................................... 58

1 GENERAL

1.1 DEFINITION OF ACRONYMS

EMC Electro Magnetic Compatibility

EVA European Vending Association

GND Ground

GPRS

General Packet Radio Service

GSM Global System for Mobile communications

LCD Liquid Crystal Display

LLT Local Loading Tool

MDB Multi Drop Bus

RAM Random Access Memory

RS232

Recommended Standard 232. A standard for serial binary communications

SAM Secure Access Module – the chips storing the electronic cash register in a

stored value scheme such as Moneo, Proton or VISA Cash.

SMA SubMiniature version A

USB Universal Serial Bus

1.2 IUI120 PAYMENT SOLUTION PRESENTATION

The iSelf Series is the new range of Ingenico unattended devices to offer payment

into any kiosk through any segments (petrol, transport, vending, parking, etc.).

The modules for iSelf Series are:

for contactless reading, iUC150,iUC180,iUC180B

for contact and magnetic strip reading, iUR250

for PinPad entry , IUP250.

These compact devices are designed to fit everywhere, thanks to an easy

installation, respectful of EVA EPS (Standard door module).

Usage can be indoor or outdoor, resisting to harsh environment.

Remarks:

• For iUC180 & iUC180B, additional peripherals can be added to build a

complete solution such as printer or bar code reader. Ingenico does not

provide these devices so far but they can be connected to the iUC180 &

iUC180B (through USB, or RS232).

• Ingenico is also offering other iSelf Series modules dedicated to PINPad like

iUP250 or Hybrid Card Reader iUR250.

• The iUC150 is the preferred contactless peripheral for the iUP250+iUR250

solution.

The iSelf Series is the next generation of Ingenico leveraging of experience from

previous product ranges, i9500 series or CAD30 series, to renew your experience of

unattended payment.

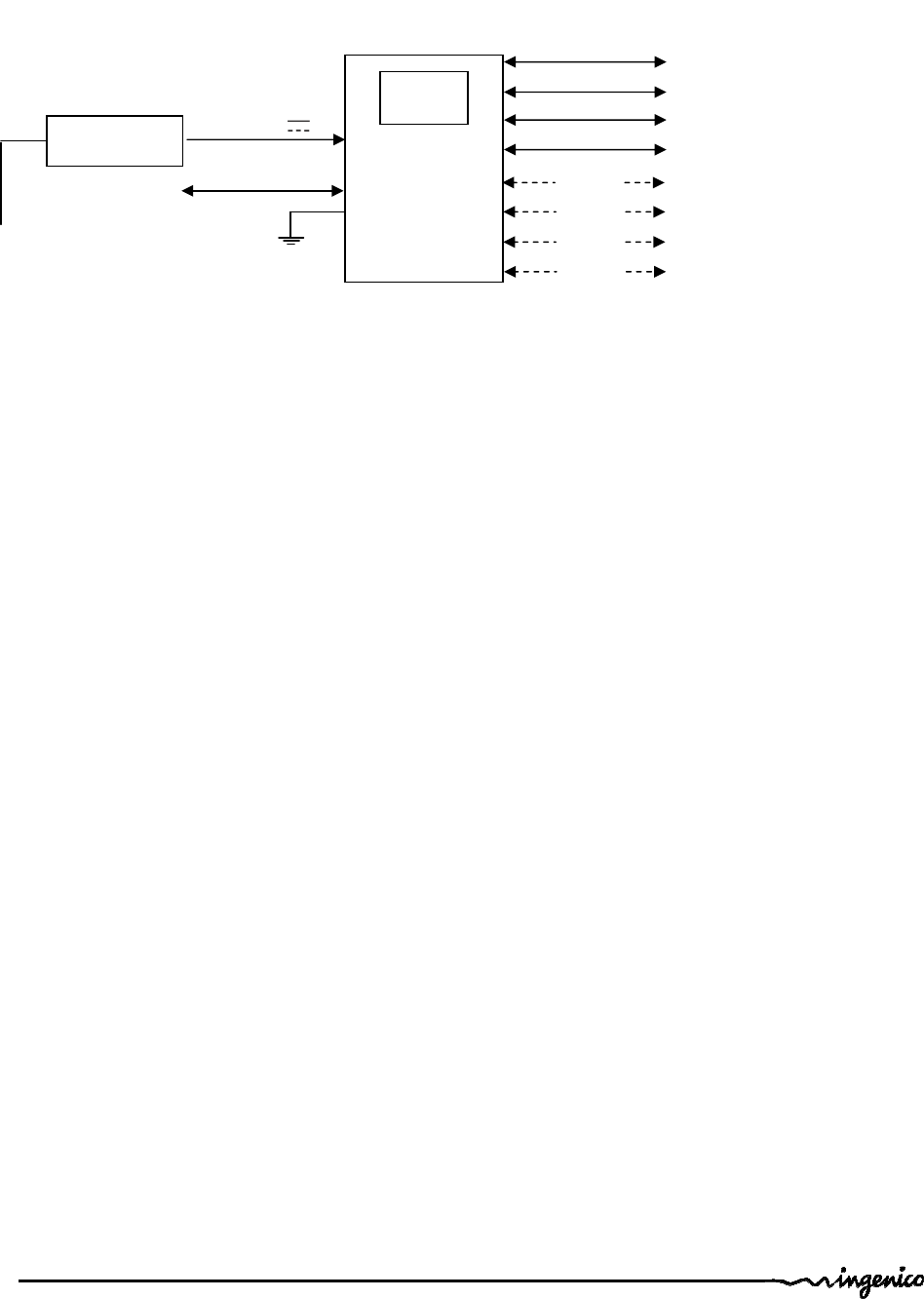

1.2.1 Diagram of iUI120 connectivity and communications

Serial port com0

display

Power supply

Main Power

supply

Ethernet

4 USB host

GSM / GPRS

MDB master

Serial port com2

(Option)

Bluetooth

1USB device

10 – 45 V Max 2A

MDB slave

Keypad

iUI120

1.2.2 Services

Training

−

Unattended

− Installation and exploitation

− Softwares

− OEMC/M²OS development ( days)

− EMV Level 2 package (2 days)

− Development workstation SDK

Support

−

Hot-line support

− Technical assistance

After-Sales Service

−

Fixed cost repair of iSelf Series products

Downloading server centre

−

User licence

− Installation and commissioning

− User training

− Hot-line support

− Technical assistance

Softwares / Licences

−

User licence for local loading tool, LLT

− User licence for applications software

− User licence for M²OS

− Licence for software signature tool, SAT

− Licence for "EMV Level 2 package "

− Licence for TCP/IP

− …

1.3 DESCRIPTION OF IUI120 PRODUCT

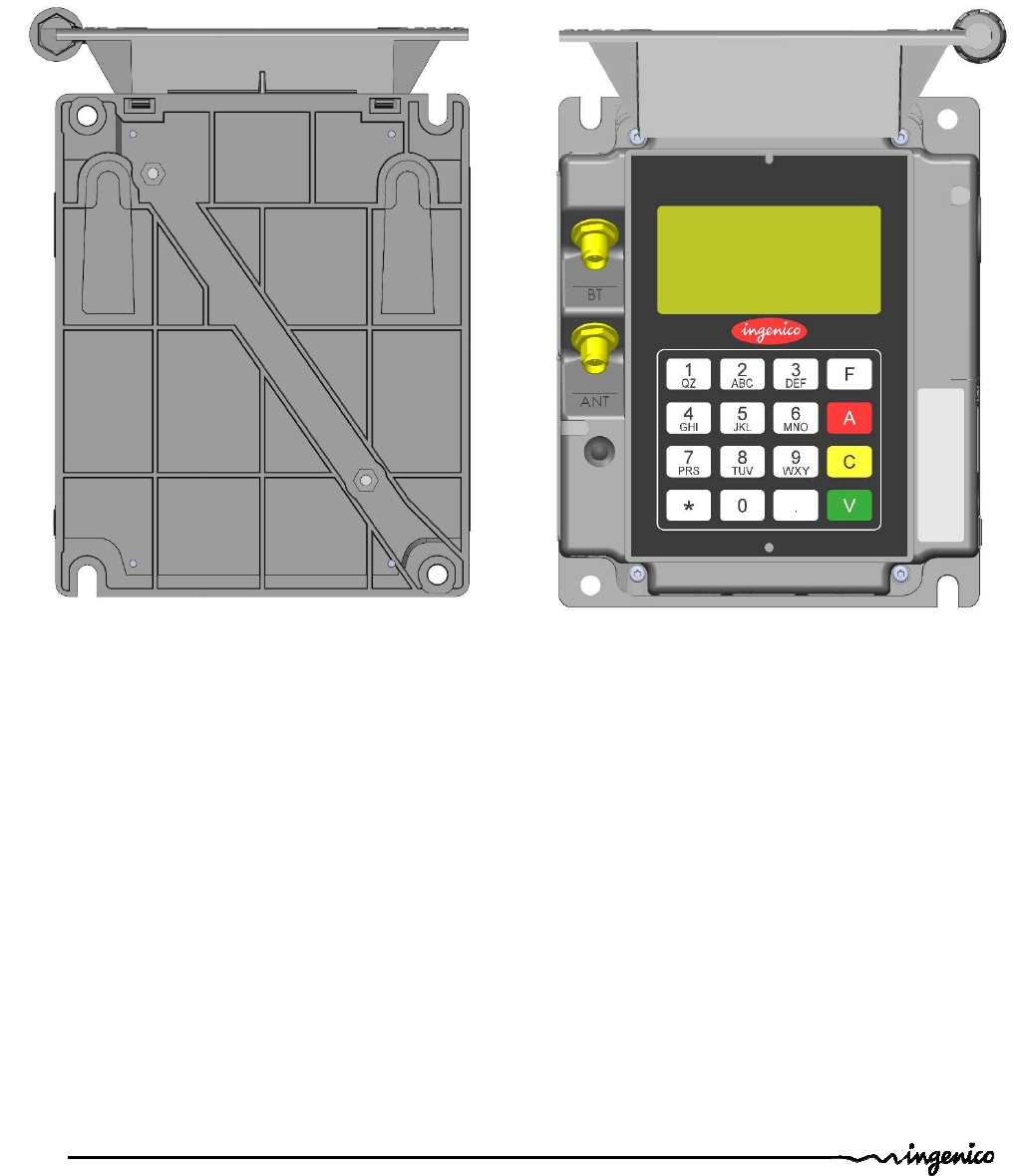

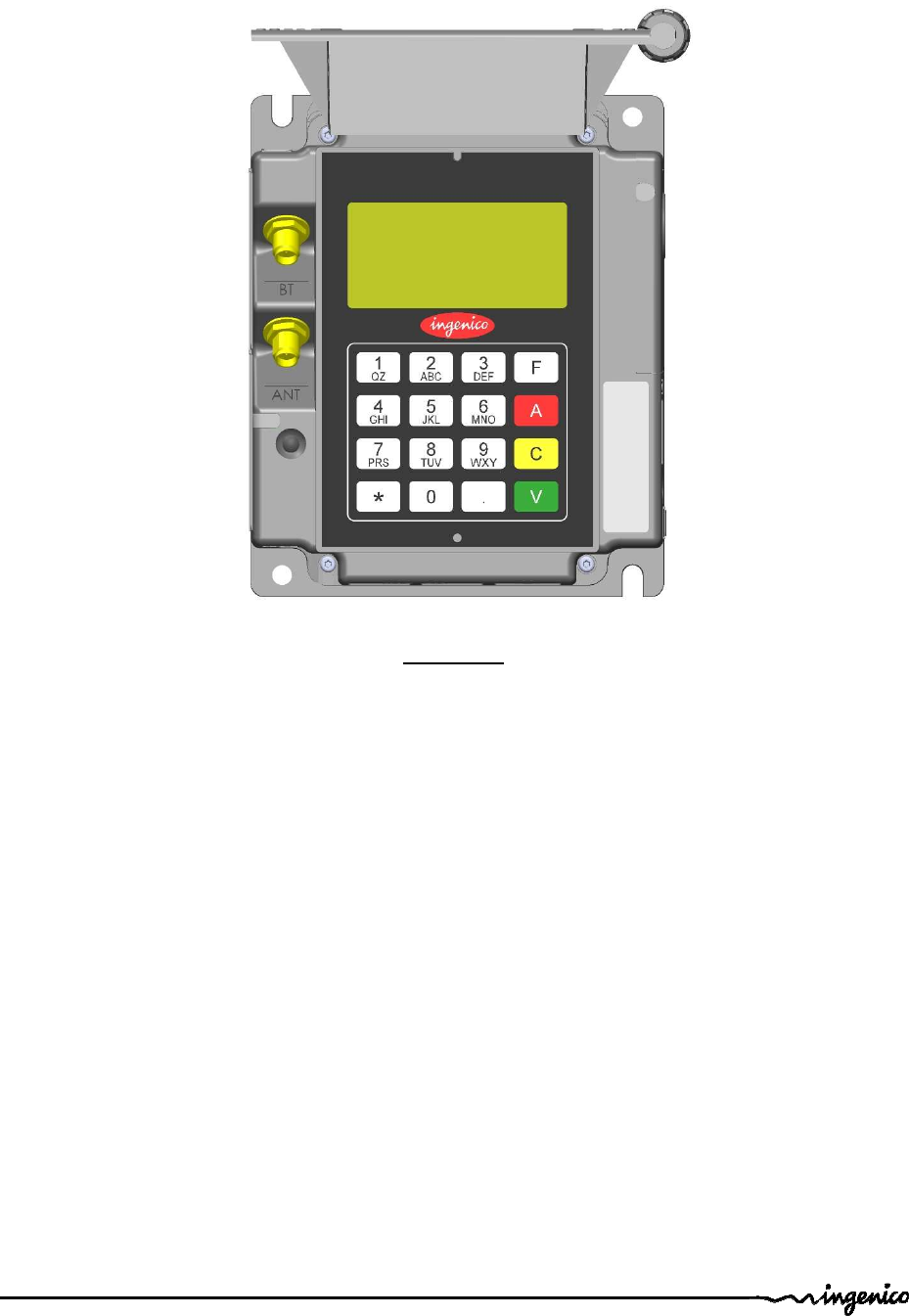

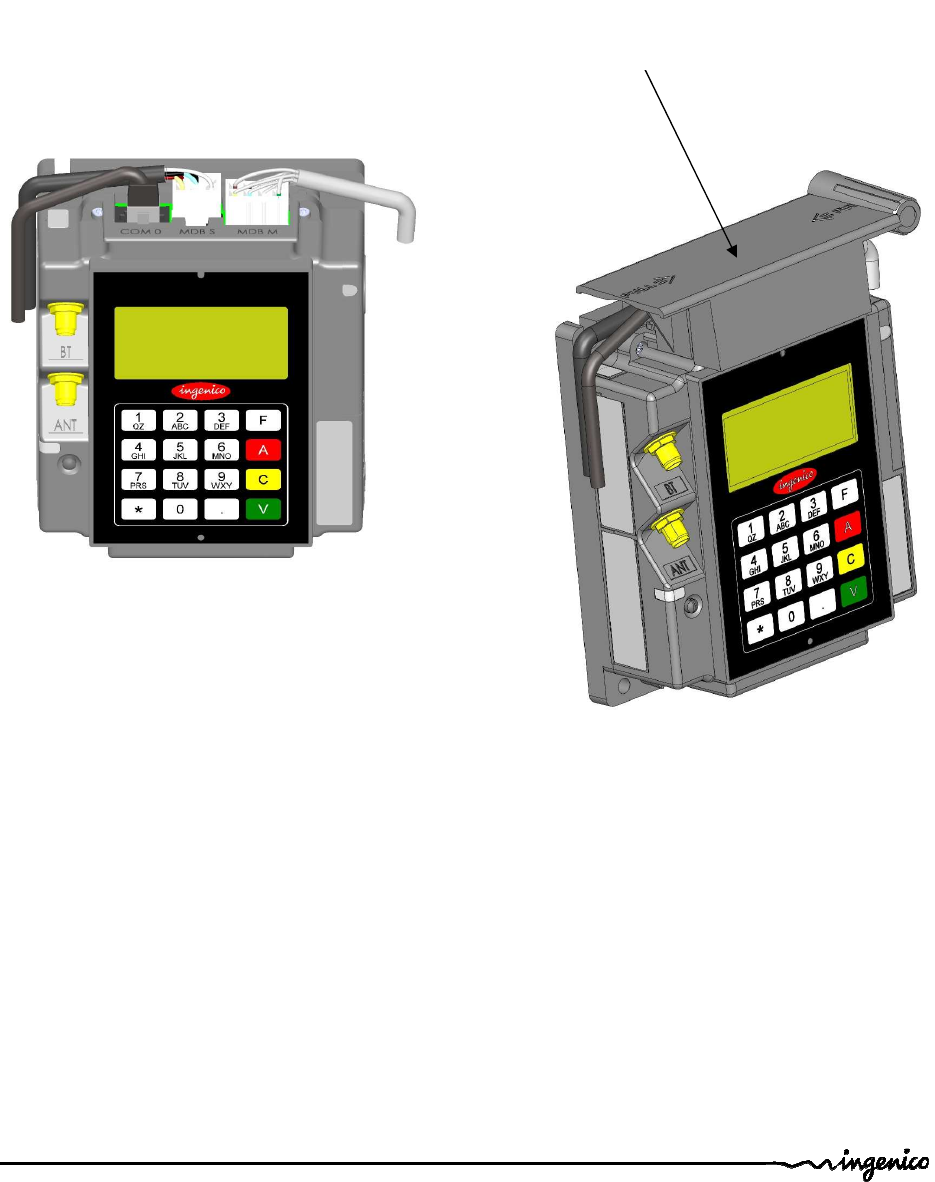

1.3.1 iUI120 product views

Front view Rear view

1.3.2 iUI120 Technical Hardware characteristics

Mass 247 g

Dimensions 134 x 106 x 48 mm (height x width x

depth)

Power Supply iUI120 : 10 – 45 V Max 2A

Platform

Telium2

Memory 16 Mb SDRAM and 128 Mb Flash

Functionality

Buzzer

RGB led internal status indicator

1 Maintenance Button

µSD

2 SAM

1 SIM (optional)

1 Jack for wake-up

wake-up mechanism on RS232

connectors

Keys: 16 keys for maintenance

128 x 64 graphic display

maintenance

Link

Ethernet

GSM/GPRS (optional)

Bluetooth (optional)

4 USB host (1.2 A total max)

1 USB device

2x RS232 (1 optional)

MDB slave

MDB Master (optional)

GPRS detailed characteristics

The GPRS connection is optional in iUI120

Characteristics GSM/ GPRS

Frequency

Quad band:

GSM (850, 900Mhz)

DCS (1800Mhz)

PCS (1900Mhz)

Transit power Class 4 (2W) for GSM850 / EGSM900

Class 1 (1W) for DCS1800 / PCS1900

Communication feature Multi slot Class 10 ( 4+1, 3+2)

Stay connect feature

GPRS baudrates Downlink up to 85.6 kbps,

Uplink up to 42.8 kbps

Bluetooth detailed characteristics

Characteristic Bluetooth V2.0

Chipset Bluecore 6

Standard compliance Bluetooth v2.1 EDR (enhanced data rate) – Class 2

Profile SPP

Other profile to be analysed on request

Radio transfer rate 1 Mbit/s

2Mbit/s (EDR)

Number of supported

links 7 slaves to 1 base

Range Indoor: 10m typical

Bluetooth Class 2 – mini 10m in free sight

Operating conditions

Functional temperature* -20°C, +65°C

Max relative humidity 85% at 55°C, non-condensing

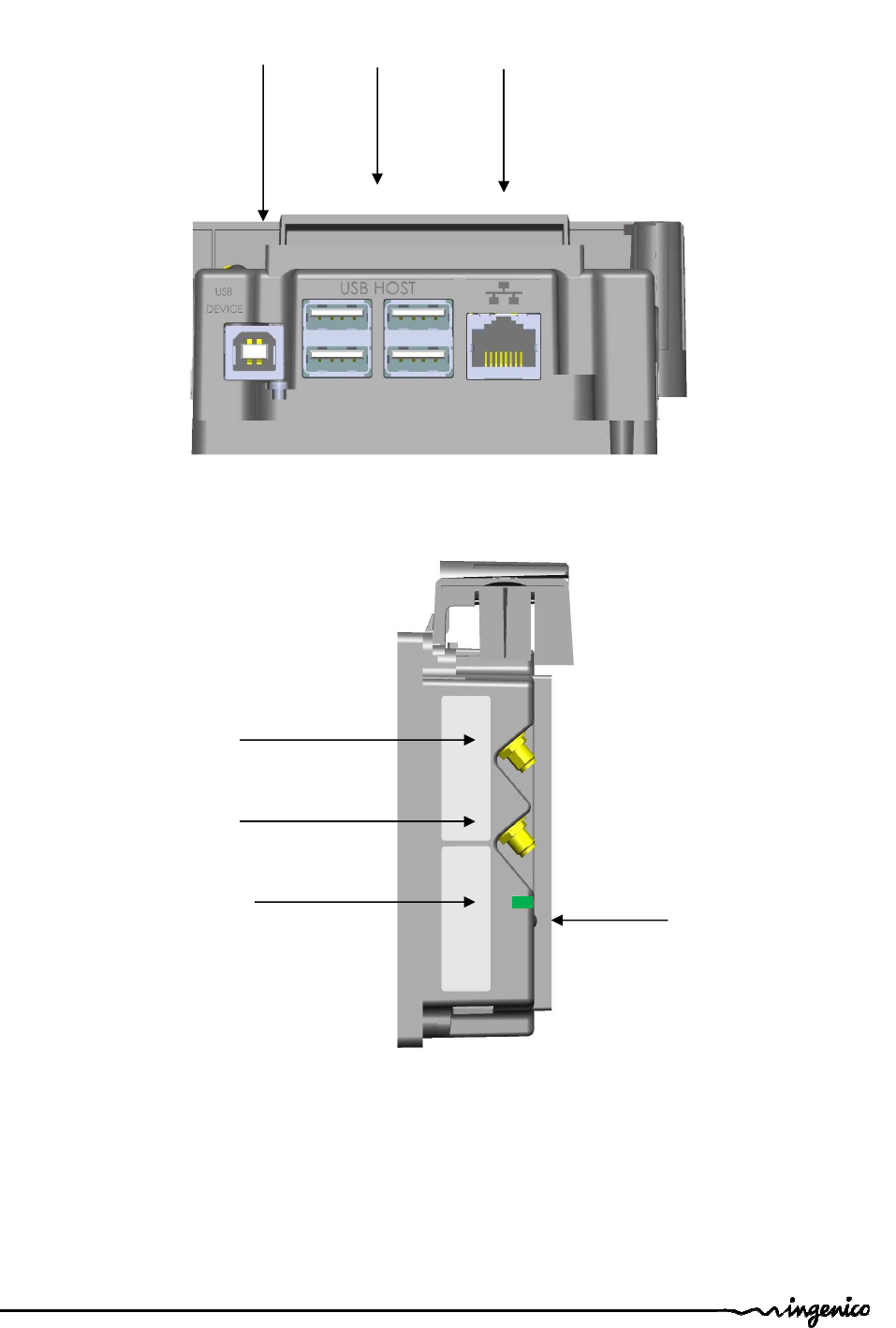

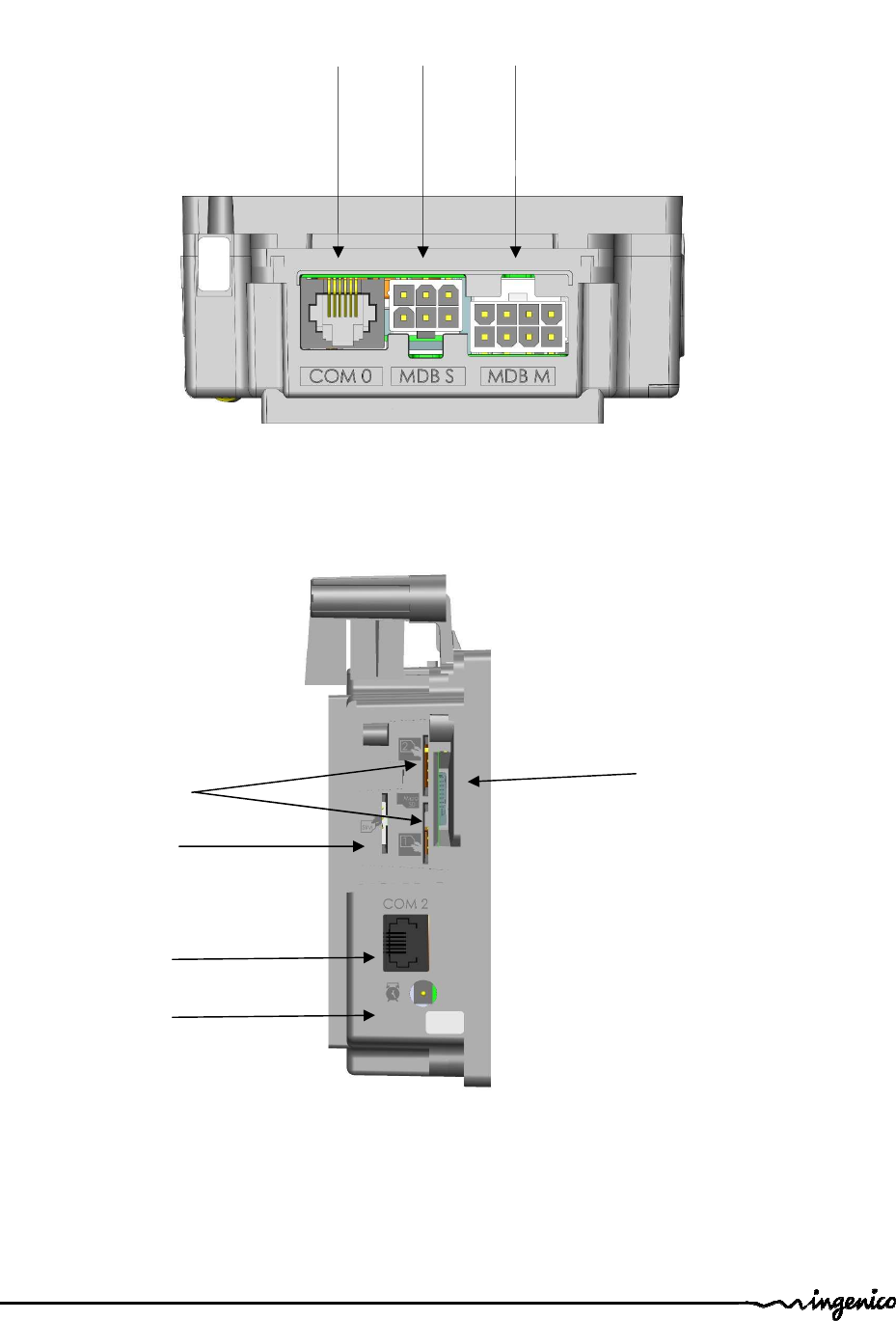

1.3.3 iUI120 output connectors description

Top view

Right view

COM 0 MDB

Slave MDB

Master

SIM

2 SAMs

µSD

COM2

Link

Wake-Up

Link

Bottom view

Left view

Etherne

USB

Device

USB

Hosts

Bluetooth

Antenna

GPRS

Antenna

LLT/Maintenance

LED LLT/Maintenance

Button

1.3.3.1 Ethernet

The iUI120 unit can be connected to Ethernet. The connector type is shielded RJ45.

The Ethernet cable is standard and not provided.

The Ethernet cable must be shielded.

1.3.3.2 USB device

The iUI120 unit can be connected by type B USB.

1.3.3.3 USB host

The iUI120 unit can drive 4 USB accessories. The connector is standard type A.

The power available is limited to 1.2A Max dispatched between the 4 USB.

1.3.3.4 COM0 link

The iUI120 unit can be connected to serial port COM0.

The connector type is RJ11.

Pin N° Function

1 GND

2 Wake-up

3 RXD

4 TXD

5 CTS

6 RTS

1.3.3.5 COM2 link (optional)

The iUI120 unit can be connected to serial port COM2 if the option is available.

The connector type is RJ11.

Pin N° Function

1 GND

2 Wake-up

3 RXD

4 TXD

5 CTS

6 RTS

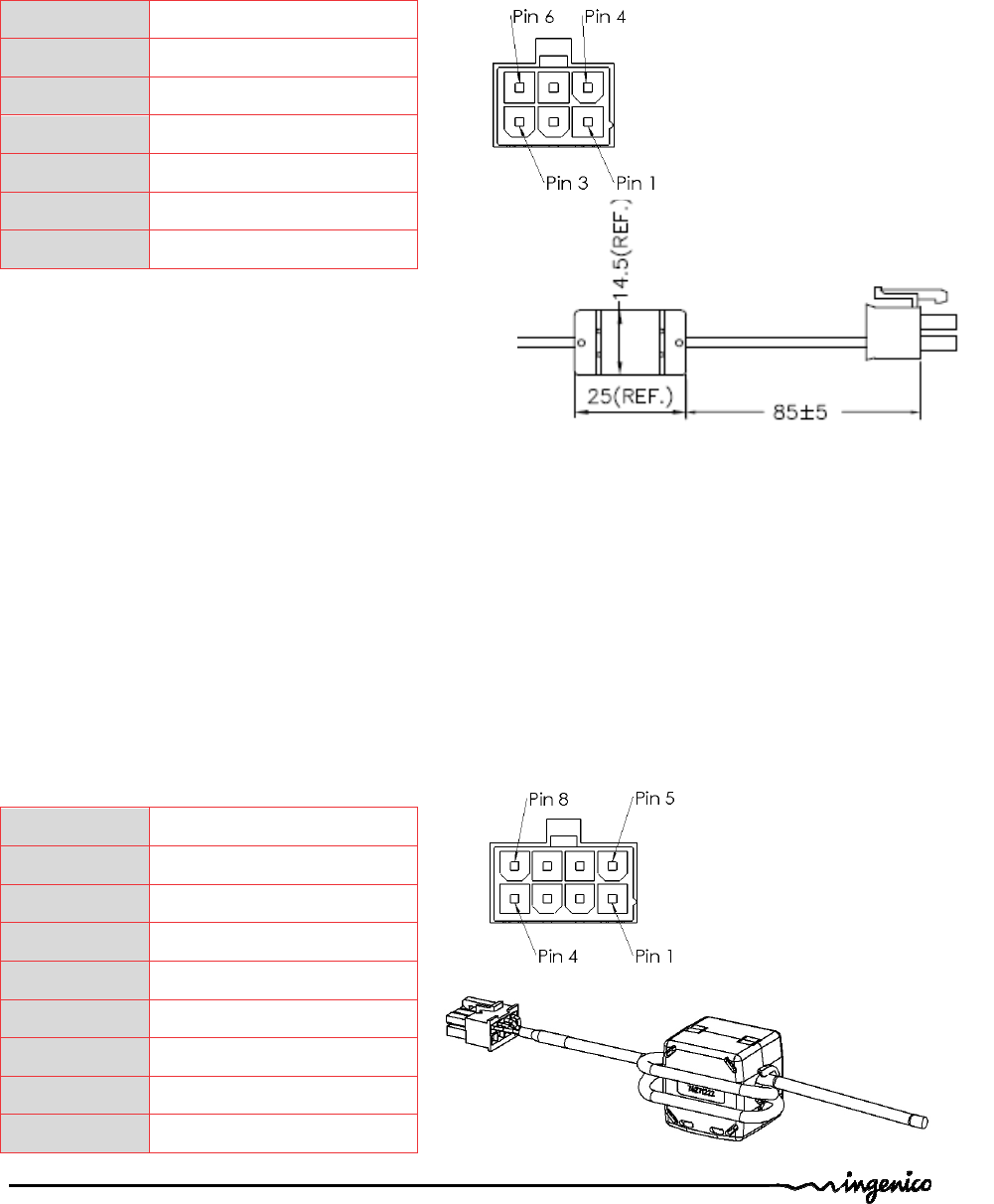

1.3.3.6 MDB Slave

iUI120 unit can be connected by MDB slave. The connector type is MDB 6 pins

(Mini – Fit series 87827 (MOLEX)).

iUI120 unit is powered on the MDB connectors by power supply 10 to 45V DC

(45V is a maximum).

A Würth ferrite ref 74270077 or

equivalent must be added on the power

cable.

1.3.3.7 MDB master (optional)

The iUI120 unit is powered on the MDB connectors by power supply 10 to 45V

DC (45V is a maximum). See below iUI120 unit can be connected by MDB master if

option available. The connector type is MDB master 8 pins (Mini – Fit series 87827

(MOLEX)).

iUI120 unit does not support EXE power supply. Specific accessory are

available.

A Würth ferrite ref 74271222 or equivalent must be added with two turns on the

cable.

Pin N° Function

1 Vin

2 GND

3 NC

4 MDBS_RXD

5 MDBS_TXD

6 MDBS_COMMUN

Pin N° Function

1 NC

2 NC

3 NC

4 NC

5 MDBM_RXD

6 ISO_GND

7 MDBM_TXD

8 ISO_GND

1.3.3.8 Wake-Up Jack

This connector is used for Wake-up mechanism.

Pin N° Function

1 GND

2 HZ Stand-by authorized

“0” Wake-up / Stand-by unauthorized

WARNING :

The specific jack and cable is a spare part, contact commercial service to purchase it.

Warning: do not plug-in a DC power in the jack. It could damage the iUI120.

1.3.3.9 Bluetooth (optional)

When the iUI120 unit is ordered with Bluetooth option, it must be connected to

an external Bluetooth antenna.

Ingenico can provide an antenna, or a standard one can be used. This standard

Antenna must have an impedance of 50 Ohm and a maximum gain of 0 dBi.

Ingenico recommended antennas:

Antenna

type manufacturer model gain impedance Minimum

cable

length

Ingenico

Reference

bipolar EAD FBTS35024-

SM-ST 0dBi 50ohm 0 192023282

1.3.3.10 GPRS (optional)

When iUI120 product is provided with GPRS functionality (configuration upon

request), the external antenna is not provided with the unit.

Ingenico can provide an antenna, or a standard one can be used. This standard

Antenna must have an impedance of 50 Ohm and a maximum gain of 3.5 dBi.

The SIM used for GSM functionality must be assigned to SIM slot.

Ingenico recommended antennas:

Antenna

type manufacturer model gain impedance Minimum

cable

length

Ingenico

Reference

bipolar AMPHENOL 90-00234 1.7dBi 50ohm 0 179900131

bipolar HIRSHMANN MCA 18 90

MP 2.1dBi 50ohm 2.5m 189968573

bipolar Giga concept GC300M-

011-2500 2.2dBi 50ohm 2.5m 189963487

1.3.3.11 SAM & µSD Installation

1. Disconnect the iUI120 unit from the main power supply.

2. Open the SAM door by removing the screw.

3. Insert the SAM cards in SAM slot 1 and /or slot 2

4. Insert µSD card in µSD slot

5. Insert SIM card in SIM slot.

6. Slide the SAM door and screw.

SAM cover

Screwed with M2X6 T6

SIM Slot

SAM1 Slot

µSD Slot

SAM2 Slot

For SAM/SIM cards, take care of cards orientation and do not push in excess the

cards.

After insertion, the cards position is 4 mm out of the products as shown on picture.

1.3.3.12 Buzzer

The buzzer is controlled by application. The frequency depends of software.

1.3.3.13 Display

The iUI120 have a black and white display.

1.3.3.14 Maintenance Button and LED

The iUI120 unit has a maintenance button at the back.

- To enter LLT mode, press the button at power up or at restart, until the red LED

lights on.

- To enter Maintenance mode, press the button at power up or at restart, until the

red LED starts blinking.

- To restart the product, press the button until the blue LED lights on.

Cut angle for

SAM

Cut shape for

µSD card

Cut angle for

GPRS SIM

angle F

1.3.3.15 iUI 120 Keypad

Remarks:

The rear display and the keyboard can only be used in maintenance mode.

“*” and “.” are used for Up and Down.

1.3.3.16 Cable Protection

A cable sealing sleeve is provided with iUI120 unit to protect the top of product

against water runoff.

Connect the cables, and snap in the part on the rear cover to cover the cables.

This sleeve also holds the antenna tool for GPRS and BT options.

Proposed position for cables:

Cable sealing sleeve clipped

on back cover

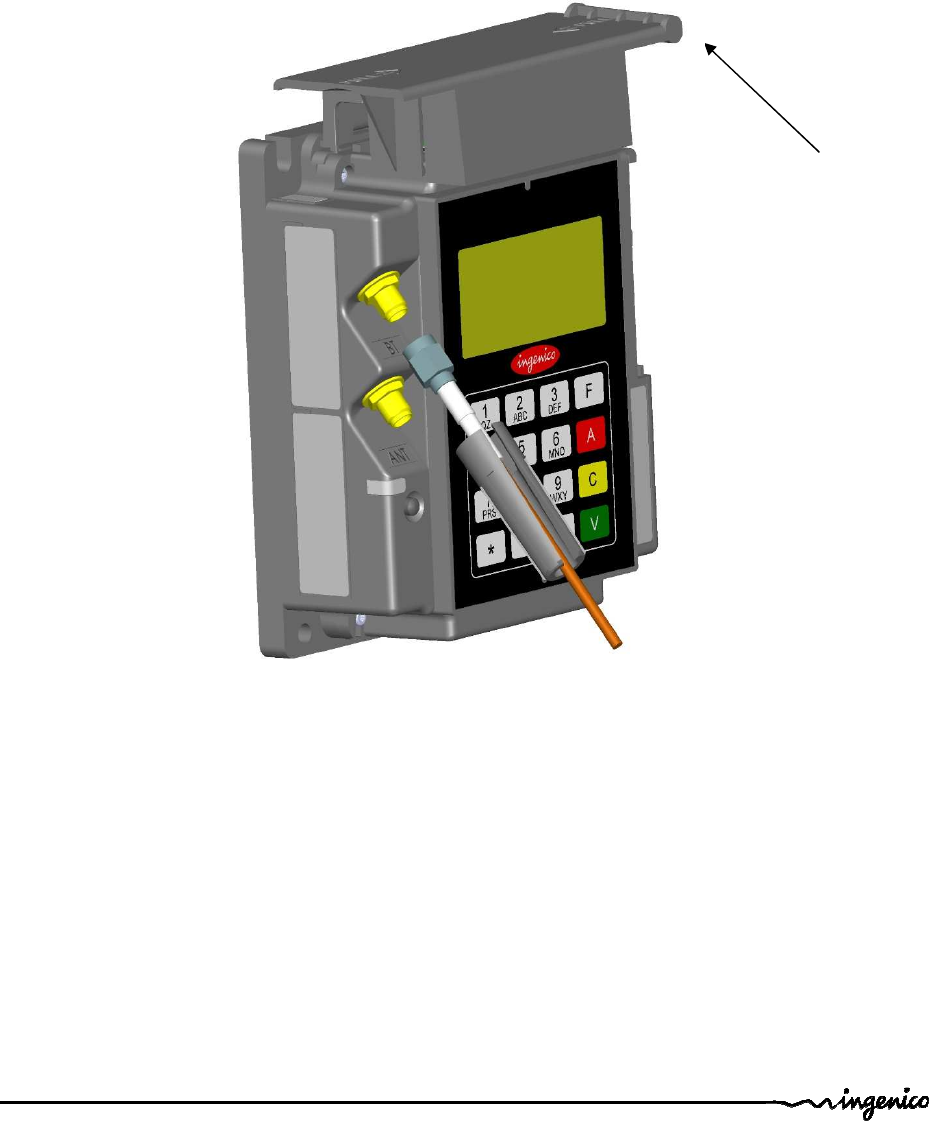

1.3.3.17 Antenna Installation

A tool is provided to help screwing the external antenna.

1. Remove the antenna tool from the cable sleeve.

2. Insert the SMA antenna cable through the slot of the antenna tool.

3. Slide the antenna tool over the SMA Cable connector.

4. Screw the cable.

Antenna

tool rest

position

1.4 PROFESSIONAL INSTALLATION REQUIREMENT

Ingenico only sells its products, to qualified partners and integrators. They are in

charge of professionally resell, integrate, and install these products inside complete

solution for end customers.

These end customers solution can be:

• Petrol station.

• Ticketing kiosk (Airline tickets, cinema, transport, etc.)

• Vending machine operator

• Parking kiosk (On / off street)

• Other

Thus, the general public cannot purchase Ingenico hardware or software.

Partners, resellers, and Integrators must have qualified electronics engineers to be

able to install or integrate our products. Furthermore, they must follow a specific

technical training conducted by Ingenico technical experts.

In addition installation must follow Ingenico recommendations, as describe in this

document, in order to respect:

• Local regulations for Electrical Safety and Radio emission levels

• Ferrite beam installation

Our field support & maintenance engineers are available for follow up and

commissioning of installation.

1.5 WAKE-UP FUNCTION A REVOIR

1.5.1 Wake-up mechanism iUI120 unit

iUI120 unit is designed to save power thanks to a “stand-by mode”.

If the stand-by mode is used, use Wake-up mechanism:

- with button connected on jack (optional)

- with Pin 2 of COM0 link & COM2 link

- by pressing the green key on the maintenance keyboard.

Wake-up pin state

Hz (high impedance) Stand-by authorized

Drive to “0” Wake-up / Stand-by unauthorized

The Wake-up pin is drive to “0” by the one asking the wake-up.

It could be driven by iUR250 or any devices designed to be compliant (Host

device…).

IUI120

COM0 & 2

1 – GND

2 – Wake-up

HZ => Stand-by

« 0 » => Wake-up

USB

Any devices design to

be compliant.

HZ => Stand-by

« 0 » => Wake-up

1.5.2 Recommended circuit implementation

1.5.3 Power-On sequence iUI120/iUR250/iUC150

This configuration describes the worst case for wake-up timing.

2 MAIN ACCESSORIES

2.1.1 Generality

For a complete description of Ingenico Accessories, please refer to iselfseries

accessories catalog.

2.1.2 Optional USB cable

An optional USB cable (spare part reference 296129367) with short right-angle

overmolded connectors can be purchased as an accessory. This cable is designed to

optimize the required volume for iUI120 installation in the kiosk

and allows the use of

the cable sleeve.

2.1.3 Serial cable

2.1.4 LLT cable

2.1.5 Stand-by management cables

2.1.5.1 Jack connector

Definition of the jack connector:

2.1.5.2 COM0 and COM2

Specification available on demand.

3 IUI120 SOFTWARE

The system unit, equipped with Telium2® technology, is designed with a

structure supporting several applications without any mutual interference.

The operating system is a multi-task, real time, preemptive system.

The inputs and outputs are managed by interrupts.

This provides for simultaneous processing of peripherals, thus increasing

system unit performance.

It is downloadable to FLASH memory.

3.1.1 Software Architecture

The software architecture is divided into levels:

• System

• Multi-application manager

• Universal Controller Module Component (UCMC)

• Independent applications

Telium

manager

System

Applications

Resident

Bootstrap

Power up

Operating system

Local loading

Application manager

Downloading

Remote

diagnostics

Local

diagnostics

Appli 2 CB Appli

Appli 3 Appli n

UCMC

UCM component

Transaction

Flow

Management

USB slave/

PSU 5V

Memory

µSD SAM

Display Keypad

USB COM

Ethernet

GPRS

MDB

Bluetooth

The system manages access to all the terminal’s peripherals. Access is achieved

through standard C primitives for all the input/output peripherals (keypad…) and

through specific primitives for the other peripherals (smart cards and magnetic stripe

cards). Further, the system takes charge of memory management. It allocates

memory space to the software applications and access control.

The multi-application manager is the entity, which calls the various applications

downloaded in the terminal in response to the various events that occur in the

terminal.

The UCMC component interfaces between the applications and the peripherals

(PINPad, Reader, Printer…). This makes the applications independent of the

peripherals.

It can also manage the « transaction flow ».

The applications are modelled around the demands made by the multi-application

manager. Each request or input point represents a processing operation to be

performed. Each application manages the execution of these processing operations

according to its specifications. This standardization based on input points simplifies

the implementation of the applications on terminals. The terminal provides natural

access to the modularity concepts and improves the maintainability and quality of the

applications.

3.1.2 Secure management of software

The terminal is designed to execute authentic software only and to do this in a ranked

context.

The terminal performs the following checks:

1. During a software download, the terminal checks :

• Its authenticity, by checking its signature with the RSA algorithm with a

2048 bit key.

2. Before running a software, the terminal checks :

• Its presence by looking for the software’s identity.

• Its integrity by checking checksums and CRCs.

3.1.3 Operating system

Bootstrap

Bootstrap is resident.

The bootstrap very briefly takes control of the terminal after each power up to perform

the initialization and the self-test. Then, it automatically runs the operating system,

which in turn starts the applications manager.

Thus, the Bootstrap provides the following functionalities:

• Memory and checksum self-test

• Local download of the operating system if absent

• Operating system authenticity check and start-up.

Operating system characteristics

The operating system is downloaded (locally or remotely) into the memory. It is

upgradeable. After a few fractions of a second following a power-up, the operating

system takes control. It checks the presence, integrity and authenticity of the system

components and application software present in the terminal.

The maintenance sub-system takes control in the following cases:

• if no authentic application is present,

• or, if a manual action is made by the operator during power up,

• or, if it is activated by an application.

The maintenance sub-system ensures, among other things, the downloading of the

application software.

The operating system ensures the start of the multi-task core and then runs the

applications by making a set of services available to them:

• Multi-task management: Availability of a pre-emptive real-time environment,

based on interruptions, events and mailboxes. This management enables

simultaneous processing, which improves the terminal’s performance.

• Input/Output management: This is carried out under interruptions, generally in

buffered mode. Thus, the application developer enters a “conventional” C

context.

• System alarm management: Certain incidents detected by the operating

system are recorded. They can be used later by the maintenance sub-system

during remote or local diagnostics.

• Application alarm management: A number of incidents detected by the

applications can be saved by the operating system at their request. This

recording is used later as in the case of system alarms.

• Application isolation management: The operating system provides the

mechanisms described in the section on software isolation and memory

protection.

Inter-application isolation is managed by the Memory Management Unit

(MMU).

• Application download management: The operating system offers the

downloading services described in the « Software download » section.

3.1.4 TELIUM MANAGER

The main functions offered by the manager are the following:

• Application management

• Terminal initialization

• Terminal maintenance

• Card Recognition and routing to the applications

When the EMV DC module is present, it selects the applications:

• EMV applications (EMV level 2 compliant)

• Non-EMV applications

In France, it is compatible with the following environments

• Health system

• French banking system

• "Private applications"

Terminal initialization

Required operating conditions

To operate, the system unit has to be equipped with its system, the application

manager, the UCMC and at least one application.

If no application is initialized, the application manager displays a message requesting

initialization for an application (in maintenance mode).

If at least one application is initialized, the terminal is operational. The application

manager then waits for an event to poll the applications loaded in the terminal.

Initialisation of common parameters (in maintenance mode)

The application manager is used to initialize the common parameters:

Date, time, message display language, IP network configuration data, local loading or

remote diagnostics.

System unit maintenance (in maintenance mode)

The system unit has maintenance functions.

• Properties

• Local downloading

• Diagnostics

Properties

The properties function is used to obtain the following information:

• List of applications loaded in terminal, version number, checksum, etc. The

application manager gives this information for itself and for the operating

system.

• Application call time: remote collection, loading, etc.

• Total number of transactions in each application file contained in system unit.

Download

The downloading function uses the information supplied on initialization of the

application manager.

The program update function is used to update the system unit by:

• Using a special local loading tool connected to the terminal,

• Using a remote loading tool,

• Using a USB key.

The iUI120 must be in maintenance mode with a USB key

containing the software to load plugged in. Then, launch the download by

using the manager menu

Diagnostics

The diagnostics function is used for:

• Local diagnostics

The operator can request the incidents or alarms stored in the terminal.

The storage function implements two sets of elements:

o Incident counters: Used for « repetitive » incidents, for which only the

number of occurrences is significant. For example, number of power on.

o Events: Exceptional in nature. The information content depends on the

type of incident. Generally, this comprises the date, time and

information relative to the incident itself. The events are stored in a

rotating file where the most recent events are kept.

• Remote diagnostics

This function is used by the operator to trigger a call to a server to dump the

information stored in the terminal. The server thus enriches a database by

which it can efficiently monitor a terminal population, or propose services such

as preventive maintenance, operating statistics, etc.

• Diagnostics by USB key

Diagnostic files are copied to a USB key if present at start-up.

• Note :

Displaying Bluetooth & GPRS information at the same time is not possible

on iUI120.

In maintenance mode it’s possible to display one information or the other by

pressing “0” key

By default, GPRS info is displayed.

3.1.5 Software downloading

Downloading

The software can be downloaded:

• Locally via the serial link (COM or USB).

• Remotely, via the switched telephone network (PSTN) using an external

modem, Ethernet, GPRS, TCP/IP network.

• By a USB key. The iUI120 must be in maintenance mode with a USB key

containing the software to load plugged in. Then, launch the download by

using the manager menu.

The techniques used:

• Data compression,

• Authenticity checking,

• Memory allocation management,

• TCP/IP,

best optimize the software downloading operations.

These features provide faster downloading time, enhanced security, an ease in

upgrading, and a larger number of software installed on the system unit.

Local Loading Tool (LLT)

The LLT is used for local software download.

The LLT is formed by:

• A PC running with Windows Seven, Vista Pro, XP, 2003 Server, 2000

Professional SP2

• A INGENICO loading software,

• A PC-terminal connecting cable

Local loading is performed:

• From a PC equipped with the Local Loading Tool (LLT) on the COM serial or

slave USB link

• By automatic switching to the local loader of the operating system.

Two connections are possible:

• By COM link: Speed 115200 bits/s

• By slave USB link: Speed 8 Mbits/s approx.

Selection of the software to be loaded is guided on the PC screen by an Explorer

type Windows system (Windows loader).

Loading time for a 1Mo application is 4s by USB port.

Loading by USB key

With the USB key loading method, the software is loaded locally with no need for a

PC type tool.

The loading time is identical to that of the USB.

Terminal Management Server (TMS)

For a complete description of the TMS possibilities, refer to the "TMS" section.

Loading and management of memory space in system unit

Before a (down)load, the system ensures that the necessary memory space is

available.

The software (possibly compressed) are downloaded to flash.

If software is deleted, the system frees the space. If software is upgraded, the system

loads the new software, checks it, and deletes the old version.

The entire memory area is used and is usable. No area is reserved for upgrades.

On start-up of the terminal (power up or reset), the applications are decompressed

and the code is copied to RAM.

Improved software downloading

Includes the following characteristics:

Softwares are loaded by FTP TCP/IP and PPP for optimized loading.

• Downloading performance in V32bis is around 1.4 kbps on the original files.

• Once the connection is set up with the V32bis modem, a 120 Kbytes

application is downloaded in around 1 minute.

• Automatic dialling and access to downloading server by switched telephone

network (STN) or by X25 (TRANSPAC, in France) using a public PAD or

private PAD access.

• Downloading can be performed in IP mode via Ethernet via a secure channel

(SSL).

• Data is compressed in accordance with an algorithm derived from the Lempel-

Ziv method ensuring compression rates of the order of 40 %.

• For downloading, only the improved application will be downloaded.

This management function is handled by the system unit itself and not by the

remote server, providing enhanced functional security in a multiple source

loading context.

• Recovery management in the event of loss of communication. This service

resumes the downloading which has been interrupted at the exact location

where the interruption took place, so that only the missing portion is

downloaded when the communication is recovered.

The downloaded software is run in a secure context by authenticity check.

Downloading Starting

The downloading can be requested:

• Using the application manager on maintainer request. This is the case, in

particular, where a program upgrade is concerned or when a new software is

added in the terminal memory. In this case, the procedure is simplified to the

utmost.

The user triggers the call from the application manager by choosing the upgrade

function in the menus and using the dialogue keys. Connection to the server takes

place automatically.

For an upgrade, the user has nothing to enter.

To request a new software, the user is guided on the screen in making his choice.

The identity of the business is not requested. The identity stored in the system unit is

automatically transmitted to the server.

• Using the application software on request by the center or merchant (Example:

in France, by « envelopes").

In this case, downloading takes place entirely automatically. The downloading

ticket informs the merchant.

Local loading procedure on:

Trigger the LLT software on the PC

Switch off the product

Connect the PC to the COM or slave USB connector.

Press the rear button and switch on the iUI120.

When the LED near the button becomes fix red, release the button. “LLT” text is now

displayed on screen.

Trigger the LLT and follow the instructions given in the « LLT User’s guide v4 » to load the

software.

The parameter definition files must be placed in the "HOST" directory.

3.1.6 Development station

Introduction

With this development station, it is possible to develop application software for the

entire range of iUN products.

The software is written in high level C language in a multi-application environment.

Ingenico provides the complete set of software and the equipment required for

development. This also includes the documentations. Training sessions can also be

proposed.

Required Configuration

The development station executes on a Pentium PC running under Windows

2000/XP/Vista/Seven.

Development tools for ARM such as a cross-compiler are required. These comprise:

• A C compiler (GNU), an assembler and a link editor for ARM and Thumb,

• A development environment,

• A remote debugger.

Supply

The SDK 30 development station comprises:

• The user license for the M²OS software which includes:

o The operating system,

o The application manager,

o The libraries

o The associated documentation in PDF format

• The user license for the Software Authentication Tool (SAT) software,

• The user license for the Local Loading Tool (LLT),

• The card reader and the RSA cards used to sign the applications.

SDK + Add On Unattended

For iUI120: minimum configuration SDK 9.18 and Add-On Unattended 4.6 are

required

Associated services

• Training

Development of applications on iUN

Duration: 1 day

Location: R&D center.

• Pre-requisites for training:

A good understanding of the C language is required. Familiarity with firmware can

be useful.

• Technical support

Duration: 6 months after the training

This includes the hot line, and updates to the documentations and softwares

during this period.

• Software package

A set of software packages, used to simplify development of applications (EMV

level 2, …) is available.

4 TERMINAL MANAGEMENT SYSTEM

4.1 INTRODUCTION

Ingenico developed its own Terminal Estate Management System called

IngEstate. It is a link between an organisation with an estate of payment

terminals and their merchants. It allows users to remotely manage payment

terminals, modify their software content and interact with merchants.

4.2 BASIC FUNCTIONS

The basic functions are:

• be able to locally download software on a terminal using a direct cable link

(usually RS232);

• be able to remotely download software on a particular terminal using modems

and IP connections;

• be able to remotely download applications and configuration updates to a

large estate of terminals;

• be able to upload terminal configurations and check software status;

• Be able to inform merchants when terminals are out of use during

maintenance periods.

4.3 ADVANCED FUNCTIONS

he advanced functions are extremely various, with new ones being requested

frequently:

• draw statistics and reports about terminal configurations;

• optimise automatic call scheduling/download balancing for large estates of

terminals;

• be able to display written messages on the terminal, using the display or the

printer;

• be able to easily configure a complete terminal (i.e. several applications) and

to download it in one operation;

• be able to analyse the status of terminal software and do only delta downloads

(i.e. only the parts that are damaged or need updates);

• be able to download to either a Peripheral or a terminal when connected;

• Customise the system easily;

• Integrate with systems such as SAP easily;

• … and many others.

4.4 CUSTOMERS SAVINGS WITH INGENICO TMS

SOLUTION

The most obvious cost saving is not having to send a technician to service the

terminal at the merchant location. Many other costs savings are derived from the

ability to have a “clean” estate; better diagnostics and remote software repairs mean

less shipping of replacement terminals, less downtime, less mail and phone

communication costs, more efficient update campaigns, etc.

5 INSTALLATION PROCEDURE IN KIOSKS

Note: It is required to use

ESD-protective clothing

while handling these devices.

5.1 SECURITY REQUIREMENT IUI120

Your device fulfils current applicable PCI PTS security requirements.

Upon receipt of your terminal you should check for signs of tampering of the

equipment. It is strongly advised that these checks are performed regularly after

receipt. You should check, for example: that the keypad is firmly in place; that there is

no evidence of unusual wires that have been connected to any ports on your terminal

or associated equipment, the chip card reader or any other part of your terminal.

Such checks would provide warning of any unauthorised modifications to your

terminal, and other suspicious behaviour of individuals that have access to your

terminal. Your terminal detects any “tampered state”. In this state the terminal will

repeatedly flash the message” Alert Irruption!” and further use of the terminal will not

be possible. If you observe the “Alert Irruption!” message, you should contact the

terminal helpdesk immediately.

You are strongly advised to ensure that privileged access to your terminal is only

granted to staff that have been independently verified as being trustworthy.

The terminal must never be put in or left at a location where it could be stolen or

replaced by another device.

5.2 GENERAL INSTALLATION RECOMMENDATIONS

Installation requirements:

• Ensure that you have enough free space for installation, operational and

maintenance needs.

• Be aware of the safety regulations.

• Carefully consider the general and local payment security requirements and

any impact they may have on the kiosk.

• Carefully consider the ergonomic aspects and also the local acts or

recommendations concerning disabled and visually impaired people.

• See environmental specification and especially in case of very cold or humid

weather, take steps to ensure that the internal temperature is at least -20 °C.

6 ASSEMBLY PROCEDURE FOR IUI120

6.1 KIOSK MINIMUM VOLUME FOR IUI 120

The iUI120 requires a minimum volume inside the kiosk. It is detailed in the drawings

below. 3D design is available on demand.

6.1.1 Volume for iUI 120 without cable gasket

The minimum volume is 95.4 mm width x 115 mm height x 43 mm deep.

Picture of iUI 120 without cable gasket minimum volume

6.1.2 Volume for iUI 120 with cable gasket

The minimum volume is 101mm width x 135 mm height x 49 mm deep.

Picture of iUI 120 with cable gasket minimum volume

KIOSK PREPARATION FOR IUI120 NEW INSTALLATION

IUI120 can support 3 different mounting ways:

• Left horizontal on a shelve inside the kiosk

• Mounted vertically on a support following EVA standard recommendation

• Mounted vertically on a support using bolts or studs

3D step files are also available upon request.

6.1 INSTALLING THE IUI120 IN NEW KIOSK

6.1.1 Left horizontal on a shelve inside the kiosk

For this configuration, there is no specific recommendation.

6.1.2 Mounted vertically on a support using EVA standard

recommendation

EVA recommends using 2 M4 cap bolts distant 68.4 mm to hold internal products.

In addition, we suggest making a M4 holes to lock the iUI120 wit a screw.

M4 optional lock

EVA mounting bolts

Details of EVA mounting

EVA M4 cap bolts. Can be weld or screwed

on the kiosk.

Dimensions on the iUI120 regarding position of the receptacles for EVA M4 bolts.

Picture showing a new installation of the iUI120

6.1.3 Mounted vertically on a support using bolds or studs

Common installation may consider to use 2 weld studs or bolds. We suggest

using 2 diagonally opposite slots out of the 4of iUI120.

On the kiosk, 2 M4 studs Length 11-15 mm, bolds or holes must be done.

2 diagonally opposite

weld studs, bolds or

holes.

Detail of dimensions on the iUI120 for 2 diagonally opposite slots mounting.

7 MAINTENANCE

7.1 CONFIGURATION

The iUI120 unit supplied to you has operational configuration loaded.

In factory, software is loaded in the iUI120, as well as parameter definition files.

The parameter definition file of the UCMC component is used, in particular, to

determine the type of printer used (local/host) and the position of the host (COMx).

To change configuration, you must load a new parameter definition file (supplied by

Ingenico).

This operation can be performed using the LLT or a USB key (see § Loading by USB

key)

For more information concerning configuration, contact Ingenico Technical Support.

7.2 OPERATING LIFE

Minimum operating life of 5 years.

8 CLEANING INSTRUCTIONS

The external front face should be carefully cleaned on a regular basis.

The goal is to keep the display and the keyboard free of dirt and solvents.

First of all, unplug all the wires from the terminal during this operation.

Good rules for proper cleaning of the terminal are:

• Use a soft cloth that is very slightly soaked with soapy water to clean the

outside of the terminal.

• The glass has special surface treatment but must be carefully clean.

• Do not clean the electrical connections.

• Do not use in any case, solvents, detergents or abrasive products:

Those materials might damage the plastic or electrical contacts.

• Avoid also the use of pressurized liquids.

• Avoid exposing the terminal to the direct rays of the sun.

9 DISASSEMBLING THE PRODUCTS ACCORDING TO

WEEE DIRECTIVE

9.1 IUC120 END-OF–LIFE DISASSEMBLY INSTRUCTIONS

This document is intended for treatment and recycling facilities. It provides the basic

instructions for the disassembly of Ingenico products to remove components and materials

requiring selective treatment, as defined by EU directive 2002/96/EC, Waste Electrical and

Electronic Equipment (WEEE).

Ce document est destiné aux installations de traitement et de recyclage. Il fournit les instructions de base pour le

démontage de produits Ingenico afin de retirer les composants et matériaux nécessitant un traitement sélectif, tel

que défini par la directive européenne 2002/96/CE, sur les Déchets d’Equipements Electriques et Electroniques

(DEEE).

9.1.1 MODELS AND DESCRIPTIONS

MODÈLES ET DESCRIPTIONS

Products covered by this disassembly instructions

Produits concernés par ces instructions de démontage.

oduct Name

Nom du produit

Product description

Description du produit

Product mass (g)

Masse du produit (g)

IUI120

Unattended payment application module 247g

9.1.2 COMPONENTS AND MATERIALS REQUIRING SELECTIVE

TREATMENT

COMPOSANTS ET MATERIAUX NÉCESSITANT UN TRAITEMENT SÉLECTIF

The following components and materials, if present in the Ingenico product(s), have to be

removed and selectively treated.

Les composants et matériaux suivants, si présents dans le(s) produit(s) Ingenico, doivent être retirés et faire

l’objet d’un traitement sélectif.

Components and materials

Composants et matériaux

Quantity included in

product(s)

Quantité contenue

dans le(s) produit(s)

Capacitors containing Polychlorinated biphenyls (PCB)

Condensateurs contenant du polychlorobiphényle (PCB)

Components containing Mercury, such as switches or backlighting lamps

Composants contenant du mercure, tels que les interrupteurs ou les lampes à rétroéclairage

Batteries

Piles et accumulateurs

Printed circuit boards greater than 10 c

m²

Cartes de circuits imprimés de plus de 10 cm²

3max (2 + 1)

Toner cartridges

Cartouches de toner

Plastic containing brominated flame retardants

Matières plastiques contenant des retardateurs de flamme bromés

Asbestos waste and components which co

ntain asbestos

Déchets d'amiante et composants contenant de l'amiante

Cathode ray tubes

Tubes cathodiques

Chlorofluorocarbons (CFC), Hydrochlorofluorocarbons (HCFC) or Hydrofluorocarbons

(HFC), Hydrocarbons (HC)

Chlorofluorocarbones (CFC), hydrochlorofluorocarbone (HCFC) ou hydrofluorocarbone (HFC),

hydrocarbures (HC)

Gas discharge lamps

Lampes à décharge

Liquid crystal displays (LCD) of a surface greater than 100 cm² and all those back-lighted with

ICO-ETU-11-1858-CL-V1

gas discharge lamps

Écrans à cristaux liquides (LCD) d'une surface supérieure à 100 cm² et tous les écrans rétroéclairés par

des lampes à décharge

External electric cables

Câbles électriques extérieurs

Components containing refractory ceramic fibres

Composants contenant des fibres céramiques réfractaires

Components containing radioactive substances

Composants contenant des substances radioactives

Electrolyte capacitors measuring greater 2,5 cm in diameter or height

Condensateurs électrolytiques mesurant plus de 2,5 cm de diamètre ou de hauteur

9.1.3 PRODUCT DISASSEMBLY PROCESS

PROCESSUS DE DEMONTAGE DU PRODUIT

Basic steps to remove components and materials previously identified and requiring selective

treatment.

Etapes de base pour retirer les composants et matériaux précédemment identifiés et nécessitant un traitement

sélectif.

Step

Etape

Product disassembly process

Processus de démontage du produit

Remove the 4 screws of front casing and of the rear cover

Oter les 4 vis du caport avant et du capot arrière

Remove the cover, remove the FPC

Oter le capot, ôter le FPC.

Remove the 4 screws on the extension card. Lift the card, disconnect the FPC below.

Remove the extension card.

Oter les 4 vis sur la carte d’extension, Soulever la carte d’extension et déconnecter le FPC dessous. Oter la carte extension.

Remove the battery from extension card

Oter la pile de la carte extension.

Remove the 4 screws on the plastic spacer. Remove the plastic spacer, the rear metal plate, the plastic antenna hold

Oter les 4 vis maintenant l’entretoise plastique. Oter l’entretoise plastique, puis la tôle arrière, puis le support plastique de

l’antenne

Remove the keypad card and the displays.

Oter la carte clavier et les afficheurs

10 STANDARDS

10.1 ELECTRICAL CONSUMPTIONS

• Max power supply :

o iUI120 < 24W

Value measured for Power supply 12V at 25°C

• Average Power device waiting for host solicitation :

o iUI120 < 1,44W

Value measured for Power supply 12V at 25°C

• Max Power device in stand-by mode :

o iUI120 < 4,8 mW

Value measured for Power supply 12V at 25°C

• Back up battery life

o 1 storage year + 7 years in field at 45 days/year storage rate (25°C)

10.2 TEMPERATURE AND HUMIDITY

• Operating & Storage conditions :

o Relative humidity: 5% to 85% non-condensing.

o External temperature range: -20 °C to 65 °C.

10.3 ENVIRONMENTAL SPECIFICATION CONTINUED

• Operating conditions :

o Vibrations resistance:

 NF EN 60068-2-6 and the below conditions ( 10 tests sequences

per axis ) :

• From 5Hz to 9Hz with 3,3mm amplitude

• From 9Hz to 200Hz with 10m/s² acceleration

• From 200Hz to 500Hz with 15m/s² acceleration

• Endurance 30 mn on each resonance frequency

o Bumps resistance:

 NF EN 60068-2-29. E

• Each direction, 500 drops 1/2 sinus 25g - 6ms

• Degradation iUI120 specification:

o Certified anti-tamper and attack resistant.

• Drop:

o Drop 1m on concrete surface all faces

10.4 EC STANDARD COMPLIANCE MARKING

EC standard compliance marking certifies that the product stipulated below:

iUI120

Conforms to the following harmonized standards:

• IEC/EN 60950-1: Electrical safety of data processing equipment including

electrical office equipment.

EN 60950-1:2006 + A11-2009 + A1-2010 + A12-2011

• EN 55022: Data processing equipment – Radiofrequency disturbance

characteristics - Limits and measurement methods.

EN 55022 2006 + A1 (2007)

• EN 55024: Data processing equipment – Immunity characteristics - Limits and

measurement methods.

EN 55024 :1998 + A1- 2001 + A2 – 2003

10.5 IC STATEMENTS

This class (B) digital apparatus complies with Canadian ICES-003.

Under Industry Canada regulations, this radio transmitter may only operate using an

antenna of a type and maximum (or lesser) gain approved for the transmitter by

Industry Canada. To reduce potential radio interference to other users, the antenna

type and its gain should be so chosen that the equivalent isotropically radiated power

(e.i.r.p.) is not more than that necessary for successful

communication."

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio

peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur)

approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de

brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type

d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente

(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication

satisfaisante.

"This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference

that may cause undesired operation of the device."

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux

appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions

suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de

l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d'en compromettre le fonctionnement.

This radio transmitter (2586D-IUI12XRFB) has been approved by Industry Canada to

operate with the antenna types listed below with the maximum permissible gain and

required antenna impedance for each antenna type indicated. Antenna types not

included in this list, having a gain greater than the maximum gain indicated for that

type, are strictly prohibited for use with this device.

Le présent émetteur radio (2586D-IUI12XRFB) a été approuvé par Industrie Canada

pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain

admissible maximal et l'impédance requise pour chaque type d'antenne. Les types

d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal

indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

10.6 FCC STATEMENT

FCC standard compliance marking certifies that the product stipulated below:

iUI120

• conforms to the following harmonized standards :

– part 15 subpart B of the FCC rules

This class (B) digital apparatus complies with Canadian ICES-003.

Information to users:

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction,

may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception which can be

determined by turning the equipment off and on, the user is encouraged to try to

correct interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with FCC and IC radiation exposure limits set forth for

general population. This device must be installed to provide a separation

distance of at least 20cm from all persons and must not be co-located or

operating in conjunction with any other antenna or transmitter.

10.7 ENVIRONMENT (WEEE, BATTERIES AND

PACKAGING)

This product is labelled in accordance with European Directives 2002/96/EC

concerning Waste Electrical and Electronic Equipment (WEEE) and 2006/66/EC

concerning Batteries and Accumulators. Those provisions are requiring producers

and manufacturers to become liable for take-back, treatment and recycling upon end

of life of equipment and batteries.

The associated symbol means that WEEE and waste batteries must not be

thrown away but collected separately and recycled.

Ingenico ensures that efficient collection and recycling schemes are set-up for WEEE

and batteries according to the local regulation of your country. Please contact your

retailers for more detailed information about the compliance solution in place for

disposing of your old product and used batteries.

Packaging waste must also be collected separately to assure a proper disposal and

recycling.

Please note that proper recycling of the electrical and electronic equipment and

waste batteries will ensure safety of human health and environment.

*296

146392*

Ingenico IUI12X-RF Low Power Equipment User Manual Product Literature

INGENICO Low Power Equipment Product Literature

Contents

Product Literature.pdf

Navigation menu

Namespaces

Views

Navigation
