INGENICO Signature capture payment terminal User Guide

installation instructions

MODU/7002
Xtra module Technical Guide
Contents
1_ Introduction ............................................................................................ 3
2_ Xtra module general information ........................................................... 4
2_1 Physical dimensions ....................................................................................... 4
2_2 Xtra module Features ..................................................................................... 5
3_ Xtra module Technical information ....................................................... 6
3_1_1 Hardware architecture: ................................................................................................... 7
3_1_2 Wireless Connectivity ..................................................................................................... 8
3_1_3 Internal Frequencies ..................................................................................................... 10
4_ Norms&Marking .................................................................................... 11
4_1 1 Federal Communications Commission (FCC) Statement & Industry Canada (IC)
Statement ............................................................................................................ 11
1_Introduction
This technical guide is a document that describes the features of the terminal.

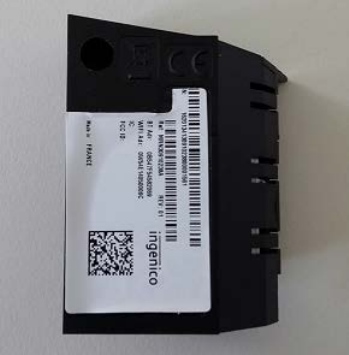

2_Xtra module general information

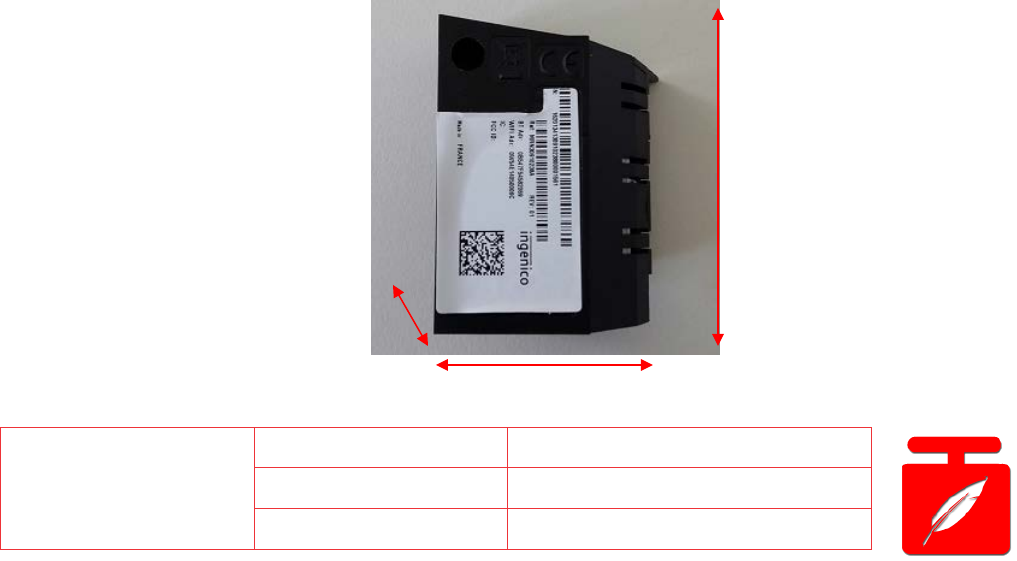

2_1 Physical dimensions
Mechanical
characteristics
External dimensions 55 (L) x 45 (W) x 21 (H) mm
Weight 15g (full options)
Casing material ABS-PC + TPU
45 mm
55 mm
15 g
21 mm
2_2 Xtra module Features
• Wireless connectivity
o Wifi
o Bluetooth
3_Xtra module Technical information
Name Xtra module
Environment
Operating
temperature 0°C to +40°C (32°F to 104°F)
Storage temperature -20°C to +55°C (-4°F to 131°F)
Operating humidity 85% non-condensing at +40°C (104°F)

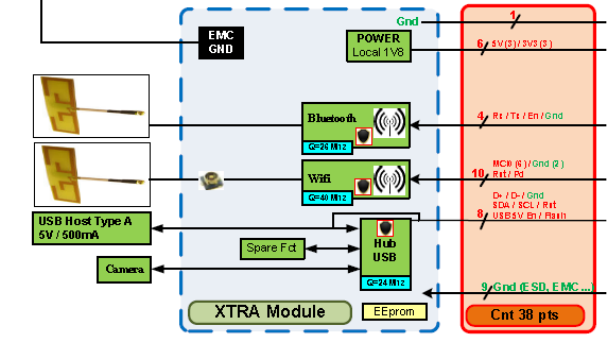

3_1_1 Hardware architecture:
www.ingenico.com
28/32, boulevard de Grenelle, 75015 Paris - France / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35
Ingenico – S.A. au capital de 53 086 309 € / 317 218 758 RCS PARIS

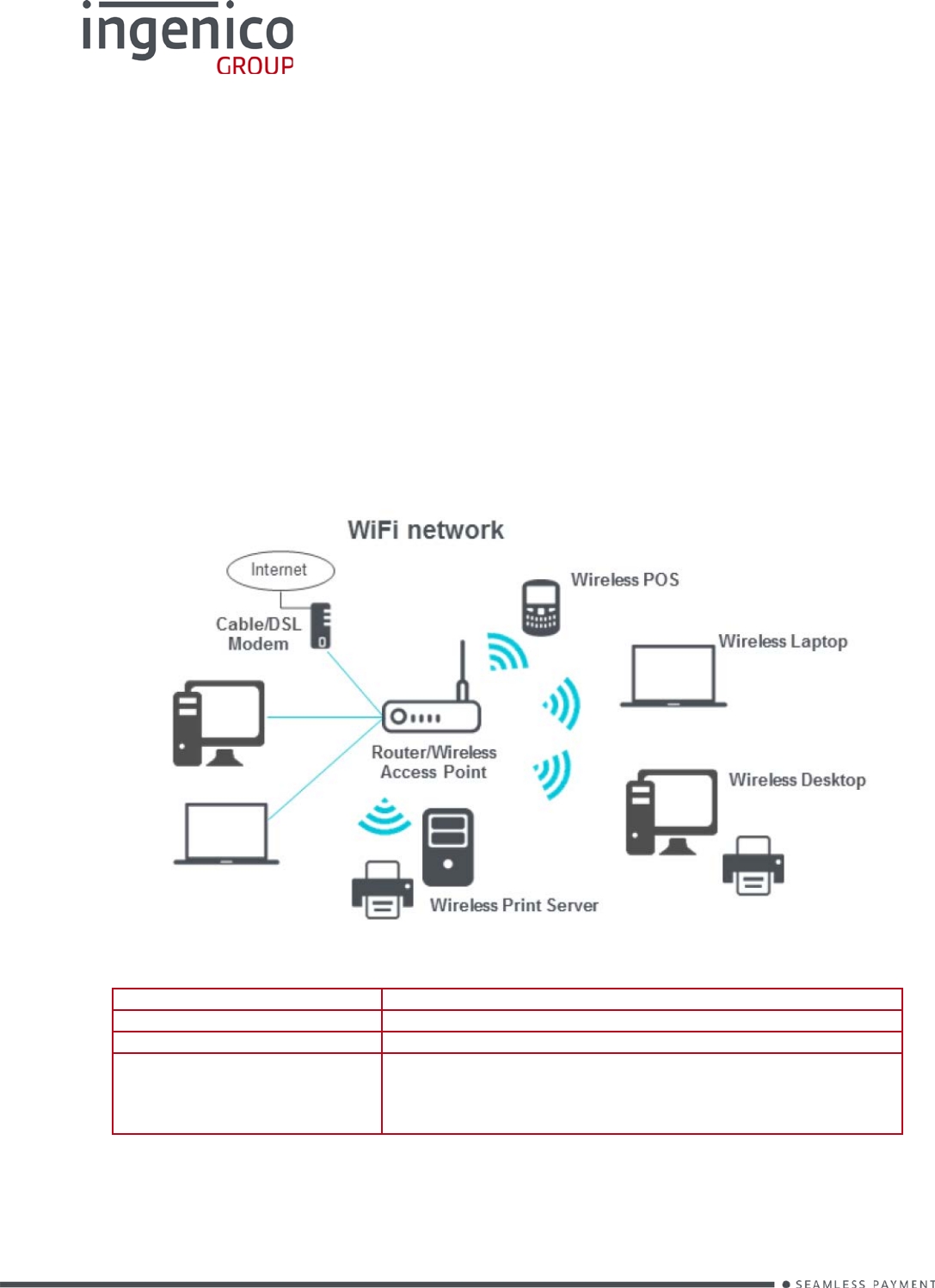

3_1_2 Wireless Connectivity
/ Wi-Fi
WiFi connection is optional in Lane/7000 or Lane/8000.
This feature is useful to wirelessly connect your terminal to the IP network avoiding the cabling task:
Dualband :2.4 GHz and 5 GHz Wi-Fi
Marvell 88W8782
802.11 a/b/g/n, SISO, 2.4Ghz and 5Ghz, HT20&HT40
20Mhz Channel : 2412-2472 Ghz / 5180-5320 Ghz / 5500-5700
Ghz / 5700 Ghz / 5745-5805 Ghz
40Mhz Channel : 2442-2452 Ghz / 5190-5310 Ghz / 5510-5670
Ghz / 5755-5795 Ghz
9/12 MODU/7002
Copyright © 2014 Ingenico / All rights reserved
From 1 Mbit/s to 135 Mbit/s
Indoor: 70m typical, mini 100m in free sight
2.4Ghz : 23dBm
5Ghz : 13 dBm
WPA, WPA2
EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAPv0, EAP-SIM
/ Bluetooth
Bluetooth V2.0
BC08, CSR8811:
http://www.csr.com/sites/default/files/csr8811.pdf
Bluetooth 4.0 (Frequency : 2.4Ghz)
Bluetooth 4.2 planned on roadmap (Frequency: 2.4Gz)
SPP
A2DP
Other profile to be analyzed on request
1 Mbit/s
3Mbit/s (EDR)
1 open link to PCL
4 reserved for peripherals (barcode, printer, …)
Bluetooth Class 2 – max 10m in free sight
GFSK : 1.5 dBm
Pi/4 DQPSK : 1.8 dBm
8 DPSK : 2.1 dBm
10/12 MODU/7002
Copyright © 2014 Ingenico / All rights reserved
3_1_3 Internal Frequencies
• Bluetooth :
o Quartz = 26Mhz
• Wifi :
o Quartz = 40Mhz
11/12 MODU/7002
Copyright © 2014 Ingenico / All rights reserved
4_Norms&Marking
4_1 1 Federal Communications Commission (FCC) Statement &
Industry Canada (IC) Statement
Modular transmitter 15.212
Changes or modifications made to the equipment not expressly approved by INGENICO may void the
FCC / IC authorization to operate this equipment.
The use of the transceiver module is authorized in mobile or fixed host devices taking into account the
conditions listed below:
• OEM Integrator must ensure that the end user manual may not contain any information about
the way to install or remove the module from the final product.
• Depending on the final host device additional authorization requirements for the non-
transmitter functions of the transmitter module may be required (i.e., Verification, or
Declaration of Conformity) The OEM integrator is responsible for ensuring that after the
module is installed and operational the host continues to be compliant with the Part 15B
unintentional radiator requirements.
• The information on the label and in the user manual is required to be incorporated in the user
manual of the final host. see 47 CFR15 requirements for more details (e.g. 15.19 / 15.21 /
15.101 / 15.105 / RSS-GEN / ICES)
• Additional label with the words ‘Contains FCC ID: XKB-M7002WIBT’ and ‘Contains IC: 2586D-
M7002WIBT’ shall be applied and visible from the outside of the host product.
• The module must be installed and used in strict accordance with the manufacturer’s
instructions as described in the user documentation that comes with the module.
• The end user manual for the final host product operating with this transmitter must include
operating instructions to satisfy RF exposure compliance requirements.
Radiofrequency radiation exposure Information :
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance of 20 cm between the
radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de
20 cm de distance entre la source de rayonnement et votre corps.
• The antenna of the module may not be removed, replaced nor modified. The antenna must
not be co-located or operating in conjunction with any other antenna or transmitter. No
additional antenna must be used.
12/12 MODU/7002
Copyright © 2014 Ingenico / All rights reserved
• When the final host product operating with this transmitter deviate from above, installation of
this module into specific final hosts may require the submission of a Class II permissive
change application containing data pertinent to RF Exposure, spurious emissions, ERP/EIRP,
and host/module authentication, or new application if appropriate.
Feel free to contact us if additional guidance is required.
