Ingenico – 28-32 Boulevard de Grenelle

75015 PARIS

Tél. 33(0)1 58 01 80 00 - Fax 33 (0)1 58 01 91 35

Multi Charging Dock for iSMP

IMP300-MBCS / IMP300-MBCW

U S ER G U I D E

Contents

1. Introduction __________________________________________________ 3

2. Unpacking ___________________________________________________ 4

3. Recommendations _____________________________________________ 5

3.1. Main Characteristics ___________________________________________________ 5

3.2. Security _____________________________________________________________ 5

3.3. Standard compliance marking ___________________________________________ 7

3.4. EC standard compliance ________________________________________________ 7

3.5. FCC & IC Compliance. __________________________________________________ 8

4. Installation and connection _____________________________________ 10

4.1. Functional description ________________________________________________ 10

4.2. Positioning the cradle _________________________________________________ 10

4.3. PSU connection ______________________________________________________ 10

4.4. iSMP insertion _______________________________________________________ 11

4.5. Charging iSMP Companion _____________________________________________ 11

5. Maintenance _________________________________________________ 12

5.1. Cleaning of the cradle _________________________________________________ 12

5.2. Transport and storage ________________________________________________ 12

5.3. Troubleshooting _____________________________________________________ 12

5.4. Environment (WEEE, Batteries and Packaging) ____________________________ 13

1. Introduction

Thank you for choosing a payment terminal Ingenico.

We recommend you to read carefully this installation guide: It gives you the necessary

information about safety precautions, unpacking, installation, and maintenance of your

terminal accessory.

WARRANTY / SECURITY

To benefit from the guarantee-related product, and to respect the security, we ask you to

use only accessories delivered in box with the product, entrusting maintenance operations

only to an authorized person.

The IMP300-MBCS (296148325) and IMP300-MBCW (296148333, Bluetooth Model)

accessories have been designed for iSMP Companion product do not attempt to use for any

other use.

Failure to comply with these instructions will void the manufacturer’s responsibility.

This symbol indicates an important Warning.

This symbol indicates a piece of advice.

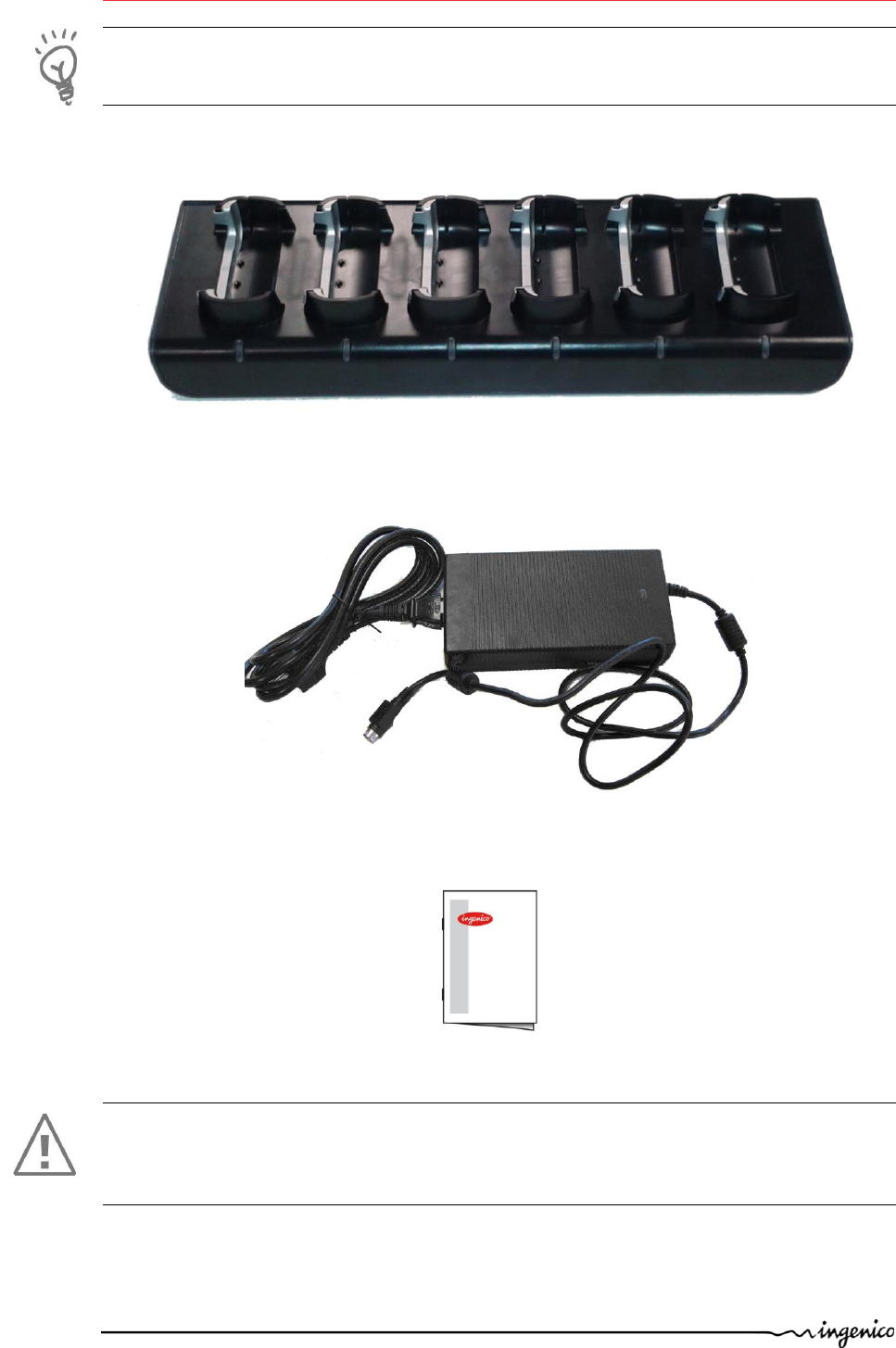

2. Unpacking

ADVICE

Carefully preserve the packaging of the IMP300. It must be re-used whenever the accessory

is shipped.

The following items are included in the IMP300 box :

IMP300-MBPS (296148325) or IMP300-MBCW (296148333)

POWER SUPPLY

WARNING

The power supply unit provided with your equipment is specially designed for Ingenico

terminals. Do not use any other power supply. The use of a power supply with apparently

similar voltage/current characteristics may damage your terminal.

This User guide

3. Recommendations

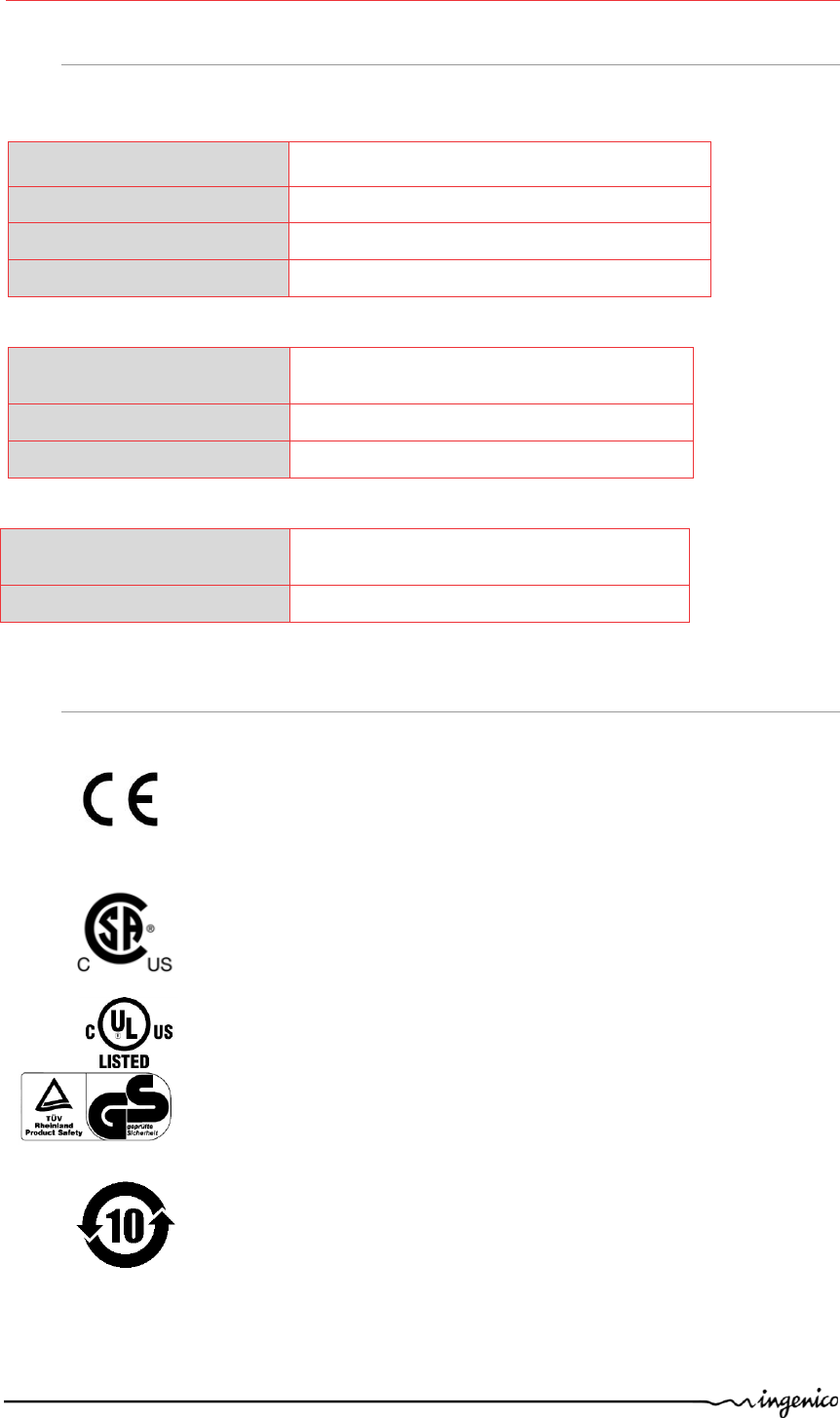

3.1. Main Characteristics

The main technical characteristics of the cradle Ingenico IMP300-MBCS are:

Mass

740 g

Dimensions (Lxlxh)

400x130x64mm

Electrical mains network

100-240VAC / 50-60 Hz - Class I

PSU Models

Ingenico ref: 296202434

Operating conditions

Ambient temperature

from -10°C to +45°C

Max relative humidity

85% at +45°C

Connections for terminal

6 x 2 poles sockets – 5Vdc / 1A each slot

Storage conditions

Storage temperature

-20°C,+55°C

Max relative humidity

85% at +55°C

3.2. Approvals and markings

Mandatory conformity marking for products sold within the

European Economic Area (EEA). It states that the product is assessed

before being placed on the market and meets EU safety, health and

environmental protection requirements

Indicates that the product has been certified to applicable standards

including standards written or administered by the American

National Standards Institute (ANSI), Underwriters Laboratories (UL),

CSA Group (CSA), NSF International (NSF), and other North American

and global organizations

Indicates that the product meet both American and Canadian

standards for safety requirements

Indicates that the product has been evaluated, tested and certified

for electrical safety by an independent accredited third-party against

German and European standards

Indicates that the EIP contains toxic and hazardous substances or

elements over the defined maximum concentration values defined

above. The names and content of the toxic and hazardous

substances or elements shall be provided in the product

instruction manual. The number in the symbol refers to the

environment friendly use period

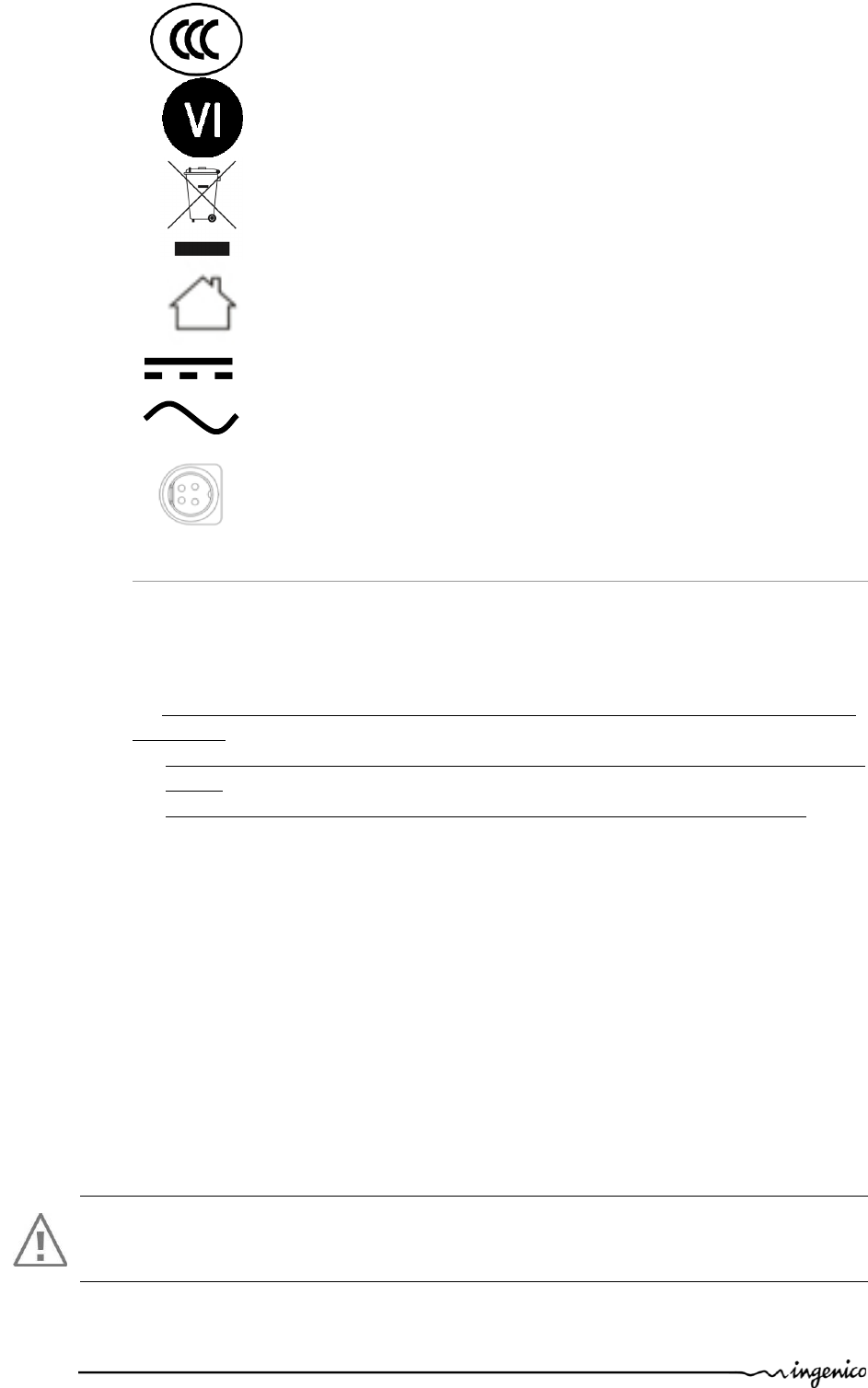

Compulsory safety mark for many products imported, sold or used in

the Chinese market

Indicating a power supply meets the level V energy efficiency

requirements.

Indicates that when the end-user wishes to discard this product, it

must be sent to separate collection facilities for recovery and

recycling

Indicates that the product is intended for indoor use only

Denotes a continuous voltage rating. This symbol is followed by the

ratings (voltage and current for instance)

Denotes an alternating voltage rating. This symbol is followed by the

ratings (voltage and current for instance)

This logo explains the pinout of the PowerDIN connector of the PSU,

for user awareness and foolproofing.

3.3. Security

IMP300-MBPS and IMP300-MBCW (Bluetooth model) are specially designed for iSMP

Companion terminals charging.

Do not short-circuit the cradle contacts.

Do not attempt to open the cradle container or PSU unit.

 Do not attempt to replace the PSU unit by any other type even the characteristics

are similar.

 In case of abnormal behaviour disconnect the main power cord from the wall

outlet.

 The main plug of the power cord is the disconnecting device of the product

Electrical power outlet:

The electrical outlet must meet the following criteria:

 Must be installed near the equipment and easily accessible;

 Appliance plug must be connected to a grounded outlet , which connects to the

plug earth

 The protection of the installation must be set to 20 A in US and Canada, 13 A in

the UK and 16 A in other countries.

The electrical outlet AND power cord must meet the following criteria:

 Must meet standards and regulations in the country where used;

All external circuits connected to this product must be Safety Extra Low Voltage (SELV) and

Limited Power Sources (LPS) as stated in IEC60950-1:2005+A1:2010+A2:2013 et EN60950-

1:2006+A11:2009+A1:2010+A12:2011+A2:2013 standards

Warning

In such of misuse, all the certifications below and warranty for ISMP Companion and

cradle would be voided

3.4. Standard compliance marking

Conforms to the following harmonized standards:

 Safety standards:

– CEI 60950-1: 2005, (CENELEC, EN 60950-1: 2006/A11:2009 included)

– UL 60950-1: 2007

– CAN/CSA C22.2 n° 60950-1-07: 03/2007

– AS/NZS 60950.1:2003

 EMC standards

– EN 301 489-1 + EN 301-489-17

– FCC Part 15.109 and 15.107

 Radio

– EN 300 328 (COFRAC)

– FCC Part 15.247

– RSS 210 and RSS GEN

3.5. EC standard compliance

The CE marking indicates IMP300-MBPS and IMP300-MBCW complies with the

requirements of European Directive 1999/5/EC of 9 March 1999 on Radio and

Telecommunications Terminal Equipment for:

 The protection of the health and the safety of the user and any other person.

 The protection requirements with respect to electromagnetic compatibility.

And complies with harmonised standards listed above.

3.6. FCC & IC Compliance.

The Bluetooth model (IMP300-MBCW) is registered under the following ID:

- FCC-ID: XKB-MBISMPCBT

- IC number: 2586D-MBISMPCBT

FCC:

 This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception which can be determined by turning the equipment off

and on, the user is encouraged to try to correct interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with FCC RF radiation exposure limits set forth for general population.

This device must be installed to provide a separation distance of at least 20cm from

all persons and must not be co-located or operating in conjunction with any other antenna

or transmitter.

IC:

 Under Industry Canada regulations, this radio transmitter may only operate

using an antenna of a type and maximum (or lesser) gain approved for the

transmitter by Industry Canada. To reduce potential radio interference to other

users, the antenna type and its gain should be so chosen that the equivalent

isotropically radiated power (e.i.r.p.) is not more than that necessary for successful

communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio

peut fonctionner avec une antenne d'un type et d'un gain maximal (ou

inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les

risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut

choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée

équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une

communication satisfaisante.

 This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not

cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux

appareilsradio exempts de licence. L'exploitation est autorisée aux deux

conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)

l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même

si le brouillage est susceptible d'en compromettre le fonctionnement.

This device complies with Industry Canada RF radiation exposure limits set forth for general

population. This device must be installed to provide a separation distance of at least 20cm

from all persons and must not be co-located or operating in conjunction with any

other antenna or transmitter.

Le présent appareil est conforme aux niveaux limites d’exigences d’exposition RF aux

personnes définies par Industrie Canada. L’appareil doit être installé afin d’offrir une

distance de séparation d’au moins 20cm avec l’utilisateur, et ne doit pas être installé

à proximité ou être utilisé en conjonction avec une autre antenne ou un autre émetteur.

CAUTION:

The user is cautioned that any changes or modification not approved by INGENICO could

void user’s authority to operate the equipment.

4. Installation and connection

4.1. Functional description

The IMP300 is a charger doc accessory for iSMP terminal.

4.2. Positioning the cradle

Install the cradle on a flat surface, with an easy access to an electrical outlet if needed.

Place the cradle away from any heat source and protected from dust, vibrations and

electromagnetic radiations (away from video terminals, PC, anti-shoplifting barriers, ...).

4.3. PSU connection

CAUTION :

Plug first the PSU unit to cradle before connecting the PSU to main power source.

 Plug the power jack and place the cable in the slot accordingly to back, right or left

exit

Charging pads used with charging dock

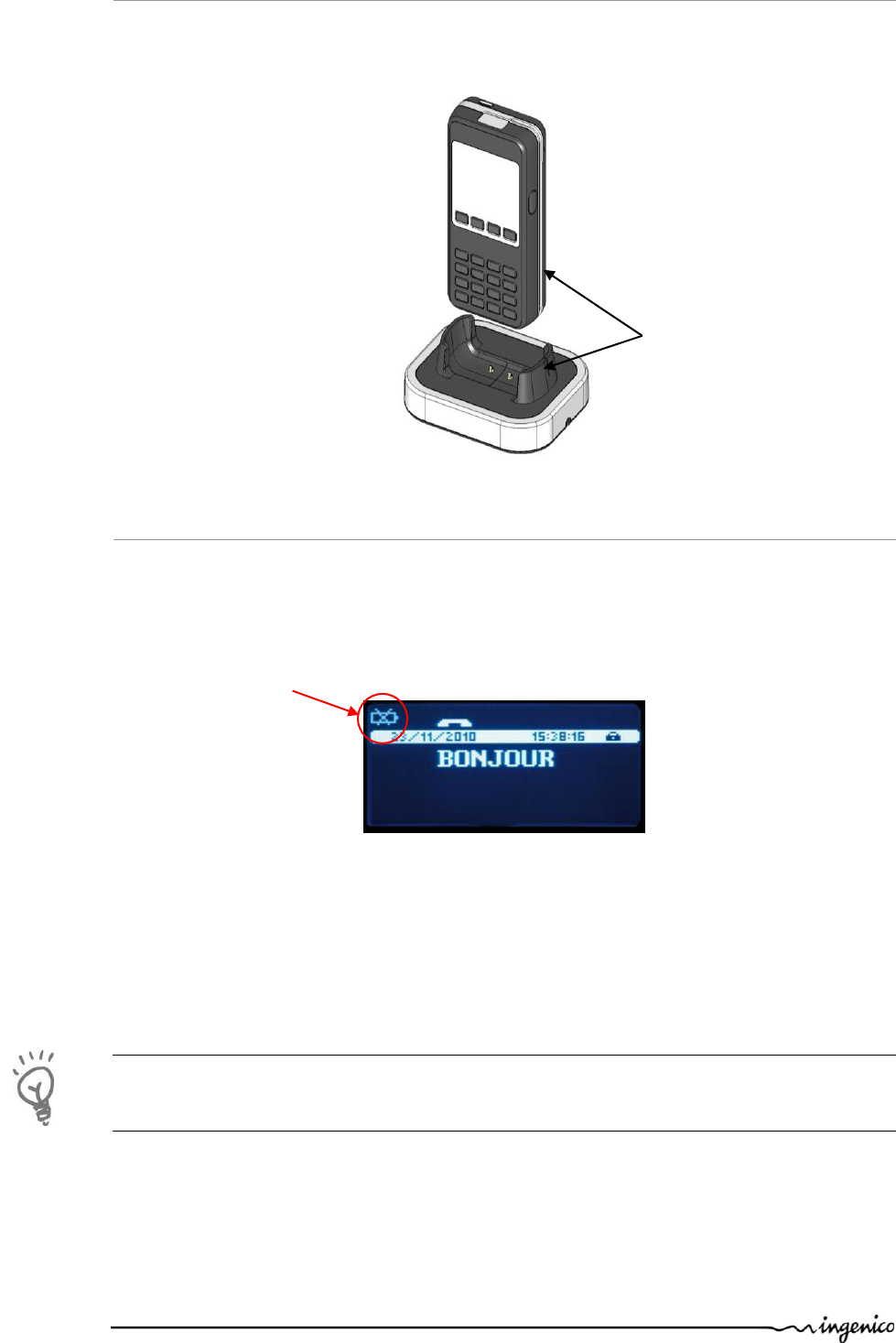

4.4. iSMP insertion

 Present the device over the cradle face to iPhone/ iPod touch side and plug it

carefully

4.5. Charging iSMP Companion

 Charging start as soon as iSMP Companion is inserted into the cradle

 Charging operation can be monitored by each side :

- Terminal

A battery indicator is provided on the iSMP screen, indicating the charge of the module.

- Charging cradle through LED indicators

LED indicators:

- Orange : in charge

- Green: charged

ADVICE

Before using iSMP Companion for the first time, you need to charge it for about 4 hours

After that, you can charge the iSMP 3 hours to recharge the battery to full capacity

Guidance slots

5. Maintenance

CAUTION :

Before making any operations of maintenance in the terminal, make sure that

power supply is disconnected.

5.1. Cleaning of the cradle

First of all, unplug all the wires from the terminal.

Good rules for proper cleaning of the terminal are:

 Use a soft cloth that is very slightly soaked with soapy water to clean the outside of

the cradle.

 Do not clean the electrical connections.

 Do not use in any case, solvents, detergents or abrasive products:

Those materials might damage the plastic or electrical contacts.

 Avoid exposing the cradle to the direct rays of the sun.

5.2. Transport and storage

 Use the original packaging for any transport or storage of the product.

5.3. Troubleshooting

The terminal does not turn on when inserted into cradle:

 Battery level is too low

 Check the PSU connections

 Check for iSMP positioning into the cradle

 Check for electrical power network

5.4. Environment (WEEE, Batteries and Packaging)

This product is labeled in accordance with European Directives 2002/96/EC concerning

Waste Electrical and Electronic Equipment (WEEE) and 2006/66/EC concerning Batteries

and Accumulators. Those provisions are requiring producers and manufacturers to become

liable for take-back, treatment and recycling upon end of life of equipment and batteries.

The associated symbol means that WEEE and waste batteries must not be thrown

away but collected separately and recycled.

Ingenico ensures that efficient collection and recycling schemes are set-up for WEEE and

batteries according to the local regulation of your country. Please contact your retailers for

more detailed information about the compliance solution in place for disposing of your old

product and used batteries.

Packaging waste must also be collected separately to assure a proper disposal and

recycling.

Please note that proper recycling of the electrical and electronic equipment and waste

batteries will ensure safety of human health and environment.

Ingenico – 28-32 Boulevard de Grenelle

75015 PARIS

Tél. 33(0)1 58 01 80 00 - Fax 33 (0)1 58 01 91 35

www.ingenico.com

Ingenico

192 avenue Charles de Gaulle

92200 Neuilly sur Seine - France

Tél.: + 33 1 46 25 82 00 - Fax: + 33 1 47 72 56 95

www.ingenico.com

Your contact

*296156736*

rights and protection in all material contained in this document. The recipient can receive this

document on the condition that he will keep the document confidential and will not use its contents

in any form or by any means, except as agreed beforehand, without the prior written permission of

INGENICO. Moreover, nobody is authorized to place this document at the disposal of any third party

without the prior written permission of INGENICO. If such permission is granted, it will be subject to

the condition that the recipient ensures that any other recipient of this document, or information

contained therein, is held responsible to INGENICO for the confidentiality of that information.

Care has been taken to ensure that the content of this document is as accurate as

possible. INGENICO however declines any responsibility for inaccurate, incomplete or outdated

information. The contents of this document may change from time to time without prior notice, and

do not create, specify, modify or replace any new or prior contractual obligations agreed upon in

writing between INGENICO and the user.

INGENICO is not responsible for any use of this device, which would be non consistent with the

present document.

All trademarks used in this document remain the property of their rightful owners.”

iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Ingenico MBISMPCBT Multibay BT iSMP Companion User Manual Installation Guide

INGENICO Multibay BT iSMP Companion Installation Guide

User manual.pdf

Navigation menu

Namespaces

Views

Navigation
