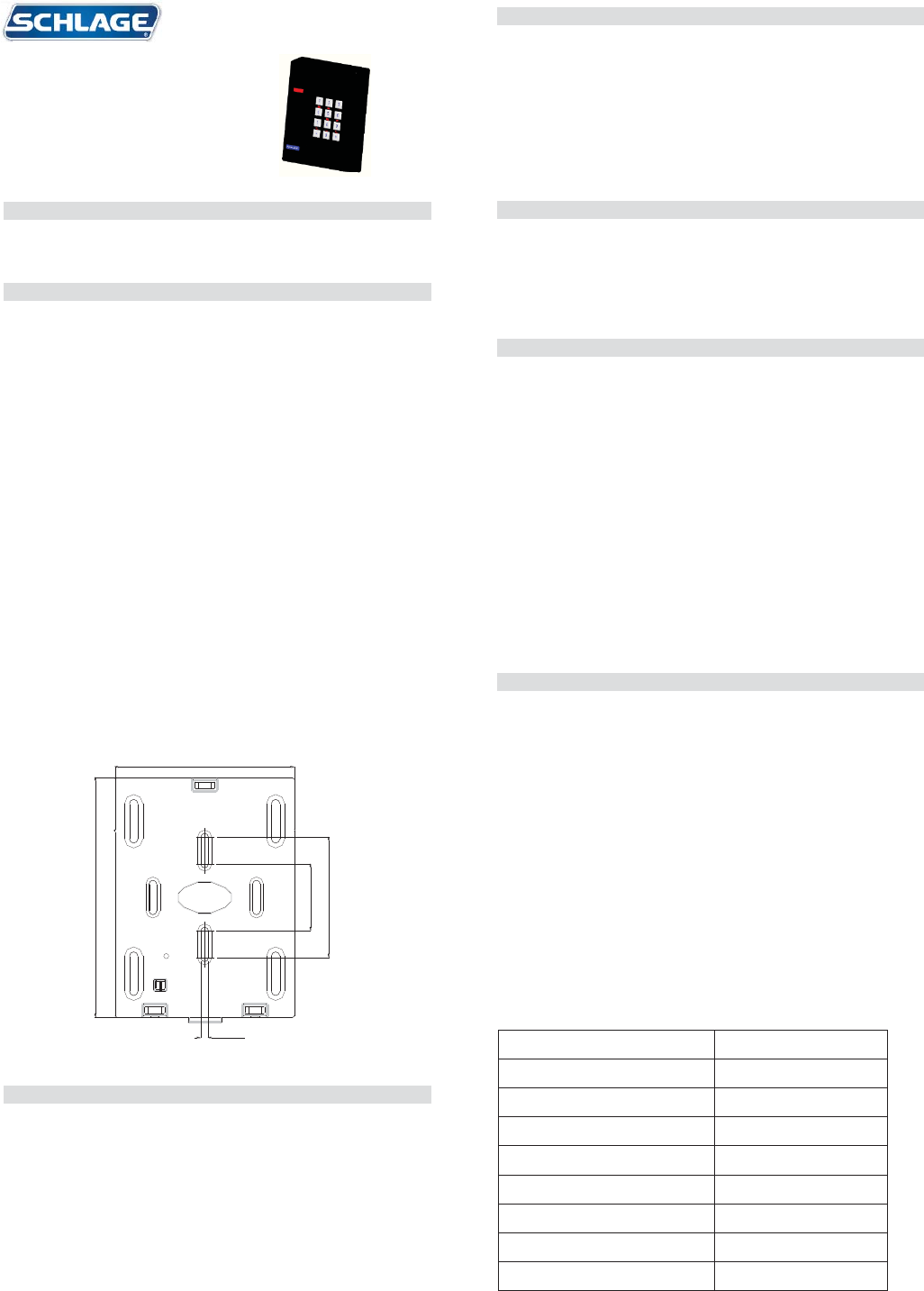

SXG6701K
Installation Guide
SCHLAGE
Ingersoll Rand Security Technologies
10F, Tower B, City Center of Shanghai,
100 Zun Yi Road, Shanghai 200051, P.R. China
Tel:+86 21 22081288
Fax:+86 21 62371991
Web: www.irco.com.cn
PARTS LIST
1-Installation sheet 1-Mounting Plate 1-Potted Reader Assembly
2-Mounting Screws 1-Cover 1- Cover Assembly Screws
MOUTING THE READER
1. Determine an appropriate mounting position on a single gang box or
well. Be sure to account for any applicable ADA height requirements.
2. For a single gang box mount, attach the black –plate to the holes in
the single gang box using the screws provided.
3. For a wall mount, drill two mounting holes between 1.57”(40mm)
and 2.83”(72mm) apart on the mounting surface. Drill one 0.59”(15mm)
diameter cable hole for the pigtail wire connection.
4. Connect the mounting plate to the wall using the screws provided.
5. Wire the unit according to the color code chat below ensuring that all
connections are made through the center hole in the mounting plate.
6. Hook the top of the potted case assembly to the top of the mounting
plate.
7. Swivel the unit down into place and snap the cover over the potted
reader assembly.
8. Install the Screw from the bottom to fix the cover to the potted case
to the mounting plate.
CABLE CONNECTIONS
1. Ingersoll Rand’s SXG6701K readers are supplied with a 12 color
conductor cable pigtail. Connect this pigtail with the host/panel being
careful to match the color of each wire with the chart shown in Figure 1.
2. Use a DC power source between 8 volts and 16 volts.
3. Be sure the reader is properly grounded by attaching the ground
wire to an earth ground connection at the power supply or panel end of
the cable.
TESTING THE READER
1. Power up the reader. The LED will light followed by a beeper tone.
This indicates that the reader is ready.
2. Present a proper card or token programmed to operate the reader
and a green LED flash will indicate successful operation. Note that a red
flash could simply indicate an incorrect match or miss-programmed
card/token rather than a faulty reader installation.
ADDITIONAL NOTES
z The voltage specification for these readers is 8-16 volts.
z Typical cable gauge ranges from 18 to 22 gauge. Check with your
cable supplier to determine the best choice for your application and
installation distance.
SPECIFICATIONS
z Power Supply: DC
z Voltage Range: 8-16 V DC
z Temperature Range: -35ć to 67ć (-31F to 152F)
z Card Reader Distance: Up to 76.2mm–distance can vary widely
depending on installation conditions and credential type.
z Cable Distance to Panel in Wiegand ˩
˩
ode:
-150m. maximum @22 AWG and 12V
-60m. maximum @22 AWG and 8V
z Information Output: Wiegand format
z Regulatory Approvals and Standards:
UL294, ISO15693, ISO14443A/B, Europe: CE listed.
FCC STATEMENT
The FCC requires the following statement for your information: This
device complies with Part15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
This reader utilizes and radio frequency energy and has been tested and
complies with the limits of FCC testing. Changes, modifications or
disregard of proper installation instructions not expressly approved by
Ingersoll Rand Corporation is strictly prohibited by the FCC and could
void the user’s authority to operate the equipment.
Figure 2 SXG6701k cable connections
Green
Date 0
White
Data 1
Light Blue
Green LED
Brown
Red LED
Red
Power+ DC(8-16VDC)
Black
Ground
Yellow
Beeper
Tan
Tamper Output
Pink
ˈ
Gray, Purple, Blue
Not Used
Warning
˖
Connect wires strictly in accordance with the above wiring.
Recommend cut off the metal wires of unused in field installation.
