iCOM_WM05_AN Module EVB_QSG
REV 0.1 8/14/2015
[General Information]
The WM05_AN Evaluation Module Kit contains two WM05_AN (TI CC3200) modules supported USB to
UART interface which is prepared for WiFi performance testing purpose.
WM05_AN module provides excellent low power consumption with astonishing wireless connection range.

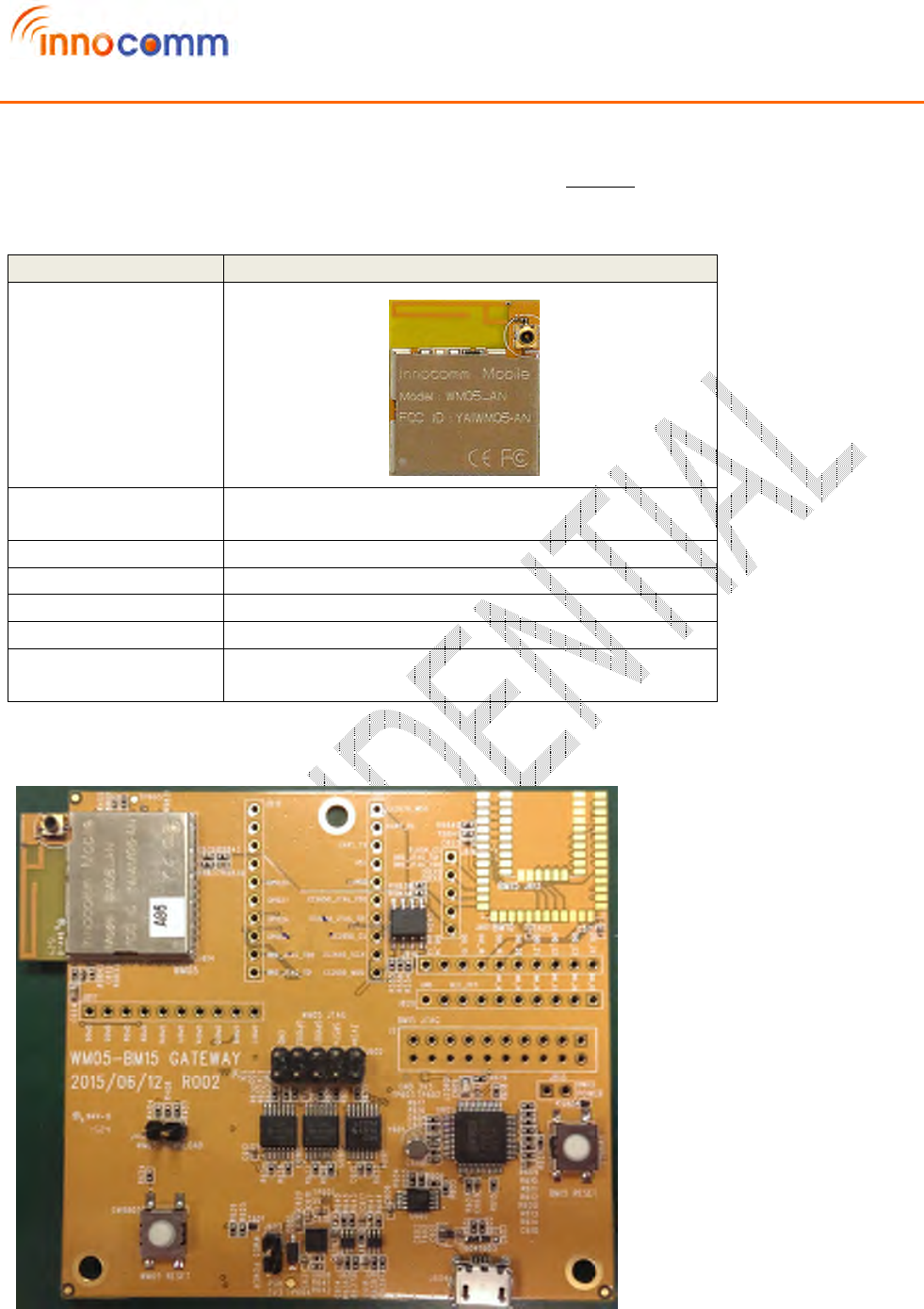

Part Number WM05_AN
Description WiFi module
Size (mm) 20.5x24x2.3
Pin count 63
Mounting Method SMD
Supply Voltage 2.5V ~ 3.6V
I/O GPIO x23
Wifi connect to UART Interface
Your package contains
1. WM05_AN EVB
2. 2 x software: USB driver & PC tool for performance test
![](/img.php?id=2722284&img=bg3.png)
iCOM_WM05_AN Module EVB_QSG
REV 0.1 8/14/2015
EVB Drive
FTDI2232D
Uniflash:
http://www.ti.com/tool/uniflash
Radio Tool:
http://www.ti.com/tool/cc3xxxradiotest
[EVB]
Uniflash (to flash applications):

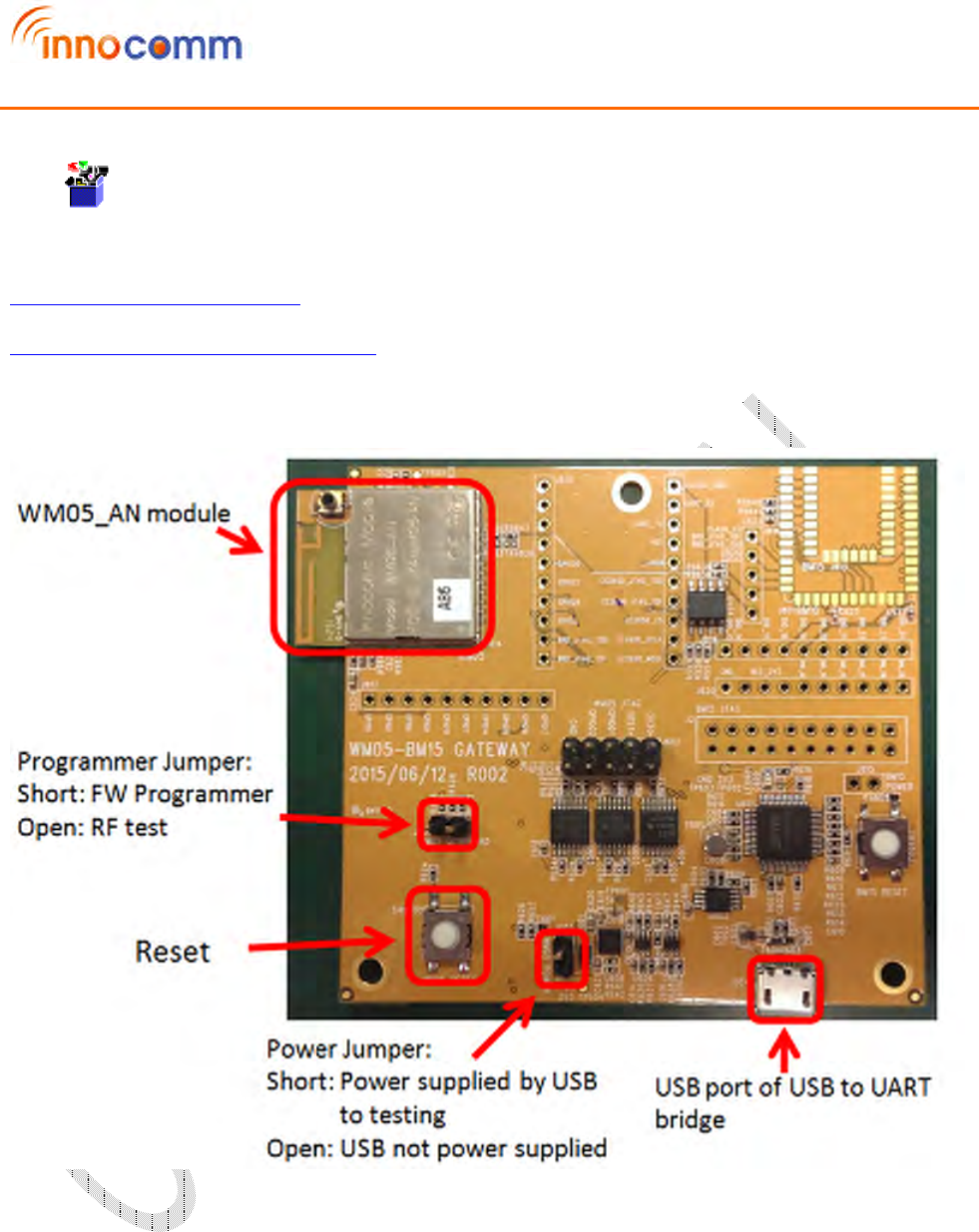

1. Please make sure programmer jumper is closed. Once Uniflash is installed
(uniflash_cc3xxx_setup_3.2.0.00019.exe), invoke ‘CCS UniFlash’.
![](/img.php?id=2722284&img=bg4.png)
iCOM_WM05_AN Module EVB_QSG
REV 0.1 8/14/2015

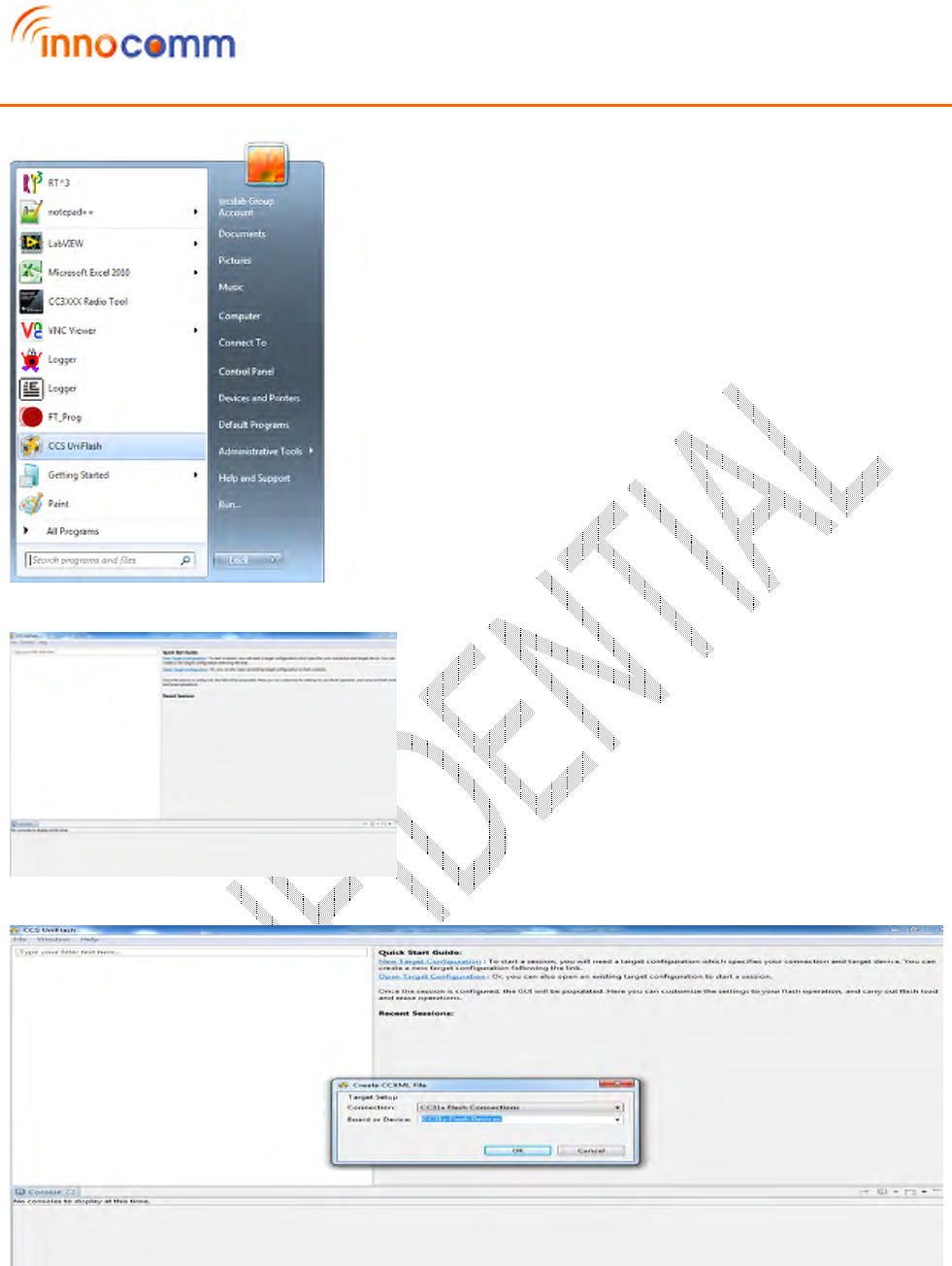

2. ‘CCS UniFlash’ will open like below.
3. Go to ‘New Target Configurations’ and do the settings as shown below.
![](/img.php?id=2722284&img=bg5.png)
iCOM_WM05_AN Module EVB_QSG
REV 0.1 8/14/2015

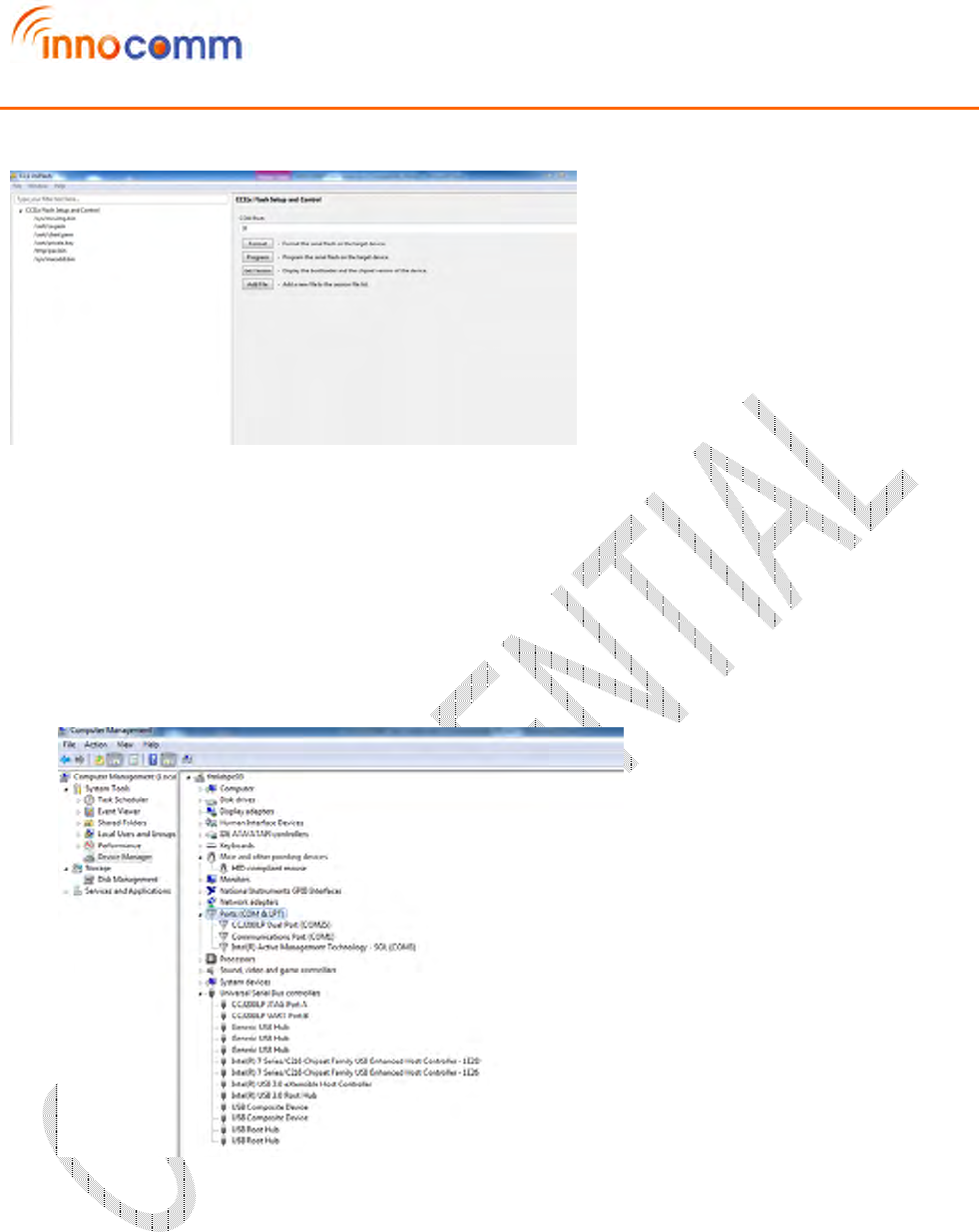

4. Select the correct COM port. For correct COM port please see the next section, ‘Radio tool
(to control the device)’.

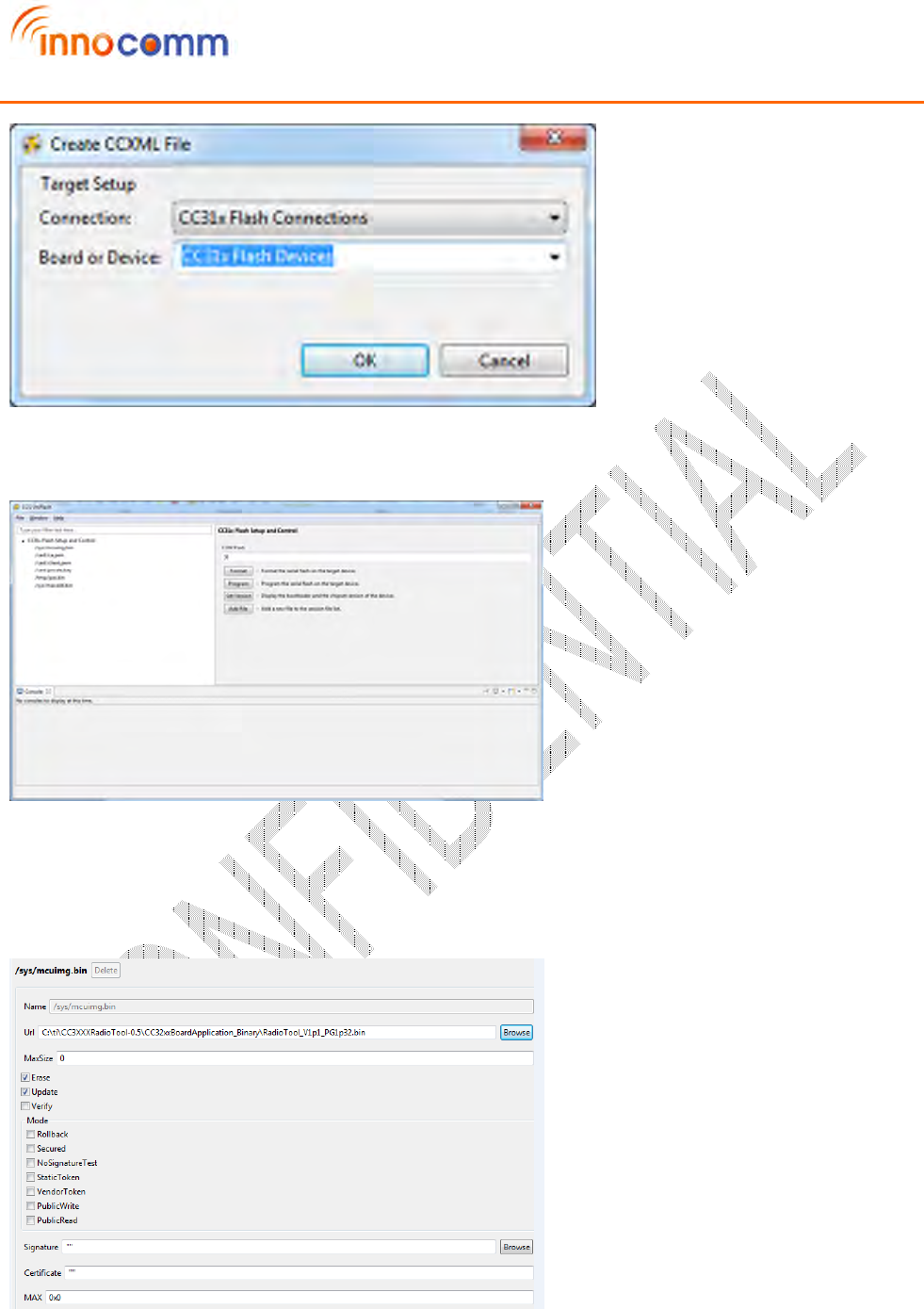

5. Click on /sys/mcuimg.bin and browse for required binary file
For example, flashing the launchpad with the ‘Radio Tool Application’, select the following binary
available in the path shown below:
C:\ti\CC3XXXRadioTool-0.5\CC32xxBoardApplication_Binary\RadioTool_V1p1_PG1p32.bin
Check ‘Erase’ and ‘Update’.
![](/img.php?id=2722284&img=bg6.png)
iCOM_WM05_AN Module EVB_QSG
REV 0.1 8/14/2015
6. Go back to ‘CC31x Flash Setup and Control’ and click ‘Program’
After programming the device remove programmer jumper. This removal is VERY important before
any testing to be done.
Reset the board using the RESET push-button
Radio tool (to control the device):
1. Once the device is powered up (after connecting uUSB cable to ‘power jumper’), one
COM port should be enumerated in the device manger. Incase windows is not able to find the
device drivers then the drivers need to be installed separately. With the SDK0.51 package
installed, the driver should be available in below location.
2. Assuming (in the ‘required installation’ section), ‘CC3XXXRadioTool-0_5.exe’ is already
installed, invoke ‘CC3XXX Radio Tool’ from ‘All Programs -> Texas Instruments ->
CC3XXXRadioTool-0.5 -> CC3XXX Radio Tool.’
![](/img.php?id=2722284&img=bg7.png)
iCOM_WM05_AN Module EVB_QSG
REV 0.1 8/14/2015

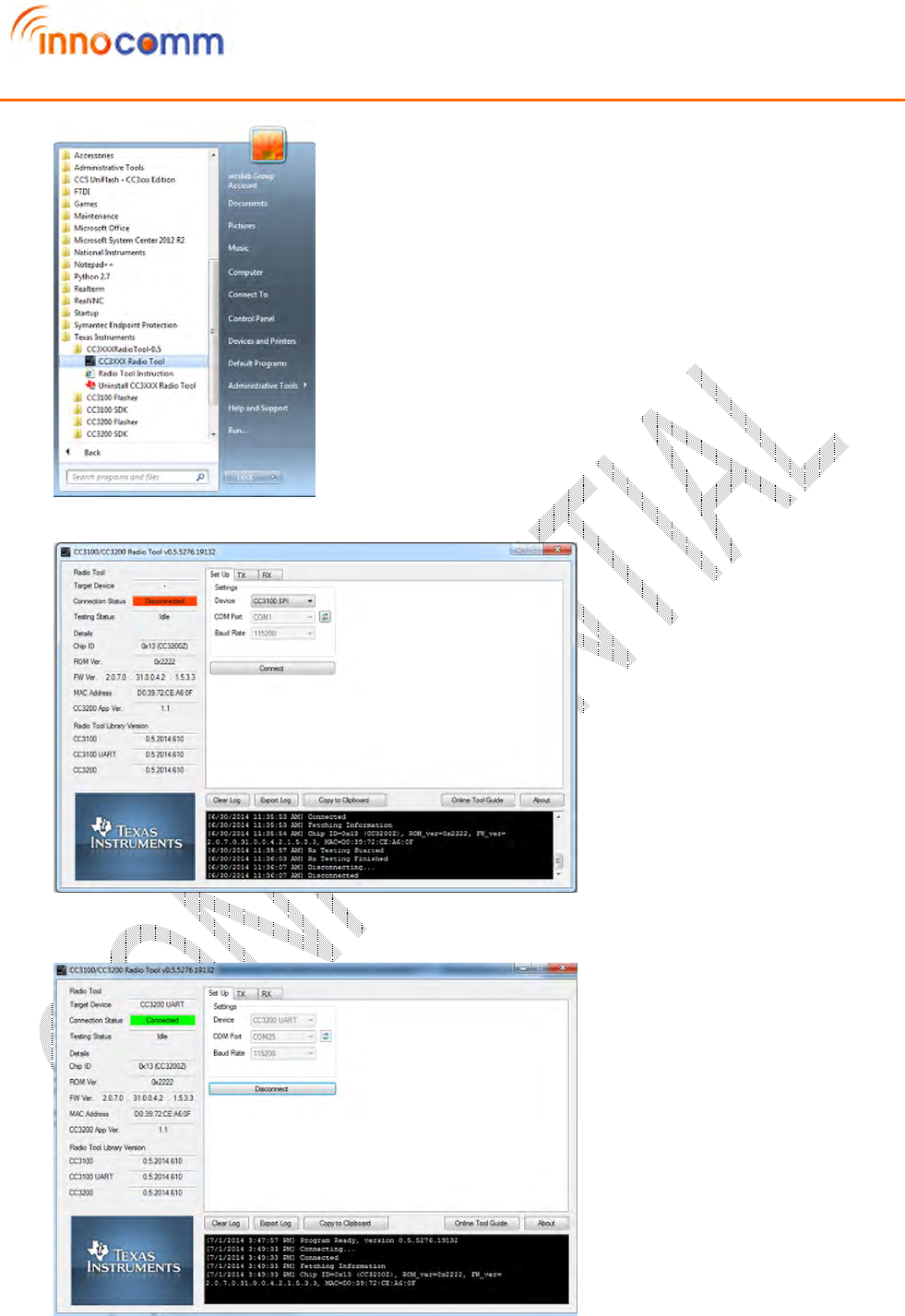

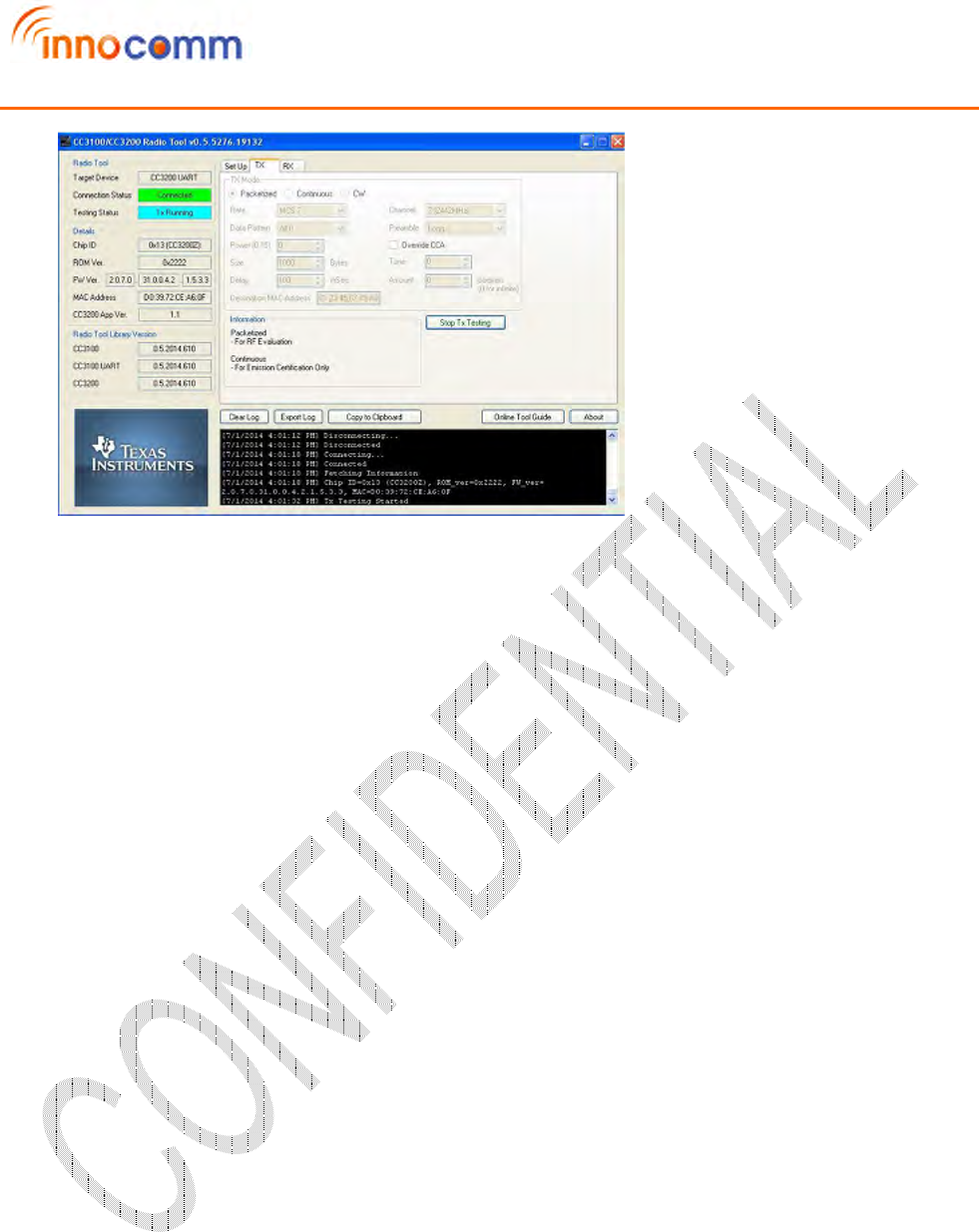

The Radio Tool GUI will appear as shown below.
3. For CC3200 module launchpad, select CC3200 UART as ‘Device’. Select the COM port
found in device manager. please select COM25 as shown below. Click ‘Connect’.
![](/img.php?id=2722284&img=bg8.png)
iCOM_WM05_AN Module EVB_QSG
REV 0.1 8/14/2015

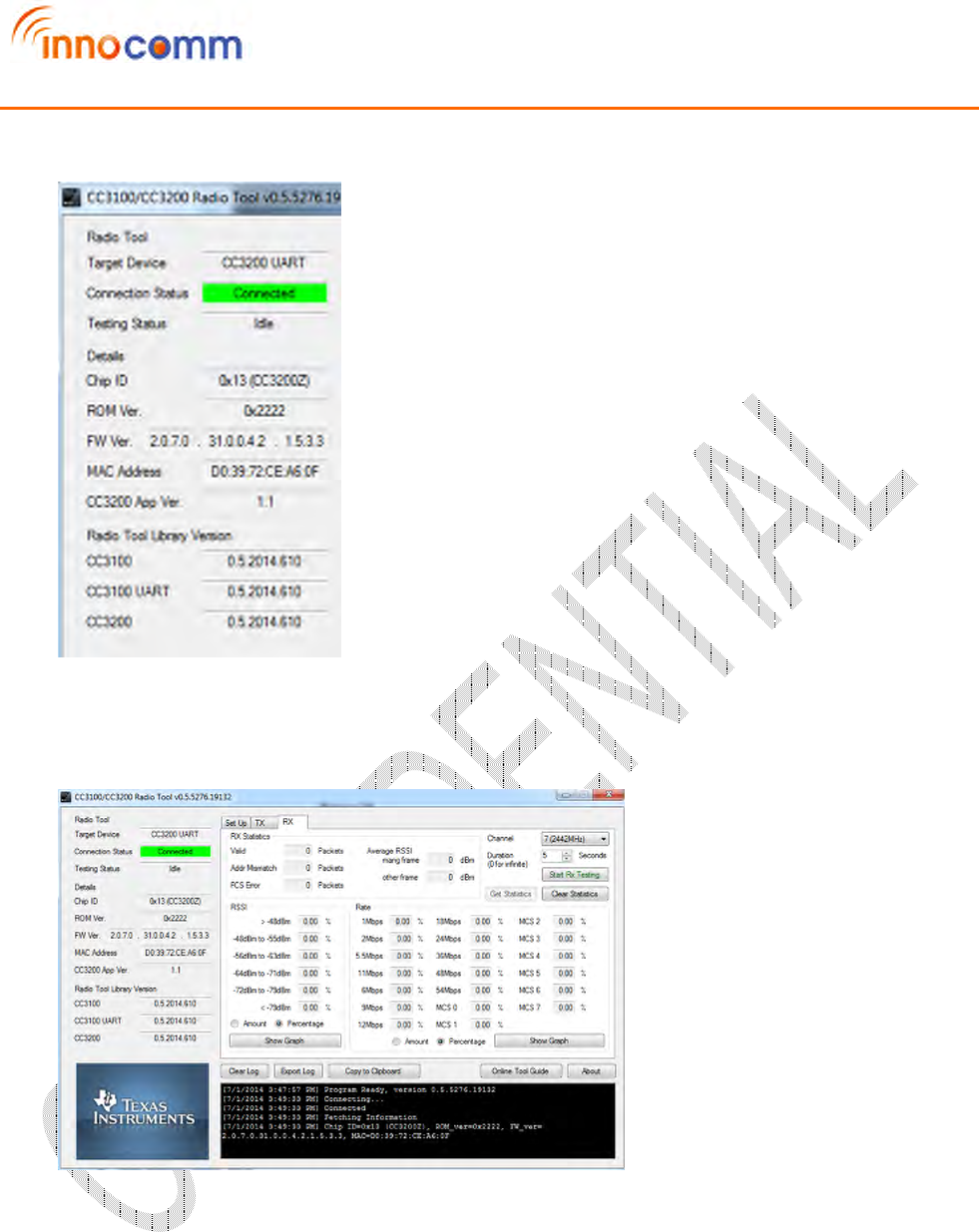

4. Once the device is connected, the GUI would show ‘Chip ID’, ‘ROM Ver’, ‘FW Ver’ and
‘MAC Address’
5. For RX measurements go to ‘RX’ tab of the Radio Tool GUI. Select the channel intended
and set the duration (example 5secs). Click ‘Start RX Testing’ and after 5 secs, the statistics
will appear in the GUI.
6. Example: With 6OFDM packets at -82dBm (when the sensitivity is -89dBm) at channel
2442M, when 1000 packets are received, the statistics shown on the GUI would be as shown
below.
![](/img.php?id=2722284&img=bg9.png)
iCOM_WM05_AN Module EVB_QSG
REV 0.1 8/14/2015
The steps are similar to other rates as well.
For TX measurements go to ‘TX’ tab. Before starting TX operations following settings need to
be done on the GUI.
TX Mode: Select ‘Packetized’
Rates: Select the modulation rates want to transmit
o 11b: 1, 2, 5.5 and 11 Mbps
o 11g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
o 11n: MCS0 to MCS7
Channel: Select the channel of transmission. Channel 1 (2412M) to channel 13 (2472M)
Data Pattern: Select ‘All 0’
Power: ‘0’ for max power level the device can transmit at. Always use power level “0” for
emission testing in order to verify the max power level settings.
Preamble: Select ‘Long’
Override CCA: Should be unchecked
Size: 100 Bytes (for 11b rates), 1000 Bytes (for 11g rates) and 1000 Bytes (for 11n rates)
Delay: 100msec
Tone: 0
Amount: 0
7. Once the above setting are done, start TX by clicking ‘Start Tx Testing’
![](/img.php?id=2722284&img=bga.png)
iCOM_WM05_AN Module EVB_QSG
REV 0.1 8/14/2015

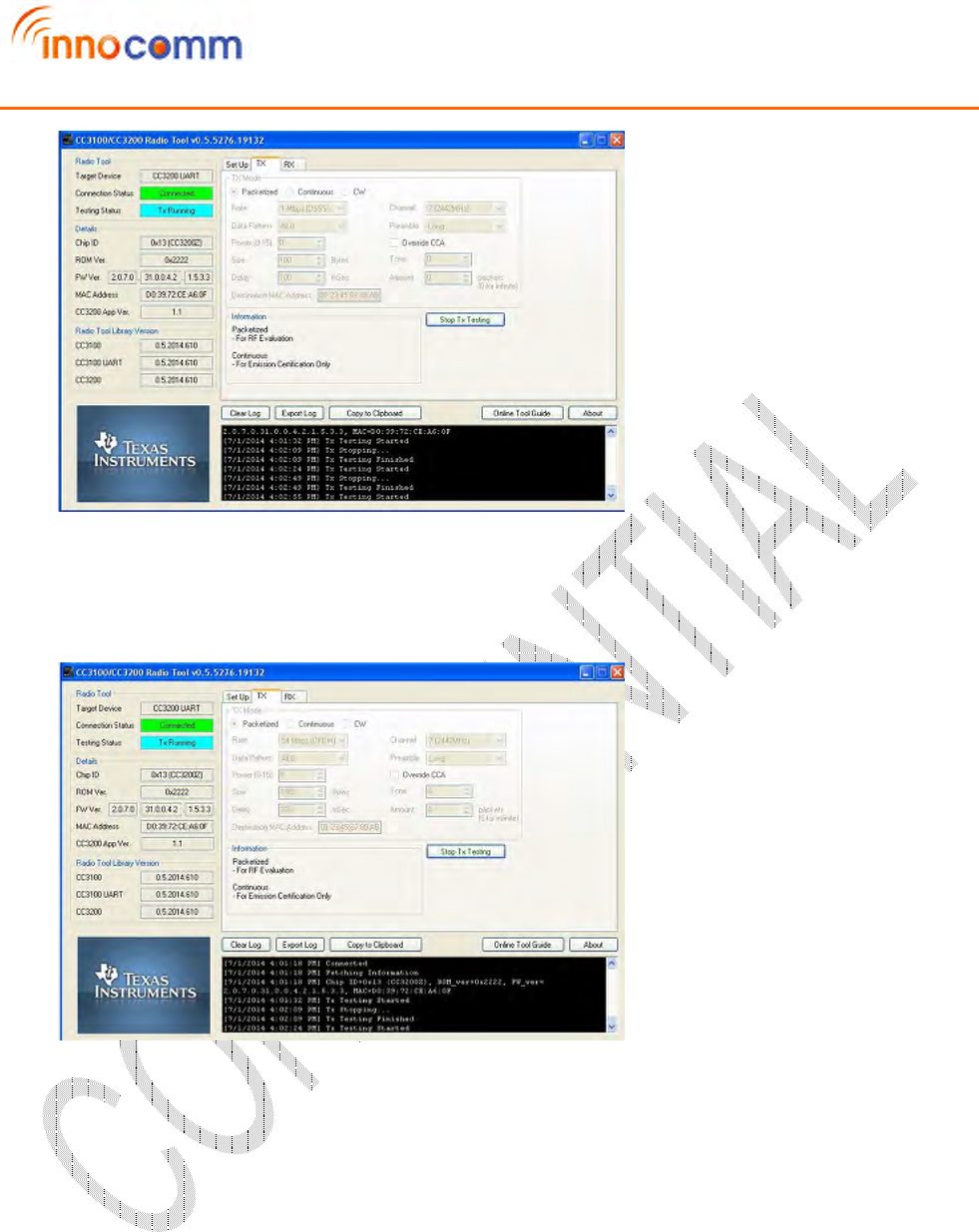

Picture 20
If to change channel or modulation rate please first click ‘Stop TX testing’. If Change To new
channel or modulation rate is OK, Please click ‘Start Tx Testing’
TX -> change settings -> start TX sequence to be followed.
Picture 20: Example of 11b (1DSSS) transmission at channel 7(2442MHz)
Picture 21
Picture 21: Example of 11g (54OFDM) transmission at channel 7(2442MHz)
![](/img.php?id=2722284&img=bgb.png)
iCOM_WM05_AN Module EVB_QSG
REV 0.1 8/14/2015
Picture 22
Picture 22: Example of 11n (MCS7) transmission at channel 7(2442MHz)
[Software application development]
Development support
The CC3200 includes a set of tools and documentation to help the user during the development phase.
PinMux Tool: The CC3200 device uses pin multiplexing extensively to accommodate the large number
of peripheral functions in the smallest possible package. The PinMux tool is a utility used to select the
appropriate pin multiplexing configuration that meets the end application requirements. The PinMux tool
makes it easy to understand the various pin multiplexing options and enables the best configuration to
be chosen without error.
Radio Tool: The SimpleLink radio tool is a utility for operating and testing the CC3200 chipset designs
during development of the application board. The CC3200 device has an auto-calibrated radio that
enables easy connection to the antenna without requiring expertise in radio circuit design.
Uniflash Flash Programmer: The Uniflash flash programmer utility allows end users to communicate
with the SimpleLink device to update the serial flash. The easy GUI interface enables flashing of files
(including read-back verification option), storage format (secured and nonsecured formatting), version
reading for boot loader and chip ID, and so on.
Supported profiles & sample applications
1. Cloud Connectivity
2. Home Automation
3. Home Appliances
4. Access Control
5. Security Systems
6. Smart Energy
7. Internet Gateway
8. Industrial Control
9. Smart Plug and Metering
10. Wireless Audio
11. IP Network Sensor Nodes
![](/img.php?id=2722284&img=bgc.png)
iCOM_WM05_AN Module EVB_QSG
REV 0.1 8/14/2015
