InnoSenT IPM165 K-Band Transceiver User Manual

InnoSenT GmbH K-Band Transceiver

USER MANUAL

and manufactured
in Germany
designed
Innovation in Radar Technology
USER MANUAL
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.

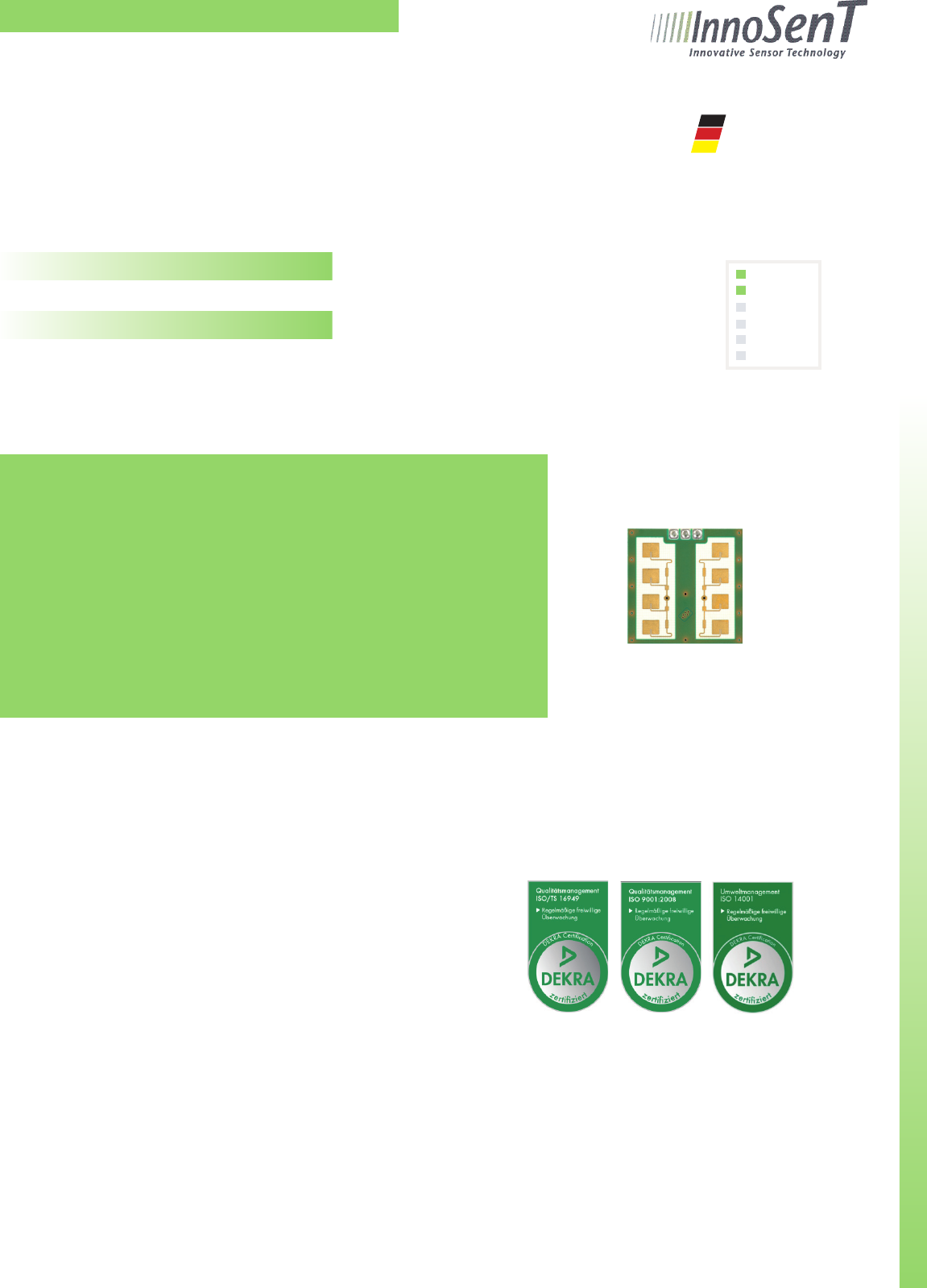

Page 1 USER MANUAL IPM-165_F Version 8.3
PRODUCT FAMILY
APPLICATIONS
FEATURES:
DESCRIPTION
ADDITIONAL INFORMATION
InnoSenT Standard Product. Changes will not be
notified as long as there is no influence on form, fit
and within this datasheet specified function of the
product.
RoHS-INFO
This product is compliant to the restriction of
hazardous substances (RoHS - European Union
directive 2011/65/EU).
CERTIFICATES
InnoSenT GmbH has established and applies a
quality system for: development, production and
sales of radar sensors for industrial and automotive
sensors.
Version
The IPM-165 is a 24GHz Doppler module with an
asymmetrical wide beam for detection of moving
objects.
Low power consumption components are quickly
enabled supporting duty cycles for battery or solar
panel operation.
Certified and approved according to
• ETSI EN 300 440
• FCC part 15.245
8.3 - 24.10.2013
IPM-165_F
Low Cost K-Band Transceiver
• Security applications
• Door openers
• Industrial applications
Movement
Velocity
Direction
Presence
Distance
Angle
»radar-based motion detector working in the 24GHz - ISM - Band
»available in different frequency ranges for worldwide use
»advanced LCO-oscillator with low current consumption
»split transmit and receive path for maximum gain
»very compact outline dimensions
Innovation in Radar Technology
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Page 2 USER MANUAL IPM-165_F Version 8.3
PARAMETER CONDITIONS SYMBOL MIN TYP MAX UNITS
Oscillator
transmit frequency1US-frequency band@ 25°C fF24.075 24.175 GHz
output power Pout 16 dBm
temperature drift Δf -1 MHz/°C
Receiver
IF-output voltage offset -300 300 mV
Signal level2category A 563 855 mVP-P
category B 856 117 7 mVP-P
category C 117 8 1819 mVP-P
Noise level2R116 mV
Antenna Pattern
full beam width @ -3dB azimuth horizontal 80 °
elevation vertical 35 °
side-lobe suppression azimuth horizontal 12 dB
elevation vertical 13 dB
Antenna gain 9.5 dBi
Power supply
supply voltage VCC 4.75 5.00 5.25 V
supply current ICC 30 40 mA
Environment
operating temperature TOP -20 +60 °C
storage temperature Tstorage -20 +60 °C
Mechanical Outlines
outline dimensions
height
length
width
25
25
7 (12.7)
mm
1 Details to the frequency bands you can find in Annex A
2 Relative output signal level and noise is measured at room temperature in a dedicated InnoSenT test setup
ELECTRICAL CHARACTERISTICS
ESD Info
This InnoSenT sensor is sensitive to damage from ESD. Normal precautions as usually applied
to CMOS devices are sufficient when handling the device. Touching the signal output pins has
to be avoided at any time before soldering or plugging the device into a motherboard.
Innovation in Radar Technology
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Page 3 USER MANUAL IPM-165_F Version 8.3

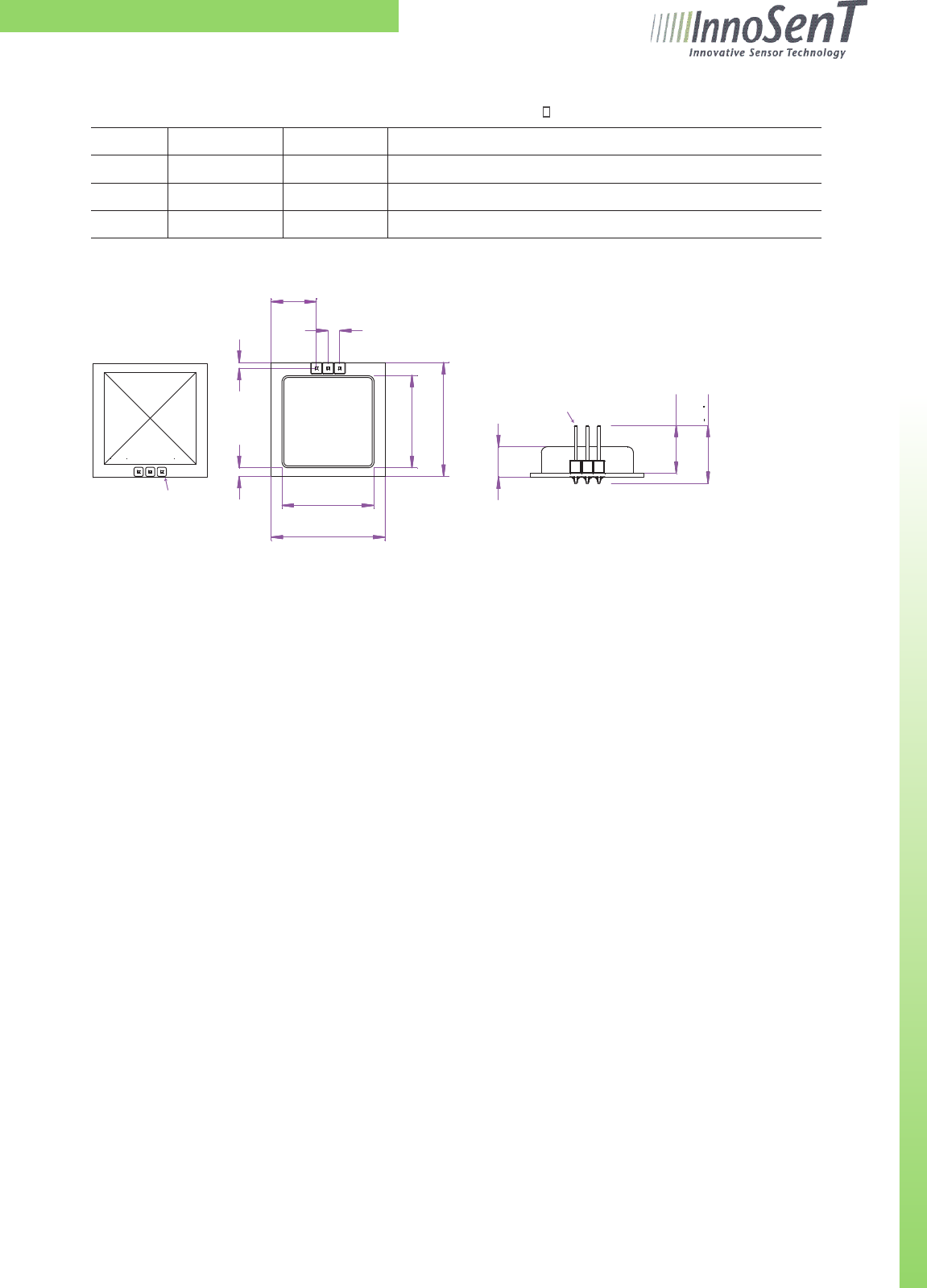

PIN # DESCRIPTION IN / OUT COMMENT
1 VCC input supply voltage (4.75 - 5.25V)
2 IF1 output signal I(nphase)
3 GND input analog ground
INTERFACE
The sensor provides a 2.54mm grid, single row pin header (square pin 0.635mm)
MECHANICAL OUTLINES
PIN 1
10.50
1.251.90
6.60 +1.00
- 0.20
25.00 + 0.20
- 0.20
25.00 + 0.20
- 0.20
20.20 + 0.20
- 0.20
20.20 + 0.20
- 0.20
12.70
PIN 1
PIN 1
9.96
2.54
antenna
all dimensions in mm
backside
side viewbottom view
top view
NOTICE:
This device complies with Part 15 of the FCC Rules [and with Industry Canada licence-exempt RSS standard(s)].
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
NOTICE:
Changes or modications made to this equipment not expressly approved by (manufacturer name) may void the FCC
authorization to operate this equipment.
Text for User Manual (blue cursive text)
For a Class A digital device or peripheral, the instructions furnished the user shall include the following or similar state-
ment, placed in a prominent location in the text of the manual:
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio commu-
nications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
Innovation in Radar Technology
Page 4 USER MANUAL IPM-165_F Version 8.3
InnoSenT GmbH
Am Rödertor 30
97499 Donnersdorf
GERMANY
Tel.:
E-Mail:
URL:
+49 (0) 9528 - 9518 - 0
info@innosent.de
www.innosent.de
FCC approval
Changes or modifications made to the equipment not expressly approved by InnoSenT GmbH may void the
FCC / IC authorization to operate this equipment.
The use of the transceiver module is authorized in mobile or fixed host devices taking into account the
conditions listed below:
•OEMIntegratormustensurethattheendusermanualmaynotcontainanyinformationaboutthewayto
install or remove the module from the final product.
•Dependingonthenalhostdeviceadditionalauthorizationrequirementsforthenon-transmitterfunctions
of the transmitter module may be required (i.e., Verification, or Declaration of Conformity) The OEM integ-
rator is responsible for ensuring that after the module is installed and operational the host continues to be
compliant with the Part 15B unintentional radiator requirements.
•Theinformationonthelabelandintheusermanualisrequiredtobeincorporatedintheusermanualof
the final host. see 47 CFR15 requirements for more details (e.g. 15.19 / 15.21 / 15.101 / 15.105 / RSS-GEN /
ICES)
•Additionallabelwiththewords‘ContainsFCCID:UXS-IPM165’and‘ContainsIC:6902A-IPM165’shallbe
applied and visible from the outside of the host product.
•Themodulemustbeinstalledandusedinstrictaccordancewiththemanufacturer’sinstructionsasde-
scribed in the user documentation that comes with the module.
•Theendusermanualforthenalhostproductoperatingwiththistransmittermustincludeoperating
instructions to satisfy RF exposure compliance requirements.
e.g
Radiofrequency radiation exposure Information:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 20 cm between the radiator and
your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
•Theantennaofthemodulemaynotberemoved,replacednormodied.Theantennamustnotbeco-loca-
ted or operating in conjunction with any other antenna or transmitter. No additional antenna must be used.
•Whenthenalhostproductoperatingwiththistransmitterdeviatefromabove,installationofthismodule
into specific final hosts may require the submission of a Class II permissive change application containing
data pertinent to RF Exposure, spurious emissions, ERP/EIRP, and host/module authentication, or new
application if appropriate.
