Innovative Concepts and Design UHF-04 Wireless Receiver User Manual 1

INNOVATIVE CONCEPTS AND DESIGN LLC Wireless Receiver 1

15_UHF-04 UserMan.pdf

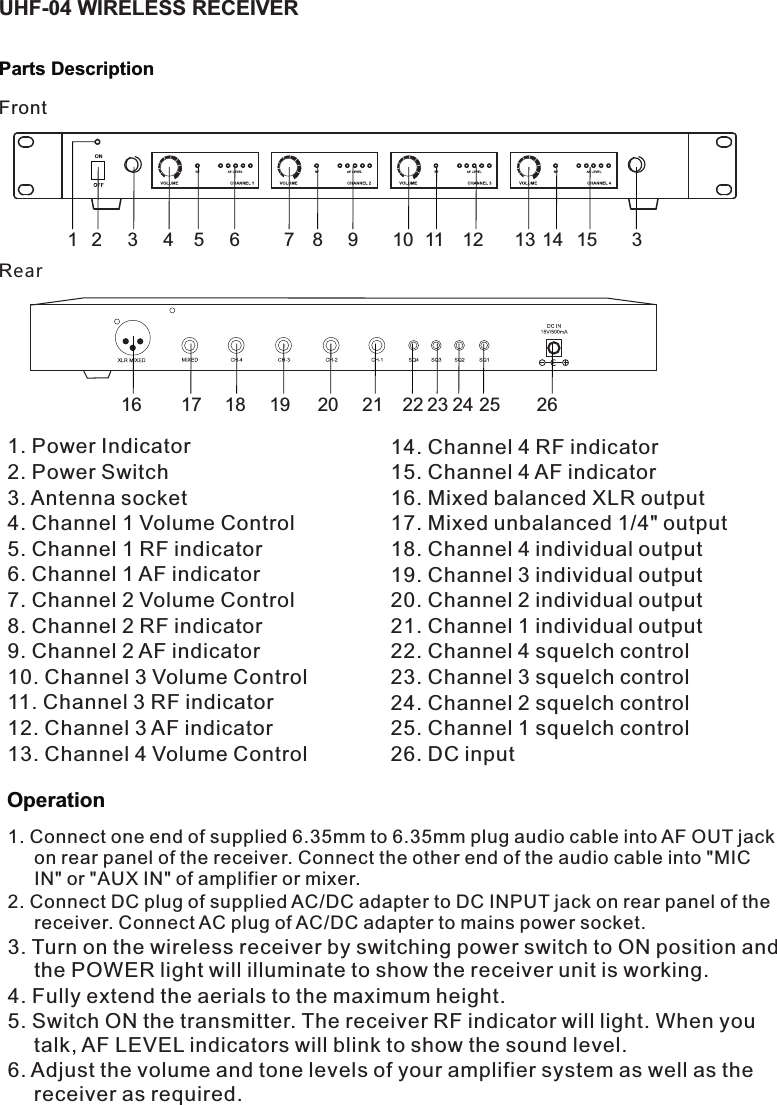

1 2 3 4 5 6 7 8 9 10 311 12 13 14 1516 17 18 19 20 21 22 23 24 25 261. Power Indicator2. Power Switch3. Antenna socket4. Channel 1 Volume Control5. Channel 1 RF indicator6. Channel 1 AF indicator7. Channel 2 Volume Control8. Channel 2 RF indicator9. Channel 2 AF indicator10. Channel 3 Volume Control11. Channel 3 RF indicator12. Channel 3 AF indicator13. Channel 4 Volume Control14. Channel 4 RF indicator15. Channel 4 AF indicator16. Mixed balanced XLR output17. Mixed unbalanced 1/4" output18. Channel 4 individual output19. Channel 3 individual output20. Channel 2 individual output21. Channel 1 individual output22. Channel 4 squelch control23. Channel 3 squelch control24. Channel 2 squelch control25. Channel 1 squelch control26. DC inputUHF-04 WIRELESS RECEIVERParts DescriptionFrontRearOperation1. Connect one end of supplied 6.35mm to 6.35mm plug audio cable into AF OUT jack on rear panel of the receiver. Connect the other end of the audio cable into "MIC IN" or "AUX IN" of amplifier or mixer.2. Connect DC plug of supplied AC/DC adapter to DC INPUT jack on rear panel of the receiver. Connect AC plug of AC/DC adapter to mains power socket.3. Turn on the wireless receiver by switching power switch to ON position and the POWER light will illuminate to show the receiver unit is working.4. Fully extend the aerials to the maximum height.5. Switch ON the transmitter. The receiver RF indicator will light. When you talk, AF LEVEL indicators will blink to show the sound level.6. Adjust the volume and tone levels of your amplifier system as well as the receiver as required.

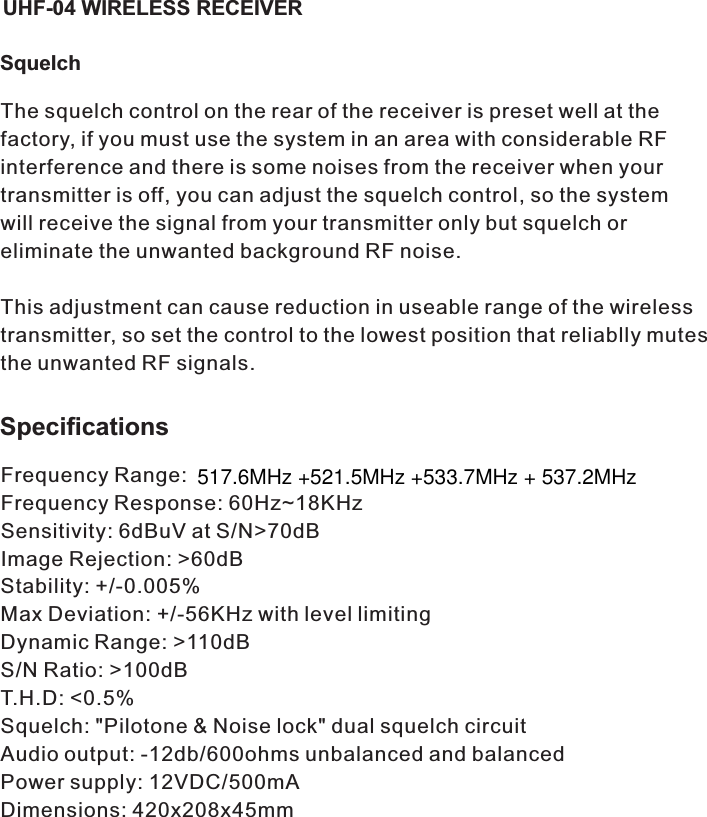

SquelchThe squelch control on the rear of the receiver is preset well at the factory, if you must use the system in an area with considerable RF interference and there is some noises from the receiver when your transmitter is off, you can adjust the squelch control, so the system will receive the signal from your transmitter only but squelch or eliminate the unwanted background RF noise. This adjustment can cause reduction in useable range of the wireless transmitter, so set the control to the lowest position that reliablly mutes the unwanted RF signals.SpecificationsFrequency Range: Frequency Response: 60Hz~18KHzSensitivity: 6dBuV at S/N>70dBImage Rejection: >60dBStability: +/-0.005%Max Deviation: +/-56KHz with level limitingDynamic Range: >110dBS/N Ratio: >100dBT.H.D: <0.5%Squelch: "Pilotone & Noise lock" dual squelch circuitAudio output: -12db/600ohms unbalanced and balancedPower supply: 12VDC/500mADimensions: 420x208x45mmUHF-04 WIRELESS RECEIVER517.6MHz +521.5MHz +533.7MHz + 537.2MHz

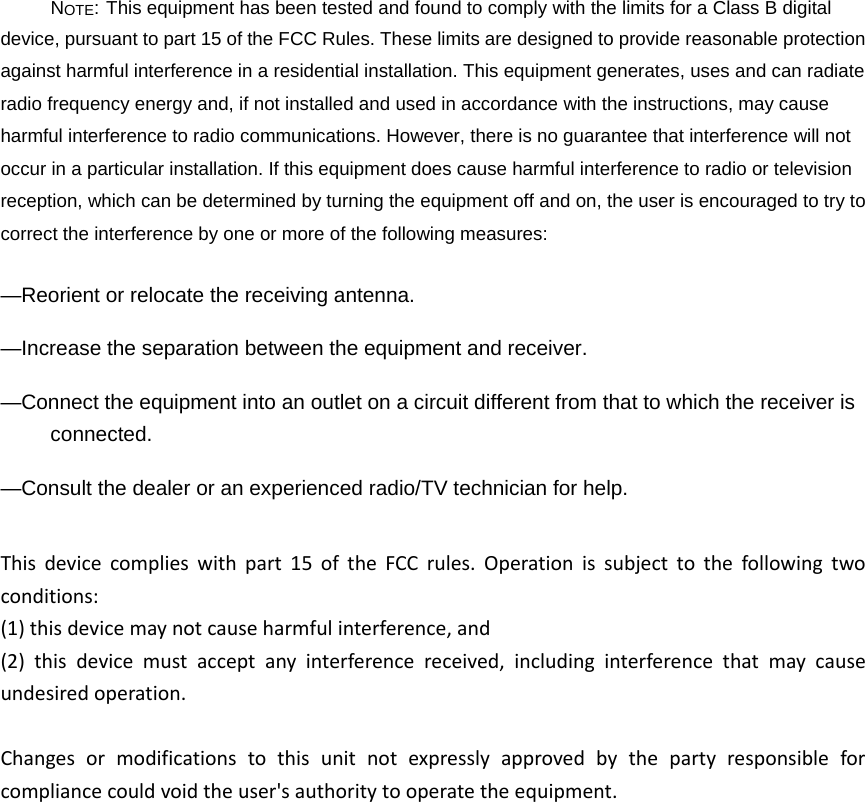

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.
