Innovative Concepts and Design UHF-10HHM Wireless Microphone User Manual 1

INNOVATIVE CONCEPTS AND DESIGN LLC Wireless Microphone 1

15_UHF-10HHM UserMan, r1.pdf

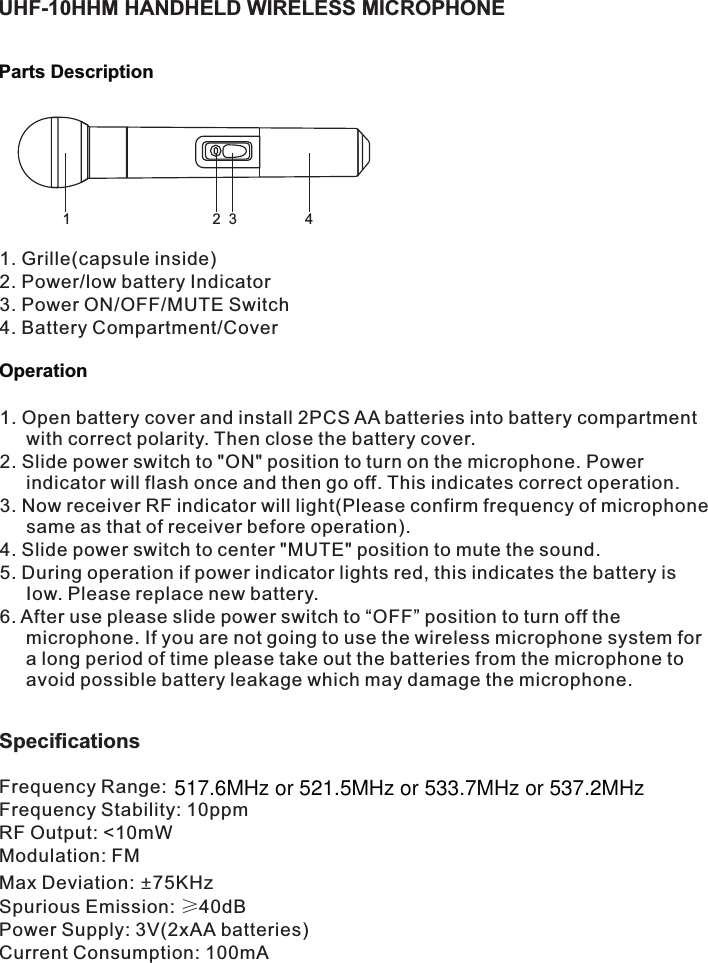

UHF-10HHM HANDHELD WIRELESS MICROPHONEParts Description12341. Grille(capsule inside)2. Power/low battery Indicator3. Power ON/OFF/MUTE Switch4. Battery Compartment/CoverOperation1. Open battery cover and install 2PCS AA batteries into battery compartment with correct polarity. Then close the battery cover.2. Slide power switch to "ON" position to turn on the microphone. Power indicator will flash once and then go off. This indicates correct operation.3. Now receiver RF indicator will light(Please confirm frequency of microphone same as that of receiver before operation).4. Slide power switch to center "MUTE" position to mute the sound.5. During operation if power indicator lights red, this indicates the battery is Iow. Please replace new battery.6. After use please slide power switch to “OFF” position to turn off the microphone. If you are not going to use the wireless microphone system for a long period of time please take out the batteries from the microphone to avoid possible battery leakage which may damage the microphone.Frequency Range: Frequency Stability: 10ppmRF Output: <10mWModulation: FMMax Deviation: 75KHz±Spurious Emission: ≥40dBPower Supply: 3V(2xAA batteries)Current Consumption: 100mASpecifications 517.6MHz or 521.5MHz or 533.7MHz or 537.2MHz

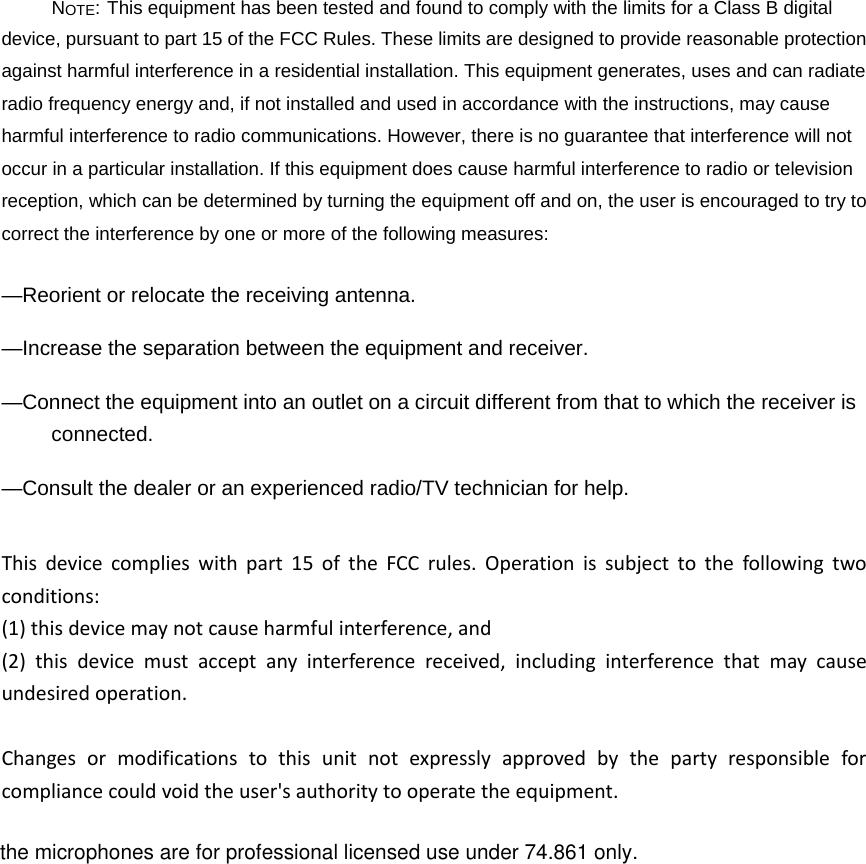

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.the microphones are for professional licensed use under 74.861 only.
