UHF-10HHM HANDHELD WIRELESS MICROPHONE

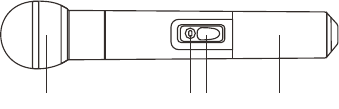

Parts Description
1234
1. Grille(capsule inside)
2. Power/low battery Indicator
3. Power ON/OFF/MUTE Switch
4. Battery Compartment/Cover
Operation
1. Open battery cover and install 2PCS AA batteries into battery compartment
with correct polarity. Then close the battery cover.
2. Slide power switch to "ON" position to turn on the microphone. Power
indicator will flash once and then go off. This indicates correct operation.
3. Now receiver RF indicator will light(Please confirm frequency of microphone
same as that of receiver before operation).
4. Slide power switch to center "MUTE" position to mute the sound.
5. During operation if power indicator lights red, this indicates the battery is
Iow. Please replace new battery.
6. After use please slide power switch to “OFF” position to turn off the
microphone. If you are not going to use the wireless microphone system for
a long period of time please take out the batteries from the microphone to
avoid possible battery leakage which may damage the microphone.
Frequency Range:
Frequency Stability: 10ppm
RF Output: <10mW
Modulation: FM
Max Deviation: 75KHz±
Spurious Emission: ≥40dB
Power Supply: 3V(2xAA batteries)
Current Consumption: 100mA
Specifications
517.6MHz or 521.5MHz or 533.7MHz or 537.2MHz
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
the microphones are for professional licensed use under 74.861 only.
