Innovative Design AG-TX433 433 MHz Transmitter User Manual
Innovative Industrial Design 433 MHz Transmitter
User Manual
Art Guard MAP Sensor
Magnetic Asset Protection
Overview
AG MAP sensors, using Enhanced Magnetic Technology, are able to detect small Neodymium
(rare earth) magnets at extended distances. When properly installed, neither the sensor nor
the magnetic tag (or the object it’s on) can be moved without alarm. MAP utilizes a wireless
transmitter (door/window) compatible with DSC 433 MHz control panels. Neodymium
magnets are shipped separately. Visit our website for more information www.artguard.net
Install or Replace BatteriesThe model .013.1 AG MAP sensor uses only Panasonic or Maxell
Lithium Battery CR2450and is shipped to save battery life. To ease opening run your
thumbnail around the space between the top and the bottom of the case. Use a coin inserted
into the notch on the side of the MAP case to twist and open (g.1). Insert two lithium batteries
plus (+) side up (g.2).
Note: the red LED should light when the batteries are installed. Use the cupping of your
hands to view the light through the closed case. It lights to indicate transmission only.
Remove batteries when not in use.
Use care when closing the case. The case must be fully close to activate the tamper switch.
Warning! Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in re.
Mount MAP Sensor and Magnet
The sensor may be discreetly mounted horizontally, on a wall behind artwork, or mounted
vertically under shelving, or similar installation surfaces, either with double sided tape.
It may be placed in or under any as- set that will hide it from view. Magnets (Mtags) can
then be discreetly placed in, or taped on any valuable asset that the sensor is to secure.
See website for further instructions www.artguard.net
Caution: Magnetic tags should be kept at a distance from watches, credit cards, heart
monitors, etc. they are powerful sources of magnetism and may disable magnetically
sensitive products.
Enrolling: This transmitter auto enrolls similar to DSC 433MHz based wireless products.
Art Guard 24 Old Rock Rd. Weston, CT 06883 Model 013.1
Technical Support 212.989.1594 www.artguard.net

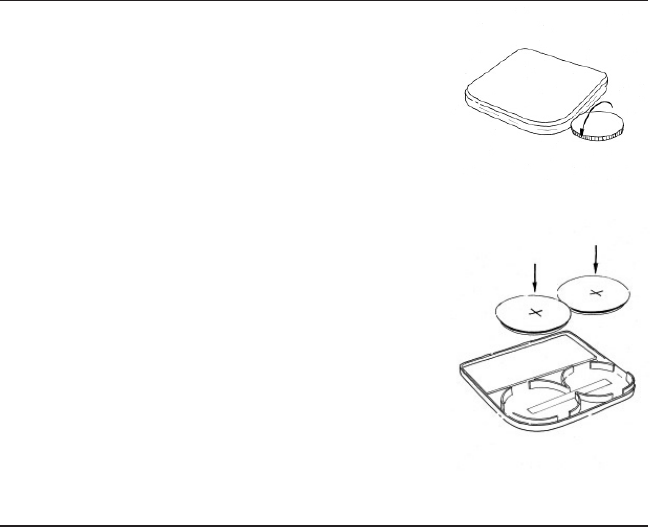

fig. 1
fig. 2
Limited Warranty: Art Guard warrants that for a period of 12 months from the date of purchase, the product shall be free
of defects in materials and workmanship under normal use and that in fulllment of any breach of such warranty, Art Guard
shall, at its option, repair or replace the defective equipment upon return of the equipment to its repair depot. This warranty
applies only to defects in parts and workmanship and not to damage incurred in shipping or handling, or damage due to caus-
es beyond the control of Art Guard such as lightning, excessive voltage, mechanical shock, water damage, or damage arising
out of abuse, alteration or improper application of the equipment. The foregoing warranty shall apply only to the original
buyer, and is and shall be in lieu of any and all other warranties, whether expressed or implied and of all other obligations or
liabilities on the part of Art Guard. Art Guard neither assumes responsibility for, nor authorizes any other person purporting
to act on its behalf to modify or to change this warranty, nor to assume for it any other warranty or liability concerning this
product. This warranty is void if the sensor is not used as specied in the instructions.
In no event shall Art Guard be liable for any direct, indirect or consequential damages, loss of anticipated prots, loss of time
or any other losses incurred by the buyer in connection with the purchase, installation or operation or failure of this product.
Warning: Art Guard recommends that the entire system be completely tested on a regular basis. However, despite frequent
testing, and due to, but not limited to, criminal tampering or electrical disruption, it is possible for this product to fail to
perform as expected. Important Information: Changes or modications not expressly approved by Art Guard could void the
user’s authority to operate this equipment.
FCC COMPLIANCE STATEMENT: CAUTION: Changes or modications not expressly approved by Art Guard could void your
authority to use this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Specications Dimensions 7mm x 50mm x 50mm
Frequency 433 MHz
Battery Panasonic or Maxell Lithium CR2450 3Volt
Battery Life 4-5 years
Compatible with DSC 433 Systems
IC COMPLIANCE STATEMENT: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’ex-
ploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur
de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
