Inseego NVWGSM0508 Expedite L10-G , GSM0508-40 User Manual CNN0301IG001 HS 3001
Novatel Wireless Inc Expedite L10-G , GSM0508-40 CNN0301IG001 HS 3001
Inseego >
User manual
GSM0508IG001
Expedite L10-G
Integration Guide
Version: 1.00 Wednesday, May 07, 2014
i novatelwireless.com
General
TERMS OF USE OF NEW MATERIALS - PLEASE READ CAREFULLY
From time to time, Novatel Wireless, in its sole discretion, may make available for download
on its website (www.novatelwireless.com), or may transmit via mail or email, updates or
upgrades to, or new releases of, the firmware, software or documentation for its products
(collectively, 'New Materials'). Use of such New Materials is subject to the terms and
conditions set forth below, and may be subject to additional terms and conditions as set forth
in Novatel Wireless's Technical Support Policy (posted on its website) and/or any written
agreement between the user and Novatel Wireless.
All New Materials are provided AS IS. Novatel Wireless makes no warranty or representation
with respect to the merchantability, suitability, functionality, accuracy or completeness of any
such New Materials. The user of such New Materials assumes all risk (known or unknown) of
such use. Novatel Wireless reserves all rights in such New Materials. The user shall have only a
revocable and limited license to use such New Materials in connection with the products for
which they are intended. Distribution or modification of any New Materials without Novatel
Wireless's consent is strictly prohibited.
IN NO EVENT WILL NOVATELWIRELESS BE RESPONSIBLE FOR ANY INCIDENTAL,
INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES AS A RESULT OF THE USE OF ANY
NEW MATERIALS. NOVATELWIRELESS 'S MAXIMUM LIABILITY FOR ANY CLAIM BASED
ON THE NEW MATERIALS SHALL NOT EXCEED FIFTY U.S. DOLLARS ($50).
Version Verification
Please ensure you have the latest version of this document by downloading it from
www.novatelwireless.com
ii novatelwireless.com
Copyright
© 2014 Novatel Wireless. All rights reserved. Complying with all applicable copyright laws is
the responsibility of the user. Without limiting the rights under copyright, no part of this
document may be reproduced, stored in or introduced into a retrieval system, or transmitted
in any form or by any means (electronic, mechanical, photocopying, recording or otherwise),
or for any purpose, without the express written permission of Novatel Wireless.
Novatel Wireless and the Novatel Wireless logo are either registered trademarks or
trademarks of Novatel Wireless, Inc. in the United States.
251 Renner Pkwy, Suite 200
Richardson, TX 75080 USA
Phone: (972) 633-4400
Fax: (972) 633-4444
Email: info@nvtl.com
www.novatelwireless.com
iii novatelwireless.com
Warranty Information
This warranty applies to (a) products sold directly by Novatel Wireless, unless a different
warranty is specified in a written agreement between Novatel Wireless and the purchaser;
and (b) products sold to end users through a distributor authorized by Novatel Wireless, but
only where the authorized distributor does not provide a separate warranty on such products,
and Novatel Wireless has agreed to provide this warranty to such end users. If you purchased
the product from an authorized distributor, please check whether this warranty from Novatel
Wireless or a separate warranty from the distributor applies to your purchase. This warranty
does not apply to any (i) accessories or batteries for the products; or (ii) demonstration
samples or prototypes of the products. Unless otherwise provided in a written agreement
between Novatel Wireless and the purchaser, all such accessories, batteries, samples or
prototypes are provided by Novatel Wireless AS IS without any warranty of any kind.
Novatel Wireless warrants to the original purchaser of the product from Novatel Wireless or
its authorized distributor (as applicable) that, for a period of one (1) year from the date of
shipment of the product from Novatel Wireless, the product hardware will be substantially
free from defects in material or workmanship under normal operation, and the product
firmware will perform substantially in accordance with the product documentation provided
by Novatel Wireless. Novatel Wireless does not warrant that (a) the product hardware or
firmware will meet the purchaser's requirements; (b) the operation of the product hardware
or firmware will be uninterrupted or error-free; or (c) the product, when integrated in, or
combined with, other products or software not supplied by Novatel Wireless, will continue to
perform substantially in accordance with the product documentation. This limited warranty is
for the benefit of the original purchaser, and is not transferable.
During the warranty period, Novatel Wireless, at its expense and in its sole discretion, will
repair the product, or replace the product with a corresponding or equivalent product, if it is
determined to have a covered defect, provided that the purchaser first notifies Novatel
Wireless (directly or through its authorized distributor from which the product was
purchased) of any such defect, furnishes Novatel Wireless with a proof of purchase (if
required), requests and obtains a return merchandize authorization (RMA) number from
Novatel Wireless, and returns the product under that RMA to Novatel Wireless (or, at Novatel
Wireless option, to its authorized distributor), with the shipping charges being prepaid by
purchaser. If, upon reasonable examination of the returned product, Novatel Wireless does
not substantiate the defect claimed by purchaser, or determines that the defect is not
covered under this limited warranty, Novatel Wireless will not be required to repair or replace
the product, but may instead reship the product to the purchaser (or, at Novatel Wireless'
option, to its authorized distributor where the product can be made available to purchaser), in
which case the purchaser shall be responsible for paying Novatel Wireless' cost for reshipping
the product to purchaser (or to Novatel Wireless' authorized distributor), and Novatel
Wireless' usual charges for unpacking, testing, and repacking the product for reshipment to
iv novatelwireless.com
purchaser (or to Novatel Wireless' authorized distributor).Purchaser shall bear the risk of loss
or damage in transit to any product returned by purchaser to Novatel Wireless, or any
returned product not found to be defective or covered under this warranty, and reshipped by
Novatel Wireless to purchaser (or to Novatel Wireless' authorized distributor). In the event
Novatel Wireless repairs or replaces a defective product covered by this limited warranty, the
repaired or replacement product will be covered under this limited warranty for the
remainder of the original warranty period on the defective product, or a period of ninety (90)
days, whichever is longer. If Novatel Wireless is unable to repair or replace a defective
product covered by this limited warranty, Novatel Wireless will provide to purchaser a credit
or a refund (at Novatel Wireless' option) of the original purchase price (excluding taxes and
shipping charges). Any returned and replaced product, or any product for which Novatel
Wireless has furnished a credit or a refund, becomes the property of Novatel Wireless.
Novatel Wireless shall not have any obligation to provide any firmware bug fixes, upgrades or
new releases except as may be necessary to correct any covered defect of which purchaser
notifies Novatel Wireless in writing during the warranty period. Novatel Wireless, from time
to time and in its sole discretion, may make available for download on its website
(www.novatelwireless.com), or may provide via email, certain firmware bug fixes, upgrades
or new releases for the product. Download and use of any such bug fixes, upgrades or new
releases is subject to all of the applicable terms and conditions of Novatel Wireless' technical
support policy as posted and updated on its website.
Novatel Wireless shall have no obligation under this limited warranty for (a) normal wear and
tear; (b) the cost of procurement of substitute products; or (c) any defect that is (i)
discovered by purchaser during the warranty period but for which purchaser does not
request an RMA number from Novatel Wireless, as required above, until after the end of the
warranty period, (ii) caused by any accident, misuse, abuse, improper installation, handling or
testing, or unauthorized repair or modification of the product, (iii) caused by use of any
materials not supplied by Novatel Wireless, or by use of the product other than in accordance
with its documentation, or (iv) the result of electrostatic discharge, electrical surge, fire, flood
or similar causes.
The purchaser (or its customers, as applicable) shall be solely responsible for the proper
configuration, testing and verification of the Novatel Wireless product prior to deployment in
the field, and for ensuring that any end user product or system into which the Novatel
Wireless product is integrated or incorporated operates as intended and meets the
requirements of purchaser (or its customers). Novatel Wireless shall have no responsibility
whatsoever for the integration, configuration, testing, verification, installation, upgrade,
support or maintenance of any such end user product or system, or for any liabilities,
damages, costs or expenses associated therewith.
v novatelwireless.com
NOVATEL WIRELESS' SOLE RESPONSIBILITY AND PURCHASER'S SOLE REMEDY UNDER
THIS LIMITED WARRANTY SHALL BE FOR NOVATEL WIRELESS TO REPAIR OR REPLACE
THE PRODUCT (OR IF REPAIR OR REPLACEMENT IS NOT POSSIBLE, PROVIDE A CREDIT
OR REFUND OF THE PURCHASE PRICE) AS PROVIDED ABOVE. NOVATEL WIRELESS
EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY, SATISFACTORY PERFORMANCE AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT SHALL NOVATEL WIRELESS BE LIABLE FOR ANY INDIRECT,
SPECIAL, EXEMPLARY, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
WITHOUT LIMITATION LOSS OR INTERRUPTION OF USE, DATA, REVENUES OR PROFITS)
RESULTING FROM A BREACH OF THIS WARRANTY OR BASED ON ANY OTHER LEGAL
THEORY, EVEN IF NOVATEL WIRELESS HAS BEEN ADVISED OF THE POSSIBILITY OR
LIKELIHOOD OF SUCH DAMAGES.
Some jurisdictions may require a longer warranty period than specified above and,
accordingly, for products sold in those jurisdictions the applicable warranty period shall be
extended as required under the laws of those jurisdictions. Furthermore, some jurisdictions
may not allow the disclaimer of implied warranties or the exclusion or limitation of incidental
or consequential damages, so the above disclaimer, limitation or exclusion may not apply to
products sold in those jurisdictions. This limited warranty gives the purchaser specific legal
rights and the purchaser may have other legal rights that vary from jurisdiction to jurisdiction.
This limited warranty shall be governed by the laws of the State of Texas, United States of
America, without regard to conflict of laws principles. This limited warranty shall not be
governed in any respect by the United Nations Convention on Contracts for the International
Sale of Goods.
vi novatelwireless.com
Regulatory Compliance
FCC CERTIFICATION
Novatel Wireless certifies that the Expedite L10-G GSM Radio Module complies with the RF
requirements applicable to broadband PCS equipment operating under the authority of 47
CFR Part 24, Subpart E and Part 22 Subpart H of the FCC Rules and Regulations. This
certification is contingent upon installation, operation and use of the Expedite L10-G module
and its host product in accordance with all instructions provided to both the OEM and end
user. When installed and operated in a manner consistent with the instructions provided, the
Expedite L10-G module meets the maximum permissible exposure (MPE) limits for general
population / uncontrolled exposure as defined in Section 1.1310 of the FCC Rules and
Regulations.
The Expedite L10-G module is designed for use in a variety of host units, enabling the host
platform to perform wireless data communications. However, there are certain criteria relative
to integrating the modem into a host platform such as a PC, laptop, handheld, monitor and
control unit, etc. that must be considered to ensure continued compliance with FCC
compliance requirements.
Important Information for Canada/USA OEM Integrators
This section provides guidance for using the Expedite L10-G in host devices through the FCC
Permissive Change process. When utilizing the permissive change process, Novatel Wireless,
the grantee, is responsible for all integrations and must be consulted on all regulatory matters
involving the Expedite L10-G.
The Expedite L10- G module is granted with FCC/IC modular approval for mobile 1
applications, and may be installed as a standalone2transmitter in final products meeting the
following conditions. If the following conditions are followed, it may be used in final products
without additional FCC/IC certification. Otherwise, additional FCC/IC approvals must be
obtained.
1Mobile Device Definition – FCC defines as a transmitting antenna located at a distance ≥
20cm from the user.
2Standalone is defined as a single transmitter transmitting as opposed to 2 or more
transmitters transmitting simultaneously.
vii novatelwireless.com
The antenna connected to the Expedite L10-G module must be installed to provide at
least 20 cm separation from the human body at all times.
The Expedite L10-G module and transmitter antennas must not be co-located with any
other transmitter or antenna within a host device.
The transmitter antenna used with the Expedite L10-G module must not exceed the
following level:
Cellular maximum permitted antenna gain: 5.39dBi
PCS band maximum permitted antenna gain: 3.31dBi
To comply with the aspects of KDB996369, strict adherence to the design parameters in
Section 4.1.1.3 Antenna And RF Signal Trace must be observed. Section 4.1.1.3 provides
PCB RF trace design guidelines for the coplanar microstrip between the Expedite L10-G
RF compression pads and the U.FL style coaxial connector.
A label containing the FCC and Industry Canada IDs must be permanently affixed to the
exterior of the host device into which the Expedite L10-G module is installed. The label
may also be under a panel or battery pack if it is readily accessible and cannot be
separated from the host device itself. The label must contain a statement similar to the
following;
This device contains FCC ID: PKRNVWGSM0508
This equipment contains equipment certified under IC: 3229A-GSM0508
If any of these conditions are not met then additional information should be sought from the
FCC or an FCC qualified test laboratory.
If the Expedite L10-G module is intended for use in a portable1device, the OEM integrator is
responsible to design the product to comply with RF exposure, and must work with Novatel
Wireless (the grantee) to satisfy FCC/IC SAR requirements. Refer to FCC OET Bulletin 65
Supplement C for information about FCC RF exposure compliance requirements for mobile
and portable devices.
The system user manuals and other documentation must clearly indicate operating conditions
that must be observed to ensure compliance with FCC/IC RF exposure guidelines and also
include appropriate caution and warning statements and information.
The host device containing the Expedite L10-G module may also require compliance to FCC
Part 15 Subpart B – Unintentional Radiators.
1Portable Device Definition – FCC defines as a transmitting antenna located at a distance ≤
20cm from the user.
viii novatelwireless.com
FCC NOTICE TO USERS
Novatel Wireless has not approved any changes or modifications to this device by the user.
Any changes or modifications could void the users authority to operate the device. See 47
CFR Sec. 15.21. The device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on the user is encouraged to try to correct the interference by
one or more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
lConsult the dealer or an experienced radio/TV technician for help.
If the FCCID of the module is not visible when installed in the host platform, then a
permanently attached or marked label must be displayed on the host unit referring to the
module.
The label should contain wording such as:
Contains FCC ID: PKRNVWGSM0508
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Industry Canada
IC: 3229A-GSM0508 MODEL NUMBER: GSM0508
This device complies with Industry Canada RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the
device.
ix novatelwireless.com
In order to use the Expedite L10-G module without any additional FCC certification the
installation must meet the following conditions:
The system antenna(s) connected to the Expedite L10-G module must be installed to
provide at least 20 cm separation from the human body during normal operation.
The system antennas must not be co-located with any other transmitter or antenna.
The system antenna(s) used with the Expedite L10-G module must not exceed the
following level:
Cellular maximum permitted antenna gain: 5.39dBi
PCS band maximum permitted antenna gain: 3.31dBi
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Afin d'utiliser le Expedite L10-G module sans aucune certification de d'Industrie Canada
supplémentaire l'installation doit satisfaire aux conditions suivantes:
L'utilisation du système connectée au module de Expedite L10-G doit être installée pour
fournir la séparation d'au moins 20 cm du corps humain pendant une opération normale.
Les antennes du système ne doivent pas être colocalisés avec un autre émetteur ou
antenne.
L'utilisation du système utilisée avec le module de Expedite L10-G ne doit pas dépasser
les niveaux suivants:
Cellulaires le permis gain maximal est de 5.39dBi
PCS groupent le gain maximal est de 3.31dBi
ROHS COMPLIANCE
As a part of Novatel Wireless’ corporate policy of environmental protection, Novatel Wireless
takes every step to ensure that the Expedite L10-G modules are designed and manufactured
to comply to the European Union Directive 2002/95/EC for the Restriction of Hazardous
Substances (RoHS).
CE (European Union Notice)
If this product has telecommunications functionality, it also complies with the essential
requirements of the following EU Directive:
* R&TTE Directive 1999/5/EC
x novatelwireless.com
Compliance with these directives implies conformity to harmonized European standards
(European Norms) that are listed in the EU Declaration of Conformity issued by Novatel
Wireless Inc. for this product or product family.
This compliance is indicated by one of the following conformity markings placed on the
product. This CE marking is valid for EU non-harmonized telecommunications products “CE
0560”
NCC NOTICE
「減少電磁波影響，請妥適使用」
NCC ID: CCAF133G0170T1
xi novatelwireless.com
Important Safety Information
The following information applies to the devices described in this manual. Always observe all
standard and accepted safety precautions and guidelines when handling any electrical device.
lSave this manual: it contains important safety information and operating instructions.
lDo not expose the Expedite L10-G product to open flames.
lEnsure that liquids do not spill onto the devices.
lDo not attempt to disassemble the product: Doing so will void the warranty. This
product does not contain consumer-serviceable components.
The Enabler Expedite L10-G module may not be used in an environment where radio
frequency equipment is prohibited or restricted in its use. This includes aircraft, airports,
hospitals, and other sensitive electronic areas.
Do not operate RF devices in an environment that may be susceptible to radio interference
resulting in danger, specifically;
lAreas where prohibited by the law.
lFollow any special rules and regulations and obey all signs and notices. Always
turn off the host device when instructed to do so, or when you suspect that it may
cause interference or danger.
lWhere explosive atmospheres may be present.
lDo not operate your modem in any area where a potentially explosive atmosphere
may exist. Sparks in such areas could cause an explosion or fire resulting in bodily
injury or even death. Be aware of and comply with all signs and instructions.
lUsers are advised not to operate the modem while they are at a refueling point or
service station.
lUsers are reminded to observe restrictions on the use of radio equipment in fuel
depots (fuel storage and distribution areas), chemical plants or where blasting
operations are in progress.
lAreas with a potentially explosive atmosphere are often but not always clearly marked.
lPotential locations can include gas stations, below deck on boats, chemical transfer
or storage facilities, vehicles using liquefied petroleum gas (such as propane or
butane), areas where the air contains chemicals or particles, such as grain, dust or
metal powders, and any other area where you would normally be advised to turn
off your vehicle engine.
lNear Medical and life support equipment.
lDo not operate your modem in any area where medical equipment, or life support
equipment may be located, or near any equipment that may be susceptible to any
form of radio interference. In such areas, the host communications device must be
turned off. The modem may transmit signals that could interfere with this
equipment.
lOn an aircraft, either on the ground or airborne.
lIn addition to FAA requirements, many airline regulations state that you must
suspend wireless operations before boarding an airplane. Please ensure that the
host device is turned off prior to boarding an aircraft in order to comply with these
regulations. The modem can transmit signals that could interfere with various
onboard systems and controls.
xii novatelwireless.com
lWhile operating a vehicle
lThe driver or operator of any vehicle should not operate a wireless data device.
Doing so will detract from the driver or operator's control and operation of that
vehicle. In some countries, operating such communication devices while in control
of a vehicle is an offense.
Disclaimer
The information and instructions contained within this publication comply with all FCC, GCF,
PTCRB, R&TTE, IMEI and other applicable codes that are in effect at the time of publication.
Novatel Wireless disclaims all responsibility for any act or omissions, or for breach of law, code
or regulation, including local or state codes, performed by a third party.
Novatel Wireless strongly recommends that all installations, hookups, transmissions, etc., be
performed by persons who are experienced in the fields of radio frequency technologies.
Novatel Wireless acknowledges that the installation, setup and transmission guidelines
contained within this publication are guidelines, and that each installation may have variables
outside of the guidelines contained herein. Said variables must be taken into consideration
when installing or using the product, and Novatel Wireless shall not be responsible for
installations or transmissions that fall outside of the parameters set forth in this publication.
Novatel Wireless shall not be liable for consequential or incidental damages, injury to any
person or property, anticipated or lost profits, loss of time, or other losses incurred by
Customer or any third party in connection with the installation of the Products or Customer's
failure to comply with the information and instructions contained herein.
xiii novatelwireless.com
Table of Contents
1 Introduction 1
Technical Specifications 3
General 3
Radio Technology 3
Speech Features 3
Supplementary Services 3
USB/UART Features 3
SMS Features 3
SIM-Based Features 3
Customized Features 4
Multiple Configurations 4
Customer Tool 4
Design Package 5
Power 5
Environmental 5
Packet Data Transfer 5
Regulatory 5
Reference Documents 6
Typical Usage 7
Contacting Novatel Wireless 7
2 Module Power 8
Operating Power 9
Typical Input Current 9
3 Interfaces 10
I/O Connector Pin Assignments 11
2 novatelwireless.com
The Expedite L10-G 2G data modem is a small wireless data modem providing 2G wireless
data connectivity for portable and hand held computers, point-of-sale devices, and other
machine-to-machine applications.
It is a compact, wireless OEM module that uses the Global System for Mobile Communications
(GSM) international communications standard to provide two-way wireless capabilities. The
Expedite L10-G module is a fully approved GSM device, enabling application-specific, two-
way communication and control.
The small size of the Expedite L10-G module allows it to integrate easily into the application
and packaging.

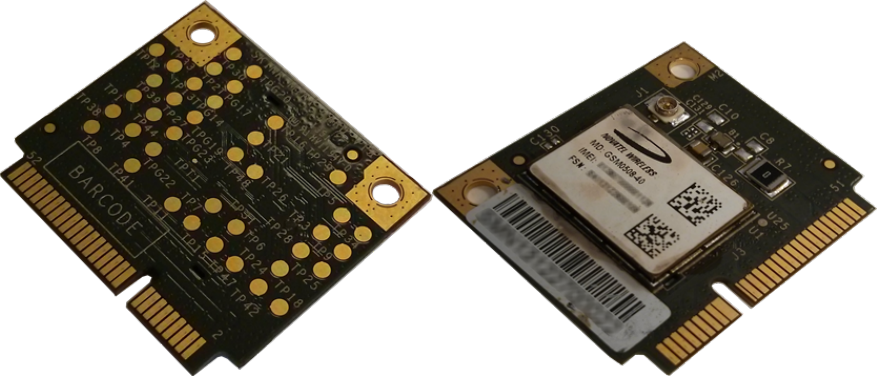

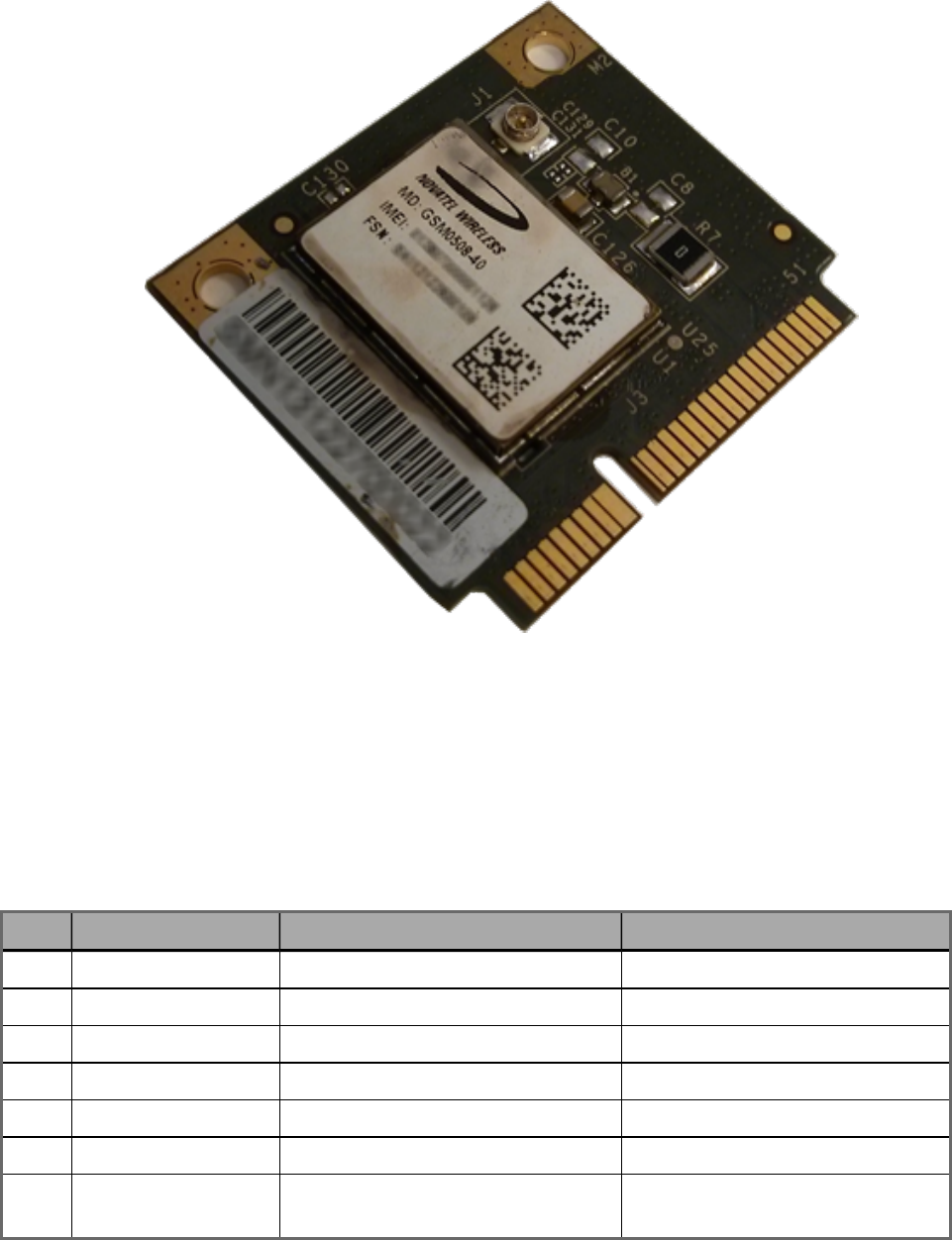

Figure 1-1 Expedite L10-G Module
3 novatelwireless.com
Technical Specifications
General
Name: Expedite L10-G
Model: GSM0508-40
Radio Technology
Quad-band EDGE/GSM/GPRS: 850/900/1800/1900 MHz
Class: Supports class 8, 10 and 12 (The default GPRS class is 8)
Modulation Coding Schemes: CS-1 to CS-4
Mode of Operation: Class B (attaches to both GSM and GPRS at the same time)
Speech Features
Speech Codec: AMR HR FR EFR
Speech Interface: Analog/PCM
Supplementary Services
Speech Codec: Number identification
Call Offering
Call Completion
Multi-Party USSD
USB/UART Features
USB 1.1: For download image only.
USB VID/PID: MTK’s VID/PID as 0E8D/0003, Only for download mode.
UART1 (2-wire): For download image and debug port
UART2 (4 wire): CMUX Support
SMS Features
SMS over GPRS: Mobile Originated and Mobile Terminated
Concatenated SMS: Yes, up to 10 messages
SMS Cell Broadcast: Supported by AT commands
SMS Immediate Notification: Supported by AT commands
SIM-Based Features
SIM Personalization Locks: SIM Lock/Network lock , Supports restricting SIM/USIM card
SIM Application Toolkit: Supported by AT commands
4 novatelwireless.com
Customized Features
Notification for incoming call and SMS: Provide one GPIO pin for notification
Host wake-up modem event: Provide one interrupt pin to wake-up modem
Modem AT command ready event: Provide one GPIO pin to notify host that AT command is ready
CMUX: Supports CMUX feature
Boot up ready message: Shows “AT Command Interpreter Ready” as boot up ready
Monitor modem power on/off status: Provide a resistor – VEXT28 to monitor the power on/off status of
modem
AT command to adjust the band, chan-
nel and output max power:
For verifying the RF power in customer product.
Multiple Configurations
AT command to switch speech inter-
face (Analog/PCM):
1. Supports to switch speech interface between PCM and analog.
AT command to change UART2’s baud
rate:
1. Supports baud rate up to 921,600 bps
2. The default baud rate of UART2 is 115,200 bps
AT command to change GPRS class: 1. Supports class 8, 10 and 12
2. The default GPRS class is 8
AT command to change UART2 flow
control:
1. Supports to change the UART2’s flow control as None, HW flow control
and SW flow control
2. The default flow control is none flow control
AT command to read the operator
data (MCC/MNC):
1. Read Network Lock Data
AT command to read the network lock
password:
1. Read Network Lock Password
Customer Tool
Debug tool: Catcher tool execution package Supports Windows XP, Windows Vista
and Windows 7
Catcher tool user guide: Catcher_Tool_user_guide-v0.1-2013.05.31.pdf
Flash tool: Flash tool execution package Supports Windows XP, Windows Vista and
Windows 7
Flash tool user guide: Flash_Tool_user_guide-v0.1-2013.05.31.pdf
Tx Power Adjust tool: USI_TX_Power_Adjust_Tool-V0.1-20130829.pdf
IMEI re-write tool: IMEI_API_Introduction-V0.1-20130923.pdf
5 novatelwireless.com
Design Package
Upgrade agent introduction: 1. BROM_Lite_Introduction-v0.2-20130709.pdf
2. System Information to build the BROM lite tool-v0.1-2013.07.09.pdf
Compare between BROM Lite and
Flash Tool:
BROM_Lite_vs_Flash_Tool-V0.1-2013.06.10.pdf
CMUX sample code (Linux): smmux-alpha-2.tar.gz
CMUX introduction: 1. CMUX_introduction-v0.1-2013.05.31.pdf
2. pppd.7z
UART flow control introduction: UART_Flow_Control-v0.1-2013.05.31.pdf
AT Command set: Expedite L10-G_AT_Command_Set_v0.8.6_20131008.doc
Audio parameter adjustment: Expedite L10-G_Audio_Parameter_Adjustment-V0.3-2013.08.22.pdf
The user guide of AT command to
adjust the band, channel and output
max power:
AT_ERFTX-V0.1-20130924.pdf
Power
Electrical Power: 3.3 to 4.35 Vdc (vbat)
Supply Vripple must be less than 200 mV across all frequencies
Peak currents and average power
dissipation:
Refer to the Operating Power table in the Technical Specifications for
peak currents and average power dissipation for various modes of oper-
ation.
Environmental
Compliant Operating Temperature: -20 °C to 60 °C
Operating Temperature: -30 °C to 70 °C
Storage Temperature: -40 °C to 85 °C
Humidity: Up to 95% non condensing
Emissions: FCC 47 CFR Parts 2,15,22 & 24
Packet Data Transfer
Protocol:
Short Message Services: Text, MO/MT
Regulatory
Agency approvals: FCC Certification
Industry Canada
PTCRB
CE
GCF
6 novatelwireless.com
Reference Documents
CNN0401xAT001 - HS 3002 AT Command Reference
CNN0401xTG001 - HS 3002 Transition Guide
ENF0000SD001 - HDK Guide
CNN0401AN001 - Using Digital Audio on the HS 3002
7 novatelwireless.com
Typical Usage
The following applications can use the Expedite L10-G module for transmitting/receiving
data/voice:
lAutomated Meter Reading (AMR)
lPoint of Sale Applications (POS)
lE-mail and Internet access
lAutomated Vehicle Location (AVL)
lMachine to Machine communication (M2M)
lTelematics
lTelemetry
lWireless Security
lSmart Phones
lTelemedicine
Contacting Novatel Wireless
For technical support and customer service dealing with the modem itself, contact the
company where you purchased the product. If you purchased the product directly from
Novatel Wireless, visit the Support page on the Novatel Wireless web site:
www.novatelwireless.com
9 novatelwireless.com
Operating Power
The Expedite L10-G module requires an in/out voltage of 3.3V to 4.35V. The supply ripple
must be less than 200 mV across all frequencies.
Typical Input Current
Typical Results @ 3.8 V 25 deg C, with 1 μF at connector input on VBAT and RF terminated into
a 50Ωresistive load. Traffic Data Rate: Full
Band Mode Avg
(mA)
Peak
(mA) Notes
GSM850 PCL=5, TX=32.5dBm 211 1810 GPRS, 1TX
PCL=19, TX=5dBm 59.8 -
EGSM PCL=5, TX=32.5dBm 231 2040 GPRS, 1TX
PCL=19, TX=5dBm 59.6 -
DCS PCL=0, TX=29.5dBm 142 1140 GPRS, 1TX
PCL=15, TX=0dBm 57.3 -
PCS PCL=0, TX=29.5dBm 149 1190 GPRS, 1TX
PCL=15, TX=0dBm 57.9 -
Both Sleep with Paging Multi-frames=5 <1 90 Modem registered; peak during network activity
Both Sleep < 0.9 -
Both Shutdown 0.25 0.3 For minimum current draw in shut down mode, we
recommend you shut down the modem by either
sending AT$OFF (AT$OFFDLY must be >0) or by send-
ing a pulse on PON line (pin 35), and then setting the
ON/OFF line (pin 37) low to remove power from the
device.
11 novatelwireless.com
Figure 3-1 Pin 1 Reference, 68-Pin I/O Connector
I/O Connector Pin Assignments
The following table shows the pin assignments for the input/output connector.
Pin Function Description Notes
01 GND Ground
02 DAIPCMIN PCM data in 2.8V
03 Reserve Pin Reserved for debug
04 DAISYNC PCM sync 2.8V
05 Reserve Pin Reserved for debug
06 Reserve Pin Reserved for debug
07 VSIM1 LDO - VSIM output.Provide 1.8/3.0V
to SIM card.
1.8/3.0V
12 novatelwireless.com
Pin Function Description Notes
08 PWR_KEY Power Key to enable MT6260
internal PMU
1.8V~2.8V
09 GPIO/INT1 General Purpose I/O,For cus-
tomize./INT1
2.8V
10 ACCDET Headset Microphone detect 2.8V
11 AP_READY_INT INTFor Host/AP to wake up Expedite
L10-G module.
1.8V
12 U2RTS UART2 Request to send 2.8V
13 NOTIFY_AP Notification for incoming call and
SMS
1.8V
14 U2CTS UART2 Clear to send 2.8V
15 U2RXD UART2 Serial Data Output 2.8V
16 U2TXD UART2 Serial data input 2.8V
17 GND Ground
18 EAR_EINT Headset Detect 2.8V
19 2G_ANT The signal of RF antenna input/out-
put.
20 JTAG_EN JTAG Strap Pin, pull high 1K to 2.8V
to enable JTAG f
2.8V
21 GND Ground
22 VEXT28 2.8 V out – Reference for external
level translation
2.8V
23 VBAT Power Pins Min: 3.3V, Typ: 3.8V, Max: 4.35V
24 VBAT Power Pins Min: 3.3V, Typ: 3.8V, Max: 4.35V
25 GND Ground
26 U1TXD UART1 Serial data input 2.8V
27 U1RXD UART1 Serial Data Output 2.8V
28 GPIO2 General Purpose I/O,For customize. 1.8V
29 LED_B LED control Output, VBAT_VA(KPLED)
30 GPIO1 General Purpose I/O,For customize. 1.8V
31 SPK_OUTN speaker amplifier (-) (Analog) VBAT
32 SPK_OUTP speaker amplifier (+) (Analog) VBAT
33 MP3_OUT_L headset amplifier Left 2.8V
34 MP3_OUT_R headset amplifier Right 2.8V
35 GND Ground
13 novatelwireless.com
Pin Function Description Notes
36 SDA28/GPIO I2C Serial clock/General Purpose
I/O,For customize.
I/O, 2.8V
37 SDA28/GPIO I2C Serial data/General Purpose
I/O,For customize.
I/O, 2.8V
38 MIC1_IN- Microphone input (Headset) 2.8V
39 MIC1_IN+ Microphone input (Headset) 2.8V
40 MIC0_IN- Microphone amplifier negative input 2.8V
41 MIC0_IN+ Microphone amplifier positive input 2.8V
42 MICBIAS0 Microphone bias 2.8V
43 VBUS INPUT POWER for VUSB POWER
44 VBAT Power Pins Min: 3.3V, Typ: 3.8V, Max: 4.35V
45 VBAT Power Pins Min: 3.3V, Typ: 3.8V, Max: 4.35V
46 VBAT Power Pins Min: 3.3V, Typ: 3.8V, Max: 4.35V
47 ADCIN1 10-bit A-to-D 2.8V
48 Reserve Pin Reserved for debug
49 GPIO3 General Purpose I/O, For cus-
tomization
1.8V
50 AT_READY AT command ready signal 1.8V
51 Reserve Pin Reserved for debug
52 Reserve Pin Reserved for debug
53 USB_DM Universal Serial BUS I/O
54 Reserve Pin Reserved for debug
55 USB_DM Universal Serial BUS I/O
56 GPIO/JTRST General Purpose I/O,For cus-
tomize./JTAG Test Reset
3.3V
57 GPIO/JTMS General Purpose I/O,For cus-
tomize./JTAG Test Mode Select
3.3V
58 GPIO/JTDI General Purpose I/O,For cus-
tomize./JTAG Test Data In
3.3V
59 GND Ground
60 GPIO/JRTCK General Purpose I/O,For cus-
tomize/JTAG Return TCK
3.3V
61 GPIO/JTCK General Purpose I/O,For cus-
tomize./JTAG Test Clock
3.3V
62 GPIO/JTDO General Purpose I/O,For cus-
tomize./JTAG Test Data Out
3.3V
14 novatelwireless.com
Pin Function Description Notes
63 SIM1_DATA SIM data I/O VSIM1
64 SIM1_CLK SIM clock VSIM1
65 SIM1_RST SIM reset VSIM1
66 DAIPCMOUT PCM data out I/O, 2.8V
67 DAICLK PCM clock I/O, 2.8V
68 DAIRST PCM RST I/O, 2.8V
Table 3-1 I/O Connector Pin Assignments
Analog Audio Interface
The Expedite L10-G module provides analog audio interface, include speaker, microphone,
and headset.
Speaker
Pin No. Pin name Description
29 SPK_OUTN speaker amplifier (-) (Analog)
31 SPK_OUTP speaker amplifier (+) (Analog)
Speaker functional specification
Symbol Parameter Min. Typ. Max. Unit
IDC Current consumption 4 mA
SINAD Signal to noise and distortion ratio
Input level: -40 dBm0
Input level: 0 dBm0
29
69
dB
dB
RLOAD Output resistor load (differential) 16 32 Ω
CLOAD Output capacitor load 250 pF
ICN Idle channel noise of transmit path -67 dBm0
XT L-R channel cross talk -66 dBm0
Vout Full Scale output voltage SPK_OUT 0.7 Vrms
Expedite L10-G integrate class-AB audio AMP, the following table is the maximum output
power:
Test Condition
Maximum output
power
SPK_OUTN 0.87W
3.3V, 8 ohm THD+N=1% 0.53W
4.2V, 8 ohm THD+N=10% 1.08W
3.3V, 8 ohm THD+N=10% 0.65W
Speaker reference circuit
15 novatelwireless.com

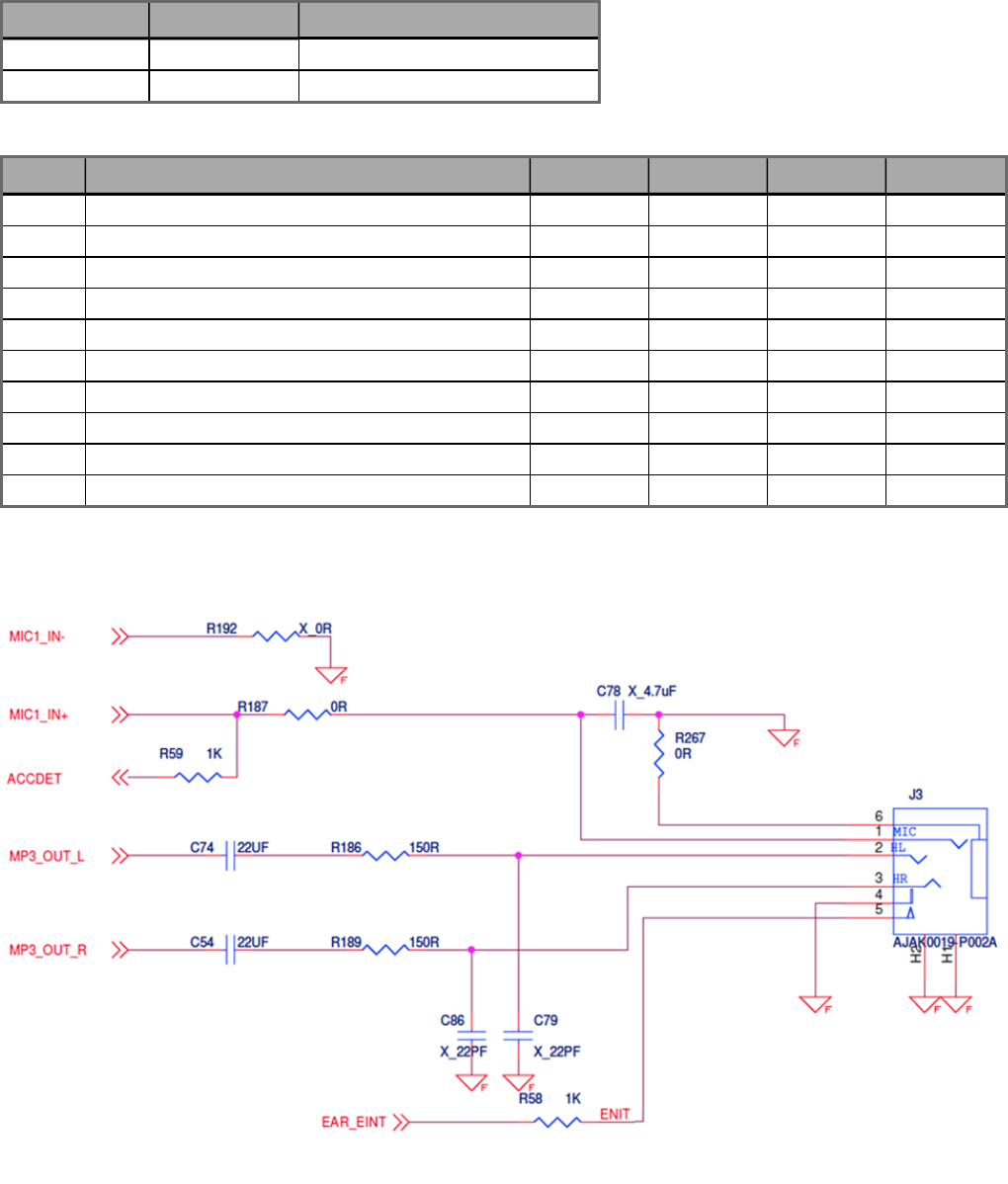

Microphone
Pin No. Pin name Description
40 MIC1_IN- Microphone input (Headset)
41 MIC1_IN+ Microphone input (Headset)
42 MIC0_IN Microphone amplifier negative input
43 MIC0_IN+ Microphone amplifier positive input
44 MICBIAS0 Microphone bias
MicBias output
Mic Bias Output Typ. Max Unit
MICBIAS0 1.9 2.2 V
MICBIAS0 current draw 2 mA
Microphone functional specification
Symbol Parameter Min. Typ. Max. Unit
IDC Current consumption for one channel 1.5 mA
SINAD Signal to noise and distortion ratio
Input level: -40 dBm0
Input level: 0 dBm0
29
69
dB
dB
RIN Input impedance (differential) 13 20 27 KΩ
ICN Idle channel noise -67 dBm0
Vout Full Scale output voltage MIC0 1 Vrms
Microphone Type Support
Expedite L10-Gcan support ECM microphone and MEMS microphone.

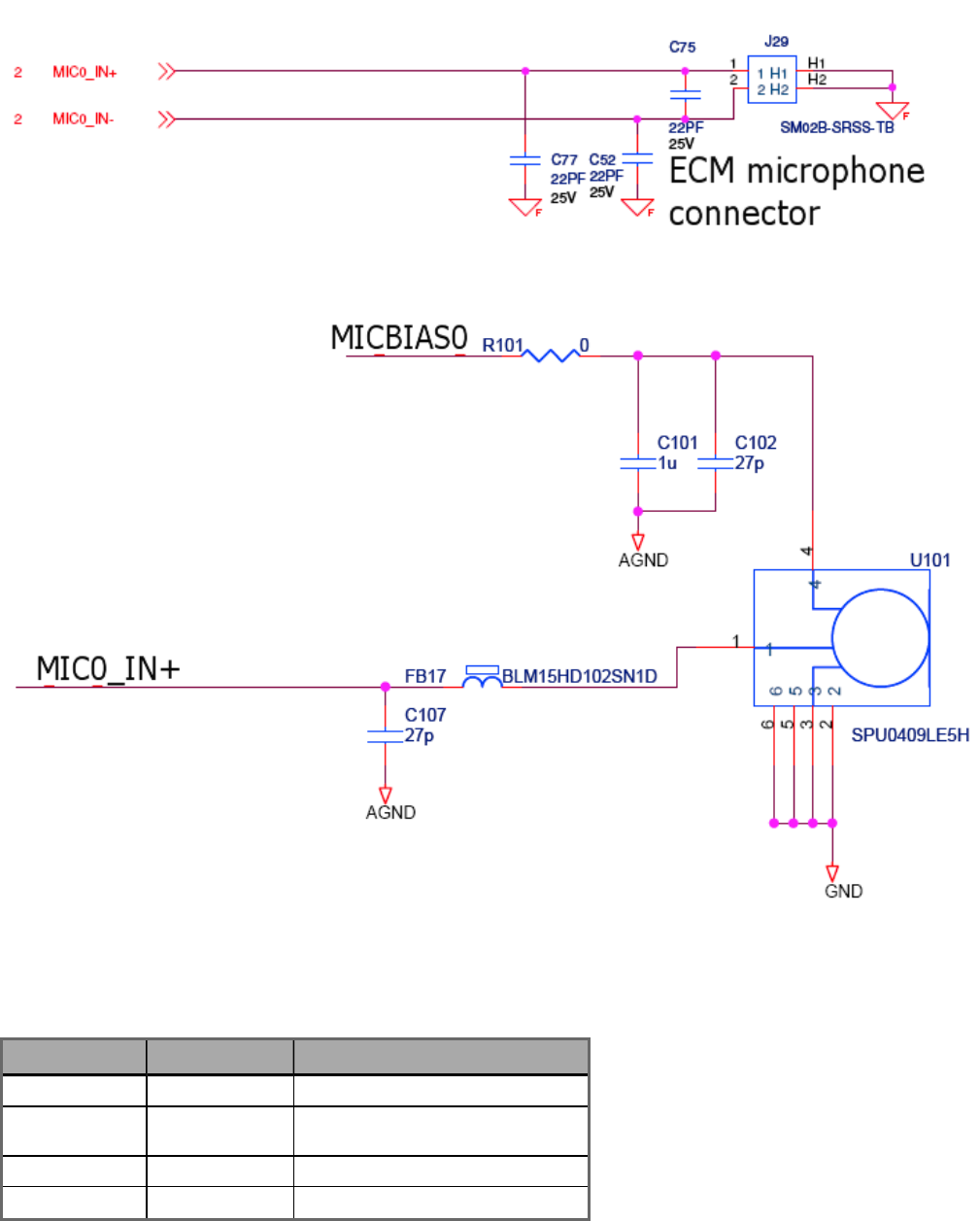

ECM Microphone reference circuit
16 novatelwireless.com
MEMS Microphone reference circuit
Headset
Pin No. Pin name Description
9 ACCDET Headset Microphone Detect
14 EAR_EINT Headset Detect (Internal PU, no need
external PU circuit)
36 MP3_OUT_L headset amplifier Left
37 MP3_OUT_R headset amplifier Right
17 novatelwireless.com
Pin No. Pin name Description
40 MIC1_IN- Microphone input (Headset)
41 MIC1_IN+ Microphone input (Headset)
Earphone functional specification
Symbol Parameter Min. Typ. Max. Unit
FCK Clock frequency 6.5 MHz
Fs Sample rate 32 44.1 48 KHz
IDC Current consumption 4 mA
PSNR Peak signal to noise ratio 88 dB
DR Dynamic range 88 dB
VOUT Full Scale output voltage MP3_OUT 0.78 Vrms
THD Total harmonic distortion 10mW at 64Ω load -70 dB
RLOAD Output resistor load 64 Ω
CLOAD Output capacitor load 250 pF
XT L-R channel cross talk 70 dB
Headset reference circuit
18 novatelwireless.com
Specific Absorption Rate (SAR) Guidelines
Portable RF exposure evaluation must be completed on host devices that provide ≤20.0 cm
of separation distance between the transmitter antenna and the end user.
Portable Device Definition
The FCC defines a Portable Device as a device having a transmitting antenna located at a
distance ≤20cm from the user.
Mobile Device Definition
The FCC defines a Mobile Device as a device having a transmitting antenna located at a
distance ≥20cm from the user.
SAR Compliance
European and US certification bodies require that you test Specific Absorption Rate (SAR).
SAR is a measure of energy absorbed by organic tissue over a specific time. The factors that
affect SAR readings are:
loutput power
lfrequency of the radiation
lproximity to antenna
lantenna counterpoise
lduty cycle
Early in the physical design stage of the UE, the antenna and the mechanical engineering
design teams must collaborate on the design to ensure that they can meet the SAR
requirements. Carefully reading and understanding the FCC requirements can help designers
choose the antenna type, the antenna location, and the industrial design of the UE. The
placement and characteristics of the main antenna are the most critical factors affecting SAR
performance.
20 novatelwireless.com
Tune Up Procedure
During manufacturing each device will be individually calibrated. Measurement is performed
in a fully calibrated environment using an CMW500 base station simulator. The measurement
procedure is outlined below:
Measurement Procedure:
1. Set the device to operational voltage and on a predefined channel in a special test
mode.
2. The actual output power is measured at several power levels.
3. The gain factors of each individual device are adjusted until the target value is met. The
appropriate gain control settings for each output power level are stored in each device
individually (for each power level). The user has no possibility to change these settings
later on.
4. The maximum gains of each individual device are adjusted and measured until the
target value is met. The production target power with tolerance compiles with the
maximum power in test report.
Maximum Target Power for Production Unit (dBm)
Mode GSM 850 GSM 900 GSM 1800 GSM 1900
GPRS 8 (1 Uplink) CS1 32.5 (+0.5/-0.7dB) 32.5 (+0.5/-0.7dB) 29.5 (+0.5/-0.7dB) 29.5 (+0.5/-0.7dB)
GPRS 10 (2 Uplink) CS1 30 (+0.5/-0.7dB) 30 (+0.5/-0.7dB) 27 (+0.5/-0.7dB) 27 (+0.5/-0.7dB)
GPRS 11 (3 Uplink) CS1 28.2 (+0.5/-0.7dB) 28.2 (+0.5/-0.7dB) 25.2 (+0.5/-0.7dB) 25.2 (+0.5/-0.7dB)
GPRS 12 (4 Uplink) CS1 27 (+0.5/-0.7dB) 27 (+0.5/-0.7dB) 24 (+0.5/-0.7dB) 24 (+0.5/-0.7dB)
