User Manual
MT3060UG001
MT 3060
User Guide
Version: Draft 30 September, 2013
- i -
General
TERMS OF USE OF NEW MATERIALS - PLEASE READ CAREFULLY
From time to time, Novatel Wireless, in its sole discretion, may make available for download
on its website (www.novatelwireless.com), or may transmit via mail or email, updates or
upgrades to, or new releases of, the firmware, software or documentation for its products
(collectively, 'New Materials'). Use of such New Materials is subject to the terms and
conditions set forth below, and may be subject to additional terms and conditions as set forth
in Novatel Wireless's Technical Support Policy (posted on its website) and/or any written
agreement between the user and Novatel Wireless.
All New Materials are provided AS IS. Novatel Wireless makes no warranty or representation
with respect to the merchantability, suitability, functionality, accuracy or completeness of any
such New Materials. The user of such New Materials assumes all risk (known or unknown) of
such use. Novatel Wireless reserves all rights in such New Materials. The user shall have only a
revocable and limited license to use such New Materials in connection with the products for
which they are intended. Distribution or modification of any New Materials without Novatel
Wireless's consent is strictly prohibited.
IN NO EVENT WILL NOVATELWIRELESS BE RESPONSIBLE FOR ANY INCIDENTAL,
INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES AS A RESULT OF THE USE OF ANY
NEW MATERIALS. NOVATELWIRELESS 'S MAXIMUM LIABILITY FOR ANY CLAIM BASED
ON THE NEW MATERIALS SHALL NOT EXCEED FIFTY U.S. DOLLARS ($50).
Version Verification
Please ensure you have the latest version of this document by downloading it from
www.novatelwireless.com
- ii -
Copyright
© 2013 Novatel Wireless. All rights reserved. Complying with all applicable copyright laws is
the responsibility of the user. Without limiting the rights under copyright, no part of this
document may be reproduced, stored in or introduced into a retrieval system, or transmitted
in any form or by any means (electronic, mechanical, photocopying, recording or otherwise),
or for any purpose, without the express written permission of Novatel Wireless.
Novatel Wireless and the Novatel Wireless logo are either registered trademarks or
trademarks of Novatel Wireless, Inc. in the United States.
251 Renner Pkwy
Richardson, TX 75080 USA
Phone: (972) 633-4400
Fax: (972) 633-4444
Email: info@nvtl.com
www.novatelwireless.com
- iii -
Warranty Information
[Revised: 11/11/2010]
This warranty applies to (a) products sold directly by Novatel Wireless M2M, unless a different
warranty is specified in a written agreement between Novatel Wireless M2M and the
purchaser; and (b) products sold to end users through a distributor authorized by Novatel
Wireless M2M, but only where the authorized distributor does not provide a separate
warranty on such products, and Novatel Wireless M2M has agreed to provide this warranty to
such end users. If you purchased the product from an authorized distributor, please check
whether this warranty from Novatel Wireless M2M, or a separate warranty from the
distributor, applies to your purchase. This warranty does not apply to any (i) accessories or
batteries for the products; or (ii) demonstration samples or prototypes of the products. Unless
otherwise provided in a written agreement between Novatel Wireless M2M and the
purchaser, all such accessories, batteries, samples or prototypes are provided by Novatel
Wireless M2M AS IS without any warranty of any kind.
Novatel Wireless M2M warrants to the original purchaser of the product from Novatel
Wireless M2M or its authorized distributor (as applicable) that, for a period of one (1) year
from the date of shipment of the product from Novatel Wireless M2M, the product hardware
will be substantially free from defects in material or workmanship under normal operation, and
the product firmware will perform substantially in accordance with the product
documentation provided by Novatel Wireless M2M. Novatel Wireless M2M does not warrant
that (a) the product hardware or firmware will meet the purchaser's requirements; (b) the
operation of the product hardware or firmware will be uninterrupted or error-free; or (c) the
product, when integrated in, or combined with, other products or software not supplied by
Novatel Wireless M2M, will continue to perform substantially in accordance with the product
documentation. This limited warranty is for the benefit of the original purchaser, and is not
transferable.
During the warranty period, Novatel Wireless M2M, at its expense and in its sole discretion,
will repair the product, or replace the product with a corresponding or equivalent product, if
it is determined to have a covered defect, provided that the purchaser first notifies Novatel
Wireless M2M (directly or through its authorized distributor from which the product was
purchased) of any such defect, furnishes Novatel Wireless M2M with a proof of purchase (if
required), requests and obtains a return merchandize authorization (RMA) number from
Novatel Wireless M2M, and returns the product under that RMA to Novatel Wireless M2M (or,
at Novatel Wireless M2M's option, to its authorized distributor), with the shipping charges
being prepaid by purchaser. If, upon reasonable examination of the returned product, Novatel
Wireless M2M does not substantiate the defect claimed by purchaser, or determines that the
defect is not covered under this limited warranty, Novatel Wireless M2M will not be required
to repair or replace the product, but may instead reship the product to the purchaser (or, at
- iv -
Novatel Wireless M2M's option, to its authorized distributor where the product can be made
available to purchaser), in which case the purchaser shall be responsible for paying Novatel
Wireless M2M's cost for reshipping the product to purchaser (or to Novatel Wireless M2M's
authorized distributor), and Novatel Wireless M2M's usual charges for unpacking, testing, and
repacking the product for reshipment to purchaser (or to Novatel Wireless M2M's authorized
distributor). Purchaser shall bear the risk of loss or damage in transit to any product returned
by purchaser to Novatel Wireless M2M, or any returned product not found to be defective or
covered under this warranty, and reshipped by Novatel Wireless M2M to purchaser (or to
Novatel Wireless M2M's authorized distributor). In the event Novatel Wireless M2M repairs or
replaces a defective product covered by this limited warranty, the repaired or replacement
product will be covered under this limited warranty for the remainder of the original warranty
period on the defective product, or a period of ninety (90) days, whichever is longer. If
Novatel Wireless M2M is unable to repair or replace a defective product covered by this
limited warranty, Novatel Wireless M2M will provide to purchaser a credit or a refund (at
Novatel Wireless M2M's option) of the original purchase price (excluding taxes and shipping
charges). Any returned and replaced product, or any product for which Novatel Wireless M2M
has furnished a credit or a refund, becomes the property of Novatel Wireless M2M.
Novatel Wireless M2M shall not have any obligation to provide any firmware bug fixes,
upgrades or new releases except as may be necessary to correct any covered defect of which
purchaser notifies Novatel Wireless M2M in writing during the warranty period. Novatel
Wireless M2M, from time to time and in its sole discretion, may make available for download
on its website (www.novatelwireless.com), or may provide via email, certain firmware bug
fixes, upgrades or new releases for the product. Download and use of any such bug fixes,
upgrades or new releases is subject to all of the applicable terms and conditions of Novatel
Wireless M2M's technical support policy as posted and updated on its website. Novatel
Wireless M2M shall have no obligation under this limited warranty for (a) normal wear and
tear; (b) the cost of procurement of substitute products; or (c) any defect that is (i)
discovered by purchaser during the warranty period but for which purchaser does not
request an RMA number from Novatel Wireless M2M, as required above, until after the end of
the warranty period, (ii) caused by any accident, misuse, abuse, improper installation,
handling or testing, or unauthorized repair or modification of the product, (iii) caused by use
of any materials not supplied by Novatel Wireless M2M, or by use of the product other than in
accordance with its documentation, or (iv) the result of electrostatic discharge, electrical
surge, fire, flood or similar causes. The purchaser (or its customers, as applicable) shall be
solely responsible for the proper configuration, testing and verification of the Novatel
Wireless M2M product prior to deployment in the field, and for ensuring that any end user
product or system into which the Novatel Wireless M2M product is integrated or incorporated
operates as intended and meets the requirements of purchaser (or its customers). Novatel
Wireless M2M shall have no responsibility whatsoever for the integration, configuration,
testing, verification, installation, upgrade, support or maintenance of any such end user
product or system, or for any liabilities, damages, costs or expenses associated therewith.
- v -
NOVATELWIRELESS'S SOLE RESPONSIBILITY AND PURCHASER'S SOLE REMEDY UNDER
THIS LIMITED WARRANTY SHALL BE FOR NOVATELWIRELESS TO REPAIR OR REPLACE
THE PRODUCT (OR IF REPAIR OR REPLACEMENT IS NOT POSSIBLE, PROVIDE A CREDIT
OR REFUND OF THE PURCHASE PRICE) AS PROVIDED ABOVE. NOVATELWIRELESS
EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY, SATISFACTORY PERFORMANCE AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT SHALL NOVATELWIRELESS BE LIABLE FOR ANY INDIRECT,
SPECIAL, EXEMPLARY, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
WITHOUT LIMITATION LOSS OR INTERRUPTION OF USE, DATA, REVENUES OR PROFITS)
RESULTING FROM A BREACH OF THIS WARRANTY OR BASED ON ANY OTHER LEGAL
THEORY, EVEN IF NOVATELWIRELESS HAS BEEN ADVISED OF THE POSSIBILITY OR
LIKELIHOOD OF SUCH DAMAGES.
Some jurisdictions may require a longer warranty period than specified above and,
accordingly, for products sold in those jurisdictions the applicable warranty period shall be
extended as required under the laws of those jurisdictions. Furthermore, some jurisdictions
may not allow the disclaimer of implied warranties or the exclusion or limitation of incidental
or consequential damages, so the above disclaimer, limitation or exclusion may not apply to
products sold in those jurisdictions. This limited warranty gives the purchaser specific legal
rights and the purchaser may have other legal rights that vary from jurisdiction to jurisdiction.
This limited warranty shall be governed by the laws of the State of Texas, United States of
America, without regard to conflict of laws principles. This limited warranty shall not be
governed in any respect by the United Nations Convention on Contracts for the International
Sale of Goods.
- vi -
Regulatory Compliance
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits pursuant to Part 15
Subpart B, Part 22, and Part 24 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in an appropriate installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not used in
accordance with instructions, can cause harmful radiation to radio communication. However,
there is no guarantee that interference will not occur in a particular installation.
RF EXPOSURE
Your device is a radio transmitter and receiver. It is designed and manufactured not to exceed
the emissions limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission (FCC) of the U.S. Government. These limits are part of
comprehensive guidelines and establish permitted levels of RF energy for the general
population. These guidelines are based on the safety standards previously set by the U.S. and
international standards bodies. The standards include a substantial safety margin designed to
assure the safety of all persons, regardless of age and health.
The exposure standard for wireless RF devices, such as the device, employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is
1.6W/kg. SAR values at or below that limit are considered safe for the general public.
The device conforms with the RF exposure requirements for portable devices in accordance
with FCC Part 2.1093.
The transmitter is configured with a 10% transmission duty factor, for GPRS Multislot class 8
operation, and is excluded from routine RF exposure evaluation in accordance with FCC
Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies,
KDB447498 D01, V04.
The CDMA transmitter is configured with a 1.6% transmission duty factor and is excluded from
routine RF exposure evaluation in accordance with FCC Mobile and Portable Device RF
Exposure Procedures and Equipment Authorization Policies, KDB447498 D01 v05.
At least 10mm (1/2 in) of separation between the MT 3060 and the user’s body must be
maintained at all time to ensure FCC RF Exposure compliance.
- vii -
R&TTE
Effective with HW revision 10 (GSM2398- 00), the device is in conformity with the
requirements of the R&TTE directive 1999/5/EC. It has been fully tested and complies with all
the requirements of EN 62311, EN300440- 2, EN301489- 1, EN301489- 3, EN301489- 7 and
EN60950-1. Compliance to EN301511 has been demonstrated by testing on both the device
and the integrated module. RF exposure levels are below the recommended levels at
distances of 6.7 cm between the antenna and user.
Novatel Wireless M2M hereby declares that the GSM2398 is in compliance with the essential
requirements and other provisions of the Directive 1999/5/EC.
A full copy of the declaration of conformity can be found at http://documentation.nvtl.com
Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
The MT 3060 transmitter is configured with a 10% transmission duty factor, for GPRS Multislot
class 2 operation, and is excluded from routine RF exposure evaluation in accordance with the
requirements of RSS-102 section 2.5.
Cet appareil est conforme aux normes d’Industrie Canada exempts de license(s) RSS. Son
fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas
provoquer d’interférences, et (2) cet appareil doit accepter toute interférence, y compris les
interférences pouvant provoquer un fonctionnement indésirable de l’appareil.
L’émetteur MT 3060 est configuré avec un facteur de service de transmission de 10%, pour
l’opération en GPRS multislot class 2, et est exclu de l’évaluation de routine d’exposition RF
en conformité avec les exigences du CNR-102 section 2.5.
ROHS COMPLIANCE
The device complies with the European Union Restriction of the Use of Certain Hazardous
Substances in Electrical and Electronic Equipment ([RoHS) Directive (2002/95/EC), effective
since July 1, 2006, and amendments, and 2011/65/EU (commonly called "RoHS Recast").
- viii -
DISCLAIMER
The information and instructions contained within this publication comply with all FCC, GCF,
PTCRB, R&TTE, IMEI and other applicable codes that are in effect at the time of publication.
Novatel Wireless M2M disclaims all responsibility for any act or omissions, or for breach of law,
code or regulation, including local or state codes, performed by a third party. Novatel
Wireless M2M strongly recommends that all installations, hookups, transmissions, etc., be
performed by persons who are experienced in the fields of radio frequency technologies.
Novatel Wireless M2M acknowledges that the installation, setup and transmission guidelines
contained within this publication are guidelines, and that each installation may have variables
outside of the guidelines contained herein. Said variables must be taken into consideration
when installing or using the product, and Novatel Wireless M2M shall not be responsible for
installations or transmissions that fall outside of the parameters set forth in this publication.
- ix -
Table of Contents
1 Introduction 1
Description 2
Technical Specifications 4
General 4
Radio Technology 4
Packet Data 4
Environmental 4
Components 5
Protocols 5
Part Numbers 5
Document References 5
Additional Features 5
On-Board Diagnostics Overview 7
2 Features And Functions 8
GPS 9
LEDs 9
Power 10
Accelerometer 10
GSM Radio 11
CDMA Radio 11
New Event Reporting 11
Vehicle Identification Number (VIN) 11
Excessive Engine Speed (RPM) 12
Vehicle Speed 12
Vehicle Battery Voltage (Low Battery Warning) 12
Check Engine Light (MIL Alert) 13
- x -
Trip Odometer Reporting 13
Idle Time Reporting 13
Low Fuel Alert 13
Driver Behavior Acceleration 14
Driver Behavior Deceleration (Harsh Braking) 14
Motion Detection 14
OBDII Basic Event Data 14
Right/Left Turn (Lateral Acceleration) 15
Up / Down (Vertical Acceleration) 15
AT Commands Over SMS 15
Store/Transmit Event Data 15
Synchronize RTC Time With GPS Time 16
Reporting Frequency 16
3 Installation 17
SIM Access (GSM2398 Only) 18

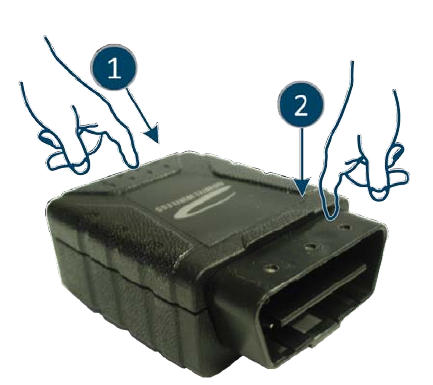

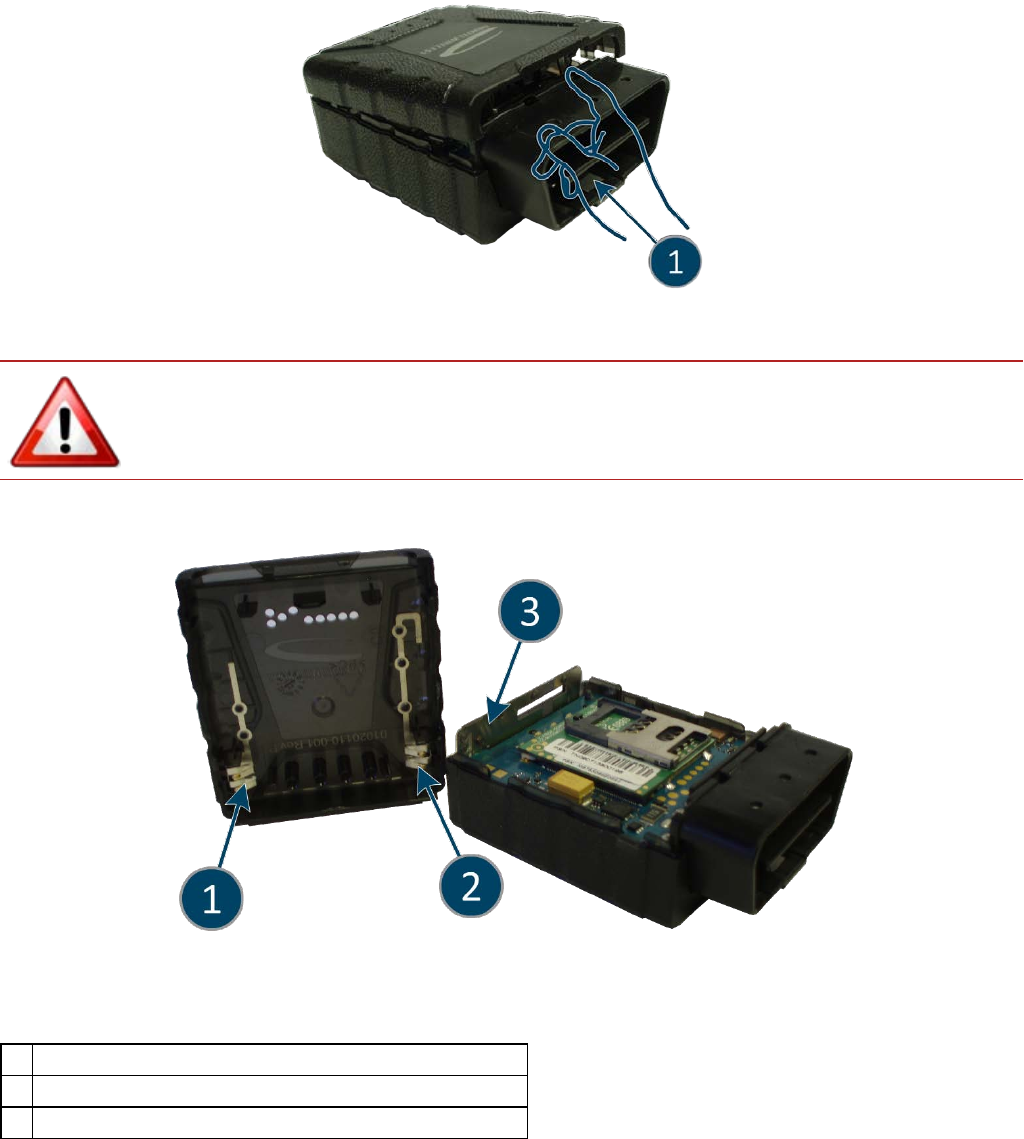

Opening The Device 18
Inserting The SIM 20
Closing The Device 21
Activating The Device 21
Verizon Activation: 21
Sprint Activation: 22
Device Installation 22
Accelerometer Calibration 23
4 Accessories 25
Backup Battery 26

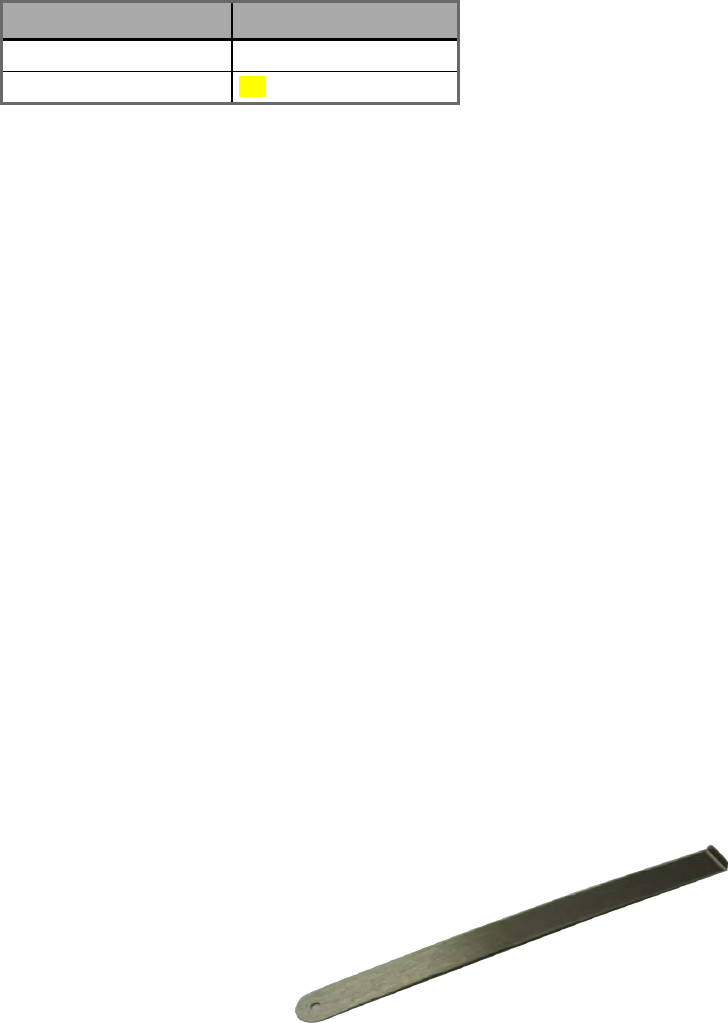

Metal Lever 26
- 2 -
Description
Novatel Wireless designed the MT 3060 for the Usage-Based Insurance (UBI), telematics, and
fleet management markets. The MT 3060 has a rugged plastic housing and includes a
disconnect alert feature that uses an in-device backup battery. The MT 3060 is available in
GSM/GPRS, 1xRTT, and HSDPA versions. It contains an internal GPS, a cellular antenna, a J1962
compliant OBDII connector, and 3 LED indicators.
The GSM2398 and UMTxxxx variants also contain an internal SIM card holder.
Figure 1-1 Top View

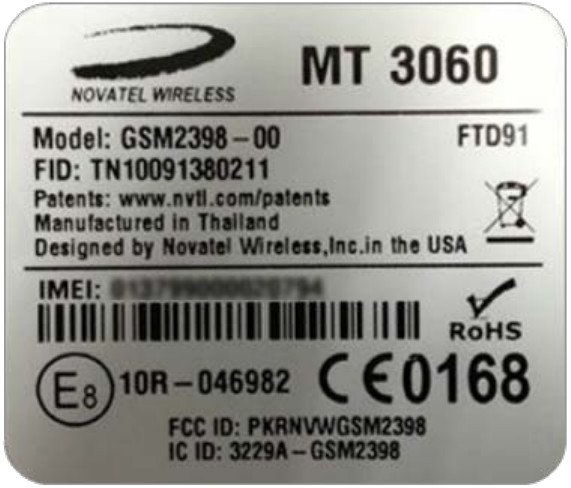

The MT 3060 has a printed label on the top side of the device.
The figure below shows the information included on the label.
- 3 -
Figure 1-2 MT 3060 Label
- 4 -
Technical Specifications
General
Name: MT 3060
Model: RTT2211, GSM2398
Approvals: FCC, CE, RoHS2, Industry Canada
Housing: Rugged textured plastic enclosure UL94-Vo fire
Dimensions: 55 x 49 x 29 mm
Battery: Rechargeable lithium-ion battery (230mAh)
Recharge Temperature Range 0 to +45ºC
Operating Voltage: 9 - 16 V DC operational for 12 V vehicle
Radio Technology
Quad-band EDGE/GPRS/EDGE: 850/900/1800/1900 MHz
Tri-band DC HSPA+/HSPA+/
HSPA/UMTS:
850/1900 MHz or 900/1900/2100
Dual-band LTE: 800/1900 MHz
Packet Data
Packet Data: Class B, Multislot 8
GSM/GPRS Rel 97
SMS Functionality:
- GSM/HSDPA SMS: Text, PDU, MO/MT, Cell Broadcast
- CDMA SMS: Text, MO/MT
Environmental
Operating Temperature: -20ºC to +60ºC
Storage Temperature: -20ºC to +60ºC
Humidity: Up to 85% non-condensing
Vibration Stability:
-5-
Components
GPS Protocols: NMEA, Binary
Buffered GPS Message Feature: Yes
Accelerometer: 3-axis digital
On-Board Diagnostics (OBDII): J1850 PWM, J1850 VPW, ISO-9141-2, ISO-14230 KWP2000, and ISO-15765
CAN protocols supported, VIN, excessive engine speed (RPM), vehicle
speed,vehicle battery voltage (low battery warning), check engine light
(MIL alert), odometer (trip distance), idle time reporting, low fuel alert.
SIM Access: Internal
Cellular Antenna: Internal
GPS Antenna: Internal
LEDs: GPS (blue), Cellular (green), OBD (red)
OBDII Connector: J1962 compliant
Protocols
OBD Protocols: ISO 9141-2
ISO 14230 KWP 2000
J1850 PWM
J1850 VPW
Some vehicles only support a subset of these protocols, which may limit
the functionality of the MT 3060.
Host Protocols: AT commands, UDP API, FOTA
Internal Protocols: UDP API, TCP API
API Control/Status: AT commands, UDP API, TCP API, AT commands over SMS
Part Numbers
GSM2398-00 (GSM/GPRS)
RTT2211-00 (CDMA 1xRTT)
UMT2212-00 (HSDPA + GPRS/Edge)
CAB2374-01 (J1962 extension cable)
Document References
GSM2398AT001 MT 3060 AT Command Set For GPRS
RTT2211AT001 MT 3060 AT Command Set For 1xCDMA
GSM0000AN019 GSM Network Configuration Worksheet
Additional Features
GSM Registration GPS Status Input Event Counter
GPRS Registration Timer GPS Overspeed
Velocity MT Power Save Message Log Count
- 6 -
Geo-Fence RTC Alarm SMS Indication
IP Status Memory Full Percentage GPS Distance
- 7 -
On-Board Diagnostics Overview
The Novatel Wireless M2M MT 3060 connects to a vehicle's On-Board Diagnostics (OBDII)
port and monitors the OBDII system using communication protocols. An On-Board Diagnostics
(OBD) system controls engine functions and serves as the diagnostic control network of the
vehicle. All cars built and sold in the United States since 1996 require the newer OBDII system.
You can configure the MT 3060 to provide notification messages based on events triggered
by:
lAccelerometer change
lCheck engine light (MIL alert)
lEngine RPM
lGPS information
lIdle time
lLow fuel
lTrip Odometer (trip distance)
lVehicle battery voltage (low battery warning)
lVehicle Identification Number (VIN)
lVehicle speed
lOther events monitored by the OBDII system
Some vehicles are not compatible with the MT 3060. If a vehicle is not compatible
with the required MT 3060 parameters, then functionality may be limited,
problematic, or unavailable.
The 1979 Society of Automobile Engineers (SAE) standard defines the method for requesting
diagnostics data and provides a list of standard parameters from the engine control unit.
Since the vehicle manufacturer is responsible for complying with the SAE standard, Novatel
Wireless M2M cannot guarantee that the MT 3060 will perform with every vehicle.
- 9 -
GPS
GPS functions include:
lNMEA update with all data points
lNovatel Wireless M2M Binary Packets
lBuffered GPS message feature
lGeo-fencing
lVirtual odometer
LEDs
The MT 3060 includes LEDs to indicate OBDII, Network, and GPS status.
The following figures show the MT 3060 OBD II connector and LEDs.
Figure 2-1 MT 3060 Connectors
- 10 -

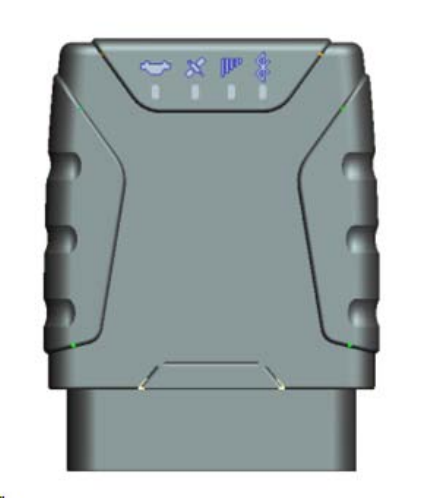

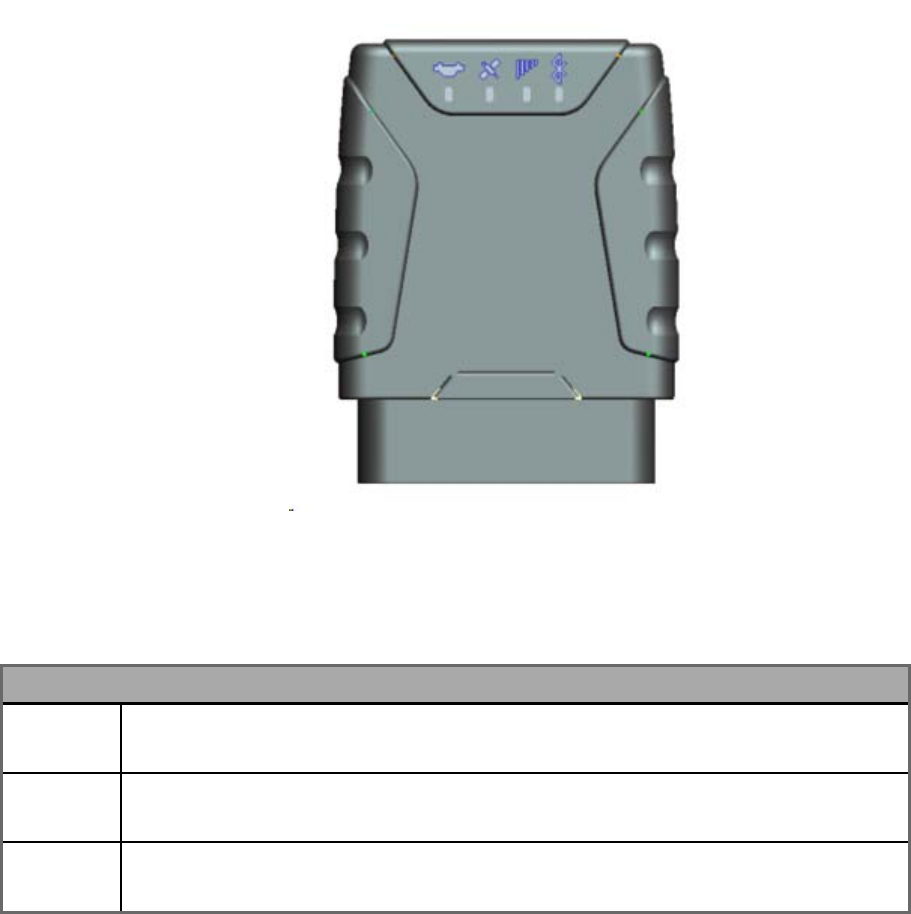

Figure 2-2 MT 3060 LEDs
The following table describes the LED operation.
MT 3060 LEDs
OBD
(Red)
The OBD LED will flash at a fast rate when the unit is first connected to the OBD port for power. Once a
protocol is discovered through the OBD port, the LED will flash at a slow rate.
GPS
(Yellow/Amber)
The GPS LED will flash at a fast rate when the unit is acquiring a satellite fix. Once a fix is acquired, the LED will
flash at a slow rate.
NETWORK
(Green)
The NETWORK LED will flash at a fast rate when the unit is finding cellular coverage. Once cellular coverage is
found, the LED will flash at a slow rate.
Table 2-1 MT 3060 LEDs
Power
The MT 3060 requires 9-16 VDC minimum 2 amps input power. Pin 16 on the 16-Pin I/O
connector is the positive power input, and pins 4 and 5 are ground. This device contains a
battery. This battery is not to be removed or replaced by the user. Please dispose of this
device according to local recycling laws.
Accelerometer
The three-axis digital accelerometer provides the following features:
- 11 -
lMotion alert (towing alert)
lDriver behavior reporting
lRapid acceleration
lHarsh braking
lConfigurable thresholds
lRange settings
lMode (Normal, Sleep, Wakeup)
lWakeup pause (20 to 2560 msec)
lSample Rate (0-25 per second)
lFilter Coefficient and Filter Bandwidth
lDevice Orientation Setup
GSM Radio
The MT 3060 (GSM2398) contains a quad-band (850/900/1800/1900 MHz) GSM radio.
lClass 4 (2W@850/900 MHz)
lClass 1 (1W@1800/1900 MHz)
CDMA Radio
The MT 3060 (RTT2221-00) contains a dual-band (800/1900 MHz) CDMA radio.
lBC0-800 MHz – US Cell
lBC1-1900 MHz – US PCS
New Event Reporting
The MT 3060 has additional event reporting not supported by other Novatel Wireless M2M
products. For general event reporting information and for detailed information about these
new events, refer to the MT 3060 AT Command Document (GSM2398AT001).
Vehicle Identification Number (VIN)
The VIN is used as a unique identifier which is sent at first power-up with heartbeat messages
and with events.
Vehicle manufacturers are responsible for defining the list of data returned,
therefore not all vehicles support returning the Vehicle Identification Number.
- 12 -
Excessive Engine Speed (RPM)
Excessive engine speed alerts are triggered when the engine speed (in RPM) exceeds a
defined RPM level (in ¼ RPM increments) for a defined period of time in seconds (e.g., 30
seconds).
The MT 3060 has three definable thresholds.
Unnecessary wear and tear on the Powertrain Control Module (PCM) may occur if constant or
frequent excessive engine speed is reported. One of the following situations may cause
excessive engine speed:
lObstructions, such as ice or mud, that may cause wheel slippage if the obstruction is not
removed
lRevving the RPM while in neutral
lSpeeding or reckless driving that causes excessive RPM engine speed
The following AT command example sets the excessive engine speed threshold at 1 to 4000
RPM. Then, if exceeded for 3 seconds, it triggers the input event. This event will clear once
engine RPM is below 4000 for 30 seconds.
AT$OBDEES=1,4000,3,30
Vehicle Speed
A vehicle speed alert is triggered if the device is configured for vehicle speed alerts and the
vehicle moves faster than one of the three configurable thresholds (e.g., 70 MPH).
The following AT Command example sets the vehicle speed threshold at 1 to 112 KPH
(~70MPH). When the threshold is exceeded for 10 seconds, an input event is triggered. This
event will clear when the vehicle speed is reduced to 104KPH (~65MPH).
AT$OBDSPD=1,112,10,104
Vehicle Battery Voltage (Low Battery Warning)
The vehicle battery voltage alert is triggered when the vehicle’s battery is reported to be
below a threshold (e.g., 10.8 V) for a user-defined period of time in seconds (e.g., 300
seconds).
The following AT Command example sets the low battery threshold to 10.8 volts. When the
voltage remains below this threshold for 300 seconds (5 minutes), it triggers an input event.
Restoring voltage above the threshold for 300 seconds (5 minutes) will clear this event.
AT$OBDLBL=10800,300,300
- 13 -
Check Engine Light (MIL Alert)
When the vehicle's “Check Engine” light illuminates, this indicates that a vehicle issue
requires attention for diagnosis and/or repair. This is also known as a Malfunction Indicator
Light (MIL). A user can configure a device to detect a MIL issue via the OBDII protocol, and to
send an alert when the device detects such an issue.
Trip Odometer Reporting
Trip odometer reporting provides the odometer miles accumulated from ignition-on to
ignition-off, which is considered a “trip”.
Ignition events are not yet detected on hybrid or electric vehicles.
Idle Time Reporting
An idle time event is triggered when the vehicle’s engine is running without the vehicle
moving (i.e., velocity less than 3 KPH) for a defined period of time in seconds (e.g., 300
seconds).
The alert is cleared when the vehicle speed exceeds another speed and time threshold.
Both the violation and clearing of the alert are reported if configured.
The following AT Command example sets the idle time speed threshold to 3 KPH for 5
minutes (300 seconds) with a clearance time of 30 seconds. If the speed remains below this
threshold for 300 seconds (5 minutes), it triggers the input event. Restoring speed above this
threshold for 30 seconds will clear this event.
AT$OBDIDL=3,300,30
Low Fuel Alert
The low fuel alert triggers when the vehicle’s fuel level falls below a defined threshold in
percent (e.g., 12%) for a defined period of time in seconds (e.g., 60 seconds).
The following AT Command example sets the low fuel alert threshold to 12% for 1 minute (60
seconds) with a clearance time of 30 seconds. If the fuel level remains below this threshold for
60 seconds, it triggers the input event. Restoring the fuel level above this threshold for 30
seconds will clear this event.
AT$OBDLFL=12,60,30
- 14 -
Driver Behavior Acceleration
Rapid acceleration events can be triggered when one of four available thresholds are
exceeded as determined by the accelerometer in milli-Gs (e.g., 0.75) for a defined period of
time in seconds (e.g., 30 seconds). The event will clear if the acceleration falls below the
threshold for a defined period of time. The command may also be configured to clear the
event if it persists beyond a maximum duration.
The following AT Command example sets the rapid acceleration threshold #1 to .2G. If this
threshold is exceeded for 1 second, then an input event is triggered. Keeping the acceleration
of the vehicle below this threshold for 30 seconds will clear this event. There is no maximum
duration set in this example.
AT$DVBACL=1,200,1,30,0
Driver Behavior Deceleration (Harsh Braking)
Rapid deceleration events can be triggered when one of four available deceleration
thresholds are exceeded as determined by the accelerometer in milli-Gs (e.g., 1.0) for a
defined period of time in seconds (30 seconds). The command may also be configured to
clear the event if it persists beyond a maximum duration.
The following AT Command example sets the rapid deceleration threshold #1 to .5Gs. If this
threshold is exceeded for 1 second, then an input event is triggered. Keeping the deceleration
below this threshold for 30 seconds will clear this event. The event will also clear if the
threshold is exceeded for a duration of 10 seconds.
AT$DVBDCL=1,500,1,3,10
Motion Detection
Motion alerts for vehicles can be configured to communicate that a vehicle is being towed.
Motion detection, based on measuring movement via the accelerometer, occurs when the
vehicle ignition is off and the vehicle is stationary.
A motion alert is triggered when motion defined in milli-Gs is detected for a defined period of
time.
OBDII Basic Event Data
Five additional data items can be included with event messages:
lVIN
lFirmware version ($PKG)
lOBD Protocol (i.e., J1850 PWM)
lCellular signal strength (RSSI)
lOBD speed
- 15 -
Right/Left Turn (Lateral Acceleration)
Harsh turn events can be triggered when one of two available thresholds are exceeded as
determined by the accelerometer in milli-Gs (e.g., 0.75) for a defined period of time in
seconds (e.g., 30 seconds). The command may also be configured to clear the event if it
persists beyond a maximum duration.
The following AT command example sets the lateral acceleration accelerometer threshold 1 to
.25 Gs. If this threshold is exceeded for 2 seconds, an input event is triggered. This event will
clear in 15 seconds when the acceleration is below this threshold. The event will also clear if
the threshold is exceeded for a duration of 10 seconds.
AT$DVBLAL=1,250,2,15,10
Up / Down (Vertical Acceleration)
Up and down accelerometer events can be triggered when the threshold is exceeded as
determined by the accelerometer in milli-Gs (e.g., 0.75) for a defined period of time in
seconds (e.g., 30 seconds). The command may also be configured to clear the event if it
persists beyond a maximum duration.
The following AT command example sets the vertical acceleration accelerometer threshold 1
to 1.2Gs. If this threshold is exceeded for 1 second, an input event is triggered. This event will
clear in 30 seconds when the acceleration is below this threshold. The event will also clear if
the threshold is exceeded for a duration of 10 seconds.
AT$DVBVAL=1,1200,1,30,10
AT Commands Over SMS
A user can send AT commands to the MT 3060 via SMS. Please refer to Novatel Wireless
M2M Application Note ENF0000AN012 - AT Commands Over SMS for details.
Store/Transmit Event Data
The user can configure the MT 3060 to store event-generated data in its internal memory to
be sent over the air to a remote server. This feature can be enabled or disabled using the
AT$MSGLOGEN command.
“Total Number of Unread Messages” is decremented if an unread message is read via the
AT$MSGLOGRD command.
- 16 -
Example: Assume there are 50 unread messages in the message queue and the total number
of messages in the message queue is 100. This means that the first 50 messages have been
read while the last 50 messages have not been read. If a user sends AT$GPSLOGRD=0,1,51
then the total number of unread messages drops down to 49 after successful transmission of
that message. However, if a user sends AT$GPSLOGRD=0,1,99 then the total number of
unread messages still remains at 50—that message is transmitted to the remote server.
A user can also read a message stored in the memory by inputting the appropriate starting
index number.
Synchronize RTC Time With GPS Time
The Real Time Clock ("RTC") is synchronized with GPS time automatically every time the
device is powered up and first acquires valid GPS data. Additionally, the RTC time is synched
with GPS time every time the GPS time rolls over from 23:59:59 to 00:00:01.
Reporting Frequency
The minimum reporting frequency of the device is as follows:
lPeriodic reporting is limited to a maximum of 1 per 6 seconds.
lThe general reporting interval is 1 message every 2 seconds.
- 18 -
SIM Access (GSM2398 Only)
The GSM2398 versions of the MT 3060 include an on-board SIM carrier. There is no external
access to the SIM.
The MT 3060 SIM Installation procedure includes:
lOpening the device
lInserting the SIM
lClosing the device
The CDMA version of the MT 3060 does not use a SIM, and therefore the device
should not be opened.
Opening The Device
To prevent damaging the device, we highly recommend that you use the Metal Lever
(Novatel Wireless M2M part number KIT2418-01) when opening the MT 3060.
To open the MT 3060, follow these steps:

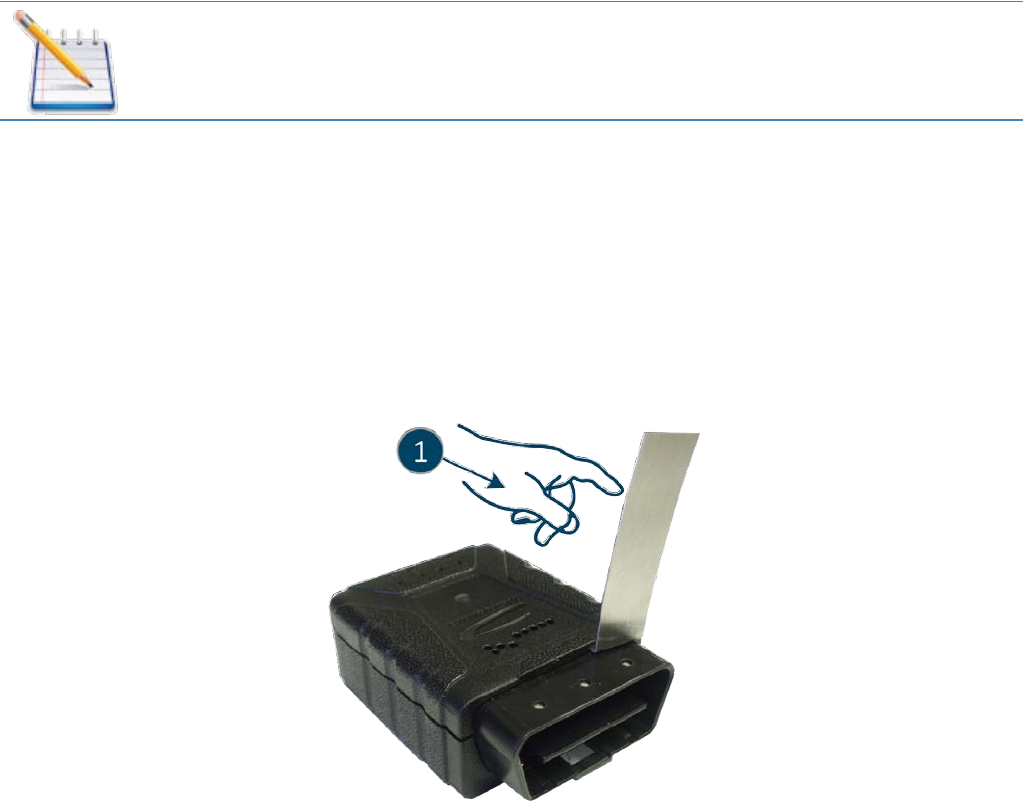

1. Insert the tool into the opening and gently push until that corner of the lid unsnaps as
shown below.
Figure 3-1 Opening the MT 3060 Case
2. Repeat step 1 for the other corner
- 19 -
3. Carefully slide the cover off the device
Figure 3-2 MT 3060 With Cover Partially Removed
When removing the cover take care not to damage the antennas. The antennas
are situated in the top housing and at the rear of the device.

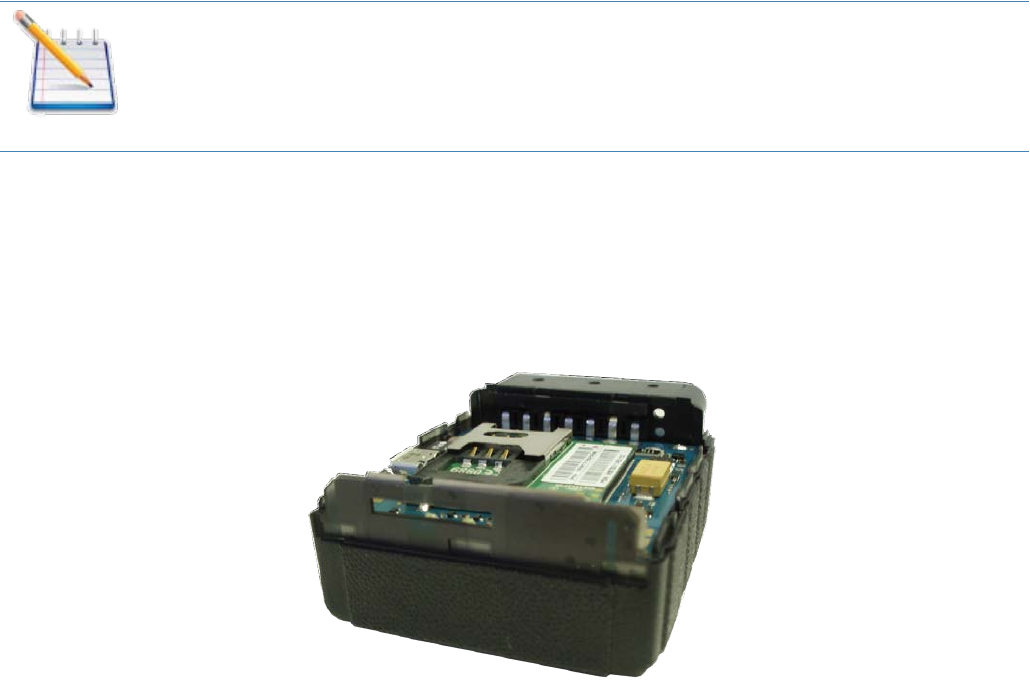

Figure 3-3 MT 3060 With Cover Removed
MT 3060 Antennas
1 Bluetooth Antenna (Not currently supported)
2 GPS Antenna
3 Cellular Antenna
- 20 -
Inserting The SIM
The SIM card is not provided with the MT 3060 device. The SIM must be obtained
from the GSM/GPRS service provider and must be provisioned by the operator
for data. Always take care to protect the SIM. Without the SIM installed, the MT
3060 modem is not able to communicate with the network.
Insert the SIM using the following steps:
1. After you have removed the device cover locate the SIM holder within the device. The
SIM is inserted through the slot in the Cellular Antenna.
2. Insert the SIM into the SIM holder of the MT 3060.
3. Replace the cover (as described below).
Figure 3-4 Antennas with SIM slot.
- 21 -
Closing The Device
Replace the MT 3060 cover using the following steps:
1. Place the MT 3060 cover onto the base of the device as shown in the following figure.
2. Apply gentle downward pressure to the back of the cover first, and carefully slide the
cover into place.
3. Apply gentle down and forward pressure to the front of the cover until it snaps shut.
Figure 3-5 MT 3060 Cover Replacement
Activating The Device
Verizon Activation:
To activate with Verizon, the user must contact Verizon and provide the MEID of the device to
the provider. Once Verizon has acknowledged that the device is ready to activate, the user
will then be required to send an activation string to the network.
Send the activation string: AT+CDV*22899. This will initiate a call with the network. A
successful call will last approximately 40 seconds. If the call is terminated within 10-15
seconds, the call was not successful. Multiple attempts might be required. If the call is not
successful after a few attempts, please check the MEID of the device and compare it with the
MEID provided to the provider.
To verify that the activation has successfully completed, attempt a voice call AT+CDVxxxxxx.
If the call is successful, then the over-the-air provisioning was successful.
As part of the activation process, the network will download a new PRL. The device will reset
after the PRL is successfully reset to allow the new PRL to take effect.
- 22 -
Sprint Activation:
To activate with Sprint, the user must contact Sprint and provide the MEID of the device.
After the MEID is provided to Sprint, the user will need to power on the device when
instructed by the carrier. The device will automatically activate when it attaches to the
network. For the first attempt the user should see a series of unsolicited reports. If the device
gets to +HFA: 6, the device has successfully activated. This process can take up to 60 seconds
to complete. AT+HFA? can be used to query the activation state. A response of 1 means the
device is successfully activated. A response of 0 means that it has not.
An unsuccessful activation attempt may take up to 5 minutes, because of the number of
retries specified by the carrier.
As part of the activation process, the network will download a new PRL. The device will reset
after the PRL is successfully reset to allow the new PRL to take effect.
Device Installation
Make sure the vehicle is parked on level ground prior to installing the MT 3060.
Instructions provided in this section describe the hardware installation of the MT 3060
device. To install the MT 3060 in a vehicle, follow these steps:
1. Locate the OBDII socket. The location will vary between different vehicle manufacturers,
models, and production years.
2. Carefully insert the MT 3060 into the OBDII socket.
3. After the device is installed, the GPS lock and the cellular connection LEDs will validate
that the device is working properly.
The MT 3060 is NOT a waterproof or sealed device. Keep the device away from
water or any other liquids.
- 23 -
Figure 3-6 Typical OBDII Socket Location
The device starts the accelerometer auto-calibration process immediately after
the device is installed and the vehicle's ignition is turned on.
Accelerometer Calibration
The accelerometer undergoes an automatic calibration sequence on the first drive after any of
the following events:
lDevice installation
lSoftware upgrade
lVehicle battery replacement (or recharge if battery was fully discharged)
lDevice auxiliary processor reset
Failure to follow the process below could cause an undesired behavior of the
motion feature. Failure to drive straight on level ground during the automatic
calibration may reduce the accuracy of the accelerometer and have an adverse
impact on events triggered by accelerometer readings.
- 24 -
1. Make sure the vehicle is parked on level ground prior to installing the MT 3060.
2. Drive the vehicle in a straight path on level ground during the automatic calibration. An
inclined surface will put part of the gravity vector into the XY plane, which will affect the
acceleration thresholds. (A 5.7 degree angle will place 10% of the gravity vector into the
XY plane.)
When the vehicle passes 32 KPH, the auxiliary processor assumes that the vehicle
is moving in a straight line and determines the forward axis.
- 26 -
The following accessories are available for the MT 3060:
Part Name Part Number
Metal Lever ASA-3000-0001
Backup Battery TBD
Backup Battery
The primary function of the backup battery in the MT 3060 is to allow a user to be notified
when the device is removed from the vehicle.
Input Event 63 can be used to trigger an output event that can be configured in the same
manner as the other output events. If the modem is off (to save power), this event will be
turned on. If GPS data is configured in the output event and the data is not available, the last
known position can be configured to be used in the output message.
AT$OBDBBT is used to configure the time (in seconds) that the device will stay powered
after removal from the vehicle. The range is 30-6000 with the default being 600. In addition,
to prevent damage to the battery, the device will turn itself off when the battery reaches the
level determined to be the lowest “safe” value.
If the configured output message has not been sent when the timer or battery level dictates
that the device should shut down (and is configured to do so), it will be saved and sent the
next time the device registers on the network.
Metal Lever
The Metal Lever to open the device. For more information on opening the device, see the SIM
Access section in this User Guide.
Figure 4-1 Metal Lever
As an alternative a Flat Head Screwdriver can be used to open the device, however additional
care must be used if using this method.
- 27 -
Figure 4-2 Flat Head Screwdriver
