Inseego NVWSA2100 FIXED WIRELESS GATEWAY User Manual SA 2100 User Guide
Novatel Wireless Inc FIXED WIRELESS GATEWAY SA 2100 User Guide
Inseego >
Users Manual
SA2100UG001
SA 2100
User Guide
Version: Draft 29 October, 2013
i novatelwireless.com
General
TERMS OF USE OF NEW MATERIALS - PLEASE READ CAREFULLY
From time to time, Novatel Wireless, in its sole discretion, may make available for download
on its website (www.novatelwireless.com), or may transmit via mail or email, updates or
upgrades to, or new releases of, the firmware, software or documentation for its products
(collectively, 'New Materials'). Use of such New Materials is subject to the terms and
conditions set forth below, and may be subject to additional terms and conditions as set forth
in Novatel Wireless's Technical Support Policy (posted on its website) and/or any written
agreement between the user and Novatel Wireless.
All New Materials are provided AS IS. Novatel Wireless makes no warranty or representation
with respect to the merchantability, suitability, functionality, accuracy or completeness of any
such New Materials. The user of such New Materials assumes all risk (known or unknown) of
such use. Novatel Wireless reserves all rights in such New Materials. The user shall have only a
revocable and limited license to use such New Materials in connection with the products for
which they are intended. Distribution or modification of any New Materials without Novatel
Wireless's consent is strictly prohibited.
IN NO EVENT WILL NOVATELWIRELESS BE RESPONSIBLE FOR ANY INCIDENTAL,
INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES AS A RESULT OF THE USE OF ANY
NEW MATERIALS. NOVATELWIRELESS 'S MAXIMUM LIABILITY FOR ANY CLAIM BASED
ON THE NEW MATERIALS SHALL NOT EXCEED FIFTY U.S. DOLLARS ($50).
Version Verification
Please ensure you have the latest version of this document by downloading it from
www.novatelwireless.com
ii novatelwireless.com
Copyright
© 2013 Novatel Wireless. All rights reserved. Complying with all applicable copyright laws is
the responsibility of the user. Without limiting the rights under copyright, no part of this
document may be reproduced, stored in or introduced into a retrieval system, or transmitted
in any form or by any means (electronic, mechanical, photocopying, recording or otherwise),
or for any purpose, without the express written permission of Novatel Wireless.
Novatel Wireless and the Novatel Wireless logo are either registered trademarks or
trademarks of Novatel Wireless, Inc. in the United States.
251 Renner Pkwy
Richardson, TX 75080 USA
Phone: (972) 633-4400
Fax: (972) 633-4444
Email: info@nvtl.com
www.novatelwireless.com
iii novatelwireless.com
Warranty Information
This warranty applies to (a) products sold directly by Novatel Wireless M2M, unless a different
warranty is specified in a written agreement between Novatel Wireless M2M and the
purchaser; and (b) products sold to end users through a distributor authorized by Novatel
Wireless M2M, but only where the authorized distributor does not provide a separate
warranty on such products, and Novatel Wireless M2M has agreed to provide this warranty to
such end users. If you purchased the product from an authorized distributor, please check
whether this warranty from Novatel Wireless M2M, or a separate warranty from the
distributor, applies to your purchase. This warranty does not apply to any (i) accessories or
batteries for the products; or (ii) demonstration samples or prototypes of the products. Unless
otherwise provided in a written agreement between Novatel Wireless M2M and the
purchaser, all such accessories, batteries, samples or prototypes are provided by Novatel
Wireless M2M AS IS without any warranty of any kind.
Novatel Wireless M2M warrants to the original purchaser of the product from Novatel
Wireless M2M or its authorized distributor (as applicable) that, for a period of one (1) year
from the date of shipment of the product from Novatel Wireless M2M, the product hardware
will be substantially free from defects in material or workmanship under normal operation, and
the product firmware will perform substantially in accordance with the product
documentation provided by Novatel Wireless M2M. Novatel Wireless M2M does not warrant
that (a) the product hardware or firmware will meet the purchaser's requirements; (b) the
operation of the product hardware or firmware will be uninterrupted or error-free; or (c) the
product, when integrated in, or combined with, other products or software not supplied by
Novatel Wireless M2M, will continue to perform substantially in accordance with the product
documentation. This limited warranty is for the benefit of the original purchaser, and is not
transferable.
During the warranty period, Novatel Wireless M2M, at its expense and in its sole discretion,
will repair the product, or replace the product with a corresponding or equivalent product, if
it is determined to have a covered defect, provided that the purchaser first notifies Novatel
Wireless M2M (directly or through its authorized distributor from which the product was
purchased) of any such defect, furnishes Novatel Wireless M2M with a proof of purchase (if
required), requests and obtains a return merchandize authorization (RMA) number from
Novatel Wireless M2M, and returns the product under that RMA to Novatel Wireless M2M (or,
at Novatel Wireless M2M's option, to its authorized distributor), with the shipping charges
being prepaid by purchaser. If, upon reasonable examination of the returned product, Novatel
Wireless M2M does not substantiate the defect claimed by purchaser, or determines that the
defect is not covered under this limited warranty, Novatel Wireless M2M will not be required
to repair or replace the product, but may instead reship the product to the purchaser (or, at
Novatel Wireless M2M's option, to its authorized distributor where the product can be made
available to purchaser), in which case the purchaser shall be responsible for paying Novatel
iv novatelwireless.com
Wireless M2M's cost for reshipping the product to purchaser (or to Novatel Wireless M2M's
authorized distributor), and Novatel Wireless M2M's usual charges for unpacking, testing, and
repacking the product for reshipment to purchaser (or to Novatel Wireless M2M's authorized
distributor). Purchaser shall bear the risk of loss or damage in transit to any product returned
by purchaser to Novatel Wireless M2M, or any returned product not found to be defective or
covered under this warranty, and reshipped by Novatel Wireless M2M to purchaser (or to
Novatel Wireless M2M's authorized distributor). In the event Novatel Wireless M2M repairs or
replaces a defective product covered by this limited warranty, the repaired or replacement
product will be covered under this limited warranty for the remainder of the original warranty
period on the defective product, or a period of ninety (90) days, whichever is longer. If
Novatel Wireless M2M is unable to repair or replace a defective product covered by this
limited warranty, Novatel Wireless M2M will provide to purchaser a credit or a refund (at
Novatel Wireless M2M's option) of the original purchase price (excluding taxes and shipping
charges). Any returned and replaced product, or any product for which Novatel Wireless M2M
has furnished a credit or a refund, becomes the property of Novatel Wireless M2M.
Novatel Wireless M2M shall not have any obligation to provide any firmware bug fixes,
upgrades or new releases except as may be necessary to correct any covered defect of which
purchaser notifies Novatel Wireless M2M in writing during the warranty period. Novatel
Wireless M2M, from time to time and in its sole discretion, may make available for download
on its website (www.novatelwireless.com), or may provide via email, certain firmware bug
fixes, upgrades or new releases for the product. Download and use of any such bug fixes,
upgrades or new releases is subject to all of the applicable terms and conditions of Novatel
Wireless M2M's technical support policy as posted and updated on its website. Novatel
Wireless M2M shall have no obligation under this limited warranty for (a) normal wear and
tear; (b) the cost of procurement of substitute products; or (c) any defect that is (i)
discovered by purchaser during the warranty period but for which purchaser does not
request an RMA number from Novatel Wireless M2M, as required above, until after the end of
the warranty period, (ii) caused by any accident, misuse, abuse, improper installation,
handling or testing, or unauthorized repair or modification of the product, (iii) caused by use
of any materials not supplied by Novatel Wireless M2M, or by use of the product other than in
accordance with its documentation, or (iv) the result of electrostatic discharge, electrical
surge, fire, flood or similar causes. The purchaser (or its customers, as applicable) shall be
solely responsible for the proper configuration, testing and verification of the Novatel
Wireless M2M product prior to deployment in the field, and for ensuring that any end user
product or system into which the Novatel Wireless M2M product is integrated or incorporated
operates as intended and meets the requirements of purchaser (or its customers). Novatel
Wireless M2M shall have no responsibility whatsoever for the integration, configuration,
testing, verification, installation, upgrade, support or maintenance of any such end user
product or system, or for any liabilities, damages, costs or expenses associated therewith.
v novatelwireless.com
NOVATELWIRELESS'S SOLE RESPONSIBILITY AND PURCHASER'S SOLE REMEDY UNDER
THIS LIMITED WARRANTY SHALL BE FOR NOVATELWIRELESS TO REPAIR OR REPLACE
THE PRODUCT (OR IF REPAIR OR REPLACEMENT IS NOT POSSIBLE, PROVIDE A CREDIT
OR REFUND OF THE PURCHASE PRICE) AS PROVIDED ABOVE. NOVATELWIRELESS
EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY, SATISFACTORY PERFORMANCE AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT SHALL NOVATELWIRELESS BE LIABLE FOR ANY INDIRECT,
SPECIAL, EXEMPLARY, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
WITHOUT LIMITATION LOSS OR INTERRUPTION OF USE, DATA, REVENUES OR PROFITS)
RESULTING FROM A BREACH OF THIS WARRANTY OR BASED ON ANY OTHER LEGAL
THEORY, EVEN IF NOVATELWIRELESS HAS BEEN ADVISED OF THE POSSIBILITY OR
LIKELIHOOD OF SUCH DAMAGES.
Some jurisdictions may require a longer warranty period than specified above and,
accordingly, for products sold in those jurisdictions the applicable warranty period shall be
extended as required under the laws of those jurisdictions. Furthermore, some jurisdictions
may not allow the disclaimer of implied warranties or the exclusion or limitation of incidental
or consequential damages, so the above disclaimer, limitation or exclusion may not apply to
products sold in those jurisdictions. This limited warranty gives the purchaser specific legal
rights and the purchaser may have other legal rights that vary from jurisdiction to jurisdiction.
This limited warranty shall be governed by the laws of the State of Texas, United States of
America, without regard to conflict of laws principles. This limited warranty shall not be
governed in any respect by the United Nations Convention on Contracts for the International
Sale of Goods.
vi novatelwireless.com
Regulatory Compliance
CE MARKING
This device has been tested to and conforms to the essential regulatory requirements of the
European Union R&TTE directive 1999/5/EC. The device also conforms to the European
Union’s restrictions on use of Certain Hazardous Substances in Electrical and Electronic
Equipment Directive, 2002/95/EC (commonly called “RoHS”) and amendments and
2011/65/EU (commonly called RoHS Recast”). This device has attained CE Marking.
FEDERAL COMMUNICATIONS COMMISSION NOTICE (FCC -
UNITED STATES) and INDUSTRY CANADA (IC) NOTICE
Electronic devices, including computers and wireless modems, generate RF energy incidental
to their intended function and are therefore subject to FCC rules and regulations.
This equipment has been tested to, and found to be within the acceptable limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
residential environment.
This equipment generates radio frequency energy and is designed for use in accordance with
the manufacturer’s user manual. However, there is no guarantee that interference will not
occur in any particular installation. If this equipment causes harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, you are
encouraged to try to correct the interference by one or more of the following measures.
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and the receiver.
lConnect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
lConsult the dealer or an experienced radio/television technician for help.
This device complies with Part 15 of the Federal Communications Commission (FCC) Rules
and Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
CAN ICES-3 (B)/NMB-3(B)
vii novatelwireless.com
WARNING: DO NOT ATTEMPT TO SERVICE THE WIRELESS COMMUNICATION DEVICE
YOURSELF. SUCH ACTION MAY VOID THE WARRANTY. THE SA 2100 MODEM IS FACTORY
TUNED. NO CUSTOMER CALIBRATION OR TUNING IS REQUIRED. CONTACT NOVATEL
WIRELESS, INC. TECHNICAL SUPPORT FOR INFORMATION ABOUT SERVICING YOUR
WIRELESS COMMUNICATION DEVICE.
FCC IC CAUTION: Any changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
MODIFICATIONS: The FCC and IC requires that you be notified that any changes or
modifications made to this device that are not expressly approved by Novatel Wireless may
void your authority to operate the equipment.
NOTE: The Radio Frequency (RF) emitter installed in your modem must not be located or
operated in conjunction with any other antenna or transmitter, unless specifically authorized
by Novatel Wireless Technologies.
This device is not for consumer use.

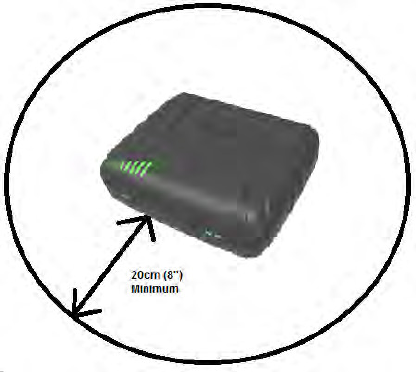

RF EXPOSURE CONTENT
This device is authorized for use in mobile applications after installation. At least 20 cm (8 in)
of separation between the router and the user’s body must be maintained at all times.
The separation distance is required to meet FCC and IC rules. Failure to install this device
according to these instructions will void the FCC and IC acceptance.
External Antenna Instructions
Important instructions: read before installation
viii novatelwireless.com

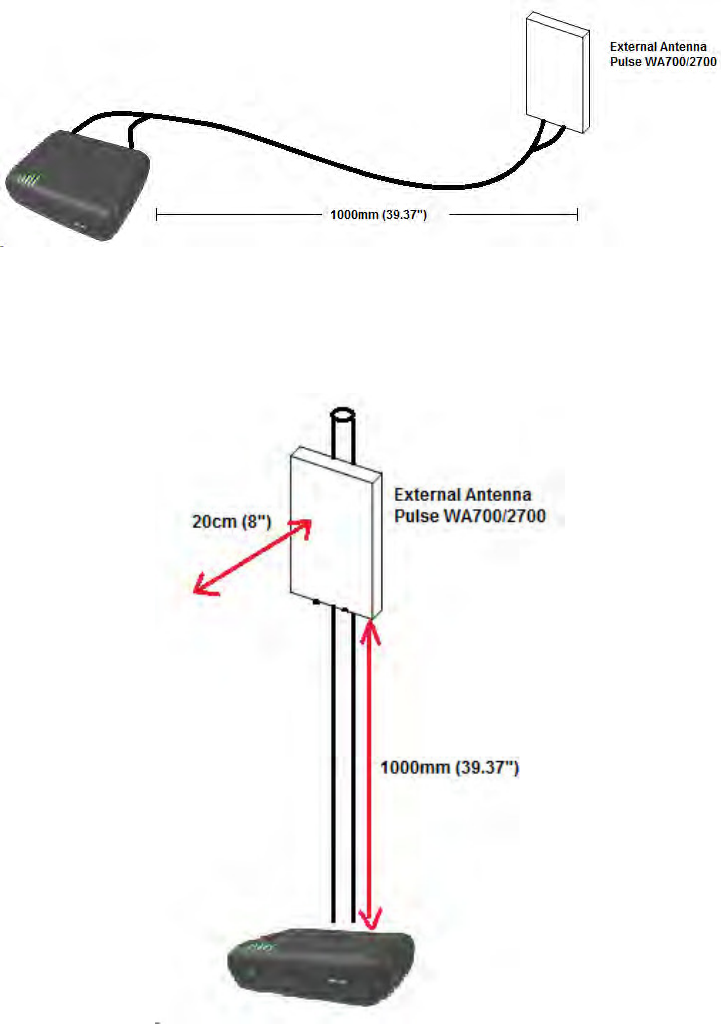

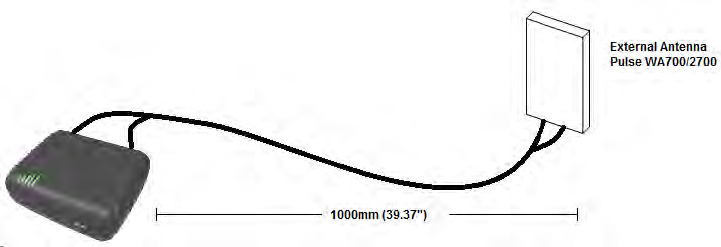

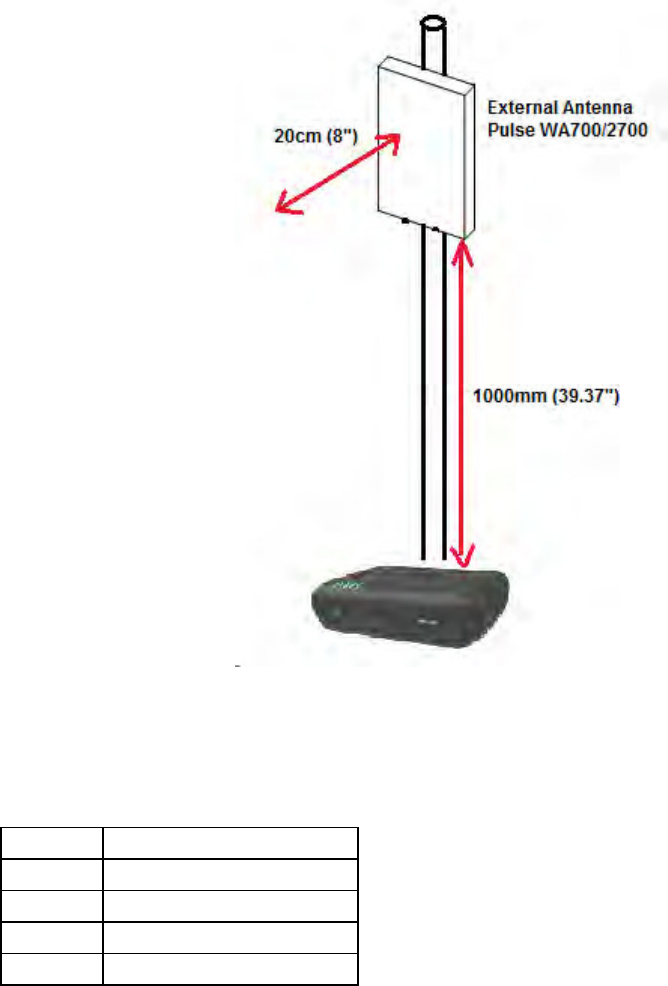

Should an external antenna be required, these instructions must be followed. The following
installation practices are required to comply with FCC and IC rules on RF exposure. Failure to
follow these guidelines can result in operations that exceed RF Exposure limits.
lMaintain a minimum distance of at least 20 cm (8 in) from all persons regardless of how
the antenna is mounted (stand assembly or wall mount).
lConnect the antennae to the modem using the supplied cable only – do not use a
different cable. Use the full length of the cable to position the antenna as far from the
modem and generally populated areas as possible.
lFor wall or pole mount installations position the antennae as far away from the base unit
as permitted by the antenna cable. Ensure at least 20 cm (8 in) separation from the
antenna element and the public.
ix novatelwireless.com
lThis antenna must not be located close to any other antennae or devices.
lUse only the following approved antenna types and cable assembly
lPulse (Part No.: WA700/2700SMA) Antenna (The gain of the antenna (including
cable loss) will not exceed the following:
Frequency Maximum Antenna Gain (dBi)
704 - 716 3.5
824 - 849 4.0
1710-1755 3.5
1850 - 1910 2.0
lThe antenna is shipped with both a suction cup and clip for mounting.
lUse only the supporting cable to connect the antenna to the SA 2100.
lNever use an antenna from another vendor or another source.
lFor any questions regarding the safe operation of this device please contact Novatel
Wireless at www.novatelwireless.com.
x novatelwireless.com

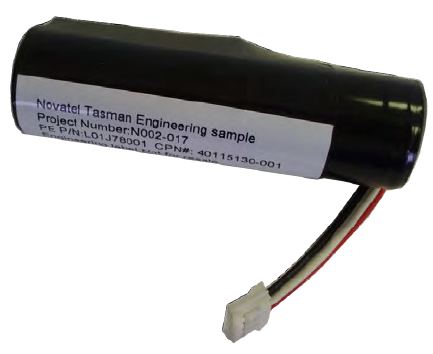

Battery Information And Safety Requirements
NOTE: Failure to comply with all of the following precautions could:
lCause personal injury or property damage
lCause abnormal chemical reactions which would make the battery overheat, smoke,
distort, leak, or catch on fire
lDestroy internal protections built into the battery
lShorten battery life
lReduce battery performance
Precautions
lRead this entire manual and the label on the exterior of the battery.
lKeep the battery away from sources of excessive heat such as fire, stoves, or direct
sunlight.
lKeep the battery away from sources of high voltage or static discharge.
lDo not use or store the battery with other batteries or where it could touch metal.
lDo not put the battery into a microwave oven.
lDo not allow the battery to be crushed.
lKeep the battery away from children.
lDo not drop the battery.
lDo not allow anything to touch any of the battery contacts
lDo not connect two or more of the contacts.
lDo not disassemble, destroy, or attempt reassembly of the battery.
lDo not place or leave the battery in a damp or wet environment.
lDo not allow water to touch the battery.
lDo not wrap the battery with conductive material.
lProperly dispose of the battery.
lDo not incinerate or burn the battery.
lDo not leave or discard the battery where it could get wet or become submerged in
water.
lDo not damage the battery.
lDo not weld or solder anything to the battery, the attached wires, or the connector.
lDo not use this battery in any device other than supplied.
lUse of this battery in other devices could result in unsafe conditions.
lRisk of explosion if battery is replaced by an incorrect type.
lDo not touch a leaking battery or materials that may have leaked from a battery. Do not
allow it to touch your skin or clothes. If touched, immediately rinse affected areas
thoroughly with water. Leaked materials may cause skin irritation. Seek medical
attention if irritation persists. If it contacts your eyes, do not rub your eyes. Rinse the
eyes thoroughly with water, and see a doctor immediately.
xi novatelwireless.com
Documentation Conventions
Notes
This is a note, it indicates important features or instructions.
Warnings
This is a warning, it indicates a situation that might result in loss of data, hardware
damage, or personal injury.
Hyperlinks
Blue text indicates an active, clickable link (e.g., http://www.novatelwireless.com).
Monospace Font
Indicates source code, command line entries, and code embedded in text. Example
Monospace
Boldface
Indicates an on-screen menu, option, window title, or other element that you should locate,
select, or click.
Enter /
Indicates an instruction to press the Enter key. Maybe labeled as Enter, Return, or New Line
on your keyboard.
xii novatelwireless.com
Table of Contents
1 Getting Started 1
Device Overview 2
System Requirements 2
Components 2
Router 2
Label 3
LEDs 3
Connectors 4
Reset Button 6
Caring For Your Device 6
Technical Specifications 8
General 8
Radio Technology (WWAN) 8
Environmental 9
Components 9
Device Management 9
Document References 10
Certifications 10
Accessories 10
2 Using The Device 11

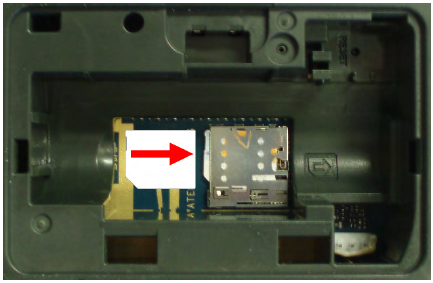

SIM Card 12
Positioning Your Router 12
Powering The Device 13
Connecting To The SA 2100 Router 13
Connecting Via USB 13
Connecting Via Wi-Fi 13
xiii novatelwireless.com

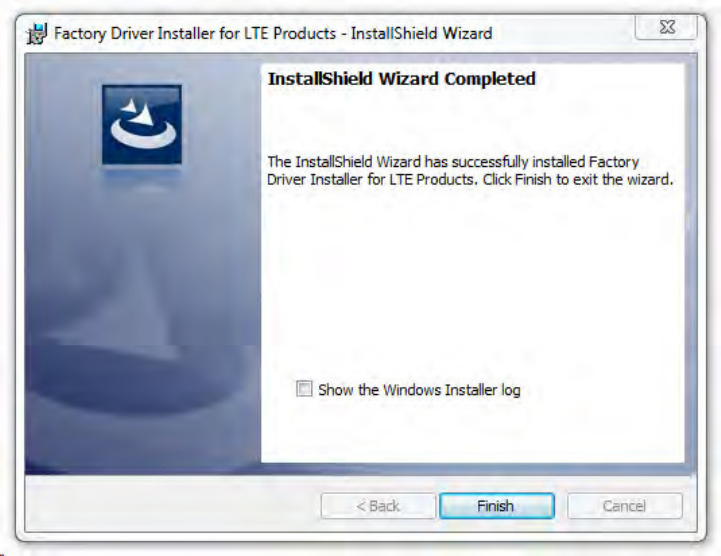

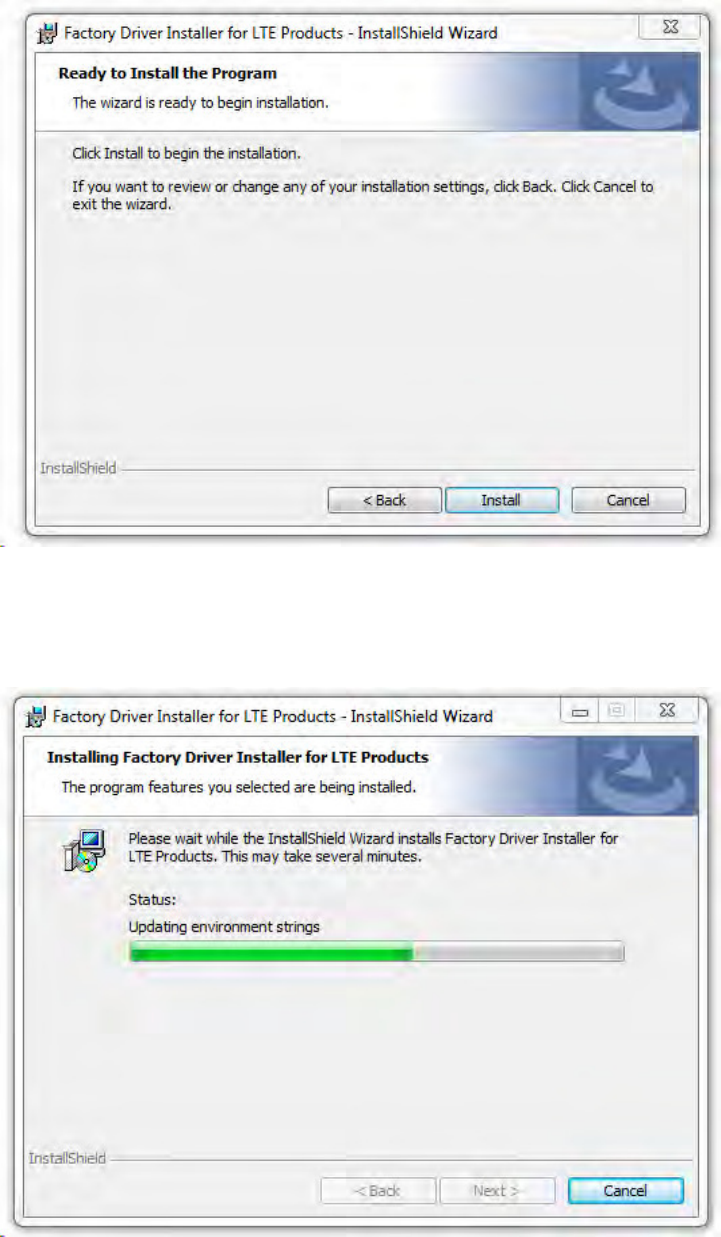

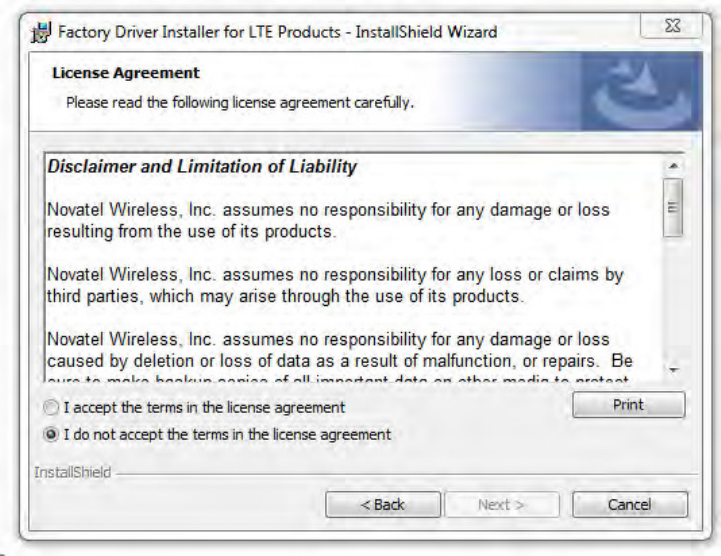

Driver Installation 13
Cable Installation 17
Installing The Antenna 17
Installing The Power Cable 18
Mounting The Device 18
Mounting Bracket 18
Double-Sided Tape 19
Vehicle Mounting 19
3 Using The Web User Interface 20

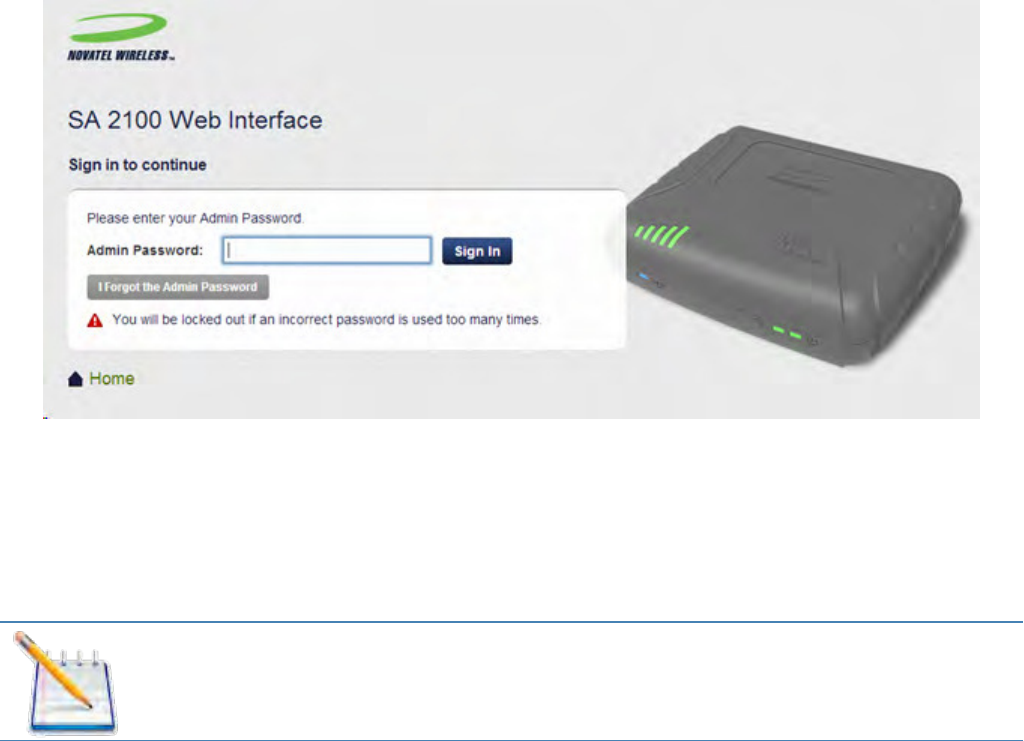

Logging In 21

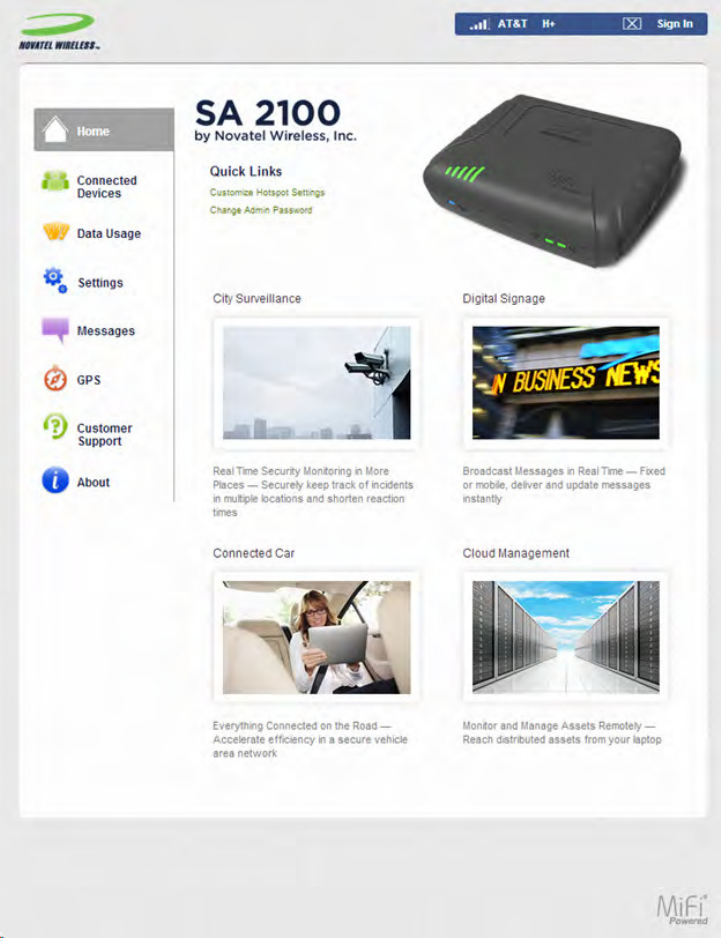

Home 22

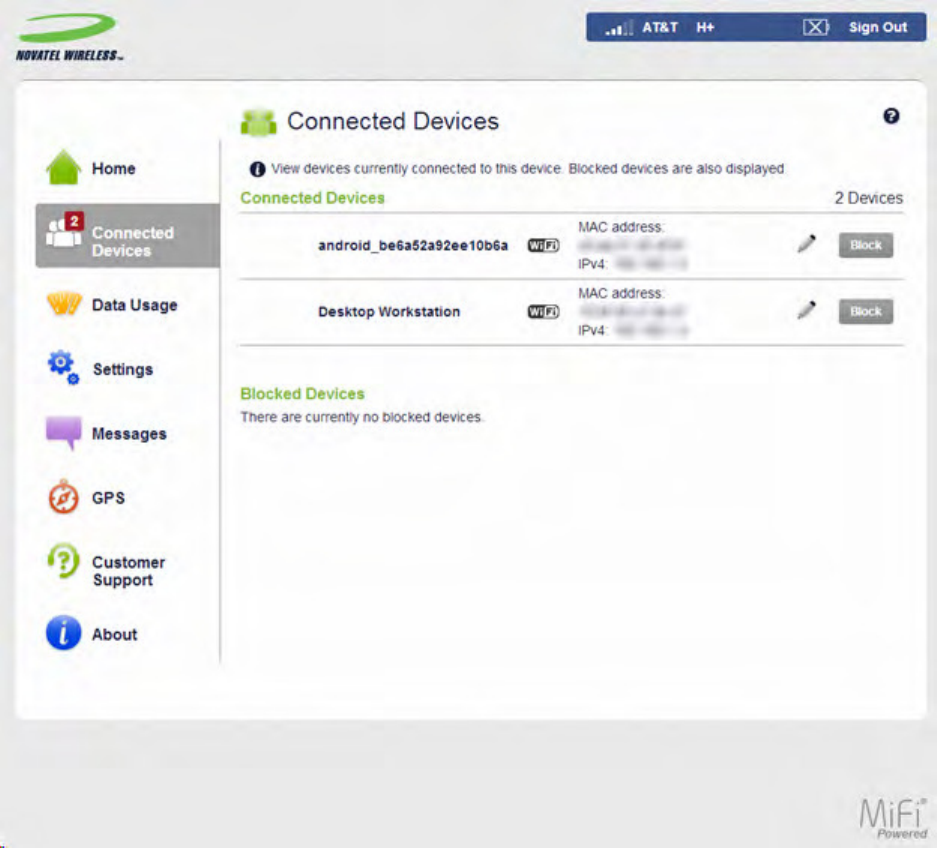

Connected Devices 24
Connected Devices List 25
Blocking And Unblocking Devices 26

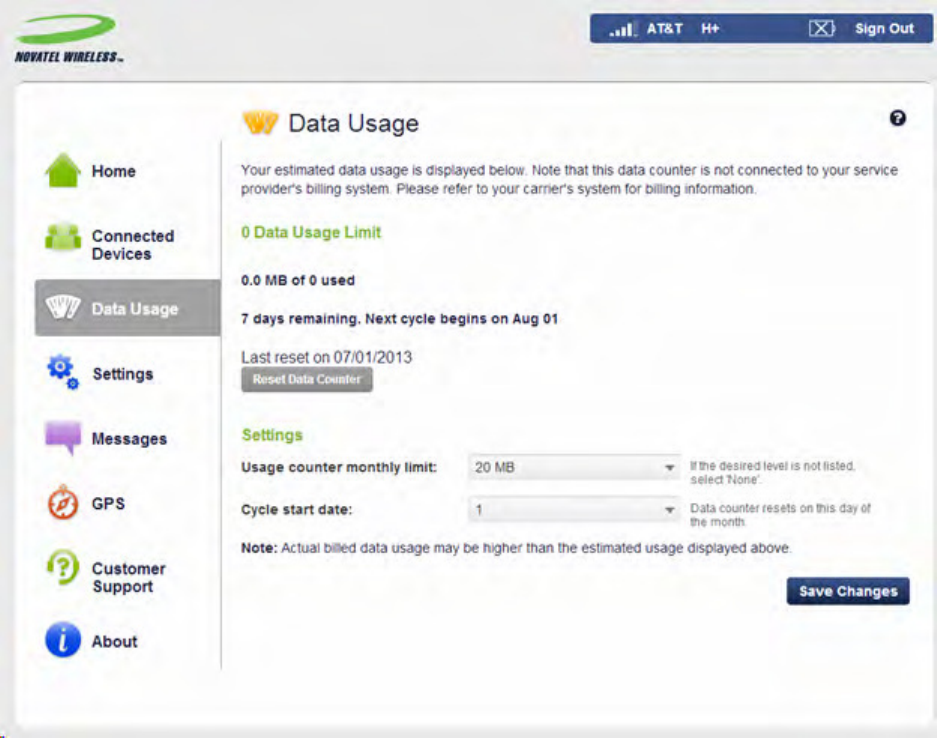

Data Usage 27
Data Usage Settings 27
Settings 28

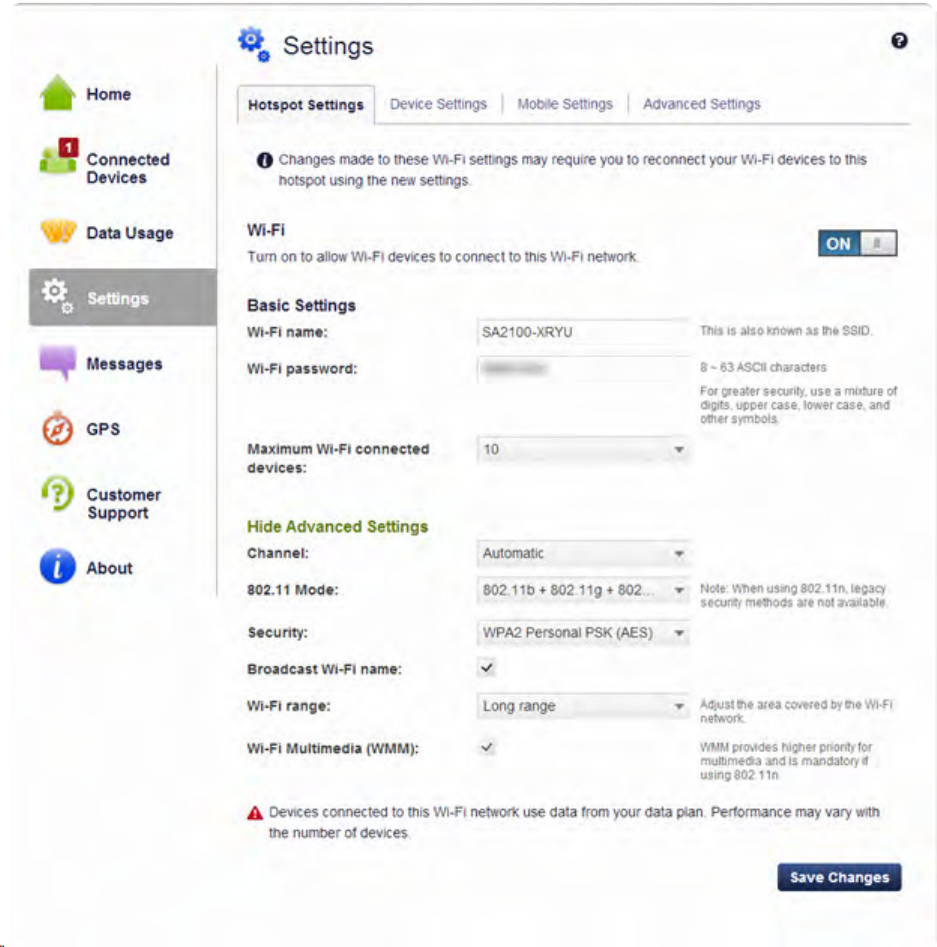

Settings Page > Hotspot Settings Tab 29
Wi-Fi 29
Basic Settings 30
Advanced Settings 30
Settings Page - Device Settings Tab 31

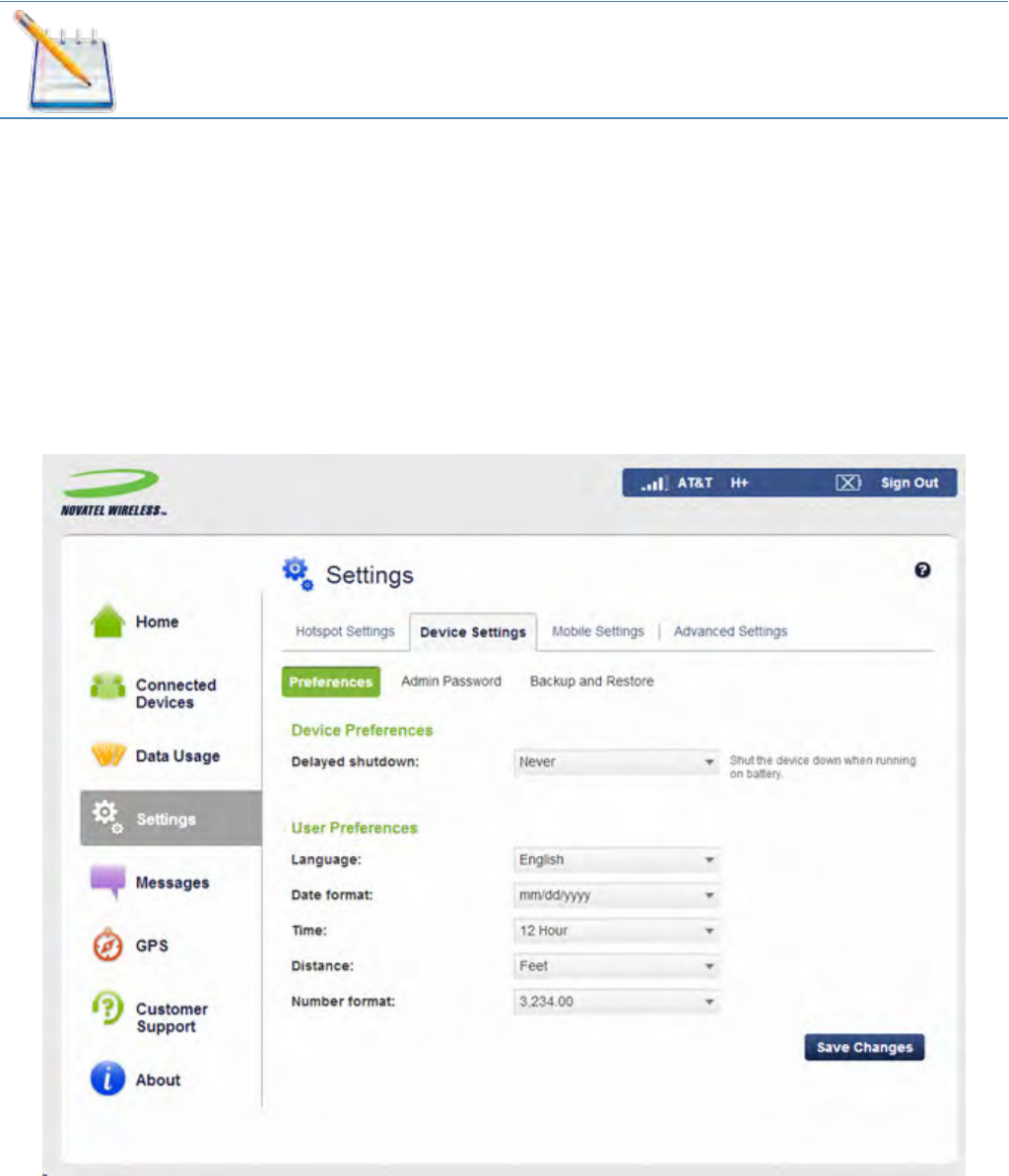

Settings Page > Device Settings Tab > Preferences 31

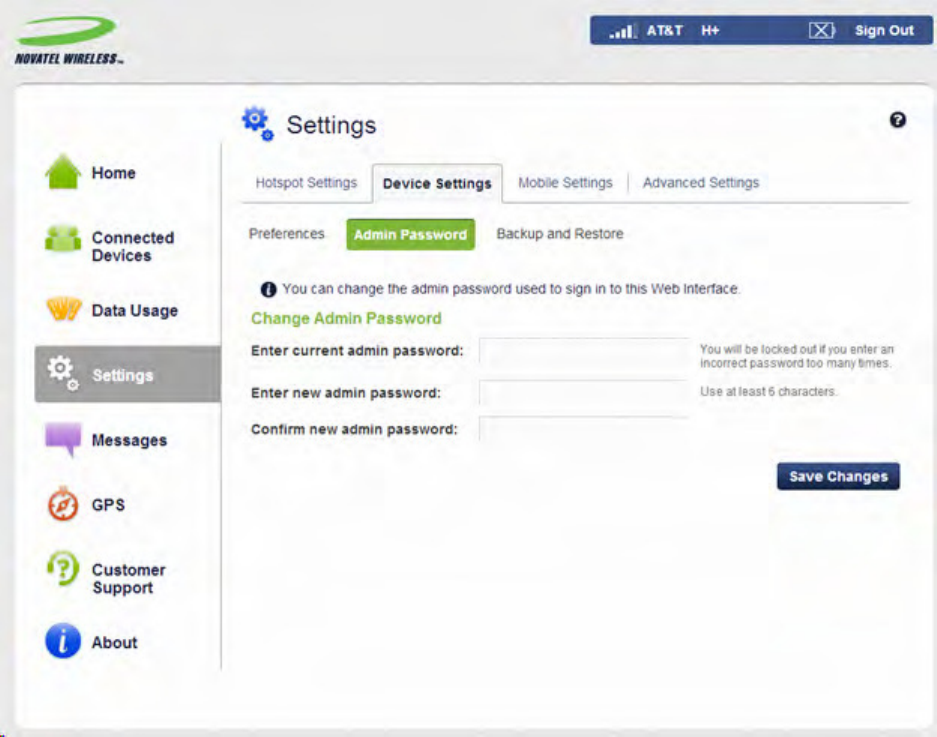

Settings Page > Device Settings > Admin Password 32

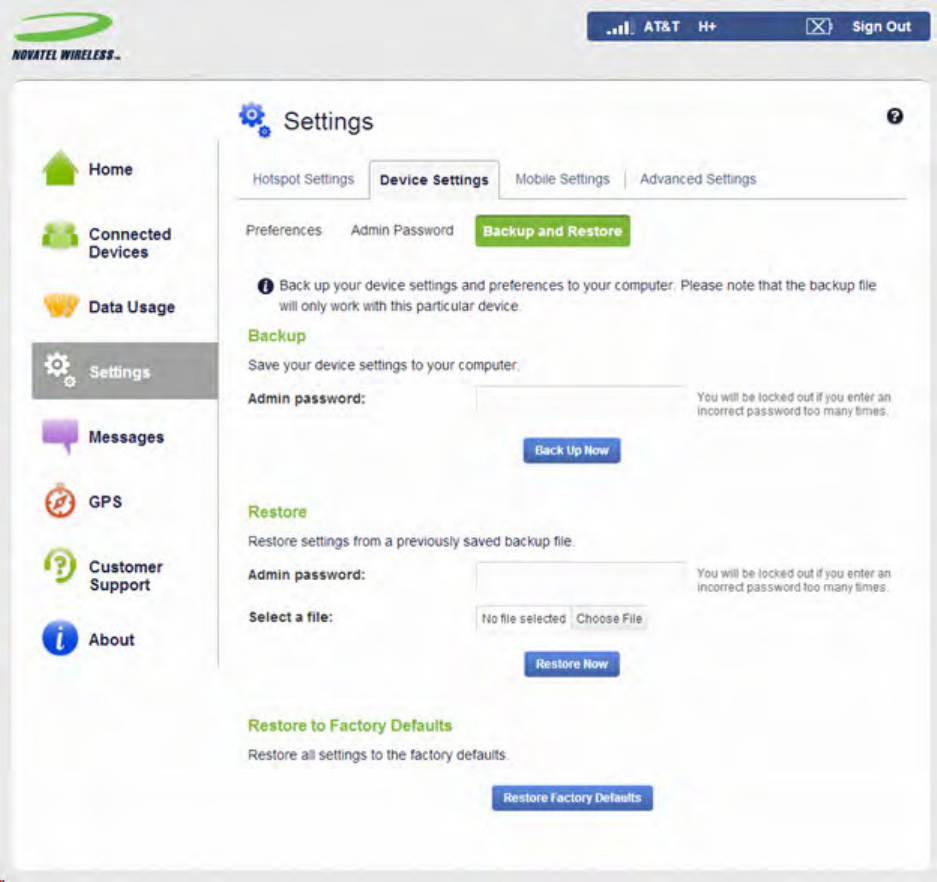

Settings Page > Device Settings > Backup And Restore 33
Settings Page - Mobile Settings 34

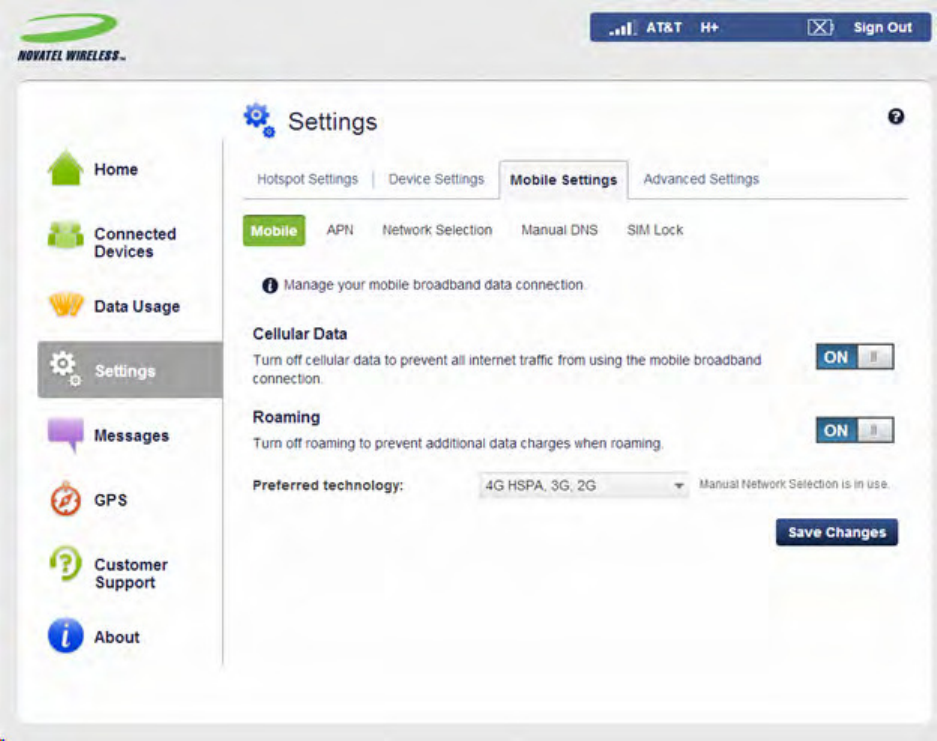

Settings Page > Mobile Settings > Mobile 35

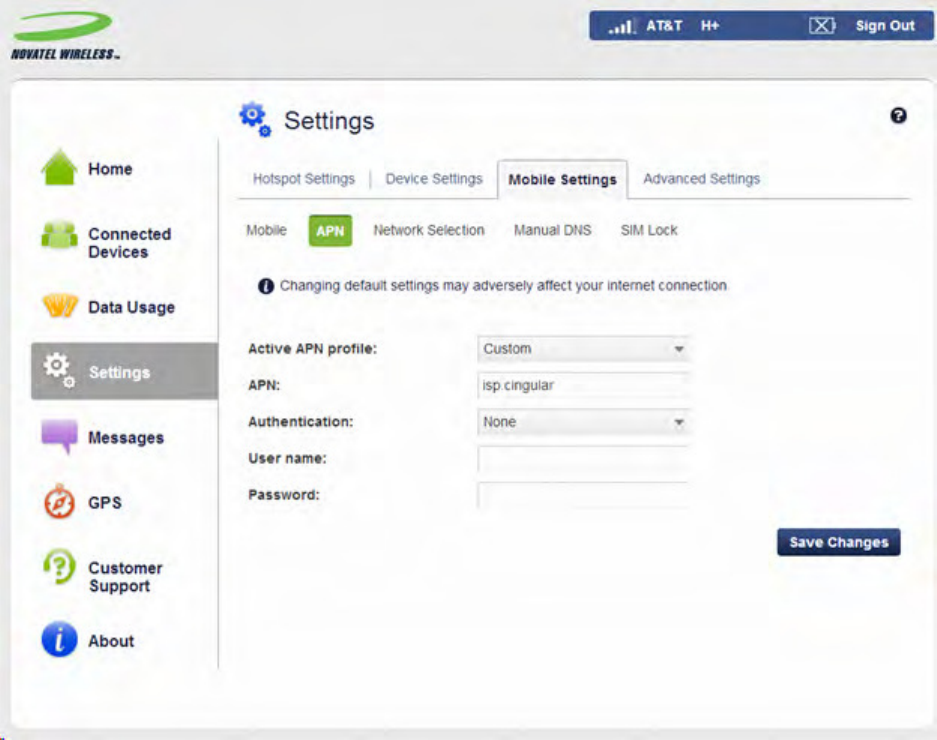

Settings Page > Mobile Settings > APN 36
xiv novatelwireless.com
Settings Page > Mobile Settings > Network Selection 37

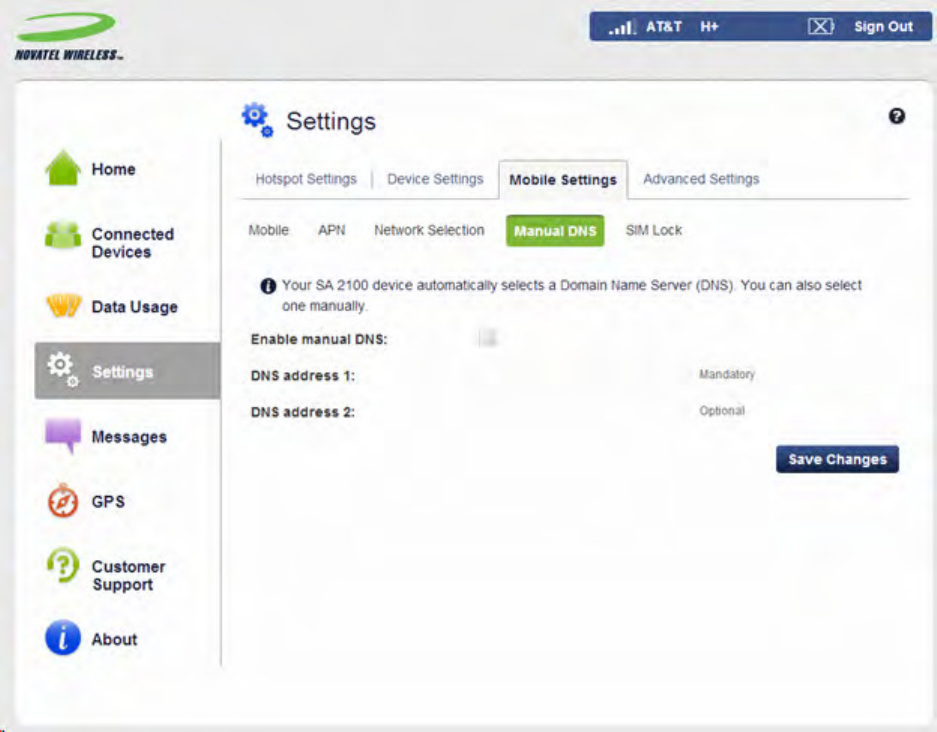

Settings Page > Mobile Settings > Manual DNS 39

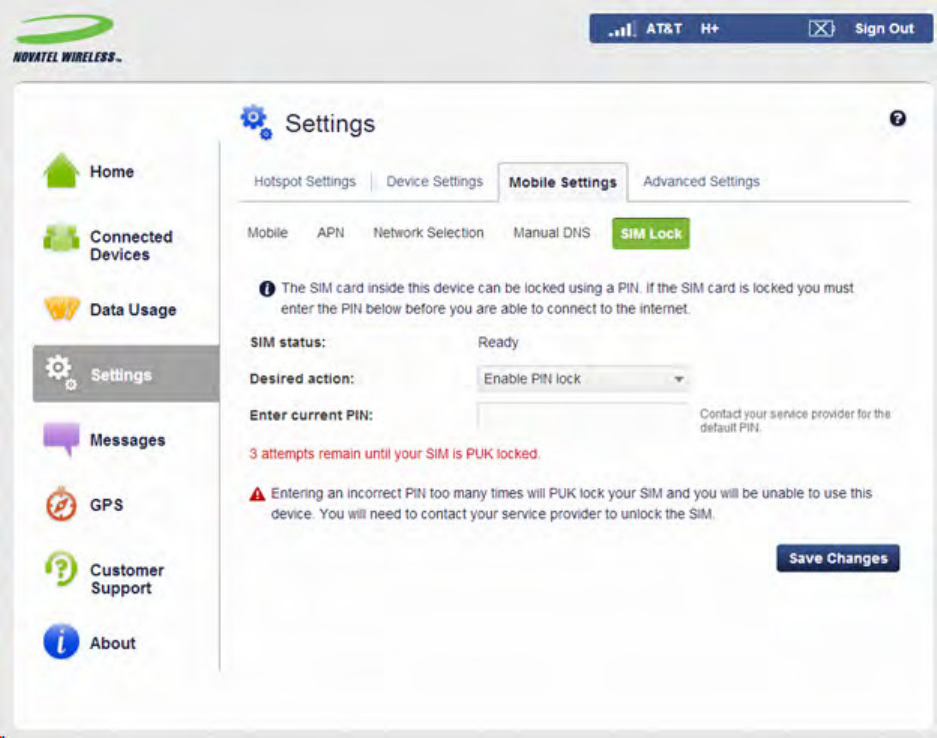

Settings Page > Mobile Settings > SIM Lock 40
Settings Page - Advanced Settings 42
Settings Page > Advanced Settings > Firewall 42
Settings Page > Advanced Settings > MAC Filter 44

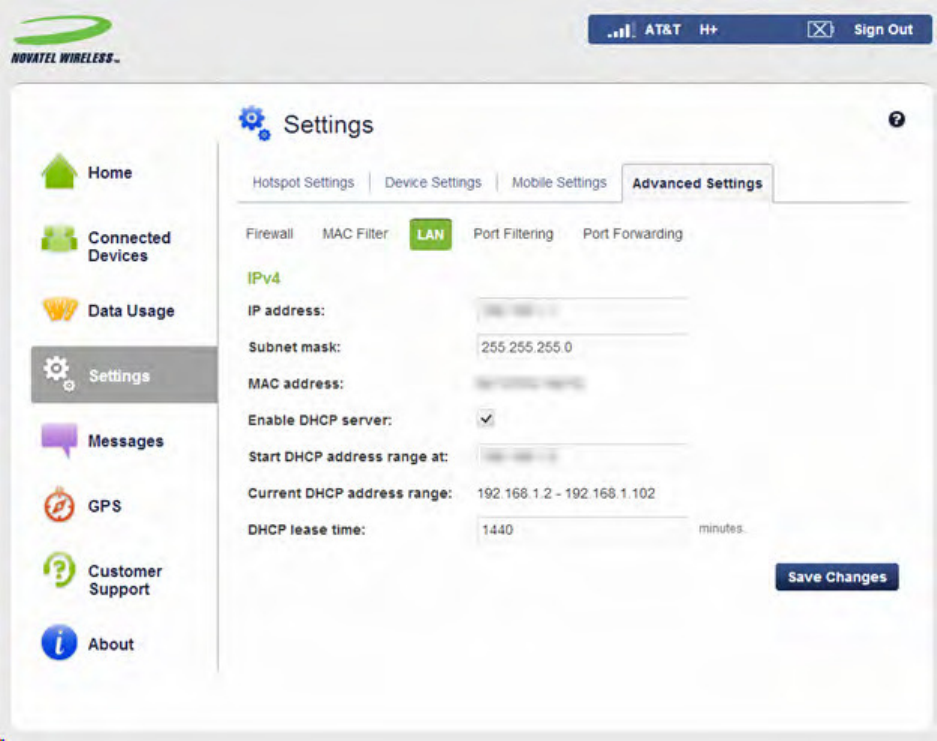

Settings Page > Advanced Settings > LAN 45

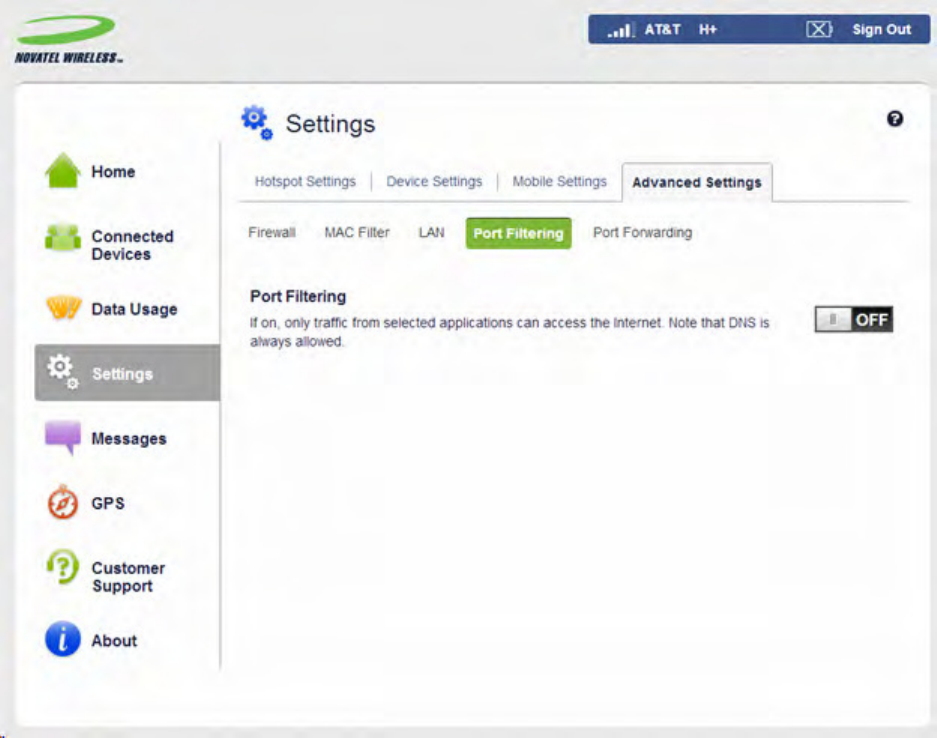

Settings Page > Advanced Settings > Port Filtering 47

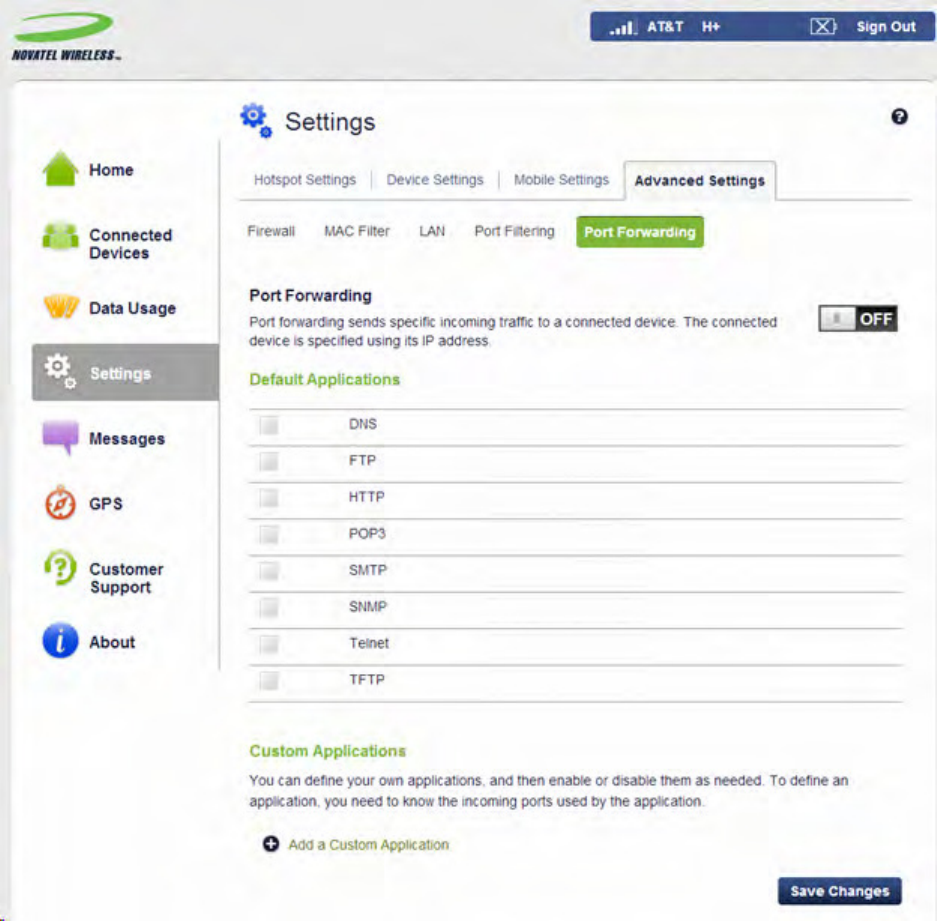

Settings Page > Advanced Settings > Port Forwarding 48

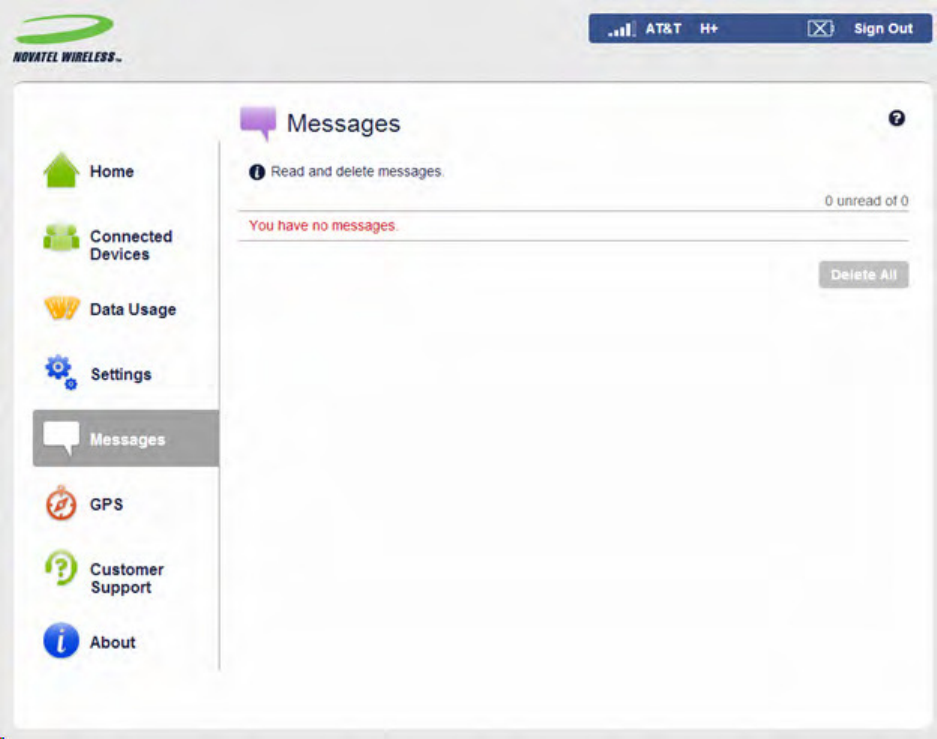

Messages 50

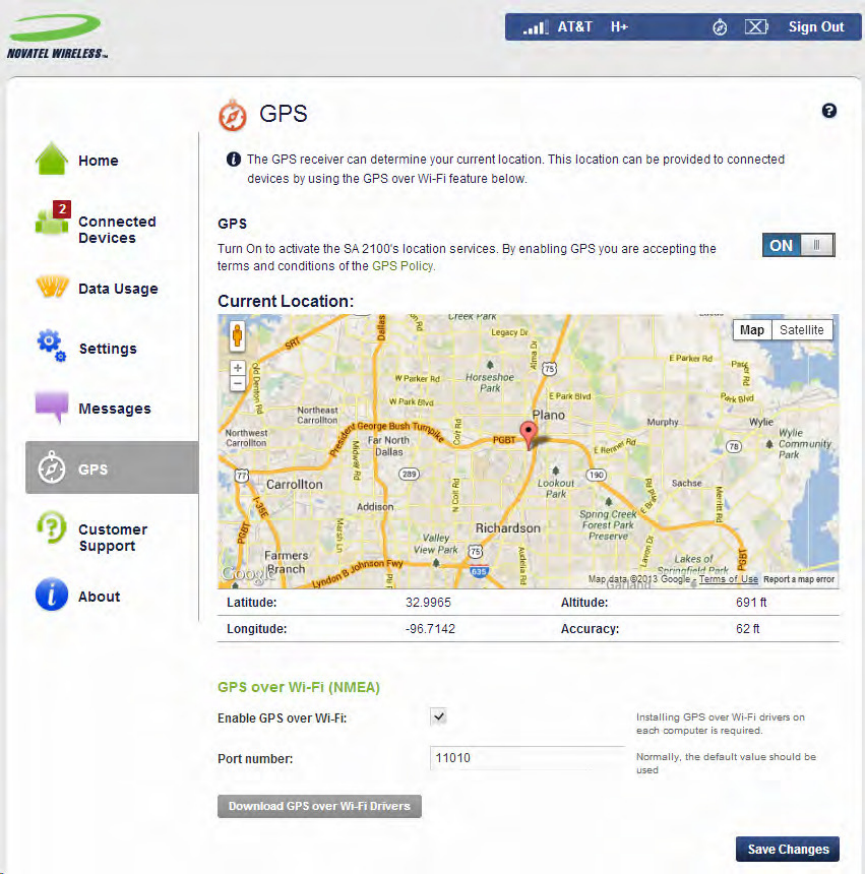

GPS 51
Using GPS 52
Current Location 53
GPS Over Wi-Fi (NMEA) 53
Customer Support 53

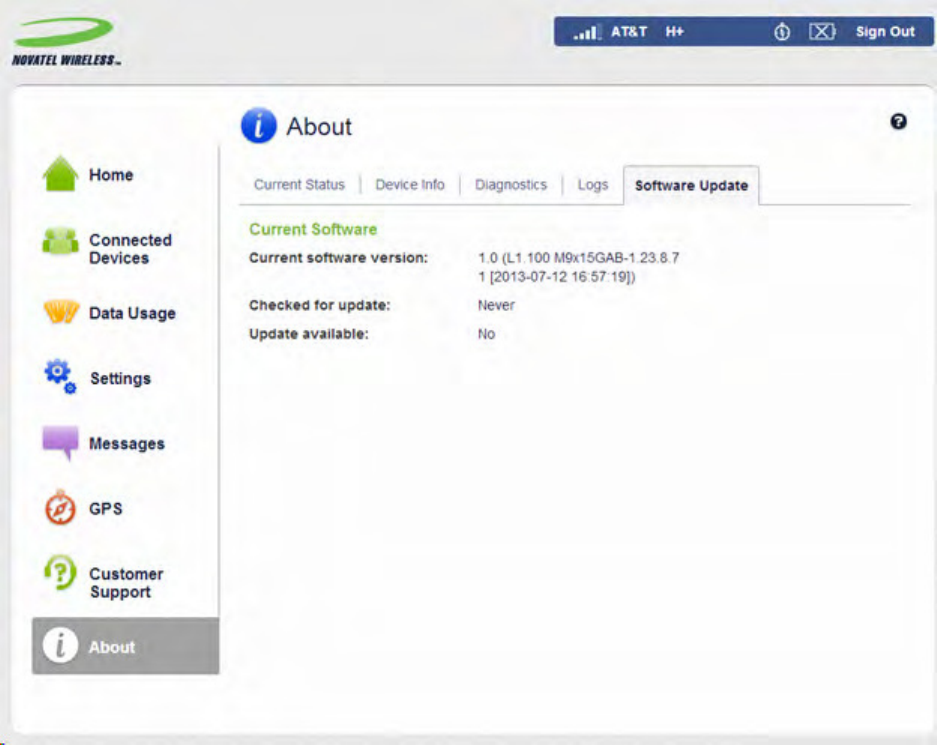

About 54

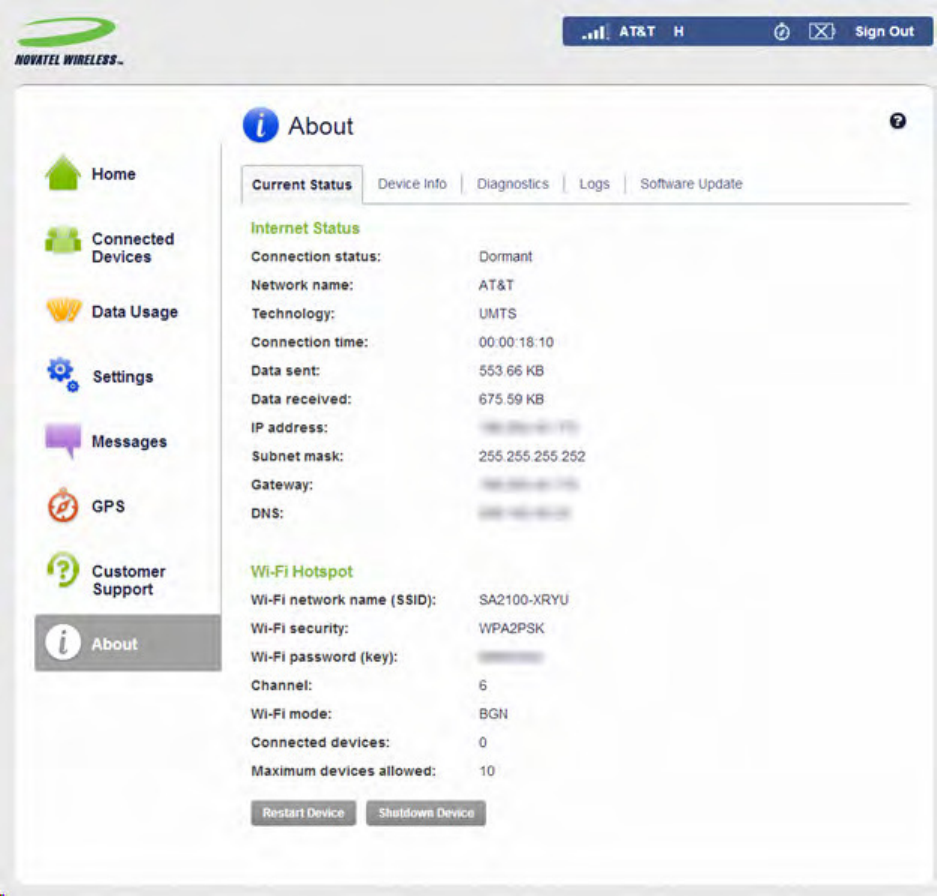

About Page - Current Status Tab 55
Internet Status 55
Wi-Fi Hotspot 56
Operations 56

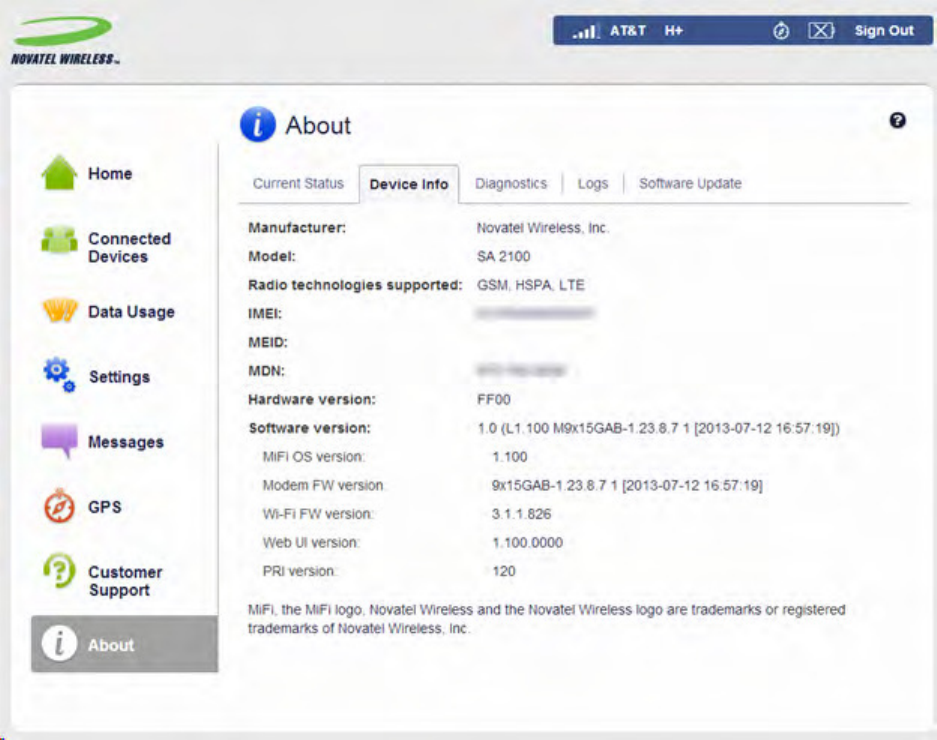

About Page - Device Info Tab 56

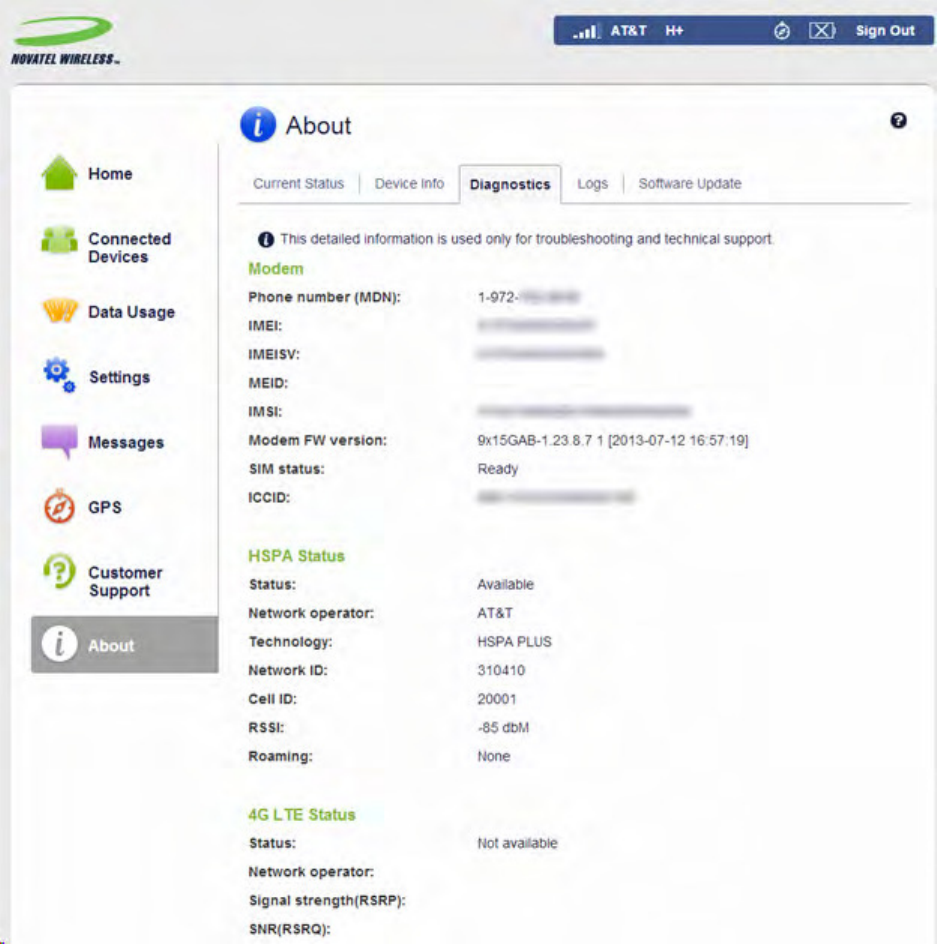

About Page - Diagnostics Tab 59
Modem 60
HSPA Status 60
4G LTE Status 61

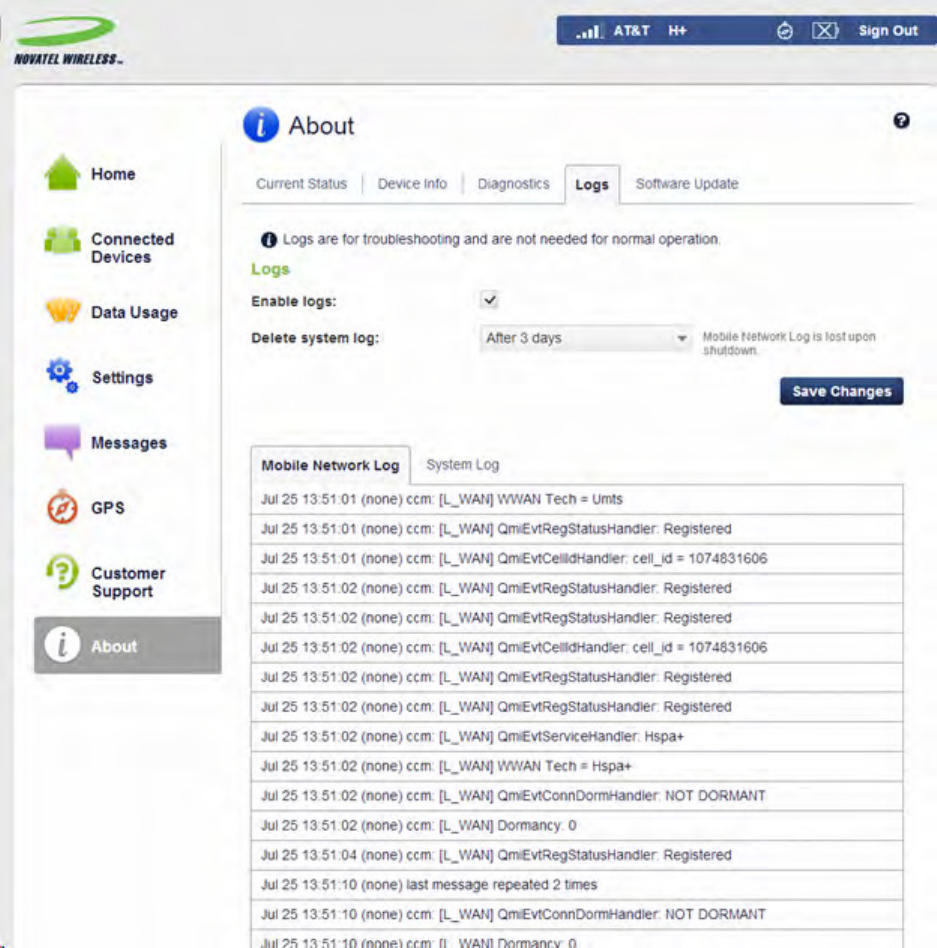

About Page - Logs Tab 62
Settings 62
Log Data 63
Buttons 63
2 novatelwireless.com
Device Overview
The SA2100 Cellular Router allows you to set up a network and provides both wired and
wireless connectivity.
This device is intended for professional installation and not for consumer use.
System Requirements
lA computer or computing device supporting Wi-Fi 802.11 b/g/n
lInternet browser software: i.e., Microsoft Internet Explorer 8.0 or higher, Firefox, Safari,
Opera, Chrome, etc.
Components
Router

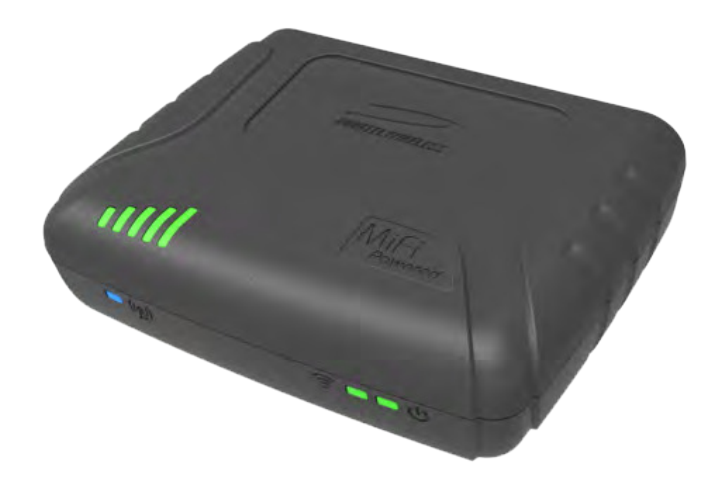

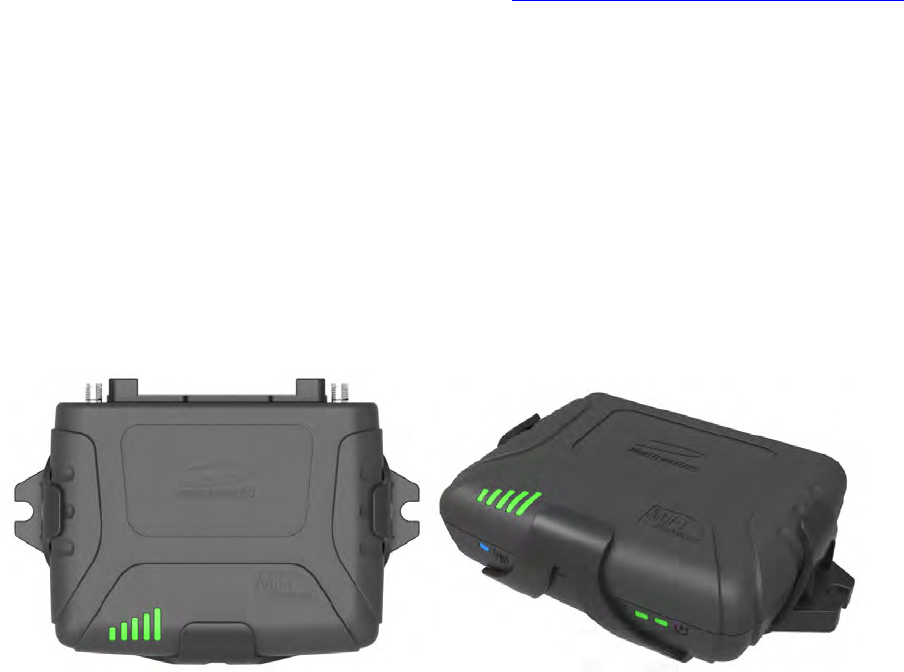

Figure 1-1 SA 2100
3 novatelwireless.com
Label

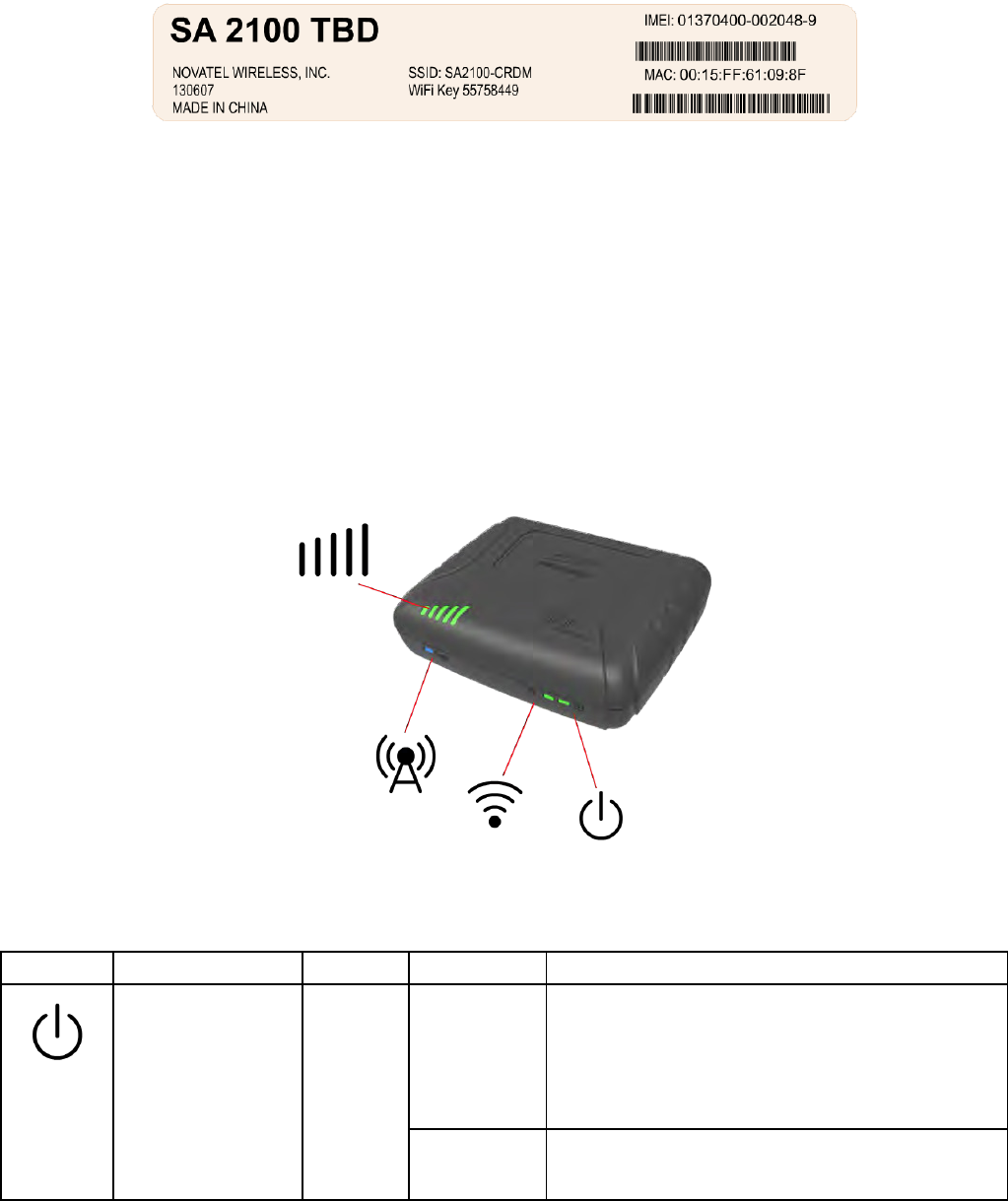

Figure 1-2 Device Label
The label on the rear part of the router displays the following information:
lMAC Address
lIMEI or ESN Number
lSSID (Factory preset, unique to each device)
lWiFi Key (Factory preset, unique to each device)
LEDs
The SA 2100 router has LEDs that verify status, signal, and connectivity.
Figure 1-3
The following table describes each LED:
Symbol LED Color State Description
Power: Green On Normal operation (External or Battery Power)
** Note When operating on Battery power all other
LEDs are OFF.
The LED blinks slowly, once every 5 secs when running
on the battery.
Blinking
1 sec On
2 sec Off
During device Reset or Power-up sequence
4 novatelwireless.com

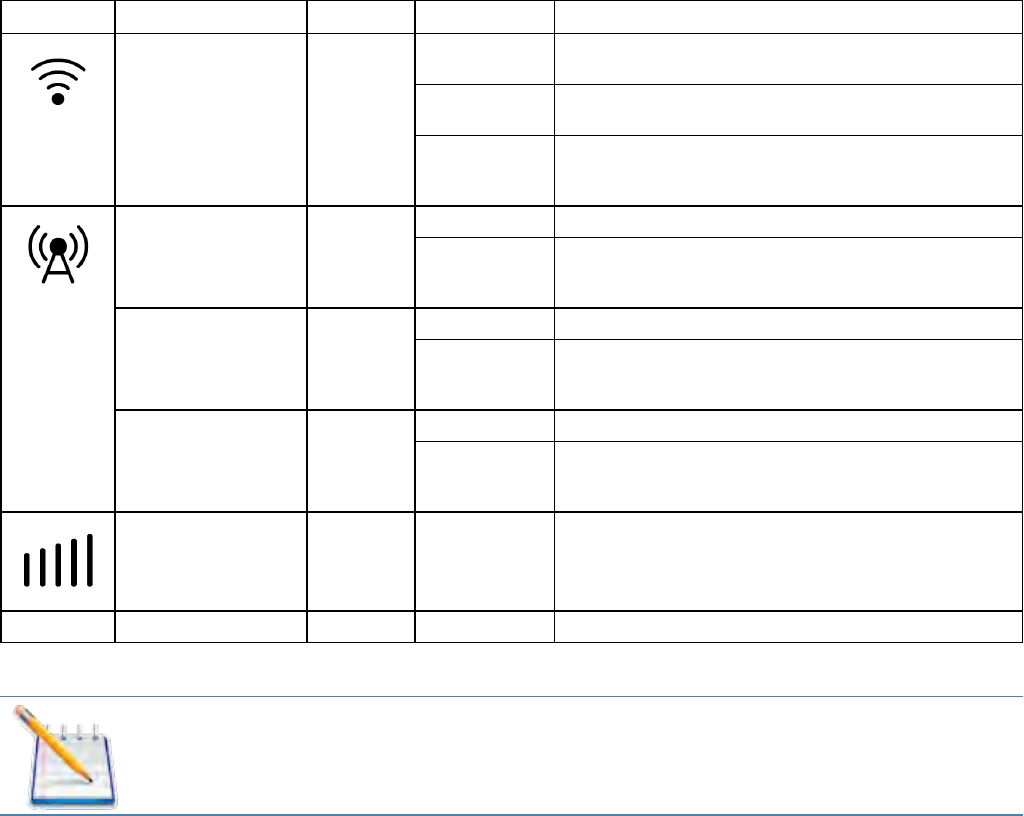

Symbol LED Color State Description
WiFi: Green Off WiFi not enabled or No Wi-Fi connected devices or
device is powered from Battery
On External Power - Wi-Fi devices Attached but no Wi-Fi
traffic
Blinking
1 sec On
1 sec Off
Wi-Fi traffic
WAN – LTE Green ON Attached (LTE) – no traffic
Blinking
1 sec On
1 sec Off
PDP Activity
WAN – 4G/3G
(HSPA+/WCDMA)
Blue ON Attached (4G/3G) – no traffic
Blinking
1 sec On
1 sec Off
PDP Activity
WAN – 2G Orange ON Attached (2G) – no traffic
Blinking
1 sec On
1 sec Off
PDP Activity
Cellular 5-bar signal
strength:
Green Off No SIM/No Signal/Operating from battery
Green On Active only when external power is present.
Note that while the SA 2100 is operating on battery power, the Power LED is the
only LED that operates.
Connectors
The SA 2100 router has the following connectors:
5 novatelwireless.com

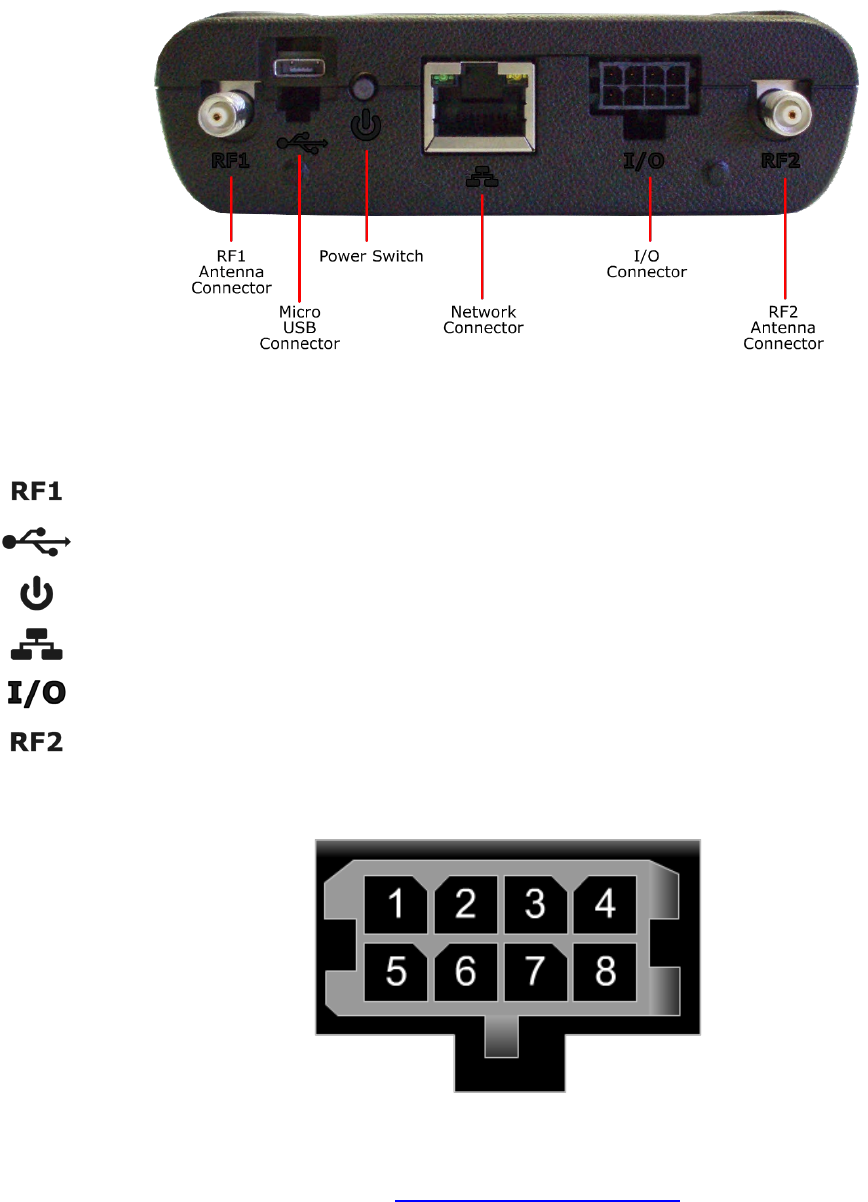

Figure 1-4 Router Connections
Cellular antenna connector RF1 (Primary)
Micro USB Port
Graceful shutdown button
Ethernet port
8 Pin IO connector (Includes power)
Cellular antenna connector RF2 (Diversity)
Figure 1-5 8 Pin IO connector

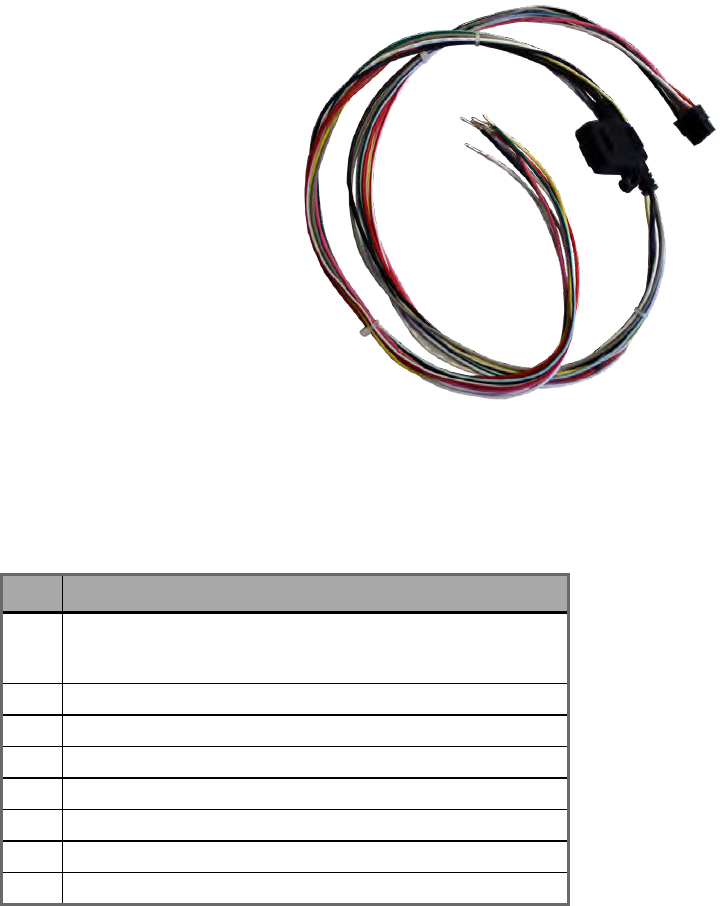

For Pin Out descriptions refer to the "Power Cable" on page 69
6 novatelwireless.com

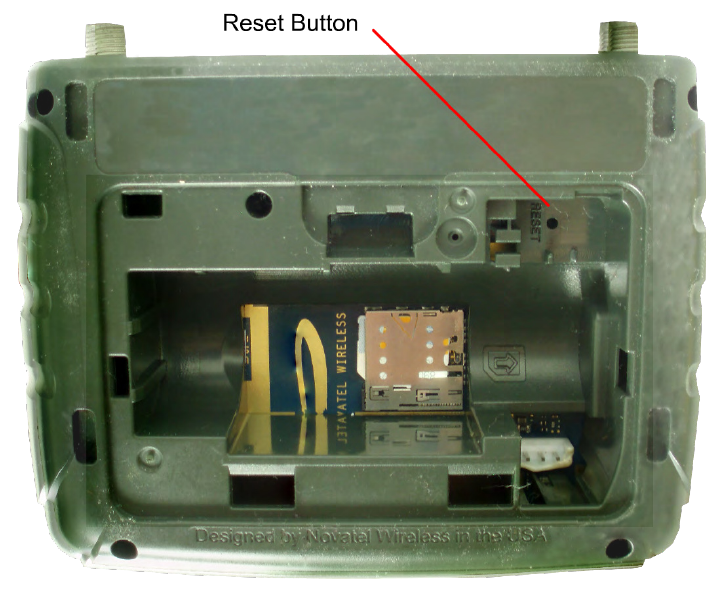

Reset Button
The Reset Button is inside the battery compartment.
Figure 1-6 Reset Button
In the corner of the battery compartment the Reset button is a small hole about 1.5mm in
diameter, with the word “RESET” below it.
We recommend that you use a paperclip to push the Reset button if a device reset is
required.
Caring For Your Device
You must handle the SA 2100 router carefully to ensure it functions properly.
We recommend the following guidelines:
lPlace the router in an area free from liquids, dust, and extreme temperatures.
lStore the router back in its box when not in use.
lDo not block any ventilation openings by applying adhesives or labels to the router as
this might cause the device to overheat or it might interfere with the antenna.
lClean only with a clean, dry cloth.
lRoute the cord so that it is not easily damaged by someone walking on it, or by items
7 novatelwireless.com
sitting on or against it.
lRoute the cord so that it is not easily damaged by someone walking on it, or by items
sitting on or against it.
lAvoid dropping or shaking the router.
lAvoid moving the router when it is powered on.
8 novatelwireless.com
Technical Specifications
General
Model: SA 2100
Weight: 220g
Dimensions: 107 x 81 x 30 mm
Wireless Network: Wi-Fi 802.11 b/g/n, 10 clients, pre-configurable security: WPA/WPA2
Wired: 1 Ethernet Port (RJ45 Connector)
Battery: 10-hour continuous (optimal)
Input Power Range: 9 - 32 VDC (Molex Connector); 12V or 24V vehicle ready
Radio Technology (WWAN)
FREQUENCY
4G LTE: 750/850/AWS/1900 MHz
3G UMTS/HSPA/HSPA+: 850/900/AWS/1900/2100MHz
2G GPRS/EDGE: 850/900/1800/1900 MHz
BANDS
LTE: B2, B4, B5, B17
WCDMA: B1, B2, B4, B5, B8
GSM: B8, B9, B13, B14
DATA SPEED
LTE: 100 Mbps
DC-DSPA+: 42 Mbps
HSPA+: 21 Mbps
ROUTING
DHCP server, DNS, static or dynamic IP address, port filtering, port forwarding
SECURITY
NAT, SPI Firewall, VPN pass-through, IPSec VPN, MAC access control
9 novatelwireless.com
Environmental
Operating Temperature: -30ºC to 70ºC (external power)
-20ºC to 60ºC (battery)
Storage Temperature: -40°C to 85°C (external power)
-40°C to 60°C (battery)
Humidity: Up to 95% non-condensing
Components
Built-In Wi-Fi (2.4 GHz): Up to 10 endpoints
Network Selection Switch: 4G/3G
SIM: 1 slot for micro-SIM card (Inside Battery Compartment)
Internal Cellular Antenna: (primary + diversity)
External Cellular Antenna: (primary + diversity)
Automatically switches between internal and external; SMA Connector
Internal Wi-Fi Antenna: 2.4 GHz
Internal GPS Antenna: 1575 MHz
Micro USB on-the-go: latched
Digital Outputs: 2
Digital output (latched) 1
User-controlled I/O 2
1-Wire Interface Yes
LEDs:
Power Green
Wi-Fi Green
Network Indicator for 4G, 3G, 2G Multi-Color
5-bar Signal Strength Green
Device Management
Production Environment: Cloud-Based
Testing Environment: Cloud-based; 90-day free access with engineering support
Bulk Provisioning Over-the-Air or local
Firmware Upgrade: FOTA or local
10 novatelwireless.com
Document References
SA 2100 AT Command Set SA2100AT001
FOTA Application Note ENF0000AN002
API Reference ENF0000CB001
Access the Novatel Wireless M2M Test
Server
ENF0000AN014
1-Wire Interface Application Note ENF0000AN018
Certifications
FCC: Yes
CE: Yes
IC: Yes
PTCRB: Yes
GCF: Yes
Wi-Fi Alliance: Yes
eMark: Yes
Safety: Yes
AT&T: Yes
Accessories
Lithium Battery Rechargeable 3.7 V 2900 mAh 1073 Wh Li-ion battery
Mounting Accessories: Mounting bracket, Velcro tape, tie-wrap, bolts, adhesive
Mounting Bracket
Mounting Bracket (in-vehicle)
Mounting Options: Wall, ceiling, floor, vehicle, existing structure, flat surface

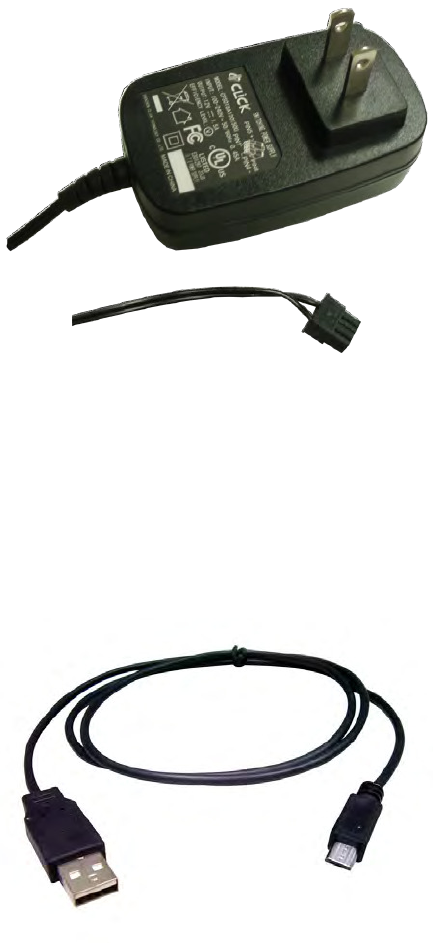

Power Adapter Molex, AC
Power Cable Molex, DC
USB Cable Latched
External Cellular Antenna SMA
12 novatelwireless.com
SIM Card
Insert the SIM card into the SIM card slot located inside the battery compartment. Remove the
battery to uncover the SIMcard holder.
Figure 2-1 SA 2100 Battery Compartment
You should hear a "click" when the SIM card is in place.
Positioning Your Router
The router allows you to access your network almost anywhere within a given operating
range. However, this range depends on where you place your router. The placement of
furniture, the thickness of walls, and the number of walls a signal must travel through can limit
this range.
For best results, place your router:
lAway from interference such as microwaves, ceiling fans, security systems, or cordless
phones
lAway from large containers of glass or concrete (fish tanks, mirrors, brick or concrete
walls)
lAway from large metal surfaces (cook tops, metal doors, aluminum studs, appliances)
lClose to a window but out of the way of direct sunlight (great for 4G reception)
lClose to an AC outlet and near Ethernet computer cables
lIn an elevated location
lIn line-of-sight to wireless devices
lNear the computers or other devices that communicate with the router
lOn an upper floor (if applicable)
When using multiple points of access, use different radio frequency channels for adjacent
access points. We recommend leaving 5 spaces between channels (1 and 6, or 3 and 8).
13 novatelwireless.com
Powering The Device
When the power adapter is connected, the SA 2100 powers up automatically. It takes
approximately two minutes for the device to power up and register on the cellular network.
Connecting To The SA 2100 Router
Users can connect to the SA 2100 router either via USB cable or Wi-Fi connection.
Connecting Via USB
To connect via USB, perform the following steps:
1. Install the USB and network adapter drivers using the driver installation executable file
provided by Novatel Wireless. (Detailed instructions for installing these drivers are
provided in the Driver Installation section of this document.)
2. Ensure the SA 2100 router is powered on.
3. Connect the router to a USB port on the computer using a micro-USB cable.
Connecting Via Wi-Fi
To connect via Wi-Fi, perform the following steps:
1. Ensure the SA 2100 router is powered on.
2. Connect to the router using the SSID and WPA key information provided on the label.
Driver Installation
These instructions illustrate how to correctly install the drivers in Windows 7 using the
Novatel Wireless M2M Driver Setup Utility.
1. Run the Novatel Wireless M2M Driver Setup Utility by double-clicking the Novatel
Wireless Factory Driver Installer executable file.
The Novatel Wireless Factory Driver Installer Welcome window opens.
14 novatelwireless.com
Figure 2-2 Factory Driver Installer for LTEProducts
Figure 2-3 Driver Installer Welcome Screen
2. Click Next.
15 novatelwireless.com
The Novatel Wireless Factory Driver Installer License Agreement Window opens.
Figure 2-4 Driver Installer License Agreement
3. Once you have read, and if you agree to the terms, select the I accept the terms in the
license agreement radio button.
4. Click Next.
The Ready to Install the Program window will open.
16 novatelwireless.com
Figure 2-5 Driver Installer Ready to Install screen
5. Click Install.
The Installation Progress window will open.
Figure 2-6 Installing screen
17 novatelwireless.com
Once the installer has successfully installed the driver, the Installation Complete window will
open.
Figure 2-7 Installation Completed screen
6. Click Finish.
Cable Installation
Installing The Antenna
Connect the antennas to the device before mounting the device.
At least 20 cm (8 in) of separation between the router and the user’s body must be
maintained at all times.
Connect the antennae to the modem using the recommended cable only.
18 novatelwireless.com
Installing The Power Cable
Connect the power cable to the device before mounting the device.
Connect a 12V or 24V vehicle ready power supply to the device. Pin-5 of the Molex connector.
The voltage must be within the 9 - 32 VDC range. See "Technical Specifications" on page 8
Connect the device (Pin-4) to the vehicle ground.
Mounting The Device
Mounting Bracket
To mount the device using the Mounting Bracket, use the accessory SKU # 21915042
While performing these steps, do not apply excessive force to the retention legs or snap
feature prior to inserting the device as this may deform the mounting bracket.
Figure 2-8 SA 2100 Mounting Bracket
1. Secure the mounting bracket to the desired mounting surface using one of the following
methods:
lTwo (2) # 6 screws
lDouble-sided tape
2. Insert the device into the mounting bracket as shown in the figure above. The device
should be inserted with the battery compartment down. Take care to position the
device so that the top of the device has the best unobstructed path to the sky.
19 novatelwireless.com
Double-Sided Tape
If securing the device using double-sided tape or a method not described in this manual, note
the following precautions:
lExcessive force in the middle of the device may cause damage to the device.
lIf using rigid mounting hardware, apply pressure only to the ends of the device. Limit
the mounting pressure only to the amount needed to secure the device.
Vehicle Mounting
Follow the steps and guidelines in this section if you are Mounting the SA 2100 in a Vehicle.
Novatel Wireless recommends the SA 2100 vehicle installation should be carried out by a
qualified automotive electronic accessory technician.
Always mount the device with the battery compartment facing downward..
Ground should be connected first. Failure to connect ground to the SA 2100 before
connecting auxiliary devices may result in damage to the attached I/O device.
To ensure proper accelerometer operation, you must securely mount the SA
2100. Mounting the device to cable runs or other structures that may allow the
device's orientation to shift may cause inaccurate results to be reported by the
accelerometer.
For optimal performance, note the following mounting precautions/guidelines:
lChoose a location where metal or cable bundles will not shield the device.
lAvoid possible interference by mounting the device away from radio or speaker wires.
We suggest you mount your device in one of the following locations:
lAbove the air vents
lAbove the instrument cluster
lAbove the glove box
Do not mount the device in the following locations:
lEngine bay
lNear or in the path of a vehicle's airbag
21 novatelwireless.com
Logging In
To log in to your SA 2100 Web Interface, open your Internet browser and navigate to
192.168.1.1. or http://my.sa2100/
The browser will display the SA 2100 Home Page.
Figure 3-1 SA 2100 Home Page
22 novatelwireless.com
You must enter the Administrator password to proceed beyond the Home Page. To enter the
password, either click the Sign In link in the top right corner of the page, or simply click any of
the quick links or navigation tabs and the SA 2100 Sign In page will be displayed as shown in
the following figure.
Figure 3-2 SA 2100 Sign In Page
Enter your Administrator password and click Sign in.
The default Administrator password is "admin" (without the quotation marks).
Home
The Home Page of the SA 2100 Web User Interface can be found by selecting the Home tab.
23 novatelwireless.com
Figure 3-3 Home Page
The left side of the screen displays navigation tabs for Home, Connected Devices, Data Usage,
Settings, Messages, GPS, Customer Support, and About.
24 novatelwireless.com
The SA 2100 Home page has Quick Links for the following:
lCustomize Hotspot Settings
lChange SA 2100 Administrator Password
The Quick Links are shortcuts to the most commonly used settings. Details of these settings
are discussed in the Settings section of this document.
Connected Devices
The Connected Devices page displays details of each device connected to, or blocked from
this SA 2100 device, including any computer connected via a USB connection. You can also
edit the name and type for connected devices, and add or remove connected devices from
the Blocked Devices list.
25 novatelwireless.com
Figure 3-4 Connected Devices Page
Connected Devices List
The following information is displayed for each connected device:
Type
The first column indicates the type of connected device. You can use the Edit option to set or
change the type.
If the type has not been set, no icon is displayed. Once you set the device type, an
appropriate icon is displayed.
Name
26 novatelwireless.com
Normally, this is the hostname of the connected device, as set on the connected device. If you
have used this interface to assign a name to a connected device, the assigned name displays
in place of the hostname. In rare cases, the hostname may be unavailable.
You can use the Edit option to change the name of any connected device.
Connection Type
An icon indicates the network connection type for each connected device
MAC Address
The MAC Address is a unique network identifier for this connected device.
IP Address
The IP address of the connected device.
Link-Local
If supported and used, the IPv6 address (Link-Local address) of the connected device is
displayed.
Blocking And Unblocking Devices
Block Button
Clicking the Block button disconnects the connected device and prevents it from
reconnecting. The blocked device then appears in the Blocked list. This option is available for
use with each connected device, except for your own device, and any device connected via
USB.
Blocked Devices
This is a list of devices that you have blocked. Note that since these devices are not currently
connected, and are blocked from connecting, they do not have an IP address. Instead, they
are identified by their name and MAC address.
Unblock Button
Clicking the Unblock button unblocks a previously blocked device, freeing it to connect again.
The unblocked device is deleted from the Blocked List, and will reappear in the Connected
Devices list when it connects.
27 novatelwireless.com
Data Usage
The Data Usage screen displays your current data usage. You can also reset the data counter
and cycle start date, and select the desired data usage monthly limit. Alerts will be generated
to warn you that data usage is approaching or has reached the alert level specified on this
page.
Figure 3-5 Data Usage Page
Reset
You can use the Reset Data Counter button to restart the data counter and set the last reset
date to today's date.
Data Usage Settings
Usage Counter Monthly Limit
28 novatelwireless.com
Select the desired option. If the desired option is not available, select 'None'. In this case, data
usage will be recorded and displayed, but cannot be compared to a monthly limit.
Cycle Start Date
Select the day of the month when you wish the data counter to reset to zero.
Settings
The settings of your SA 2100 can be found on the Settings page.
There are four settings tabs: Hotspot Settings, Device Settings, Mobile Settings, and
Advanced Settings.
29 novatelwireless.com
Settings Page > Hotspot Settings Tab
Figure 3-6 Settings Page - Hotspot Settings (Advanced Settings Shown)
The Hotspot Settings Tab contains the following information:
Wi-Fi
Click this ON/OFF control to enable or disable the Wi-Fi hotspot.
30 novatelwireless.com
Basic Settings
All Wi-Fi connected devices must use these Wi-Fi settings. If you change these settings,
existing connected devices may lose their connection.
Wi-Fi name: This sets the network name or SSID for the Wi-Fi network created by this device.
Enter a suitable name. The name can be up to 32 characters long.
Wi-Fi password: If a setting other than Open was selected in the Security field, a Wi-Fi
password is required. Enter the Wi-Fi password in this field. An on-page hint indicates the
password requirements for the current security option.
Maximum Wi-Fi connected devices: Specify how many devices can simultaneously connect
to this device (Maximum of 10).
Advanced Settings
By default, the advanced settings are hidden. Click the Show Advanced Settings link to
display the advanced settings. When the advanced settings are displayed, you can click the
Hide Advanced Settings link to hide them.
Channel: This should be left on Automatic unless you need to choose a particular channel for
your environment.
802.11 Mode: Use this setting to change the Wi-Fi mode, if required. If all of your connected
devices support 802.11n, selecting the option "802.11n only" will provide the best performance.
In other cases, it is recommended that you leave this setting at its default value.
Security: Select the desired option for Wi-Fi security. WPA2 is the latest and most secure
method, and should be used if possible.
None allows other people to monitor your Wi-Fi traffic and use your data plan to
access the Internet. If at all possible, using None should be avoided. Using WPA2
is strongly recommended, as this is the most secure method supported.
Broadcast Wi-Fi name: If this setting is enabled, this Wi-Fi network appears in the list of
available Wi-Fi networks on your connected devices. If disabled, this network will be invisible.
Wi-Fi range: Use this option to determine the strength of the Wi-Fi signal, and hence the size
of the Wi-Fi network.
31 novatelwireless.com
If running on the battery, the longer range or higher power option will deplete
the battery more quickly.
Wi-Fi Multimedia (WMM): This setting should normally be enabled to assist throughput. It
must be enabled if you are using 802.11n.
Settings Page - Device Settings Tab
Under Device Settings you have three categories of settings:
lPreferences
lWeb Interface Password
lBackup and Restore
Settings Page > Device Settings Tab > Preferences
Figure 3-7 Settings Page - Device Settings - Preferences
32 novatelwireless.com
Device Preferences
Delayed Shutdown: When powered by the battery, select the length of time after which the
device shuts down when no network devices are connected. To prevent automatic shutdown,
select "Never".
User Preferences
lLanguage: Select the desired language option.
lDate Format: Specify the format in which the date is displayed on this Web-based
interface.
lTime: Specify the format in which the time is displayed on this Web-based interface.
lDistance: Select the option used for the GPS altitude and accuracy.
lNumber Format: Specify how decimal numbers are displayed. Period (.) or Comma (,)
can be selected for use as the decimal point.
Settings Page > Device Settings > Admin Password
Figure 3-8 Settings Page - Device Settings - Admin Password
33 novatelwireless.com
Change Admin Password
lEnter current admin password: Enter the current password in this field. Note that if you
enter an incorrect value too many times, you will be locked out of this Web Interface.
lEnter new admin password: Enter the new password, using only letters, numbers, and
standard punctuation symbols. The password must be at least 6 characters long.
lConfirm new admin password: Re-enter the new password in this field.
Settings Page > Device Settings > Backup And Restore
Figure 3-9 Settings Page - Device Settings - Backup and Restore
34 novatelwireless.com
Use this feature to back up (download) a copy of the configuration settings from this device to
a file on your computer, or restore (upload) a previously-saved configuration file. This
configuration file contains all settings for the device, router, and system functions. It does not
contain any settings or data for the 4G modem.
Note that you can only restore a file to the same device it came from.
This screen also provides the ability to reset all settings to the factory default values.
Backup
Admin Password: Enter the current password in this field to save the device settings to your
computer.
Back Up Now: Click this button to download a copy of the current configuration file to your
computer. If your browser prompts you to save the file, you can rename it if desired.
Restore
Admin Password: Enter the current password in this field to restore the settings from a
previously saved backup file.
Select a file: Select the configuration file you previously downloaded from this SA 2100
device to your computer.
Restore Now: After selecting a configuration file, click this button to begin the file upload.
After uploading, the configuration file is immediately applied, and the device is restarted.
Uploading a configuration file changes ALL of the existing settings to match the
configuration file that you are uploading. This may change the current Wi-Fi
settings, disrupting all existing connections to the SA 2100, including this web
browser session.
Restore To Factory Defaults
Click the Restore Factory Defaults button to reset all settings to their factory default values.
This causes a restart, and may change the current Wi-Fi settings, breaking all existing
connections to the device, including the web browser session.
Settings Page - Mobile Settings
The following five categories are available under the Mobile Settings tab:
35 novatelwireless.com
lMobile
lAPN
lNetwork Selection
lManual DNS
lSIM Lock
Settings Page > Mobile Settings > Mobile
These settings affect the connection to the mobile network.
Figure 3-10 Settings Page - Mobile Settings - Mobile
Cellular Data: You can use this setting when necessary to turn off cellular data and prevent
access to the mobile network. This prevents connected devices from connecting to the
Internet and using your mobile data plan. For normal operation, this setting must be left on.
Roaming: You can enable this setting as necessary to access roaming networks. Additional
data usage charges may apply while roaming.
36 novatelwireless.com
Preferred Technology: The default value is "Automatic". The SA 2100 device will select the
best available technology. If desired, you can change this to limit the network technologies
that will be used.
Settings Page > Mobile Settings > APN
The APN settings should be configured when installing the SIM. The device will not be able to
establish a WAN (cellular) internet connection until the APN settings have been configured.
Some devices ship with a preconfigured SIM installed. If a preconfigured SIM is installed, you
should not change the APN unless you have a corporate account (with your own APN) or if
you change the SIM.
Figure 3-11 Settings Page - Mobile Settings - APN
37 novatelwireless.com
APN Settings
Active APN Profile: Multiple APN profiles are available. The "Default" profile cannot be
edited. If you need to change the APN, select another APN option, and then provide the
required data below. This information is available from your network service provider.
APN: The APN associated with the selected profile.
Authentication: Select the option specified by your service provider.
lNone
lPAP
lCHAP
Username: If the Authentication is None, this can be left blank. Otherwise, enter the username
specified by your service provider.
Password: If the Authentication is None, this can be left blank. Otherwise, enter the password
specified by your service provider.
Settings Page > Mobile Settings > Network Selection
38 novatelwireless.com
Figure 3-12 Settings Page - Mobile Settings - Network Selection
This device automatically selects the optimal mobile network. In most cases, you can also
select a network manually (Manual Network Selection). This feature is only useful if multiple
networks are available. If this setting is enabled, the device connects only to the specified
network.
Status
This section indicates if Automatic or Manual Network Selection is in use. If Manual Network
Selection is in use, the specified network is also displayed. Note that in some cases, your
network service may not allow Manual Network Selection.
Operation
Scan for Networks: If Manual Network Selection is possible, this button is available. Click this
button if you wish to manually select a network. The modem then scans for all available
networks. This scan may take up to two minutes.
If this button is not displayed, then Manual Network Selection is not available in
your current location, using your current network.
Network List All available networks are displayed in the Network List once a network scan has
been completed. You can then perform one of the following operations:
lCancel - Use this option to retain Automatic network selection.
lRefresh - Use this to scan again if the desired network is not listed. You may need to
change your location to improve the signal.
lSelect a network - Use this option to enable Manual Network Selection with the specified
network.
Revert to Automatic: If Manual Network Selection is in use, this button is visible. Click this
button to change from Manual to Automatic network selection.
39 novatelwireless.com
Settings Page > Mobile Settings > Manual DNS
Figure 3-13 Settings Page - Mobile Settings - Manual DNS
The DNS address is usually provided automatically by the network. This page allows you to
manually specify a DNS, if required.
Settings
Enable Manual DNS: Use this setting to enable or disable the Manual DNS feature. If enabled,
provide the following data.
DNS 1 address: Enter the IP address of the desired primary DNS. This address is required if
the Manual DNS feature is enabled.
DNS 2 address: Enter the IP address of the desired secondary (backup) DNS. This address is
optional and may be left blank if desired.
40 novatelwireless.com
Settings Page > Mobile Settings > SIM Lock
Figure 3-14 Settings Page - Mobile Settings - SIM Lock
The SIM card inside your SA 2100 device can be locked using a PIN. If the SIM card is locked,
you must enter the PIN before connecting to the mobile network. Once entered, the PIN is
remembered until the next shutdown.
In addition to enabling you to enter the SIM PIN when needed, this page also allows you to
unlock your SIM or change the SIM PIN. Generally, you need to provide the existing PIN in
order to change the SIM.
41 novatelwireless.com
SIM status: The field indicates the current status of the SIM card. Possible values are:
lReady - This is the normal state. The SIM PIN is not used.
lPIN Locked - The SIM PIN must be entered before you can use the mobile network.
lPUK Locked - The PUK for the SIM must be entered in order to continue. The PUK can
be obtained from your service provider.
lUnlocked - The SIM PIN is needed, but has already been entered.
lNo SIM - No SIM was detected. If you do have a SIM, check that it is inserted correctly.
lInvalid SIM - A SIM was detected, but it is not usable in this device.
lSIM Error - A SIM was detected, but it did not respond as expected and cannot be used.
SIM Operations
The actions available depend on the current SIM status. If multiple operations are possible, a
"Desired action" select list is visible. Use this to choose the desired operation.
PIN Lock: If the SIM is currently PIN locked, you are prompted to enter the PIN. Note that if an
incorrect PIN is entered too many times, the SIM becomes PUK locked. An on-page counter
indicates how many incorrect entries will cause PUK lock. Once PUK locked, the PUK must
then be obtained from your service provider.
PUK Lock: If the SIM is currently PUK locked, the only operation possible is to enter the PUK.
Note that if an incorrect PUK is entered too many times, the SIM becomes permanently
unusable. An on-page counter indicates how many entry attempts remain.
Enable PIN Lock: This sets the SIM so that entry of a PIN is required upon startup to connect
to the mobile network. To perform this operation, you must enter the current PIN.
Disable PIN Lock: You can use this setting to disable a previously enabled PIN lock. It reverses
the PIN lock, so that entry of a PIN is no longer required to connect to the mobile network. To
perform this operation, you must enter the current PIN.
Change PIN: To change the existing PIN, select this option and then enter the required data:
1. Current PIN
2. New PIN
3. Confirm new PIN
For most SIMs, the new PIN must consist of 4 digits.
The default value is often 0000 or 1111.
42 novatelwireless.com
Settings Page - Advanced Settings
The following five setting categories are available under the Advanced Settings tab: Firewall,
MAC Filter, LAN, Port Filtering, and Port Forwarding.
Settings Page > Advanced Settings > Firewall
Figure 3-15 Settings Page - Advanced Settings - Firewall
A firewall protects your connected devices against malicious incoming traffic from the
Internet. The firewall cannot be disabled, but the following settings are available.
Settings
VPN Passthrough This feature allows VPN client software on connected devices to connect
through this device to remote VPN servers. Normally, this option should be left enabled.
IPv6 Transparent Mode If your device and service provider support IPv6, this option will be
available.
43 novatelwireless.com
Normally, the firewall will block incoming IPv6 connection requests intended for an IPv6-
enabled connected device.
If you wish to allow these incoming connection requests to reach the intended connected
device, enable this setting.
DMZ (IPv4)
If enabled, then the connected device specified as the DMZ IP address (DMZ destination) will
receive all traffic which would otherwise be blocked by the firewall. This may assist some
troublesome network applications to function properly, but the DMZ device should have its
own firewall to protect itself against malicious traffic.
DMZ checkbox Use this to enable and disable this feature as needed. Generally, DMZ should
be disabled unless absolutely necessary.
DMZ IP Address Enter the IP address of the connected device you wish to become the DMZ
device (DMZ destination) into this field. You can check the IP address of each connected
device on the connected devices screen.
44 novatelwireless.com
Settings Page > Advanced Settings > MAC Filter
Figure 3-16 Settings Page - Advanced Settings - MAC Filter
If the MAC Filter feature is enabled it will prevent access to this network by any device which
is included in the "Allowed Devices" list. The filter applies to both Wi-Fi and Ethernet
connections. For a computer, Wi-Fi and Enternet interfaces are listed separately, so one
interface could be allowed while the other is not.
ON/OFF: Use this control to enable or disable the MAC Filter as needed. Before enabling it,
you need to ensure the "Allowed Devices" list is not empty. Note that when enabling the MAC
Filter, any Connected Device which is not in the "Allowed Devices" list will immediately be
disconnected.
Allowed Devices: All allowed devices are listed here. Any device can be edited (change
name or type) or be deleted from the list.
45 novatelwireless.com
Operations
Add Device: Use this button to add a new device to the "Allowed Devices" list.
Add Myself: Click this button to add your own device (the device being used to view this
screen) to the "Allowed Devices" list.
Delete All: This button can be used to delete all devices from the "Allowed Devices" list,
leaving it empty. This will disconnect all current devices and prevent re-connection if the
MAC Filter is enabled, this operation is only possible while the MAC Filter is OFF.
Settings Page > Advanced Settings > LAN
Figure 3-17 Settings Page - Advanced Settings - LAN (IPv4 shown)
These settings apply to your local network or LAN. For this device, the LAN consists of this
device and all connected devices (including the USB connected device, if it exists).
46 novatelwireless.com
IPv4
IP address: The IP address for this device, as seen from the local network. Normally, you can
use the default value.
Subnet mask: The default value 255.255.255.0 is standard for small (class "C") networks. If you
change the LAN IP Address, ensure you use the correct Subnet Mask.
MAC address: The MAC address is a unique network identifier, assigned when a network
device is manufactured. This read-only field displays the MAC Address for the Wi-Fi and USB
interfaces on this device.
Enable DHCP server: Normally, this should be left enabled. The DHCP server allocates an IP
address to each connected device. If the DHCP Server was disabled, then each connected
device would need to be assigned a fixed IP address.
Start DHCP address range at: If you wish to change the IP address range used by the DHCP
server, you can do so by changing this value. This option is for expert users only.
DHCP address range: This indicates the range of IP addresses which may be allocated to
connected devices. If using a fixed IP address on a connected device, you should use an IP
address that is outside this range.
DHCP lease time: This field determines how often connected devices must renew the IP
address assigned to them by the DHCP server. Normally, this can be left at the default value,
but if you have special requirements you can change this value.
IPv6
If your device and your service provider support IPv6, this section will be visible.
Enable IPv6: If some of your connected devices support IPv6, this setting should be enabled.
IPv6-enabled connected devices will then be able to make IPv6 connections to the Internet.
Link-Local address: This is the IPv6 address of this device. The Link-Local address is used for
IPv6 communication between devices on the same network.
47 novatelwireless.com
Settings Page > Advanced Settings > Port Filtering
Figure 3-18 Settings Page - Advanced Settings - Port Filtering
Use the Port Filtering feature as needed to block outgoing Internet traffic. If this setting is
enabled, only traffic from the selected applications can access the Internet. Traffic is identified
by port numbers. Some applications are pre-defined. You can define additional applications,
but you need to know details of the traffic used and generated by the applications you wish to
define.
Applications
Enable/Disable Checkbox: Use these check boxes to enable access to the Internet for each
application. While the Port Filtering feature is enabled, traffic from selected applications can
access the Internet. Otherwise, the traffic is blocked.
48 novatelwireless.com
Settings Page > Advanced Settings > Port Forwarding
Figure 3-19 Settings Page - Advanced Settings - Port Forwarding
The Port Forwarding feature allows incoming traffic from the Internet to be forwarded to a
particular computer or device on your Wi-Fi network. Normally, the built-in firewall blocks
incoming traffic from the Internet. Use Port Forwarding to allow Internet users to access any
server you are running on your computer, such as a Web, FTP, or E-mail server. For some
online games, Port Forwarding must be used in order for the games to function correctly.
49 novatelwireless.com
Note that use of Port Forwarding creates a security risk and should be disabled
when not required.
Some Mobile Wireless Networks provide you with an IP address on their own
network rather than an Internet IP address. In this case, Port Forwarding cannot
be used because Internet users cannot reach your IP address.
Port Forwarding Applications
Enable/Disable Checkbox: A number of common server applications are listed. To use any of
these applications, follow this procedure:
1. Install the application on a computer which is connected to this device's Wi-Fi network.
2. On the computer, check its IP address for the Wi-Fi network. Alternatively, you can
check the computer's IP address on the Connected Devices screen.
3. On this screen, enter the computer's IP Address in the Connected Device IP Address
field beside the application.
4. Enable this application on this screen by selecting its checkbox.
5. Save your changes.
6. On the Current Status screen, make a note of the Internet IP address of this device.
7. Ask users on the Internet to connect to the Internet IP address of this device. These
connection requests will be forwarded to the IP address specified in step 3.
Custom Applications
This feature allows you to define your own applications. Once defined, these applications can
be enabled and disabled in the same way as pre-defined applications. To define an
application, you need to know the ports and protocol (TCP, UDP) used by the application for
incoming traffic. To start, click the Add Custom Application button, then provide the
following data.
Note that any changes to a Custom Application are not saved until the "Save
Changes" button is clicked to save the entire page contents.
Enable/Disable Checkbox: Use this to enable an application after you have defined it.
Application Name: Enter a suitable name for the application you are defining.
Port Range: Each application has its own port range. Enter the beginning and end of the port
range for each application.
50 novatelwireless.com
lFor a single port, enter the port number in both the Begin Port and End Port fields.
lFor a port range, enter the beginning of the range in the Begin Port field and the end of
the range in the End Port field.
Protocol: For each port range, select the protocol (TCP or UDP) used by that port range.
Connected Device IP Address: Enter the IP address of the connected device which will
receive this traffic.
Delete: Use this checkbox to delete a custom application.
Messages
These SMS messages are normally from your service provider. You should not attempt to
reply, and therefore no reply feature is provided.
Figure 3-20 Messages Page
Message Counters
51 novatelwireless.com
Two counters at the top of the screen indicate the total number of messages, and the number
of unread (new) messages.
Note that all messages are set to "read" once they are displayed on this screen.
Message List
All messages are listed in order of the date received. Unread (new) messages are indicated
by an icon. Messages are automatically marked as "read" once they are displayed on this page,
so the next time the page is accessed, they will no longer be shown as unread.
Delete Button
Each message has an individual "Delete" icon. Click to delete individual messages.
Delete All Messages
This button is at the end of the message list. Use it as needed to delete all messages.
GPS
This device incorporates a GPS receiver. The GPS receiver can determine your current
location and share this location information with connected devices.
52 novatelwireless.com
Figure 3-21 GPS Page (Shown with GPS Turned ON)
Using GPS
Enable GPS
Use this ON/OFF control to enable or disable the GPS feature.
GPS Status
If the GPS receiver has not yet obtained a fix (location), a Searching status appears. Once a fix
has been obtained, the following Current Location information is displayed, and a Google map
appears to visually indicate the current location.
53 novatelwireless.com
Current Location
Latitude
The latitude for the last location fix.
Longitude
The longitude for the last location fix.
Altitude
The altitude for the last location fix.
Accuracy
This is a measure of the accuracy of the horizontal position obtained by the GPS receiver.
GPS Over Wi-Fi (NMEA)
Enable GPS over Wi-Fi
NMEA is a standard method of providing a GPS data stream in Windows and other computing
platforms. If this check box is selected, when connected via a USB cable, a NMEA (serial) port
is available to applications that can use a NMEA stream. To use this feature, drivers must be
installed on your computer. Use the Download link at the bottom of the page to download and
install these drivers.
Port Number
This is the port number used by the driver software on your computer to establish a
connection to this device and obtain the GPS data. Unless there is a good reason to do so, you
should not change the port number.
Download GPS over Wi-Fi Drivers
Use this to access the download page for the available drivers. These drivers are needed to
use the GPS over the Wi-Fi feature.
Customer Support
The Customer Support Details of your SA 2100 are found on the Customer Support page in
the user interface.
54 novatelwireless.com
Figure 3-22 Customer Support Page
Your Wireless Number
This is the phone number for this device. The support staff may ask for this number.
Support
Use this information to access the user guide, to obtain additional information, or support.
About
The About page contains information about your SA 2100 router. The information is presented
on 5 tabs: Current Status, Device Info, Diagnostics, Logs, and Software Update.
55 novatelwireless.com
About Page - Current Status Tab
Figure 3-23 About Page - Current Status Tab
The Current Status Tab displays status information for the device.
Internet Status
Connection Status: This displays the connection status for the Internet connection and
indicates if an error condition exists.
Network Name: The name of the network to which this device is currently connected.
56 novatelwireless.com
Technology: The network technology used for the current connection. LTE is the fastest
available technology.
Connection Time: The period of time that has elapsed since the connection was established
for the current Internet session.
Data Sent: The amount of data transmitted for the current Internet session. This counter starts
from zero when the connection is established.
Data Received: The amount of data received for the current Internet session. This counter
starts from zero when the connection is established.
IP Address: The Internet IP address assigned to this device.
Subnet Mask: The network mask associated with the IP address above.
Gateway: The gateway IP address associated with the IP address above.
DNS: The Domain Name Server currently used by this device.
Wi-Fi Hotspot
Wi-Fi Network Name (SSID): The name of the Wi-Fi network.
Wi-Fi Security: The current setting for Wi-Fi security.
Wi-Fi Password (Key): The current password value.
Channel: The Wi-Fi channel currently in use. If the channel setting is Automatic, this displays
the automatically selected channel.
Wi-Fi Mode: The 802.11 mode in use.
Connected Devices: The number of currently connected devices. For details, use the
Connected Devices menu option.
Maximum Devices Allowed: This is the maximum number of devices that can connect to this
SA 2100 device at any time.
Operations
Restart: Click this button to restart the device. All Internet connections and Wi-Fi connections
will be lost during the restart.
Shutdown: Click this button to shut down the device. All existing connections will be lost.
About Page - Device Info Tab
The Device Information tab contains information about the SA 2100 router.
57 novatelwireless.com
Figure 3-24 About Page - Device Info Tab
Manufacturer: The manufacturer of this device.
Model: The official model name and number for this device.
Radio technologies supported: This lists the different radio technologies supported by this
device. Note that this list refers to this device, and not to the mobile network.
IMEI: The IMEI (International Mobile Equipment Identity) for this device. The IMEI is a 15 or 17
digit code used to uniquely identify an individual mobile station on a LTE network. The IMEI
does not change when the SIM is changed.
MDN: This is the phone number assigned to this device. It will change when the SIM is
changed.
Software Version: The version of currently installed software. This is the main version
number; the following version information relates to various software components.
OS version: This is the version number for the OS (Operating System) and its components.
58 novatelwireless.com
Modem FW version: For the 4G Modem component, this is the version of the firmware
(software) currently installed.
Wi-Fi FW version: For the Wi-Fi component, this is the version of the firmware (software)
currently installed.
Web UI version: The version number for the SA 2100 Web Interface.
PRI version: The configuration version currently applied to this device.
59 novatelwireless.com
About Page - Diagnostics Tab
This page contains information about the SA 2100 and the available networks. Use it as
needed for troubleshooting; it is not required for normal operation.
Figure 3-25 About Page - Diagnostics Tab
60 novatelwireless.com
Modem
Phone number (MDN): Although this device does not support voice calls, it has a normal
phone number, which is displayed here.
IMEI: The IMEI (International Mobile Equipment Identity) for this device is a 15 or 17 digit code
used to uniquely identify an individual mobile station on a LTE network. The IMEI does not
change when the SIM is changed.
IMEISV: This field combines the IMEI with an approval number for this type of device.
IMSI: The IMSI (International Mobile Subscriber Identity) is a unique identification associated
with all GSM, UMTS, and LTE mobile subscribers. It is stored in the SIM, and only changes if
the SIM is changed.
Modem FW Version: The version of the firmware (software) currently installed in the 4G
modem.
SIM Status: This indicates the status of the SIM card. If the SIM card is missing, or this field
indicates some form of SIM error, connection to the mobile network is not possible.
ICCID: This unique ID number is assigned to the SIM card. It does not display if there is no SIM
card, or if a SIM error condition exists.
HSPA Status
Status: HSPA/GSM refers to 4G HSPA and all preceding technologies. For the HSPA network,
the following states are supported:
lDisabled - access to GSM/WCDMA/HSPA networks is disabled.
lNot available - no GSM/WCDMA/HSPA network has been detected.
lAvailable - a GSM/WCDMA/HSPA network has been detected.
The following data items are only provided if the HSPA network is available.
Network operator: This is the name of the HSPA network.
Technology: The current technology in use for the GSM/WCDMA/HSPA network. Possible
values, from slowest to faster, are:
lGPRS
lEDGE
lUMTS
lHSDPA
lHSUPA
lHSPA+
lHSPA+ DC
Network ID: The name and/or ID of the GSM/WCDMA/HSPA network.
Cell ID: This value identifies the cell tower currently in use.
61 novatelwireless.com
RSSI: This indicates the RSSI for the GSM/WCDMA/HSPA signal. RSSI is a measure of signal
strength in decibels, relative to one milliwatt. It is always negative because mobile radio
devices are much less powerful than one milliwatt. Higher values indicate a stronger signal, so
-50dBm is a stronger signal than -70dBm.
Roaming: This indicates if the current connection is a roaming connection.
4G LTE Status
Network operator: This is the name of the LTE network.
Status: For the LTE network, the possible status values are:
lDisabled - access to LTE networks is disabled.
lNot available - no LTE network has been detected.
lAvailable - LTE is enabled, and a LTE network has been detected.
The following data items are only provided if the 4G LTE network is available.
Signal strength: This indicates the strength of the LTE signal, measured in dBm. Higher values
indicate a stronger signal, so -80 dBm is a stronger signal than -90 dBm. Note that LTE signal
strength is typically lower than 3G signal strength.
SNR: SNR is a measure of signal quality. Higher numbers indicate a better signal.
Roaming: This indicates if the current connection is a roaming connection.
62 novatelwireless.com
About Page - Logs Tab
The Log information is useful for troubleshooting, but is not required for normal operation.
Figure 3-26 About Page - Logs Tab
Settings
Enable logs: Enable the Logs as needed.
63 novatelwireless.com
Delete System Log: This setting determines for how long the system log data is retained.
Select the desired option.
Note that if the log is full, the oldest data is deleted, regardless of this setting.
Log Data
The provided tabs allow you to select the type of Log Data to view.
Mobile Network Log: This log contains data regarding connections to the mobile network.
System Log: This log records events (other than mobile data connections) which occurred on
this device.
Buttons
Refresh: Click to update the log data that is displayed.
Clear Logs: Clicking this button will delete all existing log data. This makes new data easier to
read.
64 novatelwireless.com
About Page - Software Update Tab
Software updates are delivered automatically over the mobile network. This page allows you
to monitor these updates.
Figure 3-27 About Page - Software Update Tab
The following information is provided on the Software Update tab:
Current Software
Current Software Version: This field indicates the version of the software currently installed
on this device.
Checked for update: This device automatically checks for updates; this field indicates when
the last check was performed.
65 novatelwireless.com
Update available: This indicates if an update is available. If an update is available, it is
automatically downloaded and installed.
Last Update
This panel displays the details of the last update installed on this SA 2100 device. If no
updates have been installed, this panel is blank.
Update History
The Update History panel displays the details of all updates that have been downloaded and
installed to this SA 2100 device. If no updates have been installed, this panel is blank.
67 novatelwireless.com
Antenna
Should an external antenna be required, these instructions must be followed. The following
installation practices are required to comply with FCC rules on RF exposure. Failure to follow
these guidelines can result in operations that exceed RF Exposure limits.
Maintain a minimum distance of at least 20 cm (8 in) from all persons regardless of how the
antenna is mounted (stand assembly or wall mount).
Connect the antennae to the modem using the supplied cable only – do not use a different
cable. Use the full length of the cable to position the antenna as far from the modem and
generally populated areas as possible.
Figure 4-1 Connected Antenna
lFor wall or pole mount installations position the antennae as far away from the base unit
as permitted by the antenna cable. Ensure at least 20 cm (8 in) separation from the
antenna element and the public.
68 novatelwireless.com
Figure 4-2 SA 2100 Antenna
lThis antenna must not be located close to any other antennae or devices.
lUse only the following approved antenna types and cable assembly
lPulse (Part No.: WA700/2700SMA) Antenna (The gain of the antenna (including
cable loss) will not exceed the following:
Frequency Maximum Antenna Gain (dBi)
704 - 716 3.5
824 - 849 4.0
1710-1755 3.5
1850 - 1910 2.0
lThe antenna is shipped with both a suction cup and clip for mounting.
lUse only the supporting cable to connect the antenna to the SA 2100.
lNever use an antenna from another vendor or another source.
lFor any questions regarding the safe operation of this device please contact Novatel
Wireless at www.novatelwireless.com.
69 novatelwireless.com
Backup Battery
The Backup Battery is a rechargeable 3.7V 2900 mAh 1073Wh Li-ion Battery.
Figure 4-3 Backup Battery
The backup battery is charged when the power adapter is connected to the device. The
backup battery does not charge via USB cable.
Power Cable
The Power Cable has an 8 pin Molex connector that supplies power to the SA 2100.
The Black Wire goes to the chassis ground.
The Red Wire goes to a 12V or 24V vehicle ready power supply.
70 novatelwireless.com
Figure 4-4 Power Cable
8 Pin Molex Connector
Pin # Function
Pin -1 User Controlled Input1
(For the SA 2100’s in-vehicle deployment, this pin is intended for igni-
tion sense.)
Pin -2 User Controlled Input2
Pin -3 1-Wire
Pin -4 GND
Pin -5 Supply Voltage
Pin -6 User Controlled IO1
Pin -7 User Controlled IO2
Pin -8 User Controlled Output
Power Supply
The Power Adapter has an 8 pin Molex connector that supplies power to the SA 2100.
Input:
l100-240v
l50/60 Hz
0.45A
Output:
71 novatelwireless.com
l12V
l1.5A
Figure 4-5 Power Adapter
USB Cable Part
An industry standard Micro USB (not included) is required only if communication through the
Com port is required.
Figure 4-6 Micro USBCable
Ordering Accessories
The following table shows the available accessories (and their SKU) for the SA 2100. To order
an accessory contact your Novatel Wireless sales representative.
72 novatelwireless.com
Accessoy SKU
USB .01019886.
USB (latched) .60715094.
mounting .21915041.
mounting (vehicle) .21915042.
power cable .60715093.
power adapter NA(-30 TO 70C) .40123113.01.
power adapter EU(-30 TO 70C) .40123113.01.
battery .40115130-001.
