Intech Electronics CS8042 Bluetooth stereo speaker User Manual MCB 8042010 0A 8042 USER MAN

In Tech Electronics Ltd Bluetooth stereo speaker MCB 8042010 0A 8042 USER MAN

Manual

Http://www.abe-hk.com
Environmental
friendly
Index
!
!
!
A/C Adapter and 3 AAA battery
Turning on / Turning off the Traveller Speaker
Function Keys
To turn on the speaker, please switch the power ON/OFF switch to the “I”
position. To turn it off, please switch the power switch to the “O” position.
Thank you for buying the new BT90S Traveller Speaker and, or the
CS8082 Stereo Audio Adaptor. You can use the A/C power adapter
(optional, not provided) to power up the CS8042 directly or place 3 AAA dry
batteries into the CS8042 to obtain the power.
Bluetooth
Bluetooth
I.Traveller Speaker paired with Bluetooth enabled (with A2DP and
AVRCP profiles) Mobile Phone / PDA / MP3 Guide
1. Battery cover(Insert 3 AAA batteries).
2. Power ON/OFF switch.
3. DC power input socket(5VDC).
4. Audio input socket.
5. Backward switch.(only applied to audio devices supporting A2DP and AVRCP
Profiles)
6. Volume Down switch.
7. Forward switch. (only applied to audio devices supporting A2DP and AVRCP
Profiles)
8. ON/OFF/Pairing/Pause switch.
a) When CS8042 is powered on, press and hold (about 2 seconds) until
LED flashes Green to turn ON.
b) When CS8042 is powered on, press and hold (about 4 seconds) until
LED flashes Green and Red alternatively to enter into pairing mode.
c) When CS8042 is powered on, press and hold (about 4 seconds) until
LED turns red to turn OFF when playing.
d) Press it once when playing --- Pause
Press it once again --- Resume play
9. Volume Up switch.
Bluetooth
Bluetooth
Bluetooth Bluetooth
Bluetooth
Bluetooth Bluetooth
Bluetooth
10. a) LED flashes Green -- is ON
b) LED flashes Green and Red alternatively -- enters into
Pairing mode
c) LED is red -- will be powered OFF
11. Power LED is Blue -- BT90S is Power ON
Bluetooth Bluetooth
Bluetooth Bluetooth
Bluetooth Bluetooth
1
2
3
CS8042 Traveller Speaker
And
CS8082 Audio Adaptor (optional)
User Manual
Bluetooth
Bluetooth
THREE possible User Scenarios
1. A/C Adapter and 3 AAA battery...............................................................1
2. Turning on / Turning off the Traveller Speaker and the Audio Adaptor.........1
3. Function Keys......................................................................................1
.........................................................................2
. Traveller Speaker paired with enabled (with A2DP and AVRCP
....................
. ...........
.............. ....
.
............... .
................
.............
IBluetooth
profile) Mobile Phone / PDA / MP3 Guide............. .......2
1.Pairing..................... ............ .................................................3
2.Listening to music................. ........... ................................3
. Traveller Speaker paired with Stereo Audio Adaptor CS8082 Guide..... .....4
1.Pairing............................. ........................................ ..........4
2.istening to music...................... ........................................5
. Traveller Speaker connected directly with Audio Device Guide................5
1.listening to music..............................................................................5
Accessories Table...............................................................................5
FCC Interference Statement......................... ..................................6
II
III
When you purchase a Standalone pack with CS8042 Traveller Speaker only,
please follow this Guide.
1. Pairing
a. While the Speaker is powered off, switch the power ON/OFF switch (Key
2) to the “I” position to turn it on (Fig.1). The Power LED (Fig.3) will
become blue. Press and hold BT ON/OFF/Pairing/Pause switch (Key 8,
Fig.2) for 4 seconds, the LED will flash red and green
alternatively, which indicates the Speaker in Pairing Mode. The Pairing
Mode will last for one minute.
b. Put the Speaker and the enabled (with A2DP and AVRCP
profiles) Mobile Phone / PDA / MP3 close to each other, 0.5 to 3 meters.
c. Follow the operation instructions of your enabled (with A2DP
and AVRCP profiles) Mobile Phone/ PDA / MP3 to start the pairing
process. Typically, this has to be done by going to a setup or connect
menu to discover the Speaker. It may take some time to search it
depending on the number of devices nearby.
d. Your Mobile Phone / PDA / MP3 will display the model name “CS8042 if it
has found the Speaker; and ask for a passkey. Enter a sequence of
“0000 . After successful pairing, follow the instructions to establish the
connection with the Speaker.
e. If the pairing is successful, the LED will flash green, which
indicates it is in Standby Mode and ready to receive audio signals from the
Mobile Phone / PDA / MP3. If pairing does not occur as expected, turn the
Traveller Speaker and the audio device off. Wait for 10 seconds and
repeat the pairing process from the beginning (Fig.4).
2. Listening to music
a. Play the music on the Mobile Phone / PDA / MP3 as normal; you will listen
to the music from the Speaker.
b. The speaker volume can be adjusted by pressing the VOL Up button
(Fig.2) / VOL Down button (Fig.2).
Bluetooth
Bluetooth
Bluetooth
Bluetooth
Bluetooth
Bluetooth
Bluetooth mobile phoneBluetooth enabled PDA Bluetooth Traveller Speaker

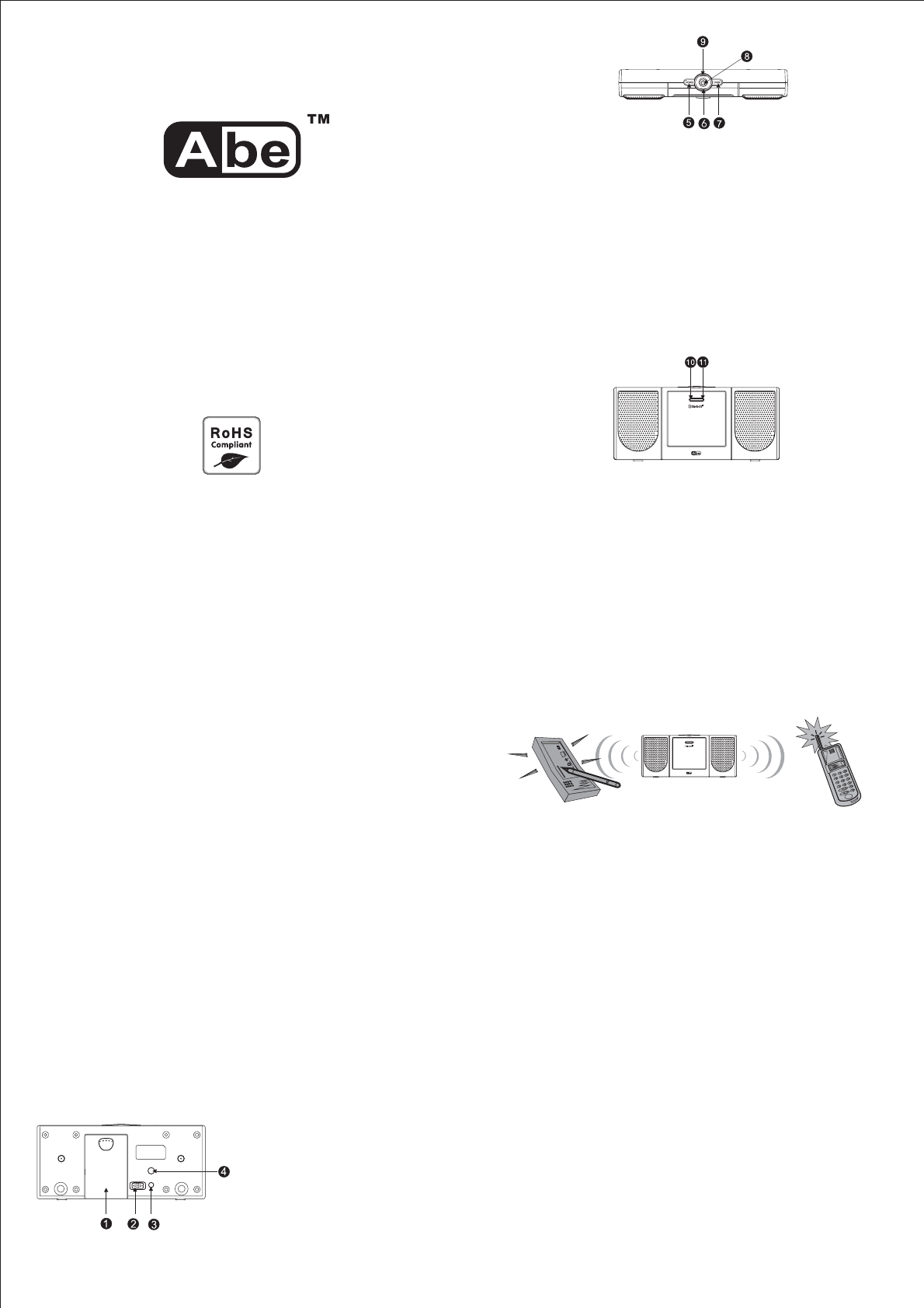

(Fig.1)
(Fig.2)
(Fig.3)
(Fig.4)
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the users authority to operate this
equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with FCC RF exposure
compliance requirements, please avoid direct contact to the transmitting
antenna during transmitting.
Federal Communication Commission
Interference Statement
5
4
c. While listening to music (for example, song 2), press the Speakers
FORWARD >> button (Fig.2) will skip to next song (for example, song 3);
press the BACKWARD << button (Fig.2) will replay the current song (for
example, song 2). The fast forward & backward are also supported by
holding the FORWARD >> or BACKWARD << function keys. This remote
control function is supported only by the AVRCP profile in your
enabled devices.
d. Turn the Speaker off after use.
Remark: Details operation of music playing through A2DP profile
varies from different Mobile Phones / PDAs.
Bluetooth
Bluetooth
II. Traveller Speaker paired with Stereo Audio Adaptor GuideBT 65N
When you purchase a Combo pack with CS8042 Traveller Speaker and CS8082
Stereo Audio Adaptor, please follow this Guide.
Bluetooth Audio Adaptor Bluetooth
Traveller Speaker
1. Pairing
a. While the Speaker is powered off switch the power ON/OFF switch (Key
2) to the “I” position to turn it on (Fig.1). The Power LED (Fig.3) will
become blue. Press and hold ON/OFF/Pairing/Pause switch
(Fig.2) for 4 seconds, the LED will flash red and green
alternatively, which indicates the Speaker in Pairing Mode. The Pairing
Mode will last for one minute.
b. While the CS8042 Stereo Audio Adaptor is powered off, press and hold
PLAY and STOP buttons simultaneously. The LED will flash red and
green alternatively, which indicates the Audio Adaptor is in Pairing Mode.
The Paring Mode will last for one minute.
c. Put the Speaker and the Audio Adaptor close to each other, 0.5 to 3
meters. After a few seconds, their LED's on two devices will turn into
flashing green, which indicates successful pairing. Both units are in
Standby Mode and ready to transmit audio signal, or music from the audio
source (Fig.5).
Bluetooth
Bluetooth
2. Listening to music
a. After successful pairing, plug the jack of the Audio Adaptor to the 3.5 mm
socket of any audio source such as iPod, MP3, CD player, Notebook PC,
or other audio devices with audio jack.
b. Play the music on the audio source as normal; you will listen to the stereo
music from the speaker.
c. The Music volume can only be adjusted by pressing and releasing the
VOL+ / VOL - buttons of audio source.
d. Turn the Speaker off after use and the Audio Adaptor will be turned off
automatically. Next time, you don’t need to pair them again. Turn them
on, and then they will be paired automatically and ready to transmit music
from the audio source.
III. Traveller Speaker connected directly with Audio Device Guide
1. Listening to music
a. While the Speaker is powered off, switch the power ON/OFF switch (Key 2)
to the “I” position to turn it on (Fig.1). The Power LED (Fig.3) will become
blue.
b. Plug one end of the audio cable to the “Audio input socket” (socket 4,
Fig.1) of the Traveller Speaker and the other end to the 3.5 mm socket of
any audio source such as iPod, MP3, CD player, Notebook PC or other
audio devices.
c. Play the music on the audio source as normal; you will listen to the stereo
music from the speaker.
d. The Music volume can only be adjusted by pressing and releasing the VOL
+ / VOL- buttons of audio source.
e. Turn the Speaker off after use.
Accessories Table
Standalone pack
(CS8042)
Combo pack
(CS8042+CS8082)
Included
IncludedIncluded
Audio cable
CS8082 Audio Adaptor Not Included Included
(Fig.5)
6
IncludedIncluded
3XAAA batteries
Not Included
USB Power cable
for CS8082
Remarks: Specification of A/C power adaptor for CS8042
DC Voltage input: 5V, 500mA
DC plug: (1.35 X 3.5 X 11) mm
This equipment complies with FCC radiation exposure limits set forth for an 
uncontrolled environment. This equipment should be installed and operated with 
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other 
antenna or transmitter.
