Bluetooth Hands-free Car Kit
Table of Content
http://www.abe-hk.com
I. Profile and Functions

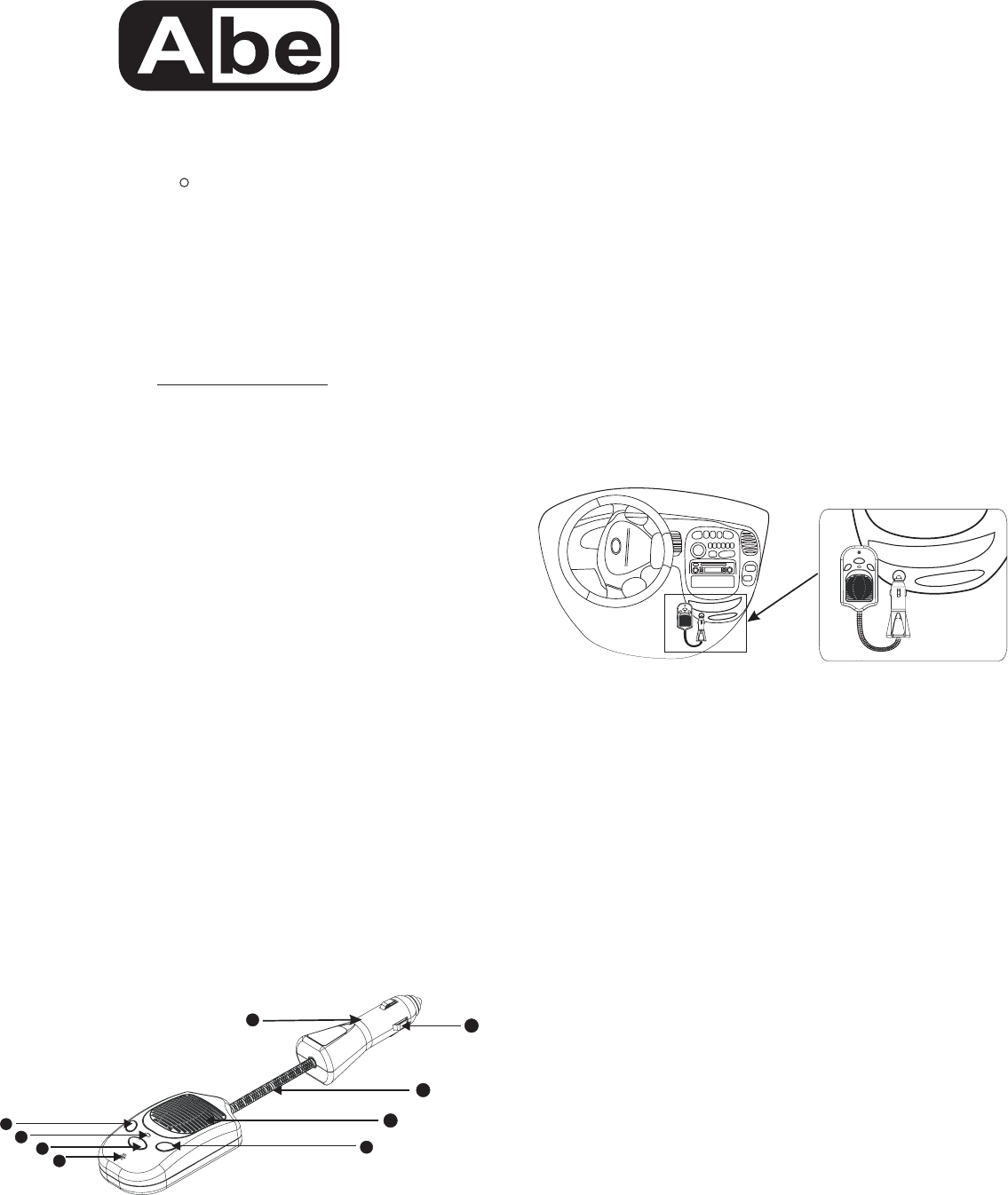

I-1 Profile (Fig.1)
6. Speaker
7. Flexible Shaft
8 Spring
9 Power Connector
.
.
1.Volume Down (S3)
2. LED
3. On/Off ( S1)
4. Built-in Microphone
5. Volume Up (S2)
I-2 Functions (please refer to Fig.1)
Fig.2
II. How to Use(.. )e g Nokia 3650 or equivalent models
II-1 Installation of the Hands-free Car Kit
.
(please refer to Fig.2)
Thank you for buying the Abe BT 70K, Hands-free Car Kit.
Whenever you use the Hands-free Car Kit,
plug the Car Kit into the cigarette lighter socket in your car to get
power.
Bluetooth
turn on the electrical system of
your car and
Tilt and adjust the flexible shaft to a desired position for easy
communication
User Manual
Fig. 1
!
!
!
!
!
Volume Down (S3)
LED
On/Off (S1)
Volume Up (S2)
Power Connector
◎
◎
◎
◎
◎
◎
◎
◎
◎
◎
◎
Redial the last dialed number
Decrease the speaker volume
There are two LED colors (green and red) to indicate the state of this
Car Kit.
If you press S1, you can:
Switch on and Off
Pair
Answer a new call
Reject a call
Make a new call using voice dialing
Increase the speaker volume
Mute/un-mute the microphone
Connect the Car Kit with the cigarette lighter and power the Car
Kit.
9
5
6
1
2
4
3
7
8
II-2 Turn on the Hands-free Car Kit
II-3 Pair the Hands-free Car Kit with Your Mobile Phone
If the Hands-free Car Kit is powered off, press and hold S1 for 4 seconds. A
low tone followed by a high tone will indicate the hands-free Car Kit has turned
on. At the same time, Green LED will flash for a second. And then, green LED
will keep on flashing every 3 seconds.
When the hands-free Car Kit is powered off, press and hold S1 for 8
seconds. In the first 4 seconds, a low tone followed by a high tone will
indicate the hands-free Car Kit has turned on. At the same time, Green
LED will flash for a second. In the 2nd 4 seconds, a high tone will occur.
Then the red and green LEDs will flash alternatively, which indicates the
hands-free Car Kit has entered into the paring mode.
Bluetooth
1. Put the hands-free Car Kit in pairing mode
2. Put your B mobile phone in pairing modeluetooth
2.1 Follow the operation manual of your mobile phone to start
the pairing process. Typically, this has to be done by going to a setup
or connect menu and then selecting the options to discover
devices. may take several seconds to establish
a connection.
2..2 Your phone's display will indicate that it has found the new device
“BT 70K” and asks if you want to pair it. You should confirm this.
The phone's display would demand a passkey or PIN, then you can
enter a sequence of “0000”.
Bluetooth
Bluetooth Bluetooth
...
CS8041
7
8
10
96
5
II-13 Turn off the Hands-free Car Kit
When the hands-free Car Kit is on, press and hold S1 for 3 seconds. A high
tone followed by a low tone will indicate that the Car Kit is powered off. Red
LED will turn on for a second. At last LED will turn off when the Car Kit is
powered off.
Note:
BQB, CE and FCC approved
The word mark and logos are owned by the SIG, Inc. and
any use of such marks by In-Tech Electronics Ltd is under license. Other
trademarks and trade names are those of their respective owners.
Bluetooth Bluetooth
III. Maintenance and Safe Use
◎
◎
◎
Use dry cloth to clean hands-free Car Kit!
Do not expose the Car Kit to liquid or moisture!
Do not expose the Car Kit to fire or open flames!
II-8 Mute the Microphone
II-9 End a Call
1. To mute the microphone
2. To un-mute the microphone
Press S2 for about 2 seconds and a beep tone will indicate the
microphone is muted. A periodic beep tone will be heard while the mute
function is active.
When the microphone is muted, press S2 for about 2 seconds. Then the
mute function will end and the periodic beep tone will stop.
While a call is in session on the hands-free Car Kit, press S1 and you will
disconnect the call. After the call is disconnected, the green LED will
flash normally.
II-10 Reject a Call
II-11 Redial Last Dialed Number
II-12 Adjust the Speaker Volume
When the hands-free Car Kit is ringing, press S1 until you hear a long beep
tone.
To redial the last dialed number, press S3 for 2 seconds. Short low tones will
indicate an attempt to redial.
While a call is in session, pressing and releasing S2 will increase the speaker
volume, and pressing and releasing S3 will decrease the speaker volume.
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
1. From phone to the Car Kit
Press S1 once, the call will be transferred to the Car Kit.
2. From Car Kit to the Phone
Please follow the operation manual of your phone.
1.1 Press S1 on the hands-free Car Kit shortly
Bluetooth
Bluetooth
II-7 Make a New Call by Using Voice Dialing
1. When using a mobile phone:Bluetooth
Notice: Make sure that the voice dialing function is probably set up in
the mobile phone and it is within the range of the hands-free Car Kit.
1.2 Put through the call
After the beep tone on the hands-free Car Kit, you can make a voice
dial by saying the name of the person on the hands-free Car Kit. The
call will be connected in a few seconds.
2.1 Press S1 on the hands-free Car Kit shortly.
2.2 Put through the call
After the beep tone on the hands-free Car Kit, you can make a voice
dial and the call will be connected in a few seconds.
2. When using a mobile phone without built-in and
requiring a dongle:
Bluetooth
Bluetooth
Notice: Make sure that the voice dialing function is probably set up in
the Mobile phone and it is within the range of the hands-free Car Kit.
3. Pair the hands-free Car Kit with your mobile phoneBluetooth
The green LED of hands-free Car Kit will flash every 3 seconds
indicating successful pairing. Usually the phone will also ask whether
you want to change the Car Kit's name. We recommend you should
approve the name of “BT 70K” and do not change it.
Notice: If pairing does not occur as expected, turn off the hands-free Car
Kit and your phone, then wait for 10 seconds. Turn them on again and
repeat from Step 1 to Step 3.
II-4 Establish Link
II-5 Answer an Incoming Call
II-6 Transfer Calls between This Hands-free Car Kit and Your
Phone
Bluetooth
Bluetooth
After pairing, the mobile phone will show “connect”, then please select
“YES” to establish the link. Now you are ready to make and answer calls
on the hands-free Car Kit.
When an incoming call is present, the hands-free Car Kit will ring. Press
S1 and you can answer the call. The green LED will continue to flash
once a second while the call is in session.
When you are in session, calls can be transferred from your
phone to the hands-free Car Kit and vice versa.
Notice: For other phones, please follow their operation manuals to
establish the link!
Bluetooth
Declaration of Conformity (DoC)
In-Tech Electronics Ltd
Unit 7-10,2/F Century Centre, 44-46 Hung To Road,
Kwun Tong, Kowloon, Hong Kong
declare that the following product(s):
Product Description:
is/are conformed to comply with the protection requirements of the Directive(s):
EC Low Voltage Directive 73/23/EEC
EC EMC Directive 89/336/EEC
EC EMC Directive Amendment 92/31/EEC & 93/68/EEC
e-mark Directive Amendment 95/54/EEC
Test Standards:
EN 301 489-1 v.1.2.1: 2000, EN 301 489-17 v.1.2.1: 2000
EN 300 328-1 v.1.4.1: 2001, EN 300 328-2 v.1.4.1: 2001
EN 60950: 2000
FCC Part 15C & 15B
AN/NZA 4771
ECE R-10
I understand that the manufacturer would take all the responsibilities for the above product(s).
For and on behalf of
Hong Kong
Authorized person Location
Name:
Position:
Date of issue:
.
Peter Ho
R&D Manager
August 10 , 2005
We,
Bluetooth Car Kit Cigarette Type
Model Number: BT70K
* I hereby declare that I am entitled to sign on behalf of the applicant and that the information
supplied is correct and complete.
