Intech Electronics CS8106 Bluetooth Car Kit User Manual CS8106 20070228

In Tech Electronics Ltd Bluetooth Car Kit CS8106 20070228

Manual

Environmental
friendly
User Manual
1
Table of Contents
1. BT77AD profile and its functions..........................................3
1.1. Profile.................................................................................3
2 How to set up the BT77AD....................................................4
3. How to mount the BT77AD in the car...................................4
4. LCD Display status ..............................................................6
4.1. On / Off and Pairing..............................................................6
4.2. Calling in.............................................................................8
4.3. Calling out..........................................................................9
4.4 On Line...............................................................................10
4.5 Battery charging.................................................................12
5 . .................................................14
6. ...........................................................................14
7. ..............................................................15
8. ..........................................16
Maintenance and Safe Use
Electrical
Package Contents
Federal Interference Statement
2
3
LD77A
BT 77AD
LCD SOCKET
LCD plug
Note: BT77AD is an optional feature .
Always avoid contact with humidity or heavy soiling.
Any use other than the one described above will damage the product. Moreover,
there is a danger, for example, short-circuits, fire, electric shock, etc. No part of
the product must be modified or rebuilt and the housing must not be opened!
Observe the safely instructions at all times!
All company names and product designations contained herein are trademarks of
the respective owners. All rights reserved.
4
1. 77A profile and its functionsBT

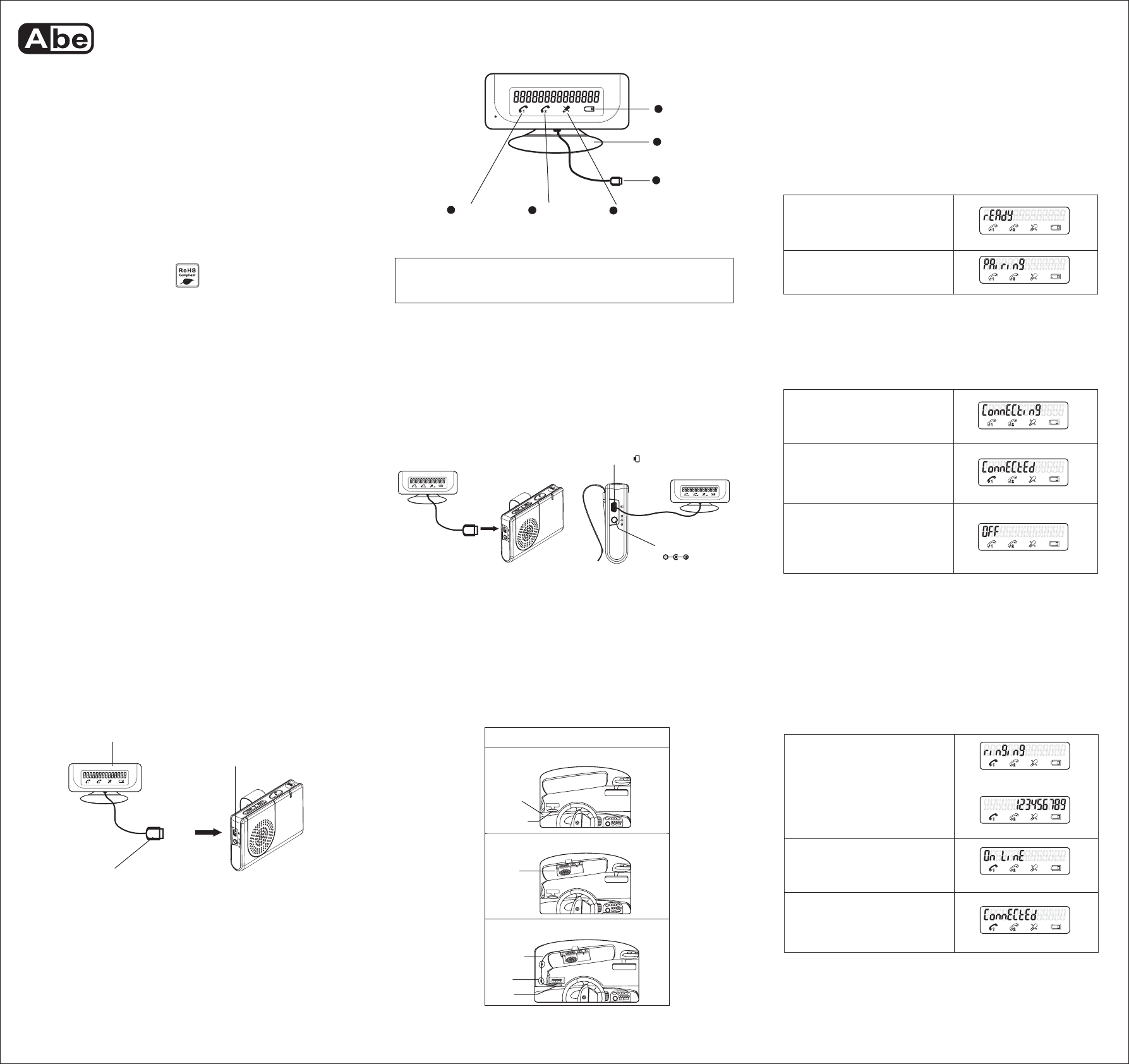

1.1. Profile(Fig.1)
2
Phone 1 icon Phone 2 icon 3Mute icon
4
Battery icon
1
6
Metal Stand
with 2-side tape
5
LCD plug(
BT77AD )
Fig. 1
5
2 HowtosetuptheBT77AD
Insert fully the LCD plug into the LCD socket of BT 77AD before the Carkit is turned
on. (please refer to figure 2-3.)
3.How to mount the BT77AD in the car
Use the Alcohol Pad to clean the surface of a desired position on the top of the
dashboard.
Use the 2-side tape to attach the metal stand on the cleaned area.
Put the BT77AD into an appropriate position(Refer to Fig.4)
Slide the LCD to the metal stand.
6
1.Attach the metal stand to the desired
position.
BT77AD
2.Place the BT77AD on the sun visor.
3.Slide the LD77A LCD display into the
mental stand.
Dashboard
Metal Stand
BT77AD
UNIT
Windshield
Air
suckers
LD77A
7
4. LCD Display status
When the LCD Display unit is properly connected to a Car Kit,it will provide you
with the status of the Car Kit’s operations. For detailed operations, please
refer to the appropriate user manuals.
4.1. On / Off and Pairing
Car Kit
After the car kit has been powered
on, it will stay on idle. Before it is
connected to the mobile phone,the
LCD screen displays “READY”.
When the Car Kit is in pairing mode,
the LCD screen displays “PAIRING”
S1 S3 S3
S4
S1 S3 S3
S4
8
While the car kit is connecting to the
mobile phone, the LCD screen disp-
lays “CONNECTING .
After the car kit has connected to the
mobile phone successfully, the LCD
screen displays “CONNECTED”.
If you press the ON / OFF key for about
5 seconds to turn off the car kit,the LCD
screen displays“OFF for a few seconds
before it is completely off.
S1 S3 S3
S4
S1 S3 S3
S4
S1 S3 S3
S4
Fig. 2
LCD Only( )
Car Charger Only
()
Fig. 3
Fig. 4
The backlight will be on automatically for 10 seconds when there is an incoming call or
when any key operations are performed directly from the car kit.
key operations are performed from the mobile phones.
Note that the backlight
will not be turned on when
TM
Bluetooth Handsfree Car Kit
with LCD Display
®
CS8106(BT77AD)
Abe/CS8106
4.2. Calling in
When there is an incoming call, the LCD
screen displays “RINGING”, or its caller
ID, if it is received.
Note: Some mobile phones may not
display Caller ID via this LCD Display
unit.
When the call is answered, the LCD
screen displays“ON LINE”.
If the call is rejected, it will go back to
idle state and the LCD screen displays
“CONNECTED”.
Or Caller ID
S1 S3 S3
S4
S1 S3 S3
S4
S1 S3 S3
S4
S1 S3 S3
S4
CS8106 / Abe
10

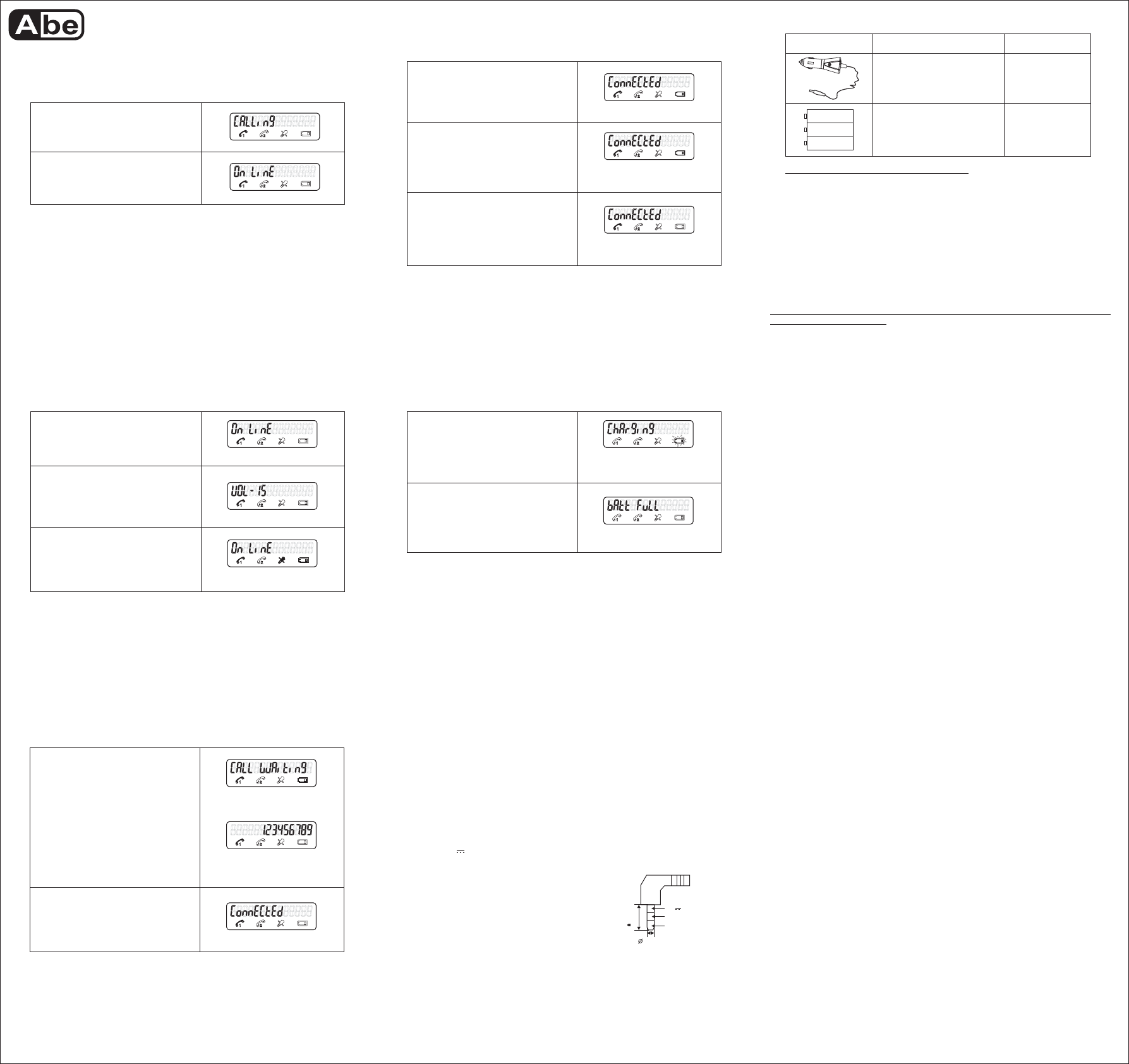

4.3. Calling out
When there is an outgoing call from the
mobile phone, the LCD screen displays
“CALLING”.
When the call is made successfully, the
LCD screen displays “ON LINE”.
S1 S3 S3
S4
S1 S3 S3
S4
11
When you are talking on line, the LCD
screen displays “ON LINE”.
Whenever the Volume Up key or Volume
Down key is pressed, the LCD screen
displays “ VOL ” and the current volume
setting for 2 seconds.
4.4 On Line
S1 S3 S3
S4
S1 S3 S3
S4
If you mute the microphone, the mute
icon will be turned on. And it stays on
until you cancel it.
S1 S3 S3
S4
12
13
Battery Low: Battery icon appears.
4.5 Battery charging
Fully Charged during Power On: Battery
icon disappears.
S1 S3 S3
S4
S1 S3 S3
S4
Recharging during Power On: Battery
icon flashes.
14
Recharging during Power Off: Battery
icon flashes.
Fully Charged during Power Off: Battery
icon disappears.
S1 S3 S3
S4
S1 S3 S3
S4
9
When the call is ended, it will go back to
the idle state. The LCD screen displays
“CONNECTED”.
When there is another call incoming
while you are on line, the LCD screen
will show“CALL WAITING”or its Caller
ID,ifitisreceived.
Note: Some mobile phones may not
display “CALL WAITING” or Caller ID
via this LCD Display unit.
Or Caller ID
S1 S3 S3
S4
S1 S3 S3
S4
S1 S3 S3
S4
S1 S3 S3
S4
Abe/CS8106
TM
5. Maintenance and Safe Use
Electrical Power Specification of Car Charger / AC Power Adaptor for BT
77A
Use dry cloth to clean hands-free Car Kit!
Recycle the batteries after their life time!
Do not expose the Car Kit to liquid or moisture!
Do not expose the Car Kit to fire or open flames!
The electrical power specification of car charger / AC adaptor for BT 77A
Bluetooth Car Kit is as follows:
Output: 5V 1.0A
Output pin configuration:
.
6
5V 1.0A
NC
Ground
2.5mm
11 0.5mm
7. Package Contents
Accessories Status
3 x AAA
Rechargeable Batteries
Provided
Provided
1 Car Chargerx
Warning: Use only rechargeable batteries.
15
16
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
-
-
-
-
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Disclaimer:
Talk time and stand-by time of the Car Kit will vary depending on
mobile phone model being used.
Note:
BQB, CE and FCC approve
The word mark and logos are owned by the SIG, Inc. and
any use of such marks by In-Tech Electronics Ltd. is under license. Other
trademarks and trade names are those of their respective owners.
Bluetooth
Bluetooth Bluetooth
d
Bluetooth functions and operations may not be available or may vary depending
on different mobile phones.
17
