BT 28VM

User Manual

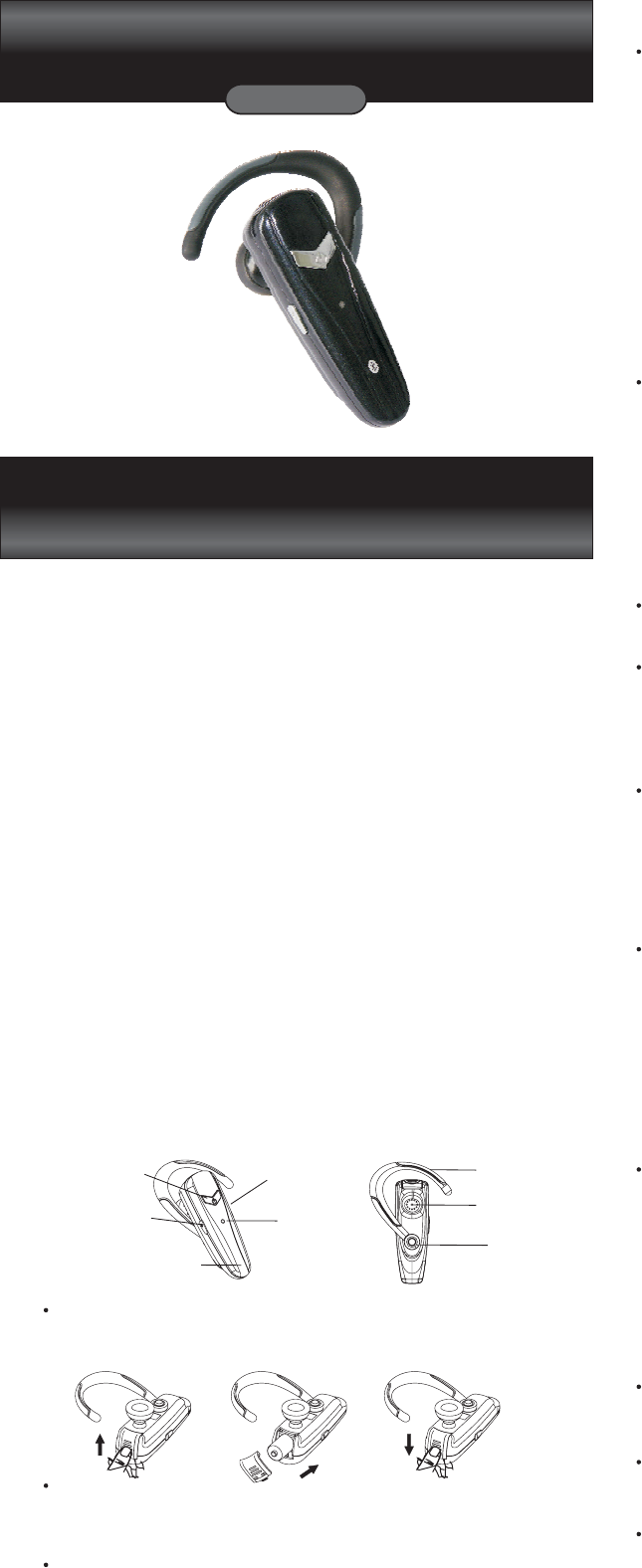

Speaker

Ear hook

Lock

On Off S1/()

Volume Up (S2)

Volume Down S3()

LED

Microphone

Installation of battery

Turning on the Headset

Turning off the Headset

Thank you for buying new BT 28VM Headset.

Before use please open the battery door and install the battery (AAAx1) into the

battery compartment according to the correct polarity. Close the battery door.

While the Headset (HS) is powered down, press and hold S1 for approx 10 seconds

until you hear a low tone followed by a high tone. The orange LED will turn on for 1

second then flashes.

While the HS is powered up, press and hold S1 until you hear a high tone followed by

a low tone indicating that the HS is powered down. And the LED will keep on Red

until S1 is released.

Bluetooth

Answering Incoming Calls

Transferring Calls

Muting the microphone

Ending Calls

When an incoming call is present, the HS will ring . Pressing S1 will answer the call.

The orange LED will continue to flash quickly while the call is in session.

(For Nokia 3650 or equivalent models)

When you are in session, calls can be transferred from the phone to the HS

and from the HS to the phone.

To transfer a call to or from the phone: double press S1, the call will be

transferred to or from the phone, or follow the operating instructions of your

phone.

Pressing both S2 and S3 buttons simultaneously for about a second, the microphone

will be muted. A periodic beep tone will be heard while the mute function is active.

When the microphone is muted, press on both S2 and S3 buttons simultaneously will

end the mute function and the periodic beep tone will stop.

While a call is in session on the Headset, pressing S1 will disconnect the call. After the

call is disconnected, the orange LED will flash normally.

Bluetooth

To mute the microphone during an active call

To end the mute function

To make a new call using voice dialing

Redialing last dialed number

Rejecting incoming call

Adjusting Speaker Volume

1.Make sure the voice dialing function is probably set up in the Mobile phone and it is

within the range of the HS. Press S1 on the HS shortly.

2.After the beep tone on the HS, make a voice dialing as you normally would by

saying the name of the person on the HS. The call will be connected in a few

seconds.

1. Make sure the voice dialing function is probably set up in the mobile phone and it is

within the range of the HS. Press S1 on the HS shortly.

2. After the beep tone on the mobile phone, make a voice dial as you normally would

and the call will be connected in a few seconds.

(Support handsfree profile mobile only. For Nokia

3650, Siemens S55, or equivalent models)

To redial the last dialed number, press and hold S3 for 2 seconds, a short low tones

will indicate an attempt to redial.

(Support handsfree profile mobile only. For Nokia 3650,

Siemens S55, or equivalent models)

When there is an incoming call and you want to reject it, press the buttons S1 and hold

it until you hear a long beep tone, then release it.

While a call is in session pressing and releasing S2 will increase the speaker

volume; pressing and releasing S3 will decrease the speaker volume on the HS

There is a key tone to indicate volume increase or decrease However a

warning tone will be heard when the volume level reaches its maximum or

minimum

When using a Bluetooth mobile phone:

When using a mobile phone without Bluetooth built-in and requiring a Bluetooth dongle:

Putting Headset in Pairing Mode

Establishing Link

Make sure the HS is fully powered before pairing starts. While the HS is powered off,

press and hold S1 for 10 seconds. Red and Orange LED is flashing alternately

indicating that the HS is in Pairing Mode.

Follow the operating instructions for your mobile phone to start the pairing

process. Typically, this has to be done by going to a setup or connect menu and then

selecting the options to discover devices. may take several

seconds to establish a connection.

Your phone s display should indicate that it has found the T 28VM headset and

asks if you want to pair it. You should confirm this. The phone s display would prompt

you for a passkey or PIN. Enter a sequence of 0000 .

The headset LED will flash Orange every 3 seconds, indicating successful pairing.

Usually the phone will also ask whether you want to change the headset s name. We

recommend you should approve the BT 28VM name and not change it. You can pair

as many headsets and devices as you wish in your mobile phone.

If pairing does not occur as expected. Turn the headset and phone off and wait for 10

seconds. Turn the headset and phone on again and repeat all steps from beginning.

After pairing, the mobile phone will show connect then please select YES to

establish the link Now you are ready to make and answer calls on the HS For other

phones please follow the operation manual to establish the link

Bluetooth

Bluetooth Bluetooth

'“”

“”

,“”

Bluetooth

Headset pictures .............................................................................2

Installation of battery .......................................................................2

Turning on the Headset .......................................................................2

Turning off the Headset ......................................................................2

Putting Headset in Pairing Mode ..............................................................3

Establishing Bluetooth Link ..................................................................3

Answering incoming calls .....................................................................4

Transferring calls ............................................................................4

Muting the microphone ........................................................................4

Ending calls .................................................................................4

To make a new call using voice dialing .......................................................5

Redialing last dialed number .................................................................5

Rejecting incoming call ......................................................................5

Adjusting speaker volume .....................................................................5

Ear Hook orientation .........................................................................6

Bend the ear hook to fit your ear ............................................................6

Putting way .................................................................................7

Low-battery indication .......................................................................7

Voice Over Internet Protocol (VOIP) Application .............................................8

FCC Interference Statement ..................................................................9

Declaration of Conformity ..................................................................11

Bluetooth®Headset

UB 22S USB Dongle and BT 28VM Headset

Voice Over Internet Protocol (VOIP) Application

Bluetooth Bluetooth

2. Install IVT BlueSoleil application from the CD-ROM provided in the UB 22S

package. Note that the CD-ROM is not available in the BT 28VM package.

3. Download from the corresponding websites and install MSN messenger, Netmeeting,

Yahoo messenger, or ICQ application software in the PC.

4. Connecting and Disconnecting: The UB 22S Dongle will ring the BT 28VM Headset.

Please press the S1 key on the headset to confirm the connection request. To

disconnect the link, press the S1 key again. You can now pair and

reconnect your BT 28VM Headset to your mobile phone, if you desire.

5. Testing the Link: After the UB 22S Dongle is paired with the BT 28VM

Headset, the PC audio will be automatically routed to the " Audio"driver.

Play some music on the PC by Windows Media Player or other music applications; you

should be able to hear the music on the Headset. If you can't hear it, then go the

"control Panel"-> "Sound and Audio Device Properties"-> "Audio"-> "Sound playback"

select the " Audio"to activate the link.

6. Now you can start using the VOIP application and talk to your friend through your

headset wirelessly and freely.

Plug the UB 22S USB Dongle (purchased separately) into the USB socket of

aPC.

Pairing: Put the BT 28VM Headset into "pairing" mode by following the

steps in the BT 28VM User Manual, start the BlueSoleil application and pair the UB

22S Dongle with the BT 28VM Headset. The Headset passkey is "0000

Connecting BT 28VM Headset back to your mobile phone. Please

follow the steps from 'Putting Headset in Pairing Mode' to Establishing Link' on

page 7.

Bluetooth

Bluetooth Bluetooth

Bluetooth

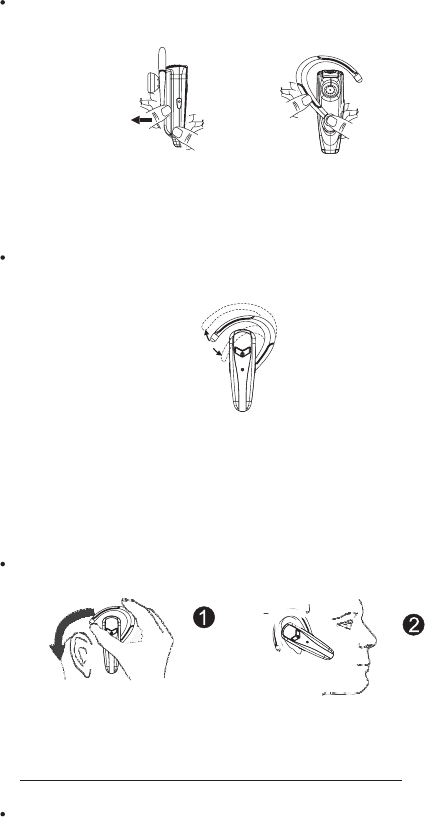

1) Detach the ear hook from the headset

2) Select the orientation you want (left or right), and attach the ear hook and lock it

Bend the ear hook to fit your ear

Low-battery indication

The HS LED will flash red instead of orange when the battery is low.

There will also be a short beep every few minutes. When the battery level is too low,

the HSwill automatically power off.

1. Put on the headset with the ear hook behind your ear.

2. Bend the ear hook gently to fit your ear.

Notice: Make sure the microphone is pointing towards your mouth.

DISCLAIMER: Talk time and stand-by time of the BT 28VM Headset will vary depending on

mobile phone model being used

Bluetooth

Putting way

Ear Hook orientation

If you want to change the orientation of ear hook, please follow the following steps.

6 9
