9.1 Reference design

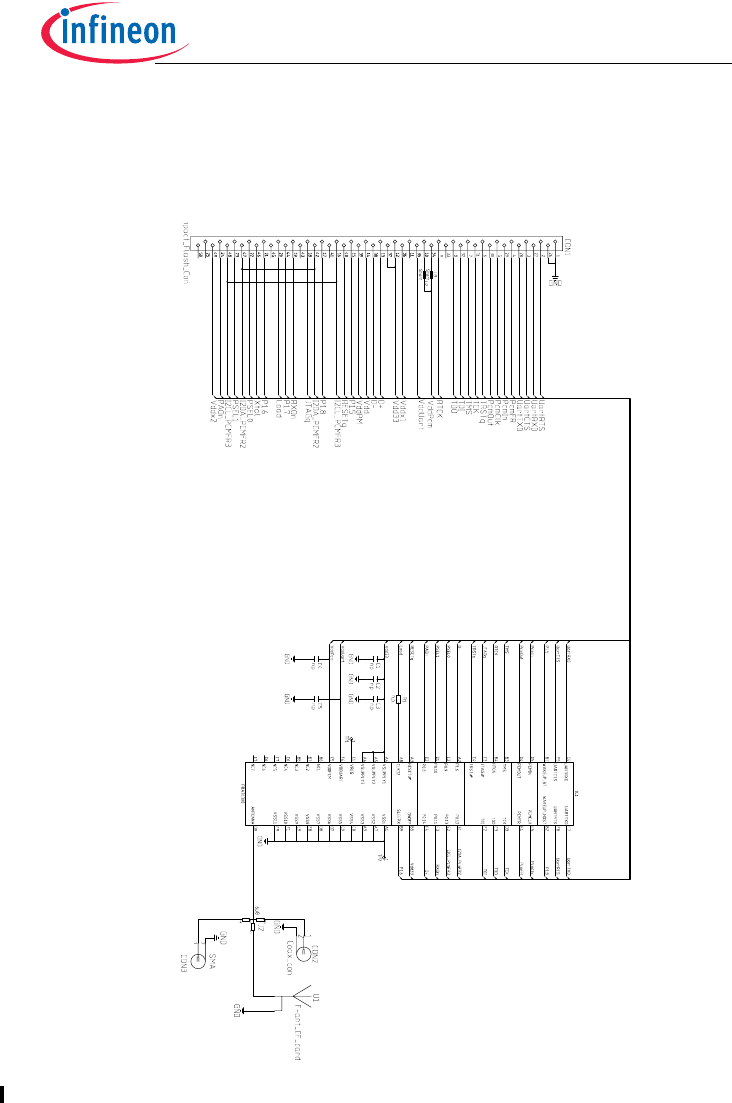

Figure 9-1 Reference design schematics
*n.p. means that the component is not mounted (i.e. not placed)
UniStone
Important Application Information
Product Specification 209 T3130-8XV10T4-7600, 2006-12-18
CONFIDENTIAL
PBA 31308 is intended to be installed inside an end user equipment. PBA 31308 is
Bluetoooth, R&TTA and FCC qualified with the reference design described in Figure 9-
1 togheter with the following antenna:
Manufacturers of mobile, fixed or portable devices incorporating this device are advised
to clarify any regulatory questions and to have their complete product tested and
approved for compliance (FCC or other when applicable).
There are no parts in PBA 31308 that can be modified by the user except modifications
of the device BD data and loading of SW patches. Any changes or modifications made
to this device that are not expressly approved by Infineon, may void the user’s authority
to operate the equipment.
9.2 FCC Class B digital devices regulatory notice
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by 1 or more of the following
measures:
• Reorient or relocate the antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
• Consult the dealer or an experienced radio or television technician for help
9.3 FCC Wireless notice
This product emits radio frequency energy, but the radiated output power of this device
is far below the FCC radio frequency exposure limits. Nevertheless, the device should
be used in such a manner that the potential for human contact with the antenna during
normal operation is minimized.
To meet the FCC's RF exposure rules and regulations:
Make Model Peak antenna gain Impedance
gigaAnt Titanis 4 - 4.4 dBi 50 ohm
UniStone
Important Application Information
Product Specification 210 T3130-8XV10T4-7600, 2006-12-18
CONFIDENTIAL
• The system antenna(s) used for this transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
• The system antenna(s) used for this module must not exceed 4 dBi.
• Users and installers must be provided with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
Manufacturers of mobile, fixed or portable devices incorporating this module are advised
to clarify any regulatory questions and to have their complete product tested and
approved for FCC compliance.
9.4 FCC Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
9.5 FCC Identifier
FCC ID: Q2331308
9.6 European R&TTE declaration of conformity
Hereby, Infineon Technology AG, declares that the Bluetooth module PBA 31308 is in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.

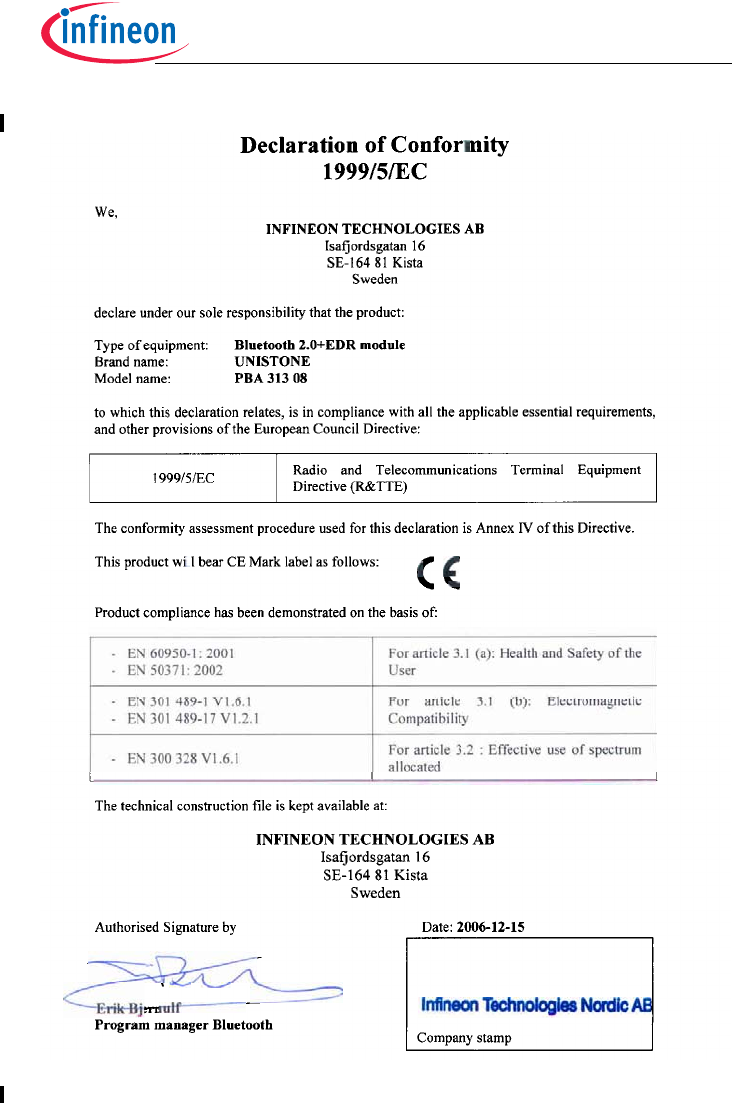

As a result of the the conformity assessment procedure described in Annex III of the
Directive 1999/5/EC, this equipment will be labelled as follows:
PBA31308 in the specified reference design can be used in the following countries:
Austria, belgium, Cyprus, Czech republic, Denmark Estonia, Finland, France, Germany,
Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Poland, Portugal,
Slovakia, Slovenia, Spain, Sweden, The Netherlands, United Kingdom, Switzerland,
Norway, Iceland
0682
UniStone
Important Application Information
Product Specification 211 T3130-8XV10T4-7600, 2006-12-18
CONFIDENTIAL
UniStone
Important Application Information
Product Specification 212 T3130-8XV10T4-7600, 2006-12-18
CONFIDENTIAL
9.7 Industry Canada Certification
PBA31308 comply with the regulatory requirements of Industry canada (IC), license:
IC: 6850A-31308
Manufacturers of mobile, fixed or portable devices incorporating this module are advised
to clarify any regulatory questions and ensure compliance for SAR and/or RF exposure
limits. Users can obtain Canadian information on RF exposure and compliance from
www.ic.gc.ca
This device has been designed to operate with the antenna listed in section 8.1 above ,
having a maximum gain of 4.0 to 4.5 dBi. Antennas not included in this list or having a
gain greater than 4.0 dB are strictly prohibited for use with this device. The required
antenna impedance is 50 ohms. The antenna used for this transmitter must not be co-
located or operating in conjunction with any other antenna or transmitter.
9.8 Label design of the host product
It is recommended to include the following information on the host product label:
Contains transmitter Module FCC ID: Q2331308 / IC: 6850A-31308
