Contents
User Manual 2
Chapter 2. Learning the basics
17
The following describes the features of each function key.
Fn + Esc: Turn on/off the integrated camera.
Fn + F1: Enter standby/sleep mode.
Fn + F2: Turn on/off the LCD screen.
Fn + F3: Shift to other connected display devices.
Fn + F5: Open the interface for integrated wireless devices
settings (enable/disable).
Fn + F8: Enable/Disable the touchpad.
Fn + F9: Start/Pause playback of Windows Media Player.
Fn + F10: Stop playback of Windows Media Player.
Fn + F11: Skip to the previous track.
Fn + F12: Skip to the next track.
Fn + PrtSc: Activate the system request.
Fn + Pause Activate the break function.
Fn + Insert Enable/Disable the numeric keypad.
Fn + Delete Enable/Disable the Scroll Lock.
Fn + ↑／↓ :Increase/Decrease display brightness.
Fn + ←／→ :Decrease/Increase volume level.
S10_2 User Guide V1.0_en.book Page 17 Monday, April 13, 2009 9:34 PM
18
Chapter 2. Learning the basics

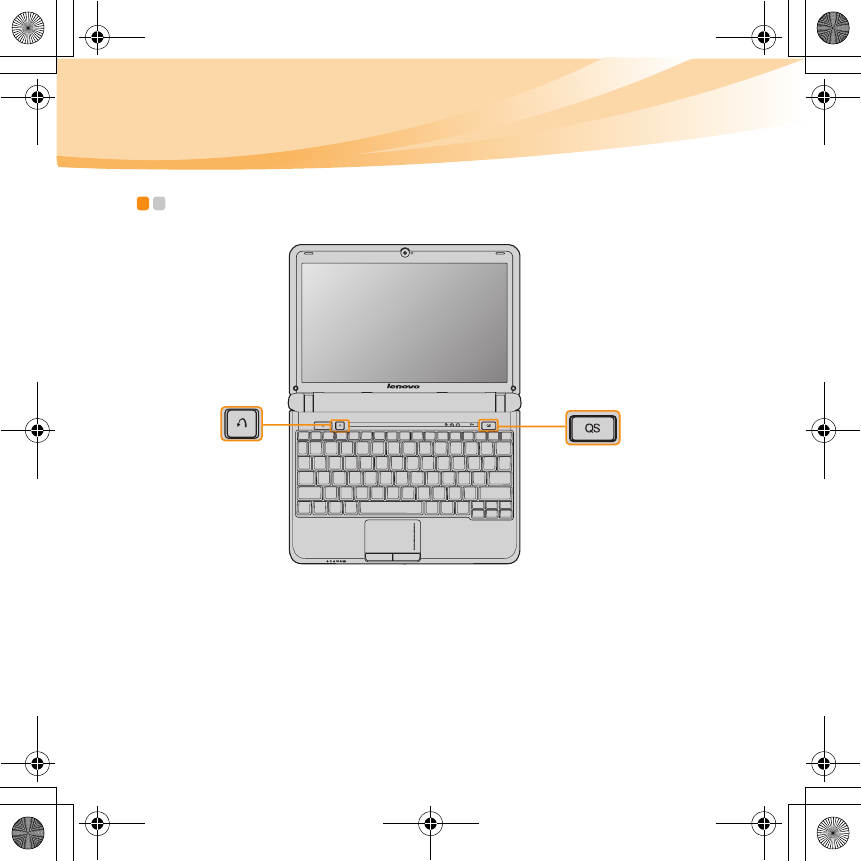

Special buttons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
S10-2
S10_2 User Guide V1.0_en.book Page 18 Monday, April 13, 2009 9:34 PM
Chapter 2. Learning the basics
19
Quick Start button
• When the computer is powered-off, press this button to enter Lenovo
Quick Start if it has been installed.
• Under Windows operating systems, press this button to launch a self-
defined program, file or a Website.
OneKey Rescue System button
• When the computer is powered-off, press this button to enter the
OneKey Rescue System if Lenovo OneKey Rescue System has been
preinstalled.
• Under Windows operating systems, press this button to start Lenovo
OneKey Recovery.
Note:
For details, see “Using Lenovo Quick Start (specific models only)” on page 27.
Note: To re-define the Quick Start button, select Self-defined program setting
(start → All Programs → Lenovo → Energy Management → Self-defined
program setting).
Note:
For details, see “OneKey Rescue System” on page 36.
S10_2 User Guide V1.0_en.book Page 19 Monday, April 13, 2009 9:34 PM
20
Chapter 2. Learning the basics
System status indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
These indicators inform you of the computer status.
df
e
S10-2
ac
b
Hard disk drive indicator
Caps lock indicator
Num lock indicator
Power status indicator
Battery status indicator
Wireless communication
indicator
S10_2 User Guide V1.0_en.book Page 20 Monday, April 13, 2009 9:34 PM
Chapter 2. Learning the basics
21
Securing your computer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This section provides information about how to help protect your
computer from theft and unauthorized use.
Attaching a security lock (not supplied)
You can attach a security lock to your computer to help prevent it from
being removed without your permission. For details on installing the
security lock, please refer to the instructions shipped with the security lock
that you have purchased.
Refer to the “Right-side view” on page 4 for the location of the Kensington
slot.
Notes:
•Before purchasing any security product, verify that it is compatible with this
type of security keyhole.
•You are responsible for evaluating, selecting, and implementing the locking
devices and security features. Lenovo offers no comment, judgement, or
warranty regarding the function, quality or performance of locking devices and
security features.
S10_2 User Guide V1.0_en.book Page 21 Monday, April 13, 2009 9:34 PM
22
Chapter 2. Learning the basics
Using VeriFace™
VeriFace is a face recognition software which takes a digital snapshot,
extracts key features of your face, and creates a digital map that becomes
the system’s “password”.
For more instructions on VeriFace, see the help file on your software.
Using passwords
Using passwords helps prevent your computer from being used by others.
Once you set a password and enable it, a prompt appears on the screen
each time you power on the computer. Enter your password at the prompt.
The computer cannot be used unless you enter the correct password.
For details about how to set the password, see the help to the right of the
screen in BIOS setup utility.
Note: The face registration and verification works best in an environment with
steady and even light.
Note: This password can be from one to seven alphanumeric characters in any
combination.
Note: To enter BIOS setup utility, press F2 when the Lenovo logo appears on the
screen while the computer is starting up.
S10_2 User Guide V1.0_en.book Page 22 Monday, April 13, 2009 9:34 PM
Chapter 2. Learning the basics
23
Connecting external devices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer has a wide range of built-in features and connection
capabilities.
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• MultiMediaCard (MMC)
• Memory Stick (MS)
• Memory Stick PRO (MS PRO)
Notes:
•Insert ONLY one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
S10_2 User Guide V1.0_en.book Page 23 Monday, April 13, 2009 9:34 PM
24
Chapter 2. Learning the basics

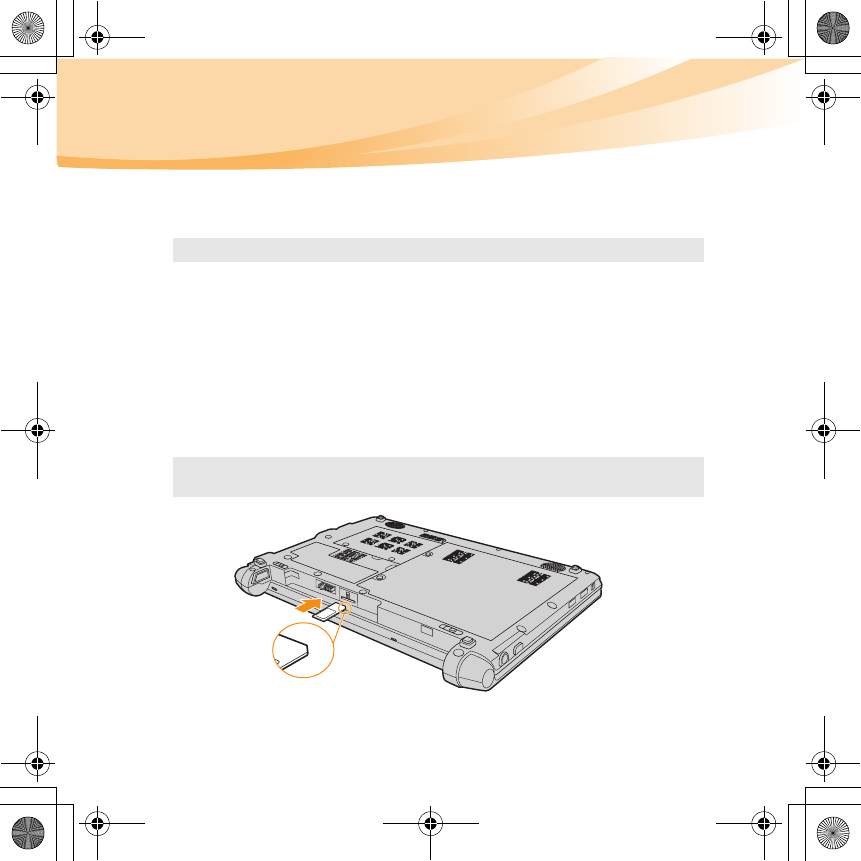

Inserting a memory card
1
Push the dummy card until you hear a click. Gently pull the dummy
card out of the memory card slot.
2
Slide the memory card in until it clicks into place.
Removing a memory card
1
Push the memory card until you hear a click.
2
Gently pull the memory card out of the memory card slot.
Note: The dummy card is used for preventing dust and small particles from
entering the inside of your computer when the memory card slot is not in use.
Retain the dummy card for future use.
Note: Before removing the memory card, unable it by Windows Safely Remove
Hardware utility to avoid data corruption.
S10_2 User Guide V1.0_en.book Page 24 Monday, April 13, 2009 9:34 PM
Chapter 2. Learning the basics
25
Connecting a universal serial bus (USB) device
Your computer comes with three USB ports compatible with USB devices.
Connecting a Bluetooth enabled device (specific models only)
If your computer has an integrated Bluetooth adapter card, it can connect to
and transfer data wirelessly to other Bluetooth enabled devices, such as
notebook computers, PDAs and cell phones. You can transfer data between
these devices without cables at up to 10 meters range in open space.
Enabling Bluetooth communications on your computer
1
Slide the integrated wireless device switch to .
2
Press Fn + F5 to make configuration.
Note: When using a high power consumption USB device such as USB ODD, use
the external device’s power adapter. Otherwise, the device may not be
recognized, or system shut down may result.
Note: When you do not need to use the Bluetooth function, turn it off to save battery
power.
S10_2 User Guide V1.0_en.book Page 25 Monday, April 13, 2009 9:34 PM
26
Chapter 2. Learning the basics
Pairing devices
1
Enable the Bluetooth function on the devices that you need to connect
to the computer.
2
Open My Bluetooth Places in All Programs from start menu, click
Add a Bluetooth Device, follow the Bluetooth Setup Wizard to pair
the devices.
Notes:
•Pairing methods may vary by operating systems.
•For details on pairing devices, please refer to the instructions of the relevant
device.
S10_2 User Guide V1.0_en.book Page 26 Monday, April 13, 2009 9:34 PM
Chapter 2. Learning the basics
27
Using Lenovo Quick Start
(specific models only) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
With a boot time of just a few seconds, Lenovo Quick Start offers a handy
environment that allows you to enjoy an instant access to functions such as
Web browsing, instant messaging and other entertainment functions
without entering the traditional operating system.
S10_2 User Guide V1.0_en.book Page 27 Monday, April 13, 2009 9:34 PM
Notes:
•
The Web browser of Lenovo Quick Start is designed for you to get an instant
access to online information and does not fully support video streaming.
You may experience low frame rate when watching online video in Lenovo
Quick Start. To view online video, restart the computer to your Windows
operating system and use Internet Explorer to play the online video.
•
If Lenovo Quick Start is not installed, a prompt notice will appear on the screen
when you start it.
28
Chapter 2. Learning the basics
Starting Lenovo Quick Start
Press the QS button when the computer is powered-off. The following will
appear on the screen after a few seconds.
Exiting Lenovo Quick Start
• Click to restart the computer.
• Click to turn off the computer.
S10_2 User Guide V1.0_en.book Page 28 Monday, April 13, 2009 9:34 PM
29
Chapter 3. Using the Internet
As a global network, the Internet connects computers worldwide,
providing services such as e-mailing, information searching, electronic
commerce, Web browsing and entertainment.
You can connect the computer to the Internet in the following ways:
Wired connection: uses physical wiring to connect.
Wireless network technology: connect without wiring.
Wired connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Wired connection is a reliable and safe way to connect the computer to the
Internet. Generally, the following two accessing methods are widely used.
Cable Cable Internet services use a cable modem connected to
the residential cable TV line.
DSLDSL is a family of related technologies that bring
high-speed network access to homes and small
businesses over ordinary telephone lines.
S10_2 User Guide V1.0_en.book Page 29 Monday, April 13, 2009 9:34 PM
30
Chapter 3. Using the Internet
Hardware connection:
Cable DSL
Software configuration
Consult your Internet Service Provider (ISP) for details on how to configure
your computer.
Note: The above diagrams are for reference only. Actual connection method may
vary.
S10
-2
S10
-2
TV cable
Splitter *
Cable modem *
* Not supplied.
Telephone line
Splitter *
DSL modem *
S10_2 User Guide V1.0_en.book Page 30 Monday, April 13, 2009 9:34 PM
Chapter 3. Using the Internet
31
Wireless connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Wireless connection provides mobile access to the Internet, allowing you to
stay online anywhere the wireless signal covers.
Divided by the signal scales, wireless connection to the Internet can be built
based on the following standards.
Wi-Fi Wi-Fi networks cover a small physical area, like a home,
office, or small group of buildings. An access point is
necessary for the connection.
WiMAX WiMAX networks connect several Wireless LAN systems
to cover a metropolitan area, providing high-speed
broadband access without the need for cables.
Mobile Broadband The Mobile Broadband network provides Internet access
to computers, cell phones and other devices over a large
geographic area. Mobile networks are used for data
transmission, and access is usually provided by a mobile
network operator. A Mobile Broadband SIM card is
necessary for the connection.
Note: Your computer may not support all wireless connection methods.
S10_2 User Guide V1.0_en.book Page 31 Monday, April 13, 2009 9:34 PM
32
Chapter 3. Using the Internet

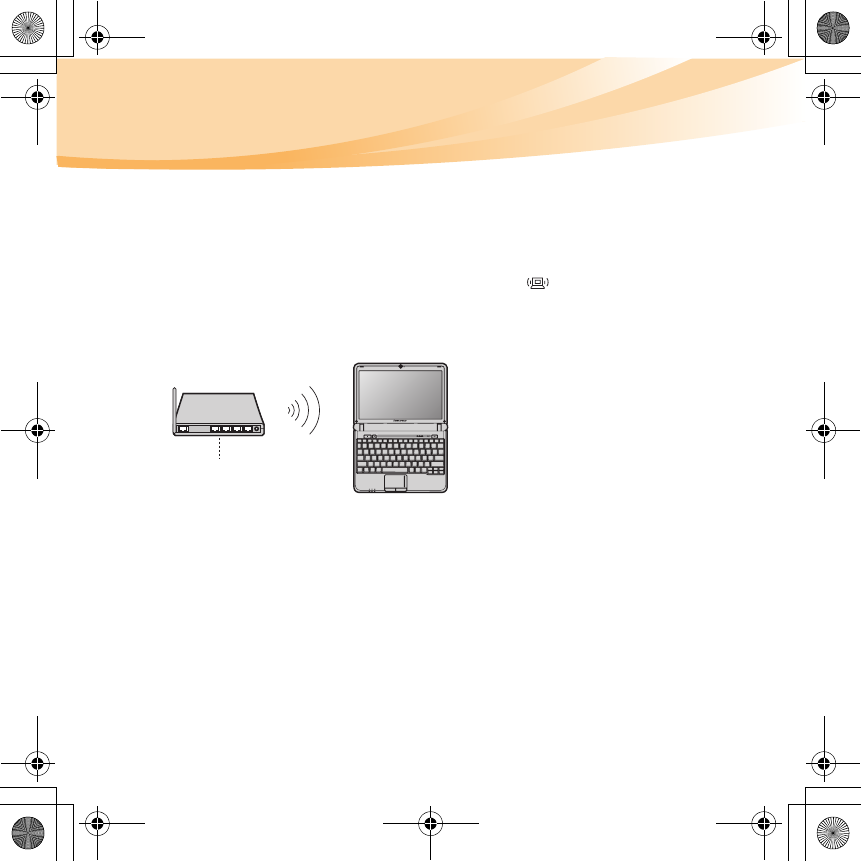

Using Wi-Fi/WiMax (specific models only)
Enabling wireless connection
To enable wireless communications, do the following:
1
Slide the integrated wireless device switch to .
2
Press Fn + F5 to make configuration.
Hardware connection
Software configuration
Consult your Internet Service Provider (ISP) and search Windows Help and
Support Center for details on how to configure your computer.
S10-2
Access point *
Wi-Fi/WiMax network
* Not supplied
S10_2 User Guide V1.0_en.book Page 32 Monday, April 13, 2009 9:34 PM
Chapter 3. Using the Internet
33
Using Mobile Broadband (specific models only)
Before getting started with Mobile Broadband, you first need to choose a
mobile network operator and make sure you are in the coverage area of the
network. After that, you also need:
• To activate the Mobile Broadband service through your local mobile
network operator. You will get a Subscriber Identity Module (SIM) card
after activation. For instructions on inserting the SIM card, refer to
“Inserting the SIM card” on page 34.
Notes:
•Various standards are in use by mobile operators to provide Mobile Broadband
services. The Lenovo Mobile Broadband module may support one or more of the
following standards:
GSM (Global System for Mobile Communications)
TD-SCDMA (Time Division-Synchronous Code Division Multiple Access)
SCDMA (Synchronous Code Division Multiple Access)
EV-DO (Evolution Data Optimized)
HSPA (High Speed Packet Access)
•Mobile Broadband is a subscription service. Refer to your local mobile network
operator for availability, cost and other information.
•A SIM card is a type of smart card used by mobile network operators to identify
their service subscribers on the mobile network. You will get the SIM card from
your mobile network operator after you have activated the Mobile Broadband
service.
S10_2 User Guide V1.0_en.book Page 33 Monday, April 13, 2009 9:34 PM
34
Chapter 3. Using the Internet
• A connection management utility to connect/disconnect to your Mobile
Broadband network.
Inserting the SIM card
To insert the SIM card:
1
Turn off the computer; then disconnect the AC adapter and all cables
from the computer.
2
Close the computer display and turn it over.
3
Remove the battery.
4
Insert the SIM card to the card slot until it clicks into place as shown in
the drawing.
Note: In general, your mobile service provider provides this utility.
Note: Insert the SIM card in the direction shown below. Inserting the SIM card in the
wrong direction may damage the SIM card slot.
Notched Corner
S10_2 User Guide V1.0_en.book Page 34 Monday, April 13, 2009 9:34 PM
Chapter 3. Using the Internet
35
5
Put the battery back in place, turn the computer over again, and
reconnect the cables.
Removing the SIM card
To remove the SIM card:
1
Turn off the computer, then disconnect the AC adapter and all cables
from the computer.
2
Close the computer display and turn it over.
3
Remove the battery.
4
Push the SIM card in until you hear a click, and then pull the SIM card
out.
5
Put the battery back in place, turn the computer over again, and
reconnect the cables.
Note: Never insert or remove the SIM card while the computer is on. Doing so may
cause permanent damage to the SIM card as well as the SIM card reader.
S10_2 User Guide V1.0_en.book Page 35 Monday, April 13, 2009 9:34 PM
36
Chapter 4. OneKey Rescue System
OneKey Rescue System - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Introduction
The Lenovo OneKey Rescue System is an easy-to-use application that can
be used to back up the data on your system partition (C drive) for easy
restore when required. You can run Lenovo OneKey Recovery under a
Windows operating system, and the OneKey Rescue System without
starting the Windows operating system.
Attention:
In order to utilize the features of the OneKey Rescue System, your hard
disk already includes a hidden partition by default to store a system
image file and OneKey Rescue System program files. This default
partition is hidden for security reasons and is the reason the available
disk space is less than it claims. The exact available hard disk space
depends on the file size of the mirror image file (based on the size of
operating system and pre-installed software).
You can use the Restore to factory default feature to restore the system
partition (C drive) back to the factory default, i.e., the state your
computer was when you purchased it. However, once you restore to this
state, you will not be able to restore the system to another previously
backed up state. Therefore, make sure you back up any critical data
stored on the system partition (C drive) to other media, such as another
disk partition, CD/DVD discs or removable storage devices.
S10_2 User Guide V1.0_en.book Page 36 Monday, April 13, 2009 9:34 PM
Chapter 4. OneKey Rescue System
37
Using Lenovo OneKey Recovery in Windows
In Windows, you can create a backup of an entire system partition, saving
it your local hard disk. You can back up your data to a CD, DVD, network
drive or other removable disk. In addition, you can also create Windows
recovery disc(s) to boot and recover your system.
Create full backup
There are two backup types that can be created: full backup and
incremental backup. Selecting Full backup backs up your system partition
to a folder on the hard disk in order to recover it in the future. The program
will save the backed up data to the default location, i.e., to
D:\Lenovo\OneKey App\OneKey Recovery. You may also select another
destination, such as a removable storage device, network drive or a CD/
DVD.
If you choose to back up the system partition to a disc (CD/DVD), the
created discs can be used to recover your system to the current status.
We suggest you do the following before you create recovery discs:
Use the latest version of your system’s anti-virus software to scan your
computer and make sure it is virus-free.
Optimize your system, including scanning and defragmenting your hard
disk drive.
Note:
The backup process may take a long time, connect the AC adapter
and battery
pack to your computer.
S10_2 User Guide V1.0_en.book Page 37 Monday, April 13, 2009 9:34 PM
38
Chapter 4. OneKey Rescue System
Create Incremental backup
An incremental backup is a backup of your data based on previous backed
up files located in the default path. This backup includes different data
than the full backup, such as application variations and user data.
Incremental backup can only be saved to the default path; it cannot be
backed up to another location.
Create recovery disc
You can burn the backup image to CD/DVDs as recovery discs. The
recovery discs can be used to boot up your computer automatically and
restore your system back to previously backed up status. If your hard disk
fails and you are unable to use Lenovo OneKey Recovery on your
computer, you can use these discs to recover your system on a reformatted
hard drive.
Notes:
•For the computers without an optical drive, an external optical drive is needed to
backup or to create a recovery disc.
•A full backup needs considerable storage space, be sure to have enough CDs/
DVDs in hand.
•Please make sure to create recovery discs, so that you can recover your system,
even when replacing the hard drive.
•After the recovery discs are burned, please number them so that you can use
them in order.
•When burning the recovery discs, please use good quality discs with to ensure
the burning process and backed up data is complete and correct.
S10_2 User Guide V1.0_en.book Page 38 Monday, April 13, 2009 9:34 PM
Chapter 4. OneKey Rescue System
39
Using Lenovo OneKey Rescue System without the main
Windows operating system
In the event that the operating system cannot be loaded, you need to
recover your system with the OneKey Rescue System, which includes
several applications to help you detect and remove viruses, and recover
Windows system and data. Pressing the OneKey Rescue System key will
activate Lenovo OneKey Rescue System when your PC is turned off.
Within the program, you can restore your system partition to the original
factory status, or to a previously generated backup. You may also transfer
critical data or documents to other storage devices. All these features make
Lenovo OneKey Rescue System an important utility for securing your data.
S10_2 User Guide V1.0_en.book Page 39 Monday, April 13, 2009 9:34 PM
40
Chapter 4. OneKey Rescue System
Restore of factory default
In order to save application files and the initial backed up files of the
system, the hard disk in a Lenovo PC includes a hidden partition when it is
shipped. If you need to restore the system to the point of your first boot up,
just enter the Lenovo OneKey Rescue System and run Restore to factory
default. This will delete all the new data on the system partition
(C partition), which is not recoverable. Make sure to back up any critical
data before you run this feature.
Restore from backup
If you want to recover the system to a previous status, you just need to
enter Lenovo OneKey Rescue, and select Restore from user’s backup.
Select the appropriate image file or, if you have run incremental backup
before, you can use the incremental file to restore your system.
The process above will remove all data on the current system partition
(C partition), which is not recoverable. Please back up any important data
before restoring to a previous backup.
Using recovery discs
When you replace a hard disk drive in your computer, you will be unable
to use the pre-installed Lenovo OneKey Recovery and OneKey Rescue
System. However, you can use the recovery discs that store your backed up
data to restore your new hard drive to a previous backup status.
When you use the recovery discs to boot your computer, the system will
enter the system recovery user interface automatically. Please follow the
S10_2 User Guide V1.0_en.book Page 40 Monday, April 13, 2009 9:34 PM
Chapter 4. OneKey Rescue System
41
prompt to insert the backup discs in order to complete the entire recovery
process.
Back up my data
Within the Lenovo OneKey Rescue System you can transfer your data from
your computer’s hard disk to other devices, so you may easily find it if
your Windows system ever encounters a critical failure.
System repair
When you use the Lenovo OneKey Rescue System, the program detects
whether Windows has been damaged. If the system kernel files are
damaged, the Lenovo OneKey Rescue System will prompt you to proceed
with a system repair. The system will reboot after the repair process is
complete. If there are no damaged files, the Lenovo OneKey Rescue System
should start normally.
System repair only works for system data files. Using this feature will
not affect your own data.
Set and manage user password
You can set up your user password within Lenovo OneKey Rescue System
to ensure other users cannot use the system recovery or Back Up My Data
functions.
By default, the user password within the Lenovo OneKey Rescue System is
blank and it is recommended that you immediately set a new password to
ensure your system is protected.
S10_2 User Guide V1.0_en.book Page 41 Monday, April 13, 2009 9:34 PM
42
Chapter 5. Troubleshooting
Frequently asked questions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This section lists frequently asked questions and tell where you can find detailed
answers. For details about each publication included in the package with your
computer, see Lenovo IdeaPad S10-2 Setup Poster.
What safety precautions should I follow when using my computer?
See “Important safety information” on page iii of this guide.
How can I prevent problems with my computer?
See “Appendix B. Use, and care Information” on page 69 of this guide.
More tips can be found in Chapter 1 and 2.
What are the main hardware features of my new computer?
More information can be found in Chapter 1 and 2.
Where can I find the detailed specifications for my computer?
See http://consumersupport.lenovo.com.
I need to upgrade a device or I need to replace one of the following: the hard
disk drive, memory, or the keyboard.
See “Appendix D. Customer replaceable units (CRUs)” on page 95 of this
guide.
S10_2 User Guide V1.0_en.book Page 42 Monday, April 13, 2009 9:34 PM
Chapter 5. Troubleshooting
43
Where are the recovery discs?
Your computer did not come with a recovery disc. For an explanation of
the alternative recovery methods offered by Lenovo, see “Chapter 4.
OneKey Rescue System” on page 36.
How can I contact the customer support center?
See “Appendix A. Getting help and service” on page 64 of this guide.
Where can I find warranty information?
For the warranty applicable to your computer, including the warranty
period and type of warranty service, see “Appendix C. Lenovo limited
warranty” on page 82.
How can I install the device drivers?
A compatible device driver is a requirement to ensure correct operation
and performance of each component in your computer. If your computer
is pre-installed with an operating system, Lenovo provides all the driver
you need in your hard disk.
What can I do if the backup process fails?
If you can start the backup feature without a problem, but it fails during
the backup process, please try the following steps:
1
Close other applications, then restart the backup process.
2
Check if the destination media is damaged, try to select another path
and then try again.
S10_2 User Guide V1.0_en.book Page 43 Monday, April 13, 2009 9:34 PM
44
Chapter 5. Troubleshooting
When do I need to use the Restore to factory default feature?
You can use this feature when your system fails or you need to re-install
your operating system. This will restore your computer back to the initial
status when you first booted up your computer after receiving it from
the store. By doing this, the data on your system partition will be
restored to the factory default. If there is critical data on your current
partition, please back it up before you run this recovery feature.
When do I need to use the Back Up My Data feature?
If your system fails or is unable to boot up, you can use the Back Up My
Data feature to retrieve the data you need immediately from your PC.
S10_2 User Guide V1.0_en.book Page 44 Monday, April 13, 2009 9:34 PM
Chapter 5. Troubleshooting
45
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If you do not find your problem here, see Chapter 2. The following section only
describes problems that might negate the need to refer to the more
comprehensive information in Chapter 2.
Display problems
When I turn on the compu-
ter, nothing appears on the
screen.
•If the screen is blank, make sure that:
- The battery is installed correctly.
- The AC adapter is connected to the computer and
the power cord is plugged into a working electrical
outlet.
- The computer power is on. (Press the power
button again for confirmation.)
- The memory is installed correctly.
•If these items are properly set, and the screen
remains blank, have the computer serviced.
When I turn on the
computer, only a white
cursor appears on a blank
screen.
•Restore backed-up files to your Windows
environment or the entire contents of your hard disk
to the original factory contents using OneKey
Recovery. If you still see only the cursor on the
screen, have the computer serviced.
S10_2 User Guide V1.0_en.book Page 45 Monday, April 13, 2009 9:34 PM
46
Chapter 5. Troubleshooting
My screen goes blank while
the computer is on.
•Your screen saver or power management may be
enabled. Do one of the following to exit from the
screen saver or to resume from standby or
hibernation mode:
- Touch the touchpad.
- Press any key on the keyboard.
- Press the power button.
A Password problem
I forgot my password. •If you forget your user password, you must take
your computer to a Lenovo authorized servicer or a
marketing representative to have the password
changed.
•If you forget your HDD password, a Lenovo
authorized servicer cannot reset your password or
recover data from the hard disk. You must take your
computer to a Lenovo authorized servicer or a
marketing representative to have the hard disk drive
replaced. Proof of purchase is required, and a fee will
be charged for parts and service.
•If you forget your supervisor password, a Lenovo
authorized servicer cannot reset your password. You
must take your computer to a Lenovo authorized
servicer or a marketing representative to have the
system board replaced. Proof of purchase is
required, and a fee will be charged for parts and
service.
S10_2 User Guide V1.0_en.book Page 46 Monday, April 13, 2009 9:34 PM
Chapter 5. Troubleshooting
47
Keyboard problems
A number appears when
you enter a letter.
•The numeric lock function is on. To disable it, press
Fn + Insert.
Standby or hibernation problems
The computer enters
standby mode unexpect-
edly.
•
If the processor overheats, the computer automatically
enters standby mode to allow the computer to cool
and to protect the processor and other internal
components. Check the settings for standby mode.
The computer enters
standby mode immediately
after Power-on self-test
(POST).
•Make sure that:
- The battery is charged.
- The operating temperature is within the acceptable
range. See “Appendix B. Use, and care
Information” on page 69.
Note: If the battery is charged and the temperature is within range, have the computer
serviced.
The critical low-battery error
message appears, and the
computer immediately turns
off.
•The battery power is getting low. Connect the AC
adapter to the computer, or replace the battery with
a fully charged one.
S10_2 User Guide V1.0_en.book Page 47 Monday, April 13, 2009 9:34 PM
48
Chapter 5. Troubleshooting
The computer does not
return from standby mode
and does not work.
•If the computer does not return from standby mode,
it may have entered hibernation mode automatically
because the battery is depleted. Check the power
indicator.
•If your computer is in standby mode connect the AC
adapter to the computer, then press any key or the
power button.
•If your computer is in hibernation mode or power-off
state. Connect the AC adapter to the computer, then
press the power button to resume operation.
Note:
If the system still does not return from standby mode, your system has stopped
responding, and you cannot turn off the computer, reset the computer. However,
unsaved data may be lost. To reset the computer, press and hold the
power button
for 4 seconds or more. If the computer is still not reset, remove the AC adapter and
the battery.
S10_2 User Guide V1.0_en.book Page 48 Monday, April 13, 2009 9:34 PM
Chapter 5. Troubleshooting
49
Computer screen problems
The screen is blank. •Do the following:
- If you are using the AC adapter, or using the
battery, and the battery status indicator is on, press
Fn +↑to make the screen brighter.
- If the Power indicator is blinking, press the power
button to resume from the standby mode.
- If the problem persists, follow the solution in the
following problem “The screen is unreadable or
distorted.”
The screen is unreadable or
distorted.
•Make sure that:
- The display device driver is installed correctly.
- The screen resolution and color quality are
correctly set.
- The monitor type is correct.
Incorrect characters appear
on the screen.
•Did you install the operating system or application
program correctly? If they are installed and
configured correctly, have the computer serviced.
S10_2 User Guide V1.0_en.book Page 49 Monday, April 13, 2009 9:34 PM
50
Chapter 5. Troubleshooting
Sound problems
No sound can be heard
from the speaker even
when the volume is turned
up.
•Make sure that:
- The Mute function is off.
- The headphone jack is not used.
- Speakers is selected as a playback device.
Battery problems
Your computer shuts down
before the battery status
indicator shows empty.
-or-
Your computer operates
after the battery status
indicator shows empty.
•Discharge and recharge the battery.
The operating time for a
fully charged battery is
short.
•For details, see “Handling the battery” in Chapter 2.
The computer does not
operate with a fully charged
battery.
•The surge protector in the battery might be active.
Turn off the computer for one minute to reset the
protector, then turn on the computer again.
The battery does not
charge.
•For details, see “Handling the battery” in Chapter 2.
A hard disk drive problem
The hard disk drive does
not work.
•In the Boot menu in BIOS Setup Utility, make sure
that the hard disk drive is included in the Boot
priority order correctly.
S10_2 User Guide V1.0_en.book Page 50 Monday, April 13, 2009 9:34 PM
Chapter 5. Troubleshooting
51
A startup problem
The Microsoft® Windows
operating system does not
start.
•Use the OneKey Rescue System to help solve or
identify your problem. For details on the OneKey
Rescue System, see “Chapter 4. OneKey Rescue
System” on page 36.
OneKey Rescue System problems
Full backup cannot be
made.
•You are not currently using a Windows operating
system.
•There is not enough space to store the backed up
data. You will need to free more hard disk space on
your system partition (C drive).
•If you are backing up your data to a CD/DVD, make
sure you are using compatible burning devices.
•If you are burning backed up files to CD/DVD,
make sure the burning devices are compatible with
the CD/DVD discs.
Incremental backup cannot
be made.
•You did not run Full backup in the default path.
Please make sure you ran Full backup in this path
before running Incremental backup.
•You did not select the default path for Incremental
backup. Incremental backup files can only be saved
to the default path.
Please do not specify a different location.
•The free disk space for the default location is
insufficient.
Please free more space on that hard drive.
S10_2 User Guide V1.0_en.book Page 51 Monday, April 13, 2009 9:34 PM
52
Chapter 5. Troubleshooting
A prompt to repair system
kernel files appears.
•Make sure you have installed the latest Microsoft
service pack on your system.
Restore to factory default
feature cannot be used.
•The system partition, such as the partition size or the
drive capacity of C, has been modified.
Other problems
The computer does not
respond.
•
To turn off your computer, press and hold the power
button for 4 seconds or more. If the computer still does
not respond, remove the AC adapter and the battery.
•Your computer might lock when it enters standby
mode during a communication operation. Disable
the standby timer when you are working on the
network.
The computer does not
start from the desired
device.
•
See the
Boot
menu of
BIOS Setup Utility
. Make sure
that
Boot priority order
in
BIOS Setup Utility
is set
so that the computer starts from the device you want.
•Also make sure that the device from which the
computer starts is enabled. In the Boot menu in
BIOS Setup Utility, make sure that the device is
included in the Boot priority order list.
The connected external
device does not work.
•Do not connect or disconnect any external device
cables other than USB while the computer power is
on; otherwise, you might damage your computer.
•When using a high power consumption external
devices such as an external USB optical disk drive,
use external device power adapter. Otherwise, the
device may not be recognized, or system shut down
may result.
S10_2 User Guide V1.0_en.book Page 52 Monday, April 13, 2009 9:34 PM
53
Chapter 6. Upgrading and replacing devices
Replacing the battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
To replace the battery
1
Turn off the computer, or enter hibernation mode. Disconnect the AC
adapter and all cables from the computer.
2
Close the computer display, and turn the computer over.
3
Unlock the manual battery latch . Hold the spring-loaded battery
latch in the unlocked position , remove the battery pack in the
direction shown by the arrow .
Note: Use only the battery provided by Lenovo. Any other battery could ignite or
explode.
a
b
c
S10_2 User Guide V1.0_en.book Page 53 Monday, April 13, 2009 9:34 PM
54
Chapter 6. Upgrading and replacing devices
4
Install a fully charged battery.
5
Slide the manual battery latch to the locked position.
6
Turn the computer over again. Connect the AC adapter and the cables
to the computer again.
S10_2 User Guide V1.0_en.book Page 54 Monday, April 13, 2009 9:34 PM
Chapter 6. Upgrading and replacing devices
55
Replacing the hard disk drive - - - - - - - - - - - - - - - - - - - - - - - - - - -
You can increase the storage capacity of your computer by replacing the
hard disk drive with one of greater capacity. You can purchase a new hard
disk drive from your reseller or Lenovo marketing representative.
The drive is very sensitive. Incorrect handling can cause damage and
permanent loss of data on the hard disk. Before removing the hard disk
drive, make a backup copy of all the information on the hard disk, and then
turn the computer off. Never remove the drive while the system is
operating, in standby mode, or in hibernation mode.
Notes:
•Replace the hard disk drive only if you upgrade it or have it repaired. The
connectors and bay of the hard disk drive were not designed for frequent
changes, or drive swapping.
•The preinstalled softwares are not included on an optional hard disk drive.
Handling a hard disk drive
•Do not drop the drive or subject it to physical shocks. Put the drive on a
material, such as soft cloth, that absorbs the physical shock.
•Do not apply pressure to the cover of the drive.
•Do not touch the connector.
S10_2 User Guide V1.0_en.book Page 55 Monday, April 13, 2009 9:34 PM
56
Chapter 6. Upgrading and replacing devices
To replace the hard disk drive, do the following:
1
Turn off the computer; then disconnect the AC adapter and all cables
from the computer.
2
Close the computer display, and then turn the computer over.
3
Remove the battery pack.
4
Remove the screws that secure the PCI Mini Express Card slot/hard
disk drive (HDD) compartment cover .
5
Remove the cover .
b
a
S10_2 User Guide V1.0_en.book Page 56 Monday, April 13, 2009 9:34 PM
