Intel AERO Cloud Rest User Manual

Intel Corporation Cloud Rest

UserManual.wiki >

Intel >

AERO User Manual

User Manual

Cloud Rest User Manual

Rev0.3



Revisionhistory

DataDoc.Rev. Changes

19‐JULY‐2016Rev.0.1 InitialRelease

25‐JULY‐2016Rev.0.2 AddFCCstatements

26‐JULY‐2016Rev.0.3 • CorrectprojectnametoCloudRest

• Modifysomespellingmistake

• AddWLANoperationdescription





1.Introduction

1.1 Purpose

ThisdocumentillustratedetailinformationhowtouseCloudRestandassembleperipherals.



1.2 Document Reference Table

DocumentDocumentNumber

 

1.3 Cloud Rest Introduction



1.4 Main Features

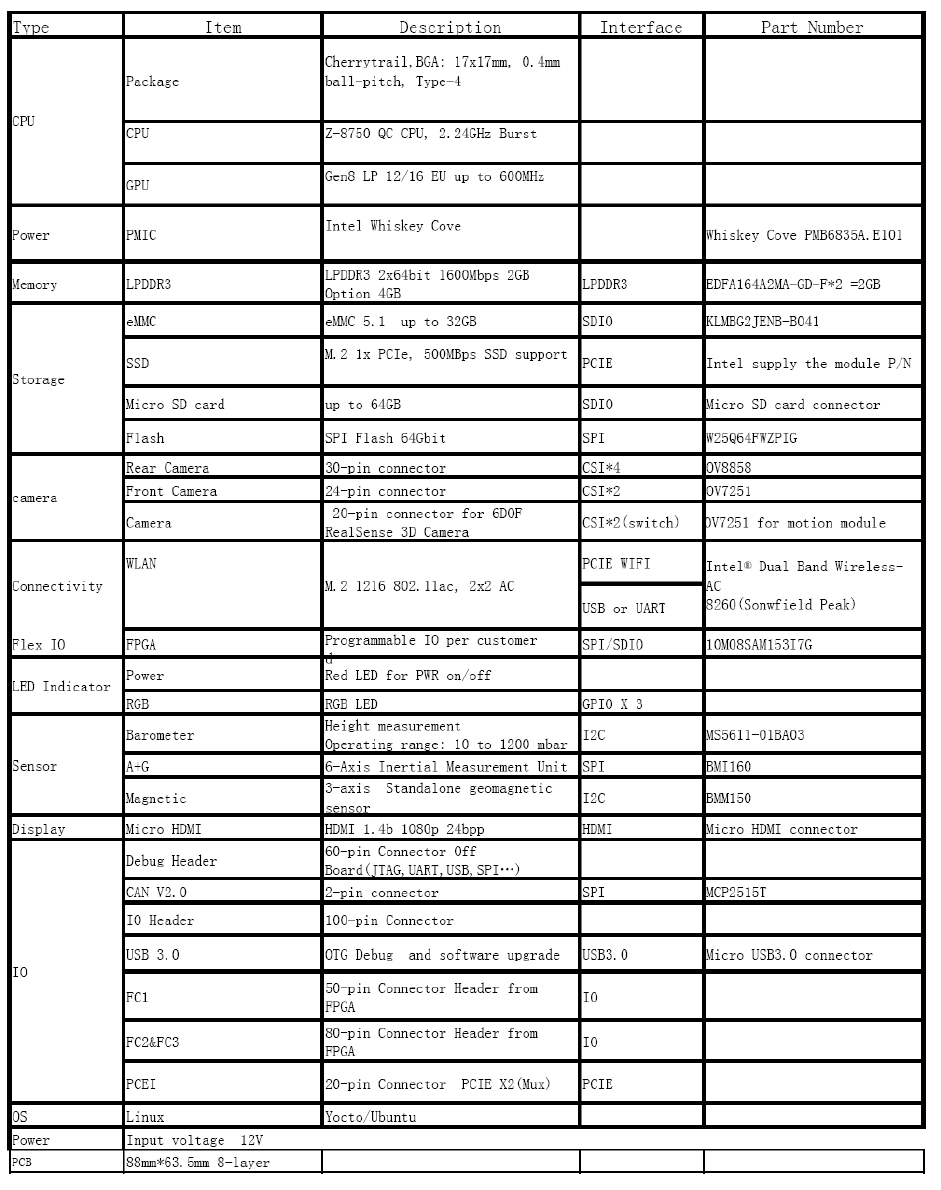

ThetableshowsthespecificationandinterfacethataresupportedontheCloudRestmodule



2 CloudRestFunctionValidation

2.1 Board connection and Operate

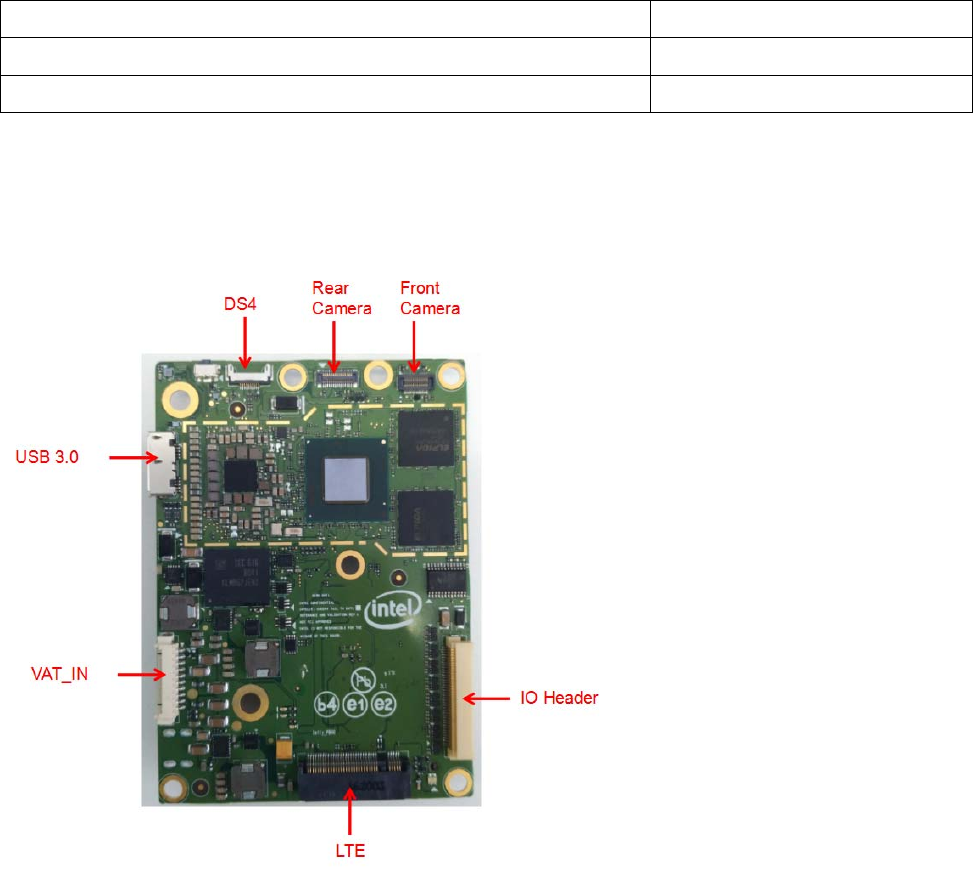

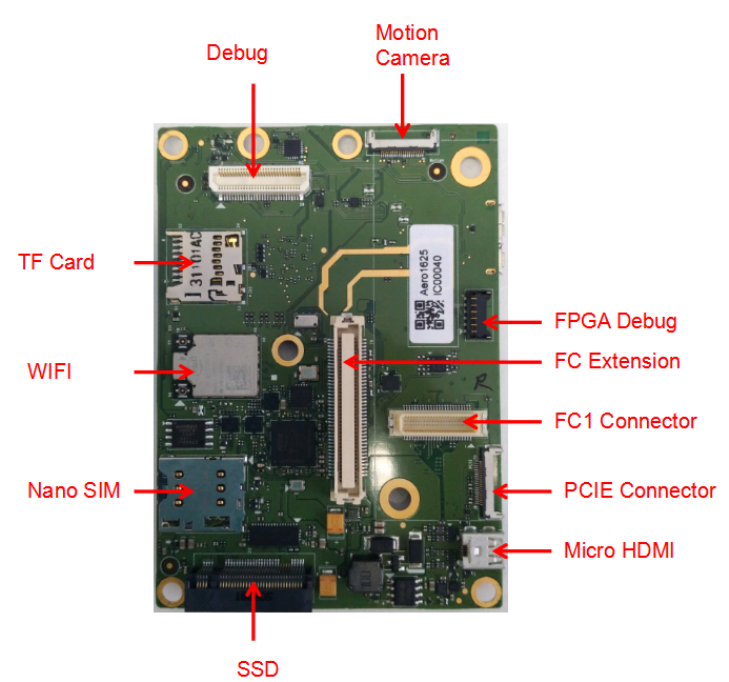

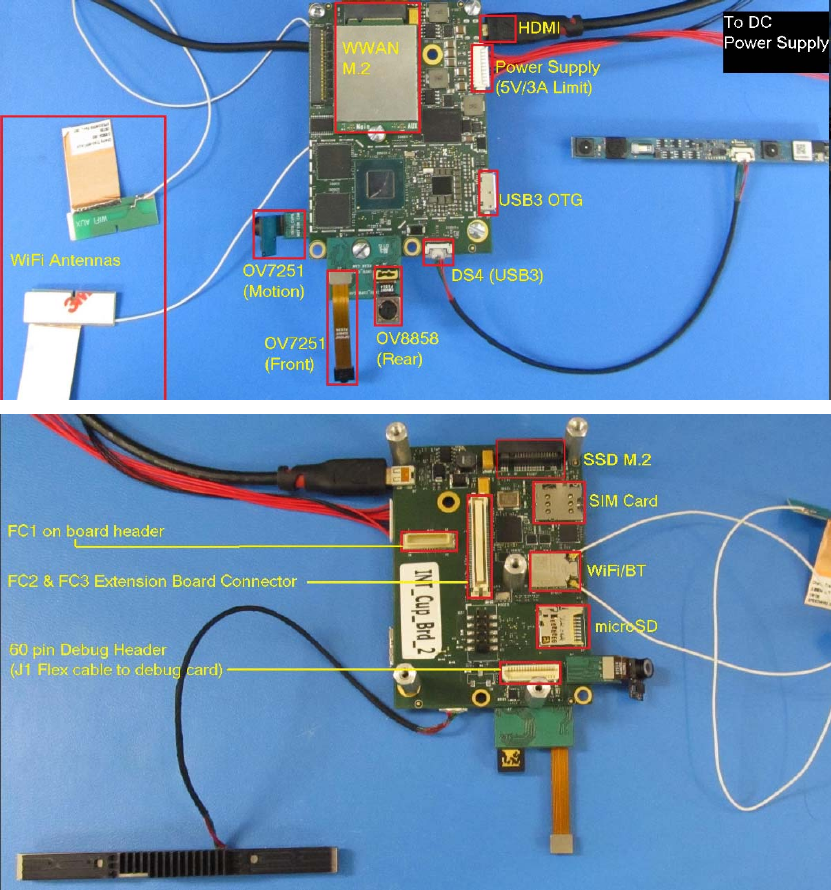

ThebelowpicturesdepictthefrontandbacksideoftheCloudRestdeviceandtheperipherals

connected



2.1.1 Poweron

Poweronwith12V/2ADCadaptorwith10pinpowercable.Systemwillbootupautomaticafter

pluginpowercableonVAT_INconnector

2.1.2 EMMCCommand

NA

2.1.3 SSDCommand

NA

2.1.4 MicroSDCommand

NA

2.1.5 MotionCameraCommand

NA

2.1.6 RearCameraCommand

NA

2.1.7 FrontCameraCommand

NA

2.1.8 DS4CameraCommand

1)login:root

password:Cr1BsP2aDmIn3



2)command

exportDISPLAY=:0

DSSimpleCaptureGL



2.1.9 WLANOperation

Intel®Dual‐BandWireless‐AC8260(codenameSnowfieldPeakorSfP)isM.2connectivitymodule

forNotebooks,TabletsandPCs.Itsupports802.11abgn+acMIMO2x2radiotechnology

　

WhenyouhavebothupdateDRTUanddrtu_core18_aero.tar.bz2,pleasegowith:

[InboardDUT]

1)copydrtu_core18_aero.tar.bz2toyourboard.

2)de‐compressitlike"tarvzxfdrtu_core18.tar.gz".

3)cddrtu_core18

4)./install.sh

5)reboot

[Windows]

1)InstalltheDRTUsetup.exe.(Justkeepclickingnextsteptilldoneinstallation)



EverytimeyouwanttorunDRTU:

[Note]YouneedtoattachaUSBethernetintheboard.

AndyouneedtomakesurebothboardandWindowscanpingeachotherIPaddress.

[BoardDUT]Runrservicestep:

1)cd/drtu_core18/

2)./enter_mfg_mode.sh



[Windows]RunDRTU:

1)UseyourWindowsDTRUconnecttoboardIP.

2.1.10 WWANCommand

NA



2.1.11 BarometerCommand

NA

2.1.12 A+GCommand

NA

2.1.13 MagneticCommand

NA

2.1.14 CAN2.0Command

NA

2.1.15 PCIECommand

NA

4.Statements

FCC Statements

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Notice:

Any changes or modifications not expressly approved by the party responsible for

compliance could void your authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

The antenna(s) used for this transmitter must not be co-located of operating in conjunction with any other antenna or

transmitter.

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. Ln order to avoid the

possibility of exceeding the Fcc radio frequency exposure limits, human proximity to the antenna shall not be less than

20cm (8inches) during normal operation.

IC Statements

This device complies with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-0003.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes :

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. The antenna

should be installed and operated with minimum distance of 20 cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC pour un environnement non contrôlé.

L'antenne doit être installé de façon à garder une distance minimale de 20 centimètres entre la source de rayonnements et

votre corps. L'émetteur ne doit pas être colocalisé ni fonctionner conjointement avec à autre antenne ou autre émetteur.

The device for the UNII band-1 is only for indoor use.
